Kenmore 66517462300 undercounter dishwasher Parts

No. Most built-in (undercounter) dishwashers are designed to fit an opening around 34 to 35 inches high, not a fixed 33 inches. For Kenmore model 66517462300, the installation instructions show it can fit a cutout as low as 33-7/8 inches when the rear wheels are removed. See the 66517462300 installation guide.

Typical dishwasher height ranges

Most undercounter dishwashers are built to adjust up or down using leveling legs and wheels so they can match common countertop openings.

• Common cutout height range: about 34" to 35"
• Some installations allow a lower fit: down to about 33-7/8" (model-dependent)
• Height is measured from the underside of the countertop to the floor
• Flooring changes (tile, laminate, built-up floors) can reduce the opening height
• Leveling legs are used to fine-tune height and keep the tub level

What the 66517462300 install specs mean

The install guide for 66517462300 describes how the dishwasher can be adjusted to match different opening heights.

Opening height at lowest point	Common adjustment approach	What to expect
34" to 34-1/2"	Use wheels position and front leveling legs	Normal slide-in installation
Less than 34"	Remove rear wheels for extra clearance	Fits lower openings but is harder to move
Around 33-3/4" or more (built-up floors)	Measure carefully; use shims if needed	Often fits without modifying countertop

How to measure correctly (quick checklist)

• Measure the opening height at the lowest point under the countertop
• Measure in multiple spots (left, center, right) to catch dips
• Confirm the dishwasher will still clear the countertop lip when sliding in
• Plan for flooring thickness and any underlayment
• Keep the dishwasher level front-to-back and side-to-side after installation

Why it matters

If the opening is too short, the dishwasher can bind under the countertop, vibrate, leak at the door seal, or be impossible to remove later for service. Measuring first helps you avoid cabinet or flooring modifications.

Last updated: February 2026

Yes. We still carry replacement parts for many Kenmore dishwashers, including Kenmore model 66517462300, as long as the part is still manufactured and available. The key is matching parts by your exact model number so items like door gaskets, drain hoses, and pump components fit correctly.

How to make sure you order the right part

Use the model number from the rating label and confirm the part location in the diagrams and parts list in the 66517462300 owner's manual.

• Match the full model number exactly: 66517462300
• Identify the failed system: wash, drain, door seal, racks, or controls
• Compare the part name and ID before ordering (not just a photo)
• Check for common wear items first: door seal, drain hose, vent gasket
• Follow the installation and safety steps in the 66517462300 installation guide

Common Kenmore dishwasher parts people replace

Here are examples of parts available for this model that cover frequent repairs:

What you are fixing	Example part for 66517462300	What it affects
Leaking at the door	Gasket W11196317	Door sealing, water containment
Not draining well	Dishwasher drain hose 8269144A	Drain flow to disposer or drain line

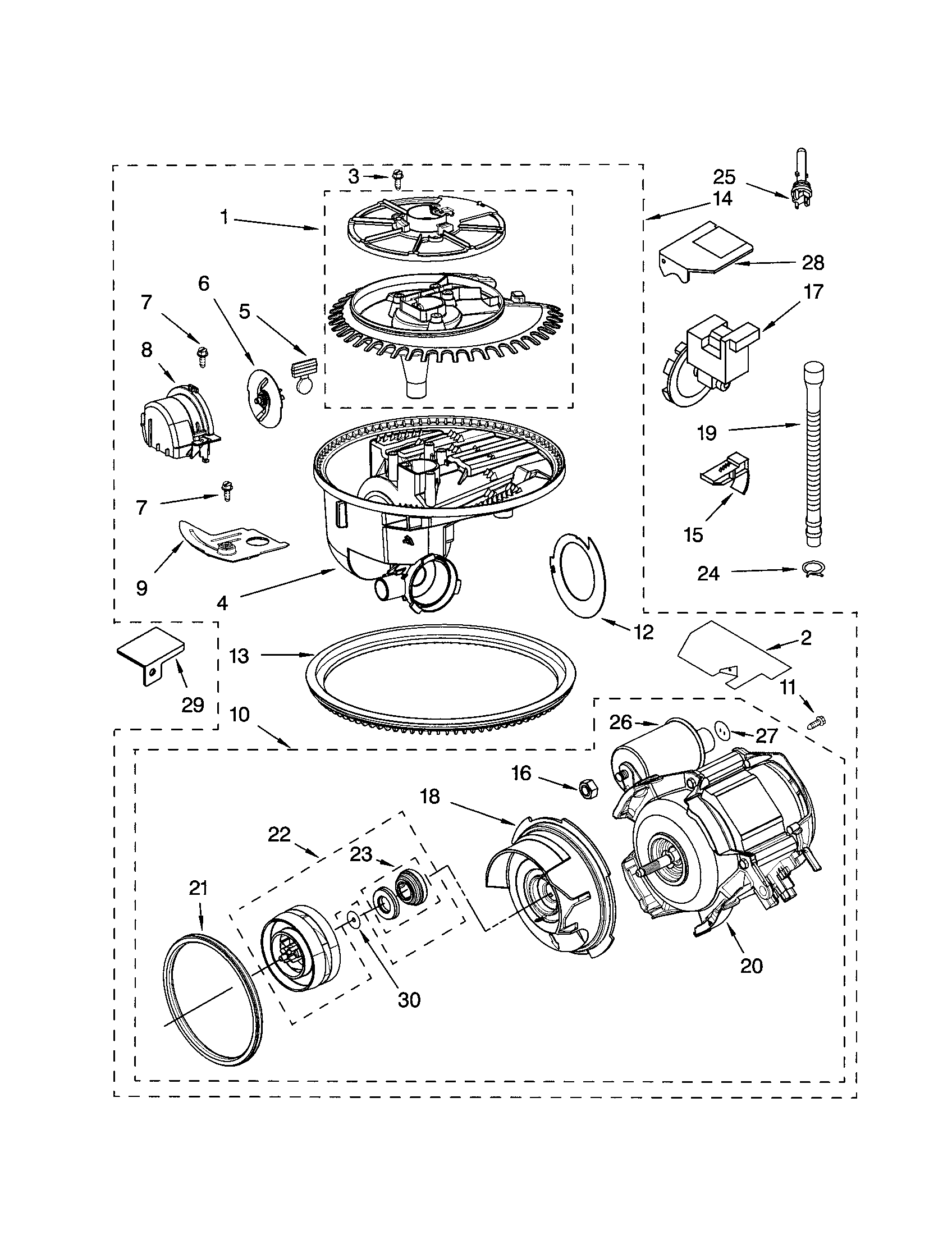

Poor wash or loud pump	Dishwasher pump and motor assembly W10782773	Circulation pressure and spray performance
No power or dead unit	Fuse 8193762	Power protection for the dishwasher

Why it matters

Kenmore dishwashers are built to run for years, but normal wear items (seals, hoses, pump components, racks) eventually need replacement. Using the correct model-specific part helps prevent leaks, repeat failures, and fit issues.

Last updated: February 2026

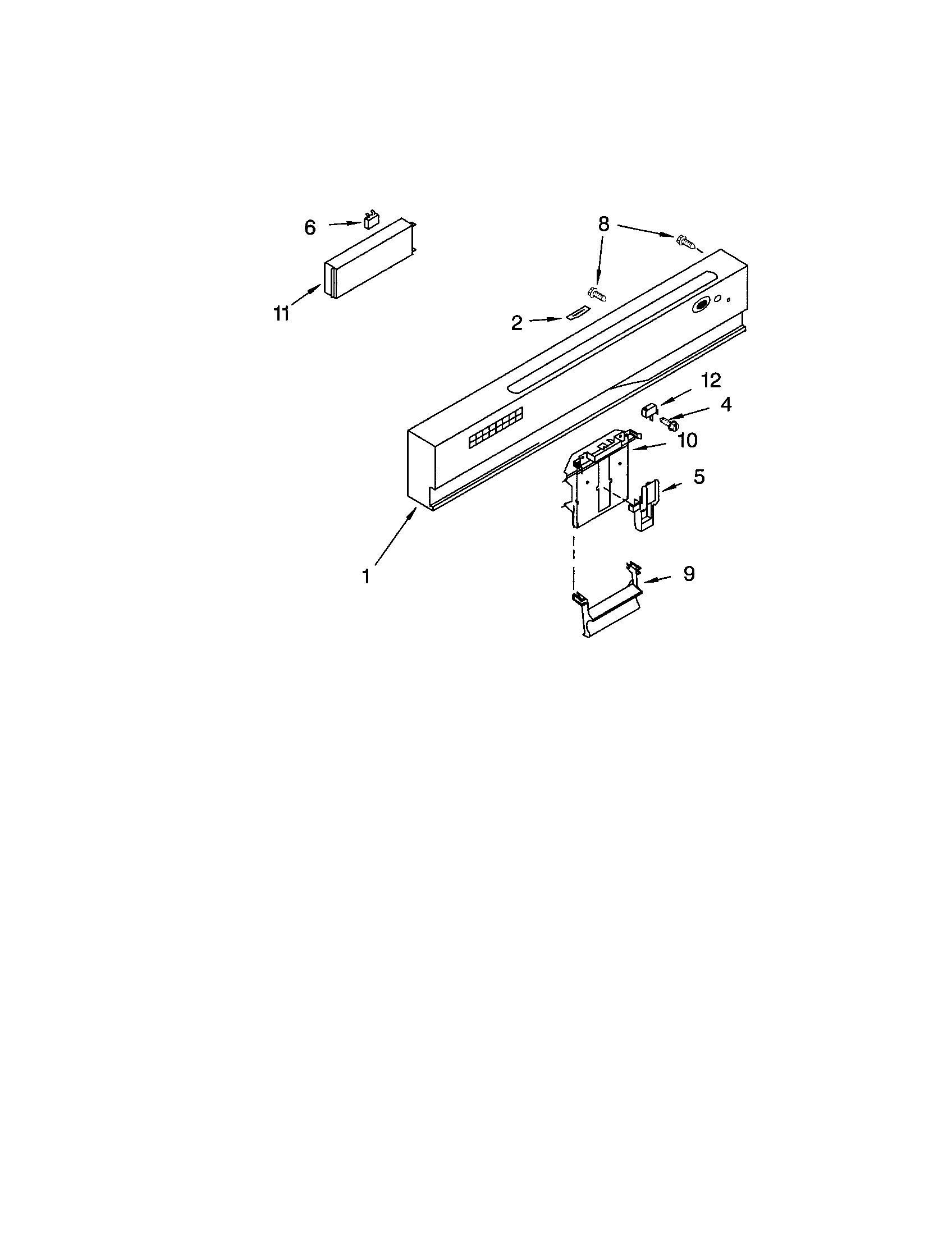

On Kenmore model 66517462300, lock mode is Lock On. To turn it off, press and hold AIR DRY for 4 seconds until the LOCK ON light turns off; the controls will work normally again (the door can still be opened while locked). See the 66517462300 owner's manual for the exact button sequence.

Quick unlock steps

• Make sure the dishwasher is in a safe state (not actively spraying).
• Press and hold AIR DRY for 4 seconds.
• Confirm the LOCK ON indicator turns off.
• If you press a button while locked, expect the light to flash 3 times.
• Close the door firmly so it latches before starting a cycle.

If the controls still seem locked

If the lock light is off but buttons still do not respond, try these common fixes:

• Press and hold AIR DRY again for a full 4 seconds (a short press will not toggle the lock).
• Cancel the current cycle, then restart a new cycle.
• If you need to change cycles mid-cycle, use the cancel procedure described in the 66517462300 owner's manual.
• Restore power by turning the breaker off for 5 minutes, then back on.

What “Lock On” does (and why it matters)

Lock On prevents unintended use and blocks cycle or option changes during a cycle. This helps avoid accidental starts, mid-cycle changes, and unexpected draining.

Indicator status	What it means	What to do
LOCK ON lit	Controls disabled	Hold AIR DRY 4 seconds
Light flashes 3 times when pressing pads	Dishwasher is locked	Use the unlock steps above
LOCK ON off	Controls available	Select cycle and press START

Last updated: February 2026

Your Kenmore dishwasher’s model number is printed on the model and serial number label, which is typically located inside the door opening on the inner door frame or on the tub wall. Once you find it, match that number exactly when ordering parts or troubleshooting.

Where to look on a Kenmore dishwasher

Check these common label locations first:

• Inside the door opening along the inner door frame
• Along the top edge of the door (visible when the door is open)
• On the tub wall near the door opening
• Behind the toe panel at the bottom front (less common)
• On the side frame of the door (near the hinges)

For the Kenmore model 66517462300, the manual’s parts and features section calls out the model and serial number label as a standard feature. See the 66517462300 owner’s manual.

What the model number looks like (and why it matters)

Kenmore dishwashers often use a numeric model format; many start with 665. Use the full model number exactly as shown on the label (no extra spaces).

Why it matters

Using the correct model number helps us match:

• Door seal and gasket shapes
• Rack and silverware basket fit
• Pump and motor assembly compatibility
• Control panel and electronic control versions
• Installation hardware and bracket styles

Quick check: model number vs. serial number

Label item	What it identifies	Used for
Model number	The exact dishwasher design	Correct parts and diagrams
Serial number	Your unit’s production run	Service history and manufacturing info

If the label is hard to read

• Wipe the label gently with a damp cloth and mild soap
• Use a flashlight at an angle to reduce glare
• Take a close-up photo and zoom in
• Compare the number you find to your paperwork or the 66517462300 installation guide

Last updated: February 2026

On the Kenmore 66517462300 dishwasher, a red lock (padlock) light means the Control Lock (Lock On) feature is turned on, so the buttons will not respond. Turn it off by pressing and holding Air Dry for 4 seconds until the lock light goes out (see the 66517462300 owner's manual).

How to confirm it is the Control Lock

• Look for the LOCK ON indicator lit on the console.
• Press any button; when locked, the lock light typically flashes.
• The dishwasher door can still be opened even when the controls are locked.
• If the unit will not start but has power, Control Lock is one of the first things to check.

How to turn Control Lock on or off (66517462300)

1. Press and hold Air Dry for 4 seconds.
2. Watch the LOCK ON light:
   • On = controls disabled
   • Off = controls enabled

Indicator status	What it means	What to do
LOCK ON lit (red lock/padlock)	Controls are locked	Hold Air Dry 4 seconds
LOCK ON off	Controls are active	Select cycle, press Start

Why it matters

Control Lock prevents unintended button presses and cycle changes, especially if the dishwasher is bumped during a cycle or if children press the keypad. If you do not unlock it, the dishwasher can appear “dead” even though power is present.

Last updated: February 2026

On a Kenmore dishwasher, an E25 code points to a drain problem; the drain pump is typically blocked, or the drain pump cover is loose or missing. On model 66517462300, start by checking for a clog in the sump area and confirming the drain path is clear per the 66517462300 owner's manual.

What to check first (fast, no parts)

• Cancel the cycle and let the unit stop completely.
• Remove the lower rack and inspect the sump area for debris (glass, labels, food).
• Check the sink drain and garbage disposal inlet (a blocked house drain can mimic a dishwasher drain fault).
• If your setup uses a countertop drain air gap, clean it; the manual notes to check the drain air gap anytime the dishwasher isn’t draining.
• Verify the drain hose isn’t kinked, crushed, or routed too low (it should loop high under the counter).

Parts that commonly relate to E25-style drain issues

If the drain path is clear but the dishwasher still won’t drain, these model-specific parts are common suspects:

• Dishwasher drain hose 8269144A (kinked, split, or internally restricted)
• Dishwasher pump and motor assembly W10782773 (pump not moving water)
• Fuse 8193762 (if the dishwasher is dead or intermittently loses power)

Quick symptom guide

What you notice	Most likely cause	What we do next
Water remains in tub after cycle	Clog in sump, air gap, hose, or house drain	Clear debris; clean air gap; confirm high loop
Humming but no drain	Pump impeller jam or pump failure	Inspect for obstruction; consider pump/motor
Drains slowly	Partial restriction in hose or air gap	Clean/replace hose; clean air gap

Why it matters

A true drain fault can leave dirty water in the tub, cause odors, and reduce wash performance. Clearing the drain path early also helps prevent pump damage and repeat error codes.

Last updated: February 2026

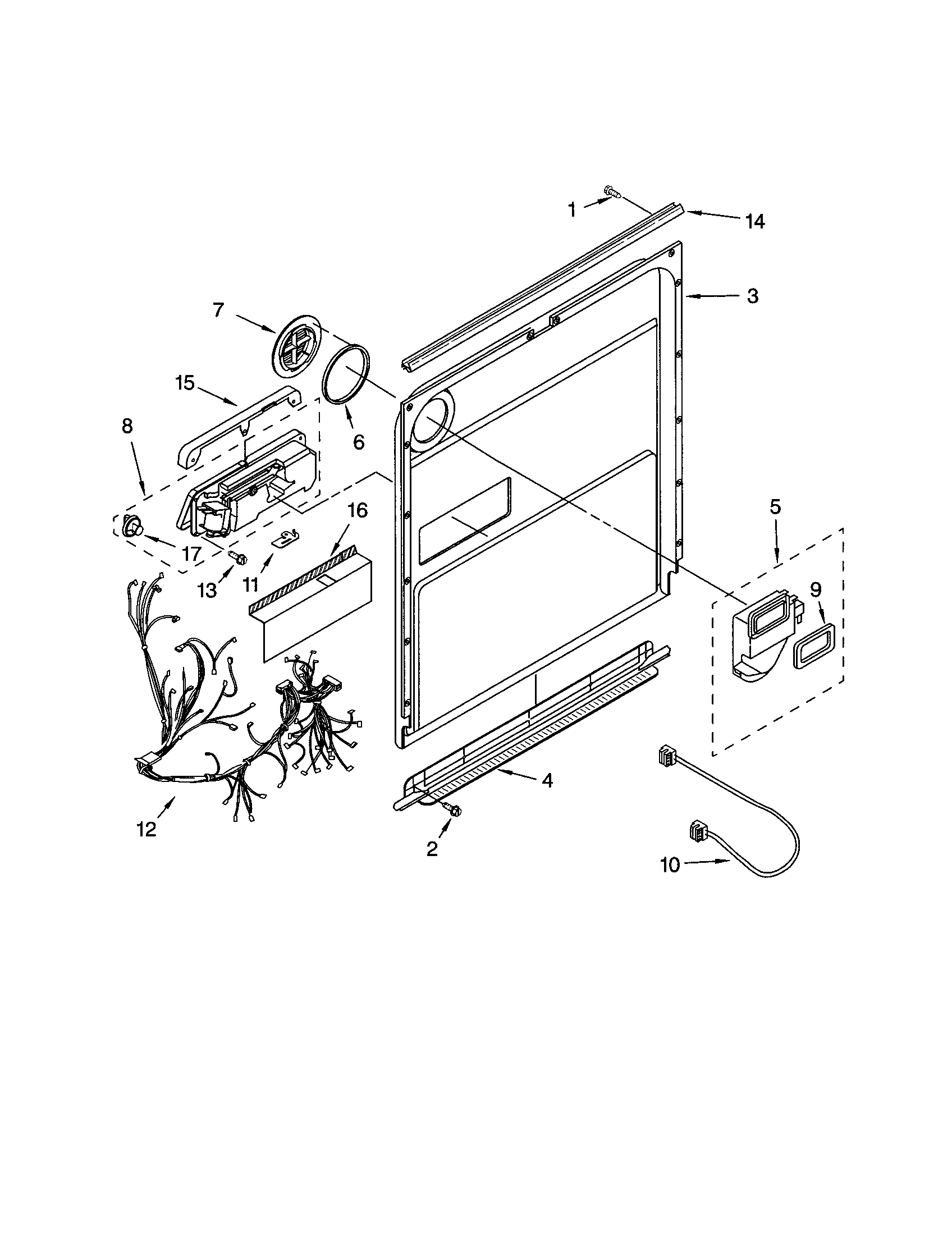

A bottom-right leak on Kenmore model 66517462300 is usually caused by water escaping at the door corner (worn door seal, debris on the sealing surface, or the door not closing squarely). Start by cleaning and inspecting the door sealing area, then check the overfill float in the front-right of the tub.

Quick checks we recommend first

• Turn off power at the breaker and shut off the water supply before inspecting.
• Wipe the inner door edge and tub lip; even a small seed or label fragment can create a corner leak.
• Inspect the door seal for cracks, flattening, hard spots, or gaps.
• Confirm the dishwasher is level and not twisted in the cabinet; a slight tilt can make one corner leak.
• Check the overfill protection float (front-right inside the tub) moves freely and is not stuck.

Parts that commonly cause a bottom-corner leak

If the leak is truly at the door corner (not from underneath plumbing), these are the most common culprits:

Leak location/symptom	Most likely cause	What to do
Water drips from bottom-right of door	Door seal not sealing	Inspect and replace the door seal if worn: gasket W11196317
Leak appears after a lot of water enters	Overfill float stuck, allowing overfill	Clear debris under the float; verify free movement using the 66517462300 user manual
Water shows up under the unit near right side	Drain hose connection or routing issue	Inspect for kinks, loose clamps, and correct routing using the 66517462300 installation guide

How we confirm the source (fast test)

1. Run the shortest wash cycle.
2. After about 2 minutes, unlatch the door, wait 5 seconds, then open it.
3. Look for water level in the bottom of the tub and check around the door edges for active dripping.
4. If you see water tracking from the right corner, focus on the seal and door alignment.

Why it matters

A small corner leak can quickly damage flooring and cabinets, and it often gets worse as the door seal hardens or the dishwasher shifts in the opening. Catching it early usually keeps the repair simple.

Last updated: February 2026
