How to tell what model Kenmore refrigerator?
Your Kenmore refrigerator’s model number is printed on the appliance ID label, usually inside the fresh food (refrigerator) compartment on a side wall or ceiling, or behind/under the toe grille near the floor. For ordering parts, match that label exactly (for example, 2537419240P).
Where to look on a Kenmore top-mount refrigerator
Check these common locations first:
- Inside the fresh food compartment on the left or right side wall
- On the ceiling of the fresh food compartment (near the light)
- Behind a crisper drawer (remove the drawer and look on the liner wall)
- Behind the toe grille (kick plate) at the bottom front
- On the back exterior panel (less common, but worth a quick look)
What to write down (and why)
Record the information exactly as shown on the label.
- Model number: required to get the correct shelves, gaskets, ice maker parts, and electrical components
- Serial number: helps identify production run details when parts changed mid-series
- Brand and prefix: Kenmore model prefixes can help narrow down the platform
Quick checklist
| Label item | Example | What it’s used for |
|---|---|---|
| Model number | 2537419240P | Correct part fit and diagrams |
| Serial number | (varies) | Version matching and service history |
| Electrical rating | (varies) | Verifying bulbs, controls, and safe power specs |
Why it matters for parts and repairs
Kenmore refrigerators often have similar-looking doors, bins, and controls across multiple models. Using the exact model number prevents ordering the wrong door gasket, hinge hardware, or ice maker component.
If you are installing, leveling, or removing panels to access the label, follow the clearances and toe grille guidance in the installation guide.
Last updated: February 2026
What is a fridge with freezer on top called?
A fridge with the freezer on top is called a top-freezer refrigerator, also commonly called a top-mount refrigerator. Your Kenmore 2537419240P is this style, with the freezer compartment above the fresh-food compartment.
What “top-freezer” (top-mount) means
A top-freezer refrigerator has two side-swing doors:
- Upper door: freezer compartment
- Lower door: refrigerator (fresh-food) compartment
- Classic layout: freezer on top, fridge below
- Common benefits: simple design, easy access to freezer, typically fewer dispenser-related parts
Quick comparison of common refrigerator styles
| Style name | Freezer location | Typical door layout |
|---|---|---|
| Top-freezer (top-mount) | Top | Two side-swing doors |
| Bottom-freezer | Bottom | Upper fridge door(s), lower freezer drawer/door |
| Side-by-side | Left side | Two tall side-swing doors |
| French door | Bottom | Two upper doors, lower freezer drawer |
Why it matters when you’re installing or troubleshooting
Knowing the style helps you use the right setup and checks for airflow, door sealing, and leveling. For the Kenmore 2537419240P, our installation guidance includes clearances and leveling targets that affect cooling and door alignment.
- Allow typical installation clearances (sides/top and back) for airflow
- Level the cabinet side-to-side
- Tilt the refrigerator slightly back (about 1/4 inch) so doors close and seal well
- Confirm door seals contact the cabinet on all sides
- Recheck for water leaks after hookup (including again after 24 hours if connected)
For the model-specific installation checklist and leveling guidance, use the installation guide.
Last updated: February 2026
Can I buy extra fridge shelves?

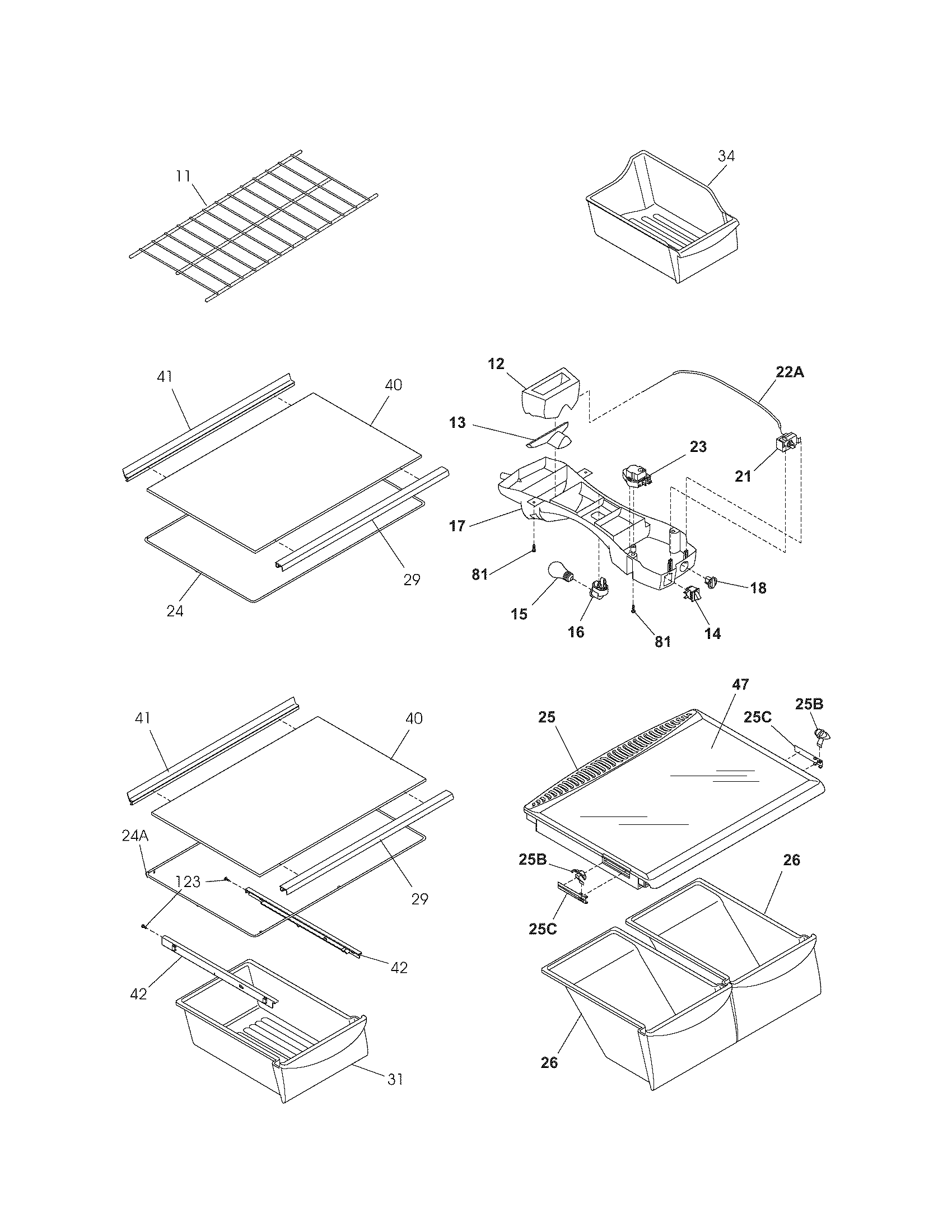

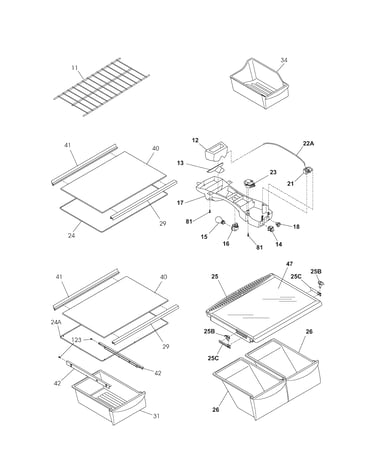

Yes. For your Kenmore 2537419240P top-mount refrigerator, you can buy additional shelves as long as the replacement matches your shelf style and mounting points (frame, trim, and supports) so it locks in securely and sits level. Use the parts list for your model to choose the correct shelf components.
How to make sure you get the right shelf
We recommend matching the shelf by location and how it attaches inside the fresh food compartment.
- Confirm whether you need a full shelf assembly or just a component (frame, trim, or support)
- Compare the shelf width and depth to your existing shelf before ordering
- Check how it mounts (rear hooks, side rails, or support tabs)
- Inspect the liner for cracked mounting points that can make a new shelf feel loose
- If you are adding a shelf, verify there is an open set of shelf slots at the height you want
Shelf-related parts commonly replaced
If your shelf is sagging or will not stay seated, the issue is often a trim or support piece rather than the glass itself.
| What you are fixing | What to check first | Example part for this model |
|---|---|---|
| Shelf will not sit level | Broken trim or warped frame | Frigidaire refrigerator shelf trim 240357704 |
| Shelf feels loose on the door side | Cracked support point | Door rack support (240534901) - refrigerator shelving part by frigidaire 240534901 |
| Shelf rattles after closing door | Shelf not fully seated in slots | Reseat shelf and confirm slots are not damaged |
Why it matters
A correctly fitted refrigerator shelf helps airflow stay consistent, prevents spills from spreading, and keeps door closing pressure from shifting items. A shelf that does not lock into place can crack, drop food, or damage the liner.
Installation and fit tips
When you install or reposition shelves, keep the cabinet level so shelves do not drift forward. The leveling steps and clearances in the installation guide help prevent door swing and alignment issues that can stress shelves over time.
Last updated: February 2026
What are the common problems with Kenmore Elite refrigerators?
Common problems we see on Kenmore top-mount refrigerators like model 2537419240P include warm fridge or freezer temperatures (airflow or defrost issues), frost buildup, water leaks from a clogged defrost drain, and unusual fan noises. Many symptoms trace back to door sealing, fan operation, or the defrost system.
Most common symptoms and what they usually mean
- Not cooling well: dirty condenser area, weak airflow, or a defrost failure icing up the evaporator
- Frost or ice buildup: defrost heater/thermostat/timer issue, or doors not sealing fully
- Loud humming, rattling, or squealing: evaporator fan blade rubbing ice, or a failing fan motor
- Water pooling inside or under the unit: defrost drain restriction or ice melt overflow
- Doors not closing or uneven doors: cabinet not level, hinge wear, or gasket not sealing
Quick checks we recommend first (no parts required)
- Confirm clearances and airflow: allow about 3/8 inch at the sides and top and 1 inch at the back for proper air circulation.
- Verify the cabinet is level: the installation guidance calls for the refrigerator to be level side-to-side and tilted 1/4 inch (6 mm) front-to-back.
- Inspect door seals: the door should seal completely to the cabinet on all sides.
- Listen for the evaporator fan: a fan noise change often points to ice buildup or a damaged blade.
- Give temperature changes time: after adjusting controls, wait 24 hours before making more changes.
Parts that commonly solve these problems on 2537419240P
| Symptom | Common suspect part | Example part on this model page |
|---|---|---|
| Frost buildup, warm fresh food | Defrost system issue | Refrigerator defrost heater 5303918247, refrigerator defrost bi-metal thermostat 5303918202, refrigerator timer 215846602 |
| Warm temps, noisy airflow | Evaporator fan issue | Refrigerator evaporator fan blade 5308000010 |
| Door not sealing, moisture/frost | Door gasket issue | Refrigerator gasket 241872512 or refrigerator freezer door gasket 242193211 |
Why it matters
Cooling and frost problems usually start as an airflow or sealing issue; if they continue, temperatures rise, food spoils faster, and the refrigerator can run longer than normal. Leveling and door sealing checks are fast and often prevent repeat icing and leak complaints.
For model-specific setup details (clearances, leveling, final checks), use the installation guide.
Last updated: February 2026
