GE DBL333EB1WW electric dryer Parts

GE electric dryers like model DBL333EB1WW do not use a true “factory reset” like a phone. In most cases, a reset is simply clearing the control by removing power for a short time, then restoring power and reselecting your cycle.

Quick reset steps (power reset)

• Turn the dryer OFF.
• Unplug the power cord (or switch OFF the dryer breaker).
• Wait 1 to 5 minutes.
• Restore power.
• Select a cycle and press Start.

If the dryer still will not start

A “reset” will not fix a failed start circuit, door switch issue, or overheating safety trip. Check these common causes:

• Confirm the door is fully closed and the latch engages.
• Verify the outlet has 240V (electric dryers can run but not heat on partial power).
• If the dryer overheated, inspect and clear lint buildup and vent restrictions.
• If the Start button does nothing, the start switch can be the failure point.
• If the dryer runs briefly then stops, a heat or airflow problem is likely.

Symptom	Most likely area	What to do next
No response when pressing Start	Start circuit	Test/replace the dryer start switch WE4X881
Runs but no heat	Power supply or heating circuit	Check breaker, cord, terminal block, heating components
Stops mid-cycle, very hot	Airflow restriction or safety device	Clean venting, check thermal limiter
Long dry times	Venting or lint screen restriction	Clean lint screen and vent path

Why it matters

On the DBL333EB1WW, most “reset” requests are really symptoms of a power interruption, control lockup, or a safety shutdown caused by poor airflow. Restoring power can clear a temporary glitch, but fixing airflow and failed parts prevents repeat shutdowns and long dry times.

Last updated: February 2026

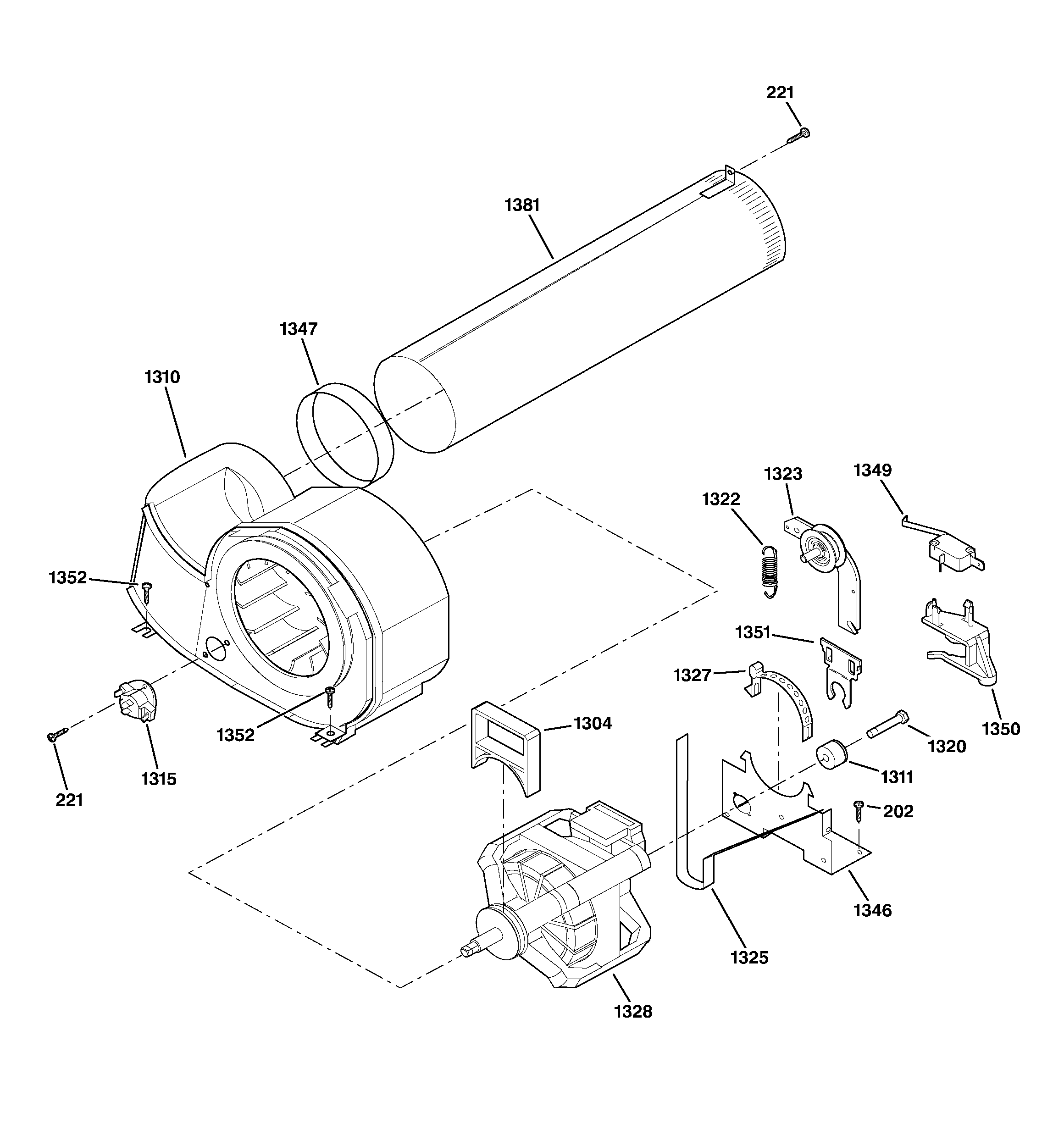

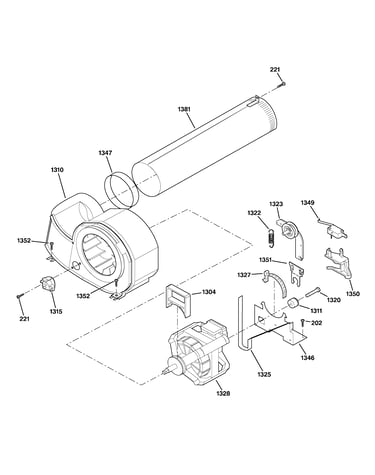

On the GE DBL333EB1WW electric dryer, the thermal fuse (often called a thermal limiter on some models) is typically mounted on the blower housing or exhaust duct inside the cabinet, close to where air leaves the drum. On this model, the most relevant safety cutout part is the dryer thermal limiter WE04X10094.

Typical location on this dryer style

Most GE electric dryers place the thermal safety device in the airflow path so it can sense overheating quickly. Common mounting spots include:

• On the blower housing near the lint duct
• On the exhaust outlet duct inside the rear or lower cabinet area
• Near the heater housing (less common than blower or exhaust on many GE designs)

How we recommend accessing it (safe, practical steps)

Because the fuse is inside the cabinet, access usually requires removing a panel.

• Unplug the dryer (or switch off the breaker) before opening any panels
• Pull the dryer away from the wall so you can work safely
• Remove the rear panel or lower front access panel (whichever your cabinet uses)
• Follow the exhaust duct from the lint chute toward the blower housing; look for a small, flat safety device with 2 wires
• Label wires before disconnecting anything so they go back on the same terminals

Quick ID guide: thermal fuse vs. thermostat

These parts can look similar; location and function help you tell them apart.

Part type	What it does	Typical mounting area
Thermal fuse / thermal limiter	Opens permanently if the dryer overheats	Blower housing or exhaust duct
Cycling thermostat	Regulates normal drum temperature	Blower housing or heater housing

If you are also tracking temperature issues, the thermostat WE4X757 is another common component in the same general area.

Why it matters

A blown thermal fuse or thermal limiter usually points to restricted airflow (lint buildup, crushed vent, blocked exhaust tube). Replacing the part without fixing the venting problem often leads to repeat overheating and another failure.

Last updated: February 2026

On a GE electric dryer like model DBL333EB1WW, the part number is printed on the part itself, not on the model/serial tag. Start by finding the model/serial tag inside the door opening, then match the failed component to the correct replacement part listing.

Where to look first (fastest checks)

• Open the dryer door and check the door opening and door frame area for the model/serial tag.
• Look behind the control panel area if you do not see a tag at the door.
• For the part number, inspect the actual component (switch, thermostat, belt, etc.) for a sticker or stamped number.
• If the part is hard to access, identify it by function and location, then match it to the parts list for DBL333EB1WW.

Common places part numbers appear on the part

Most GE dryer parts have the manufacturer number on a label, ink stamp, or molded plastic.

Part type	Where the number is usually found	Example part you can match by name/ID
Switches	Side of the switch body	Dryer start switch WE4X881
Thermostats/limiters	Flat face or edge of the metal disc	Dryer thermal limiter WE04X10094
Belts	Printed along the belt (may be faint)	Dryer belt WE12X10009
Knobs	Back side of the knob or inside hub	Selector knob WH01X10060

Why matching by model matters

GE often uses similar looking parts across multiple dryers, but the mounting, wiring terminals, and temperature ratings can differ. Using the DBL333EB1WW model number helps us narrow to the correct thermostat, thermal limiter, belt, or start switch for your exact configuration.

Tips before you order

• Unplug the dryer before removing panels or touching wiring.
• Take a photo of the part and wire positions before disconnecting anything.
• If you find multiple numbers on the part, use the manufacturer-style number (often starts with letters like WE).
• When in doubt, match by part name and location (for example, start switch in the console, thermal limiter on the heater housing).

Last updated: February 2026

On the GE DBL333EB1WW electric dryer, the safety “fuse” most people mean is the thermal limiter or thermal fuse. It’s typically mounted on the blower housing (near the exhaust duct) or on the heater housing inside the cabinet, not on the control panel.

What to check first (safe, quick steps)

• Unplug the dryer (or switch off the breaker) before removing any panels.
• Pull the lint screen and clean it completely.
• Check the vent hose for kinks, crushing, or heavy lint buildup.
• Make sure the outside vent hood opens freely and is not blocked.
• If the dryer overheated recently, plan to check airflow before replacing any safety device.

Common locations inside the cabinet

Most GE electric dryers place the overheat safety device in one of these spots:

Part type (what people call it)	Typical mounting location	What it does when it trips
Thermal limiter / thermal fuse	Blower housing near the exhaust outlet	Cuts power to heat (and sometimes stops the dryer)
High-limit thermostat	Heater housing	Cycles or limits heater temperature

For this model, the part you’ll most often see referenced as the “fuse” is the dryer thermal limiter WE04X10094.

How we recommend confirming you found the right part

• Look for a small, flat device with 2 wires on the blower housing or heater housing.
• Compare the wire terminals and mounting holes to the replacement part.
• If you have a multimeter, check continuity with power disconnected; a blown thermal fuse typically reads open.
• If the thermal limiter is open, correct the overheating cause (usually restricted venting) before running the dryer again.

Why it matters

A thermal fuse or thermal limiter usually opens because the dryer is overheating. Replacing the part without fixing airflow can cause repeat failures, longer dry times, and higher energy use. For airflow and performance tips, we recommend how to keep a dryer clean and economical.

Last updated: February 2026
