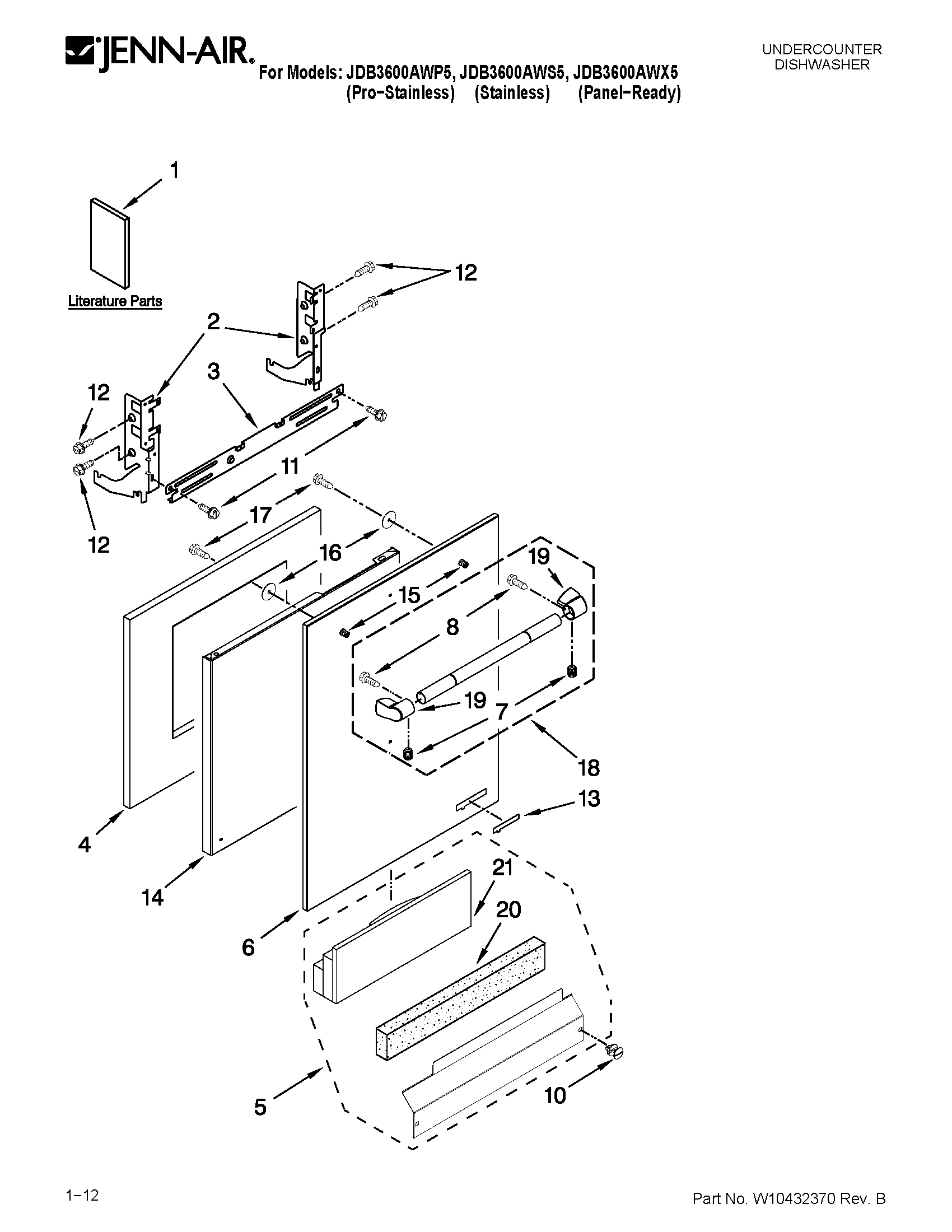

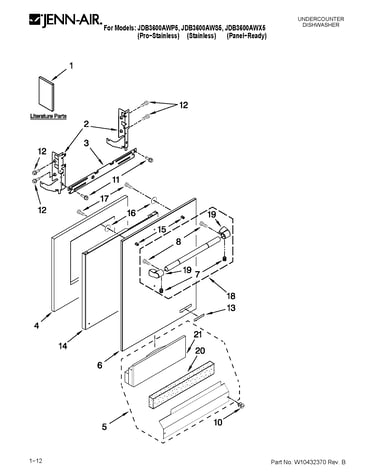

JDB3600AWP5 is the model number for a Jenn-Air undercounter dishwasher, not an error code or a payroll code. We use that model number to match the correct parts list, diagrams, and specifications for your exact dishwasher; see the owner's manual for model identification details.

What “JDB3600AWP5” tells you

This model number identifies the exact Jenn-Air dishwasher configuration so you get compatible replacement parts (like a drain pump, water inlet valve, or spray arm) and the right installation requirements.

• Brand: Jenn-Air
• Appliance type: undercounter dishwasher
• Use it to look up: parts diagrams, troubleshooting steps, and installation details
• Where to find it on the unit: on the model and serial label inside the dishwasher near the door area

Model number vs. error code (quick comparison)

Item	What it is	Where you see it	What to do with it
Model number (JDB3600AWP5)	Identifies the dishwasher version	Rating label inside the tub near the door	Use it to select correct parts and instructions

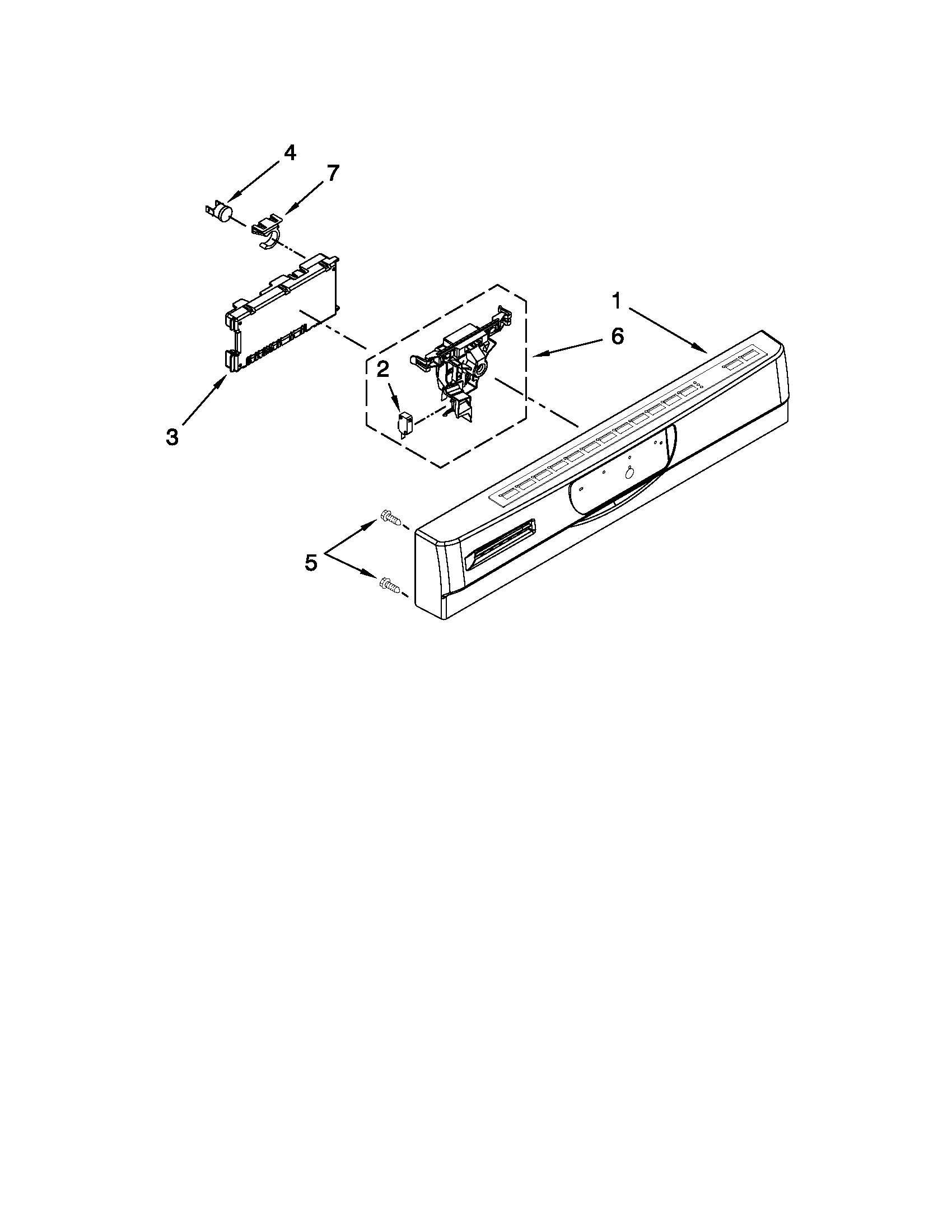

Error code	A fault indicator (letters/numbers)	Control panel display or blinking lights	Use it to diagnose a specific problem

Why it matters

Using the correct model number prevents ordering the wrong dishwasher parts and helps you follow the right installation and service procedures for your Jenn-Air JDB3600AWP5.

Common parts customers match using this model

If you are troubleshooting a symptom (not an error code), these are common part categories tied to wash, fill, and drain performance:

• Drain issues: drain pump, drain hose
• No fill or slow fill: water inlet valve, water inlet tubing
• Poor cleaning: spray arm, filter
• Heating/drying problems: heater element, thermostat

Last updated: February 2026

Yes. For Jenn-Air model JDB3600AWP5, you can replace dishwasher racks as complete assemblies (upper or lower) or repair common rack issues by replacing rack hardware such as the upper rack adjusters. Use the parts list for your exact model to ensure proper fit. See the owner's manual for rack removal and adjustment steps.

What you can replace on JDB3600AWP5

Replacement options typically fall into two categories:

• Replace the whole rack when the frame is badly rusted, bent, or missing tines.
• Replace rack components when the rack is fine but it will not adjust, rolls poorly, or will not stay on the track.

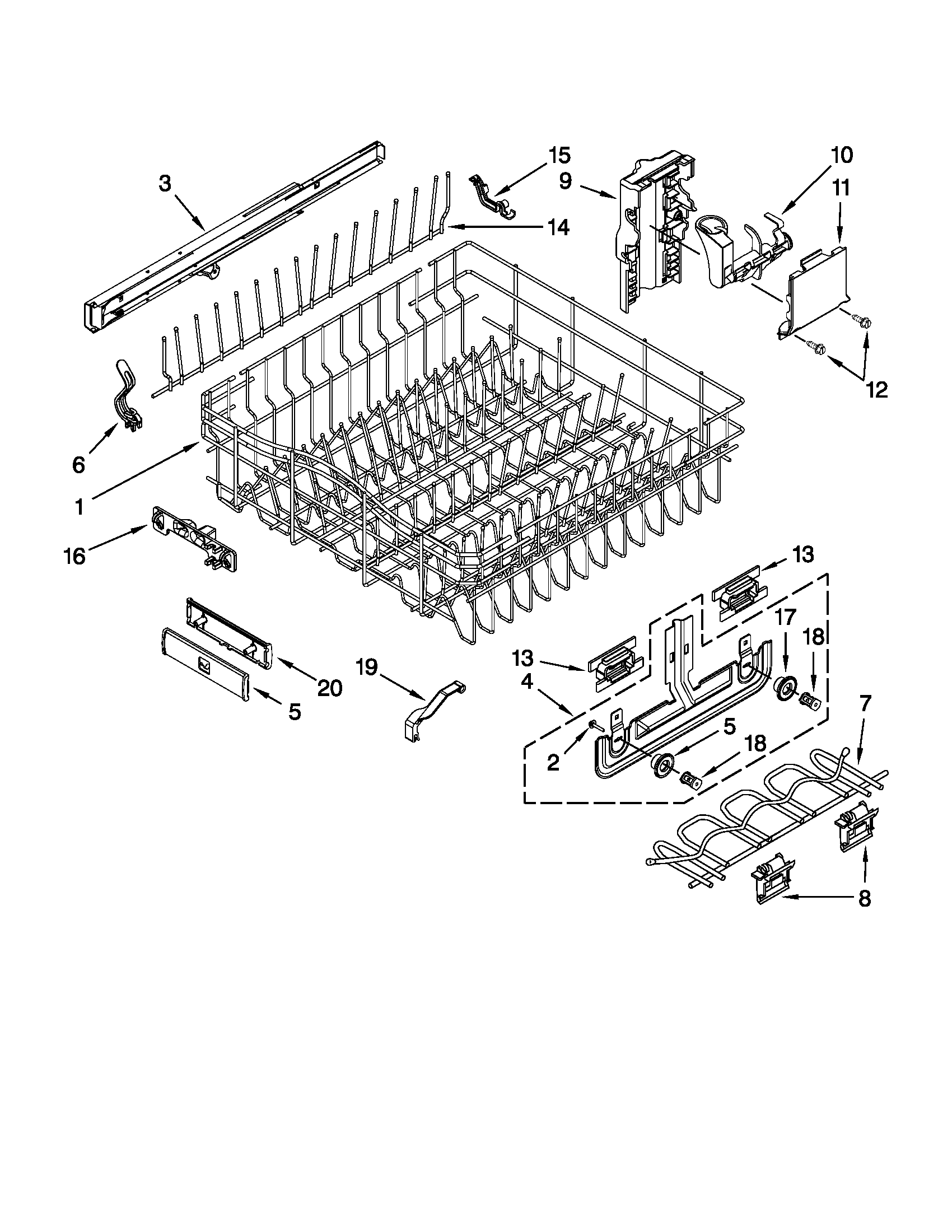

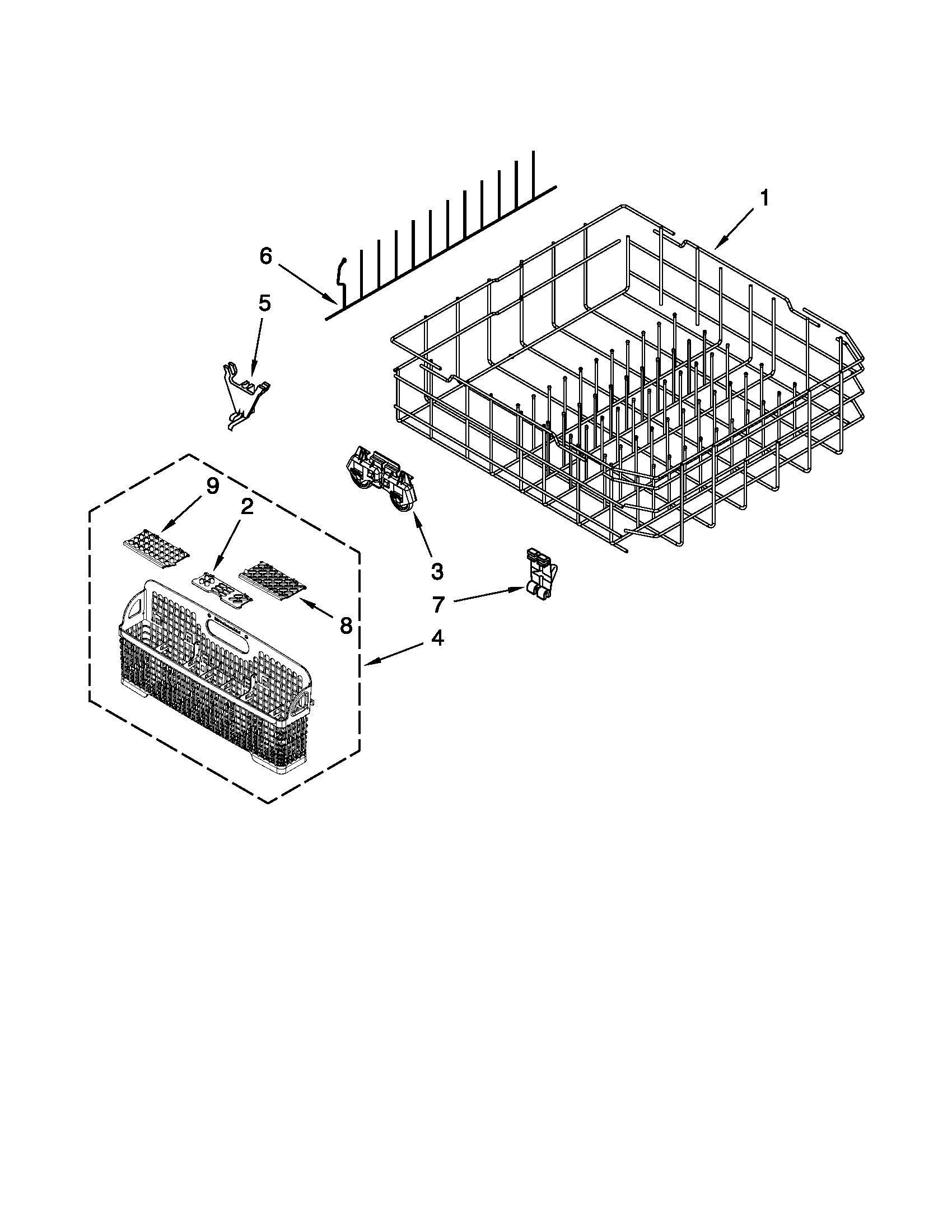

Common rack-related parts available for this model include:

• Adjuster W10712394 (dishrack adjuster kit)
• Dishrack W10315891 (lower dishrack)
• Dishwasher dishrack, upper W11661174 (upper dishrack)

Quick checks before you buy a rack

These steps often confirm whether you need a full rack or just hardware:

• Verify the rack is fully seated in both tracks and level.
• Inspect the track stops; if they are open or damaged, the rack can slide out.
• Check for broken adjusters/rollers on the upper rack.
• Look for rusted-through tines; widespread rust usually means rack replacement.
• Confirm you are shopping by model number JDB3600AWP5, not just the series.

Upper rack removal and reinstall (high level)

Your manual outlines the basic process: pull the rack forward, open the track stops, lift wheels out of the track slots, then reverse the steps to reinstall. This is especially helpful when you are swapping an upper rack or installing new adjusters. See the owner's manual for the exact sequence and safety notes.

Cost and repair decision guide

Situation	Best fix	Why
Rack frame bent or heavy rust	Replace the rack	Restores fit and prevents snagging
Rack will not raise/lower	Replace adjusters	Fixes the 2-position height function
Rack falls off track	Check track stops and rails	Prevents derailment and damage

Why it matters

A correctly fitting rack keeps spray arms clear, prevents dishes from blocking wash action, and helps the door seal properly. A rack that derails or sags can also cause poor cleaning and repeated cycle interruptions.

Last updated: February 2026

Yes. The Jenn-Air JDB3600AWP5 undercounter dishwasher uses a filter system (a lower filter plus an upper filter assembly) that must be installed and locked in place for proper washing and to help protect the pump and sump. See the owner's manual for filter location and handling.

What filter parts are in this dishwasher?

This model uses a two-piece setup:

• Lower filter: sits in the bottom of the tub under locating tabs
• Upper filter assembly: inserts into the lower filter opening and twists to lock
• Locating tabs/openings: keep the filters aligned so water flow and drainage work correctly

How to remove, clean, and reinstall the filter

We recommend cleaning the filter when you notice poor cleaning, grit on dishes, or slow draining.

• Pull out the bottom rack for access.
• Lift out the filter components from the bottom of the tub.
• Rinse under warm water; use a soft brush if needed (avoid harsh scrubbing that can damage mesh).
• Reinstall the lower filter under the locating tabs.
• Insert the upper filter assembly and rotate clockwise until it drops and locks.

Quick check: is the filter locked?

What you see	What it means	What to do
Upper filter turns freely	Not locked	Keep turning clockwise until it drops and locks
Upper filter stops firmly	Locked	You are set

Why it matters

Running the dishwasher without the filters properly installed can reduce cleaning performance and can lead to debris getting into the wash system. Keeping the filter clean also helps the spray arm and drain pump move water the way they should.

Parts that often get attention when filter issues show up

If cleaning the filter does not fix symptoms like poor wash coverage or standing water, these model-matched parts are common next checks:

• Dishwasher filter W10872845 (damaged or warped filter components)

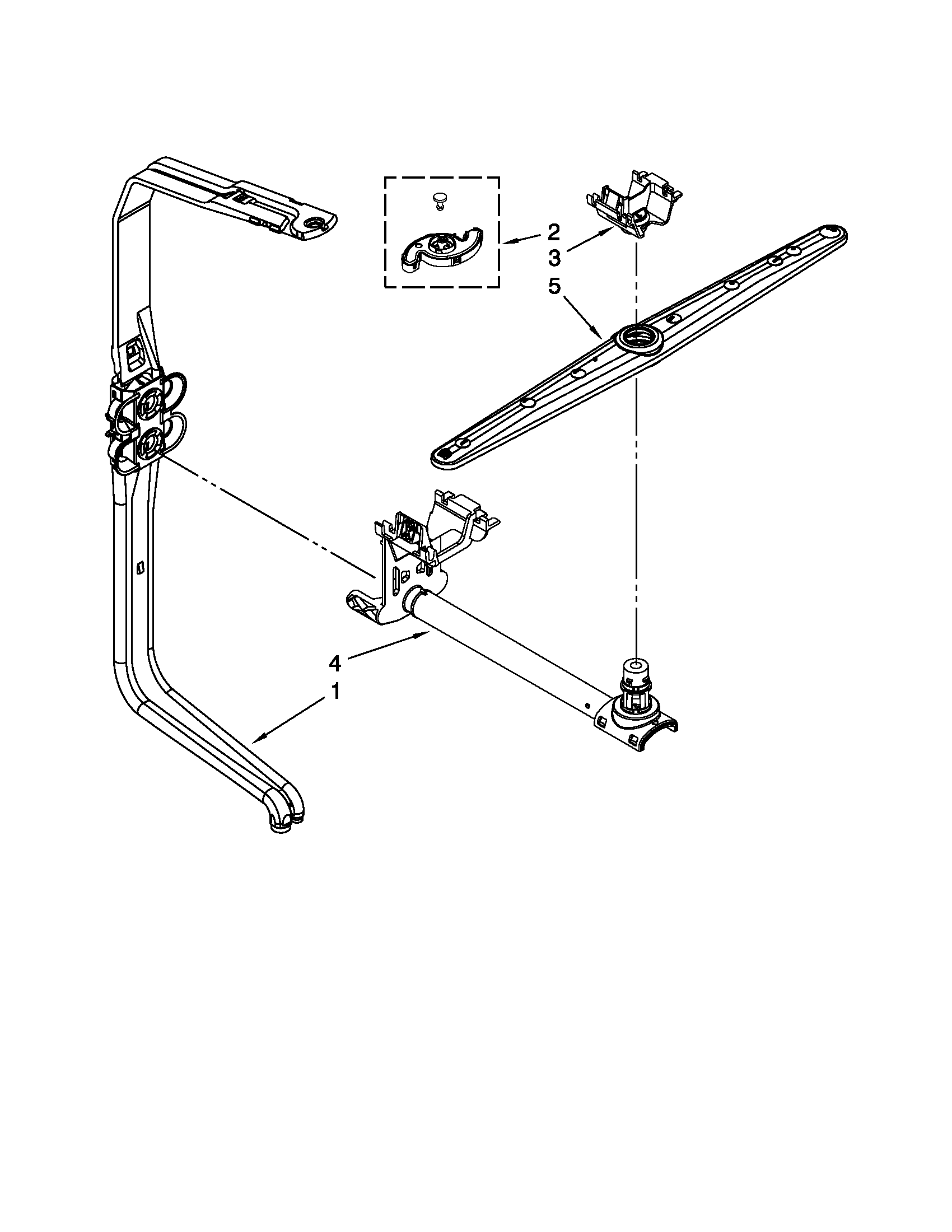

• Dishwasher spray arm WPW10491331 (clogged jets reduce wash pressure)
• Dishwasher drain pump WPW10348269 (won’t evacuate water well)

Last updated: February 2026

If your Jenn-Air JDB3600AWP5 dishwasher is leaking from the bottom, the most common causes are a loose or mis-seated water supply compression fitting, a drain connection that is not fully seated or clamped, or a leak in the wash/drain system (pump, sump, hose, or tub gasket). Start by checking the water inlet and drain connections, then inspect the pump area for drips.

Quick checks we recommend first

• Turn off power at the breaker and shut off the water supply before inspecting.
• Pull the toe-kick panel and look for the first wet spot (front-left, front-right, center).
• Check the water supply elbow/compression fitting for seepage.
• Check the drain hose connection at the black drain hose connector and confirm the clamp is tight.
• Run a short cycle and watch with a flashlight for the exact drip point.

Installation-related leak points (very common)

Your installation instructions call out two leak-prone connections:

• Water supply fitting: The rubber washer must be properly seated; hand-tighten to avoid cross-threading, then snug with pliers (an extra 1/2 to 3/4 turn is often needed). Do not overtighten.
• Drain hose connection: The drain hose must be pushed fully into the connector up to the stop, then secured with the clamp.

For the exact connection steps and leak-check method (paper towel under the elbow fitting), use the installation guide.

Parts that commonly cause bottom leaks

If the connections are dry, the leak usually comes from a circulating or draining component underneath.

• Cracked or leaking drain hose: dishwasher drain hose 8269144A

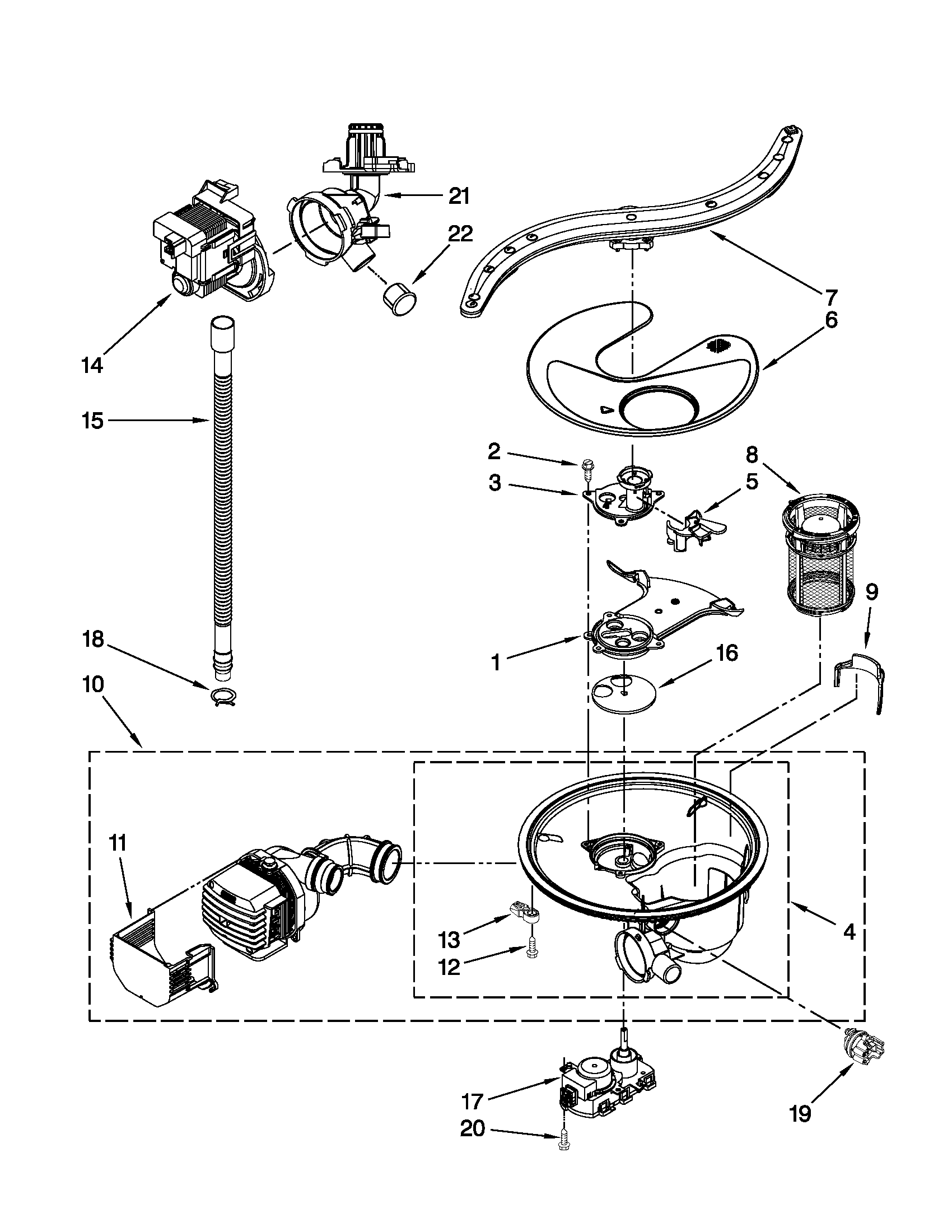

• Drain pump leaking at the housing or seal: dishwasher drain pump WPW10348269

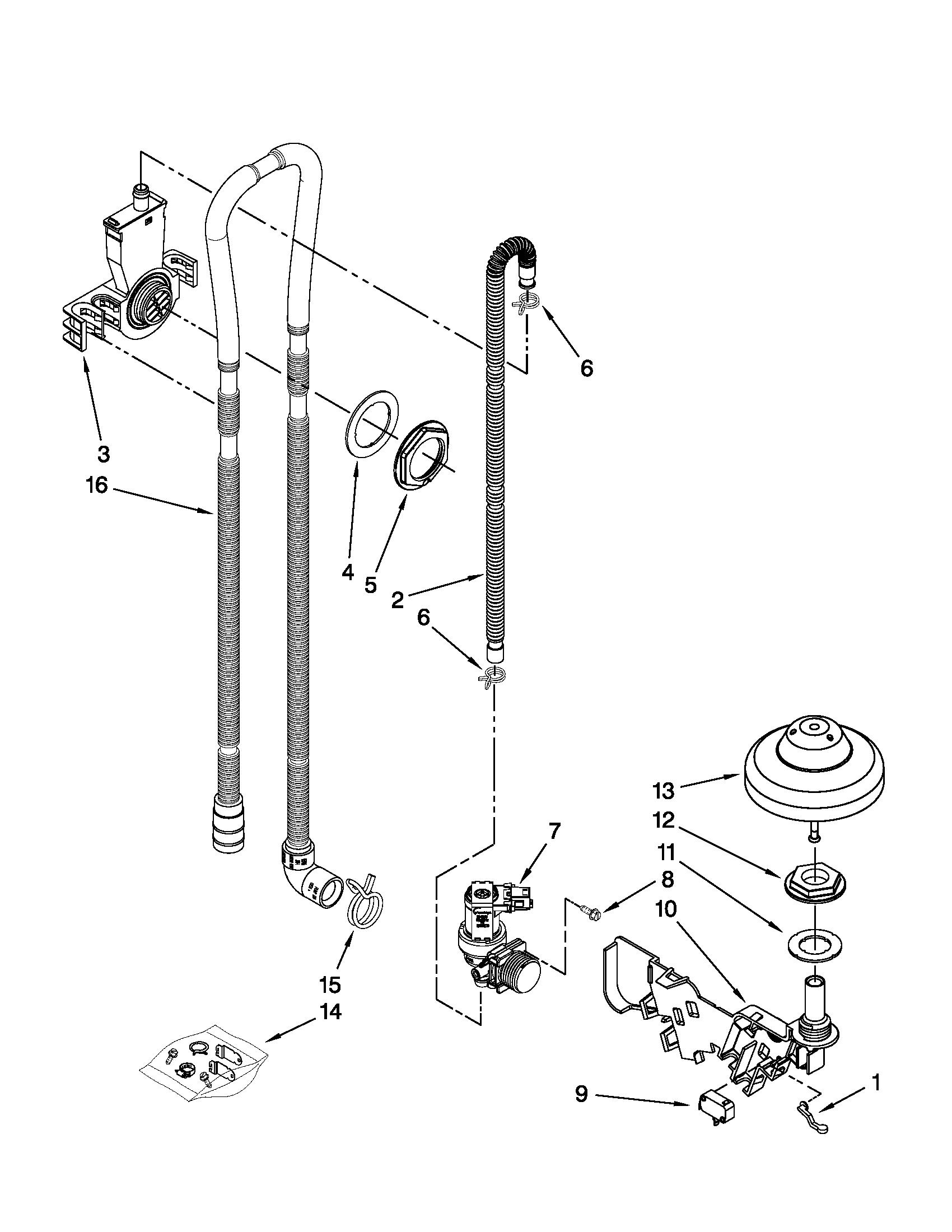

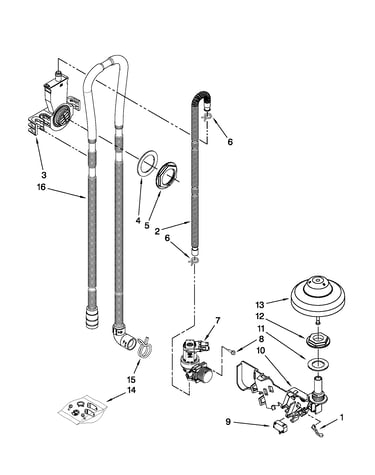

• Water inlet valve seeping or leaking at the body: dishwasher water inlet valve WPW10327249

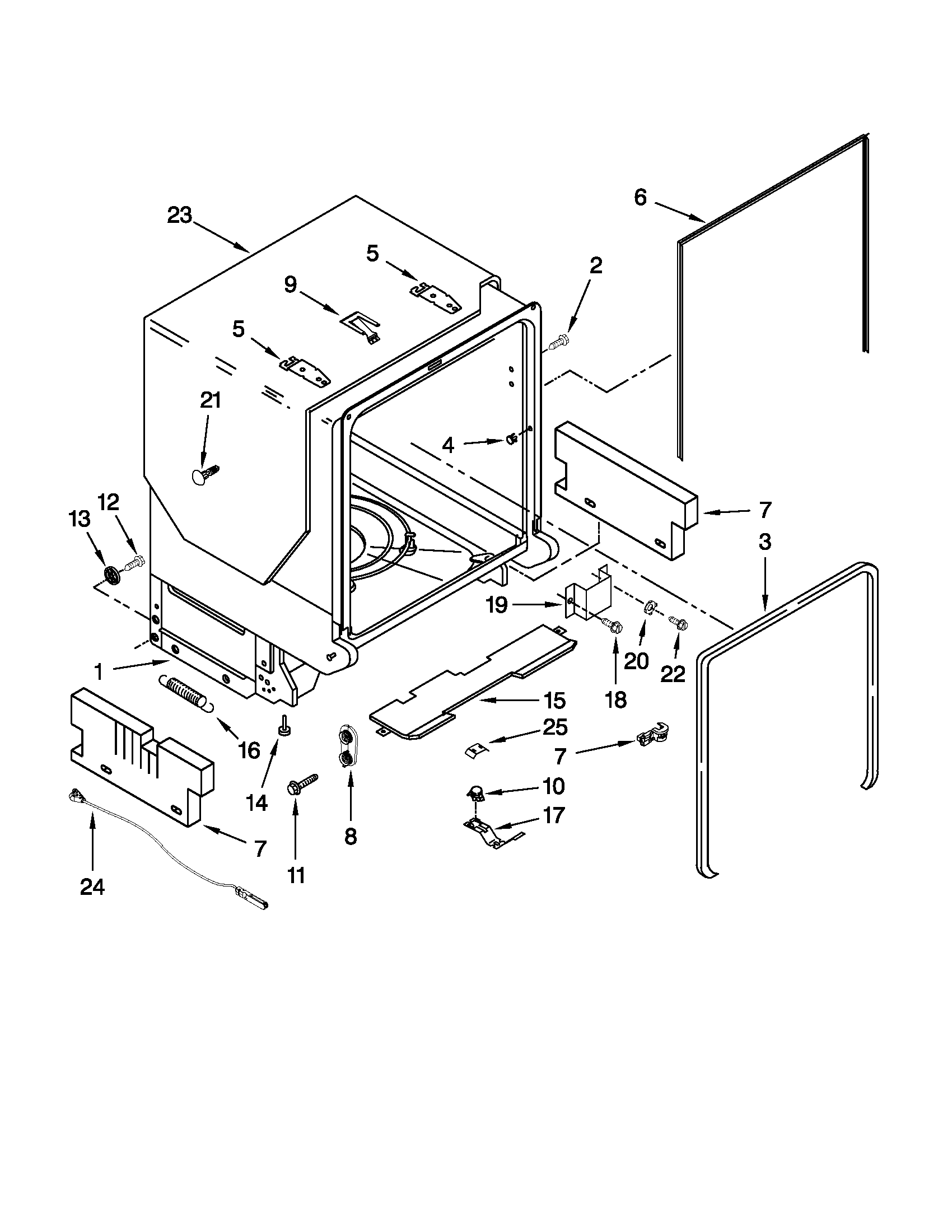

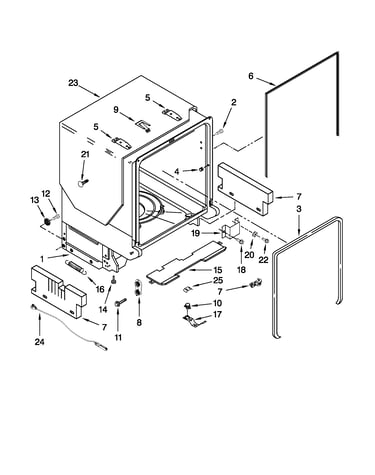

• Tub-to-base sealing issue: dishwasher tub gasket W10864081

Symptom-to-cause guide

What you see	Most likely source	What to do next
Leak starts while filling	Water inlet valve or supply fitting	Inspect valve body and compression fitting for drips
Leak shows up during wash	Pump/motor area, sump, spray system leak	Look under center for spray or dripping from pump housing
Leak happens near end/drain	Drain pump or drain hose/connector	Check hose seating, clamp, and pump outlet

Why it matters

Bottom leaks can quickly damage flooring and cabinets, and even a small drip can lead to corrosion or electrical issues under the tub. Finding the first wet point tells you whether you need a simple connection reseat or a part replacement.

Last updated: February 2026

In a Jenn-Air JDB3600AWP5 undercounter dishwasher, the most commonly replaced parts are the ones that handle water flow, heating, draining, and sealing. When you see poor cleaning, leaks, or draining problems, these parts are the first places we check; your owner's manual also highlights maintenance items like keeping filters properly installed.

Most commonly replaced dishwasher parts

These are the parts that most often cause symptoms like not draining, not filling, weak wash action, or leaks:

• Filters: clogging can reduce cleaning and affect draining; keep them installed and locked
• Spray arms: wear or blocked jets can cause poor cleaning
• Drain pump and drain hose: common when the dishwasher will not drain
• Water inlet valve and inlet tubing: common when the dishwasher will not fill or fills slowly
• Heating element and thermostat: common when drying is poor or cycles run long while heating

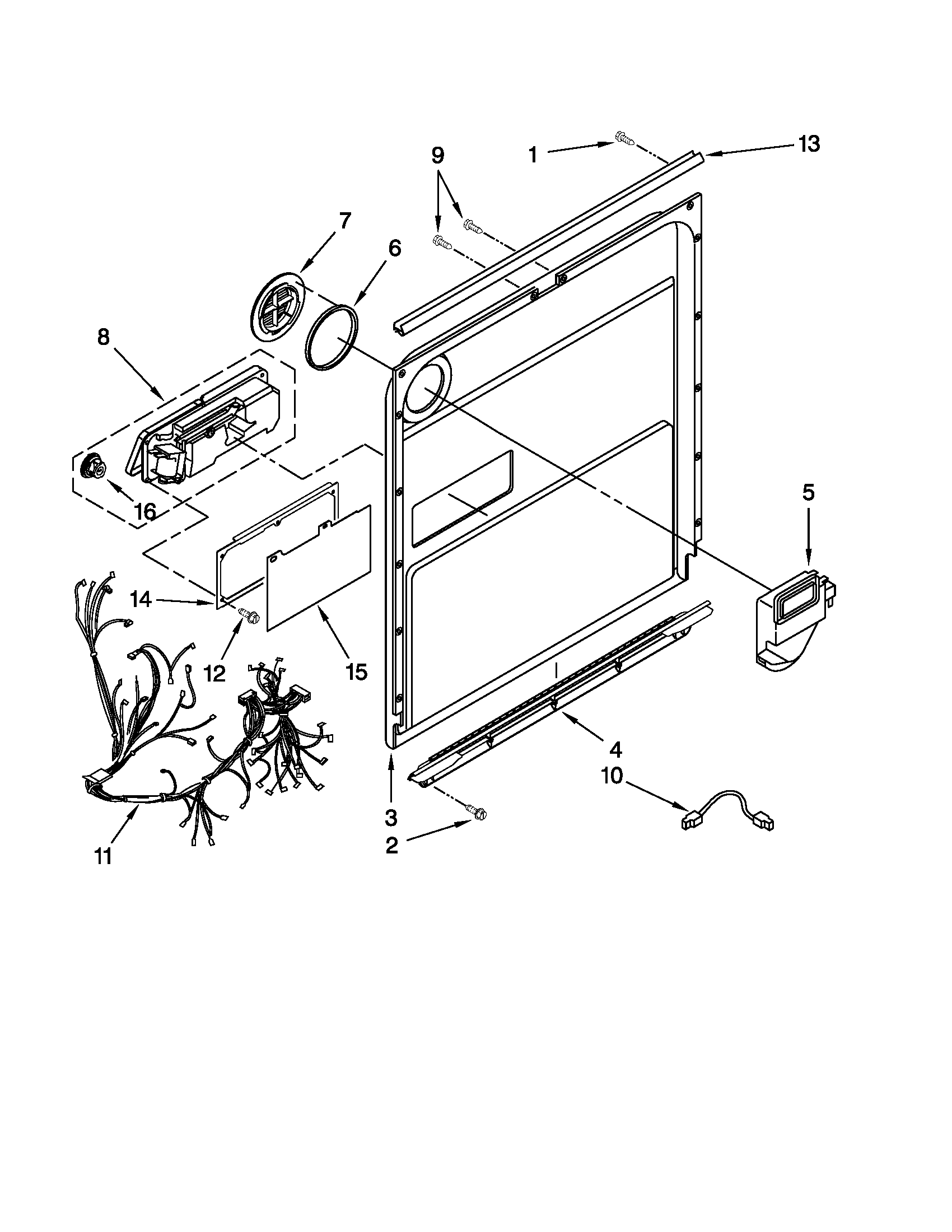

• Door seals and door balance parts: common when you see leaks or the door feels “heavy”

Model-matched parts we see replaced often on JDB3600AWP5

Here are examples of common replacements that match this model:

Symptom	Likely part category	Example part for this model
Not draining, water left in tub	Drain components	Dishwasher drain pump WPW10348269 or dishwasher drain hose 8269144A
Not filling or weak fill	Fill components	Dishwasher water inlet valve WPW10327249
Poor cleaning, weak spray	Wash action	Dishwasher spray arm WPW10491331
Odor, debris, poor wash	Filtration	Dishwasher filter W10872845

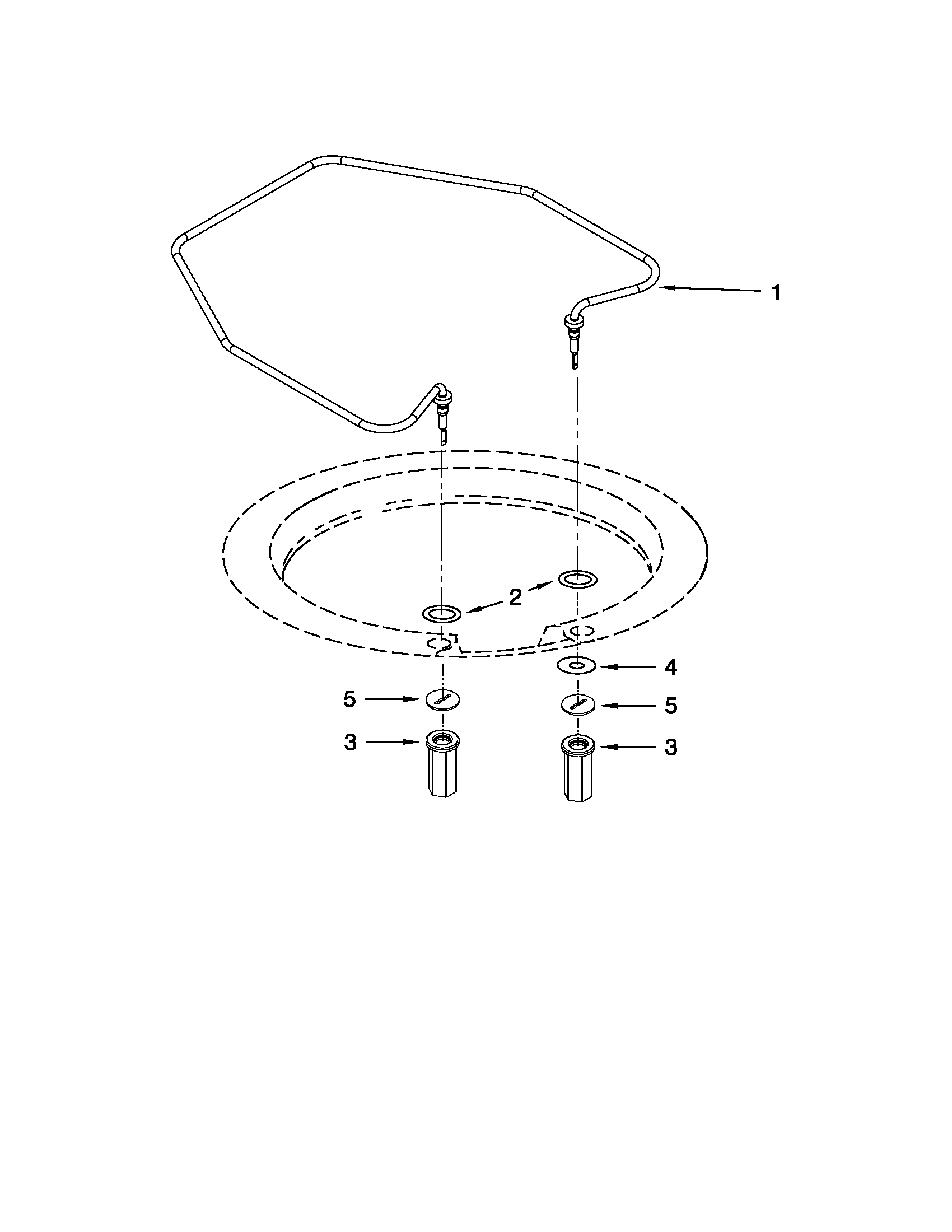

Poor drying or long heat times	Heating/temperature	Dishwasher heater element WPW10082892 or thermostat WP661566
Leaks around the door	Sealing	Dishwasher tub gasket W10864081

Quick checks before you buy a part

We recommend these fast checks because they solve many “bad part” symptoms without replacement:

• Confirm the filters are installed correctly and locked (a loose upper filter can cause problems)
• Clean the filter area and check for debris around the sump
• If it is not draining, check and clean the drain air gap (if your setup has one)
• Avoid oversudsing; use only automatic dishwasher detergent and correct amounts
• Make sure incoming hot water is about 120°F (49°C) for best cleaning

Why it matters

Dishwashers often fail in predictable ways: clogs and mineral buildup reduce flow, seals harden and leak, and heating or sensing issues can stretch cycle times. Starting with filters, spray, fill, drain, and door sealing usually gets you to the right fix faster.
