Kenmore
Bottom-Mount Refrigerator

Model # 79576204901 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79576204901 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 138 parts  |
Refrigerator Door Switch (replaces 6600JB1004A)
#406B

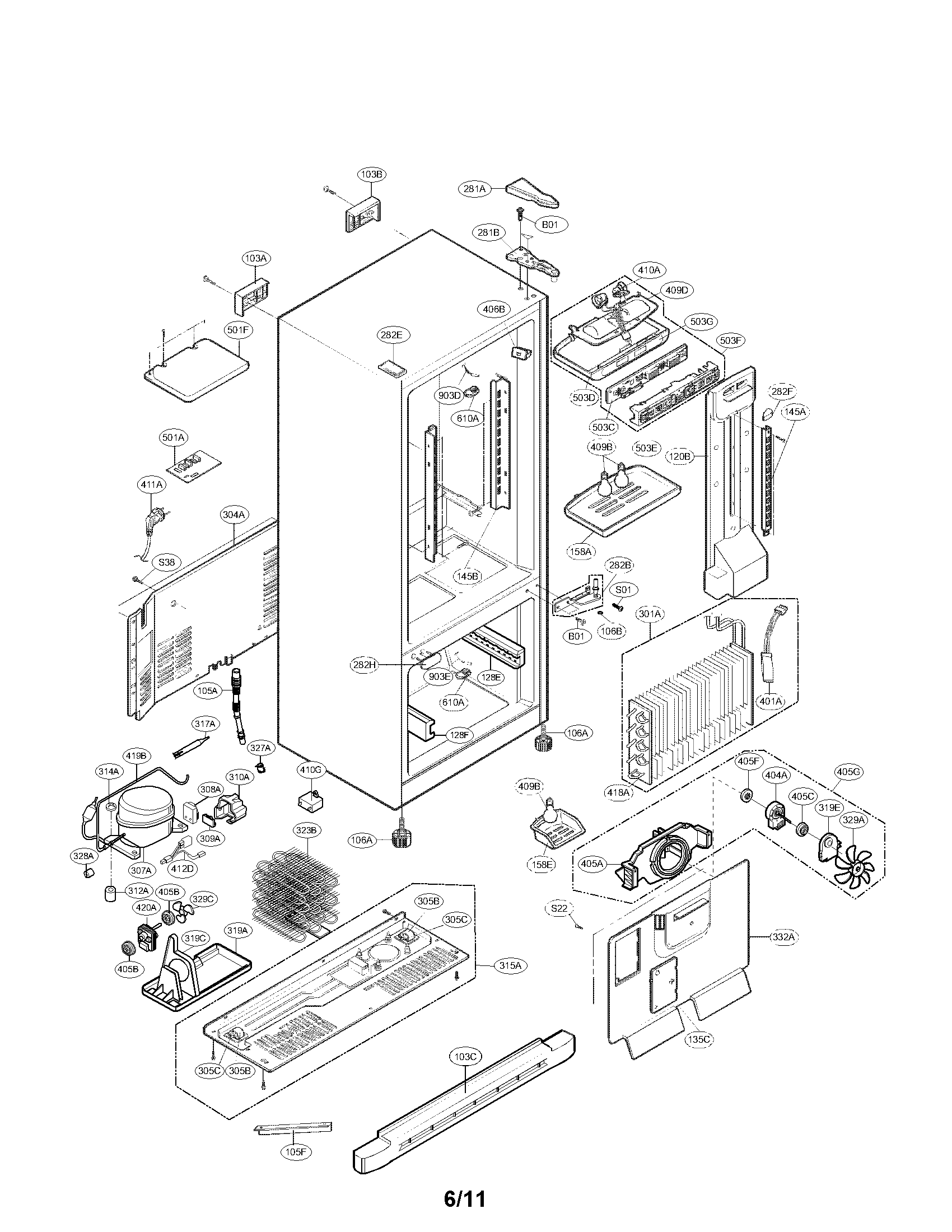

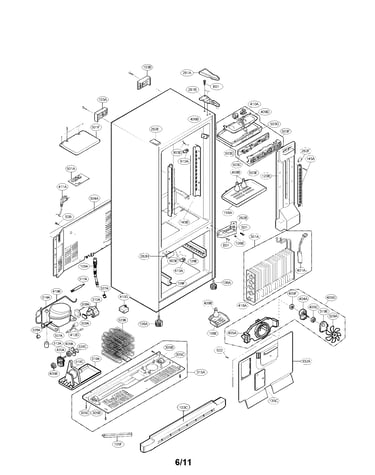

Case parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.66 |
19% OFF Phone Price : $26.66
In Stock
Refrigerator Ice Maker Assembly (replaces AEQ72909601)
#600A

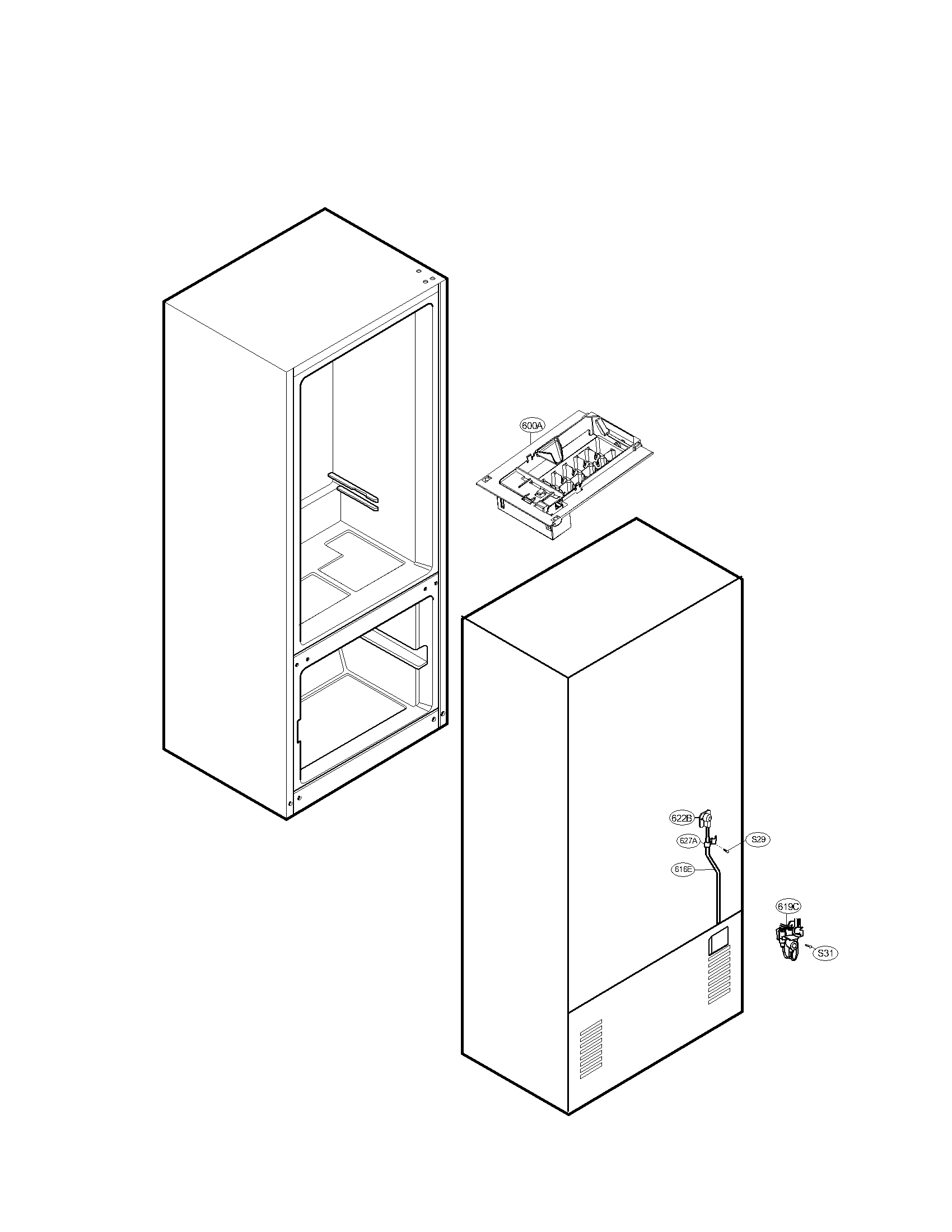

Water and icemaker parts diagram

Ice maker kit

Part #AEQ72909601

Replaced by #AEQ72909602

?
Manufacturer substitution
This part replaces AEQ72909601. Substitute parts can look different from the original.
BEST SELLER
$87.39 |
5% OFF Phone Price : $92.39
In Stock
Refrigerator Door Hinge Bushing
#286A

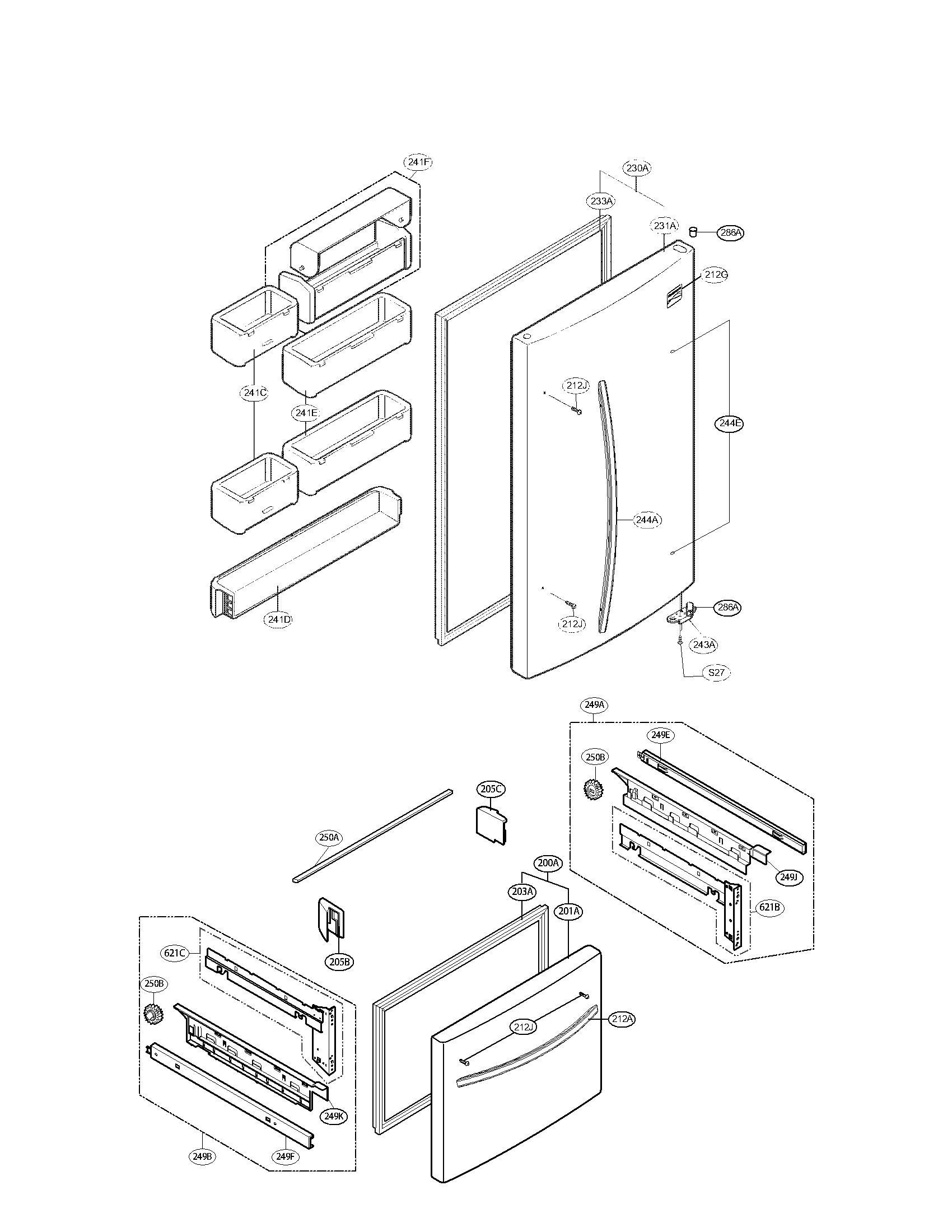

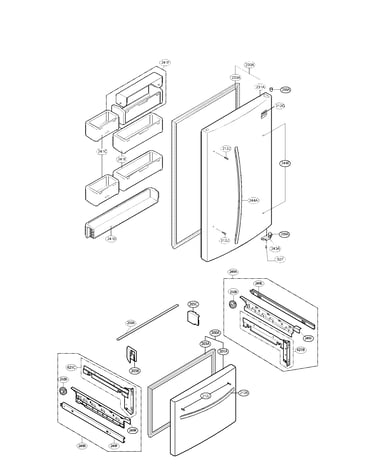

Door parts diagram

Refrigerator door hinge bushing

Part #4984JJ3003A

BEST SELLER
$9.69 |
9% OFF Phone Price : $10.69
In Stock
Refrigerator Drawer Slide Rail
#145C

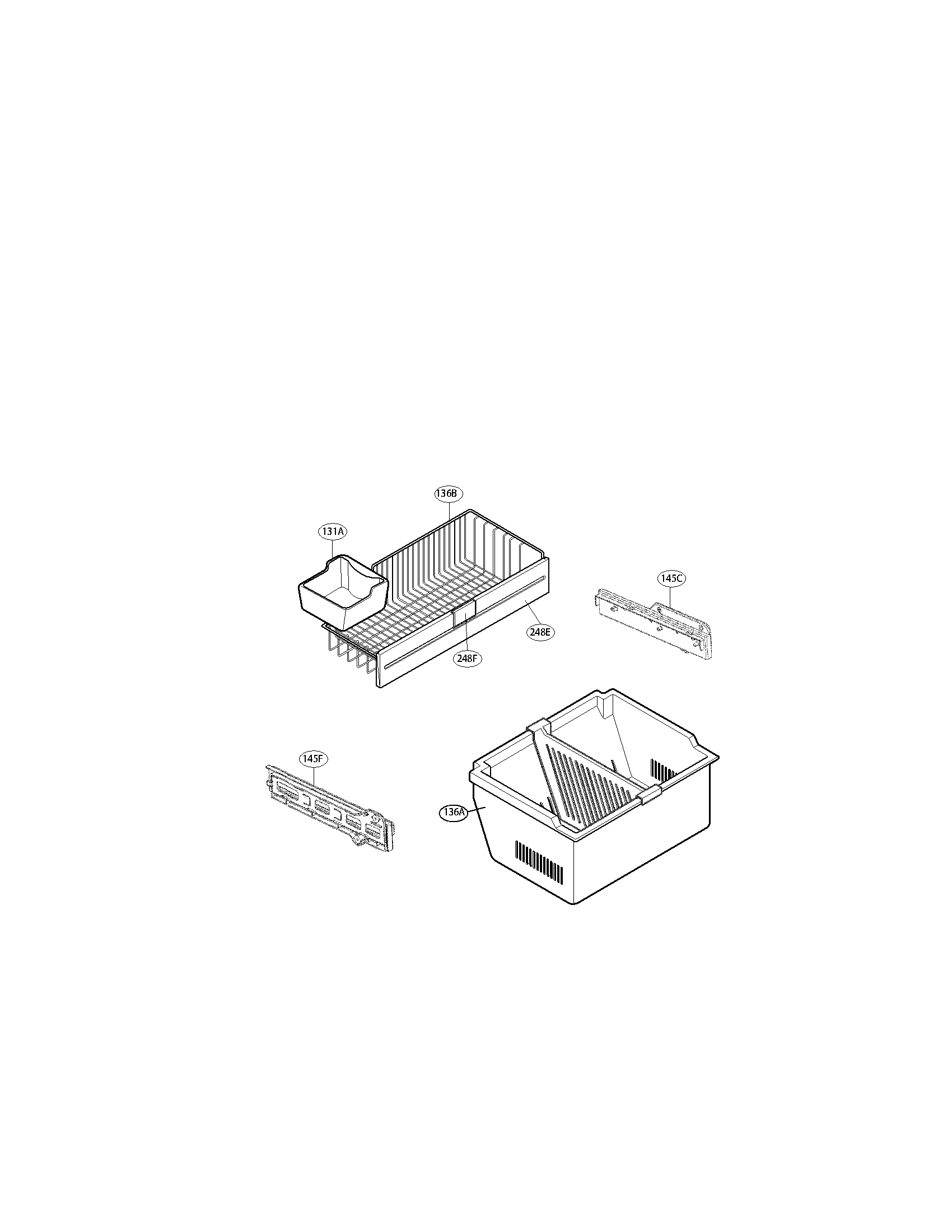

Freezer parts diagram

Refrigerator drawer slide rail

Part #4975JJ2028C

BEST SELLER
$86.74 |
5% OFF Phone Price : $91.74
In Stock
Refrigerator Door Handle Mounting Bolt (replaces 4620JJ2010C, MJB63189701, MJB63190006)
#212J

Door parts diagram

Refrigerator door handle mounting bolt

Part #4620JJ2010C

Replaced by #MJB63190001

?
Manufacturer substitution
This part replaces 4620JJ2010C. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.08 |
14% OFF Phone Price : $7.08
In Stock
Refrigerator Freezer Door Gasket (replaces 4987JJ1004A, ADX52752607)
#203A

Door parts diagram

Refrigerator door gasket assembly

Part #ADX52752607

Replaced by #ADX73350925

?
Manufacturer substitution
This part replaces ADX52752607. Substitute parts can look different from the original.
BEST SELLER
$68.59 |
7% OFF Phone Price : $73.59
In Stock
Refrigerator Freezer Drawer Slide Rail Cover, Right
#249J

Door parts diagram

Refrigerator freezer drawer slide rail cover, right

Part #3550JJ1111A

BEST SELLER
$36.96 |
12% OFF Phone Price : $41.96
In Stock
Refrigerator Glass Shelf (replaces 4890JL1002K, MHL61952304)
#167B

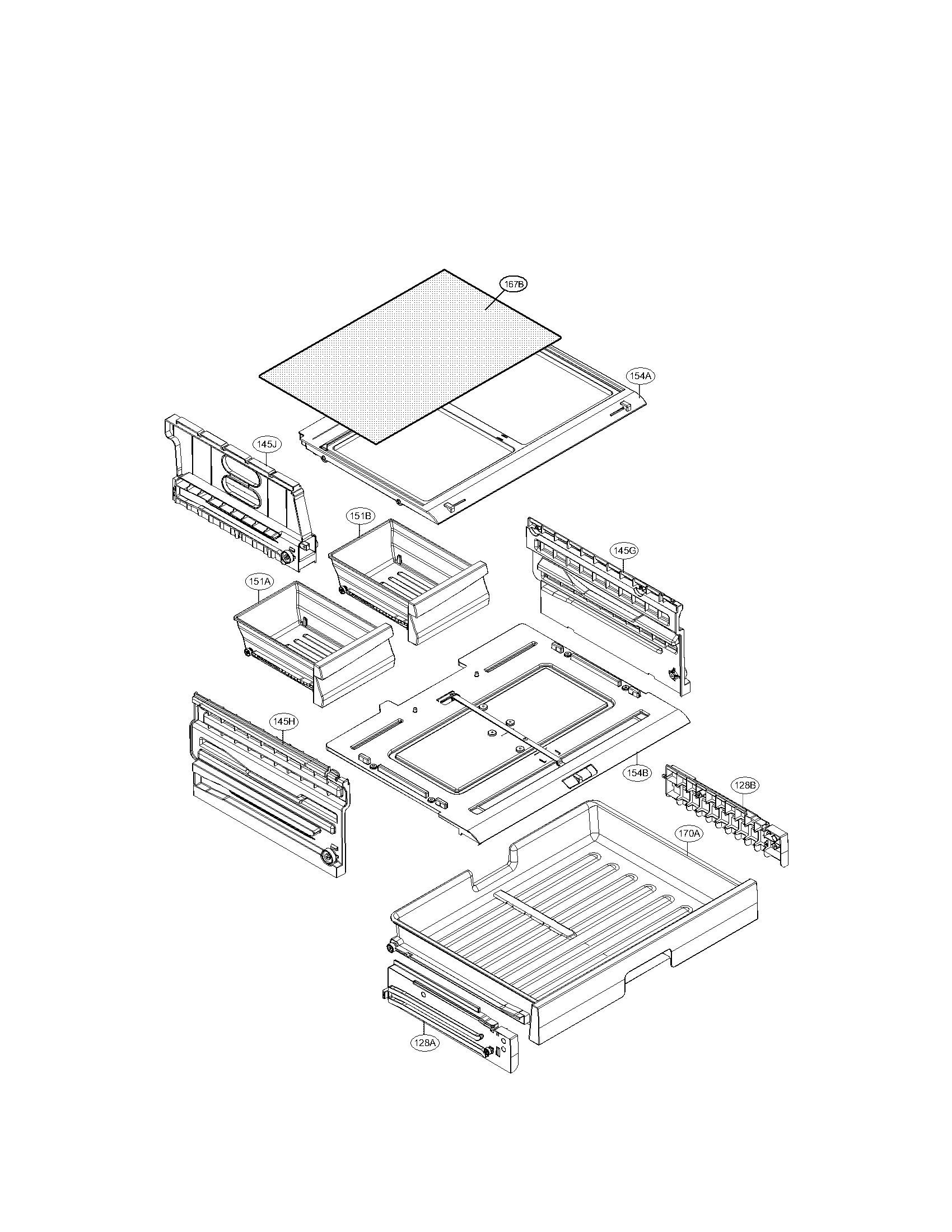

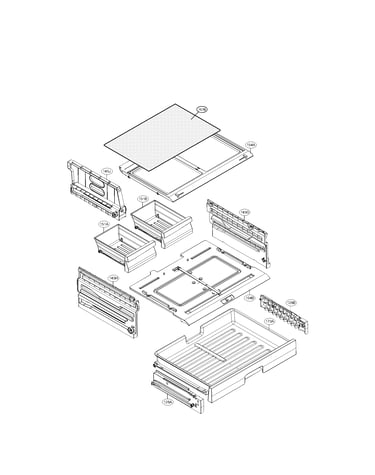

Refrigerator parts (panty) diagram

Refrigerator glass shelf (replaces 4890jl1002k, mhl61952304)

Part #4890JL1002R

BEST SELLER
$109.14 |
8% OFF Phone Price : $119.14
In Stock
Refrigerator Water Inlet Valve Assembly (replaces AJU55759301, AJU55759302, AJU73292404)
#619C

Water and icemaker parts diagram

Refrigerator water inlet valve assembly (replaces aju55759301, aju55759302, aju73292404)

Part #AJU55759303

BEST SELLER
$68.62 |
7% OFF Phone Price : $73.62
In Stock
Refrigerator Door Gasket (replaces 4987JJ1004B)
#233A

Door parts diagram

Refrigerator gasket assembly

Part #4987JJ1004B

Replaced by #ADX73350928

?
Manufacturer substitution
This part replaces 4987JJ1004B. Substitute parts can look different from the original.
BEST SELLER
$94.51 |
5% OFF Phone Price : $99.51
In Stock
