Kenmore
Bottom-Mount Refrigerator

Model #79577312600 Kenmore refrigerator

Here are the diagrams and repair parts for Kenmore 79577312600 refrigerator, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 165 parts

Refrigerator Drawer Slide Rail

#145C

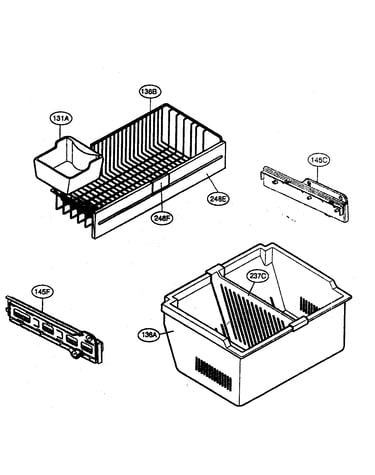

Freezer parts Diagram

$81.75

In Stock

Refrigerator Door Hinge Bushing

#286A

Cabinet parts Diagram

Refrigerator door hinge bushing

Part #4984JJ3003A
This item is not returnable
$3.62

In Stock

Refrigerator Drawer Track

#145F

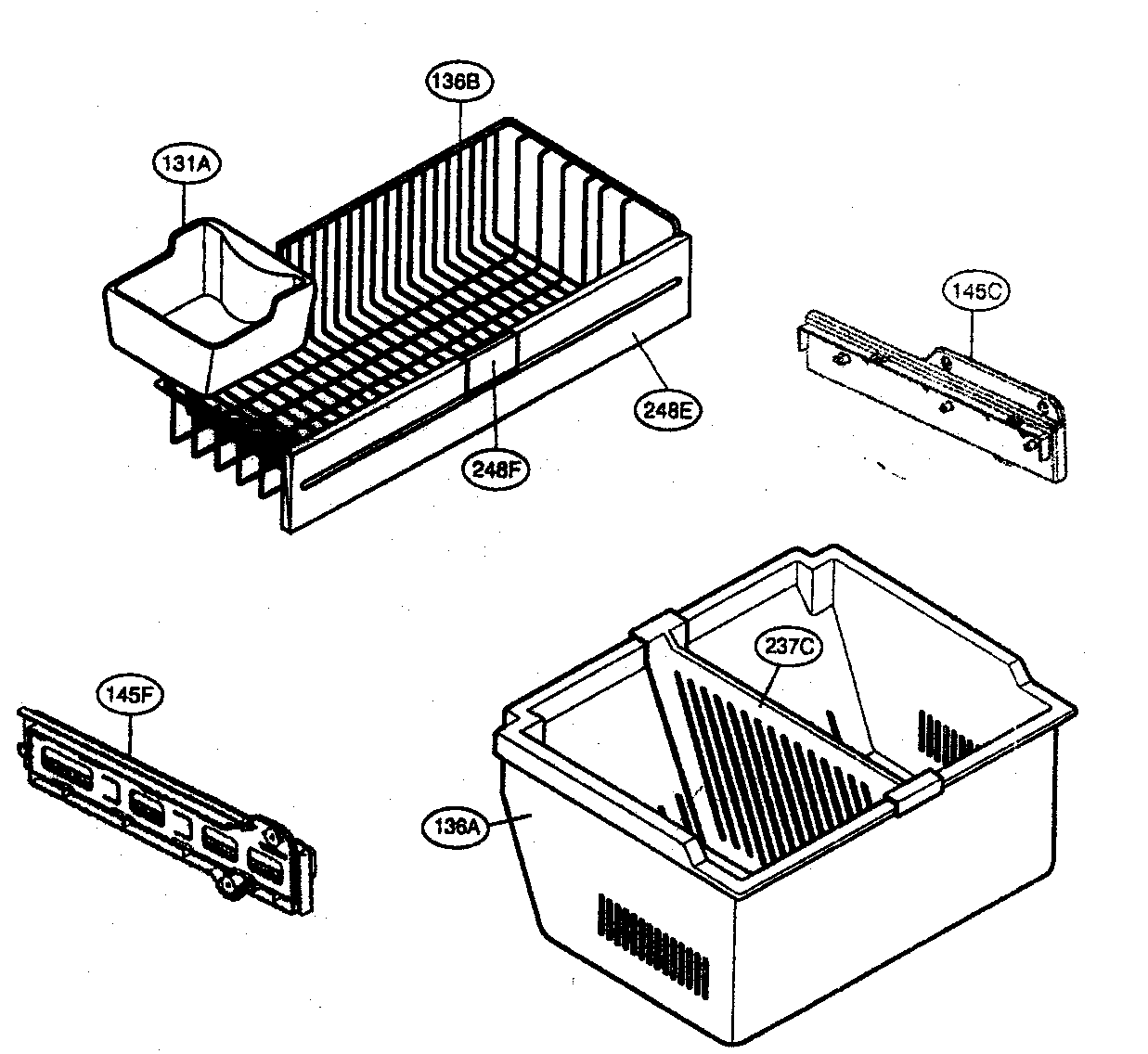

Freezer parts Diagram

Refrigerator drawer track

Part #4975JJ2028D
$84.81

In Stock

Refrigerator Freezer Drawer Slide Rail Cover, Right

#249J

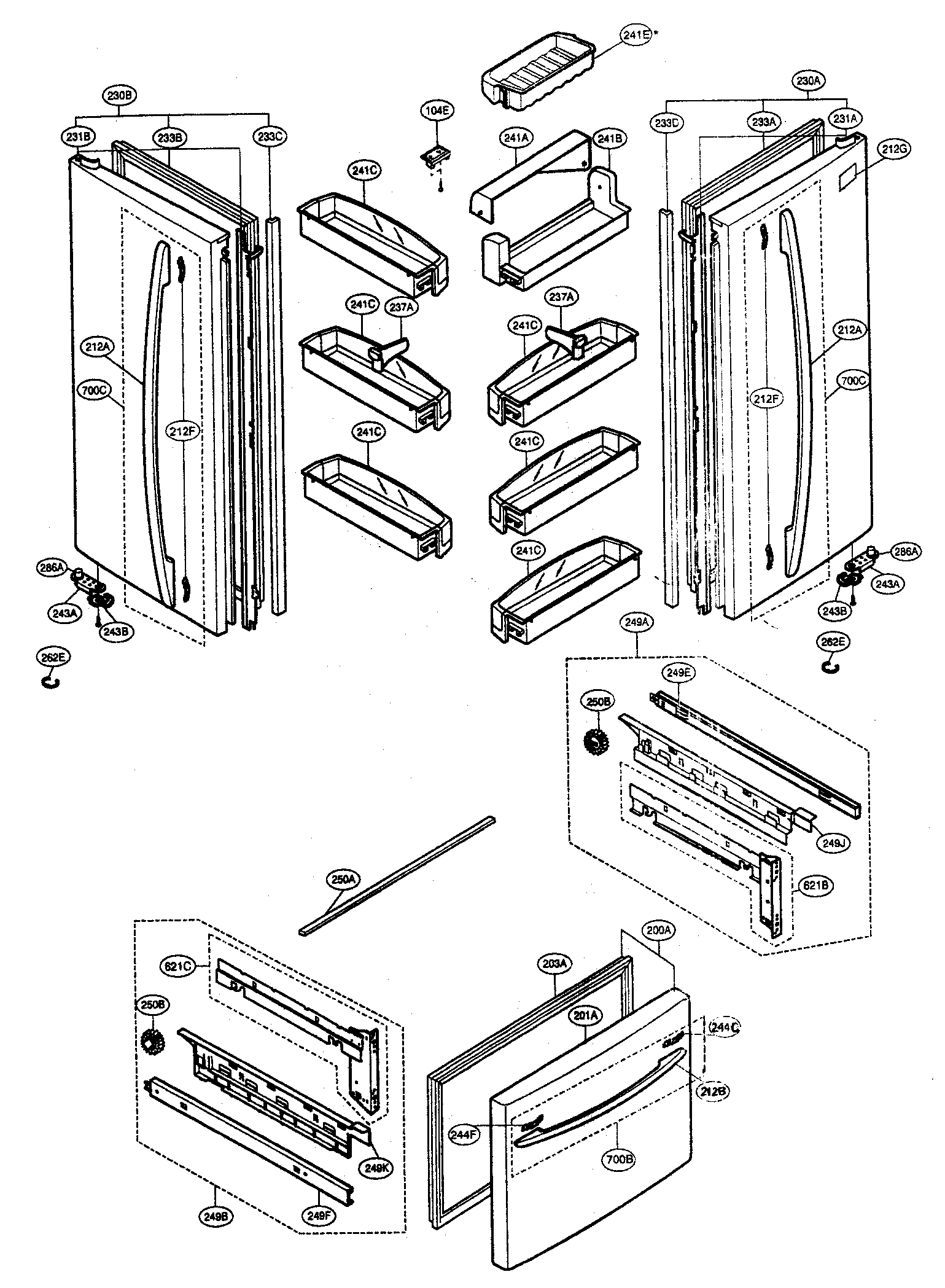

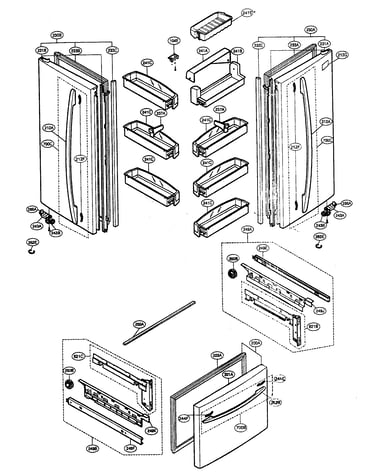

Door parts Diagram

$34.46

In Stock

Refrigerator Toe Grille Clip

#903B

Cabinet parts Diagram

Refrigerator toe grille clip

Part #4930JJ2021A
This item is not returnable
$5.92

In Stock

Refrigerator Defrost Sensor Assembly

#401A

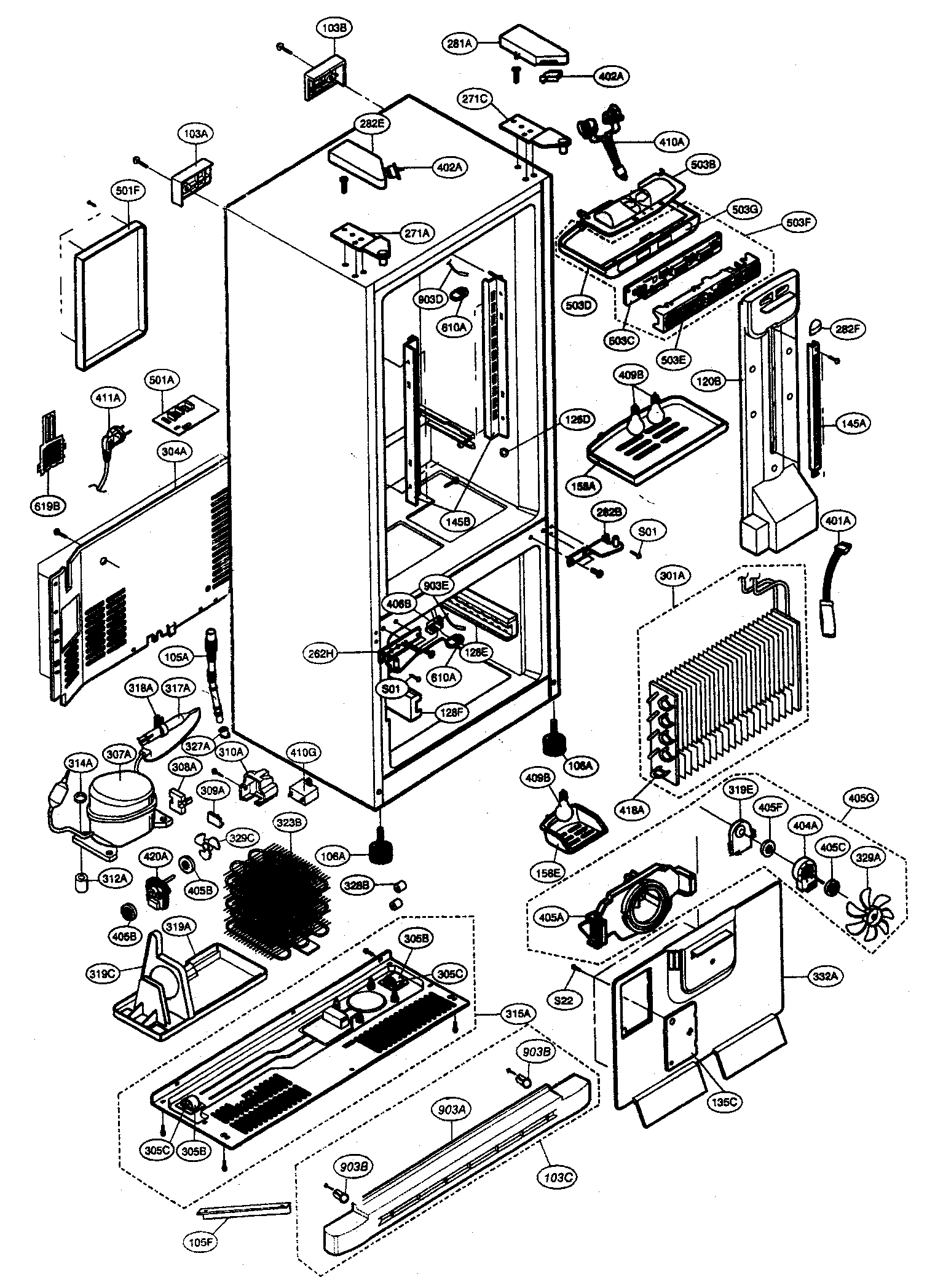

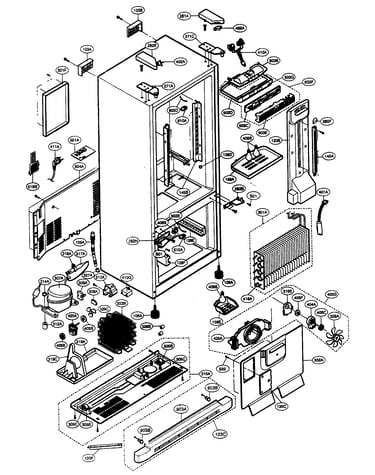

Cabinet parts Diagram

$17.75

In Stock

Refrigerator Door Deep Bin

#241C

Door parts Diagram

Refrigerator door deep bin

Part #5005JJ2022A
$67.29

In Stock

Refrigerator Crisper Drawer Cover Assembly

#168A

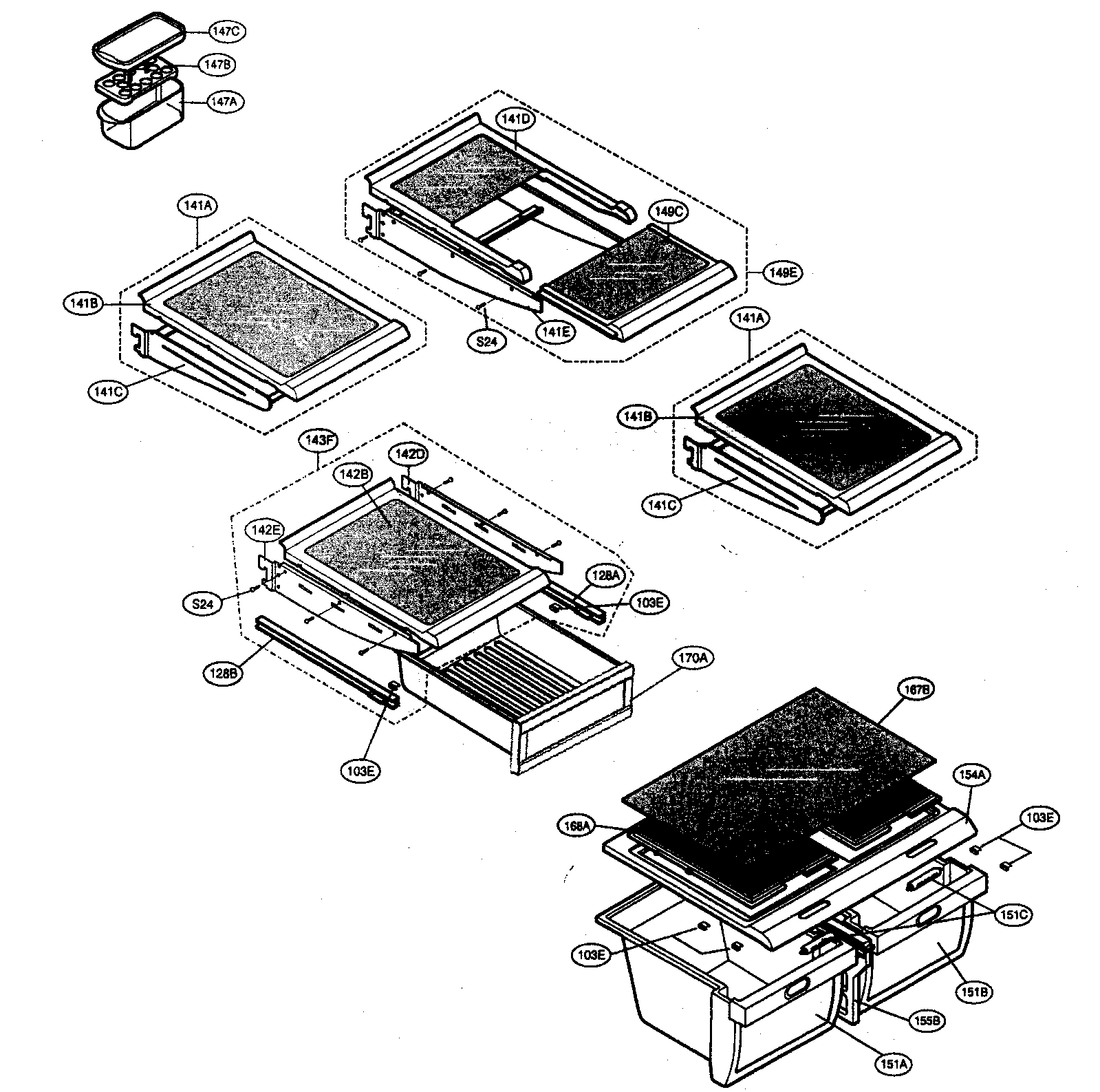

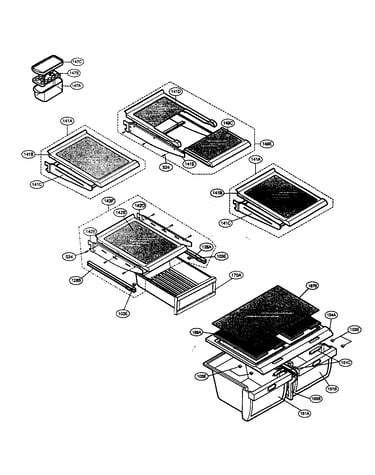

Refrigerator parts Diagram

$100.77

In Stock

Refrigerator Motor Support Damper

#405C

Cabinet parts Diagram

Refrigerator motor support damper

Part #5040JA2009B
This item is not returnable
$4.01

In Stock

Refrigerator Water Inlet Valve

#619A

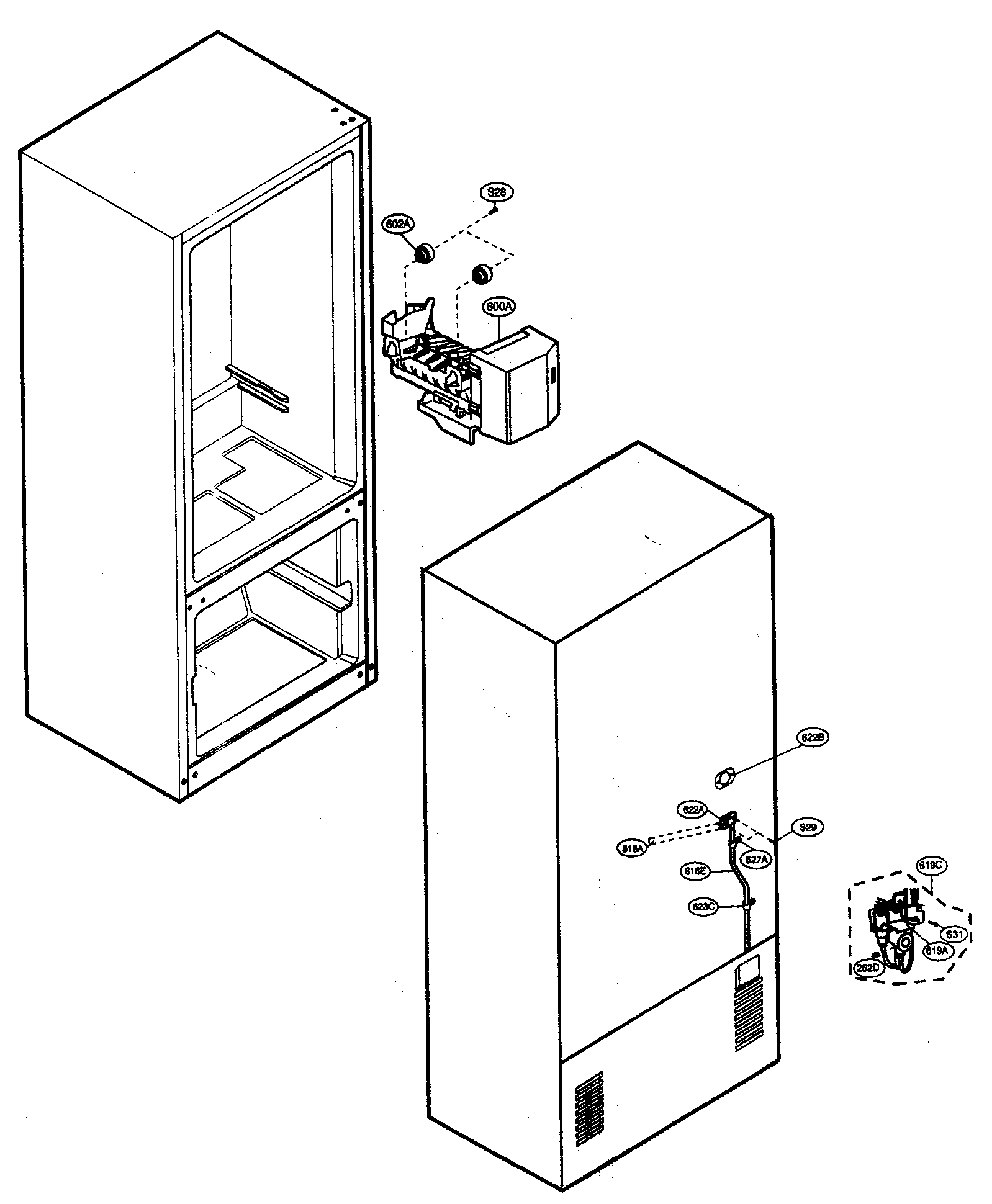

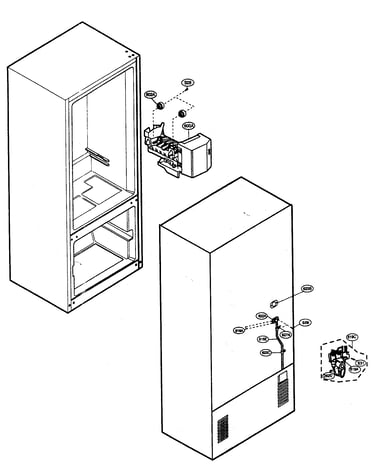

Water/ice maker parts Diagram

$53.87

In Stock
