Model #DBXR463ED2WW GE electric dryer

Here are the diagrams and repair parts for GE DBXR463ED2WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 105 parts

    Dryer Drum Front Glide Pad

    #316

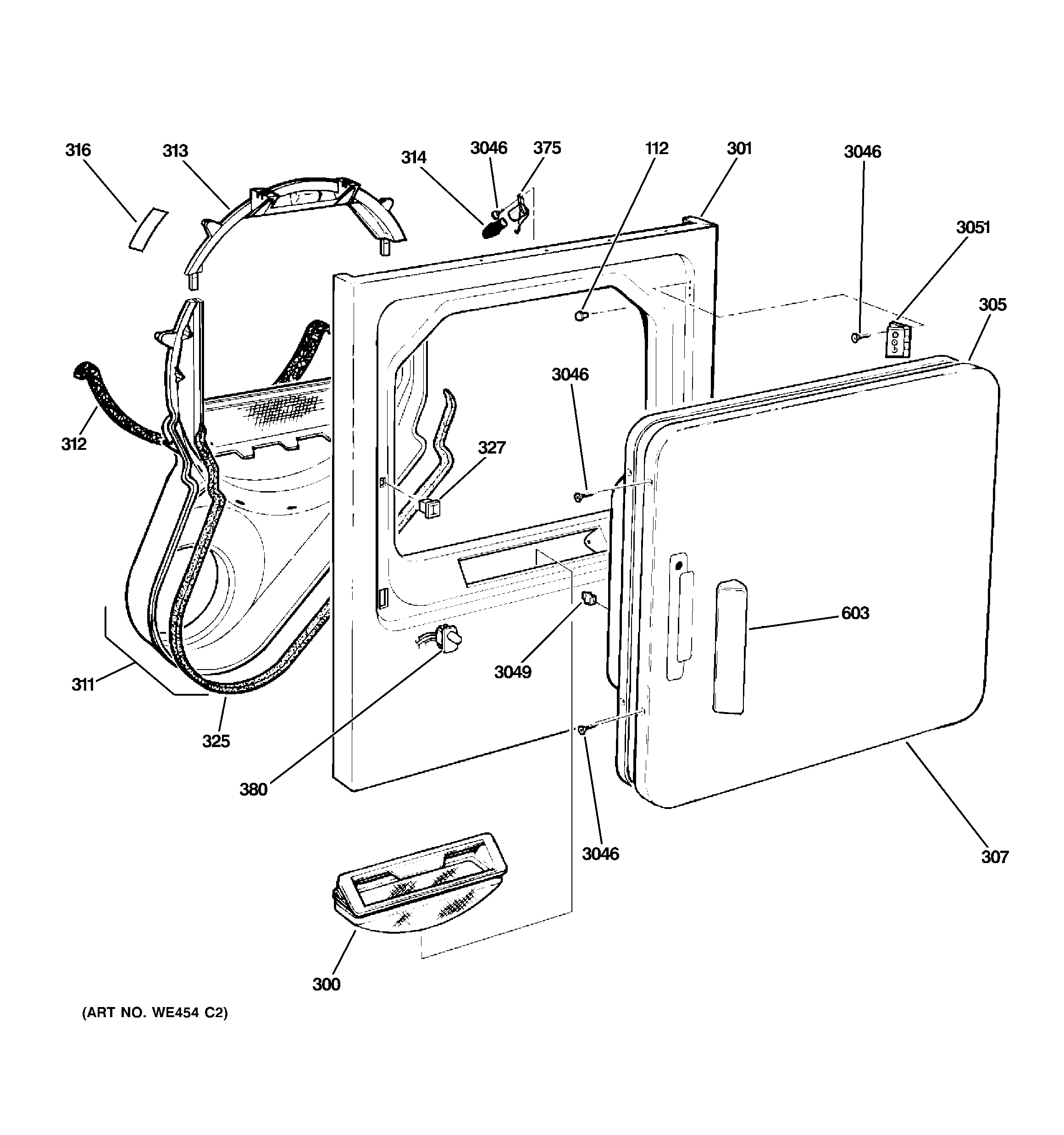

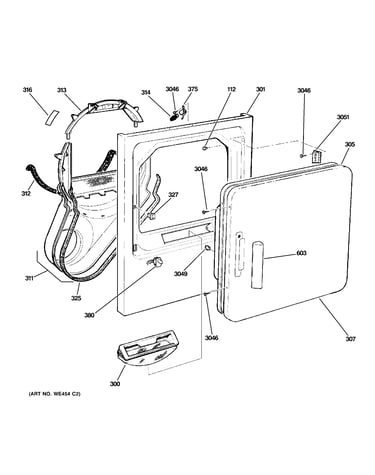

    Front panel & door Diagram

    $15.99

    In Stock

    Dryer Operating Thermostat

    #230

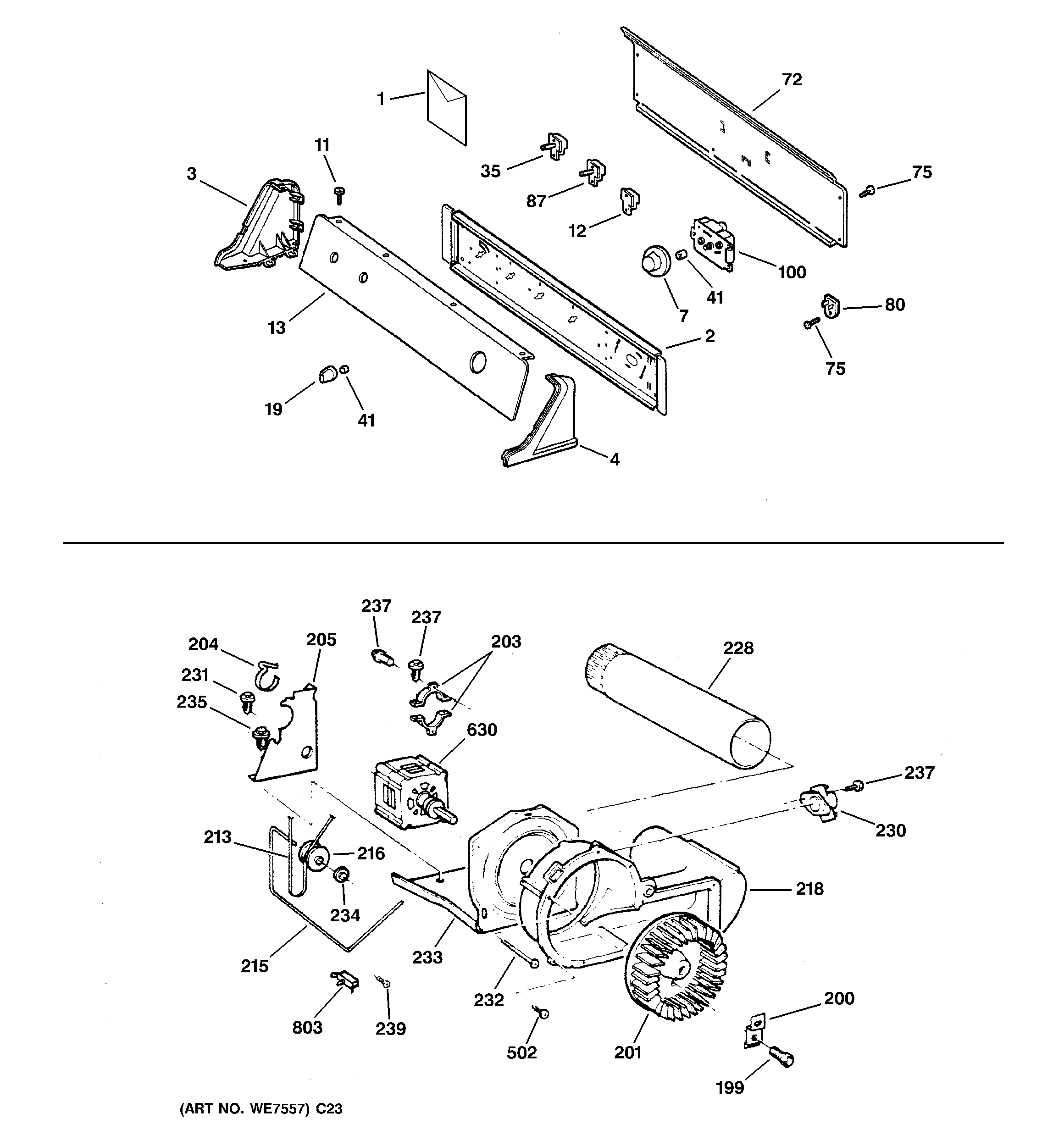

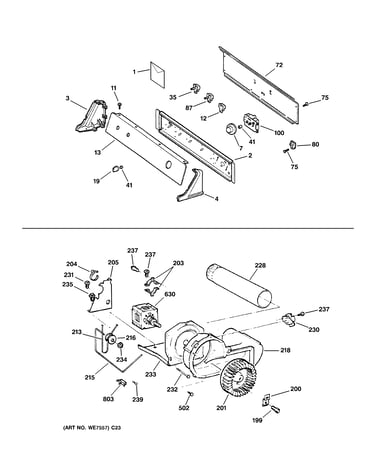

    Backsplash, blower & motor assembly Diagram

    $57.99

    In Stock

    Dryer Rear Bearing O-Ring

    #3127

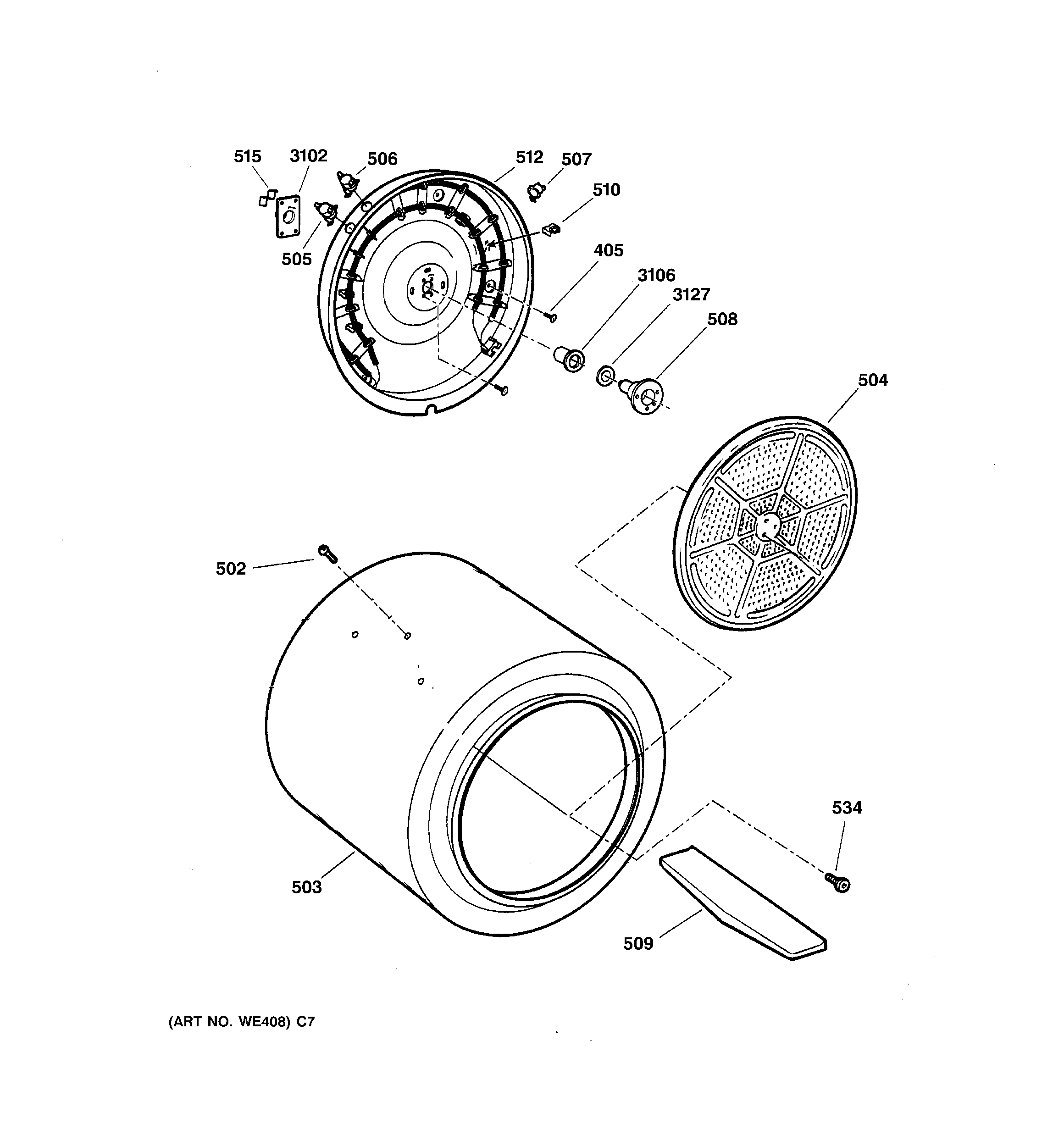

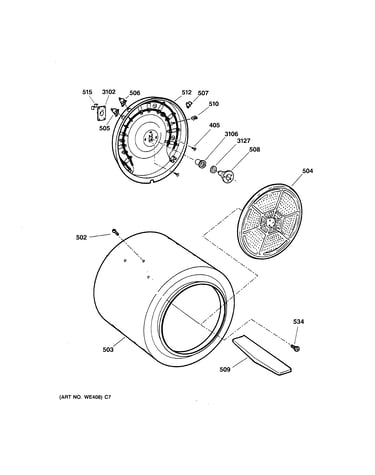

    Drum Diagram

    $7.59

    In Stock

    Dryer High-Limit Thermostat

    #507

    Drum Diagram

    $48.99

    In Stock

    Dryer Safety Thermostat

    #505

    Drum Diagram

    $108.99

    In Stock

    Dryer Heating Element Assembly

    #512

    Drum Diagram

    $161.99

    In Stock

    Screw

    #403

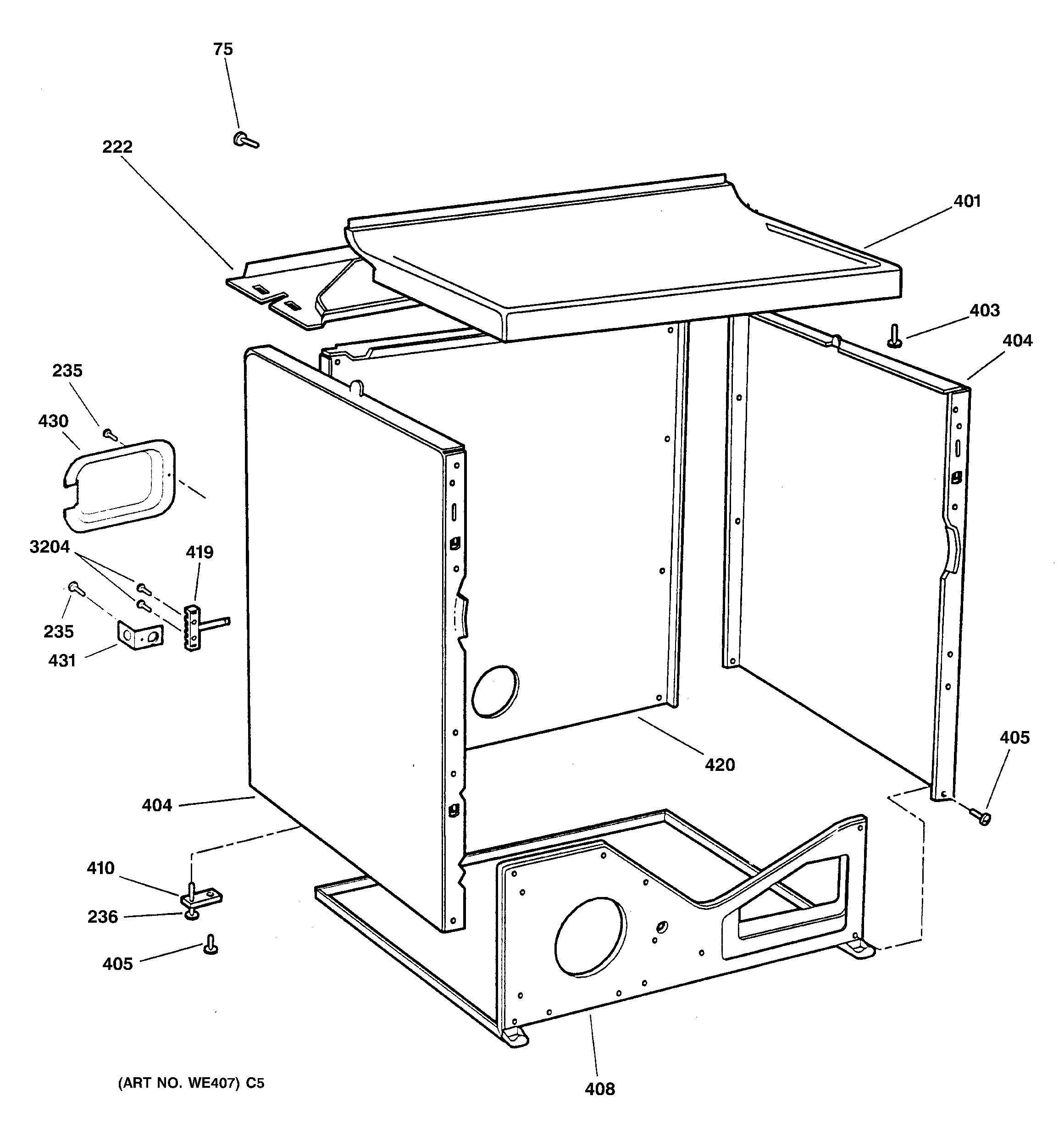

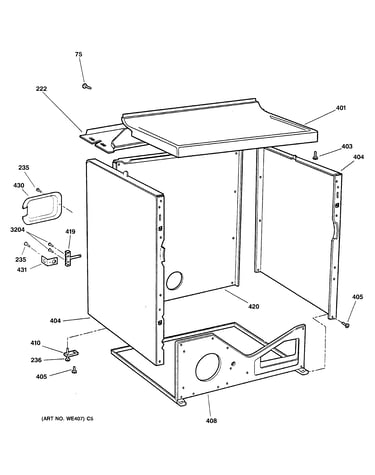

    Cabinet Diagram

    Screw

    Part #WE2M160
    This item is not returnable
    $4.22

    In Stock

    Coil Support

    #510

    Drum Diagram

    Coil support

    Part #WE1M452
    This item is not returnable
    $2.49

    In Stock

    Dryer Timer

    #100

    Backsplash, blower & motor assembly Diagram

    Dryer timer

    Part #WE4M271
    $88.99

    In Stock

    Screw

    #222

    Cabinet Diagram

    Screw

    Part #WE2M189
    This item is not returnable
    $4.35

    In Stock
