Dacor
Gas Cooktop

Model # SGM365 Official Dacor cooktop

Here are the diagrams and repair parts for Official Dacor SGM365 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Cap 86524BM
#13

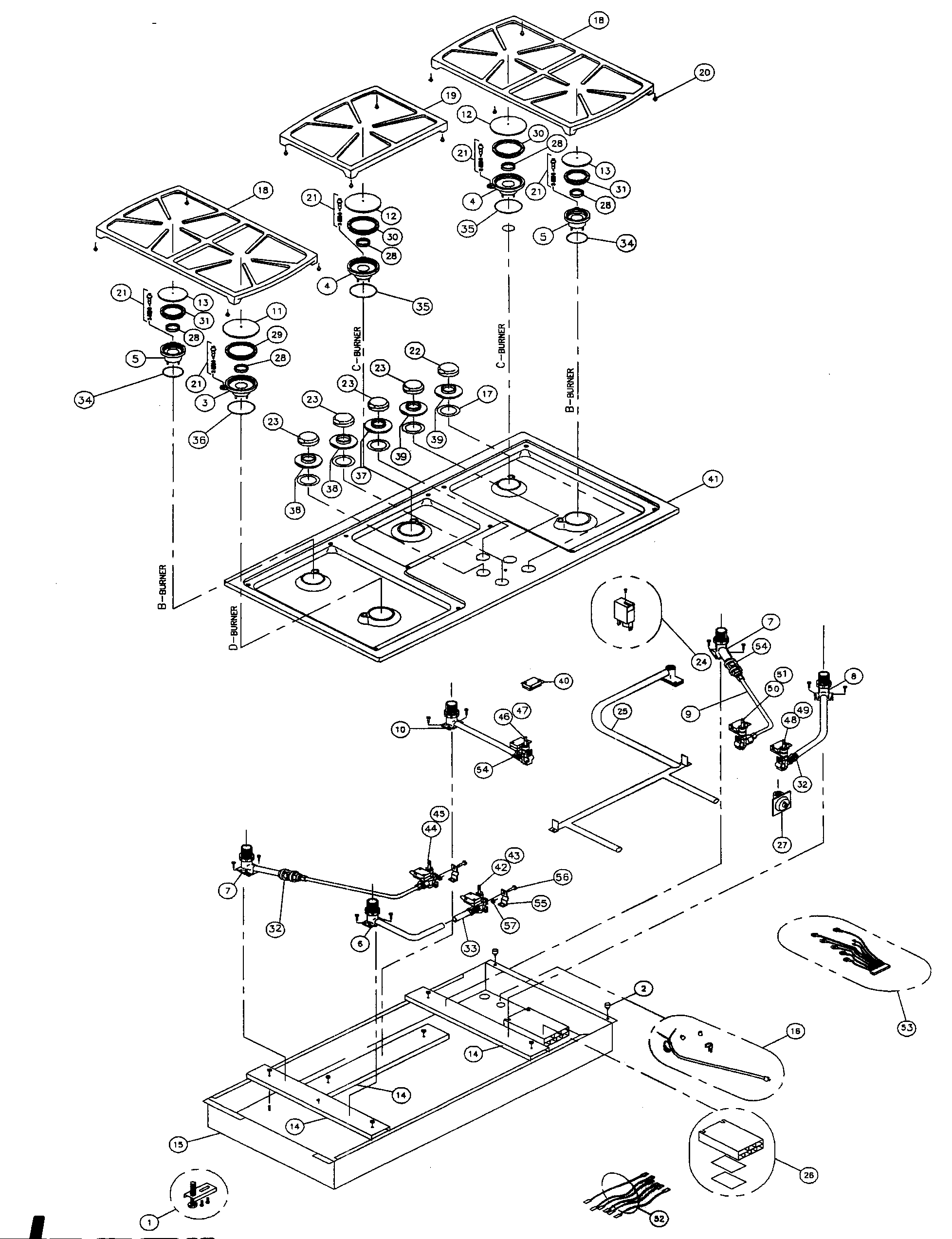

Cabinet parts diagram

Cap

Part #86524BM

Replaced by #86524SB

?
Manufacturer substitution
This part replaces 86524BM. Substitute parts can look different from the original.
$23.49
In Stock
Valve Rf H 86688
#49

Cabinet parts diagram

Valve rf h

Part #86688

$82.49
In Stock
Valve 86679
#42A

Cabinet parts diagram

Valve

Part #86679

$86.49
In Stock
Bumper 83578
#2

Cabinet parts diagram

Bumper

Part #83578

This item is not returnable
$2.16
In Stock
Valve 86678
#43A

Cabinet parts diagram

Valve

Part #86678

$83.49
In Stock
Chassis Bo 27532
#15

Cabinet parts diagram

Chassis bo

Part #27532

$87.99
In Stock
Dacor Cooktop Burner Air Shutter 86595
#36

Cabinet parts diagram

Dacor cooktop burner air shutter

Part #86595

$30.00 |
14% OFF Phone Price : $35.00
In Stock
Burner Tube 62431
#6

Cabinet parts diagram

Burner tube

Part #62431

$28.49
In Stock
Cooktop Burner Head 86408
#31

Cabinet parts diagram

Cooktop burner head

Part #86408

$41.49
In Stock
Valve Lr H 86684
#45

Cabinet parts diagram

Valve lr h

Part #86684

$83.99
In Stock
