What is the average lifespan of a whirlpool dishwasher?
A Whirlpool dishwasher typically lasts 10 to 12 years with normal household use. For your Whirlpool WDT780SAEM0, consistent cleaning, using rinse aid, and addressing draining or heating issues early helps you reach the upper end of that lifespan (and avoid repeat wash problems).
- Water hardness: hard water speeds up mineral buildup on the heating system and internal parts.
- Maintenance habits: regular cleaning reduces strain on the pump and spray system.
- Load and detergent use: overloading and excess detergent can cause poor cleaning and residue.
- Drying setup: this model is designed to use rinse aid for best drying and to reduce hard-water deposits.
- Early symptom response: fixing leaks, poor draining, or weak wash action prevents bigger failures.
- Clean the filter area and sump regularly (remove debris before it reaches the pump).
- Use rinse aid consistently to improve drying and reduce mineral deposits.
- Run a monthly cleaning cycle with a dishwasher cleaner.
- Check that spray arms spin freely and holes are not clogged.
- Keep the door closing and latching smoothly to prevent no-start issues.
| Symptom | What it often points to | Example part for this model |
|---|---|---|

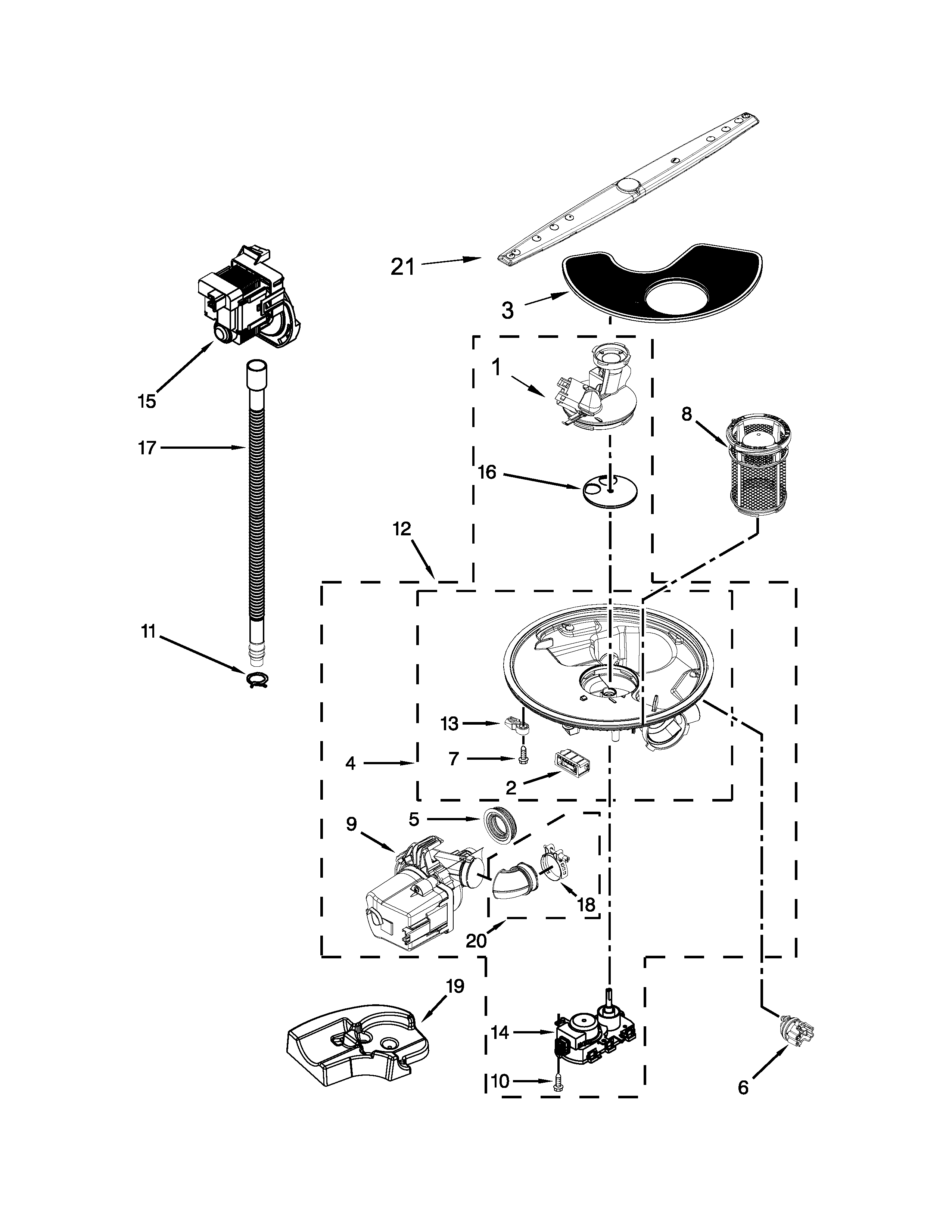

| Not draining or standing water | Drain path restriction or failing drain pump | Dishwasher drain pump WPW10348269 |

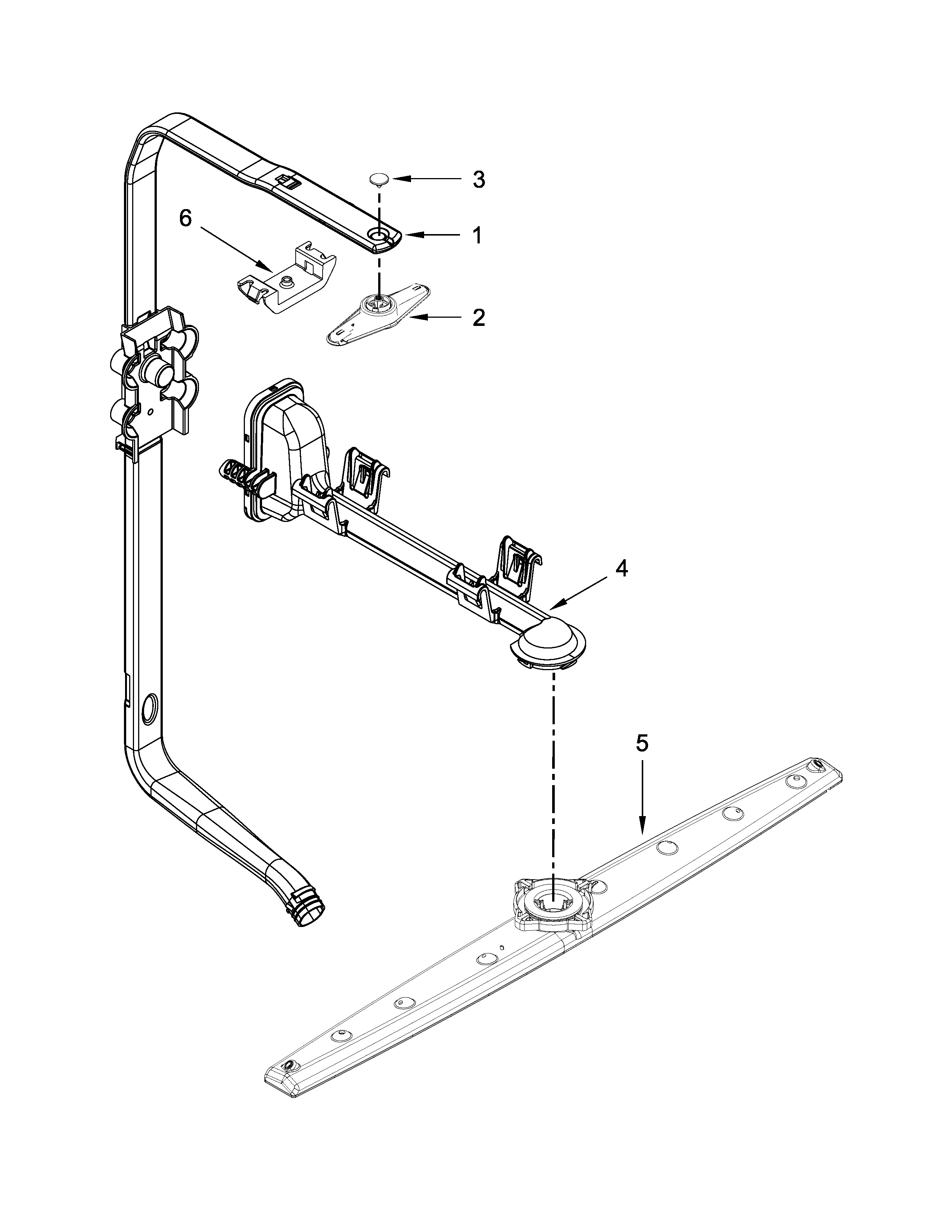

| Poor cleaning, weak spray | Spray arm clogging or circulation issues | Dishwasher spray arm WPW10491331 |

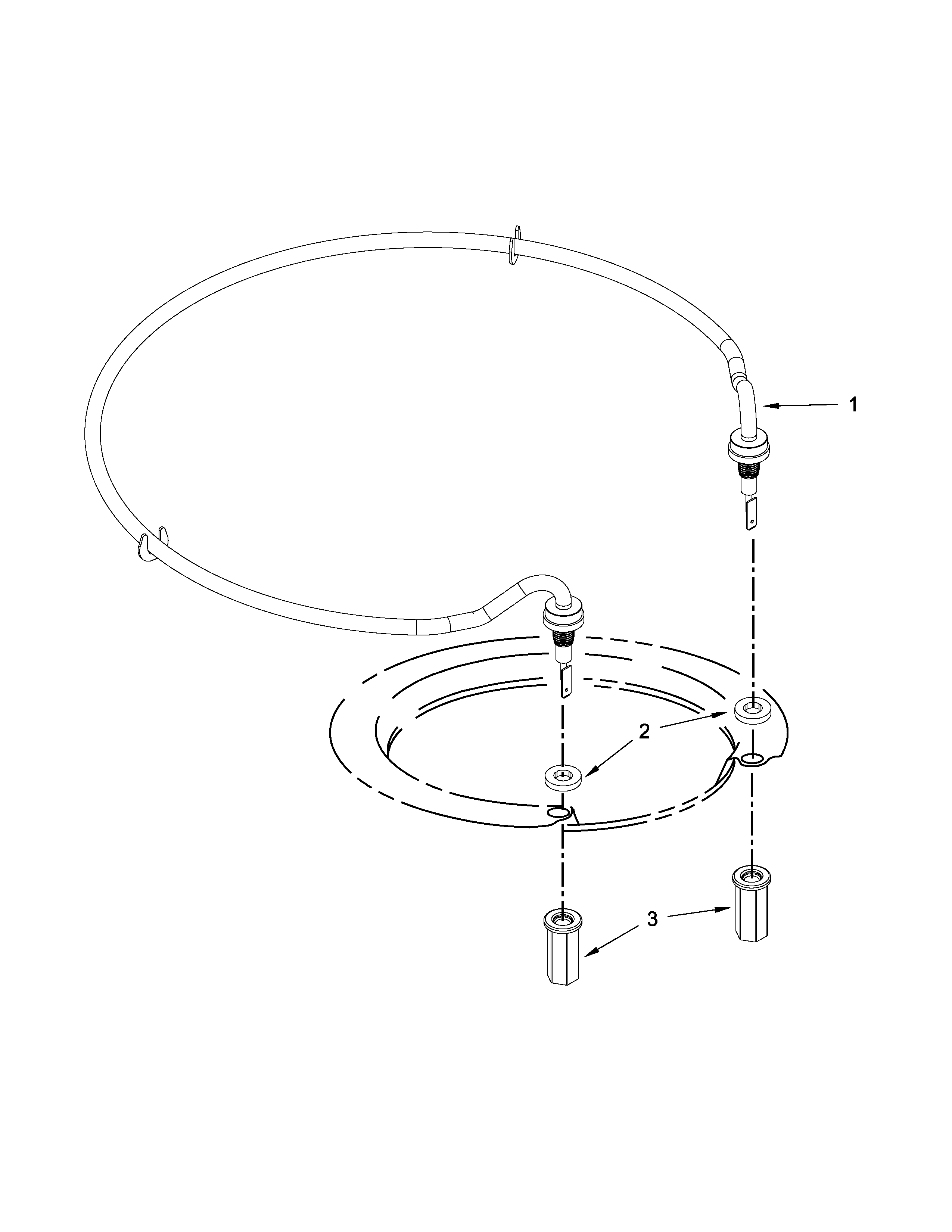

| Poor drying, cool dishes | Heating circuit or heater issue | Element assembly W10703867 |
Dishwashers that run longer, drain slowly, or do not heat properly tend to wear out faster because the motor and seals work harder each cycle. Keeping wash performance strong is one of the simplest ways to extend the service life.
For model-specific use and care details, follow the WDT780SAEM0 owner’s manual.
Last updated: January 2026
What size is the WDT780SAEM0 dishwasher?
The Whirlpool WDT780SAEM0 is built for a standard undercounter opening: about 24 inches deep (panel-ready depth noted in the install specs) and a cabinet opening height typically set at 34 1/2 inches, adjustable down to about 33 1/2 inches with wheel and insulation changes. See the WDT780SAEM0 installation guide for the exact fit requirements.
These are the installation dimensions called out for this Whirlpool dishwasher style:
- Depth: about 24 inches (60 cm) for panel-ready depth (door panel not included)
- Cabinet opening height range: about 33 1/2 to 34 1/2 inches (85.1 to 87.6 cm), depending on wheel position and leveling legs
- Toe-kick reference: a 4-inch toe-kick corresponds to a 34 1/2-inch cabinet opening height
- Handle/door projection: the handle can protrude forward; it varies by model
- Clearance check: cabinet surfaces should be free of protrusions that block installation
| What you are measuring | Typical value for WDT780SAEM0 install fit | Notes |
|---|---|---|
| Cabinet opening height | 34 1/2 in | Factory preset target height |
| Minimum opening height (with adjustments) | 33 1/2 in | Wheels removed and insulation blanket section cut |
| Depth (panel-ready reference) | 24 in | Does not include a custom door panel |
Dishwashers are designed to slide into a tight opening; even a 1/4-inch mismatch can cause rubbing, a door that will not close cleanly, or a unit that cannot be leveled correctly. Confirming the opening height and depth also helps prevent strain on the water line, drain hose, and wiring.
- Measure the opening height at the lowest point under the countertop and the highest point on the floor
- Check for flooring changes (tile that stops at the opening often needs shims)
- Plan for door/handle clearance so the door opens fully
- Level the dishwasher using the front legs so the door seals evenly
Last updated: January 2026
What's the most common problem with a whirlpool dishwasher?
On the Whirlpool WDT780SAEM0 dishwasher, the most common problems we see are poor cleaning and draining issues. In many homes, the root cause is simple: restricted water flow (clogged filter or spray arm) or a drain path blockage, which can also prevent the cycle from finishing normally.
- Reset the control and restart the cycle using the steps in the WDT780SAEM0 user manual.
- Verify the door closes and latches firmly; a weak latch can stop the wash from starting.
- Confirm the tub has water early in the cycle (after about 2 minutes, unlatch, wait 5 seconds, then open and look for water in the bottom of the tub).
- Clean the filter area and check for debris around the sump.
- Inspect the spray arm holes for food particles and hard-water buildup.
If cleaning or draining problems persist after basic maintenance, these parts are frequent failure points:
| Symptom | Common cause | Example part for WDT780SAEM0 |
|---|---|---|

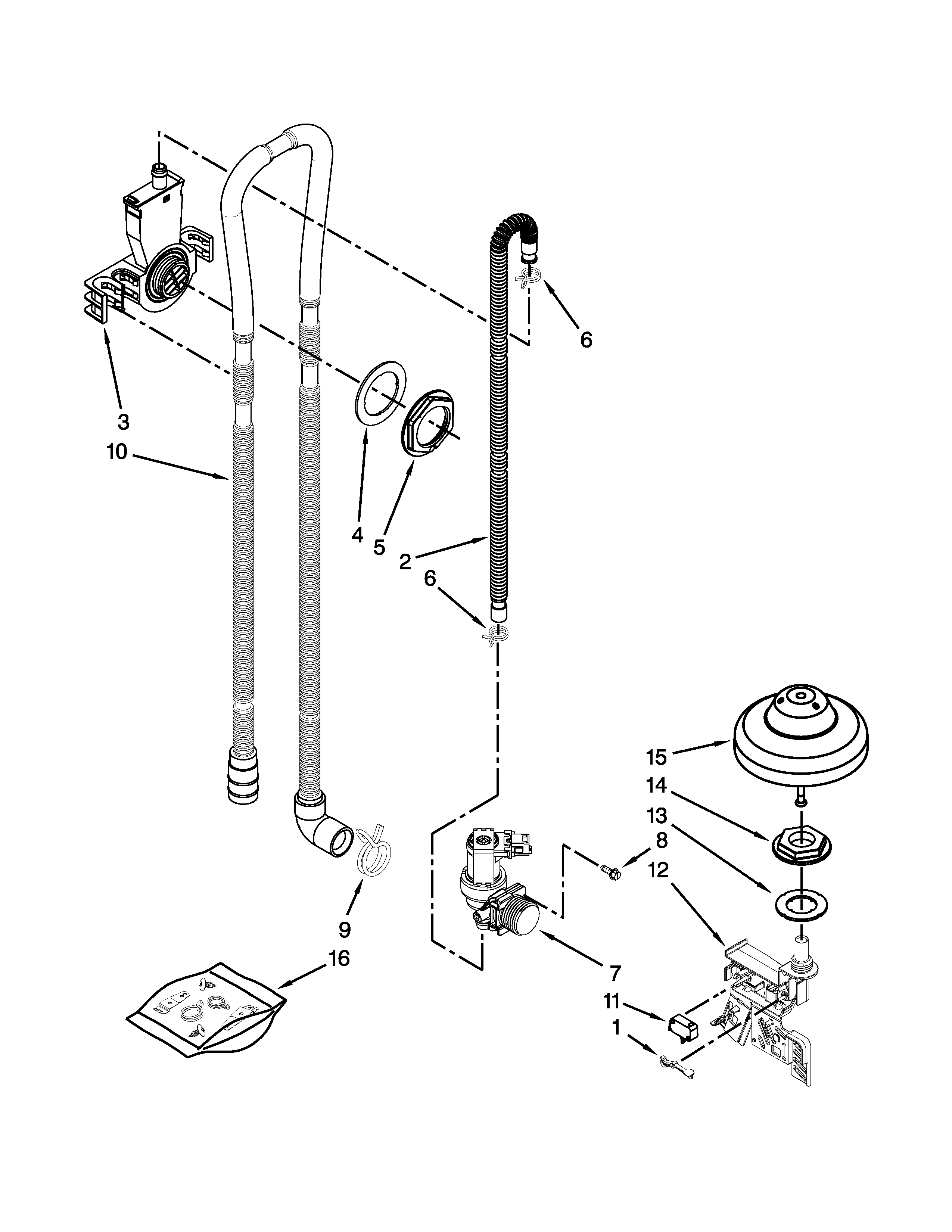

| Not draining, standing water | Drain pump not pumping or jammed | Dishwasher drain pump WPW10348269 |
| Poor cleaning, weak spray | Spray arm clogged, cracked, or not spinning | Dishwasher spray arm WPW10491331 |

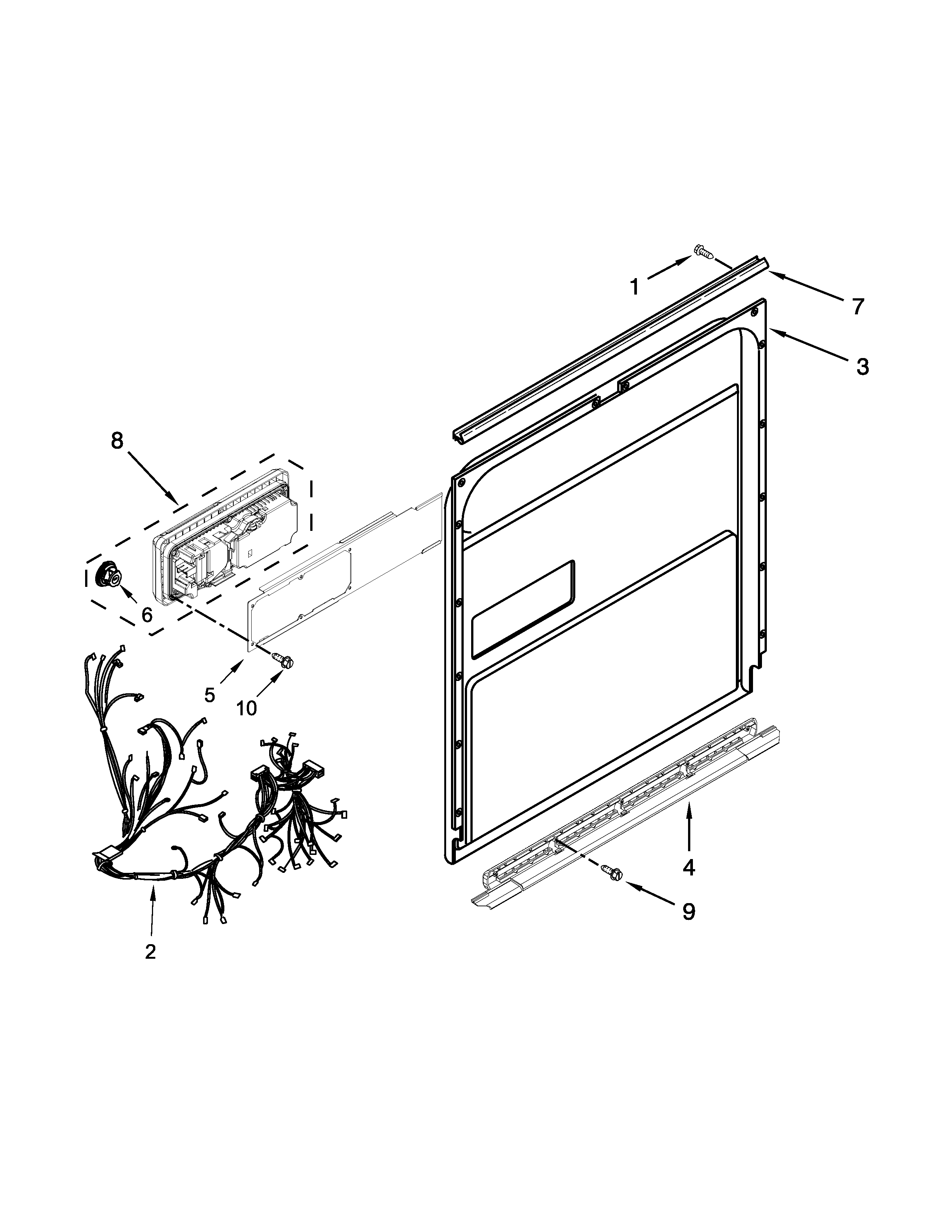

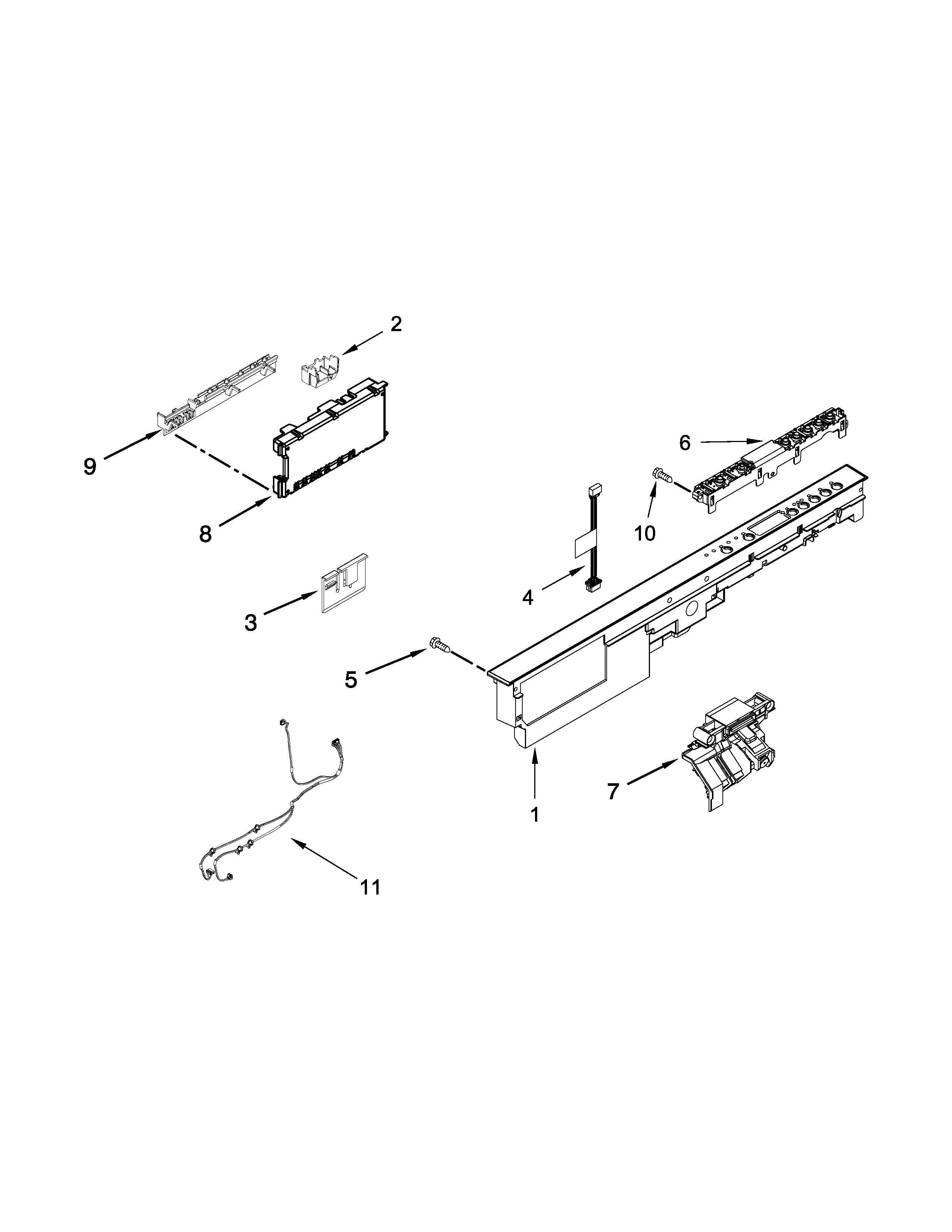

| Won’t start or stops mid-cycle | Door not sensing closed/latched | Dishwasher door latch WPW10653840 |
| Poor drying, water left on dishes | Heater not heating water properly | Element assembly W10703867 |
Poor cleaning and draining are usually the first signs of restricted circulation or a blocked drain path. Fixing those early helps prevent odors, standing water, and repeat cycle failures.
If the dishwasher beeps, flashes, or shows a fault pattern, use Whirlpool dishwasher error codes to match the symptom to a specific system (drain, fill, heating, or door). For “stuck” controls or a cycle that will not start, follow how to reset a Whirlpool dishwasher.
Last updated: January 2026
