Craftsman 917289210 tractor Parts

On a Craftsman riding mower like model 917289210, we typically find the model number and serial number on the tractor frame under the seat area or on the underside of the seat itself. Once you have that number, you can match the correct parts and diagrams using the 917289210 owner's manual.

Where to look on the tractor

Check these common ID tag locations first:

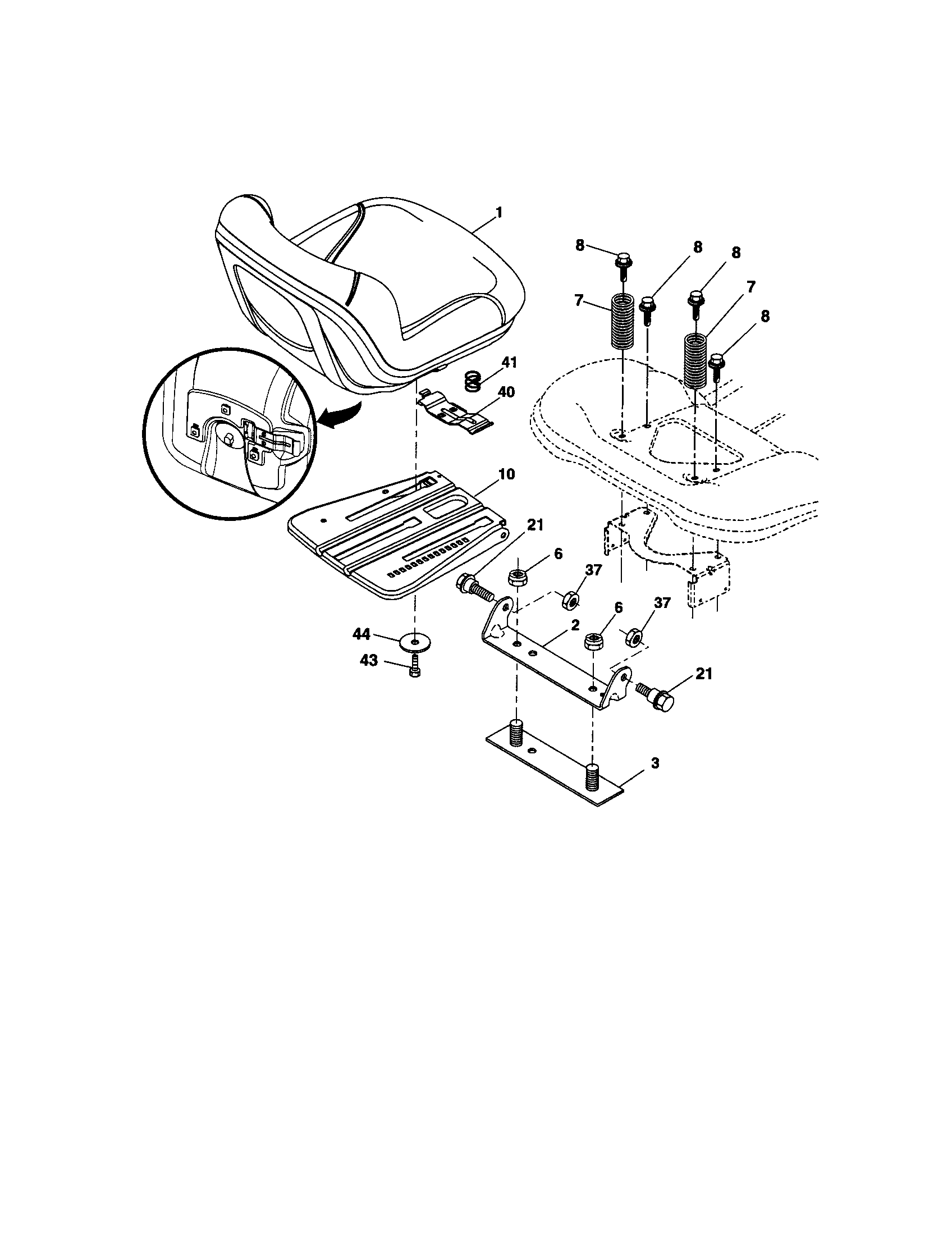

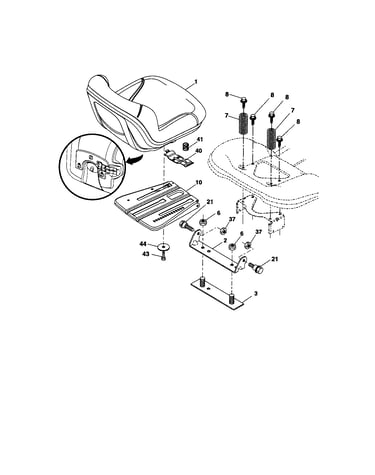

• On the frame directly under the seat (lift the seat to view)
• On the underside of the seat pan
• Near the rear fender area close to the seat mounting points
• On a sticker or metal tag that lists both model and serial

What to write down (and why)

Record both numbers exactly as shown.

What you see	Why we need it
Model number (example: 917289210)	Ensures you get the correct Craftsman parts list and diagrams
Serial number	Helps confirm production run details when parts vary

Tips to avoid common mistakes

• Copy every digit; do not drop leading zeros (if present)
• Use the full model number, not a partial family number
• If the label is dirty, wipe it gently; avoid scraping off the print
• If the tag is faded, take a clear photo and zoom in to confirm digits

Why it matters

Craftsman tractors can use different deck, steering, or electrical parts across similar-looking units. Using the exact model number helps you select the right items the first time, such as a lawn tractor starter solenoid 582042802 or deck components.

Last updated: February 2026

Yes, replacing the engine on your Craftsman lawn tractor model 917289210 is worth it when the tractor’s deck, steering, and drive system are still solid and the total engine-swap cost stays well below the cost of a comparable new rider. If multiple major systems are worn out, replacement usually makes more sense.

Quick decision checklist

• The mower deck is straight (no major rust-through or cracks) and cuts evenly after basic service
• The transaxle and drive belt system move the tractor smoothly (no slipping, grinding, or loss of drive)
• You can still get the maintenance and wear parts you need (belts, blades, pulleys, electrical)
• The engine failure is isolated (low compression, thrown rod, severe smoking) rather than a symptom of overall neglect
• You are comfortable with DIY mechanical work and safe lifting, or you have a technician doing the swap

Cost and value: a simple comparison

Option	Up-front cost	Reliability	Best when
Replace engine	Medium to high	High (with a new engine)	Deck and drivetrain are in good shape
Repair existing engine	Low to medium	Medium	Issue is minor (carburetor, ignition, fuel delivery)
Replace tractor	High	High	Multiple major components are worn or damaged

Before you commit: rule out “no-start” problems

Many “bad engine” symptoms are actually starting or maintenance issues. Your manual calls out routine items like keeping the engine cooling system clear of debris, replacing spark plugs about every 100 hours or each season, and replacing a clogged in-line fuel filter. Use the 917289210 owner’s manual to follow the correct maintenance and troubleshooting steps.

If the engine clicks or cranks but will not start, use riding lawn mower engine spins but wont start video to walk through common checks (fuel flow, spark, air filter, safety interlocks).

Why it matters

An engine swap can restore years of service, but only if the rest of the tractor is safe and mechanically sound. The manual also emphasizes not making adjustments with the engine running and keeping safety devices working properly, which is especially important during major repairs.

Last updated: February 2026

For Craftsman lawn tractor model 917289210, the engine oil capacity is 56 oz with the oil filter and 48 oz without the oil filter. We recommend filling to the full mark on the dipstick (not to a measured amount alone) to avoid overfilling.

Oil capacity and what it means

Oil capacity depends on whether you replace the oil filter during the oil change.

Oil change type	Capacity	Approx. in quarts
With oil filter	56 oz	1.75 qt
Without oil filter	48 oz	1.50 qt

Oil type for this model

The 917289210 owner's manual lists these common viscosity choices:

• SAE 30 for temperatures above 32°F
• SAE 5W-30 for temperatures below 32°F
• Use a quality 4-cycle engine oil meeting the API service category shown in the manual

Quick fill steps (best practice)

Use this approach so the dipstick, not the bottle, is the final authority.

• Park on a level surface and let the engine cool.
• If changing the filter, install the new filter first.
• Add about 3/4 of the capacity (for example, ~36 oz), then wait 1 minute.
• Check the dipstick, then top off slowly to the FULL mark.
• Start the engine briefly, shut it off, wait 1 to 2 minutes, then recheck.
• Stop filling if the oil level reaches FULL; do not overfill.

Why it matters

Correct oil level helps protect the engine from overheating, smoking, hard starting, and premature wear. Overfilling can cause foaming and oil carryover; underfilling can starve internal parts of lubrication.

Last updated: February 2026

On the Craftsman 917289210 front-engine lawn tractor, the “engine” is supported by several key systems: fuel delivery, air intake, ignition, starting/charging, and safety controls. Together, these parts store fuel, mix air and fuel, create spark, crank the engine, and keep operation safe (see the 917289210 owner's manual).

Main lawn tractor engine parts (what they do)

• Fuel tank and fuel line: stores gasoline and feeds it to the engine.
• Fuel filter: traps debris before it reaches the carburetor.
• Carburetor: mixes air and fuel for combustion.
• Air filter and air screen/fins: keeps dirt out; helps cooling airflow.
• Spark plug and spark plug wire: delivers spark to ignite the mixture.

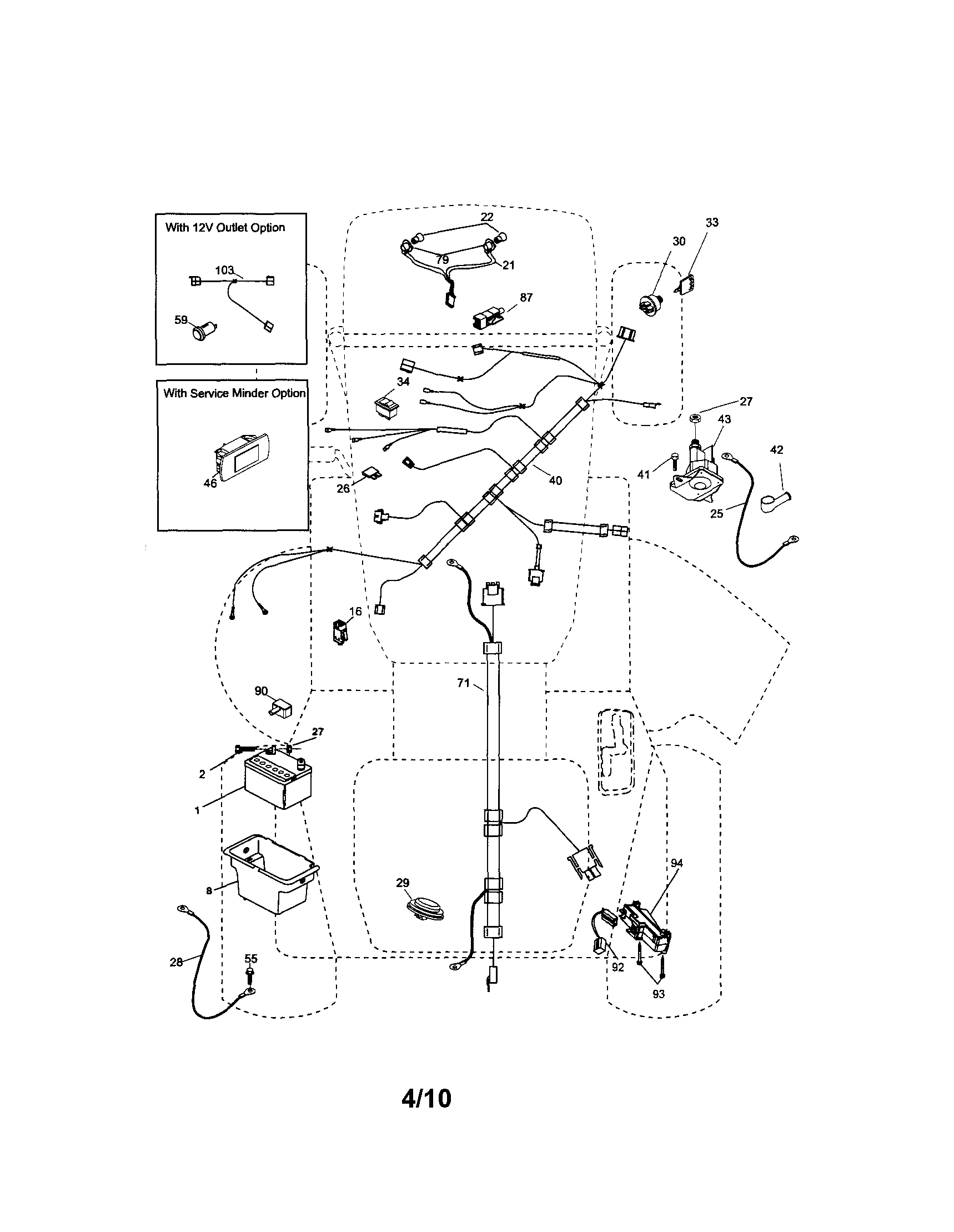

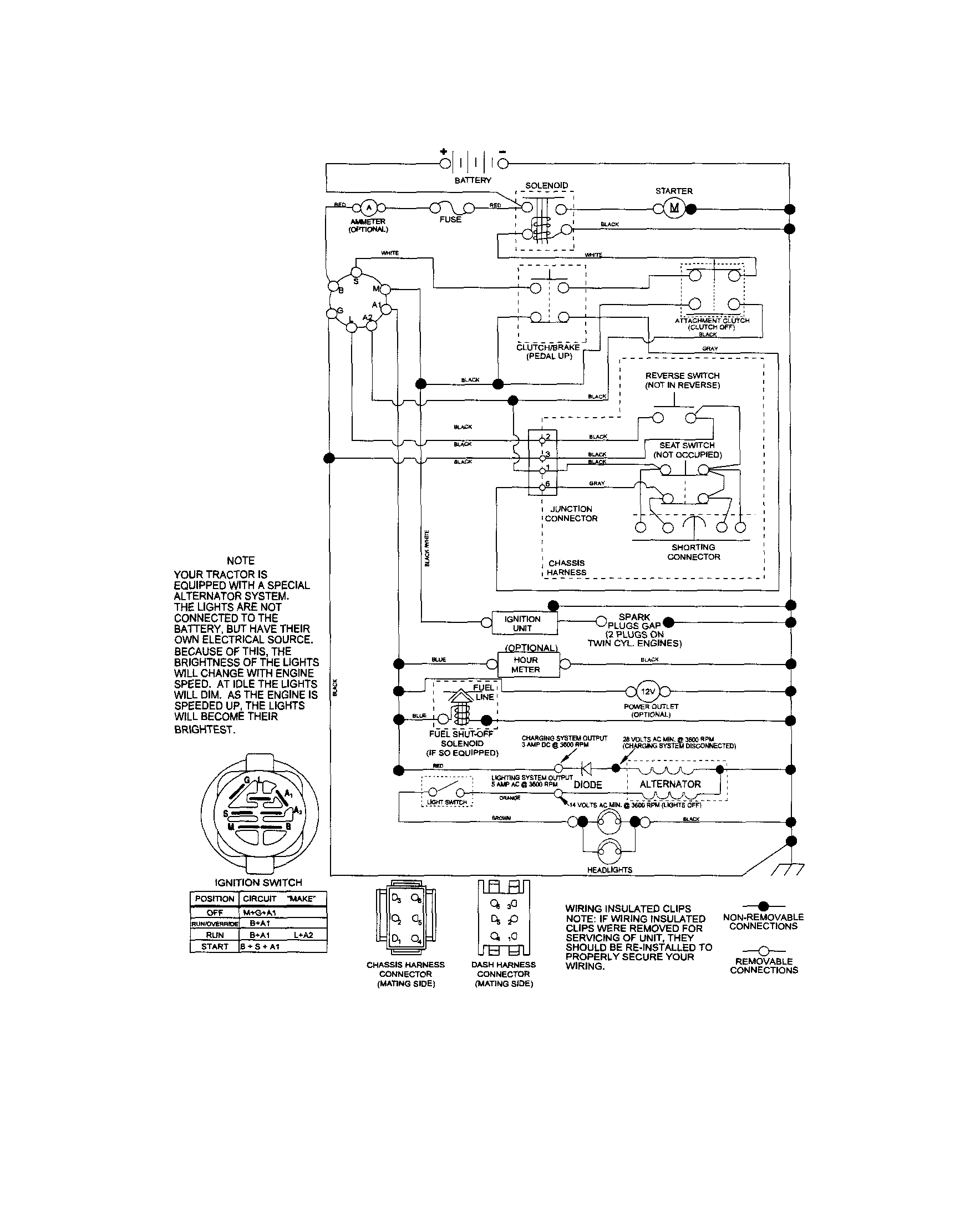

• Ignition switch and wiring harness: routes power for starting and run circuits.
• Starter system: starter motor and starter solenoid crank the engine (example part: lawn tractor starter solenoid 582042802).
• Battery and charging system: provides starting power and recharges while running.
• Muffler: reduces exhaust noise; can restrict power if clogged.

Quick “system map” (engine-related)

System	Common parts included	What you notice when it fails
Fuel	Fuel tank, fuel filter, carburetor	Hard starting, surging, stalls
Air	Air filter, air screen/fins	Loss of power, black smoke, overheating
Ignition	Spark plug, plug wire, ignition switch	No start, misfire
Starting	Battery, starter solenoid, wiring	Clicks but won’t crank

Symptoms that point to specific engine parts

The 917289210 troubleshooting guidance commonly ties these symptoms to engine-related components:

• Engine clicks but will not start: battery/terminals, wiring, starter solenoid, starter.
• Loss of power: dirty air filter, dirty fuel filter, stale fuel, spark plug issues.
• Excessive vibration: often blade or mandrel related (not internal engine).

Why it matters

Knowing which “engine part group” you are dealing with helps you avoid replacing the wrong component. For example, a single click at the key often points to the starting circuit (battery, cables, solenoid) rather than the carburetor.

Last updated: February 2026

Craftsman model 917289210 is the 917.28921 lawn tractor series shown in the operator documentation; that manual does not list a single “model year,” because these tractors are identified primarily by model number and production run. Use the purchase date and the manual revision details in the 917289210 owner's manual to place it in the correct timeframe.

How to pinpoint the exact year for 917289210

We recommend using at least two of these identifiers together:

• Date of purchase on your receipt (most reliable for “what year was it made/sold”)
• Product/serial number label on the tractor (often under the seat, on the frame, or near the engine)
• Manual form/revision code printed on the manual (helps narrow the publication period)
• Engine model and code/date on the engine tag (engine makers often encode build date)
• Parts configuration (deck size, transaxle type, electrical start) matching the manual specs

What we can confirm from the documentation

The operator manual for this tractor family identifies it as a Craftsman lawn tractor with these key traits:

Item	What the manual shows
Tractor model format	917.28921 (same model family as 917289210)
Engine rating	21.0 HP (as rated by engine manufacturer)

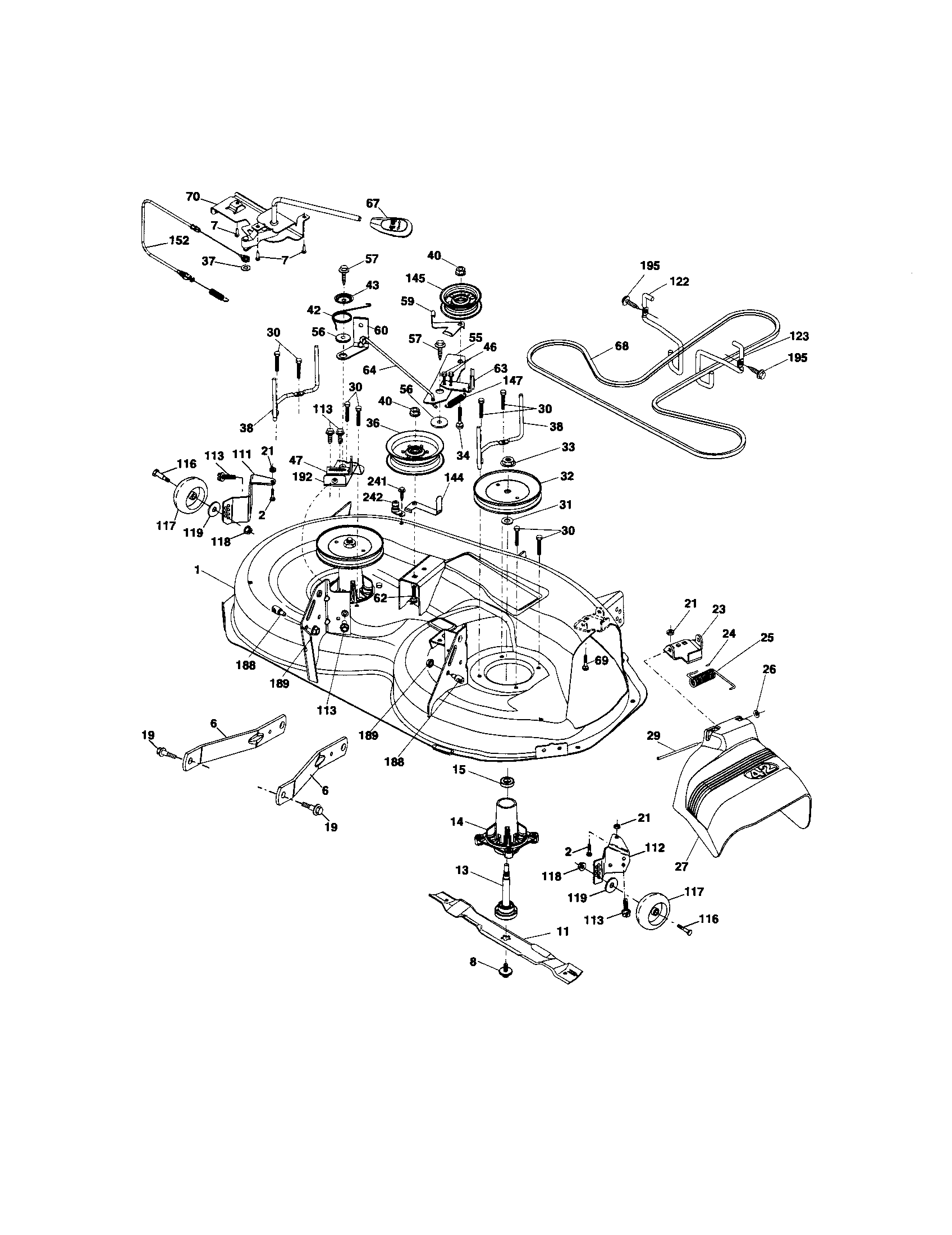

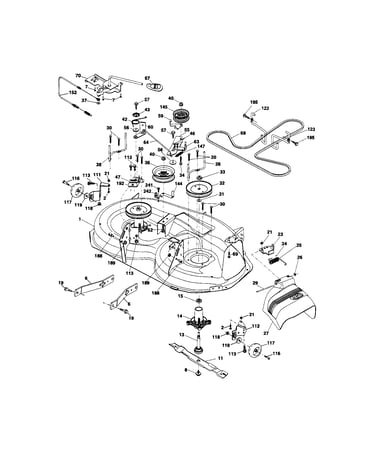

Deck size	42-inch mower
Starting system	Electric start

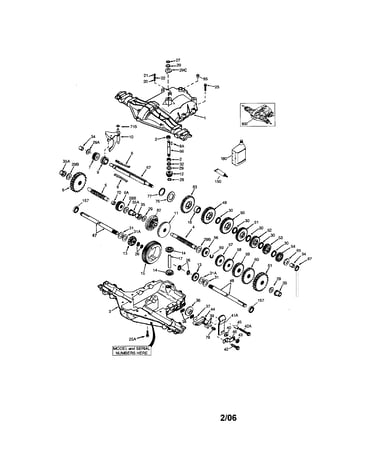

Drive	6-speed transaxle

Why it matters

Craftsman 917-series tractors often share similar-looking frames across multiple years; the exact year affects which parts diagrams, belts, blades, and electrical components match your build.

Quick parts cross-check (optional)

If your tractor has a 42-inch deck and you are matching common wear items, these model-listed parts are often involved:

• Husqvarna lawn tractor 42-in deck 3-in-1 blade 532422719 (blade fit depends on deck configuration)
• Lawn tractor starter solenoid 582042802 (common no-crank/click symptom part)
• Husqvarna lawn tractor ignition harness 532401098 (starting and safety circuit wiring)

Last updated: February 2026

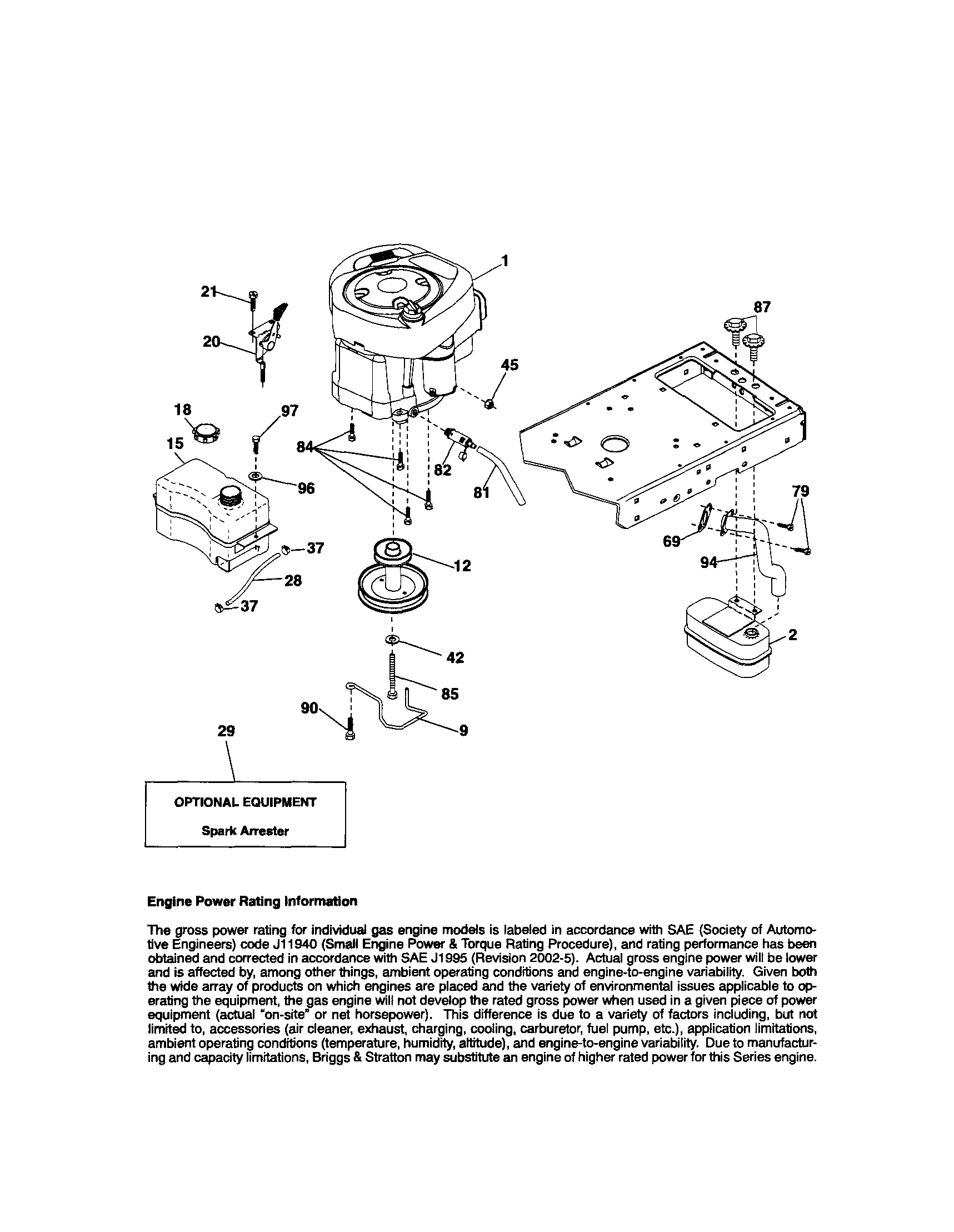

The Craftsman riding mower model 917289210 is a front-engine lawn tractor that uses a single-cylinder gasoline engine; the exact engine make and horsepower are confirmed by the engine ID label on your tractor and the specifications section in the 917289210 owner's manual. This is the most accurate way to match service parts and tune-up items.

How to identify the exact engine on model 917289210

Use the engine’s identification tag, then cross-check it with the manual.

• Lift the hood and find the engine ID label (commonly on the blower housing, valve cover, or near the starter).
• Record the engine model, type, and code (or serial) exactly as printed.
• Use those numbers when buying engine-specific parts such as air filters, spark plugs, carburetor parts, and fuel filters.
• Use 917289210 when ordering tractor chassis, deck, steering, and drive parts.
• If the label is dirty, wipe it clean; do not scrape it off.

Quick reference: tractor model vs. engine model

What you have	Where to find it	What it’s used for
Tractor model number 917289210	Frame tag under the seat or on the chassis	Deck, steering, transaxle, electrical harness, body parts
Engine model/type/code	Sticker or stamped tag on the engine	Engine tune-up parts and engine service information

Engine-related starting issues (common checks)

If you are diagnosing a no-crank or clicking condition, start with the basics.

• Confirm the brake pedal is fully depressed and PTO is disengaged.
• Check battery terminals for tight, clean connections.
• Inspect wiring at the solenoid and starter.
• Test the solenoid if you hear a click but the starter does not spin.

If the solenoid is the issue on this model, the matching replacement is the lawn tractor starter solenoid 582042802.

Why it matters

Craftsman tractors can be built with different engine variants over a production run; using the engine model/type/code prevents ordering the wrong engine parts, while 917289210 ensures correct fit for tractor and deck components.

Last updated: February 2026

Craftsman uses engines from several manufacturers across its riding mowers and lawn tractors. For Craftsman lawn tractor model 917289210, the engine is a Briggs & Stratton single-cylinder gasoline engine (21.0 HP as rated by the engine manufacturer). For operating and maintenance details, use the 917289210 owner's manual.

Common engine brands you’ll see on Craftsman tractors

Across different Craftsman tractor models and years, these are the most common engine suppliers:

• Briggs & Stratton (very common on many Craftsman lawn tractors)
• Kohler (common on some mid to higher HP tractors)
• Kawasaki (less common, often on higher-end configurations)
• Other OEMs may appear on specific model lines and production runs

How to confirm the engine brand on your exact tractor

Even when the brand is known for the model, the best practice for ordering tune-up parts is to read the engine ID label.

• Find the engine data tag on the blower housing, valve cover area, or near the starter
• Record the engine model, type, and code (or spec number)
• Match that information when selecting air filter, spark plug, oil filter, and fuel filter
• Use the tractor model number 917289210 to pull the correct chassis and deck diagrams

Quick reference: what to look for

What you need	Where to find it	Why it matters
Engine brand and model/type code	Engine shroud or valve cover area	Ensures correct tune-up parts
Tractor model number 917289210	Frame tag under seat or hood area	Ensures correct chassis and deck parts
HP rating (21.0 HP)	Listed in documentation	Helps match correct engine family

Why it matters

Engine brand and engine ID determine the correct maintenance parts and some starting/charging components. Using the engine’s model and type code prevents ordering the wrong filter or ignition parts.

Related starting part (if the engine clicks but won’t crank)

A weak solenoid can cause a click with no crank. For this model, we list the lawn tractor starter solenoid 582042802.

Last updated: February 2026
