Universal/Multiflex (Frigidaire)
Dishwasher

Model # MDR251RER0 Official Universal/Multiflex (Frigidaire) built-in dishwasher - 5995283594

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MDR251RER0 built-in dishwasher - 5995283594, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

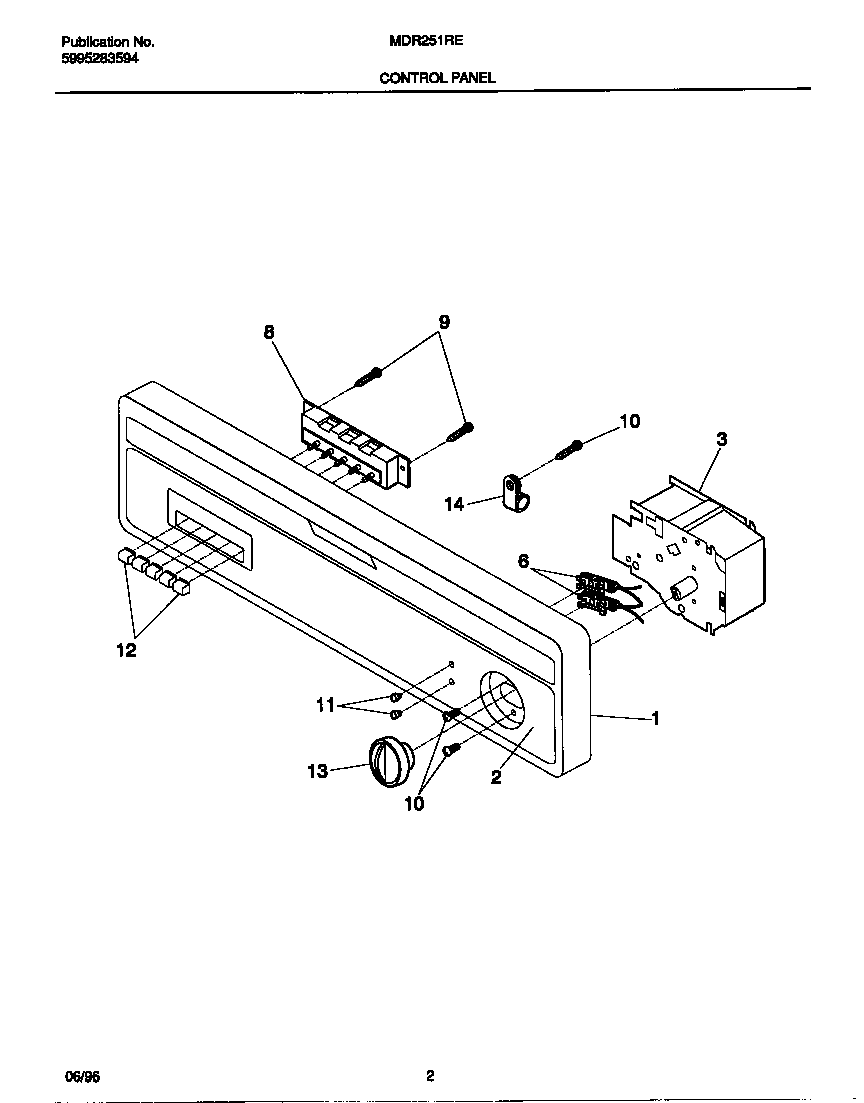

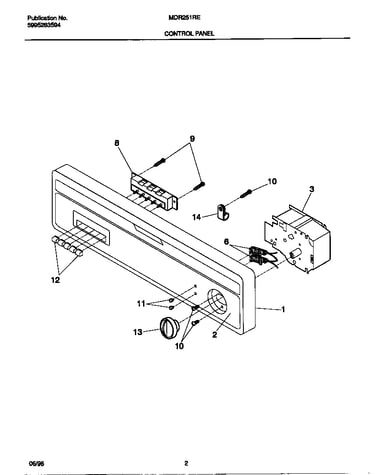

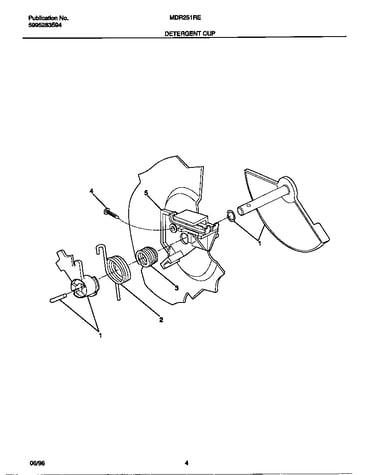

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |

Dishwasher Tub Gasket 154219501
#3

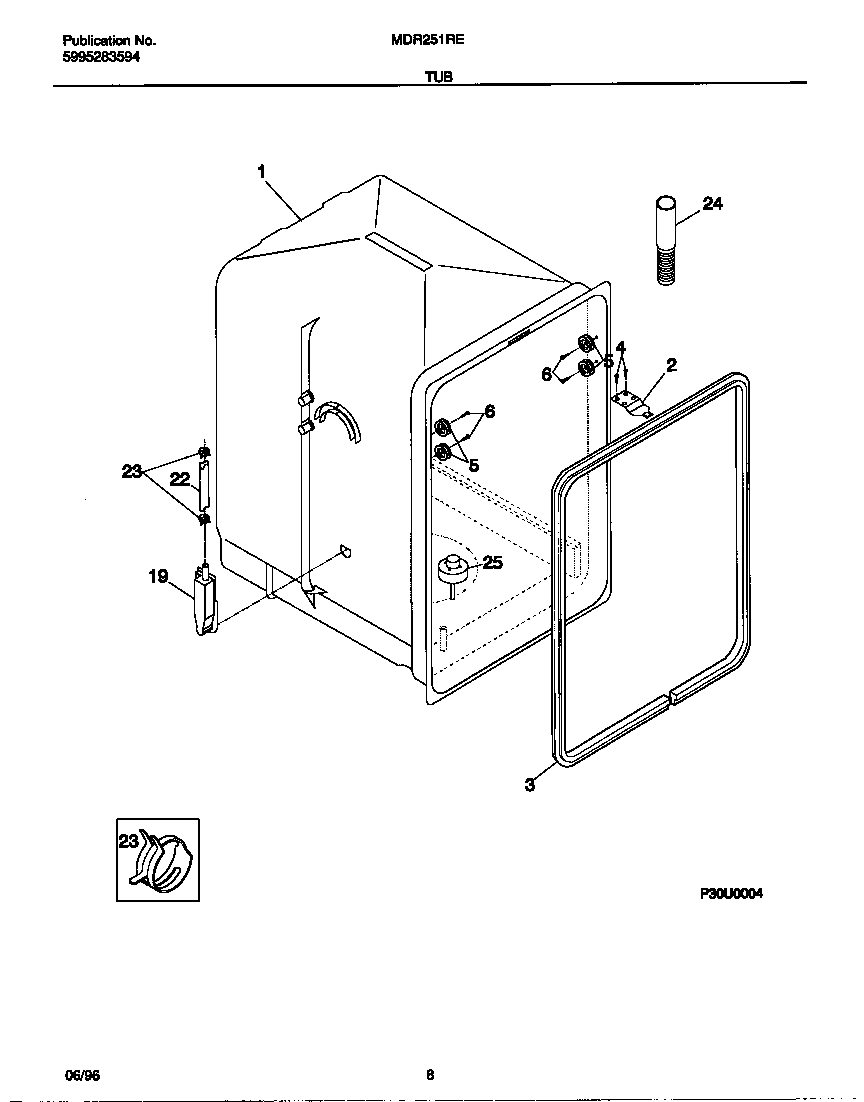

Tub diagram

Dishwasher tub gasket

Part #154219501

Replaced by #154827601

?
Manufacturer substitution
This part replaces 154219501. Substitute parts can look different from the original.
BEST SELLER
$31.02
26% OFF MSRP : $42.00
In Stock
Latch Handle 154211301
#12B

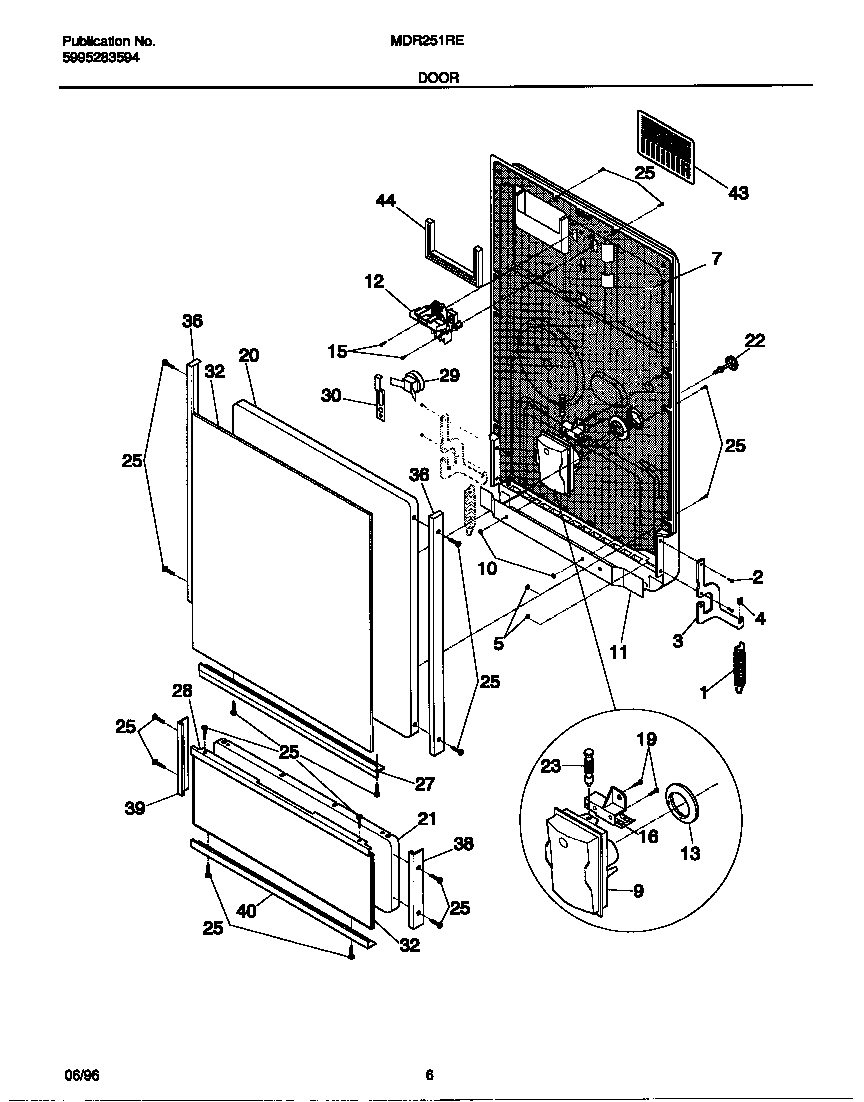

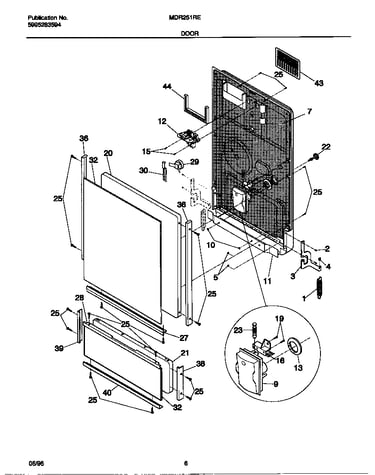

Door diagram

Latch handle

Part #154211301

Replaced by #5304442175

?
Manufacturer substitution
This part replaces 154211301. Substitute parts can look different from the original.
BEST SELLER
$50.76
9% OFF Phone Price : $55.76
In Stock
Latch Assembly 154211201
#12A

Door diagram

Latch assembly

Part #154211201

Replaced by #5304442175

?
Manufacturer substitution
This part replaces 154211201. Substitute parts can look different from the original.
BEST SELLER
$50.76
9% OFF Phone Price : $55.76
In Stock
Slide Rack 154232701
#6

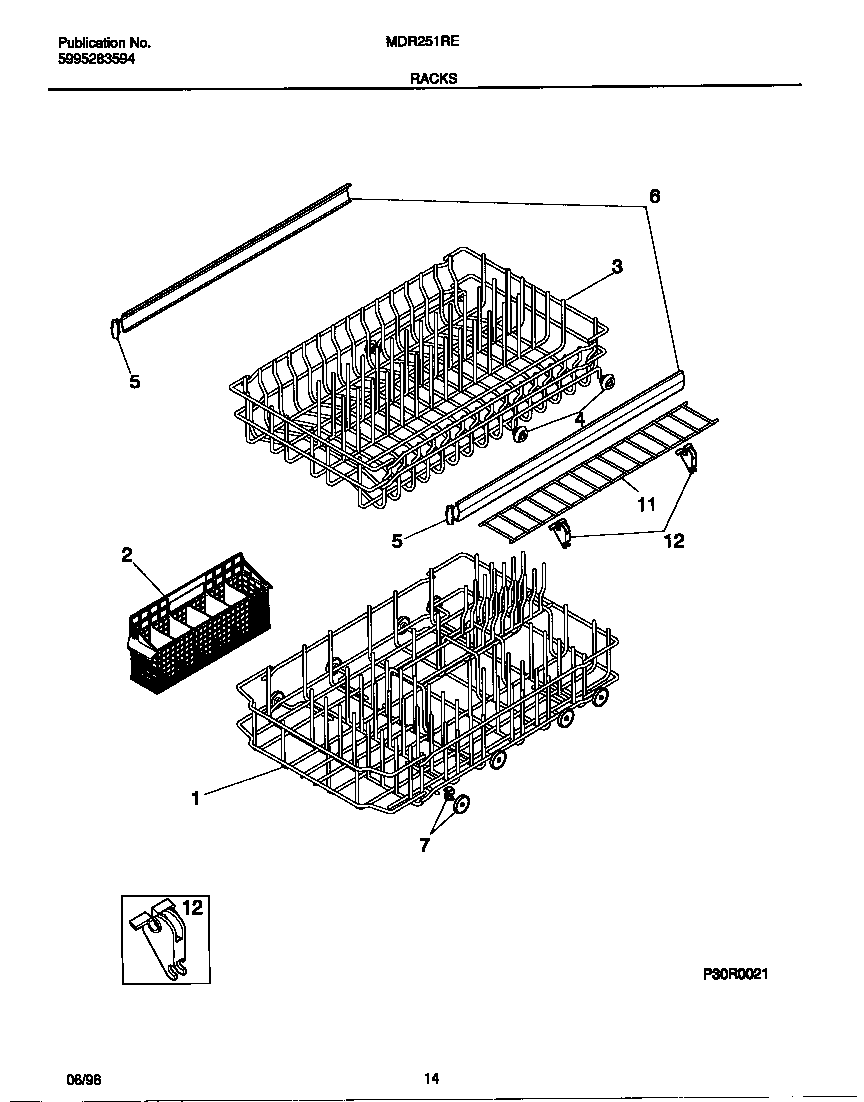

Racks diagram

Slide rack

Part #154232701

Replaced by #154597801

?
Manufacturer substitution
This part replaces 154232701. Substitute parts can look different from the original.
$49.41
9% OFF Phone Price : $54.41
In Stock
Dishwasher Screw 154103702
#15

Door diagram

Dishwasher screw

Part #154103702

This item is not returnable
$14.89
12% OFF Phone Price : $16.89
In Stock
Dishwasher Door Spring 154237401
#1

Door diagram

Dishwasher door spring

Part #154237401

$52.91
9% OFF Phone Price : $57.91
In Stock
Screw 154026501

#NI

All parts diagram

Screw

Part #154026501

This item is not returnable
In Stock
Dishwasher Screw 5300807270
#2

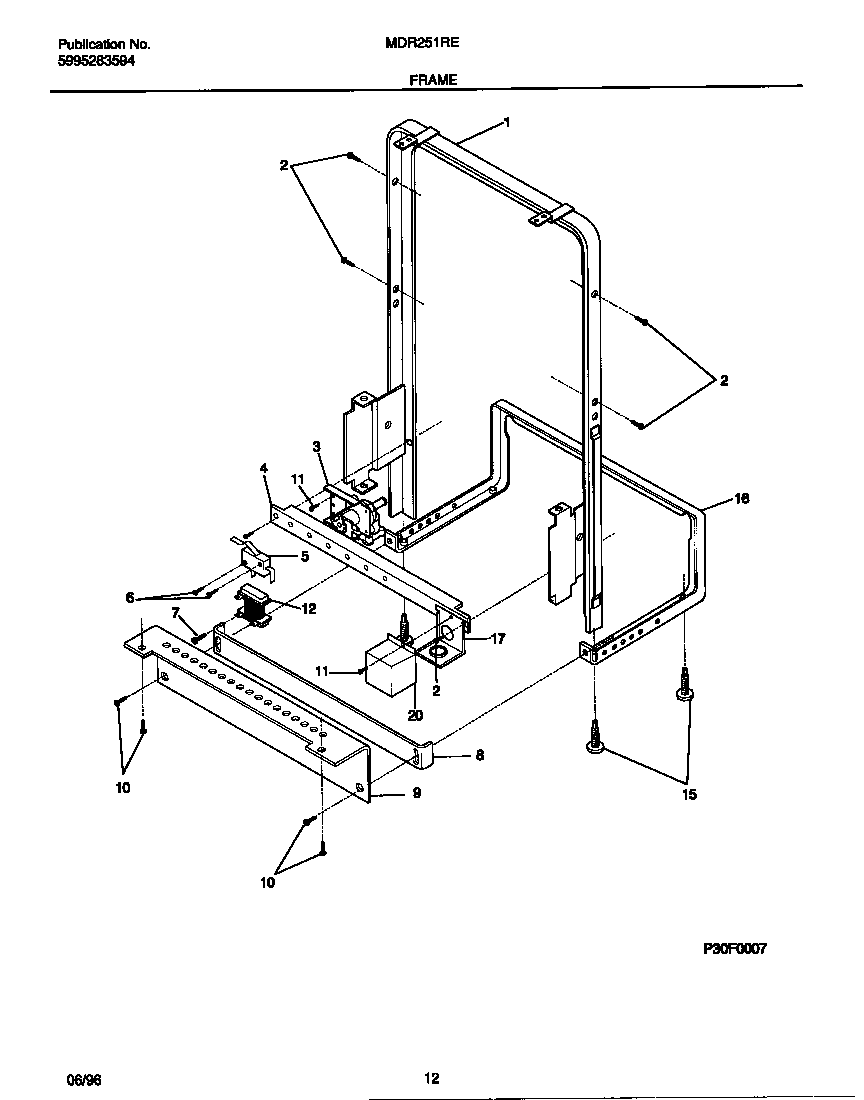

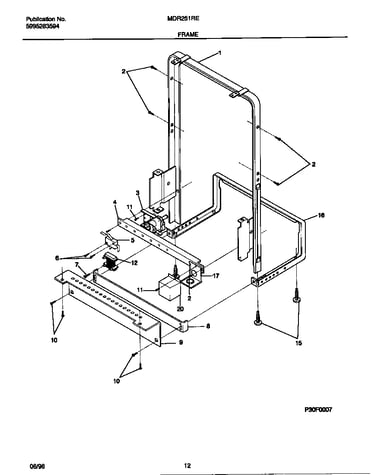

Frame diagram

Dishwasher screw

Part #5300807270

This item is not returnable
In Stock
Dishwasher Dishrack Track Roller Screw And Washer 5303943103
#6

Tub diagram

Dishwasher dishrack track roller screw and washer

Part #5303943103

This item is not returnable
$19.32
9% OFF Phone Price : $21.32
In Stock
Dishwasher O-ring 5300806521
#49

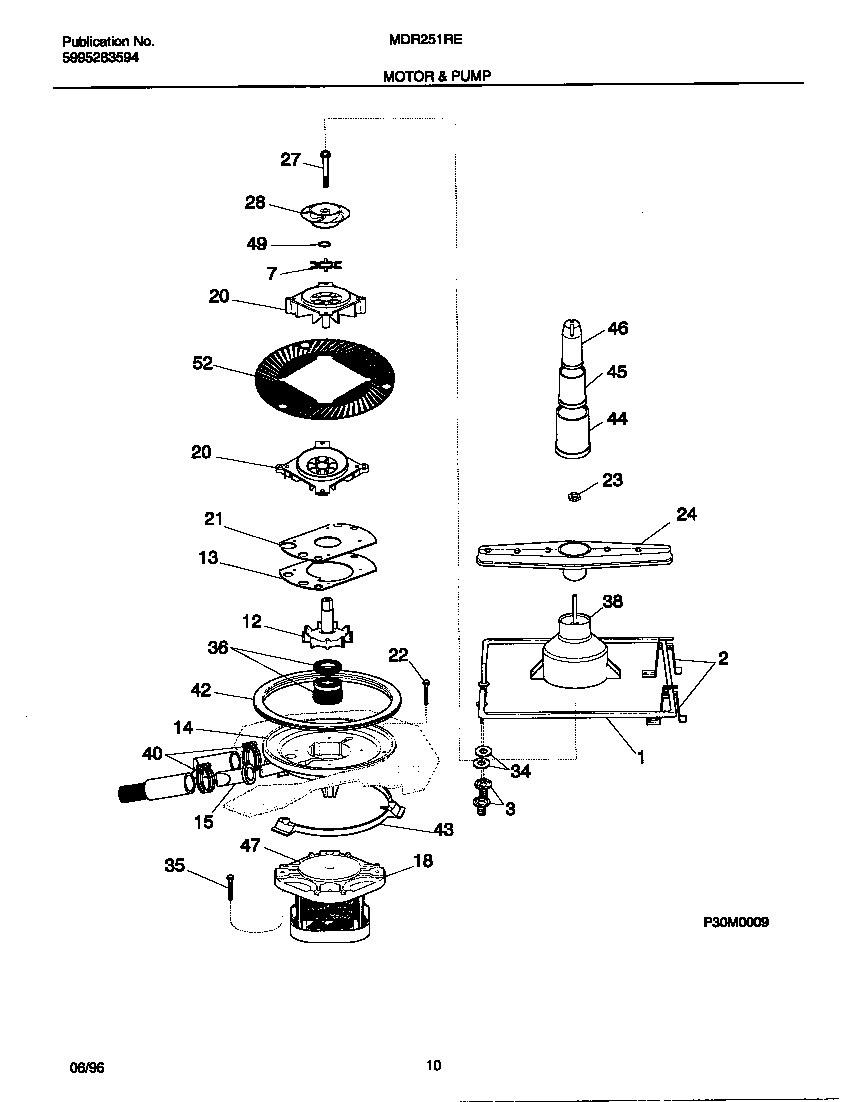

Motor & pump diagram

Dishwasher o-ring

Part #5300806521

In Stock
