Model #AD0482XP1 Whirlpool dehumidifier

Here are the diagrams and repair parts for Whirlpool AD0482XP1 dehumidifier, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 80 parts

Bend-retrn

#32

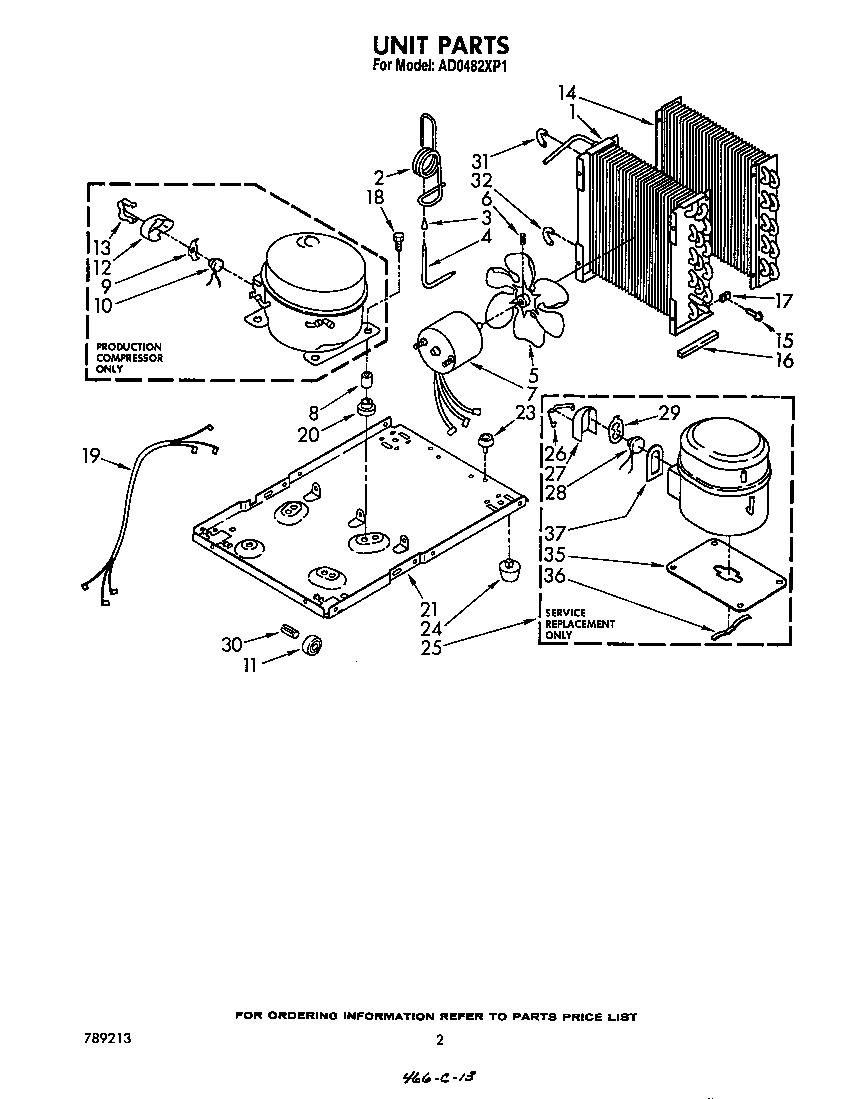

Unit parts Diagram

Bend-retrn

Part #4388785
?
Manufacturer substitution
This part replaces 854624. Substitute parts can look different from the original.
This part replaces 854624
$76.65

In Stock

Screw

#24

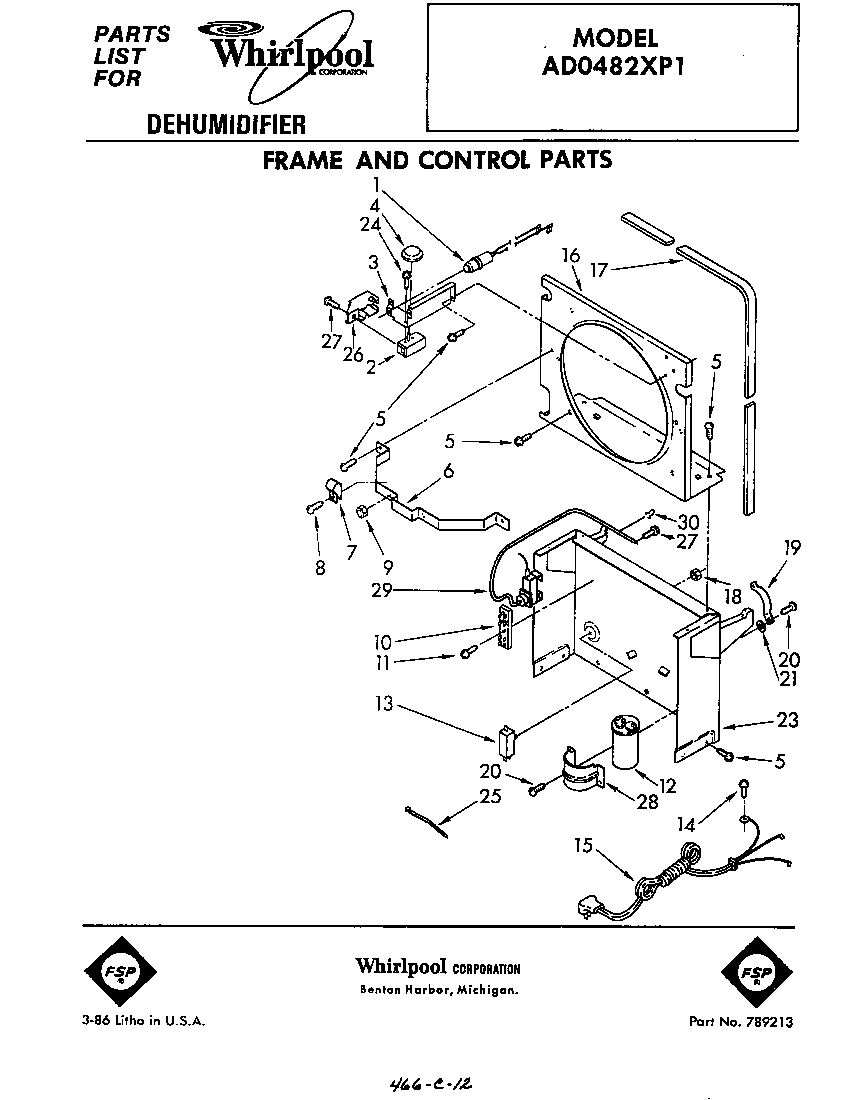

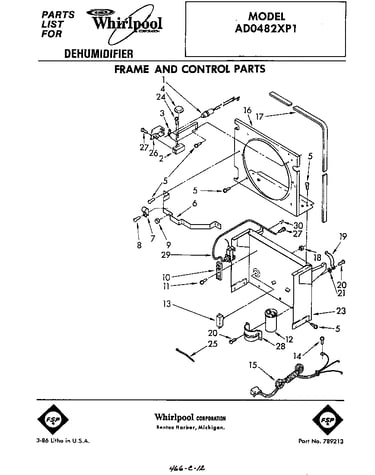

Frame and control parts Diagram

Screw

Part #488889
?
Manufacturer substitution
This part replaces 489064. Substitute parts can look different from the original.
This part replaces 489064
This item is not returnable
$2.16

In Stock

Washer Cable Tie

#25

Frame and control parts Diagram

Washer cable tie

Part #WPW10339879
?
Manufacturer substitution
This part replaces 857547. Substitute parts can look different from the original.
This part replaces 857547
This item is not returnable
$3.89 |
8% OFF MSRP:$4.21

In Stock

Appliance Screw

#20

Frame and control parts Diagram

Appliance screw

Part #WP489069
?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This part replaces 488480
This item is not returnable
$2.48 |
25% OFF MSRP:$3.29

In Stock

Screw

#2

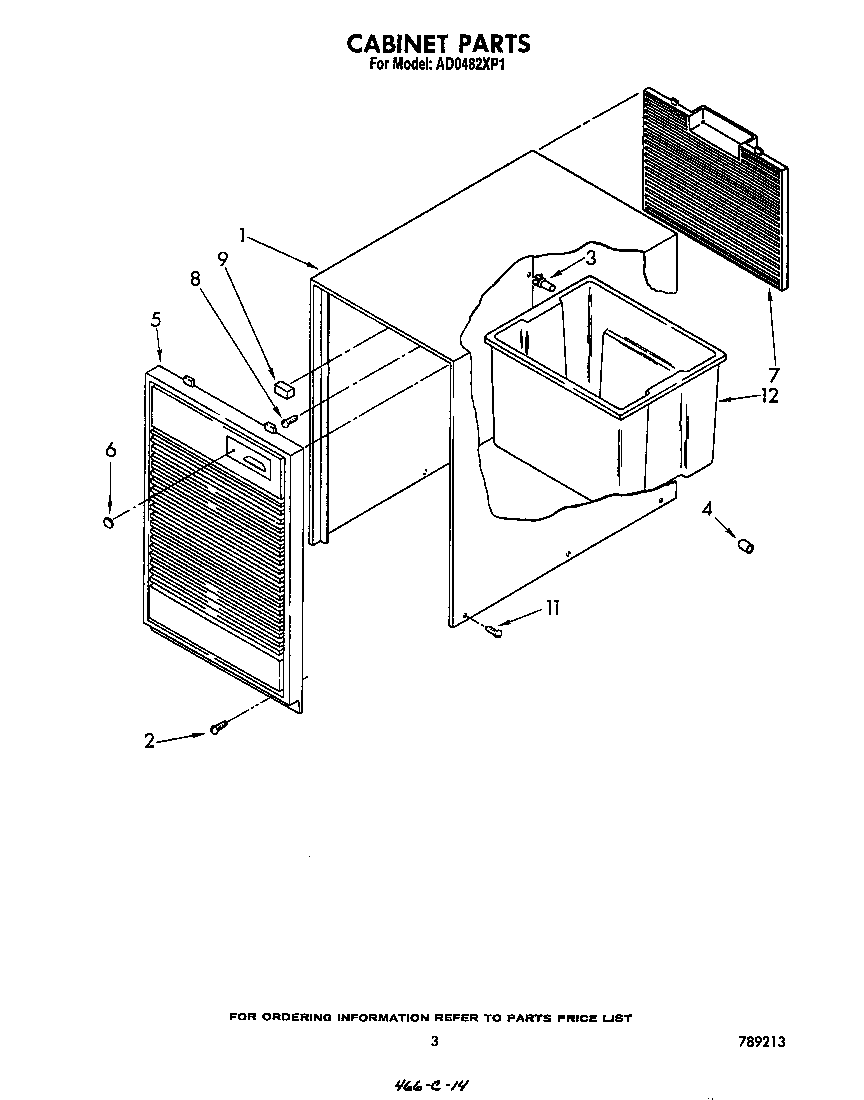

Cabinet parts Diagram

Screw

Part #489120

The manufacturer no longer makes this part, and there's no substitute part

Washer Fill Hose Washer, 4-pack

#12C

Cabinet parts Diagram

Washer fill hose washer, 4-pack

Part #285448A
?
Manufacturer substitution
This part replaces 647338. Substitute parts can look different from the original.
This part replaces 647338
This item is not returnable
$5.17

In Stock

Screw

#27

Frame and control parts Diagram

Screw

Part #WP488234
?
Manufacturer substitution
This part replaces 488234. Substitute parts can look different from the original.
This part replaces 488234
This item is not returnable
$4.19

In Stock

Appliance Screw

#8

Cabinet parts Diagram

Appliance screw

Part #WP488729
?
Manufacturer substitution
This part replaces 489073. Substitute parts can look different from the original.
This part replaces 489073
This item is not returnable
$3.18

In Stock

Appliance Screw

#8

Frame and control parts Diagram

Appliance screw

Part #WP488729
?
Manufacturer substitution
This part replaces 487910. Substitute parts can look different from the original.
This part replaces 487910
This item is not returnable
$3.18

In Stock

Nut

#17

Unit parts Diagram

Nut

Part #488660
?
Manufacturer substitution
This part replaces 486197. Substitute parts can look different from the original.
This part replaces 486197
$12.49

In Stock
