On Kenmore dryer model 11076662501, we open the control panel by unplugging the dryer first, then removing the console mounting screws (typically at the back of the console or under end caps) and lifting the console up and back to access the controls and wiring. See the 11076662501 owner's manual for safety steps before servicing.

Before you start (safety and access)

• Unplug the dryer (or switch off the breaker) before removing any panels.
• If it is a gas dryer, close the gas shutoff valve before servicing.
• Pull the dryer forward enough to reach the rear console screws.
• Keep a small container for screws so none fall into the cabinet.
• Take a quick photo of wire locations before disconnecting anything.

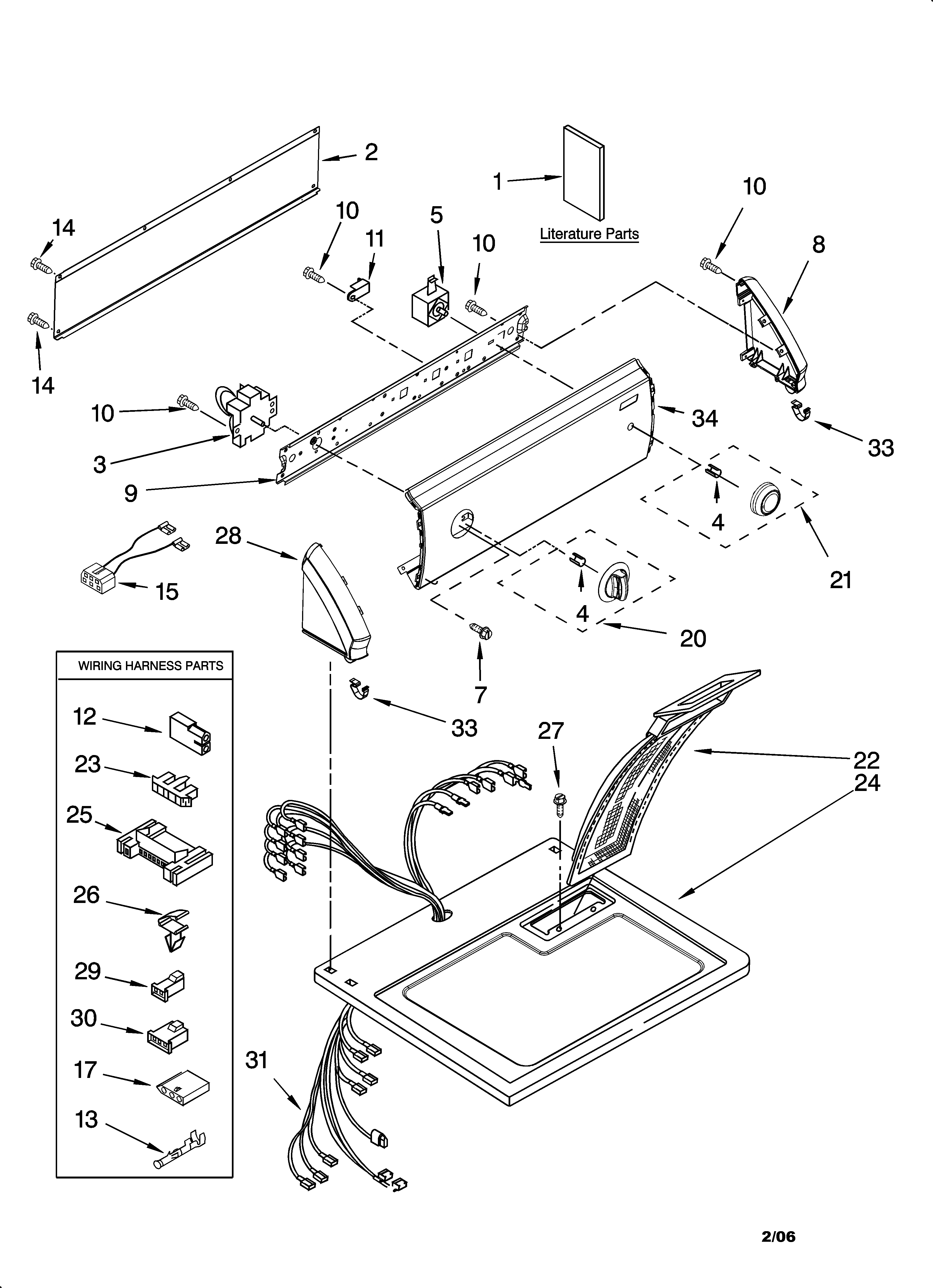

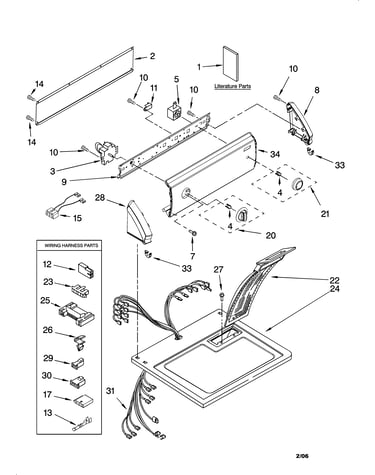

Typical steps to open the control panel

1. Disconnect power.
2. Look for console screws:

• Along the back edge of the console (common on Kenmore 110-style dryers), or
• Behind plastic end caps on the left and right sides.

3. Remove the screws.
4. Lift the console up, then pull it slightly forward or back (depending on hinge style) to release the tabs.
5. Support the console so it does not hang by the wiring.

What you will see inside (and what it does)

What you see	What it controls	Why it matters
Timer or electronic control	Cycle timing and functions	A loose connector can cause no-start or odd cycle behavior
Push-to-start switch	Starts the motor circuit	A failed switch can mimic a dead dryer
Wire harness connectors	Power and signals between parts	Mis-seated plugs cause intermittent problems

If the dryer will not start after reassembly

• Confirm the door fully closes and the door switch clicks.
• Verify the cycle selector is not set to OFF.
• Press and hold the start button for 1 to 2 seconds.
• Check the house breaker or fuse.
• If the start button feels loose or inconsistent, inspect the dryer push-to-start switch WP3977456.

Why it matters

Opening the control panel correctly prevents broken console tabs, pinched wires, and miswired connectors. It also gives you safe access to common no-start components like the timer, start switch, and harness connections.

Last updated: February 2026

Kenmore “500 Series” is a series name, not a single capacity. For the Kenmore dryer model 11076662501, the exact cubic-foot capacity is listed on the model’s product specifications in the 11076662501 owner's manual; many full-size Kenmore dryers are typically in the 6.5 to 7.4 cu. ft. range.

How to find the exact capacity for model 11076662501

Use these quick checks to get the correct number for your specific dryer:

• Look in the specifications section of the 11076662501 owner's manual.
• Check the model/serial rating plate (commonly in the door opening); it confirms model identity so you match the right specs.
• If you are comparing “500 Series” listings, match by model number, not series name.
• If your dryer is installed in a tight space, confirm overall size in the 11076662501 installation guide so you do not confuse dimensions with capacity.

Capacity vs. dimensions (common mix-up)

Capacity is the drum volume (cubic feet). Dimensions are the outside cabinet size.

What you are checking	Unit	What it tells you
Capacity	cu. ft.	How much laundry the drum holds
Width/height/depth	inches	Whether the dryer fits your space
Clearance	inches	Space needed for venting and door swing

Why it matters

Using the correct capacity helps you load the drum properly, choose the right cycle, and avoid long dry times caused by overloading. It also makes it easier to compare Kenmore models accurately when shopping for parts or planning a replacement.

Last updated: February 2026

Your Kenmore dryer’s model number is printed on the model and serial number label. On model 11076662501, you’ll typically find that label in the door opening (door well). Write down the full model number and serial number so we can match the correct parts and manual.

Where to look for the model number label

Check these common locations on Kenmore dryers:

• In the door opening, on the door well (most common)
• On the inside of the door itself
• On the back panel of the dryer cabinet
• Near the lint screen housing (some designs)

If you find multiple numbers, use the one labeled Model (not the serial number).

What to record (and why)

We recommend recording the details exactly as shown on the label:

• Model number (example: 11076662501)
• Serial number
• Purchase date (if available)
• Gas type notes if shown (helpful for gas dryers)

You can use the 11076662501 owner's manual to confirm label location and keep the information in one place for future service.

Quick ID checklist

Use this table to avoid mix-ups when ordering Kenmore dryer parts.

Item on label	What it’s used for	Example

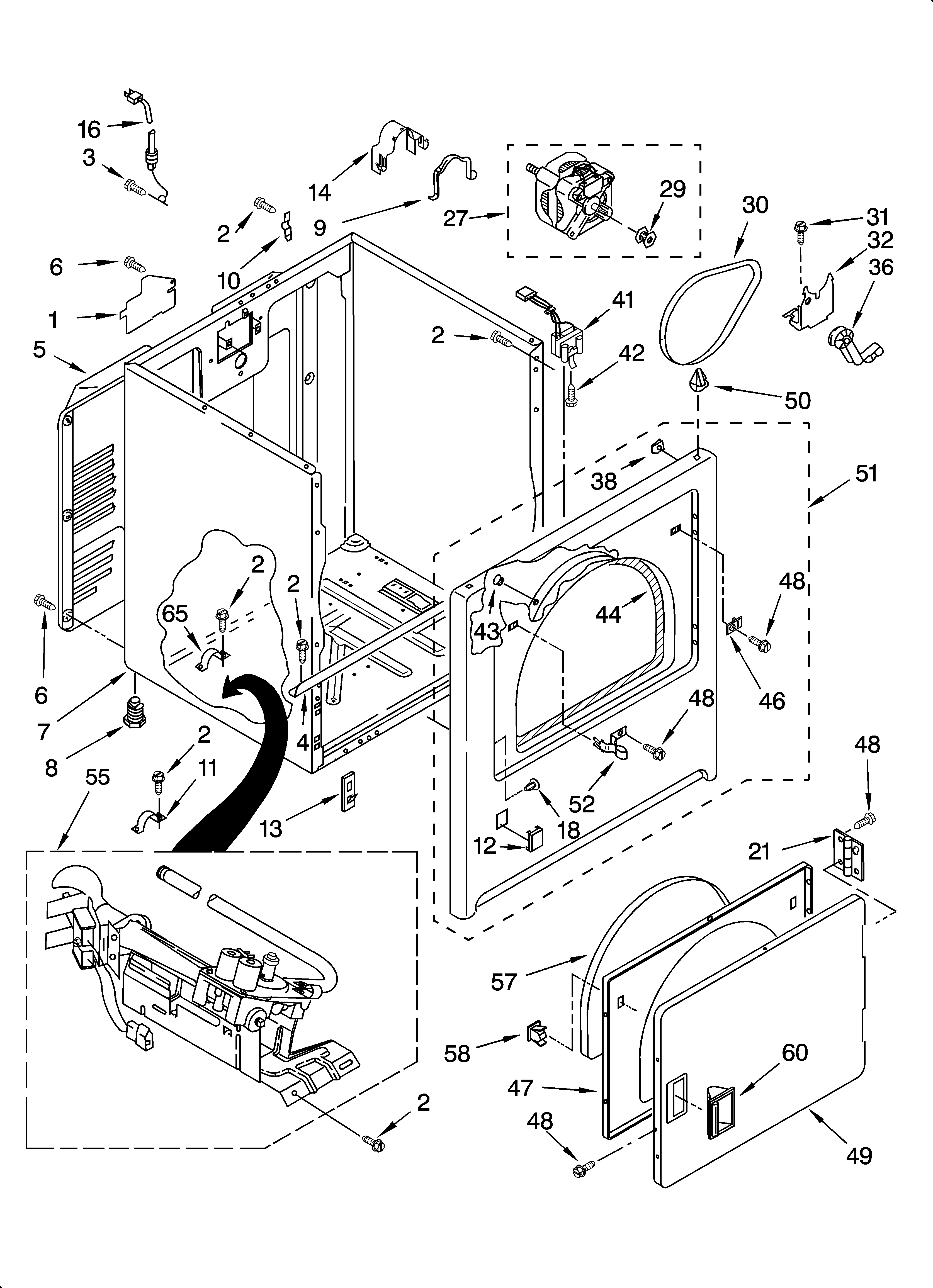

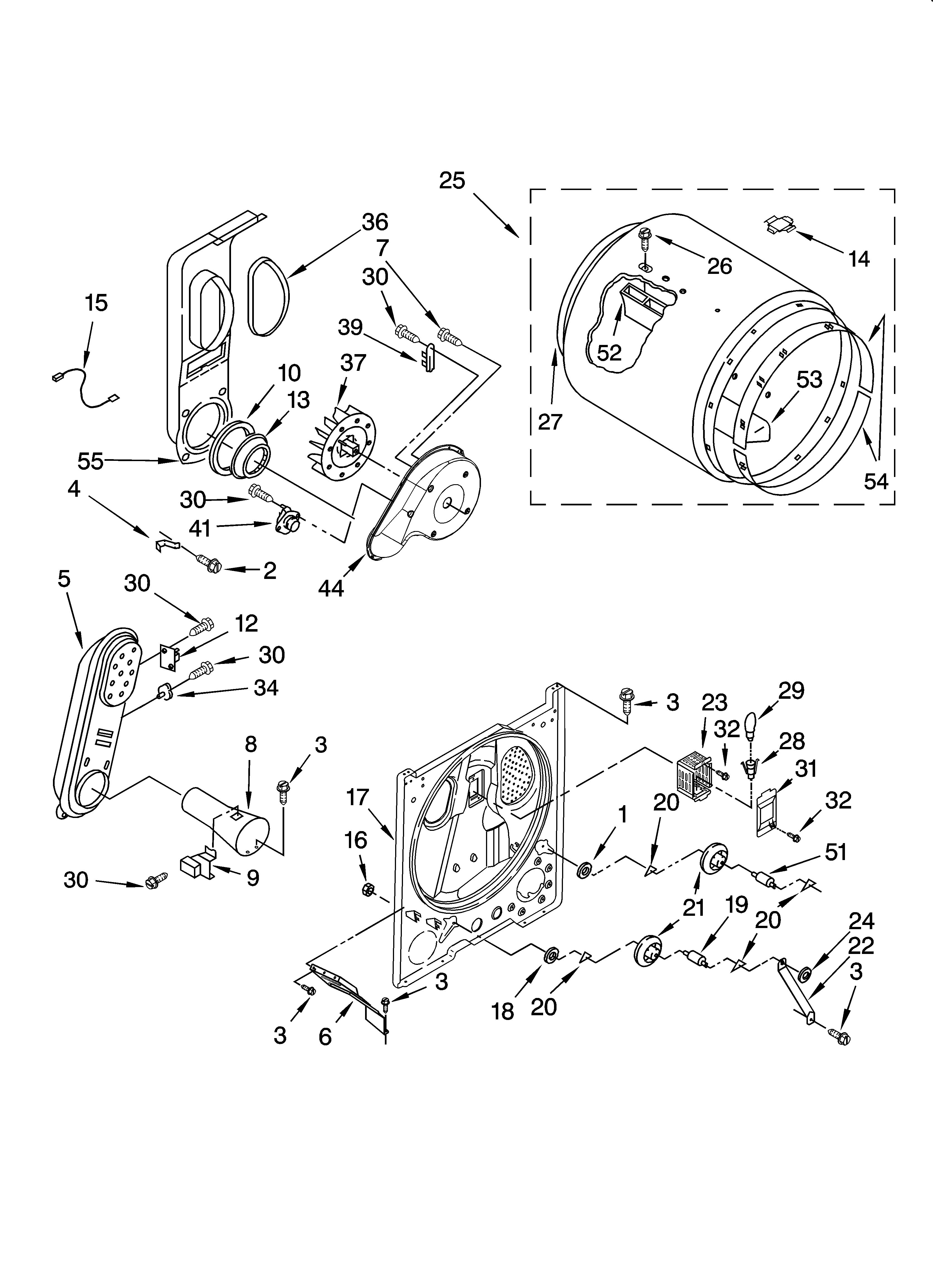

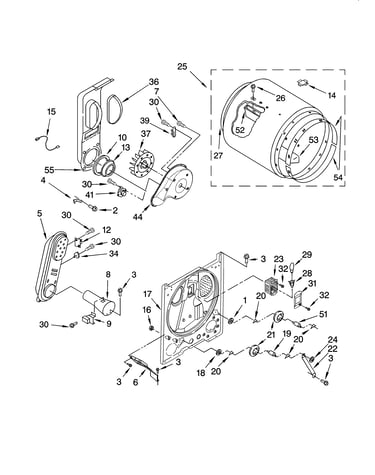

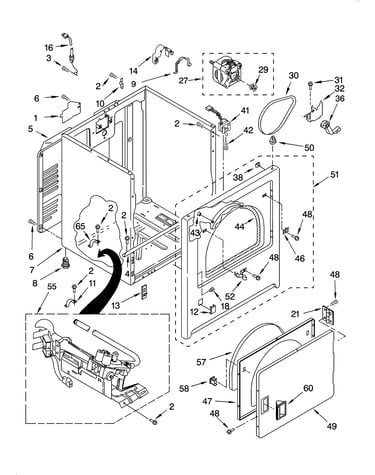

Model number	Matches the correct diagrams and parts	11076662501
Serial number	Identifies production run details	Varies
Type notes (if listed)	Confirms configuration (such as gas type)	Natural gas/LP info

Why it matters

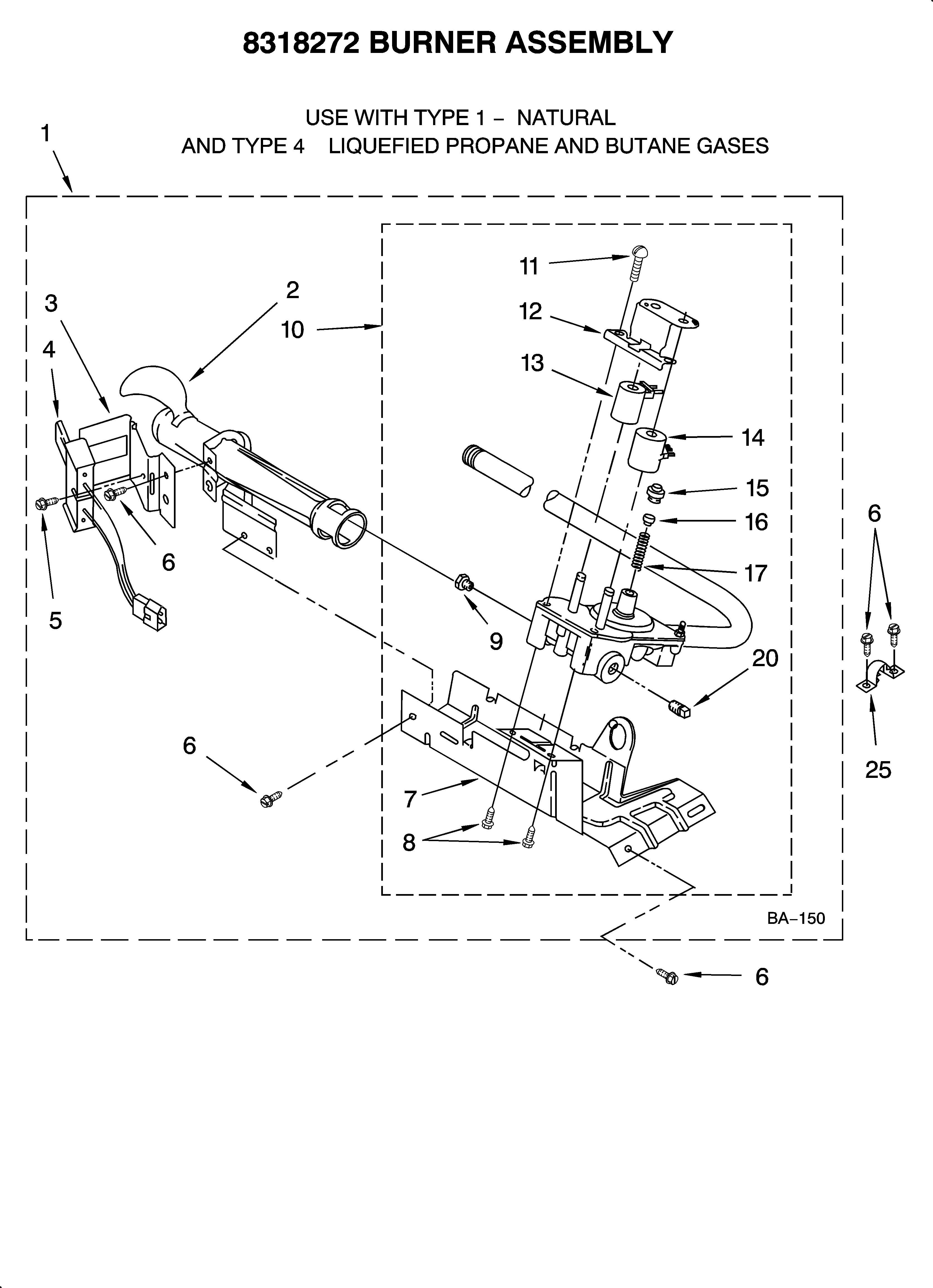

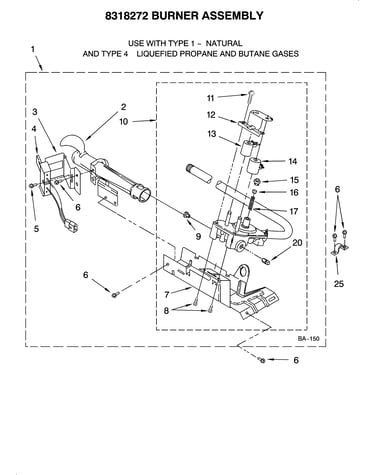

Kenmore model numbers can look similar, but small differences change the correct fit for parts like a door switch, belt, thermostat, or igniter. Using the exact model number helps us get you the right replacement the first time.
