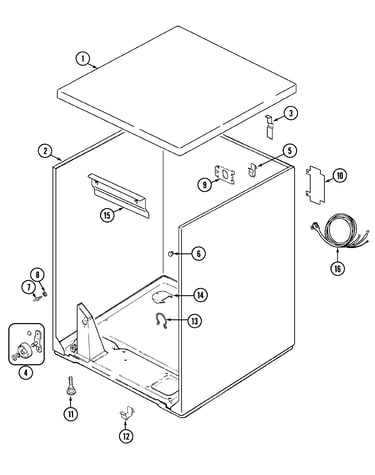

How big is a Maytag 3000 series dryer?
Most Maytag 3000 series dryers, including the Maytag PYG2300AWW, are full-size units that measure about 27 inches wide, 29 to 31 inches deep, and 50 to 54 inches tall (height varies most with the control console and leveling legs). For the exact cabinet dimensions and clearances, use the PYG2300AWW owner’s manual.
Typical size and what changes it
Even within the “3000 series” name, dimensions can vary by a few inches. These are the most common factors:
- Control panel style (rear console vs. more vertical console)
- Leveling leg adjustment (can change height slightly)
- Door swing and handle (affects front clearance, not cabinet width)
- Exhaust outlet and vent elbow (adds depth behind the dryer)
- Pedestal or riser (if used, increases overall height)
Space planning guide (recommended clearances)
Use these planning clearances for a gas dryer like the PYG2300AWW:
| Location | What to allow | Why |
|---|---|---|
| Sides | 0 to 1 in. | Prevents rubbing and vibration noise |
| Rear | 4 to 6 in. | Room for venting and gas line routing |
| Front | 20 to 24 in. | Door swing and loading/unloading |
| Top | 1 in. | Airflow and easier service access |
Why it matters
Correct sizing prevents crushed venting (long dry times), makes hookups easier, and reduces vibration. If your dryer is taking too long to dry after installation, vent routing and clearance are often the cause; our dryer takes a long time to dry guide walks through the most common fixes.
Last updated: February 2026
Where is my Maytag dryer model number?
Your Maytag dryer model number for model PYG2300AWW is printed on the rating label. On most Maytag dryers, that label is on the door opening (cabinet frame) or on the back of the dryer near the top; match the model number exactly when ordering parts.
Common places to check on a Maytag dryer
- Open the door and look around the door opening on the cabinet frame
- Check the back panel near the top edge
- Look along the inside edge of the door itself (less common)
- Use a flashlight to read the label if the laundry area is dim
- If the dryer is in a tight alcove, slide it forward a few inches to view the back label
What to write down from the label
Record the full model number and serial number exactly as shown. You can also confirm label location and identification details in the PYG2300AWW manual.
| Label item | What it looks like | Why it matters |
|---|---|---|
| Model number | PYG2300AWW | Ensures correct part fit |
| Serial number | Letters and numbers | Helps identify production variation |
| Fuel type | Gas or electric | Determines heating and ignition parts |
Why it matters
Maytag uses similar cabinets across multiple dryer series. Using the exact model number prevents ordering the wrong items, especially for gas-heat components like the igniter WP31001556 or wear items like the dryer drum belt 341241.
Next step after you find it
- Compare the model number character-for-character (including any suffix letters)
- Use the model number to select the correct diagrams and parts list
- If your dryer is not heating or shows a code, use a Maytag-specific reference such as Maytag centennial dryer error codes
Last updated: February 2026
What is the code f23 on a Maytag dryer?
On a Maytag PYG2300AWW dryer, F23 is treated as a temperature-sensing fault: the control is seeing an abnormal signal from the exhaust temperature sensor circuit or an overheating condition caused by restricted airflow. The fastest fix is to restore proper venting and then check the sensor wiring and related heat components.
What to do first (most common causes)
- Unplug the dryer or shut off power at the breaker.
- Clean the lint screen and the lint screen housing.
- Inspect the entire vent run for kinks, crushed flex duct, heavy lint buildup, or a stuck exterior damper.
- Confirm strong airflow at the outside vent while the dryer runs.
- Let the dryer cool, then restart; if F23 returns quickly, move to sensor and wiring checks.
Quick diagnosis checklist
| Check | What you are looking for | Why it matters |
|---|---|---|
| Venting and wall cap | Blockage, long run, crushed duct | Restricted airflow overheats the exhaust stream and triggers temperature faults |
| Exhaust sensor wiring | Loose plug, corrosion, rubbed-through wires | A poor connection can read as an “open” or “short” sensor circuit |
| Blower airflow | Weak airflow, rattling, lint packed near blower | Low airflow raises exhaust temperature and causes long dry times |
| Heating system behavior | Heat cycles off early, burning smell, very hot cabinet | Overheating conditions can be interpreted as a sensor fault |
Parts commonly checked when heat or airflow is involved

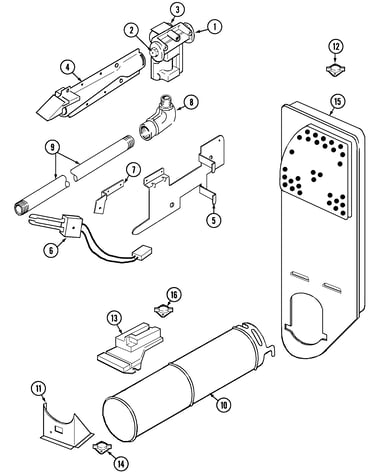

These are not the exhaust thermistor itself, but they are frequently tested on gas dryers when diagnosing heat complaints that can accompany temperature-related codes:
- Dryer lint screen housing 12001324 (lint buildup here reduces airflow)
- Sensor WP338906 (radiant sensor used for burner ignition sensing)
- Dryer valve coil kit 279834 (gas valve coils that can cause heat to drop out)
Why it matters
Temperature-sensing faults protect the dryer from overheating. Fixing airflow first prevents repeat shutdowns, reduces dry time, and helps protect components like the thermal fuse and burner system.
For model-specific access panels, wiring routing, and component locations, use the PYG2300AWW manual. For broader Maytag code patterns and troubleshooting flow, we also use the Maytag bravos dryer error codes guide.
Last updated: February 2026
