Frigidaire
Electric Wall Oven

Model # FFEW3025PSC Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire FFEW3025PSC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

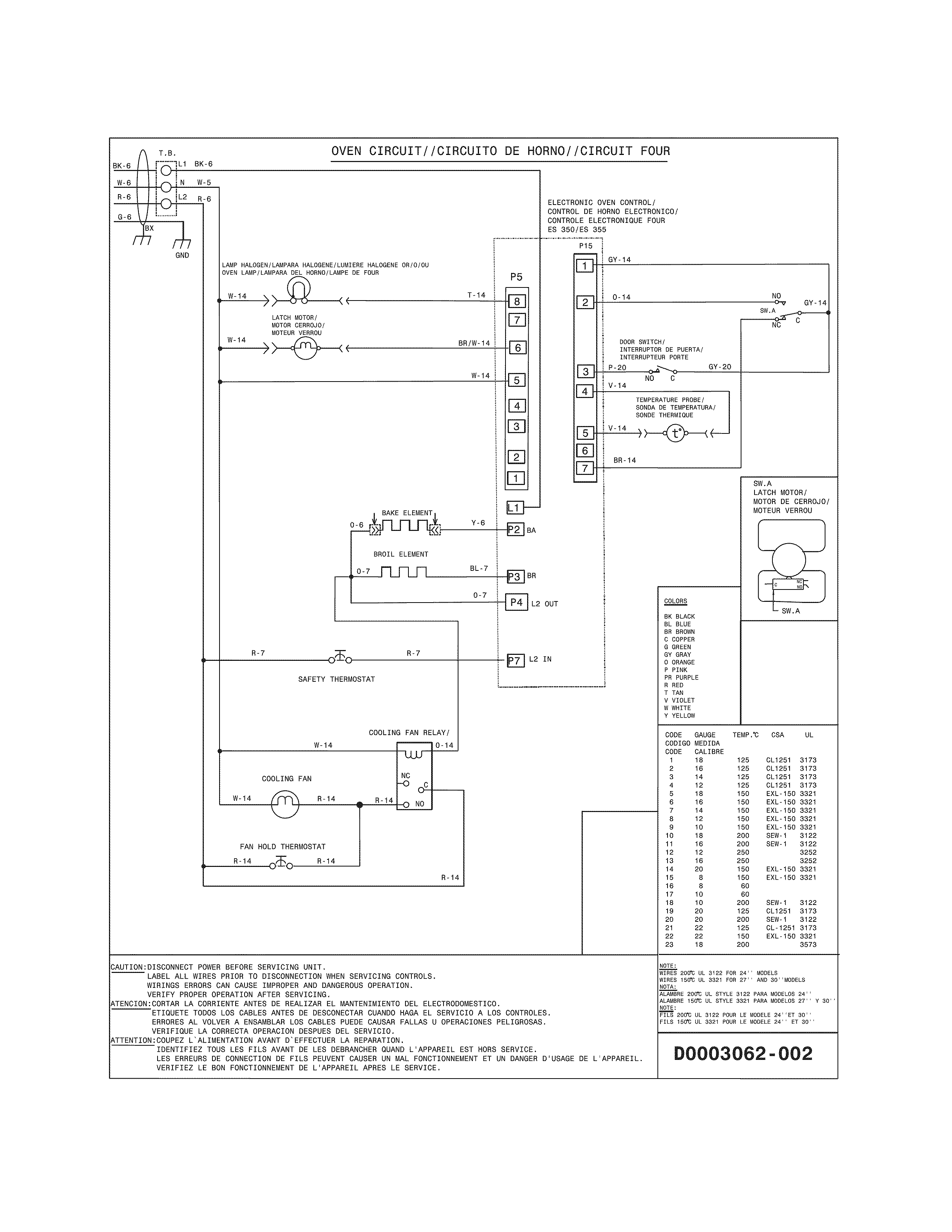

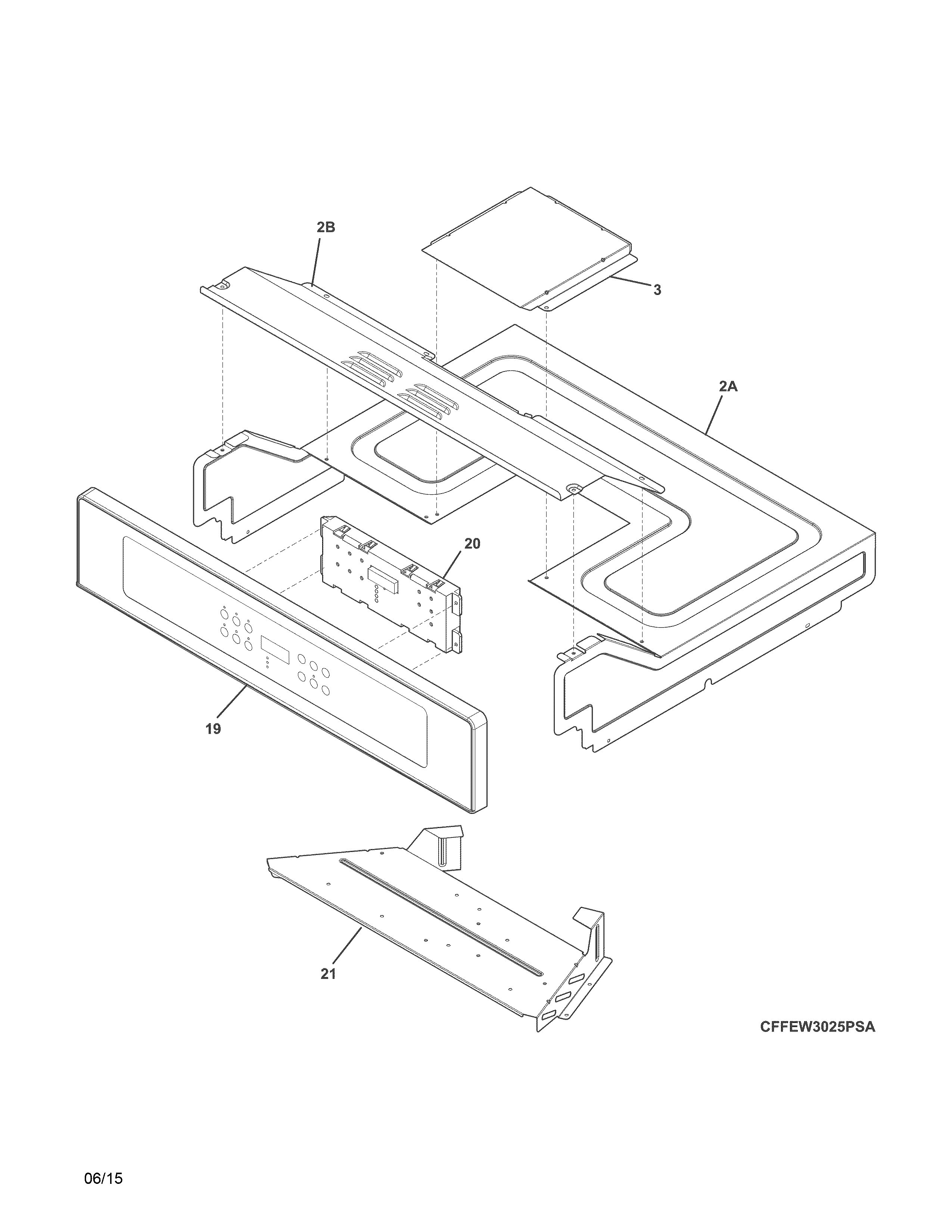

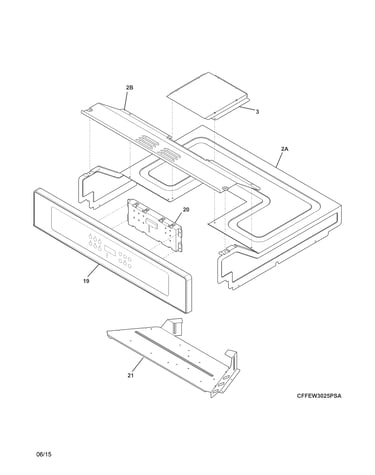

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Range Oven Temperature Sensor 318562500
#37

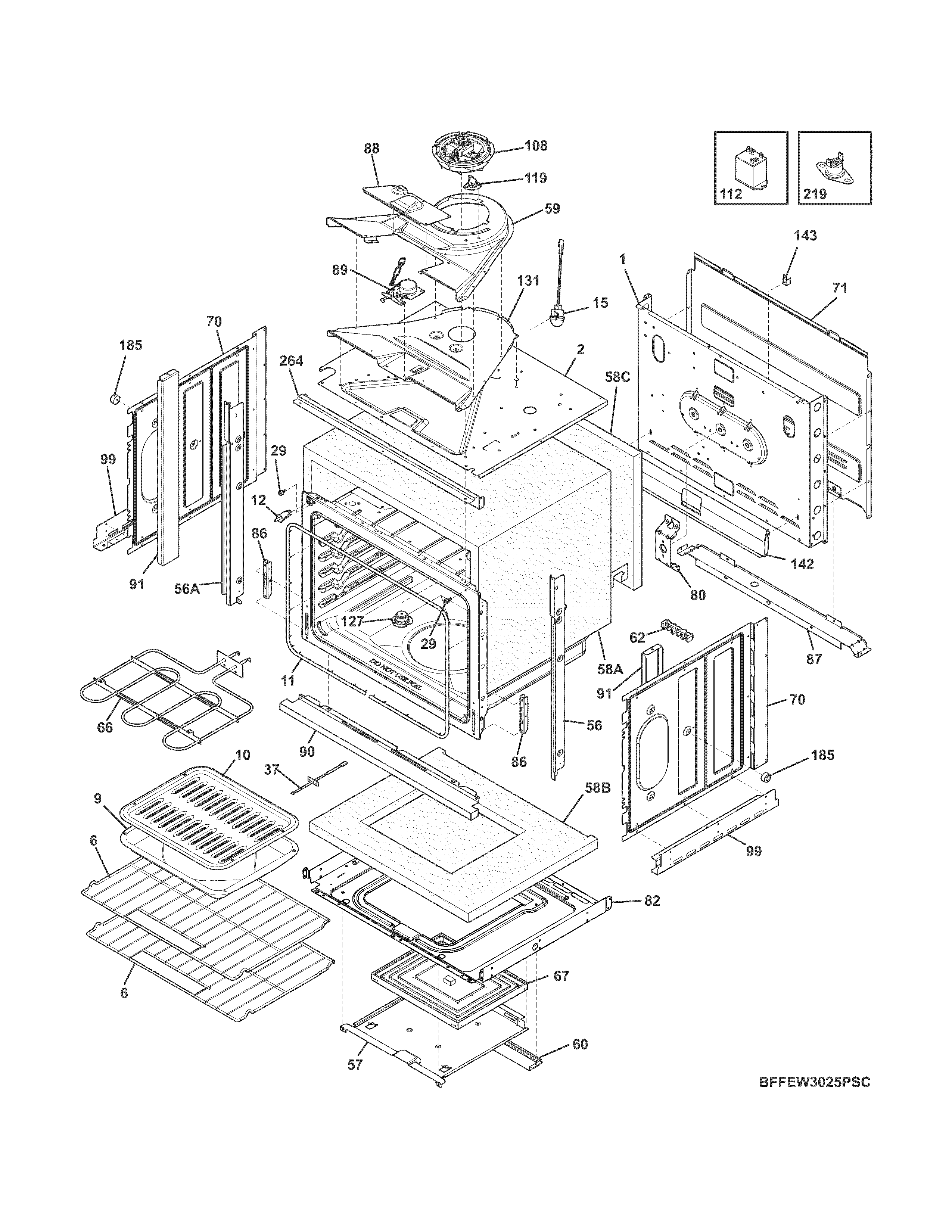

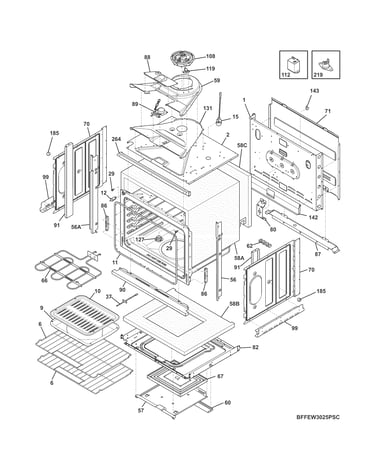

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$29.75
17% OFF Phone Price : $35.75
In Stock
Range Oven Door Inner Glass 316117504
#8

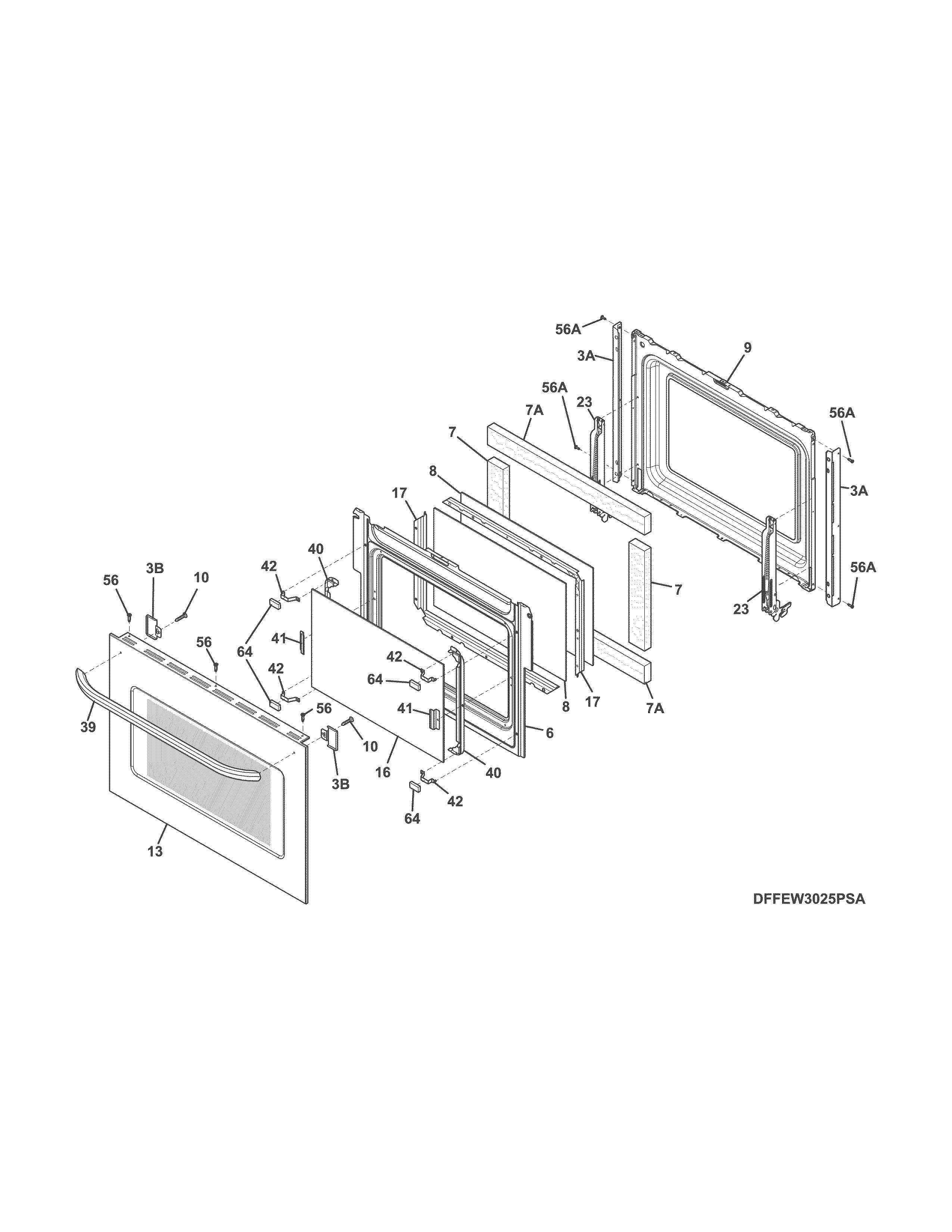

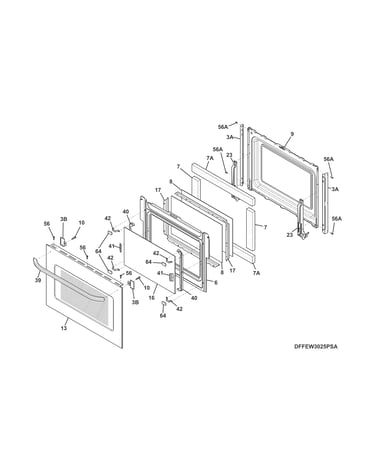

Door diagram

Range oven door inner glass

Part #316117504

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117504. Substitute parts can look different from the original.
BEST SELLER
$84.80
7% OFF Phone Price : $90.80
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Body diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$40.02
13% OFF Phone Price : $46.02
In Stock
Wall Oven Bake Element 808650402
#67

Body diagram

Wall oven bake element

Part #808650402

Replaced by #318601604

?
Manufacturer substitution
This part replaces 808650402. Substitute parts can look different from the original.
BEST SELLER
$203.38
6% OFF Phone Price : $215.38
In Stock
Terminal Block 316056000
#62

Body diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64
9% OFF Phone Price : $10.64
In Stock
Range Oven Door Outer Glass 316446400
#16

Door diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$52.01
10% OFF Phone Price : $58.01
In Stock
Range Broil Element 139008900
#66

Body diagram

Range broil element

Part #139008900

Replaced by #5304521498

?
Manufacturer substitution
This part replaces 139008900. Substitute parts can look different from the original.
BEST SELLER
$59.55
9% OFF Phone Price : $65.55
In Stock
Range Control Panel Cooling Fan 318575612
#108

Body diagram

Range control panel cooling fan

Part #318575612

$167.94
7% OFF Phone Price : $179.94
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
#NI

Body diagram

Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89
12% OFF Phone Price : $16.89
In Stock
Range High-limit Thermostat (replaces 318003613) 318003624
#219

Body diagram

Range high-limit thermostat (replaces 318003613)

Part #318003624

This item is not returnable
$24.59
20% OFF Phone Price : $30.59
In Stock
