Kenmore 66513073K211 undercounter dishwasher Parts

The Kenmore undercounter dishwasher model 66513073K211 is designed to fit a standard built-in cabinet opening. For installation, plan on a typical 24-inch class dishwasher footprint and confirm your exact cabinet opening height and clearances using the installation guide.

Use these measurements to confirm fit before ordering parts or scheduling installation:

• Cabinet opening height: the guide notes a minimum opening around 33 1/2 inches (with a leg-removal option to fit about 33 1/2 inches in tight openings) and factory preset leveling around 34 1/2 inches.
• Door clearance at corners: allow 2 inches minimum between the side of the open door and a wall or cabinet.
• Utility connection zone: keep water, drain, and electrical connections within the shaded utility area shown in the guide.
• Level floor requirement: shims may be needed if the floor is uneven.

Most Kenmore undercounter dishwashers like model 66513073K211 are built for standard cabinetry. Use these as planning ranges, then verify your opening:

Correct sizing prevents installation problems like a door that hits a wall, a unit that will not slide in, or hoses and wiring that get pinched. It also helps you choose the right accessories and replacement parts for your exact configuration.

Last updated: February 2026

To tell which Kenmore dishwasher you have, we look for the rating label on the inside edge of the door. On model 66513073K211, that label lists the model number and serial number, which you will use to match the correct parts and instructions in the 66513073K211 owner's manual.

Check these common label locations first:

• Inside the dishwasher door opening, along the left side frame
• Inside the door edge itself (near the latch area)
• Along the tub frame just behind the door seal
• Occasionally on the right side frame (less common)

Record both numbers exactly as shown.

• Model number (example: 66513073K211) identifies the exact design and parts list
• Serial number helps confirm production details when parts changed during a model run
• Take a clear photo of the label so you can zoom in later

Kenmore dishwashers can look nearly identical across different model numbers, but use different components (like a water inlet valve, drain pump, or heating element). Using the exact model number prevents ordering the wrong part and helps you follow the right installation and troubleshooting steps.

Last updated: February 2026

On the Kenmore 66513073K211 dishwasher, the quickest way to manually drain is to cancel the active cycle so the unit runs its built-in drain-out. If it still will not drain, we focus on the drain hose routing and the drain pump because a blockage or failed pump stops the drain.

• Press Cancel/Drain (or Start/Cancel, depending on your console labeling) once to end the cycle and trigger the drain-out.
• Wait for the drain portion to finish (typically a couple of minutes).
• If water remains, run Cancel/Drain one more time.

For model-specific button names and cycle behavior, follow the steps in the 66513073K211 owner’s manual.

• Garbage disposer knockout plug: if the dishwasher drains into a disposer, make sure the disposer inlet plug was removed.

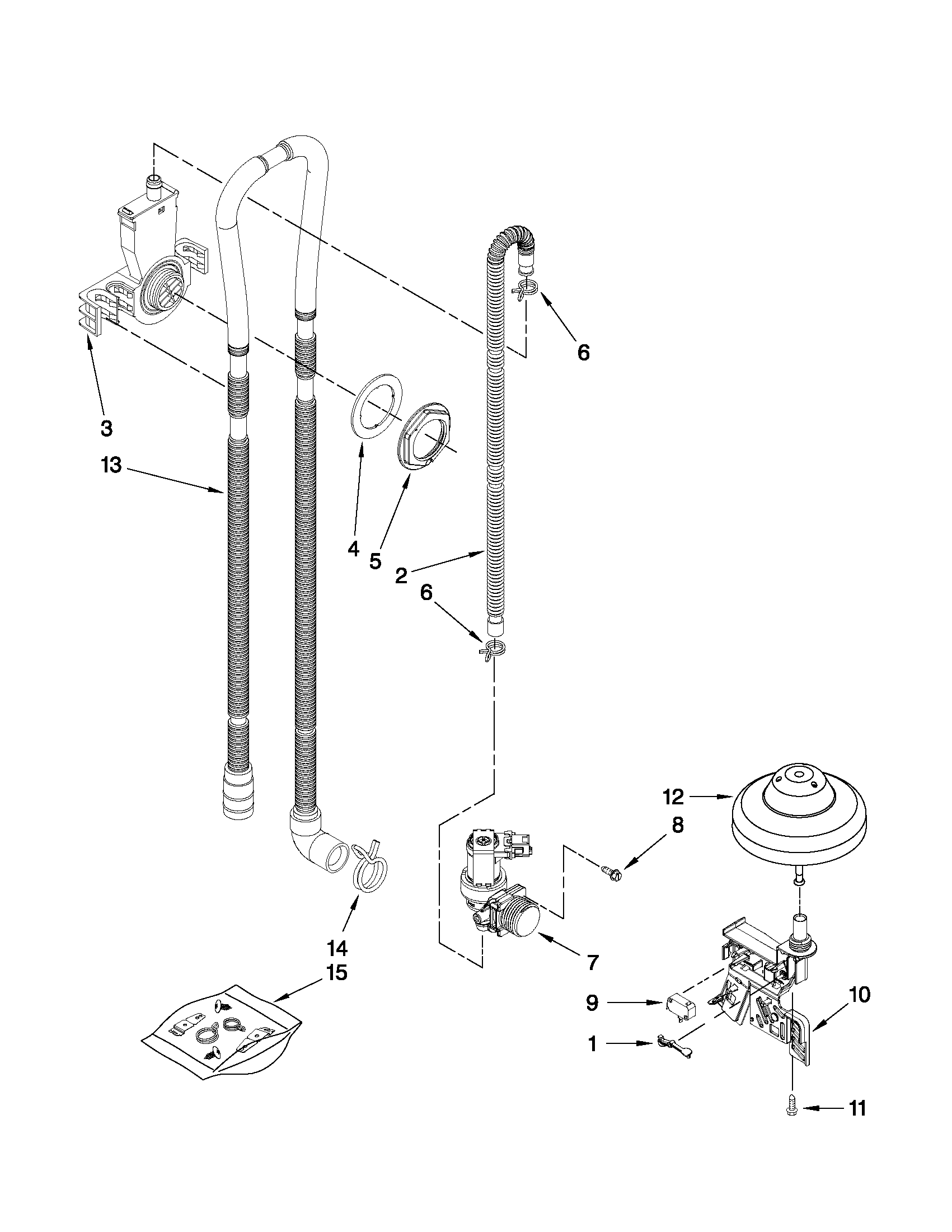

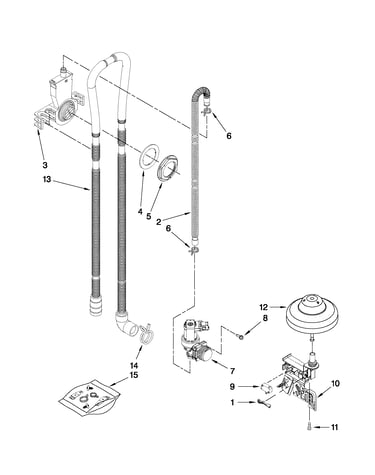

• Drain hose height and routing: the connection should be made before the drain trap and at least 20 inches above the floor; avoid kinks and crushing.
• Air gap (if used): check for clogs at the air gap cap and hose.
• Filter and sump area: clean debris that can restrict flow.
• Pump operation: if you hear humming but no water moves, the pump may be jammed or failing.

Standing water can redeposit food soil, create odors, and strain the pump and motor assembly. Correct drain hose routing (including the 20-inch minimum height) is a key installation detail that prevents backflow and repeat drain failures.

For the correct drain connection options (waste tee, disposer, with or without air gap), use the 66513073K211 installation guide.

Last updated: February 2026

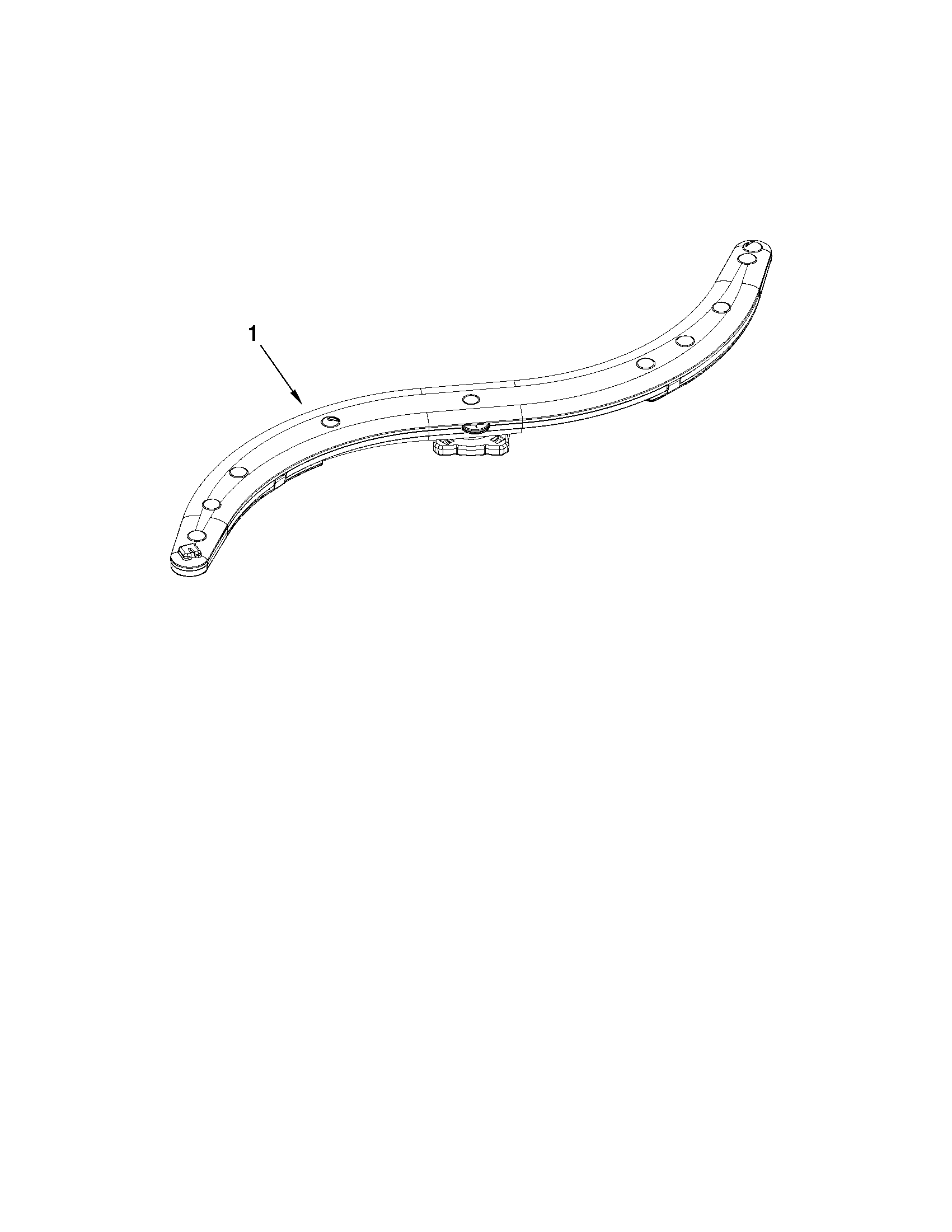

On the Kenmore 66513073K211 dishwasher, you remove the lower spray arm by pulling out the lower rack, then releasing the spray arm from its center hub/retainer so it lifts straight off. Keep the tub bottom protected so nothing drops into the pump area.

• Turn off power at the breaker before putting hands near wiring or the sump area.
• Let the heater and water cool before working inside the tub.
• Remove the lower rack for clear access.
• Place a towel over the pump area to prevent screws or small parts from falling in (this is also recommended during installation steps in the installation guide).

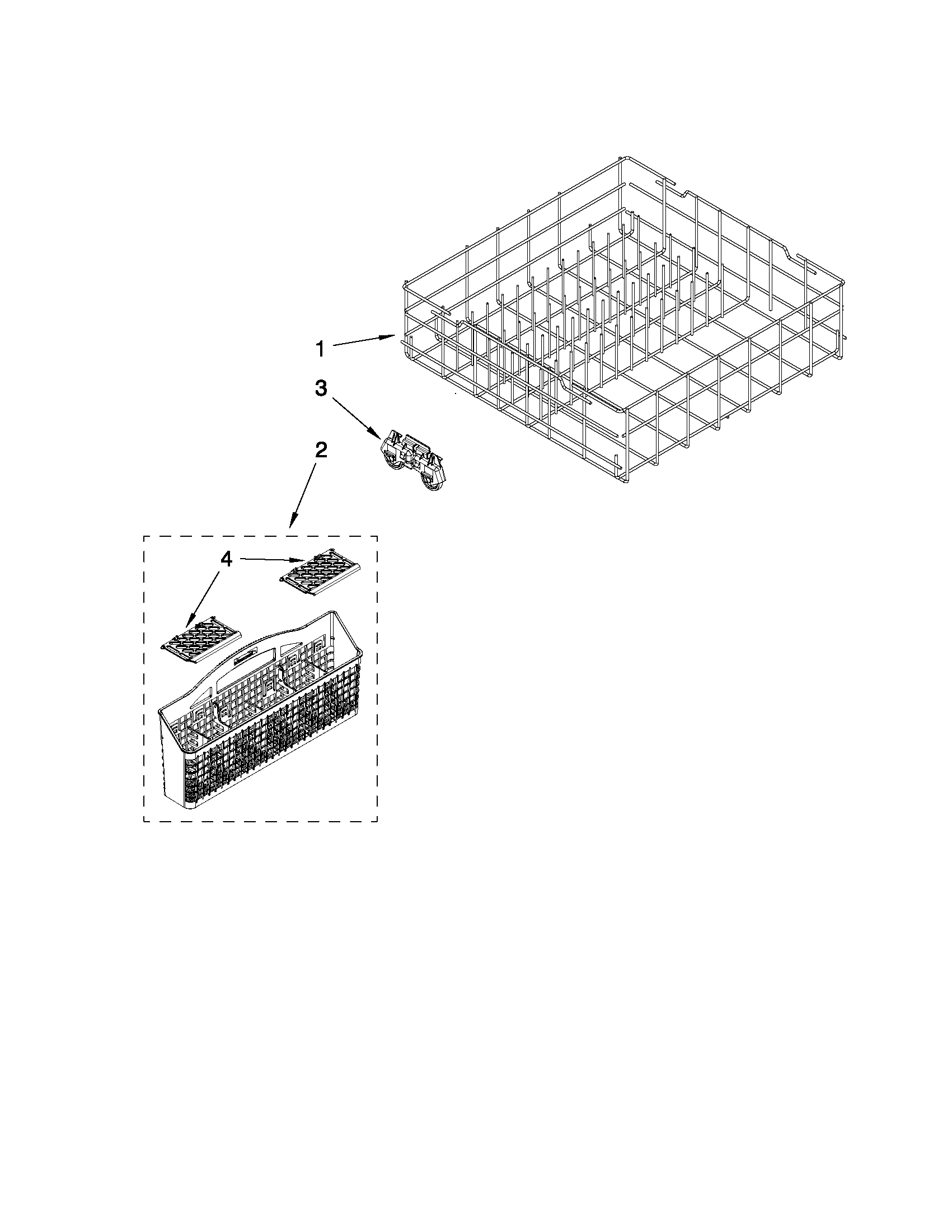

1. Open the door and slide the lower dishrack out.
2. Lift the rack out of the tub.
3. Lay a towel over the sump and pump area (directly under the spray arm).
4. At the center of the lower spray arm, remove the retaining piece (commonly a twist-off cap, nut, or clip style retainer depending on the build).
5. Lift the lower spray arm straight up and out.

• Spray holes: clear food debris and mineral buildup.
• Hub area: look for cracks, wobble, or stripped plastic.
• Sump area: remove any broken glass or labels.
• Reinstall fit: the arm should spin freely by hand after reassembly.

A loose or clogged lower spray arm reduces wash pressure to the bottom rack and can let debris recirculate, which leads to spots, grit, and repeat clogs in the filter and sump.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66513073K211 is usually worth it when the problem is a single failed part (drain pump, inlet valve, heater, seal) and the tub is sound; you typically spend far less than replacement and avoid a full reinstall.

We use this simple rule of thumb: repair is the better choice when the dishwasher is draining, filling, and heating correctly after a targeted fix, and there are no recurring leaks or major electrical issues.

• Repair when the issue is isolated (won’t drain, won’t fill, not drying, minor leak)
• Replace when you have repeated breakdowns in different systems (wash, drain, heat, controls)
• Repair when the tub and door close/seal properly
• Replace when the tub is damaged or leaking from the tub itself
• Repair when installation access is tight and replacement would be disruptive

These are frequent “single-part” failures that can restore normal operation.

These checks help you avoid replacing parts when the issue is setup, supply, or a simple blockage.

• Confirm the cycle was selected correctly and the water supply is turned on
• Verify the drain hose routing is not kinked or pinched
• Clean the filter area and check for debris around the sump
• Make sure the dishwasher is secured and level; shifting can affect door sealing and operation
• If the unit is in a freezing area or was left unused, address winterization concerns before running it

For model-specific operating and installation checks, follow the 66513073K211 installation guide and the 66513073K211 owner’s manual.

A targeted repair can restore cleaning and drying performance while keeping your existing cabinet fit and utility connections. The installation guide also emphasizes proper clearances, leveling, and securing the dishwasher to prevent shifting when the door opens, which helps prevent repeat problems.

Last updated: February 2026

Common problems we see with Kenmore dishwashers (including model 66513073K211) are no power or no start, poor cleaning, not draining, not filling, and water leaks. Many “dead” or “won’t start” complaints come down to power, a door that is not fully latched, or a cycle that was not set to start.

• Confirm the breaker is on and the dishwasher has power.
• Close the door firmly until it latches; a loose latch can stop the cycle.
• Make sure a wash cycle is selected correctly and the unit is started.
• Verify the water supply valve is turned on.
• If it started but seems “stuck,” run the shortest cycle and check for water in the tub after a couple minutes (per the 66513073K211 installation guide).

Dishwashers rely on correct fill, strong spray, proper draining, and hot water. A small issue like a partially clogged filter or a weak drain pump can cascade into cloudy dishes, standing water, odors, and longer cycle times.

If you smell burning, see active leaking, or the breaker trips repeatedly, disconnect power and have the dishwasher checked before running it again.

Last updated: February 2026

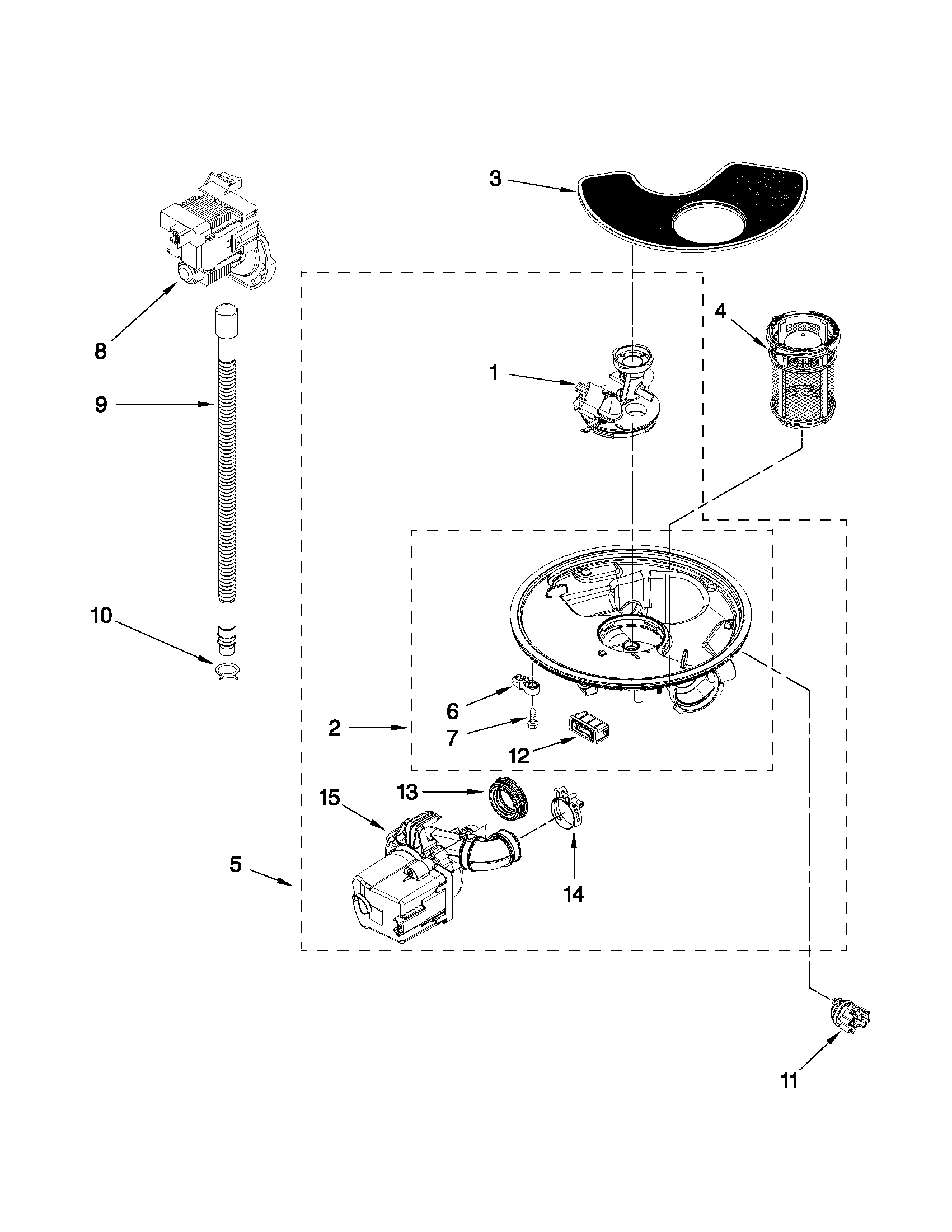

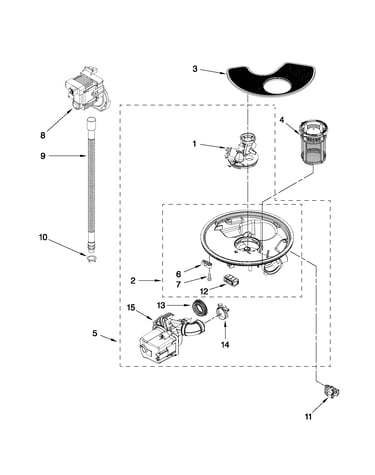

On the Kenmore 66513073K211 Quiet Guard undercounter dishwasher, the filter is in the bottom of the tub, directly under the lower spray arm. You access it by removing the lower rack, then lifting off the spray arm to reach the filter basket/cup area.

• Turn off power at the breaker for safety before reaching into the sump area.
• Pull out the lower dishrack.
• Locate the lower spray arm in the center of the tub floor.
• Remove the spray arm (most versions lift off after releasing the center mount).
• Lift out the filter basket/cup and rinse it under hot water.
• Reinstall the filter and spray arm, then slide the rack back in.

In this dishwasher design, the filter area is part of the sump assembly at the bottom center of the tub. Depending on the exact configuration, you may have a removable filter plus a filter cup.

If your filter is damaged, cracked, or will not seat correctly after cleaning, replace it with the correct model-matched part such as the dishwasher filter WPW10463906 or the whirlpool dishwasher filter cup W10872845.

A clogged or mis-seated filter reduces water flow to the spray arm, which commonly causes gritty residue, poor cleaning, and drainage issues. Keeping the filter clean helps protect the drain pump and improves wash performance.

• Scrape (do not fully pre-wash) heavy food soil off dishes before loading.
• Run hot water at the sink for 30 to 60 seconds before starting a cycle.
• Avoid blocking the lower spray arm with tall pans.
• Clean the filter whenever you notice debris, odor, or reduced cleaning.

For diagrams and the exact removal method used on your configuration, follow the steps in the 66513073K211 owner’s manual.

Last updated: February 2026
