Kenmore
Top-Mount Refrigerator

Model # 25365812509 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25365812509 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

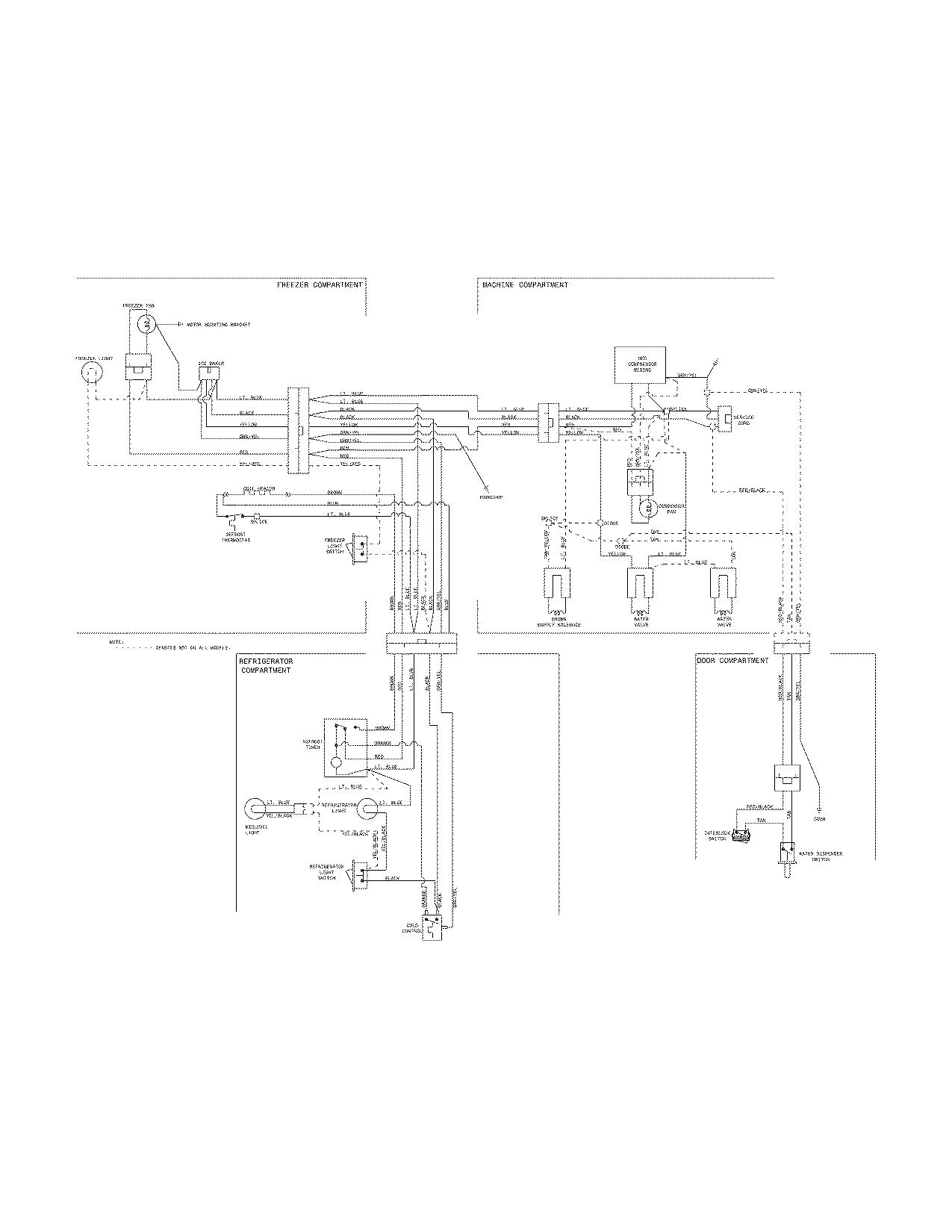

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Filter Drier 218944002
#4

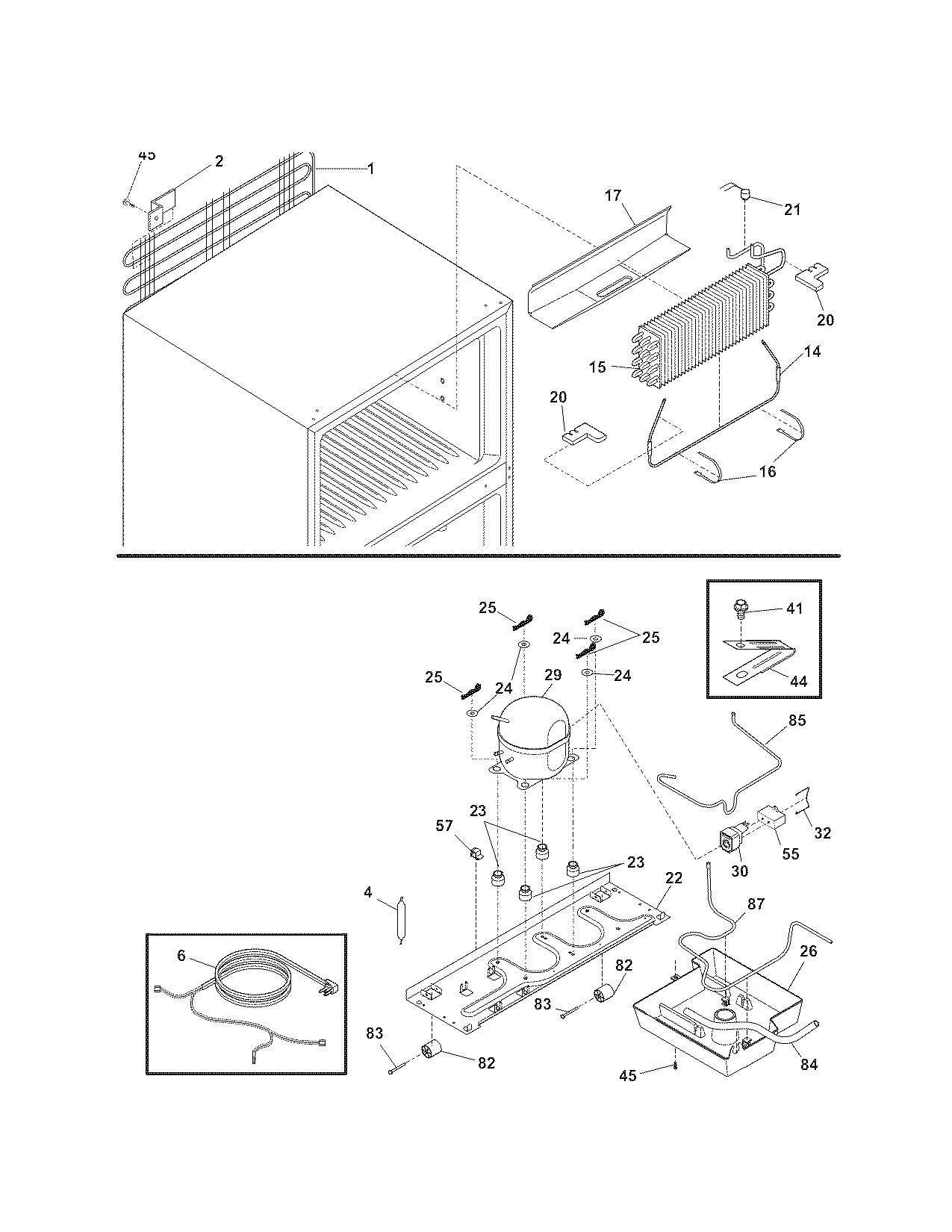

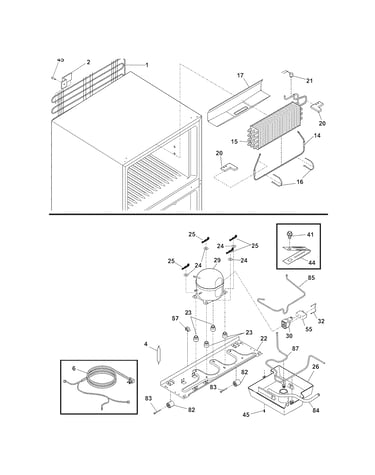

System diagram

Filter drier

Part #218944002

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944002. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Galaxy Refrigerator Door Shelf Rail 240534701
#4B

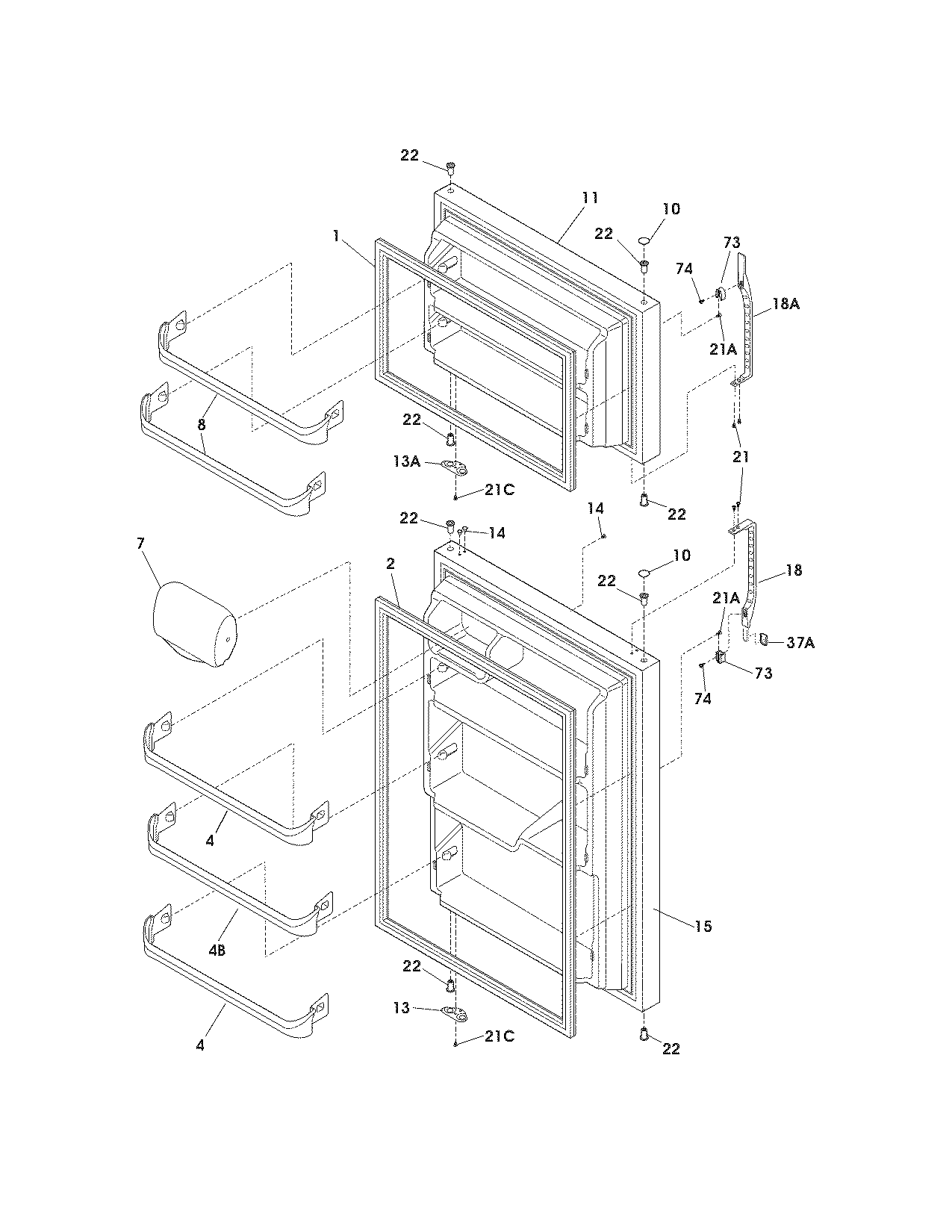

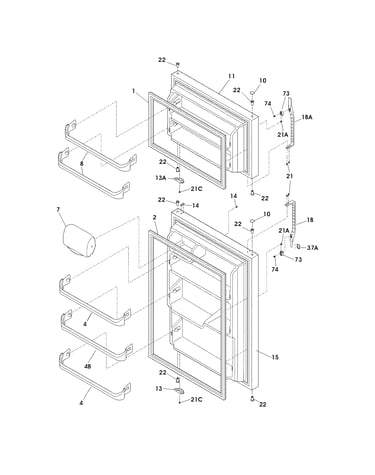

Door diagram

Galaxy refrigerator door shelf rail

Part #240534701

BEST SELLER
$47.43 |
11% OFF Phone Price : $53.43
In Stock
Refrigerator Crisper Drawer (replaces 240337107, 240337108, 240337109) 240337103
#26

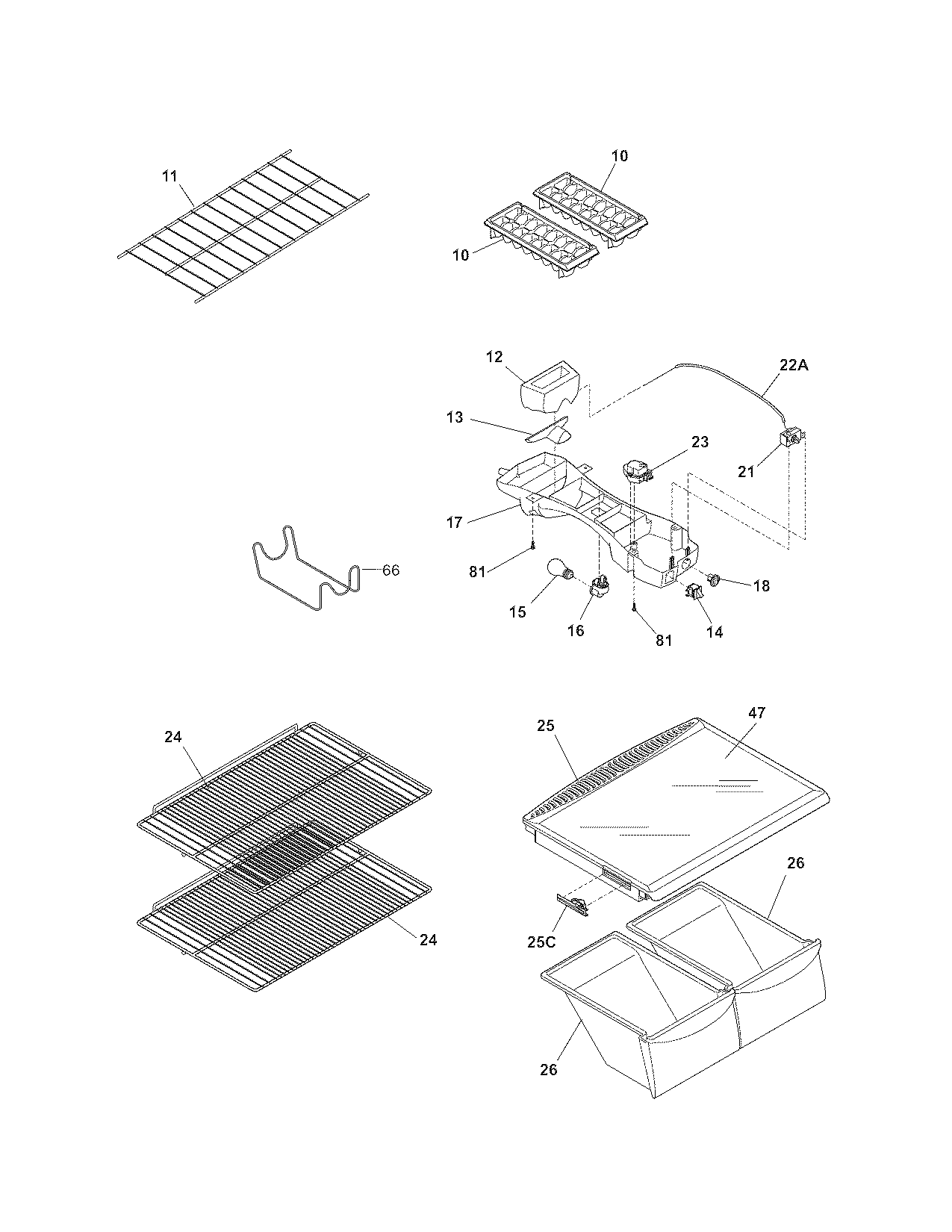

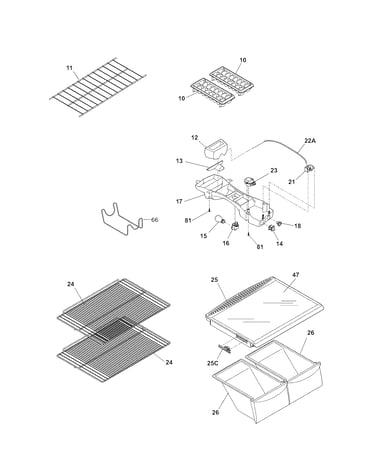

Shelves diagram

Refrigerator crisper drawer (replaces 240337107, 240337108, 240337109)

Part #240337103

BEST SELLER
$103.79 |
10% OFF Phone Price : $115.79
In Stock
Refrigerator Crisper Drawer Cover Insert (replaces 240350655, 241711220, 241711270, 297194400) 240350608
#47

Shelves diagram

Refrigerator crisper drawer cover insert (replaces 240350655, 241711220, 241711270, 297194400)

Part #240350608

BEST SELLER
$104.62 |
10% OFF Phone Price : $116.62
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

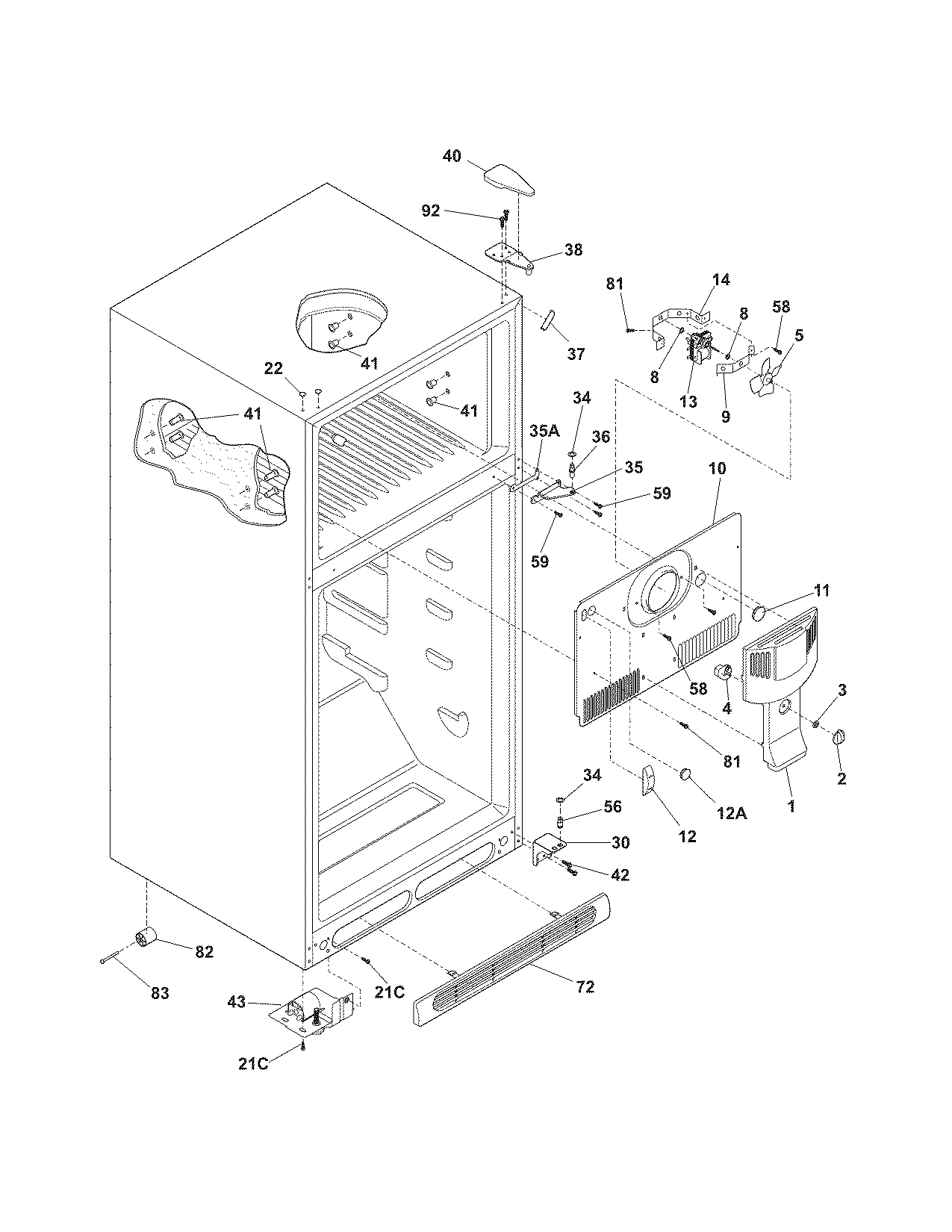

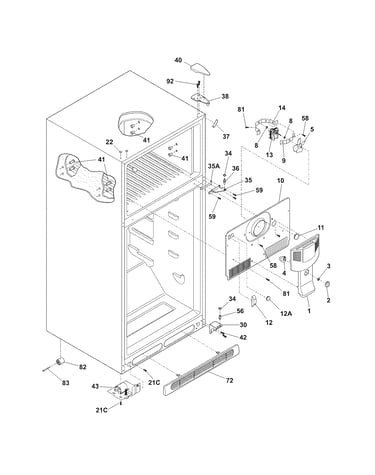

Cabinet diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Refrigerator Temperature Control Thermostat 5304421256
#21

Shelves diagram

Refrigerator temperature control thermostat

Part #5304421256

Replaced by #241537103

?
Manufacturer substitution
This part replaces 5304421256. Substitute parts can look different from the original.
BEST SELLER
$83.75 |
7% OFF Phone Price : $89.75
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Defrost Timer 241621501
#23

Shelves diagram

Refrigerator defrost timer

Part #241621501

Replaced by #215846602

?
Manufacturer substitution
This part replaces 241621501. Substitute parts can look different from the original.
BEST SELLER
$29.05 |
17% OFF Phone Price : $35.05
In Stock
Refrigerator Freezer Door Gasket (replaces 240370905, 240542115) 241872503
#1

Door diagram

Refrigerator freezer door gasket (replaces 240370905, 240542115)

Part #241872503

BEST SELLER
$117.68 |
9% OFF Phone Price : $129.68
In Stock
Refrigerator Drawer Cover 240364724
#25

Shelves diagram

Refrigerator drawer cover

Part #240364724

Replaced by #240364793

?
Manufacturer substitution
This part replaces 240364724. Substitute parts can look different from the original.
BEST SELLER
$80.73 |
7% OFF Phone Price : $86.73
In Stock
