Model # MTB2191ARW Official Maytag top-mount refrigerator

Here are the diagrams and repair parts for Official Maytag MTB2191ARW top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

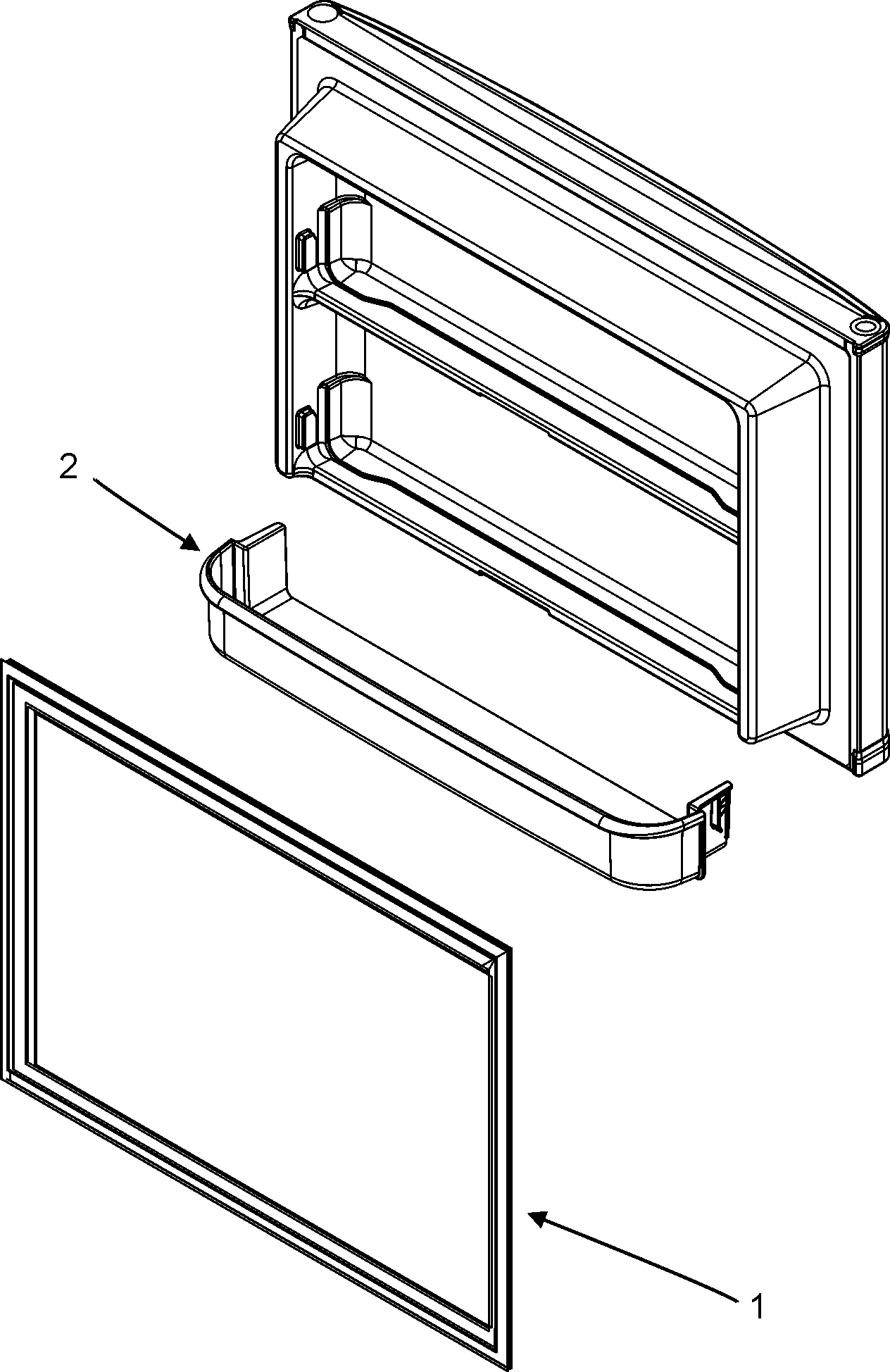

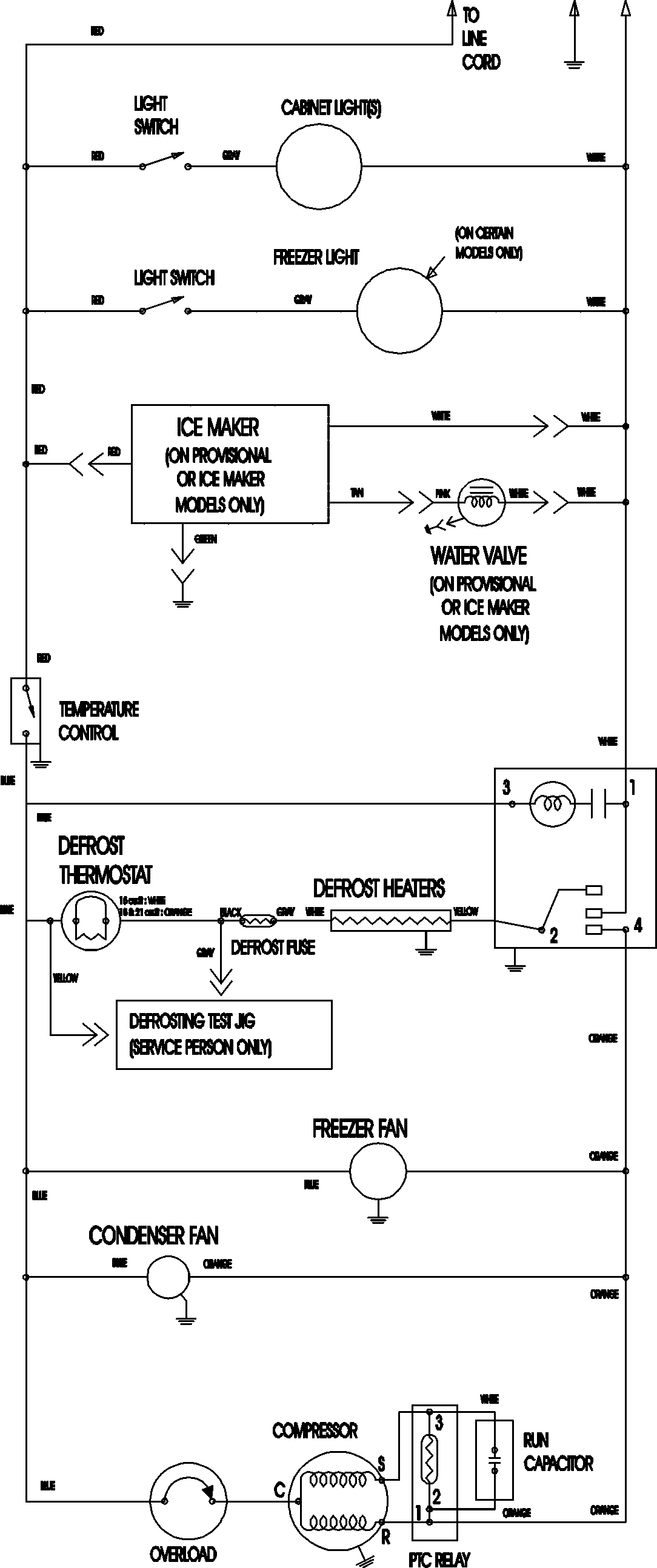

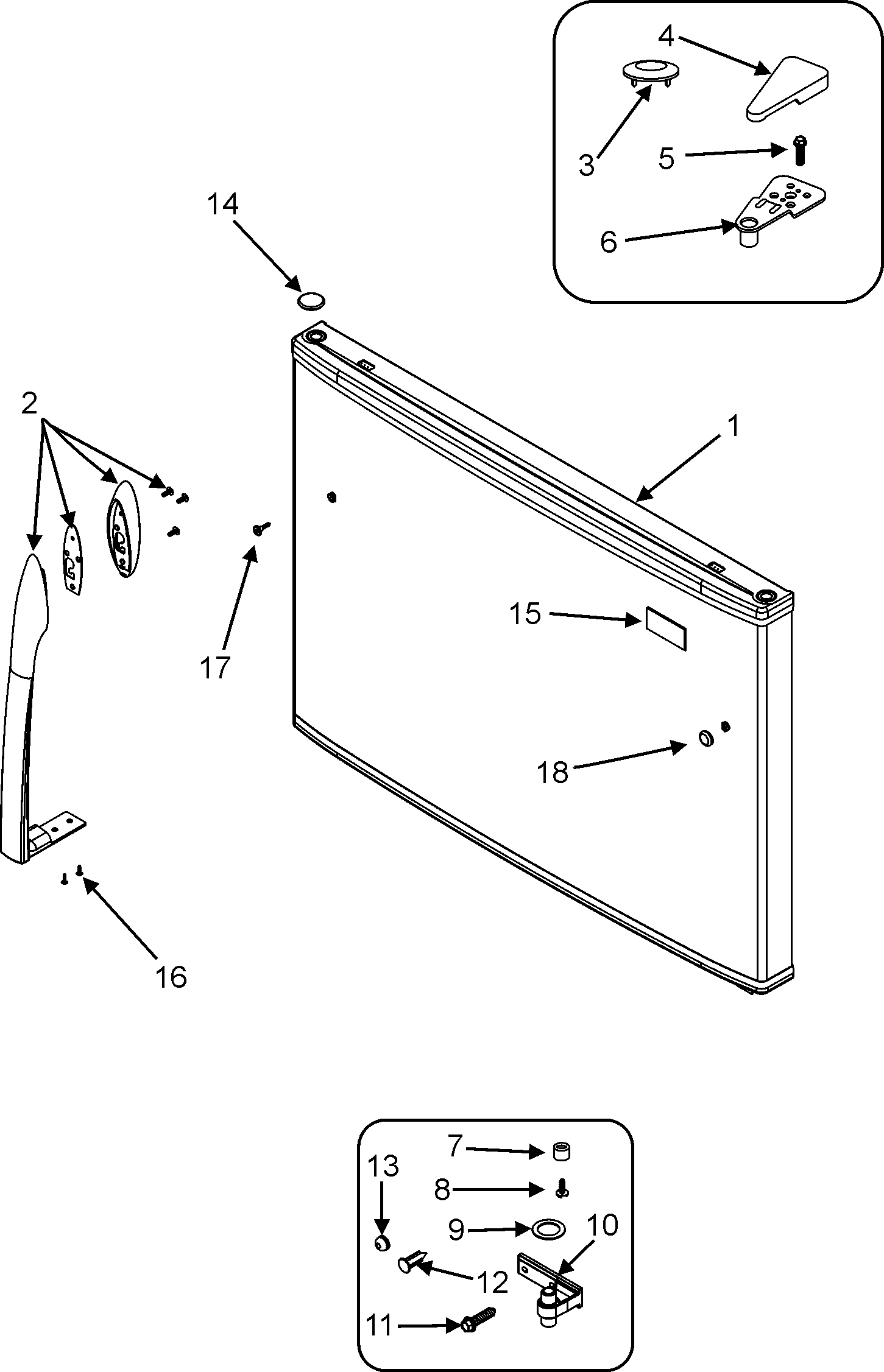

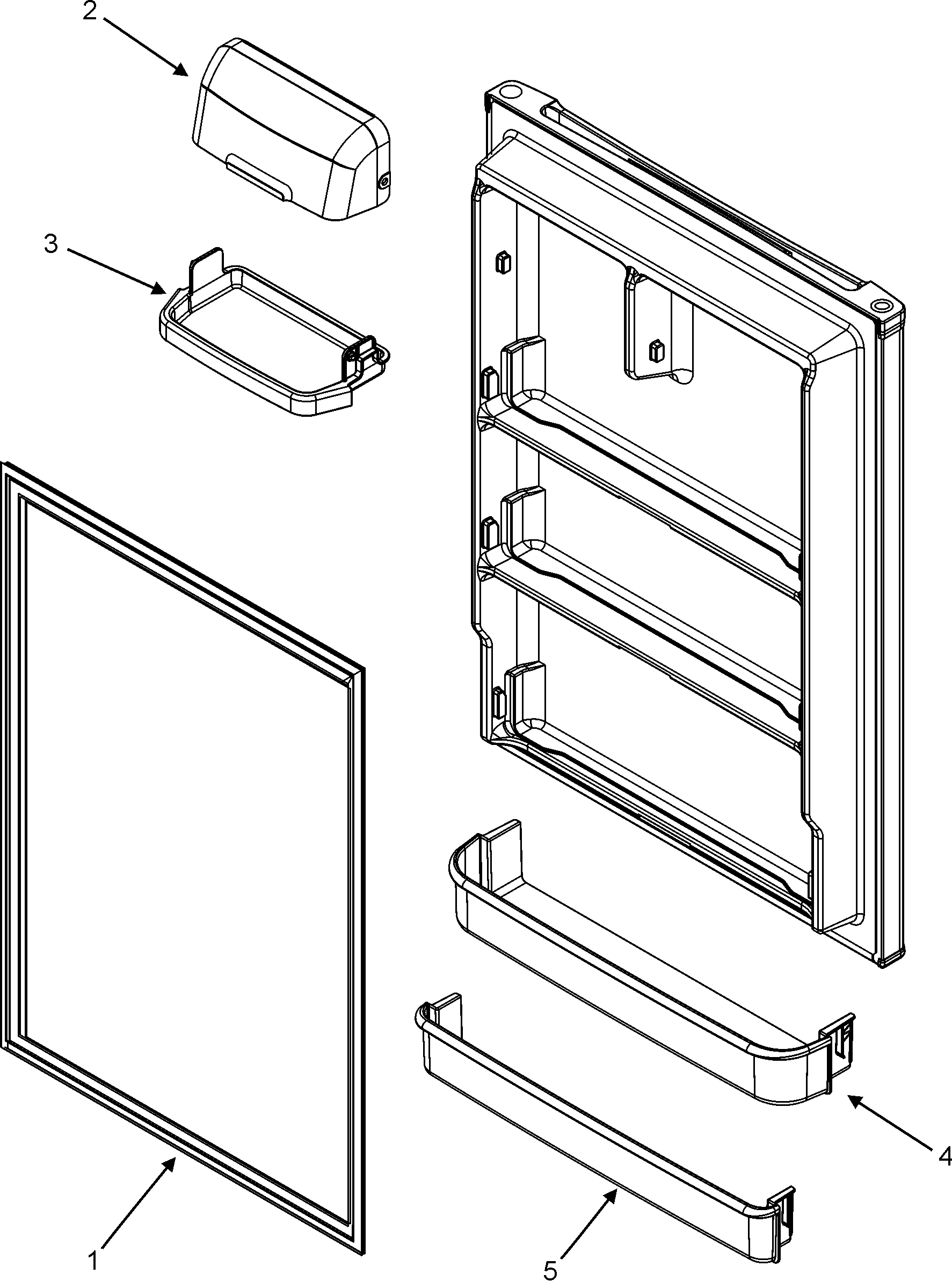

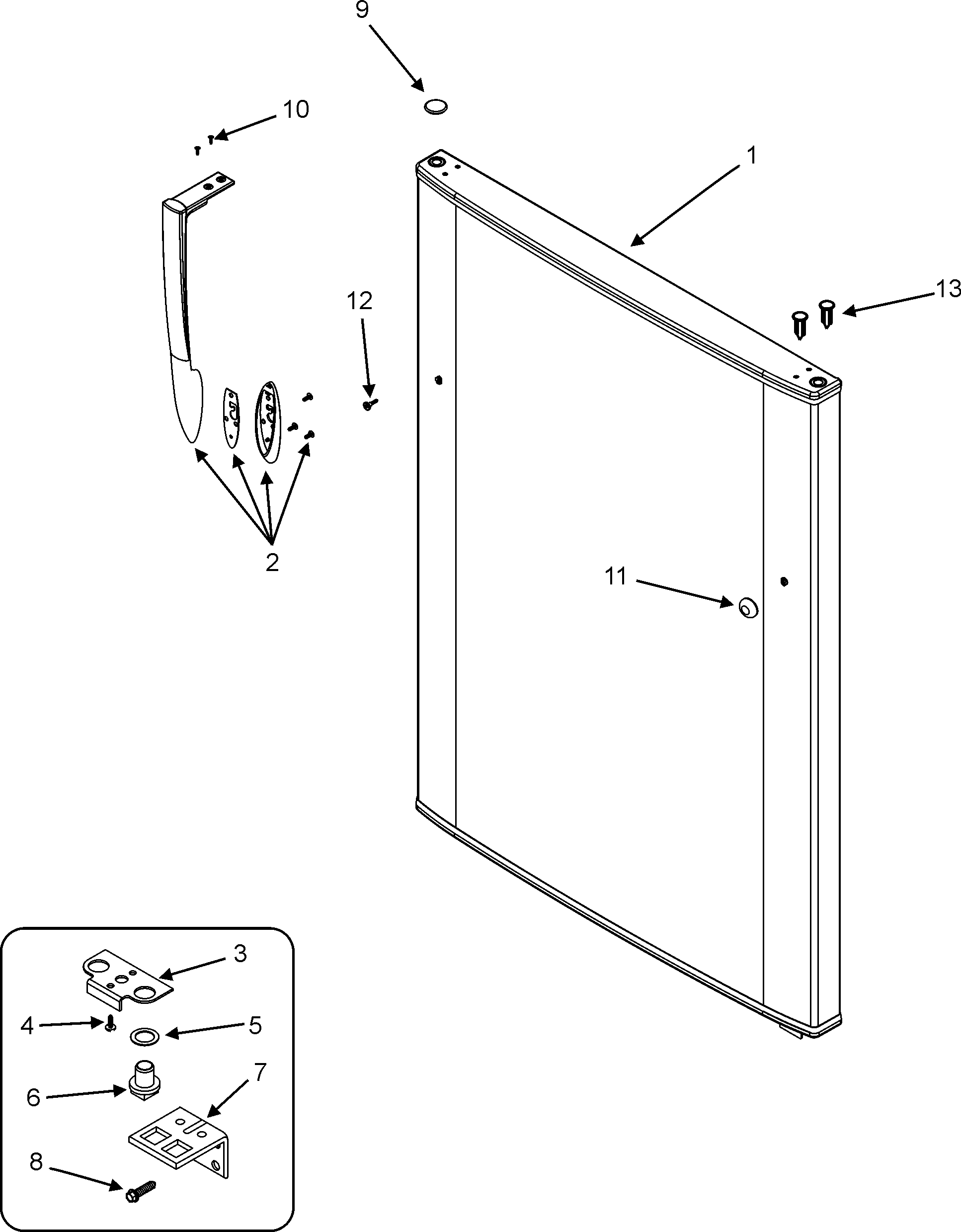

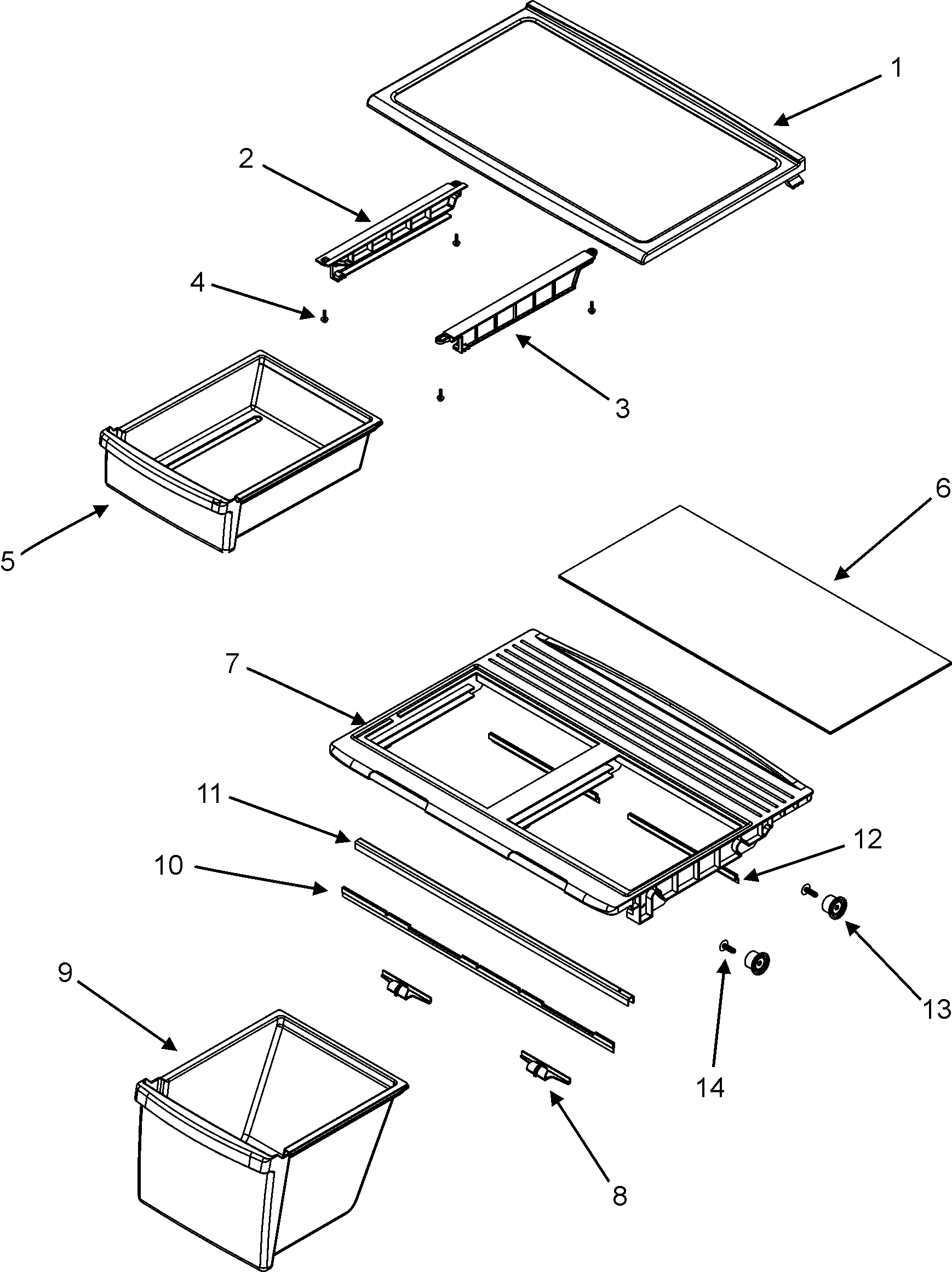

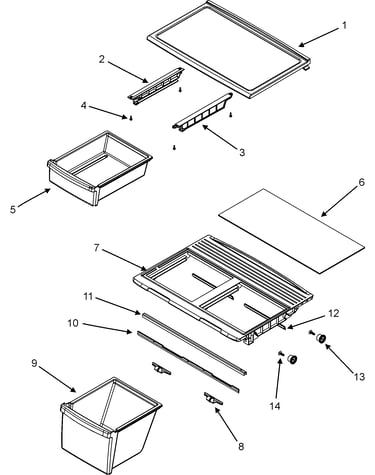

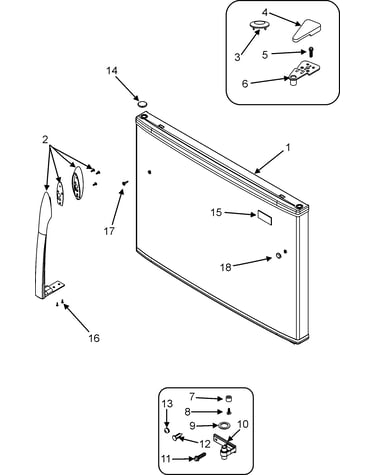

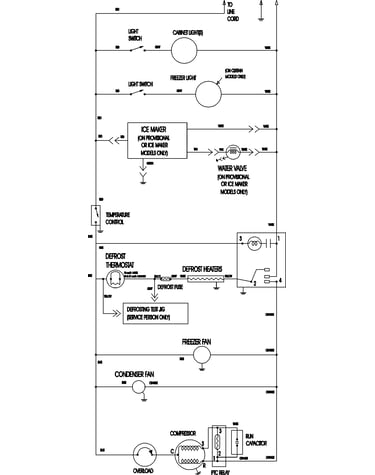

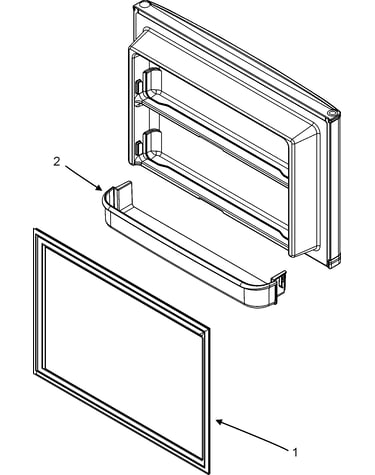

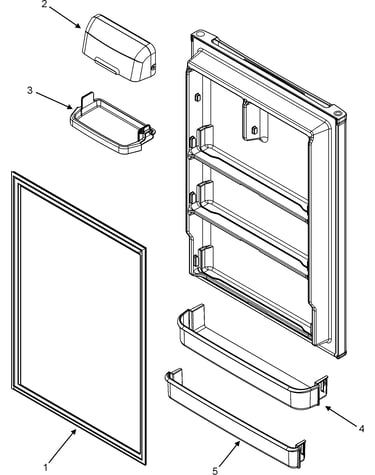

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Refrigerator Uv Dye Dryer 13900-1
#9

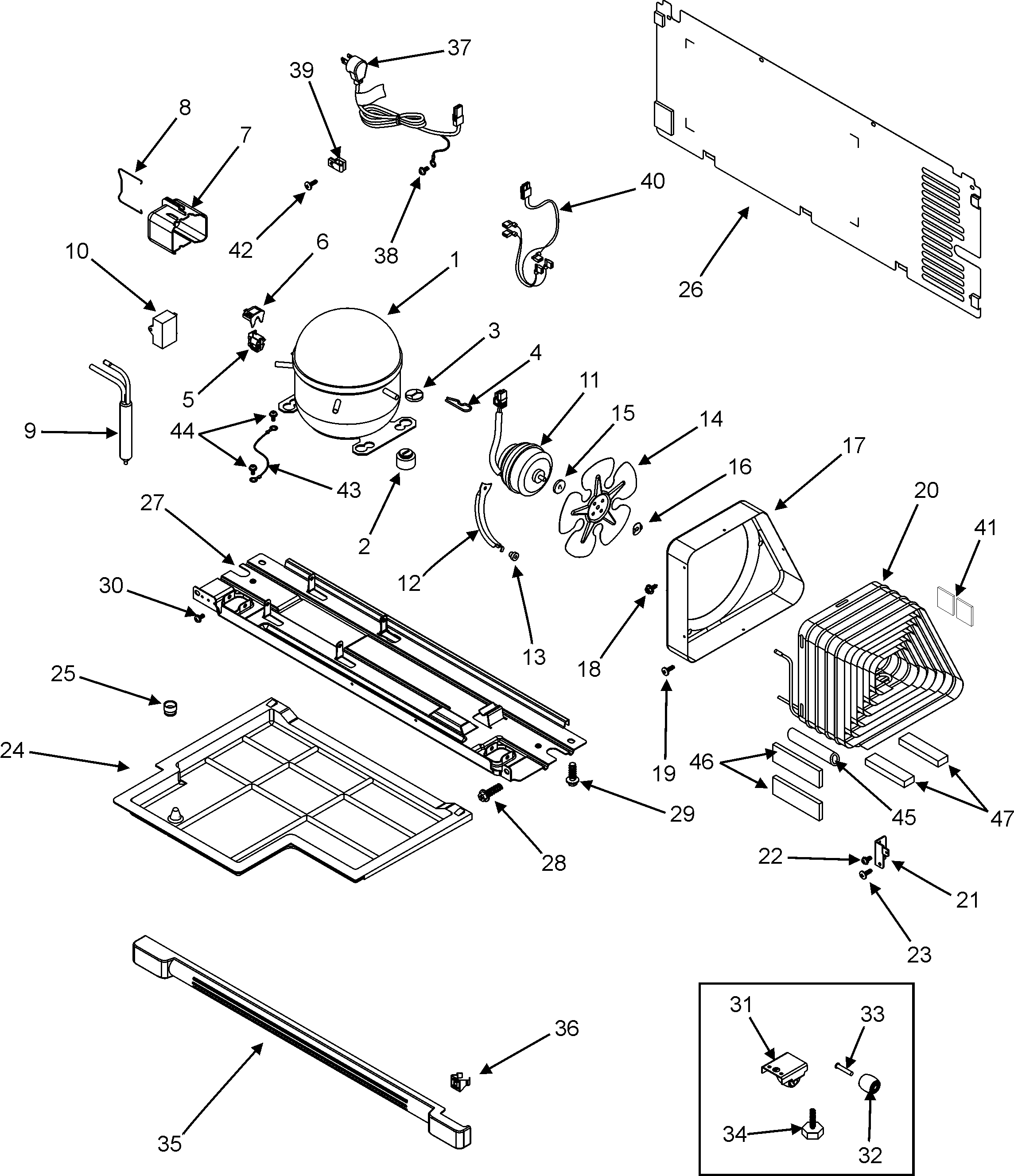

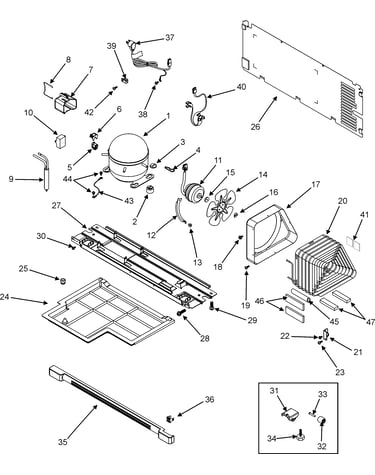

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker 61005508
#1

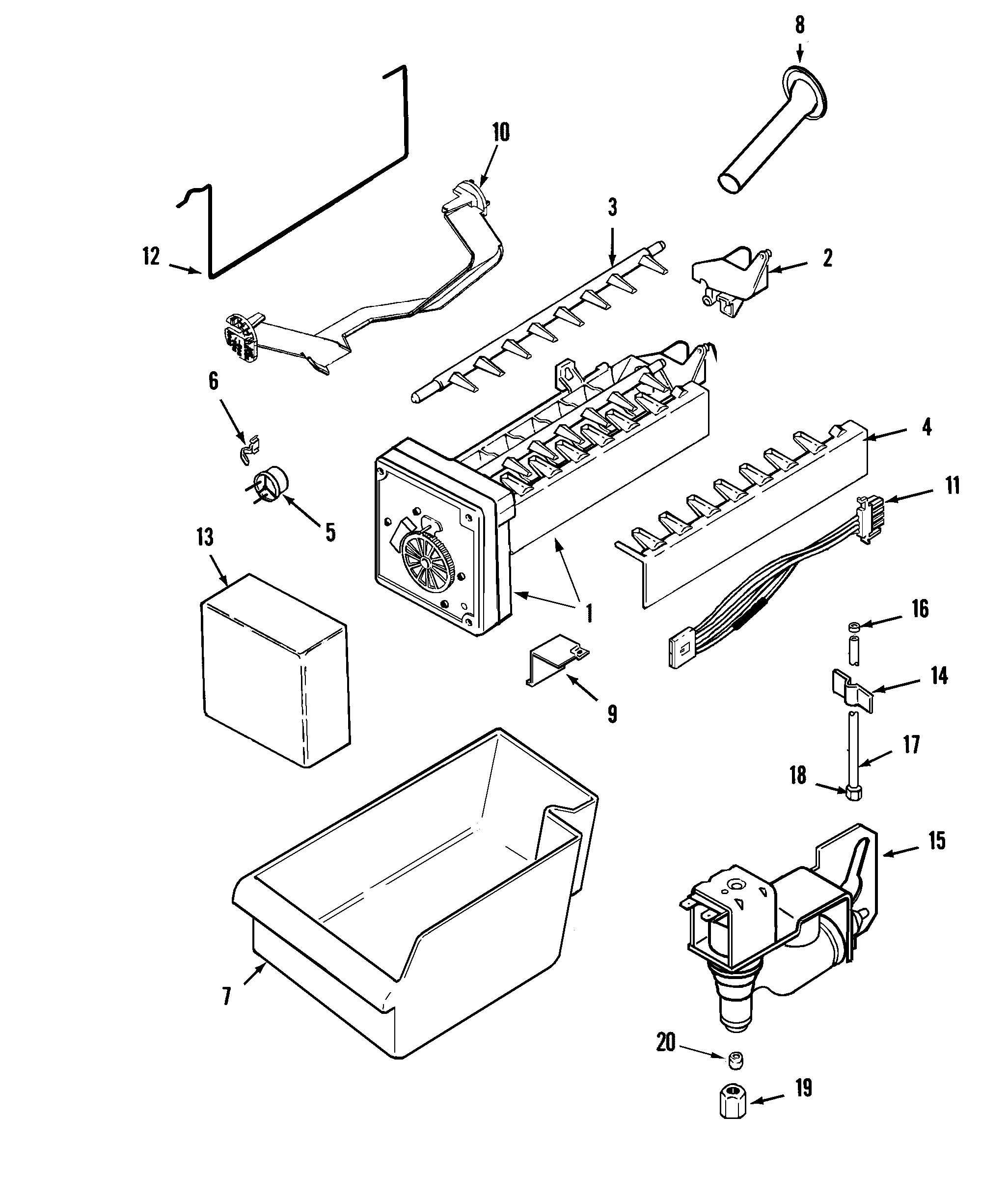

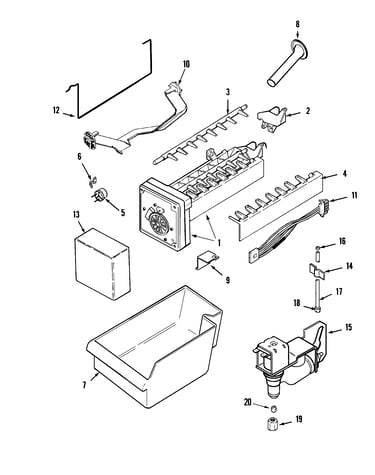

Optional ice maker kit-uki1500axx diagram

Refrigerator ice maker

Part #61005508

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 61005508. Substitute parts can look different from the original.
BEST SELLER
$87.09 |
9% OFF Phone Price : $95.78
In Stock
Refrigerator Bulb 63001035
#9

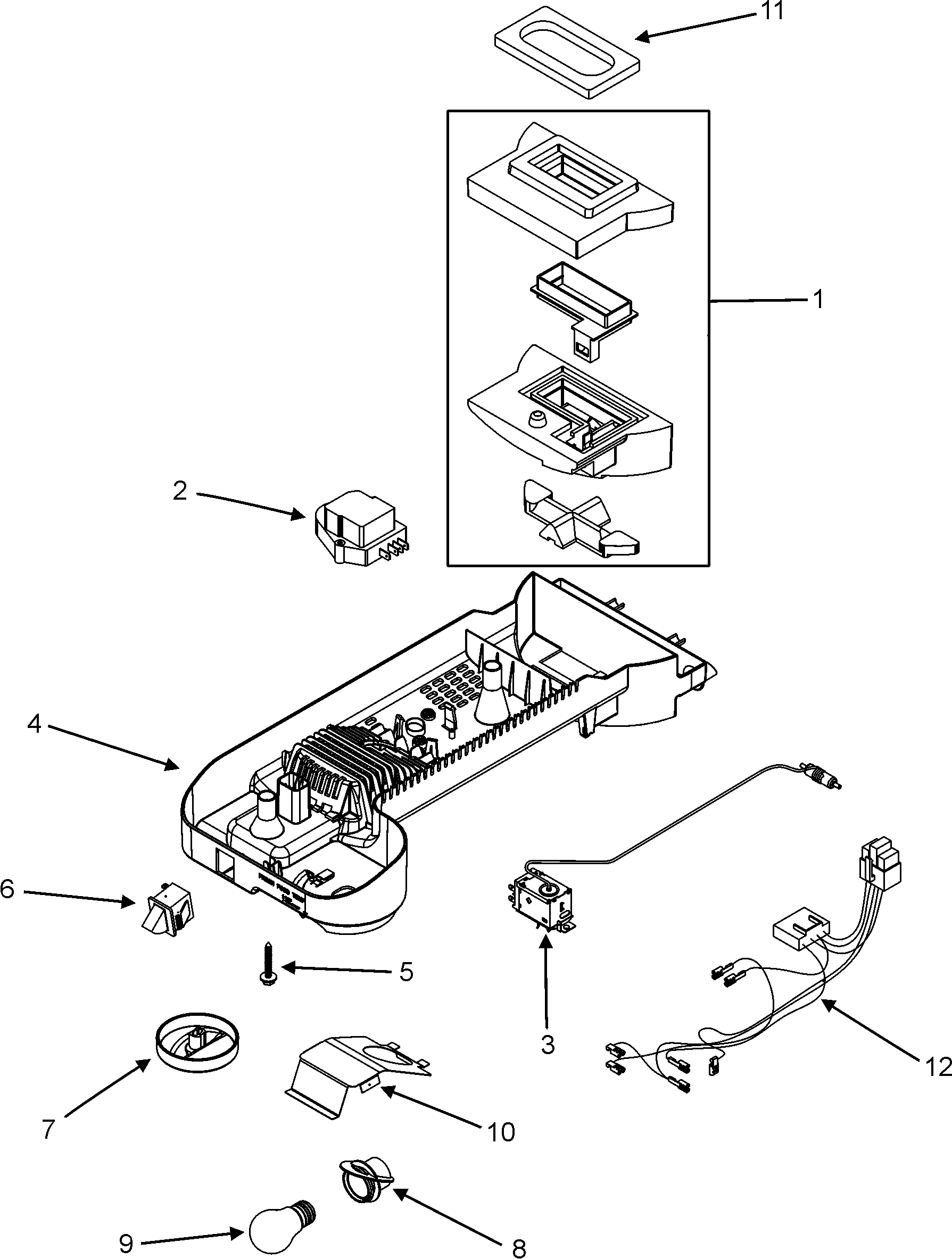

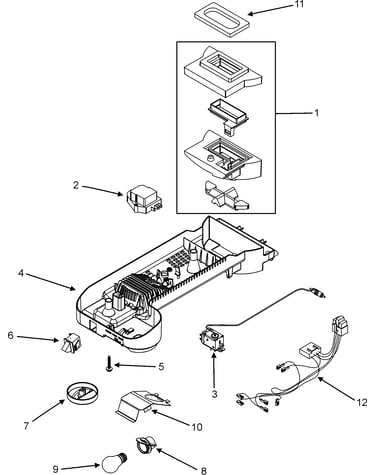

Controls diagram

Refrigerator bulb

Part #63001035

Replaced by #40A15

?
Manufacturer substitution
This part replaces 63001035. Substitute parts can look different from the original.
BEST SELLER
$12.45 |
16% OFF Phone Price : $14.83
In Stock
Refrigerator Compressor Kit 12002261
#1

Compressor diagram

Refrigerator compressor kit

Part #12002261

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 12002261. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Screw 400016-1
#14A

Optional ice maker kit-uki1500axx diagram

Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Screw 95108-1
#9A

Optional ice maker kit-uki1500axx diagram

Refrigerator screw

Part #95108-1

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 95108-1. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
10% OFF Phone Price : $8.99
In Stock
Refrigerator Ice Ejector 95101-1
#3

Optional ice maker kit-uki1500axx diagram

Refrigerator ice ejector

Part #95101-1

Replaced by #WP627843

?
Manufacturer substitution
This part replaces 95101-1. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Refrigerator Defrost Timer 63001580
#2

Controls diagram

Refrigerator defrost timer

Part #63001580

Replaced by #WP68233-3

?
Manufacturer substitution
This part replaces 63001580. Substitute parts can look different from the original.
$80.02 |
7% OFF Phone Price : $86.02
In Stock
Refrigerator Water Valve 61001884
#15

Optional ice maker kit-uki1500axx diagram

Refrigerator water valve

Part #61001884

Replaced by #WP61005273

?
Manufacturer substitution
This part replaces 61001884. Substitute parts can look different from the original.
$50.79 |
11% OFF Phone Price : $56.79
In Stock
Refrigerator Screw 63001104
#10

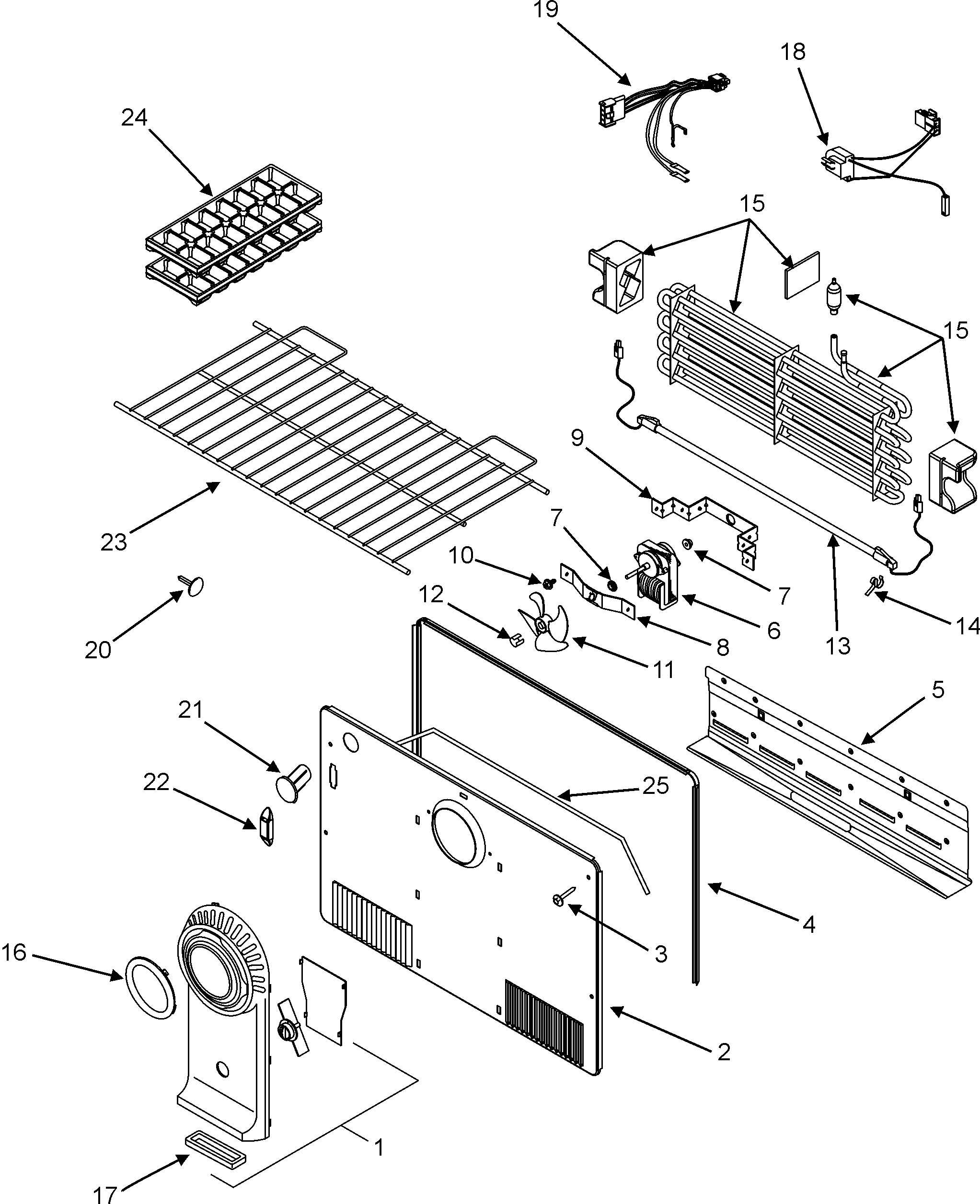

Freezer compartment diagram

Refrigerator screw

Part #63001104

Replaced by #WP489399

?
Manufacturer substitution
This part replaces 63001104. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
