Maytag MDG2500BWW washer/dryer Parts

Your Maytag MDG2500BWW dryer’s exact drum capacity (cubic feet) is typically listed in the product specifications section of the documentation; the quickest way to confirm it for this model is to check the MDG2500BWW owner’s manual.

We recommend using these sources in this order:

• Look for a “Specifications” or “Product data” section in the MDG2500BWW owner’s manual
• Check the model/serial tag on the dryer and match it to the correct documentation for MDG2500BWW
• If you are comparing dryers, use the drum capacity (cu. ft.) along with cycle type (timed dry vs. automatic dry)
• If you are planning a laundry room layout, confirm cabinet dimensions separately from capacity

Even when you just need a quick estimate, capacity varies by design and year. Most full-size Maytag dryers commonly fall into these ranges:

Capacity affects how well loads tumble and dry. If the drum is overfilled for the dryer’s size, clothes can dry unevenly, run hotter, and take longer, which also increases lint buildup in the lint screen and exhaust duct.

• Fill the drum loosely; don’t pack items down
• Dry bulky items (towels, bedding) in smaller batches
• Clean the lint screen every load; replace a damaged screen if needed (example: dryer lint filter WP33001808)
• If dry times are long, check for a crushed or restricted vent

Last updated: January 2026

A Maytag Bravos-style gas dryer like model MDG2500BWW typically lasts 10 to 15 years with normal household use and routine maintenance (lint removal, good airflow, and timely replacement of wear parts). Following the care steps in the MDG2500BWW owner's manual helps you reach that lifespan.

A dryer’s life is usually determined by heat stress, airflow restriction, and drum support wear.

• Ventilation and duct condition: restricted exhaust makes the dryer run hotter and longer
• Lint control: cleaning the lint screen every load reduces strain on the blower and heater system
• Load size: chronic overloading accelerates belt, roller, and bearing wear
• Cycle choices: long timed cycles and high heat increase wear compared to properly vented normal cycles
• Basic upkeep: keeping the area around the dryer clean and dry reduces corrosion and overheating risk

Many dryers get replaced when a repair would restore performance. These symptoms often point to serviceable parts.

A dryer that is properly vented and maintained dries faster, runs cooler, and puts less stress on the motor, belt, and gas ignition components. That directly improves reliability and helps you get the full 10 to 15 years.

Last updated: January 2026

To reset an error code on your Maytag MDG2500BWW dryer, we recommend powering the dryer off, unplugging it for a few minutes, then restoring power and restarting a cycle. If the code returns, use the troubleshooting steps in the MDG2500BWW owner's manual to pinpoint the cause.

• Press Power/Cancel/Off (if your control panel has it) to stop the cycle.
• Unplug the dryer (or switch the breaker off).
• Wait 1 to 5 minutes.
• Restore power.
• Start a timed cycle and press Start.

Most “reset” issues are really a condition the dryer is detecting again. Check these common causes first:

• Airflow restriction: lint screen, vent hose, or outside hood blocked
• Overheating: crushed vent, long vent run, or clogged blower housing
• Ignition/heating fault (gas models): burner does not ignite or shuts off mid-cycle
• Door switch or control issue: cycle will not start or stops unexpectedly
• Loose wiring: vibration can loosen connections over time

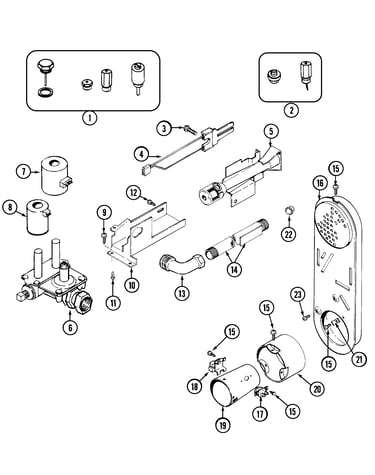

If your MDG2500BWW is a gas dryer and you have “no heat” or “heat cuts out,” these model-matched parts are often involved:

• Gas sensor WP338906 (radiant sensor that helps confirm burner ignition)
• Holding coil 279834 (gas valve coil kit that can fail when hot)

Resetting clears the control briefly, but the dryer will post the code again if it still detects unsafe heat, poor airflow, or an ignition problem. Fixing the root cause helps prevent repeat shutdowns and long dry times.

Last updated: January 2026

For the Maytag MDG2500BWW dryer, the most common problems we see are no heat or long dry times caused by restricted airflow (lint buildup or a clogged exhaust vent), plus wear items that lead to noise or no tumbling (belt, rollers, idler). Start by checking airflow and basic maintenance in the MDG2500BWW owner's manual.

• Dryer runs but won’t heat: ignition or gas heat components, or airflow restriction causing overheating and shutdown.
• Dryer takes too long to dry: vent restriction, crushed duct, lint buildup in blower housing or lint screen area.
• Dryer won’t start: power issue, door switch, thermal safety device, or timer/control problem.
• Loud rumbling/squealing: worn drum support rollers, idler pulley, or drum bearing surfaces.
• Burning smell or very hot cabinet: blocked exhaust path; stop and clear the venting before continued use.

1. Clean the lint screen and confirm strong airflow at the outside vent hood.
2. Inspect the entire vent run for kinks, crushed flex duct, or heavy lint.
3. Run a timed dry cycle and verify the drum tumbles smoothly without thumping.
4. If it is a gas model and there’s no heat, listen for ignition attempts and burner cycling.
5. Use the troubleshooting section in the MDG2500BWW owner's manual before replacing parts.

Restricted venting does more than slow drying; it can overheat the dryer and shorten the life of key components. The manual also notes that exhaust ducts should be kept free of obstructions for proper exhausting and safer operation.

Last updated: January 2026
