Craftsman 917255412 36" 10-hp riding lawn tractor with electric start Parts
Here are the diagrams and repair parts for Craftsman 917255412 36" 10-hp riding lawn tractor with electric start, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

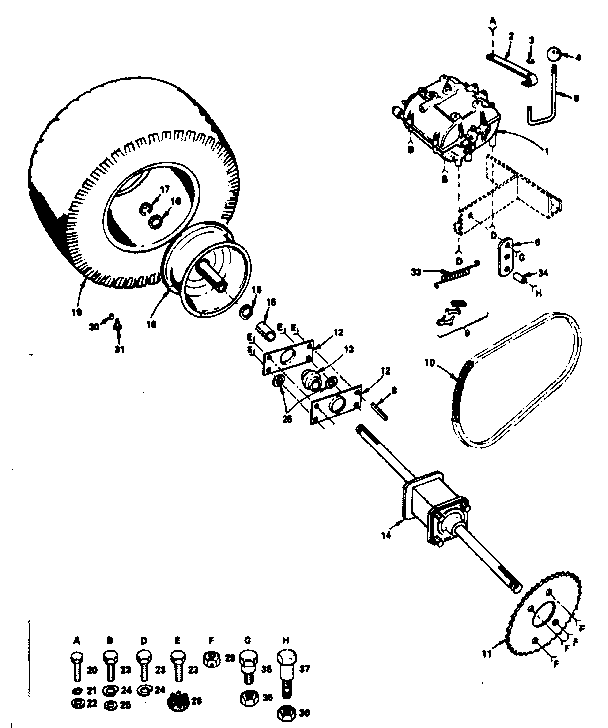

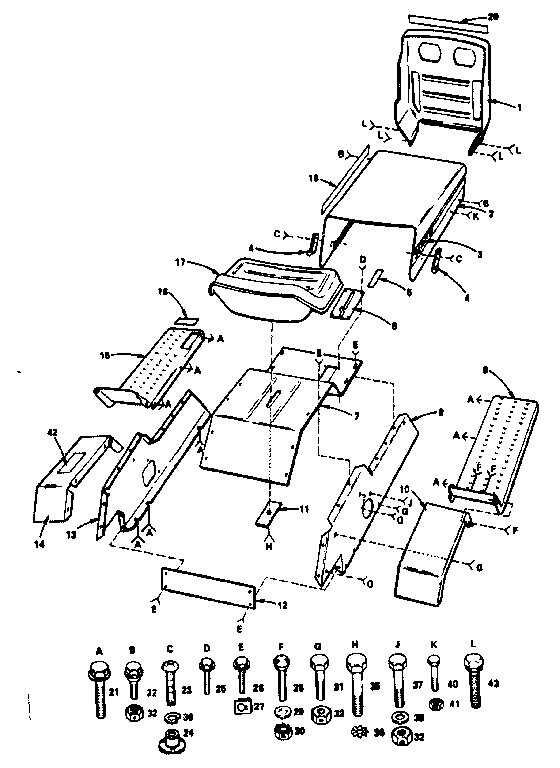

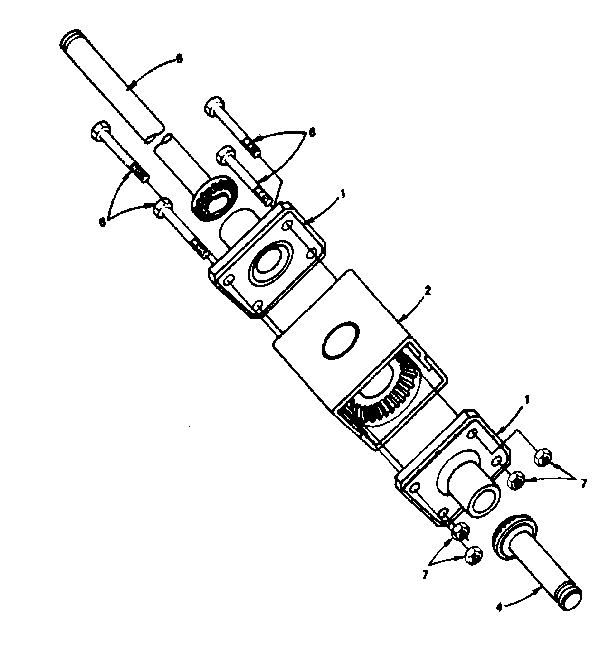

Browse Parts for 917255412 Riding Mowers & Tractors

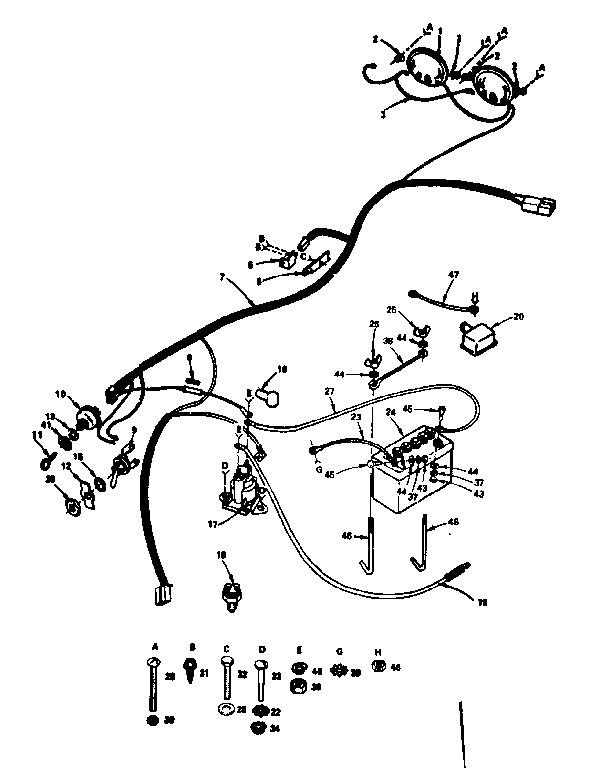

Electrical diagram
Thread Rolling Screw, 5/16-18 X 3/4-in
Part #17490512Replaced by #596030701
Manufacturer substitutionThis part replaces 17490512. Substitute parts can look different from the original.In Stock$22.77
Qty

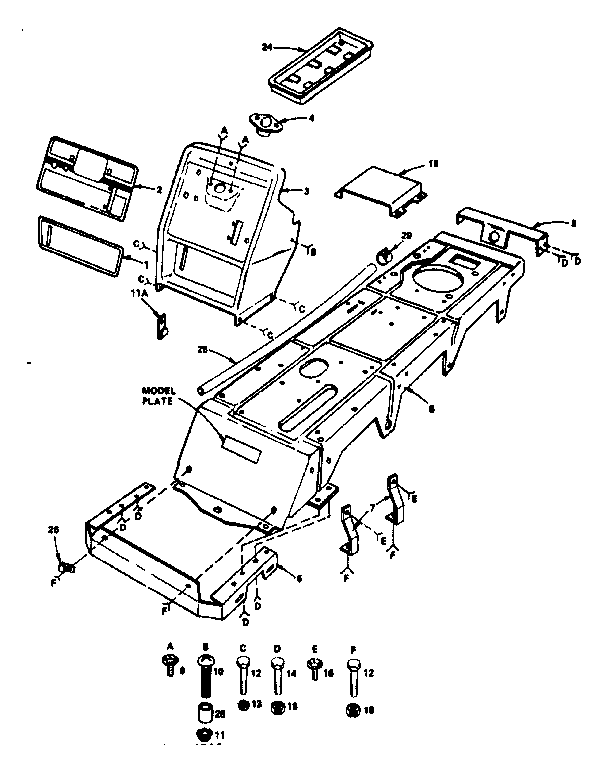

Dashboard and chassis diagram
Tray
Part #7603JReplaced by #532007603

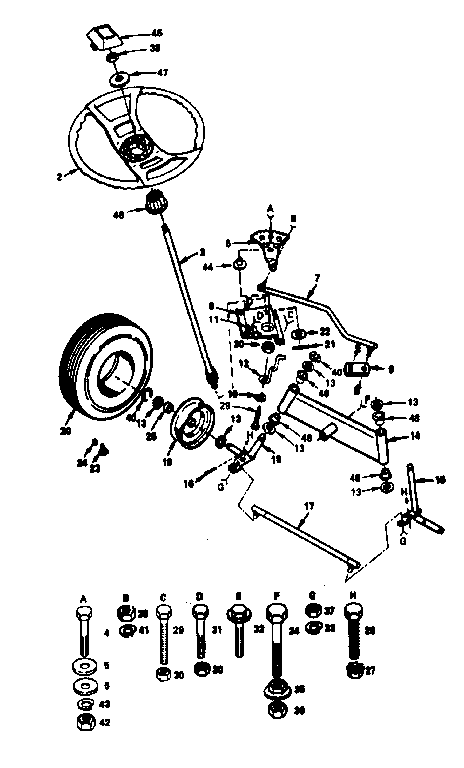

Manufacturer substitutionThis part replaces 7603J. Substitute parts can look different from the original.In Stock$12.97QtySteering and front axle diagram
Washer
Part #19172410Replaced by #532067725
Manufacturer substitutionThis part replaces 19172410. Substitute parts can look different from the original.In Stock$10.0817% OFF Phone Price : $12.08

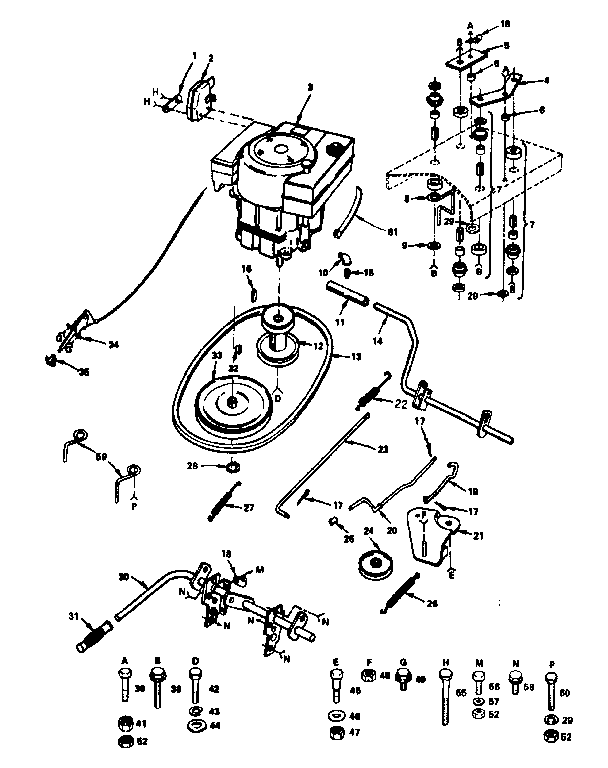

QtyClutch-brake and drive diagram
Plug
Part #31927Replaced by #31927
Manufacturer substitutionThis part replaces 31927. Substitute parts can look different from the original.This item is not returnableIn Stock$2.16QtyElectrical diagram
Washer
Part #19091016Replaced by #596582301
Manufacturer substitutionThis part replaces 19091016. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2814% OFF Phone Price : $7.28QtyMower diagram
Nut
Part #5846RReplaced by #532110452
Manufacturer substitutionThis part replaces 5846R. Substitute parts can look different from the original.This item is not returnableIn Stock$5.3316% OFF Phone Price : $6.33QtyElectrical diagram
Starter Switch
Part #4406RReplaced by #532365402
Manufacturer substitutionThis part replaces 4406R. Substitute parts can look different from the original.In Stock$36.3814% OFF Phone Price : $42.38QtyElectrical diagram
Nut
Part #3258JReplaced by #532124211
Manufacturer substitutionThis part replaces 3258J. Substitute parts can look different from the original.In Stock$10.4916% OFF Phone Price : $12.49QtyClutch-brake and drive diagram
Brake Spring
Part #1635JReplaced by #583685701
Manufacturer substitutionThis part replaces 1635J. Substitute parts can look different from the original.In Stock$44.36QtyElectrical diagram
Solenoid
Part #2008JReplaced by #532146154
Manufacturer substitutionThis part replaces 2008J. Substitute parts can look different from the original.In Stock$35.2815% OFF Phone Price : $41.28Qty
