Maytag MDE6800AYW dryer Parts

Most Maytag dryers, including the Maytag MDE6800AYW, typically last 10 to 15 years with normal household use. Regular vent cleaning and timely replacement of wear items (belt, rollers, thermal fuse) are what most often push a dryer toward the high end of that range.

• Airflow and venting: A restricted vent makes the dryer run hotter and longer.
• Load size and frequency: Overloading strains the drum support system and belt.
• Heat stress: Repeated overheating shortens the life of thermostats and fuses.
• Wear parts condition: Rollers, idler components, and seals wear gradually.
• Maintenance habits: Lint removal inside the cabinet reduces heat and motor strain.

If your MDE6800AYW starts squealing, thumping, or taking longer to dry, these are common wear items to check:

• Dryer drum belt WP33002535 (slipping or broken belt stops tumbling)
• Whirlpool dryer drum support roller 12001541 (flat spots cause thumping)
• Dryer thermal fuse, 243-degree f WP307473 (opens if overheating occurs)
• Dryer lint filter WP33001808 (poor airflow if damaged or not sealing well)

A dryer that is overheating or struggling to move air can fail early and also dry poorly. Keeping airflow strong and replacing worn drum support parts reduces run time, heat stress, and motor load.

For maintenance steps and safety guidance specific to Maytag MDE6800AYW, follow the cleaning and venting instructions in the MDE6800AYW owner's manual.

Last updated: January 2026

The Maytag MDE6800AYW dryer has a 6.0 cu. ft. drum capacity, which is considered an oversize capacity for a 27-inch electric dryer. This size typically handles full family loads like towels, jeans, and mixed everyday laundry.

We recommend checking the model specifications section in the MDE6800AYW owner's manual. Capacity is usually listed as “cu. ft.” and may appear alongside drum dimensions and cycle feature details.

• Look for “capacity” or “drum volume” in the specs pages
• Confirm you are viewing MDE6800AYW (not a similar Maytag model)
• If your dryer has a replacement drum, capacity still stays the same for this model
• Use the manual specs instead of retailer listings when details conflict

A 6.0 cu. ft. Maytag dryer is designed for larger loads, but drying performance still depends on airflow, heat, and drum tumbling.

• Large towel loads dry best when filled about 2/3 full
• Bulky items (comforters) may need extra space to tumble
• Overloading can cause longer dry times and more wrinkles
• Restricted venting can make any capacity feel “too small” because clothes do not dry efficiently

Capacity affects how much you can dry at once, but it also impacts cycle time, energy use, and wear on parts like the belt and rollers. If the drum is overloaded and strain increases, common wear items include the dryer drum belt WP33002535 and drum support components.

Last updated: January 2026

For the Maytag MDE6800AYW dryer, the most common problem we see is overheating from restricted airflow, which often blows a thermal fuse and can make the dryer stop running or not start. The root cause is usually lint buildup in the lint path or a clogged vent.

• Dryer won’t start or stops mid-cycle: thermal fuse opened from overheating
• Long dry times: vent restriction, lint buildup, or weak airflow
• No heat: heating circuit issue (electric models), thermostat, or thermal fuse
• Loud rumbling or squealing: worn drum support parts or belt system wear
• Drum won’t turn: broken belt or failed motor drive system

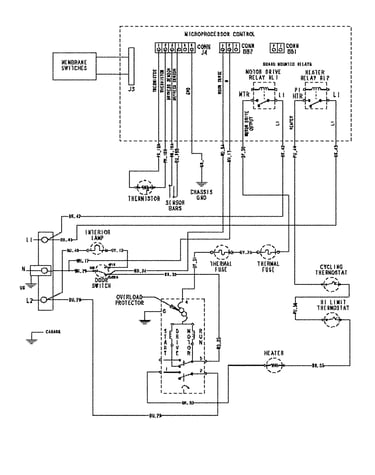

A good starting point for model-specific access panels, wiring routing, and safety steps is the MDE6800AYW owner’s manual.

1. Clean the lint screen and confirm it is not coated with fabric softener residue.
2. Inspect and clear the vent duct from the dryer outlet to the outside hood.
3. Check airflow outside: the damper should open strongly while running.
4. Listen for mechanical noise (thump, squeal, grind) as the drum turns.
5. Unplug power before opening panels or testing parts.

Restricted venting does more than slow drying; it raises internal temperatures, which can trip safety devices like a thermal fuse and accelerate wear on the motor, belt, and drum support rollers. Keeping airflow strong is the best way to prevent repeat failures.
