Model # 58052450200 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58052450200 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

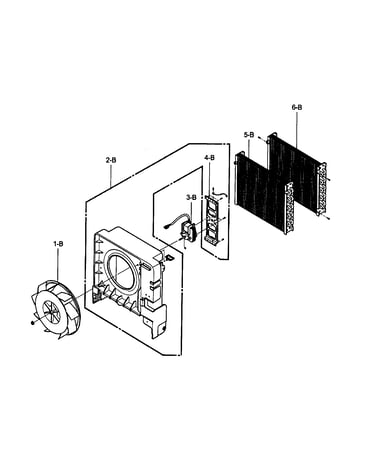

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Caster 4441A30001B
#1-AA

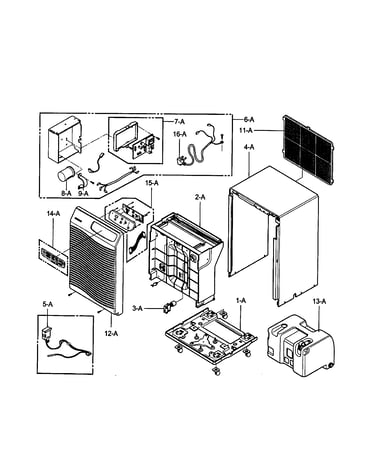

Cabinet diagram

Caster

Part #4441A30001B

Replaced by #MHA62753001

?
Manufacturer substitution
This part replaces 4441A30001B. Substitute parts can look different from the original.
In Stock
Clamp 4H00442J
#9-A

Cabinet diagram

Clamp

Part #4H00442J

This item is not returnable
In Stock
Owner's Manual 3828A30059L
#NI

Cabinet diagram

Owner's manual

Part #3828A30059L

In Stock
Cover 3550U-L004A
#2-C

Compressor diagram

Cover

Part #3550U-L004A

In Stock
Gasket 4986U-L001G
#4-C

Compressor diagram

Gasket

Part #4986U-L001G

This item is not returnable
In Stock
Hex Nut 1NHA0801206
#6-C

Compressor diagram

Hex nut

Part #1NHA0801206

This item is not returnable
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L039A
#3-C

Compressor diagram

Room air conditioner compressor overload protector

Part #6750U-L039A

In Stock
Nut 4H00947A
#1-C

Compressor diagram

Nut

Part #4H00947A

This item is not returnable
In Stock
Dehumidifier Run Capacitor 0CZZA20001Q
#8-A

Cabinet diagram

Dehumidifier run capacitor

Part #0CZZA20001Q

This item is not returnable
In Stock
Brkt,wshr 4810AR4155A
#7-C

Compressor diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
In Stock
