GE JTP47SC3SS electric oven Parts
Here are the diagrams and repair parts for GE JTP47SC3SS electric oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

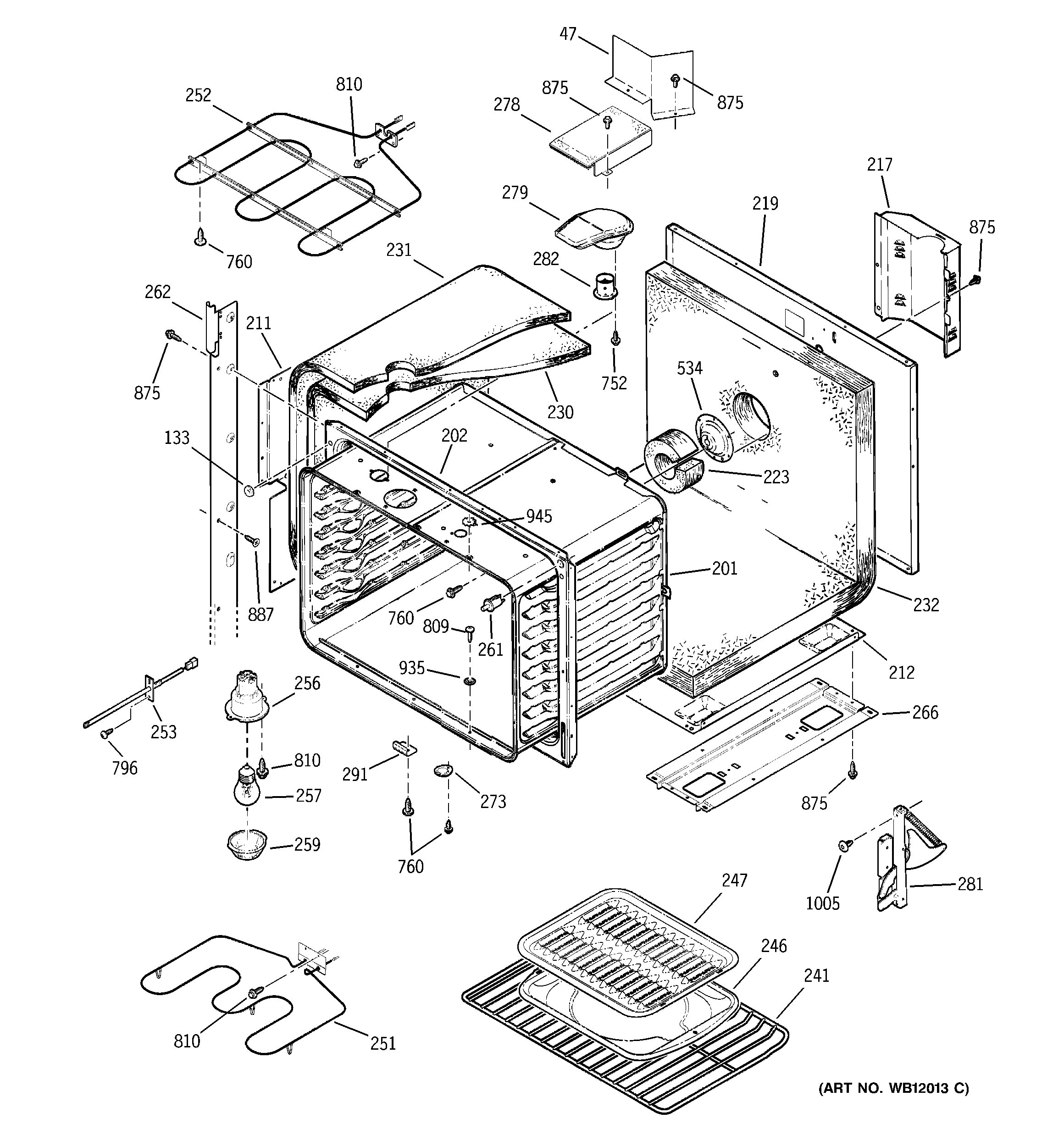

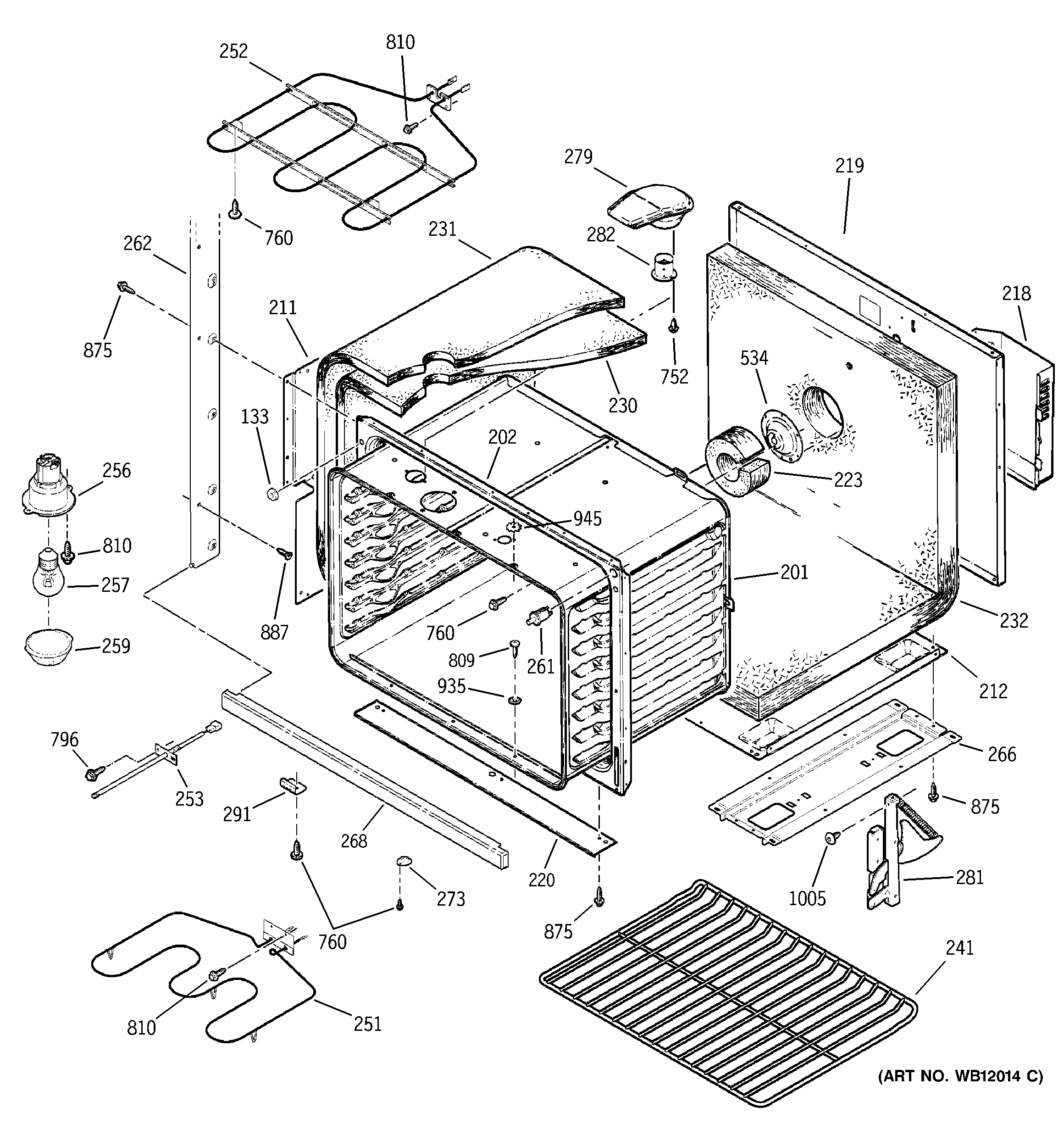

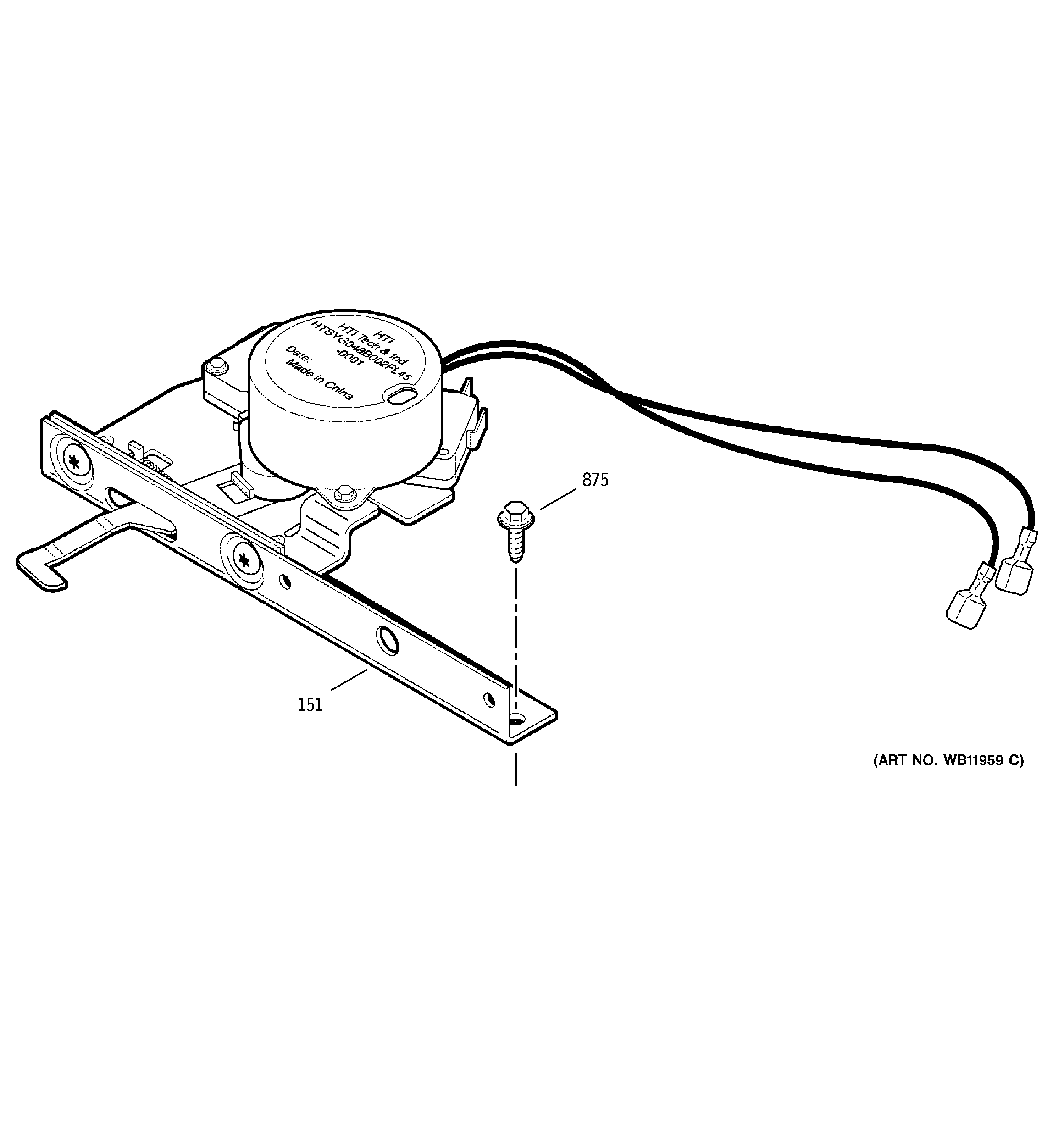

SELECT DIAGRAM
Browse Parts for JTP47SC3SS Wall Ovens
Wall Oven Cooling Fan Assembly
In Stock$141.468% OFF Phone Price : $153.46
Qty

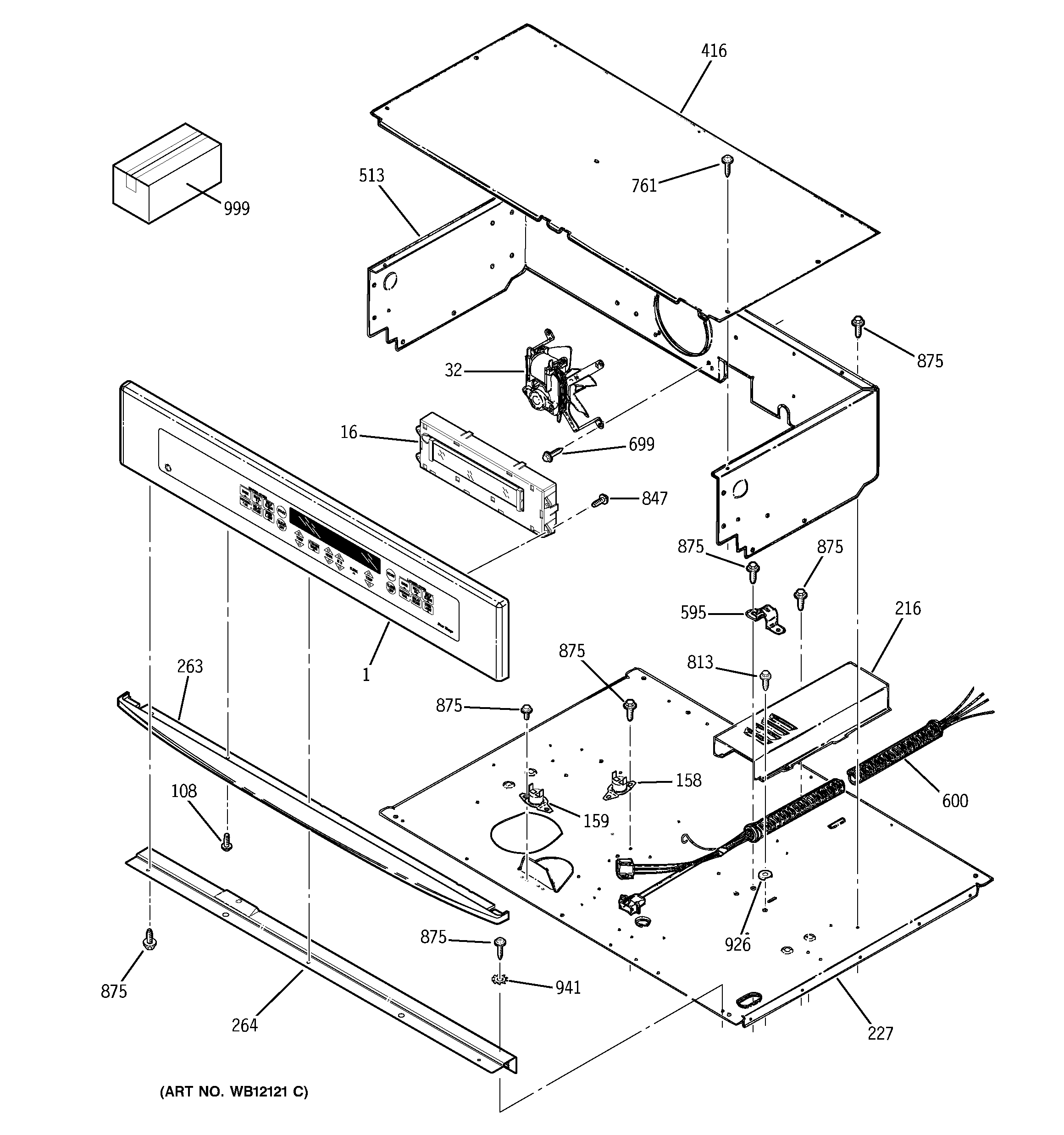

Control panel diagram
Wall Oven Door Switch Wire Harness
In Stock$66.76QtyFoam Tape
In Stock$7.9811% OFF Phone Price : $8.98QtyDoor Bumper

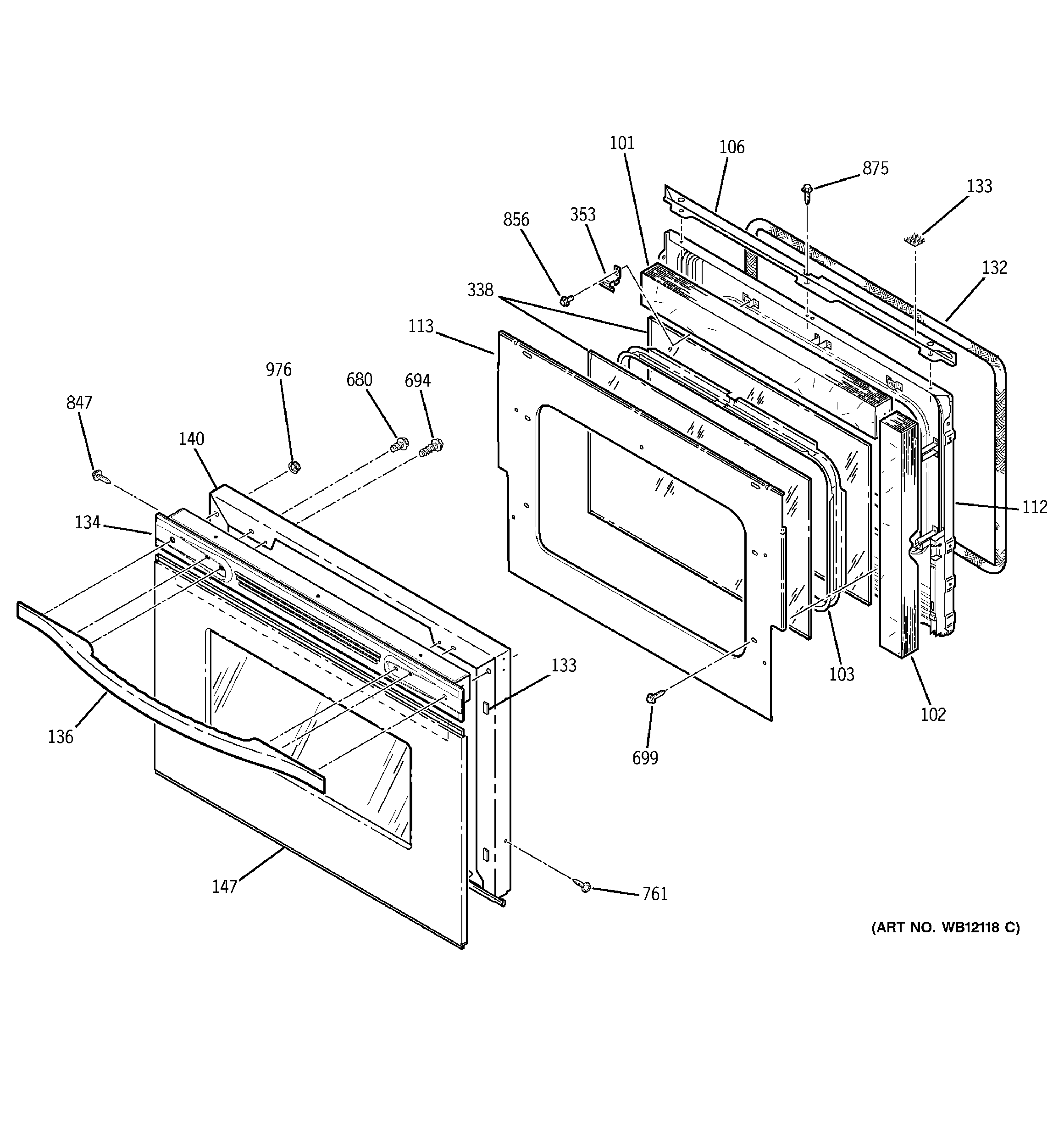

In Stock$9.0110% OFF Phone Price : $10.01QtyDoor diagram
Ovdr Insu-sd
In Stock$32.52QtyDoor diagram
Oven Insulation

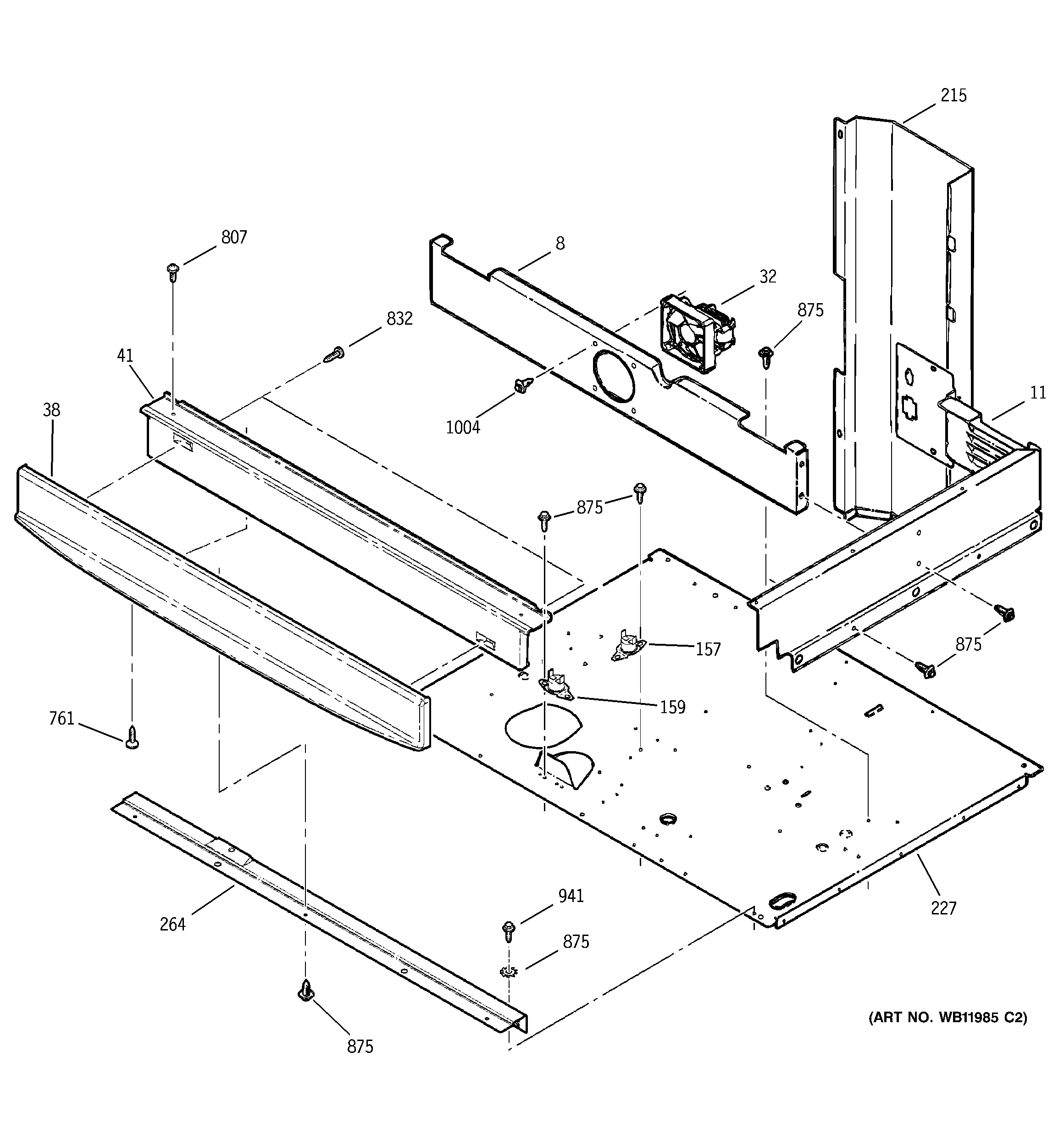

In Stock$32.52QtyCenter spacer diagram
Screw
Part #WB01X1158Replaced by #WB1X1118
Manufacturer substitutionThis part replaces WB01X1158. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38QtyLens Cover
Part #WB25T10002Replaced by #WB25T10002
Manufacturer substitutionThis part replaces WB25T10002. Substitute parts can look different from the original.This item is not returnableIn Stock$10.5316% OFF Phone Price : $12.53QtyDoor diagram
Screw
Part #WB01X1293Replaced by #WB1X1293
Manufacturer substitutionThis part replaces WB01X1293. Substitute parts can look different from the original.This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86QtyControl panel diagram
Screw
Part #WB01X1261Replaced by #WB1X1261
Manufacturer substitutionThis part replaces WB01X1261. Substitute parts can look different from the original.In Stock$9.0110% OFF Phone Price : $10.01Qty
