To realign the bottom freezer drawer on your GE PFE28RSHGSS bottom-mount refrigerator, adjust the drawer/door alignment screws a little at a time (about 2 turns), then close the drawer and recheck the gap. Keep adjusting until the top lines up evenly and the drawer seals.

Quick alignment steps

• Unplug the refrigerator or turn off power at the breaker for safety.
• Pull the freezer drawer open and locate the left and right alignment/height adjusters (typically near the drawer slides).
• Turn the adjuster counterclockwise about 2 full turns, then close the drawer to check the gap.
• Repeat in small increments until the drawer front looks level and the gasket contacts evenly.
• Confirm the drawer opens and closes smoothly without rubbing.

What to check after you adjust

• Top edge alignment: the freezer drawer front should look even with the fresh food doors.
• Side gaps: left and right gaps should be similar.
• Seal contact: the gasket should touch the cabinet all the way around.
• Slide movement: drawer should glide without binding.

Common causes of a “crooked” freezer drawer

Symptom	Most likely cause	What usually fixes it
One side sits lower	Drawer height adjuster out of sync	Re-adjust both sides in small turns
Drawer rubs or feels tight	Slide rail not seated or obstructed	Remove items, reseat drawer, inspect rails
Frost or moisture near the drawer	Gasket not sealing evenly	Re-align drawer; inspect gasket for warping

Why it matters

A bottom freezer drawer that is out of alignment can leak air, which leads to frost buildup, temperature swings, and longer run times. Getting the drawer level helps the gasket seal correctly and keeps cooling performance steady.

Helpful references for this model

• Use the installation guide for safety notes and door evenness guidance (it specifically calls out ensuring doors are even at the top and adjusting as needed).
• If the drawer is hard to move or won’t stay aligned, a worn slide rail can be the root cause; compare the right-side rail option on this model: refrigerator freezer drawer slide rail, right WR17X13077.

You can also order replacement parts for GE PFE28RSHGSS from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A refrigerator with the freezer on the bottom is called a bottom-freezer refrigerator; it’s also commonly called a bottom-mount refrigerator. Your GE PFE28RSHGSS is this style, with fresh food up top and the freezer compartment below.

What “bottom-mount” means in everyday use

Bottom-mount designs put the most-used section (fresh food) at eye level and the freezer below, usually as a pull-out drawer.

• Fresh food compartment is on top
• Freezer is on the bottom (often a sliding drawer)
• Better visibility and access to refrigerated items
• Freezer items may be easier to organize in baskets/dividers

Bottom-freezer vs. other common refrigerator styles

Style name	Freezer location	Typical freezer access	Common benefit
Bottom-freezer (bottom-mount)	Bottom	Pull-out drawer or door	Fresh food at eye level
Top-freezer	Top	Swing door	Simple layout, often lower cost
Side-by-side	Left side	Swing door	Narrow door swing, easy freezer reach

Why it matters

Knowing the style name helps you match the right parts, installation instructions, and door/drawer hardware for your exact configuration, especially on models with a dispenser and freezer drawer components.

Where to confirm your exact configuration

For the official naming and layout details for GE PFE28RSHGSS, check the PFE28RSHGSS owner's manual and the PFE28RSHGSS installation guide.

Last updated: February 2026

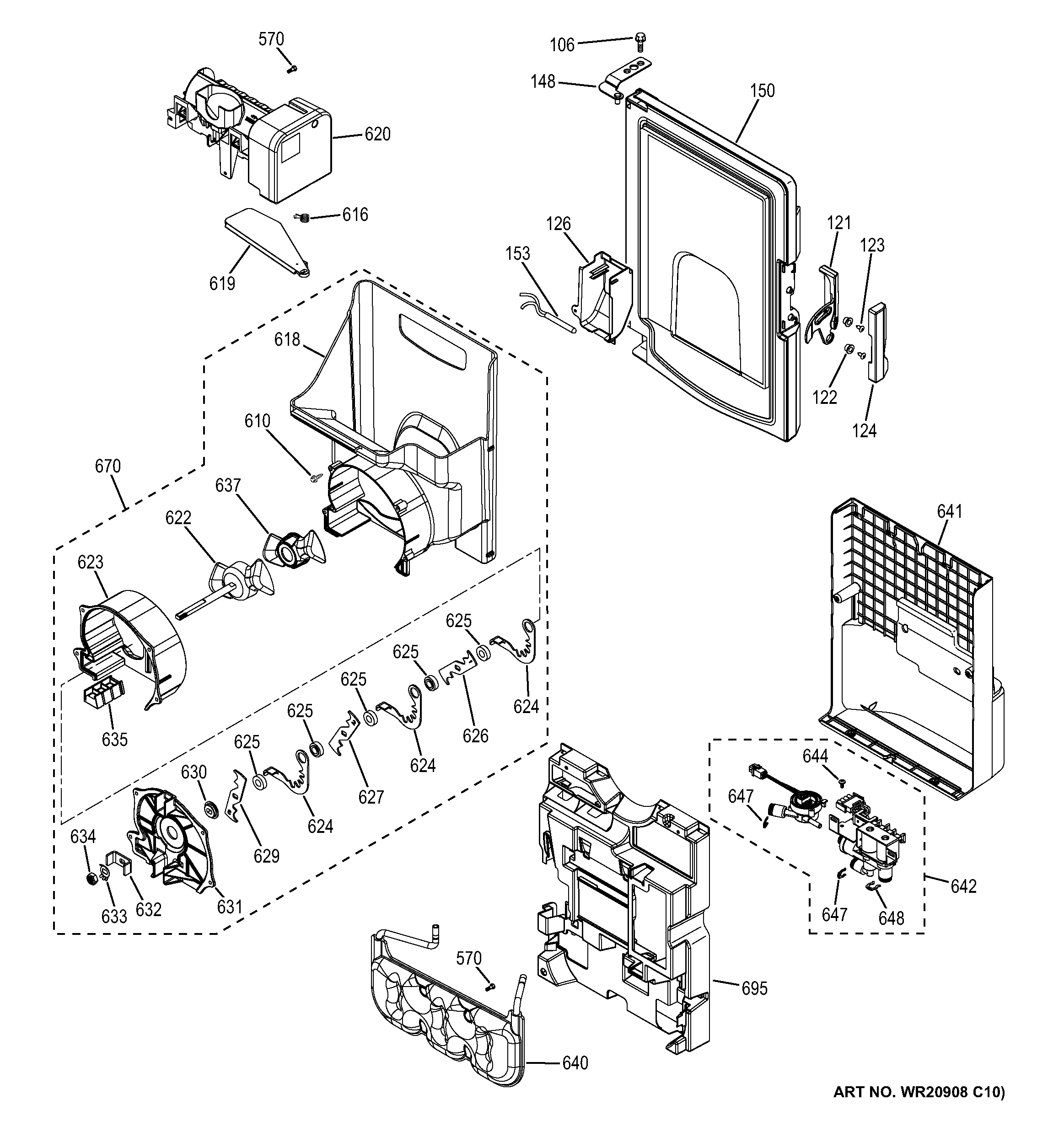

For the GE PFE28RSHGSS bottom-mount refrigerator, the most common customer-reported trouble spots are ice maker and water dispenser performance (no ice, slow water, leaks) and cooling complaints (warm fridge or freezer). These issues often trace back to airflow, water filtration, or control and sensor components; see the PFE28RSHGSS owner's manual for model-specific checks.

Most common symptoms we see

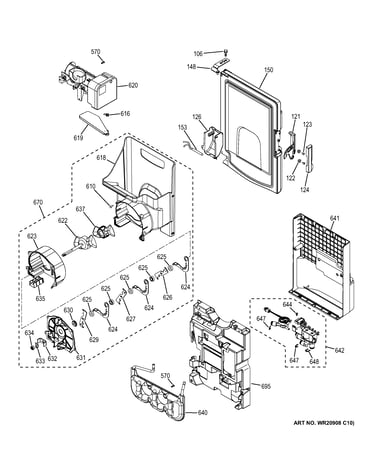

• Ice maker not making ice or making small/hollow cubes
• Water dispenser slow, sputtering, or not dispensing
• Water leaking in the fresh food section or under the unit
• Refrigerator section warm while freezer seems closer to normal
• Unusual fan noise or weak airflow from vents

Quick checks that solve many calls

1. Confirm door closure and seals: A poor seal causes frost, moisture, and temperature swings.
2. Replace the water filter on schedule: A restricted filter commonly causes slow water and ice issues.
3. Clear vents and avoid overpacking: Blocked airflow mimics a cooling failure.
4. Clean condenser area: Dust buildup raises temperatures and run time.
5. Power reset: Unplug for 2 minutes, then restore power to clear minor control glitches.

Problem area	What you notice	Common next step
Water/ice system	Slow water, no ice, odd-tasting water	Replace GE refrigerator water filter RPWFE and purge air from the line

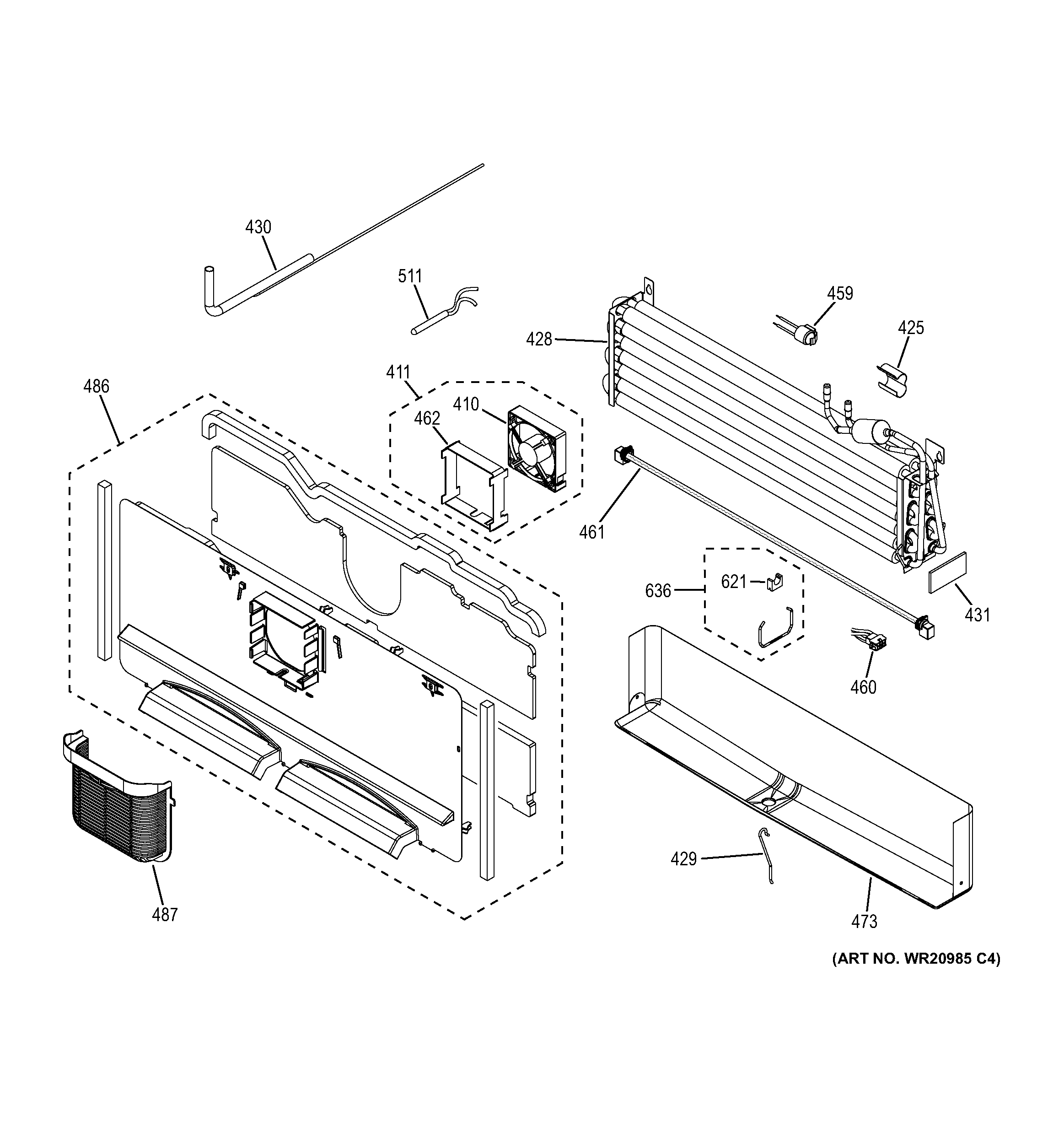

Airflow in cabinet	Warm temps, uneven cooling, fan noise	Inspect/replace refrigerator evaporator fan motor WR60X26866 if not running
Temperature sensing/control	Temps drift, intermittent cooling	Test/replace refrigerator temperature sensor WR55X10025 and verify settings

Why it matters

Ice, water, and cooling problems can look the same at first, but they have different root causes. Starting with filtration, airflow, and basic temperature checks prevents unnecessary part replacement and helps protect food temperatures.

When to use model-specific diagnostics

If you see an error code or repeated alarms, use the GE refrigerator error codes reference to narrow the failure to a sensor, fan, or control circuit before ordering parts.

Last updated: February 2026

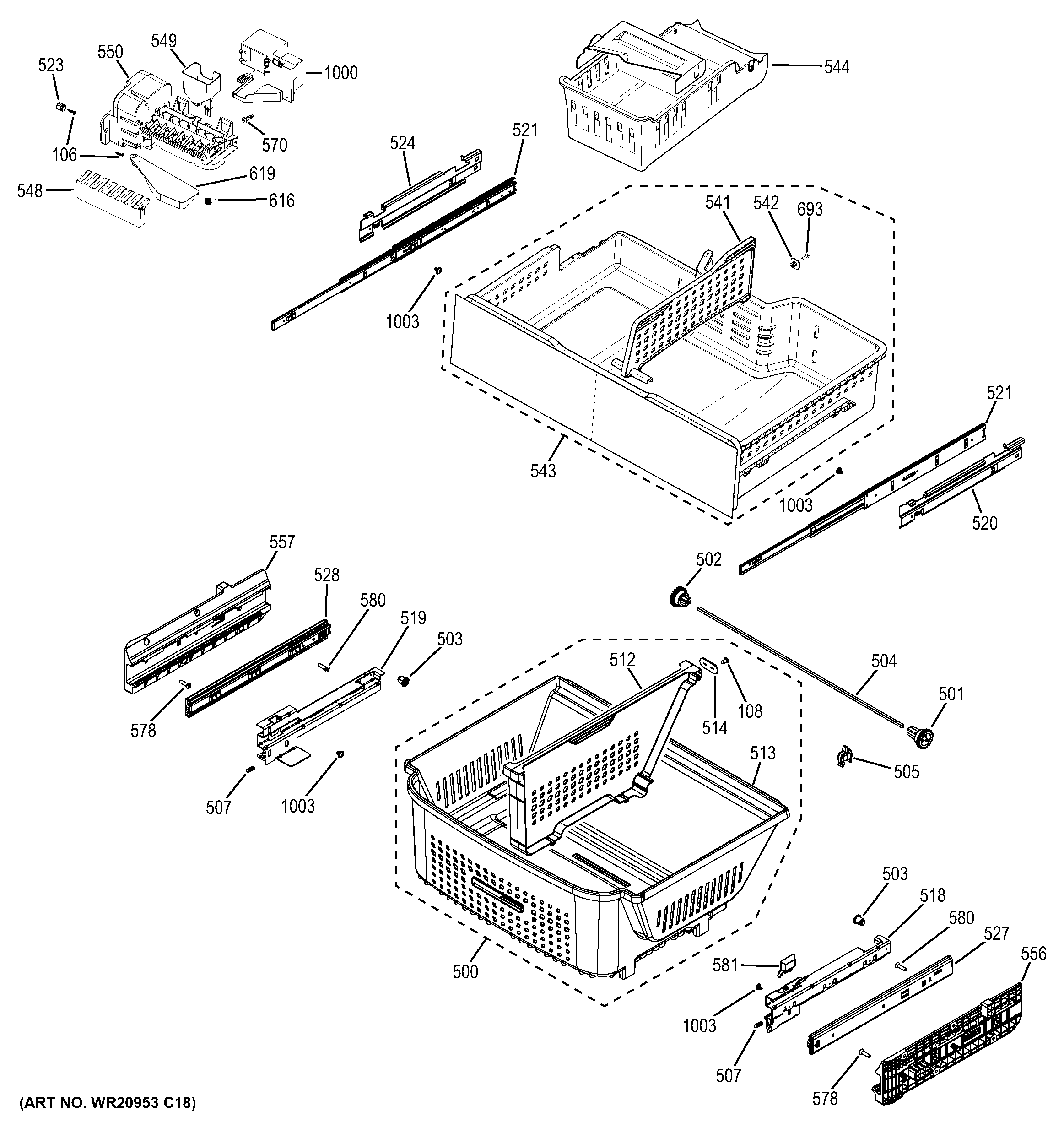

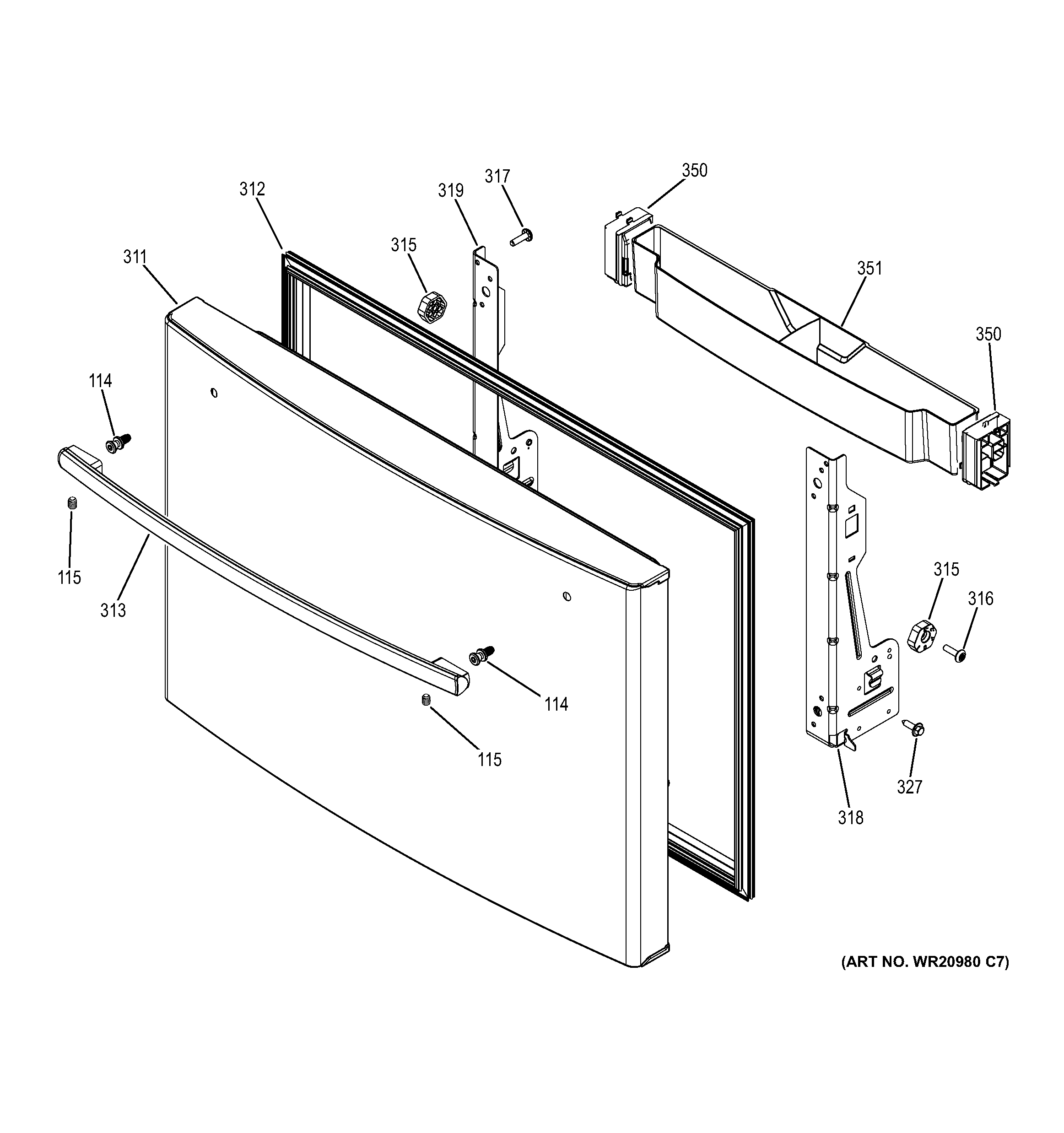

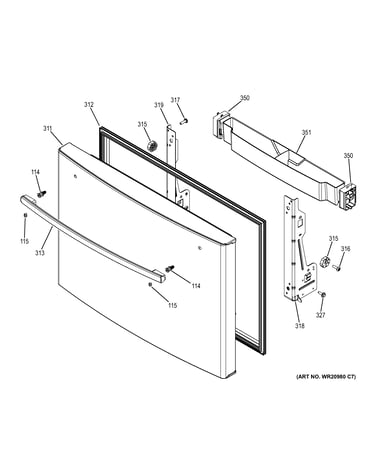

To remove the bottom freezer door on your GE PFE28RSHGSS bottom-mount refrigerator, we disconnect power, remove the freezer baskets/bin, then remove the screws securing the door to the slide arms and lift the door off. Follow the step-by-step procedure in the installation guide.

Before you start (safety and prep)

• Unplug the refrigerator (or turn off the breaker) before servicing.
• Pull the refrigerator out enough to work safely.
• Protect the floor with a towel or cardboard.
• If your model has a dispenser, be ready for a small amount of water when lines are moved.
• Keep screws organized by location so reassembly is straightforward.

Steps to remove the bottom freezer door

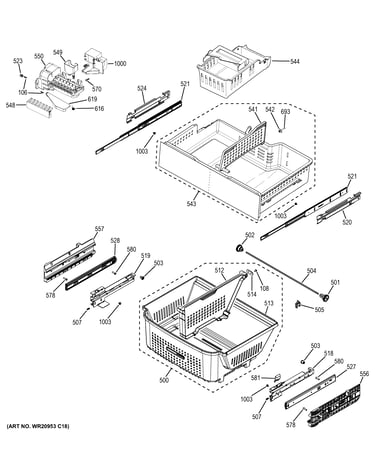

1. Open the freezer and remove the lower basket(s) and bin(s) so you can access the slide arms.
2. Locate the fasteners where the freezer door attaches to the left and right slide arms.
3. Remove the screws securing the door to the slide-arm tabs (a 1/4-inch or 5/16-inch nut driver is commonly used on GE units).
4. With both sides free, lift the freezer door up and off the slide arms.
5. Set the door on a protected surface to avoid scratching the finish.

Reinstall tips (to prevent leaks and alignment issues)

• Reinstall the door evenly on both slide arms before tightening screws.
• Tighten fasteners firmly, but do not strip the threads.
• Slide the door open and closed to confirm smooth travel.
• If the door does not seal evenly afterward, adjust door alignment per the owner's manual.

Quick checklist: what you will likely need

Item	Typical use	Notes
Nut driver (1/4-inch or 5/16-inch)	Remove door-to-slide screws	Size varies by fastener
Towel/cardboard	Floor and door protection	Helps prevent scratches
Small container	Hold screws	Keeps hardware from getting lost

Why it matters

Removing the freezer door correctly prevents bent slide arms, stripped mounting tabs, and air leaks that can cause frost buildup and temperature swings.

If you find the door is not sealing after reinstalling, a worn gasket can be a root cause; the refrigerator freezer door gasket WR14X36194 is a common replacement for this model. You can order model-specific parts from the parts list for PFE28RSHGSS or search by model on Sears PartsDirect.
