Frigidaire FRS26LF8CS3 refrigerator Parts

Most Frigidaire refrigerators, including the FRS26LF8CS3 side-by-side, typically last 10 to 15 years. With steady upkeep (good airflow, clean condenser coils, and solid door seals), it is common to reach the upper end of that range.

What affects lifespan the most

A refrigerator usually fails early because it runs too hot, runs too often, or loses temperature control. These are the biggest drivers:

• Dirty condenser coils causing long run times and higher compressor stress
• Worn or leaking door gaskets letting warm air in and moisture build up
• Poor temperature settings (too cold or too warm) leading to extra cycling
• Ice maker and dispenser use increasing run time and wear
• Skipped filter changes reducing water flow and stressing the dispenser system

Maintenance schedule we recommend (simple and realistic)

Use this as a baseline for the FRS26LF8CS3:

Task	How often	What it helps prevent
Replace water filter	Every 6 to 9 months	Low flow, bad taste, dispenser strain
Clean condenser coils	Every 6 to 12 months	Overheating, long run times
Check door seal for gaps	Every 3 months	Frost, sweating, warm temps
Verify temps (fresh food and freezer)	Monthly	Food spoilage, overwork

For filter timing and system notes, follow the FRS26LF8CS3 owner's manual. If you are replacing the filter, the model’s listed option is the Frigidaire puresource2 refrigerator water filter WF2CB.

Why it matters

A refrigerator that runs longer to hold temperature wears out high-cost components faster (especially the compressor and control system). Basic maintenance reduces run time, stabilizes temperatures, and extends overall service life.

When “end of life” is approaching

These symptoms usually mean the refrigerator is nearing a major repair decision:

• Temperatures drift even after adjusting controls
• The unit runs almost constantly or cycles very rapidly
• Frost builds up quickly or airflow seems weak
• Doors do not seal tightly even after cleaning and alignment
• Water dispensing slows down even with a new filter

If you are planning ahead for repairs, you can order model-matched replacement parts from the parts list for FRS26LF8CS3, or search by model on Sears PartsDirect.

Last updated: February 2026

On a Frigidaire FRS26LF8CS3 refrigerator, the SY CF code points to a communication problem between the user interface (display) and the main control board. A power reset often clears a temporary glitch; if it returns, focus on wiring connections and control components per the FRS26LF8CS3 owner's manual.

Quick reset steps (safe first checks)

• Unplug the refrigerator (or switch off the breaker) for 3 to 5 minutes.
• Restore power and wait 1 to 2 minutes for the controls to reboot.
• Confirm the temperature controls respond normally.
• If the code returns, avoid repeated resets; move to connection checks.

What to check if SY CF comes back

A recurring SY CF usually means the display and main controls are not reliably “talking” to each other.

• Check for a loose or partially seated wire harness at the display and at the control board area.
• Look for pinched wires (often after moving the refrigerator or removing panels).
• Inspect connectors for corrosion or bent pins.
• If the dispenser area is involved, verify the dispenser control wiring is secure.

Parts that commonly relate to communication issues

Symptom you notice	Most likely area	Example part on this model page
Display blanks, beeps, or resets	User interface or harness	Control wiring/connectors (inspect first)
Dispenser functions act erratic	Dispenser controls	Refrigerator control board 241708307
Code appears after door movement	Door hinge harness area	Harness routing and strain relief

Why it matters

When the display and main control lose communication, the refrigerator can misread inputs and may not manage cooling, defrost, or dispenser functions consistently. Fixing the root cause prevents intermittent temperature swings and repeat error codes.

When a repair makes sense

• The code returns immediately after a reset.
• You see damaged wiring or loose connectors.
• Cooling or dispenser operation becomes inconsistent.

For replacement parts for FRS26LF8CS3, use the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Freezer frost in your Frigidaire FRS26LF8CS3 almost always happens when warm, humid air leaks into the freezer through a door that is slightly open, a weak door seal, or frequent door openings. Start by checking door closure and the door gasket seal, then confirm airflow is not blocked.

Quick checks that fix most frosting

• Make sure the freezer door closes fully and nothing inside is holding it open.
• Inspect the door gasket for gaps, tears, or areas that look flattened.
• Clean the gasket and the cabinet sealing surface with warm, soapy water; dry completely.
• Check that food packages are not blocking interior vents (blocked vents can cause uneven temps and frost).
• Reduce long door openings; humid air entering the freezer increases frost buildup.

What to do next (step-by-step)

1. Do the paper test: close the door on a sheet of paper and pull. Strong resistance around the perimeter means the seal is doing its job.
2. Look for ice at the door edge: frost concentrated near the door usually points to a sealing or closing issue.
3. Confirm temperature stability: after any control change, allow about 24 hours for temperatures to stabilize (per the troubleshooting guidance in the FRS26LF8CS3 owner's manual).
4. If frost keeps returning quickly: check for a defrost system issue (common signs are heavy frost on the rear freezer panel and reduced airflow).

Parts that commonly relate to frosting

If you find the gasket is not sealing or the defrost system is not cycling correctly, these model-matched parts are common fixes:

Symptom you see	Most likely area	Example part for FRS26LF8CS3
Frost mainly around the door edge	Door seal or door alignment	Refrigerator gasket 241786014
Heavy frost behind rear freezer panel	Defrost control components	Refrigerator defrost bi-metal thermostat 5303918214

Why it matters

Frost buildup restricts airflow, which makes the freezer run longer, warms the fresh food section, and can lead to ice maker and dispenser performance problems over time.

For model-specific door leveling, airflow locations, and temperature guidance, follow the FRS26LF8CS3 owner's manual and the FRS26LF8CS3 installation guide.

Last updated: February 2026

The most common problem we see on Frigidaire side-by-side refrigerators like model FRS26LF8CS3 is a cooling complaint: the freezer stays cold but the fresh food section warms up. This usually comes from restricted airflow, frost buildup from a defrost issue, or dirty condenser coils.

Most common symptoms (and what they point to)

• Freezer OK, refrigerator warm: airflow restriction, evaporator fan issue, or frost blocking the evaporator
• Runs too long: dirty condenser, doors opened often, warm room conditions, or gasket leaks
• Frost or moisture inside: door not sealing, frequent door openings, or defrost system trouble
• Ice and water problems: clogged filter, air in the water line, or ice maker/dispenser component issues

Quick checks we recommend first (FRS26LF8CS3)

Use the troubleshooting and care guidance in the FRS26LF8CS3 owner's manual, then start here:

• Confirm both doors close fully and nothing is holding them open
• Clean the condenser coils and make sure airflow around the cabinet is clear
• Check for heavy frost on the freezer back wall (common sign of a defrost problem)
• Make sure vents between freezer and fresh food sections are not blocked by food
• If water flow is slow or taste is off, replace the Frigidaire puresource2 refrigerator water filter WF2CB and flush several glasses of water

Parts that commonly relate to these symptoms

Symptom	Common cause	Example model-compatible part
Frost buildup, warm fresh food	Defrost system not controlling ice	Refrigerator defrost bi-metal thermostat 5303918214
Poor airflow, warm fresh food	Fan blade damaged or obstructed	Refrigerator evaporator fan blade 5308000010
Warm temps, long run time	Door seal leaking air	Refrigerator gasket 241786014

Why it matters

On a side-by-side, the freezer provides the cold air that also cools the refrigerator section. When airflow drops (frost, fan issues, blocked vents, or gasket leaks), the fresh food side warms up first.

You can order FRS26LF8CS3 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

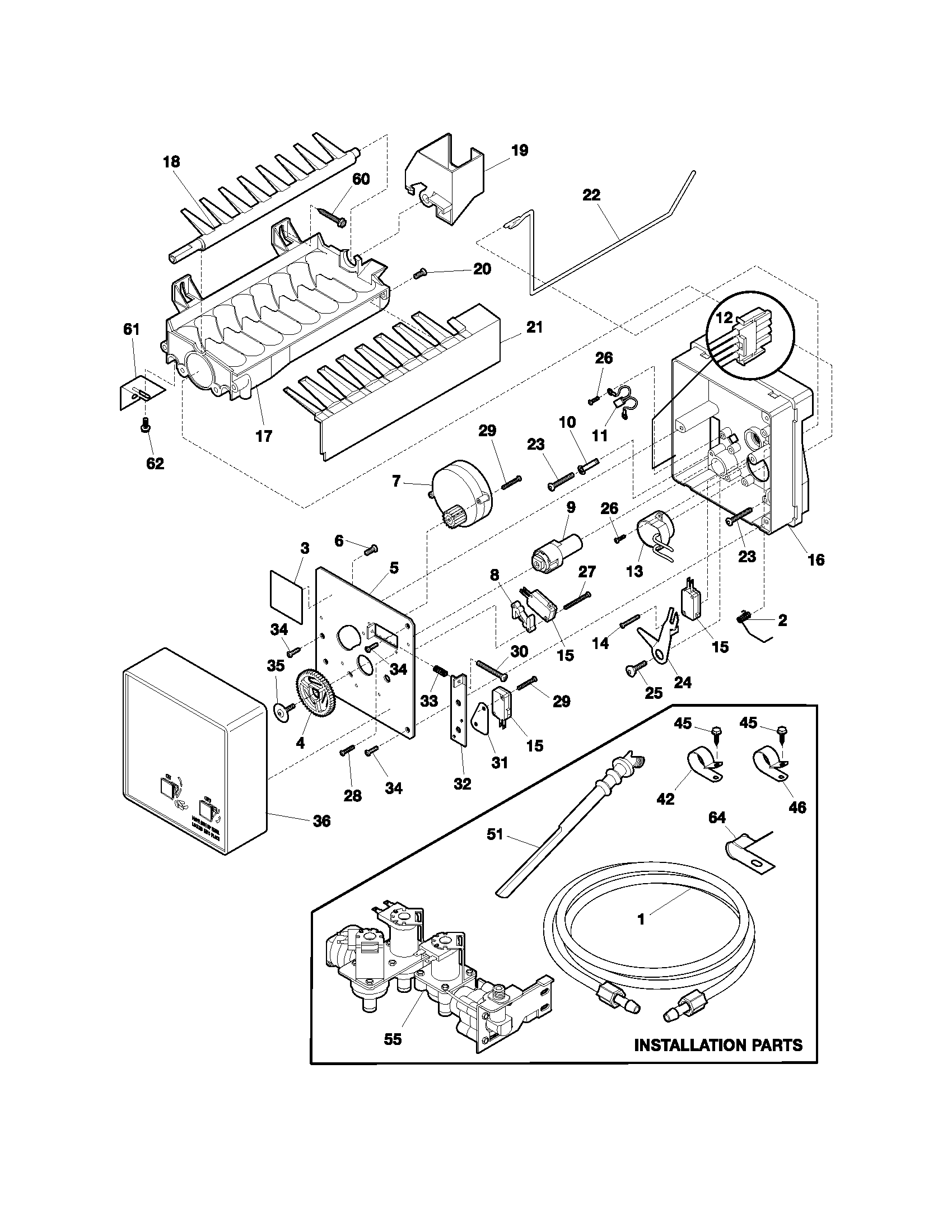

If your Frigidaire FRS26LF8CS3 is not making ice, the usual causes are the ice maker being OFF (wire signal arm up), the household water valve being closed or restricted, or the freezer not being cold enough. Turn the arm ON, restore water flow, and allow up to 24 hours for ice to resume.

Quick checks for FRS26LF8CS3

• Set the wire signal arm down (ON); up means OFF.
• Confirm the household water shutoff valve is fully open.
• Dispense water at the door; weak or no flow points to a supply or filter restriction.
• Make sure the freezer is cold enough; warm freezer temperatures stop ice production.
• If the refrigerator was just installed or reconnected to water, allow 24 hours to start making ice.
• If the unit sat without water, discard the first batches of ice after flow is restored.

What the symptoms usually mean

Symptom	Most likely cause	Best next step
No ice at all	Arm OFF, no water supply, freezer too warm	Arm ON, open valve, correct temps
Small or hollow cubes	Restricted water flow	Replace filter, check shutoff valve
Slow production	Normal recovery after changes	Wait 24 hours, limit door openings

Water filter and water flow

A clogged filter can reduce water flow to both the dispenser and ice maker. For this model, replacing the refrigerator water filter WF2CB is a common fix; follow the FRS26LF8CS3 owner's manual for the correct replacement and any purge steps.

Why it matters

Ice makers need steady water flow and a properly cold freezer. Fixing the root cause prevents repeat no-ice issues, hollow cubes, and long recovery times.

You can order model-matched parts from the parts list for FRS26LF8CS3, or search by model on Sears PartsDirect.

Last updated: February 2026
