Is it worth replacing a lawn mower engine?
Replacing the engine on a Craftsman 917272960 front-engine lawn tractor is worth it when the tractor is otherwise in solid shape and the total repair cost stays under about half the price of a comparable replacement mower. If the tractor also has major drive, deck, or electrical problems, replacement usually makes more sense.
Quick decision checklist
- Compare engine replacement cost (engine, labor, tune-up parts) to the tractor’s current value.

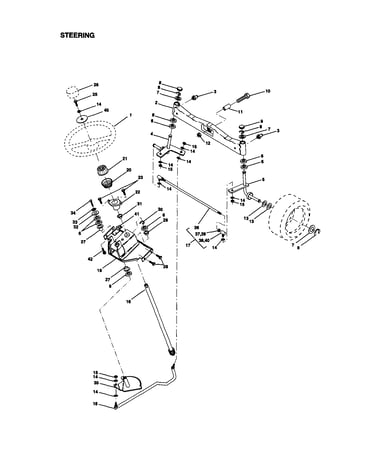

- Confirm the rest of the tractor is reliable: steering, transmission/drive, and mower deck.
- Check for safety issues first; never bypass interlocks or operate with damaged guards.
- If the tractor has chronic no-start or charging issues, diagnose those before buying an engine.

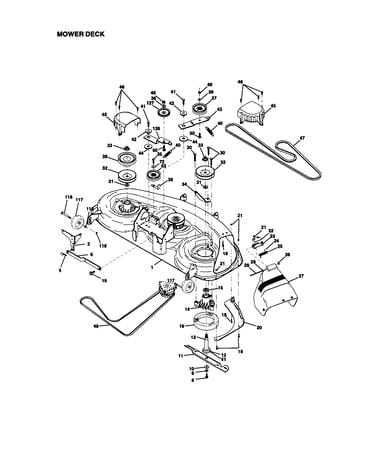

- If the deck has heavy vibration or poor cut, inspect blades and mandrels; those repairs can add up.
What to inspect before you commit
Use the 917272960 owner's manual to run through the basic safety and function checks (operator presence system, brake operation, and blade service guidance). Pay special attention to problems that often get mistaken for a “bad engine,” such as:
- Loose or damaged wiring and poor cable connections
- Fuel delivery issues (old gas, clogged filter, carburetor out of adjustment)
- Safety interlock faults that prevent starting or kill the engine when you leave the seat
- Deck drag from a worn belt or frozen pulleys/mandrels
If your blades are worn or bent, fixing that first can prevent vibration and reduce load on the engine. The manual also specifies blade bolt torque (27 to 35 ft-lbs) and correct blade orientation.
Cost and outcome comparison
| Option | Upfront cost | Best when | Typical result |
|---|---|---|---|
| Replace engine | High | Tractor is otherwise sound | Extends service life several years |
| Repair existing engine | Medium | Issue is fuel, ignition, wiring, or tune-up related | Restores normal starting and power |
| Replace tractor | Highest | Multiple major systems are worn | Newer features, fewer near-term repairs |
Why it matters
An engine swap is a big investment; if the mower deck, drive system, or safety interlocks are also failing, you can end up spending engine-level money and still have an unreliable tractor. A quick inspection using the manual’s troubleshooting and safety checks keeps the decision practical and safe.
Last updated: February 2026
What are the parts of a lawn mower engine?

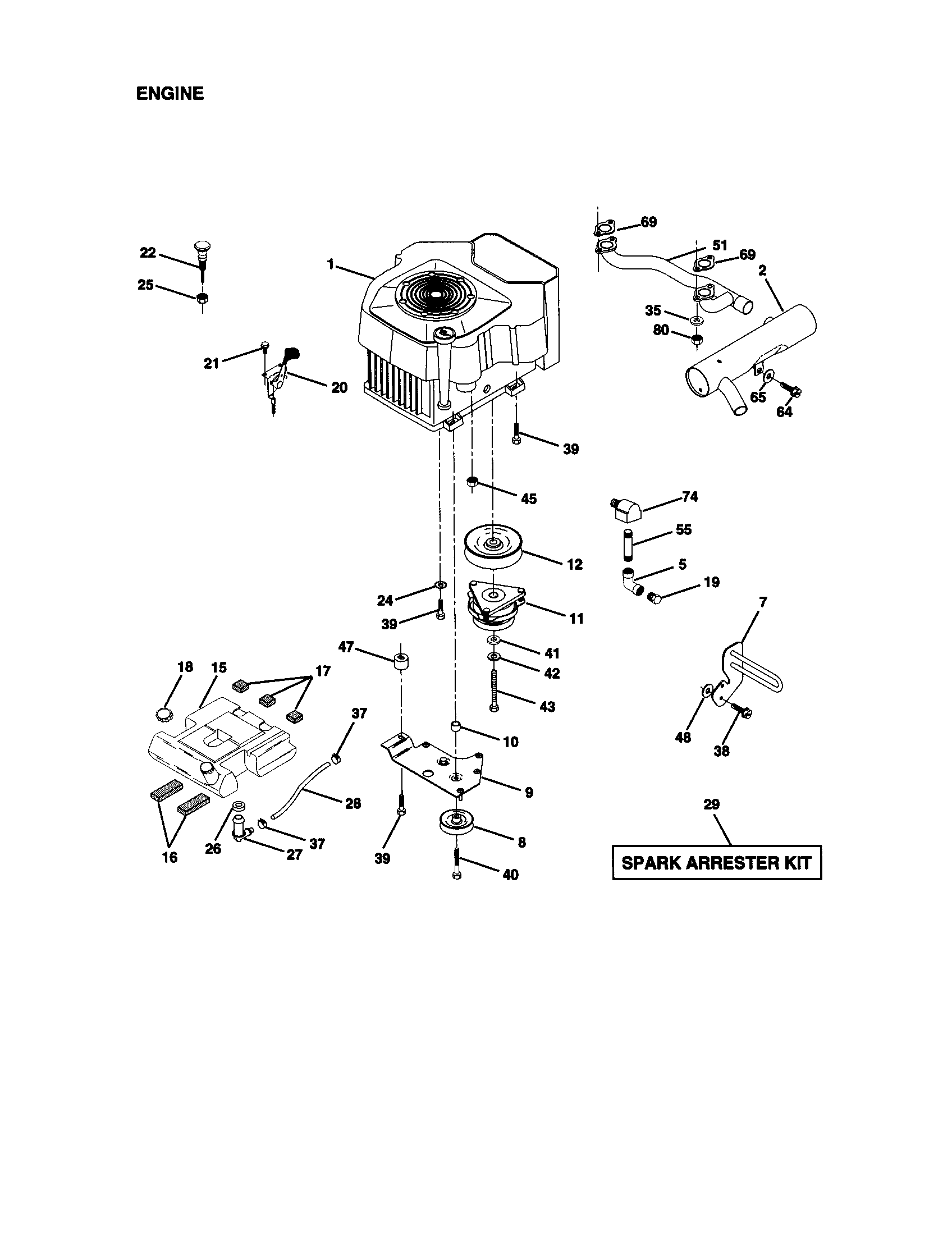

On the Craftsman 917272960 front-engine lawn tractor, the engine is built from a few main systems: fuel delivery, air intake, ignition/charging, and internal rotating parts (crankshaft, flywheel, cylinder head, crankcase). For the exact diagrams and part callouts for your tractor’s engine, use the 917272960 owner's manual.
Main engine systems and what’s in them
- Fuel system: fuel tank, fuel lines, fuel filter, carburetor
- Air intake: air filter, air cleaner housing, intake components
- Ignition/charging: ignition module/coil, flywheel, charging components, wiring
- Internal engine: crankshaft, piston/cylinder, valves, cylinder head, crankcase, breather
- Exhaust: muffler and exhaust gasket
Common engine parts you’ll see referenced for this tractor
The engine sections of the manual for model 917272960 commonly call out parts such as:
- Carburetor and carburetor gaskets
- Flywheel and flywheel key
- Blower housing and baffles (cooling air management)
- Crankshaft and related seals
- Cylinder head, valve train, and breather components
Quick reference: symptom to system
| Symptom | Most likely system | What to check first |
|---|---|---|
| Cranks but won’t start | Fuel or ignition | Fresh fuel, carburetor, spark/ignition wiring |
| Runs rough or surges | Fuel or air intake | Air filter, carburetor cleanliness/adjustment |
| Dead battery after mowing | Charging | Charging circuit connections, flywheel/charging parts |
| Knocking or low power | Internal engine | Oil level/condition, compression-related components |
Why it matters
When you match a symptom to a system, you narrow the parts you need and avoid replacing good components. The exploded views in the manual make it easier to identify the correct engine sub-assembly before ordering.
Last updated: February 2026
What kind of engine does a Craftsman riding lawn mower have?
Craftsman riding mowers use gasoline, 4-cycle, electric-start engines; the exact engine on Craftsman model 917272960 is identified by the engine’s model/type/code tag on the engine itself. Our 917272960 owner's manual also lists key tractor specs (including the 20.0 HP rating shown on the manual cover).
How to identify the exact engine on model 917272960
Use the engine ID tag first; that is what matches you to the correct tune-up and repair parts.
- Park on a level surface, set the parking brake, remove the key
- Lift the hood and find the engine identification label (commonly on the blower housing, valve cover, or near the starter)
- Record the model, type, and code (or serial number)
- Use those numbers when shopping for spark plug, air filter, fuel filter, and carburetor parts
- Follow the starting and choke procedure in the 917272960 owner's manual to avoid hard-start complaints
What the manual tells you about this tractor’s engine setup
The owner’s manual for model 917272960 describes the tractor as a 20.0 HP, electric-start, low-emission engine application. That helps you understand what systems are involved when diagnosing a no-start.
| Item | What it means for you | Common related checks |
|---|---|---|
| 20.0 HP rating | Power under mowing load | Blade condition, deck buildup, belt wear |
| Electric start | Battery and starter crank the engine | Battery charge, cable connections, safety switches |
| Low-emission design | Choke and throttle technique matters | Use choke only for cold starts; mow at full throttle |
Why it matters
Getting the engine model/type/code correct prevents wrong-part orders and speeds troubleshooting for symptoms like clicking, cranking but not starting, or stalling under load.
Last updated: February 2026
How much does it cost to replace a riding lawn mower engine?
Replacing the engine on a Craftsman riding tractor like model 917272960 typically costs $600 to $2,700 installed. Most of that total is the engine itself plus 4 to 8 hours of labor; the final price depends on engine match-up, shop rates, and any related repairs found during the swap.
Typical installed cost breakdown
| Cost item | Typical range | What it covers |
|---|---|---|
| Replacement engine | $400 to $1,800 | New, remanufactured, or used engine options |
| Labor | $300 to $900 | Removal, installation, setup, test run |
| Extra parts and supplies | $25 to $300 | Fuel line, clamps, filters, hardware, oil |
What drives the price up or down
- Engine choice: new vs remanufactured vs used
- Compatibility work: crankshaft size, mounting pattern, wiring/charging connections
- Condition of fasteners and frame: rusted bolts increase labor time
- Fuel system cleanup: stale fuel can require tank and line service
- Add-on repairs: belts, switches, or wiring replaced at the same time
Model-specific tips for Craftsman 917272960
This tractor’s exact engine specification and mounting details are listed in the equipment documentation. We use the 917272960 owner’s manual to confirm the correct engine model, crankshaft dimensions, and wiring routing before pricing an engine swap.

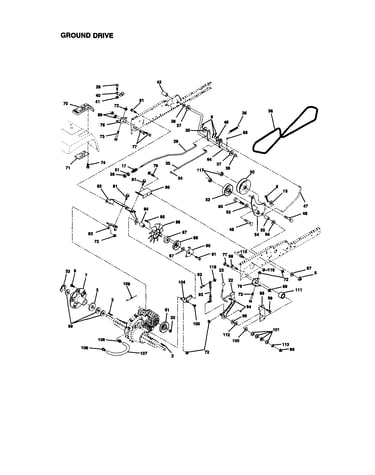

If you are also fixing drive or deck issues during the job, common wear items to inspect include:
- Lawn tractor ground drive belt, 1/2 x 84-1/2-in 532140218 for cracking or glazing
- Riding lawn mower blade drive belt 532148763 for stretch or burn marks
- Switch 582107601 if the PTO engagement is intermittent
Why it matters
An engine replacement is one of the highest-cost repairs on a riding mower. Confirming the exact engine match and addressing belt or electrical issues during the same teardown prevents repeat labor and improves starting and blade engagement reliability.
Last updated: February 2026
