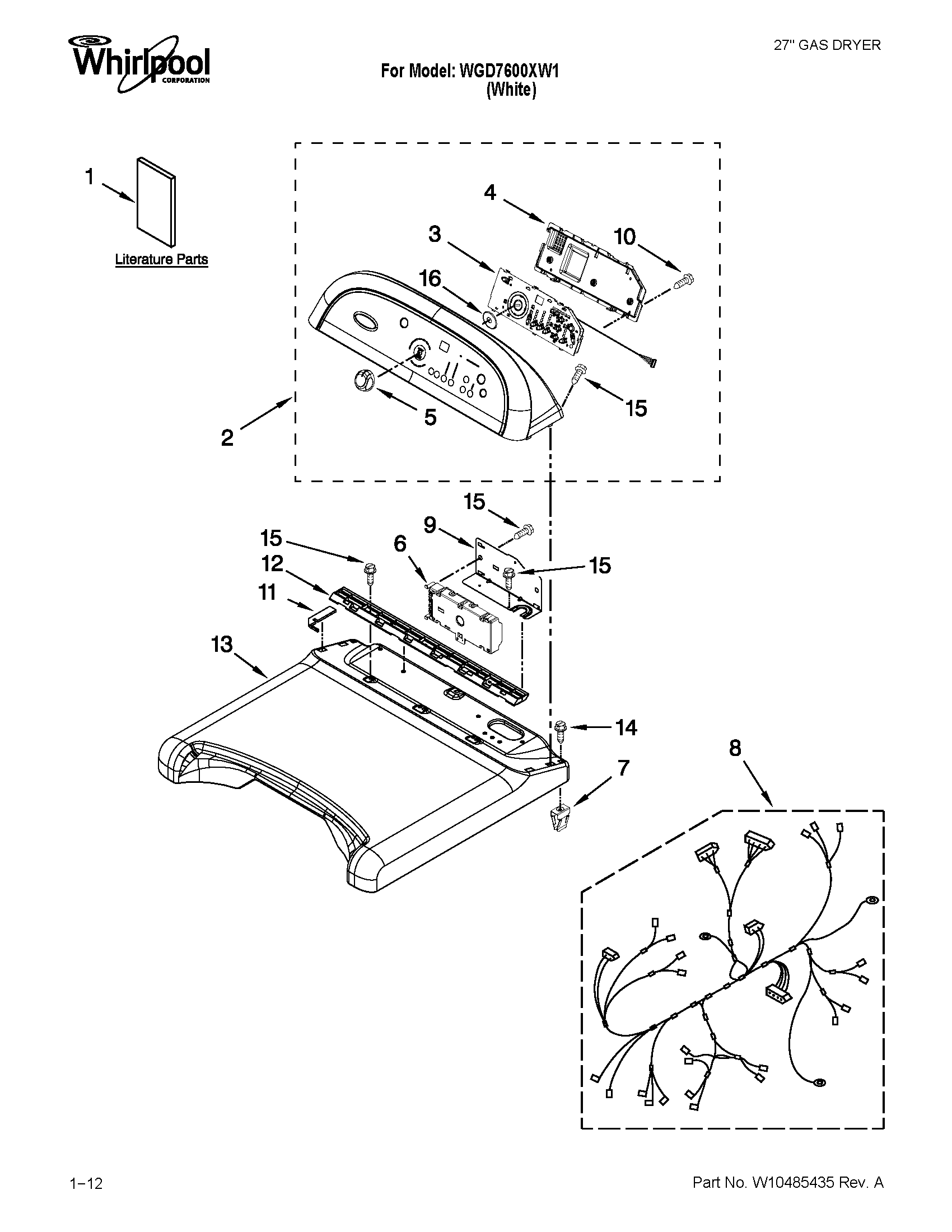

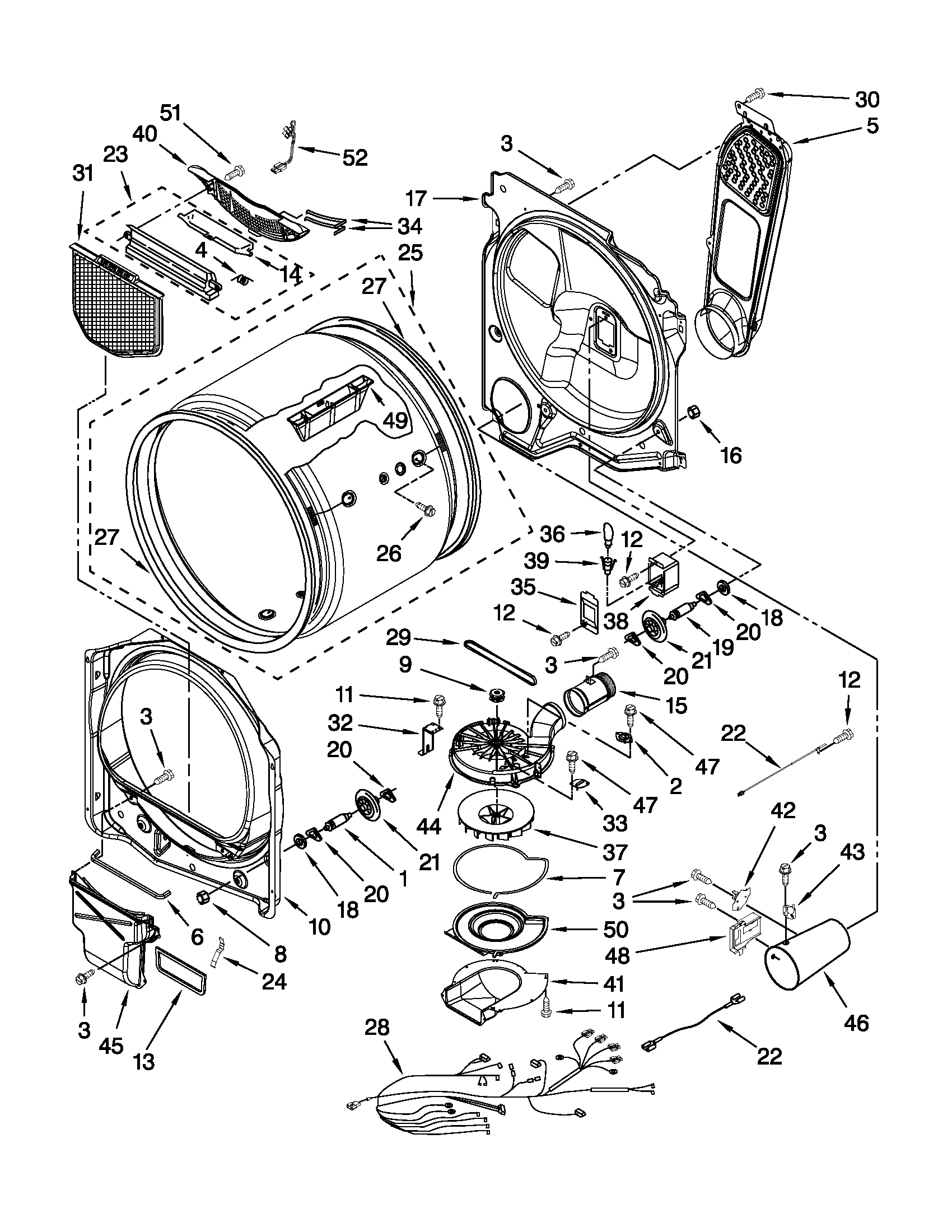

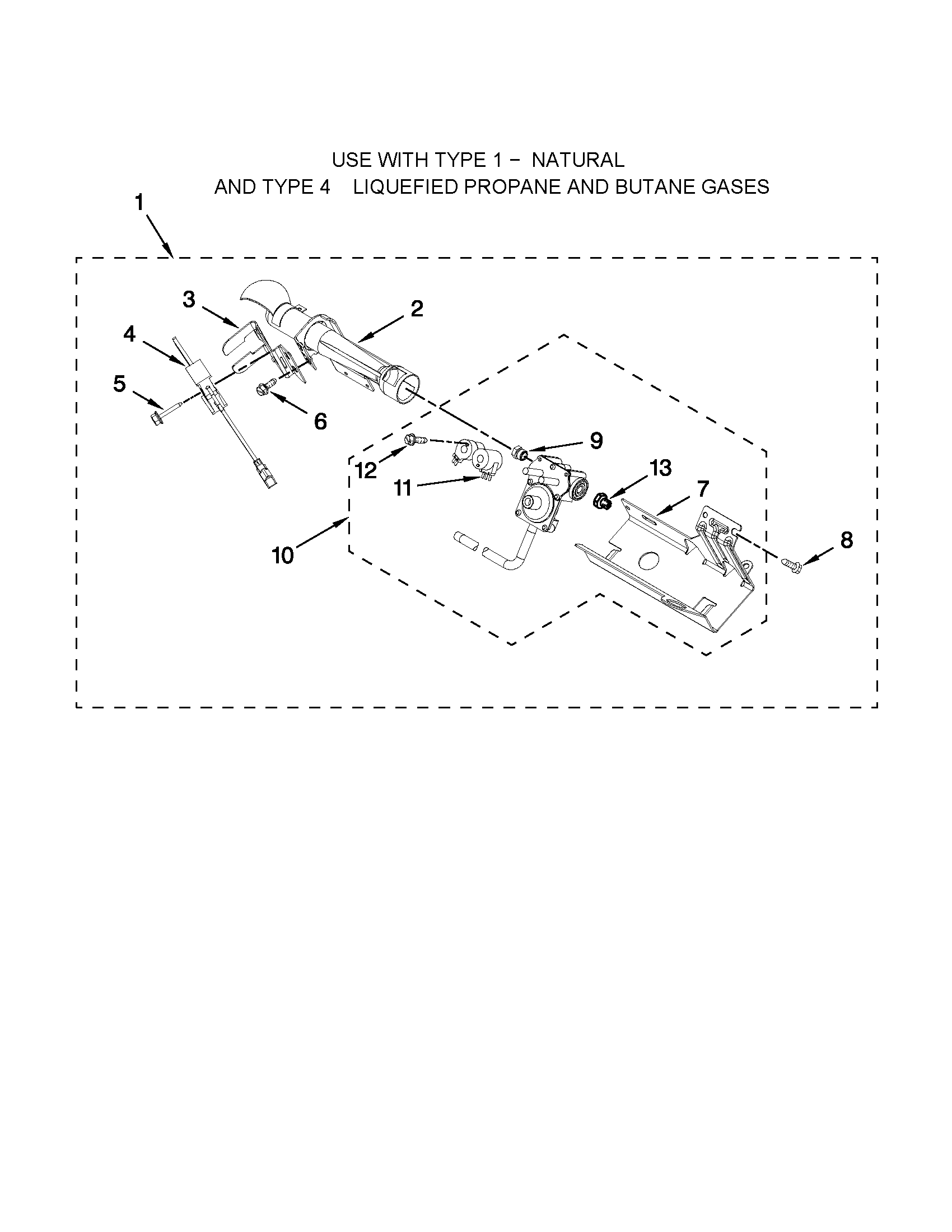

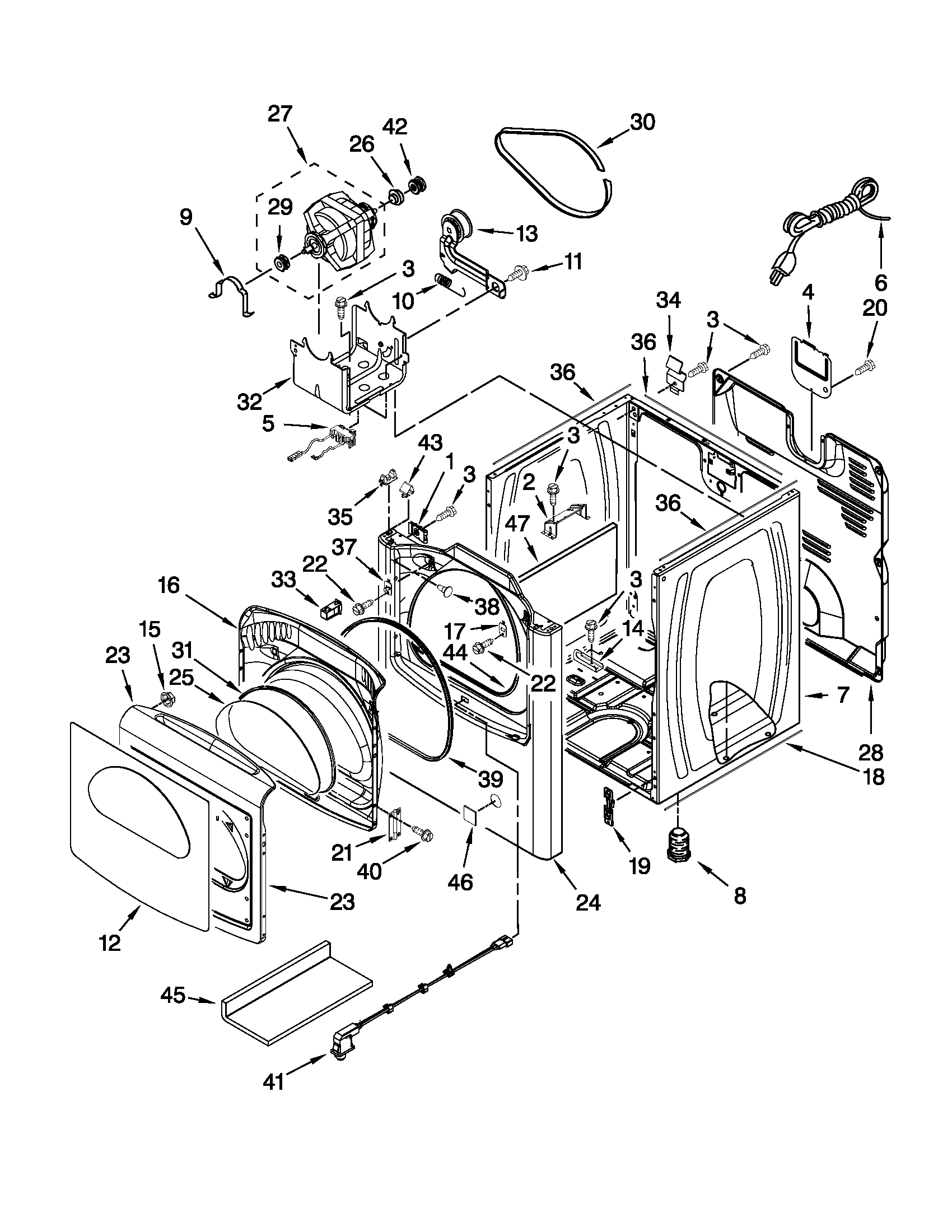

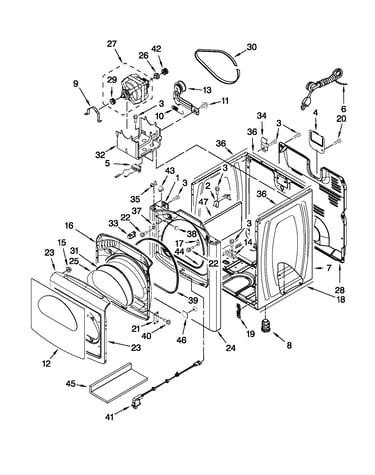

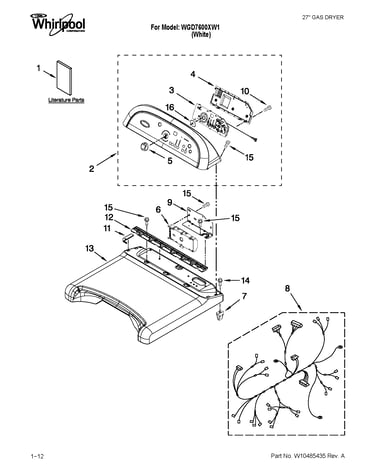

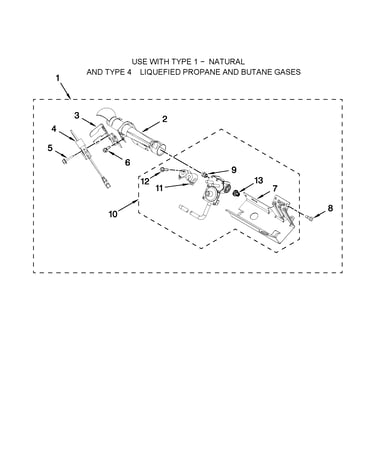

Whirlpool WGD7600XW1 27" gas dryer Parts

To hard reset a Whirlpool dryer like model WGD7600XW1, we recommend a power reset first: disconnect power for 1 minute, then restore power and restart a cycle. If the display shows a power-related code (such as “PF”), restart by pressing and holding START/PAUSE.

Recommended reset steps for WGD7600XW1

• Press POWER/CANCEL to end the current cycle.
• Unplug the dryer (or switch the dryer breaker OFF).
• Wait 1 minute (up to 10 minutes if the control seems “stuck”).
• Restore power.
• Select a cycle and press (and hold) START/PAUSE for about 1 second to start.

If you want the model-specific button behavior and display messages, use the WGD7600XW1 owner’s manual.

If you see “PF” (power failure) after the reset

“PF” means the cycle was interrupted by a power issue. After restoring power:

• Press and hold START/PAUSE to restart.
• Check the home power supply and confirm the power cord is properly installed.
• Try a Timed Dry heated cycle to verify the dryer will heat and run normally.

Quick checks that prevent repeat “reset” problems

• Make sure the door is fully closed and latching.
• Avoid pressing START/PAUSE twice quickly; on this model, that can clear the program and shut the dryer down.
• If the dryer runs but has heat or airflow issues, clean the lint screen and confirm the vent is not crushed or kinked.

What different “resets” actually do

Reset type	What it does	When to use it
Power reset (unplug/breaker)	Clears many temporary control glitches	Unresponsive controls, odd behavior
Cancel and restart cycle	Stops the current program and lets you reselect	Wrong cycle/options selected
PF restart (hold START/PAUSE)	Restarts after a power interruption	“PF” code on display

Why it matters

A proper reset clears temporary control-board states, but repeated PF or shutdown symptoms usually point to an unstable power supply, a start/stop input issue, or a cycle being interrupted.

Last updated: January 2026

Yes. A 7.4 cu. ft. dryer is considered large capacity, and it is a good fit for bigger mixed loads and bulky items. For the Whirlpool WGD7600XW1 27-inch gas dryer, that size typically means fewer loads and more efficient drying when airflow and venting are correct.

What “7.4 cu. ft.” means in real use

A 7.4 cu. ft. drum is designed to handle larger loads without packing clothes too tightly.

• Handles larger family-size loads more comfortably than many standard-capacity dryers
• Better for bulky items (comforters, blankets, jackets) because items can tumble freely
• Helps sensor cycles work better when loads are not overstuffed
• Can reduce total drying time by cutting down the number of loads

Capacity comparison (typical ranges)

Dryer capacity	Common label	Best for
5.0 to 7.0 cu. ft.	Standard to large	Regular weekly laundry
7.1 to 7.6 cu. ft.	Large to extra-large	Bigger loads, bulky items
7.7+ cu. ft.	Extra-large	Very large households, frequent bulky loads

Tips to get the most from a large-capacity dryer

Large capacity only helps if the dryer tumbles and vents properly.

• Do not overload; leave space so items can lift and drop
• Clean the lint screen every load; replace a damaged screen if needed (example: screen W10120998)
• Keep venting efficient; long vent runs and too many turns increase drying time
• Make sure the dryer is level; uneven installation can affect tumbling and sensor performance
• Use the right cycle and temperature for the fabric type

Why it matters

When a large-capacity dryer like the Whirlpool WGD7600XW1 is loaded correctly, clothes dry more evenly and sensor cycles shut off closer to the right time. Overloading or restricted airflow can make even a big dryer dry slowly.

For model-specific operating tips and cycle guidance, use the WGD7600XW1 owner’s manual.

Last updated: January 2026

On the Whirlpool WGD7600XW1 gas dryer, an E1-type message is treated like a service code: reset power once, then focus on airflow and basic start-up checks. If the code returns after a reset, the next step is service-level diagnosis using the troubleshooting guidance in the WGD7600XW1 owner's manual.

Step 1: Do a safe reset

• Turn the dryer off.
• Unplug the dryer (or switch the breaker off) for 1 full minute.
• Restore power.
• Start a Timed Dry heated cycle (not Air Only) to see if the code returns.

Step 2: Check the most common “looks like an error” causes

Even when the display shows a code, basic conditions can trigger or accompany it.

• Confirm the door is fully closed and latched.
• Press and hold Start/Pause firmly (large loads may require a 2 to 5 second press).
• Verify the dryer has power (household fuse intact, breaker not tripped).
• For gas models, confirm the gas supply valve is on.
• Clean the lint screen and confirm the vent is not crushed or kinked.

If the dryer runs but performance is poor

Restricted airflow can cause abnormal operation and other diagnostic messages.

Symptom	What to check first	What to do
Long dry times	Lint screen	Clean before every load
Hot cabinet or load	Vent run	Remove kinks, clear lint buildup
Code returns quickly	Airflow and power	Recheck venting and power reset

Parts that are commonly involved (when symptoms match)

We only recommend replacing parts after confirming the symptom and testing.

• No heat or overheating events: dryer thermal fuse WP3390719
• Temperature sensing issues: dryer thermistor WP8577274

Why it matters

A repeating E1-style code usually means the dryer is protecting itself from an operating problem (power, airflow, or a control-detected fault). Addressing airflow and power first prevents repeat shutdowns and helps you avoid unnecessary parts replacement.

Last updated: January 2026
