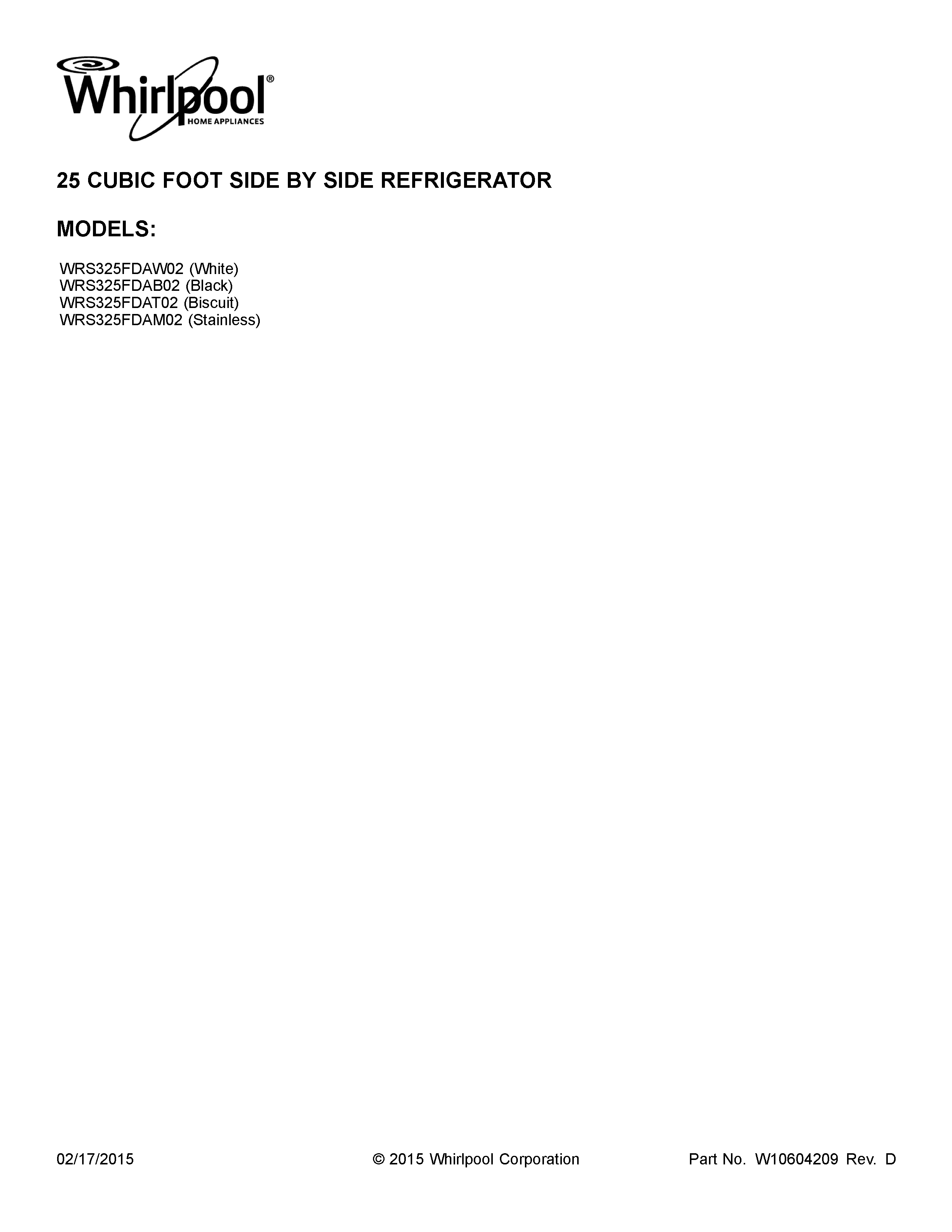

Whirlpool WRS325FDAW02 refrigerator Parts

The Whirlpool WRS325FDAW02 side-by-side refrigerator has a total capacity of about 25 cu. ft. This is the overall storage volume for both the fresh food and freezer sections combined; exact usable space varies with shelves, bins, and the ice system.

How to confirm the exact capacity for your unit

We recommend checking the model’s documentation because it lists the official capacity and configuration details.

• Look for “Capacity” or “Product specifications” in the WRS325FDAW02 owner’s manual
• If you are comparing fit, also note the cabinet width and door swing clearance
• Capacity can feel smaller if the ice bin is installed and full
• Shelf and bin layouts affect usable space more than the headline number

What “25 cu. ft.” means in real use

Capacity is measured as internal volume, not how much food you can comfortably store. Items like the ice container, door bins, and crisper pans reduce usable space.

Spec	What you’ll see	What it affects
Total capacity	~25 cu. ft.	Overall storage volume
Fresh food vs. freezer split	Varies by layout	How much room you have for groceries vs. frozen items
Ice system installed	Yes/no	Reduces freezer usable space

Why it matters

Capacity helps you compare refrigerators, but for day-to-day satisfaction, the layout matters just as much. If you are replacing shelves or bins to improve organization, matching parts to WRS325FDAW02 keeps fit and airflow correct.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint (food too warm, freezer not cold enough, or temperature swings). On the Whirlpool WRS325FDAW02, the most frequent root causes are airflow and heat-transfer issues (dirty condenser area, blocked vents, doors not sealing) and ice and water system issues that affect performance.

Most common symptoms and what they usually point to

• Refrigerator or freezer too warm: restricted airflow, heavy frost on the evaporator cover, or doors not closing fully
• Compressor seems to run too much: warm room, frequent door openings, large food load, or poor airflow (often normal for energy-efficient designs)
• Noisy operation: normal sounds from fans, compressor, defrost heater, or water valve cycling
• Ice maker not making ice or making hollow cubes: water supply shutoff not fully open, kinked water line, or ice maker switched off
• Water leaks/puddles: clogged/iced drain path, loose water line connection, or dispenser/ice maker supply issue

Quick checks we recommend first (WRS325FDAW02)

Use these steps before replacing parts; they match common “Problem Solver” guidance in the documentation.

• Confirm the refrigerator is plugged into a grounded 3-prong outlet (no extension cord)
• Verify the outlet has power (test with a lamp) and reset the breaker if needed
• Make sure cooling is turned on and allow 24 hours after installation or major adjustments
• Check that shelves and bins are seated so the doors close completely
• If the unit is connected to water: confirm the shutoff valve is fully open and the water line is not kinked

Problem area	Most common cause	What to do first
Cooling	Airflow restriction or dirty heat-transfer surfaces	Clear vents, clean condenser area, confirm doors seal
Ice maker	Low water flow or ice maker off	Open shutoff valve, straighten line, turn ice maker on
Water dispenser	Air in line or low flow	Purge air, check supply line and valve

When a part is the likely fix

If the basics check out, these model-relevant parts are common next suspects:

• Weak or no water flow to ice maker/dispenser: Refrigerator water inlet valve WPW10179146
• Ice production failures after supply checks: Refrigerator ice maker assembly WPW10300022

Why it matters

Cooling and ice maker issues often start as simple airflow or water-supply problems. Catching them early helps protect food quality, reduces compressor run time, and prevents nuisance leaks.

For control settings, operating sounds, and troubleshooting steps specific to this model, follow the WRS325FDAW02 owner's manual.

Last updated: February 2026

Most Whirlpool refrigerators last about 10 to 20 years, with around 12 to 15 years being a typical average for normal household use. For your Whirlpool WRS325FDAW02 side-by-side, good airflow, correct temperatures, and routine cleaning are what most often push lifespan toward the high end (see the WRS325FDAW02 owner's manual).

What affects refrigerator lifespan the most

• Room temperature and placement: Keep it in a space roughly 55°F to 110°F, with best performance around 60°F to 90°F.
• Condenser cleanliness: Dust buildup makes the compressor run longer and hotter.
• Door seal condition: Air leaks force longer run times and create frost and moisture.
• Water and ice system upkeep: A clogged filter or restricted water flow strains the inlet valve and ice maker.
• Door opening habits and loading: Frequent openings and warm food loads increase run time.

Maintenance checklist that helps you reach 15 to 20 years

• Vacuum dust from the grille and condenser area regularly.
• Confirm doors close fully and shelves or bins are not blocking closure.
• Keep freezer and fresh food temps steady; avoid constant “coldest” settings.
• Replace water filters on schedule and purge air after changes.
• Level the refrigerator so doors self-close and seals seat evenly (see the WRS325FDAW02 installation guide).

Common “mid-life” repairs (and what they usually point to)

Symptom	Often related to	Example model parts to check
No ice or slow ice	Water supply restriction or valve issue	Refrigerator water inlet valve WPW10179146, refrigerator ice maker assembly WPW10300022
Warm temps, fan noise	Airflow or evaporator area issue	Evaporator fan blade, defrost system
Frost buildup	Defrost control or thermostat issue	Refrigerator defrost bi-metal thermostat WPW10225581, refrigerator heater WP2323198

Why it matters

A refrigerator can run “fine” while slowly losing efficiency. Longer run times increase wear on the compressor and fans, raise energy use, and can shorten overall service life.

Last updated: February 2026

When your Whirlpool WRS325FDAW02 dispenses water but won’t make ice, the water supply is usually OK; the ice maker side is being blocked by an OFF setting, low freezer temperature performance, restricted flow (filter/kink), or a fill problem at the ice maker. Use the WRS325FDAW02 installation guide troubleshooting checks below.

Quick checks that fix most “no ice” complaints

• Confirm the ice maker is turned ON (wire shutoff arm down, or switch in ON position depending on your version).
• Make sure the ice bin is installed fully and seated correctly.
• Verify both doors close completely; some models require the freezer door closed for ice functions.
• If this is a new install or the water line was recently reconnected, flush the water system and allow time: about 24 hours to start making ice and up to 72 hours for full production.
• Discard the first three batches of ice after startup.

Water works, so what’s different for the ice maker?

The dispenser can still work even when the ice maker cannot fill or freeze correctly. Ice production depends on steady water flow to the ice maker fill tube, correct freezer temperature, and the ice maker being enabled.

Common causes and what to do

Symptom	Most likely cause	What we recommend
No ice at all	Ice maker turned OFF	Turn ice maker ON; recheck after 24 hours
Small or hollow cubes	Kinked supply line or low pressure	Straighten the water line; confirm shutoff valve is fully open
Slow production	Recent large ice removal or new install	Wait 24 to 72 hours; keep doors closed as much as possible
Buzzing/clicking but no ice	Valve trying to fill ice maker	Check for restricted flow; consider testing the inlet valve

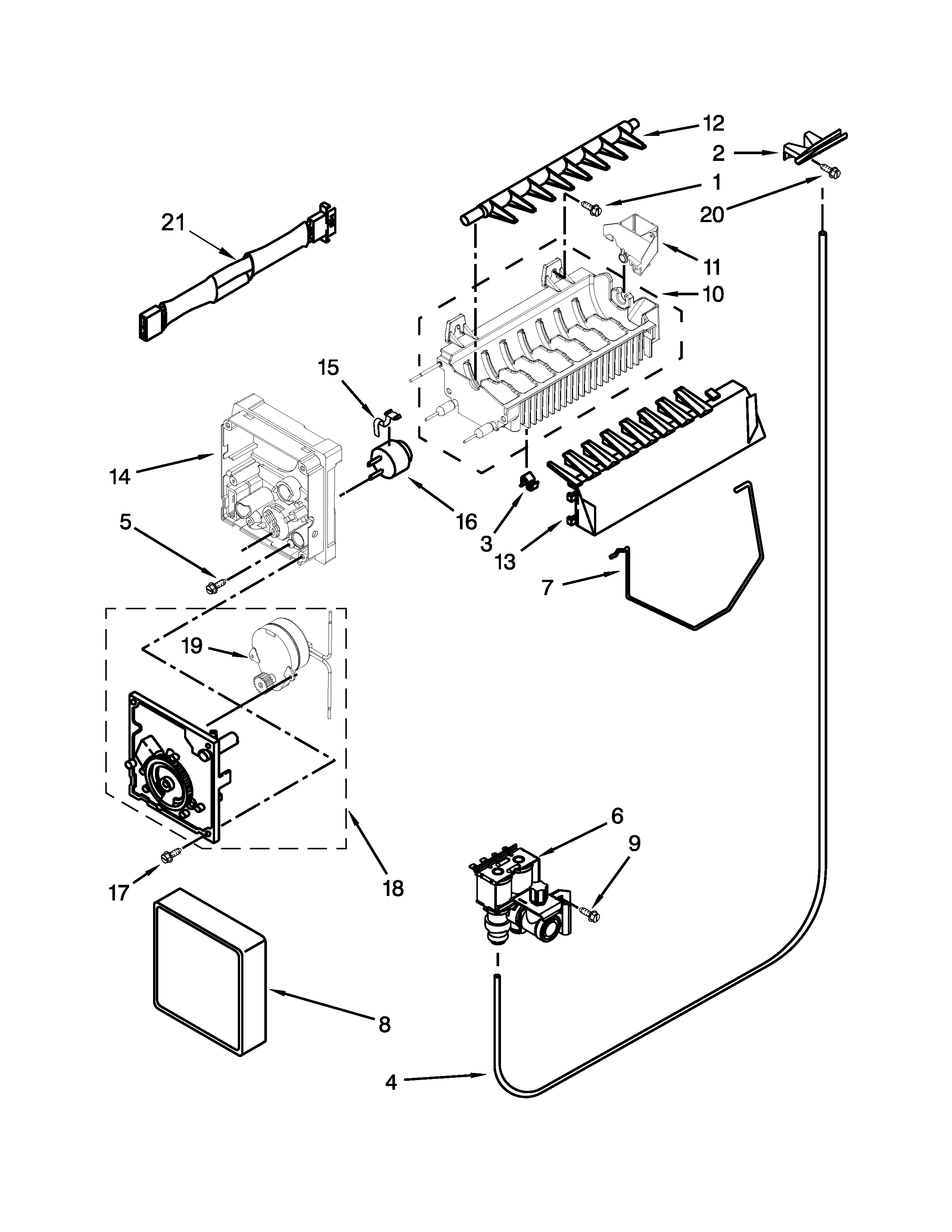

Parts that commonly solve “no ice” on this model

If the basic checks above don’t restore ice production, these parts are frequent fixes on WRS325FDAW02:

• Refrigerator ice maker assembly WPW10300022 (if the ice maker won’t cycle or eject)
• Refrigerator water inlet valve WPW10179146 (if the valve won’t open to fill the ice maker)

Why it matters

Running the freezer too warm, having restricted water flow, or leaving the ice maker OFF can stop ice production while the water dispenser still seems normal. Correcting the root cause prevents repeated thawing, clumping, and inconsistent cube size.

Last updated: February 2026
