Model #WED8000DW2 Official Whirlpool electric dryer
Here are the diagrams and repair parts for Whirlpool WED8000DW2 electric dryer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 138 parts

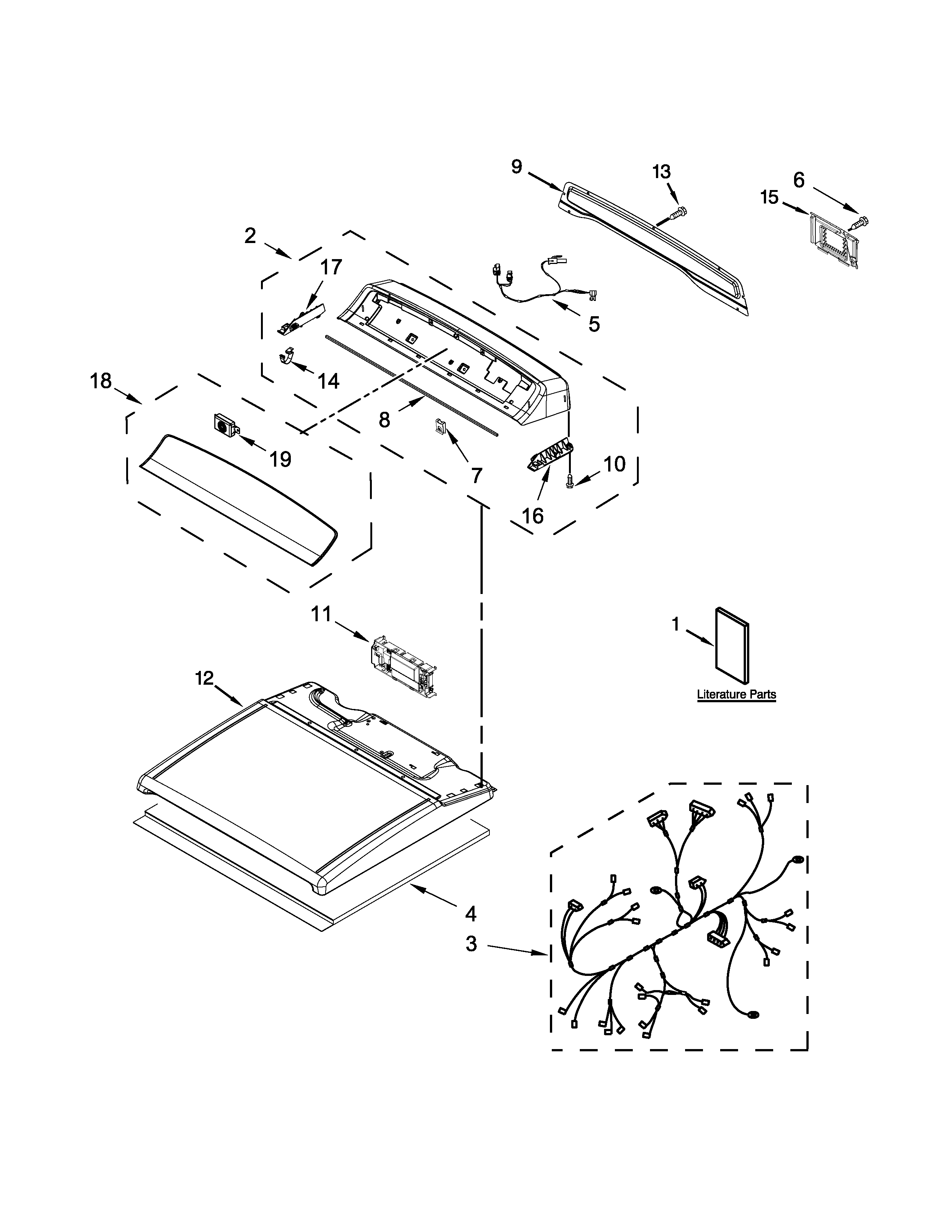

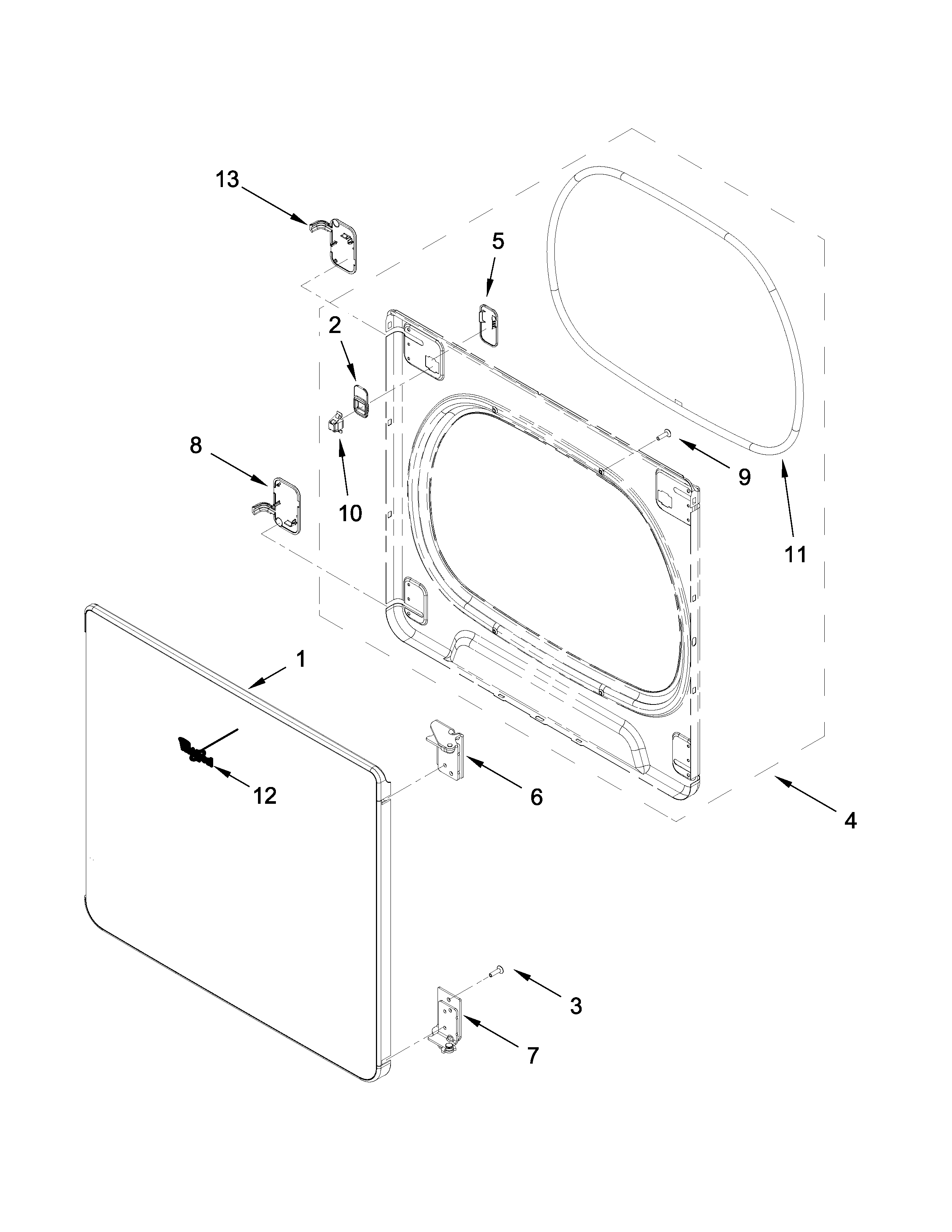

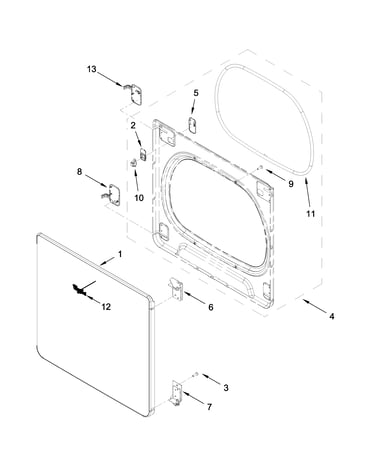

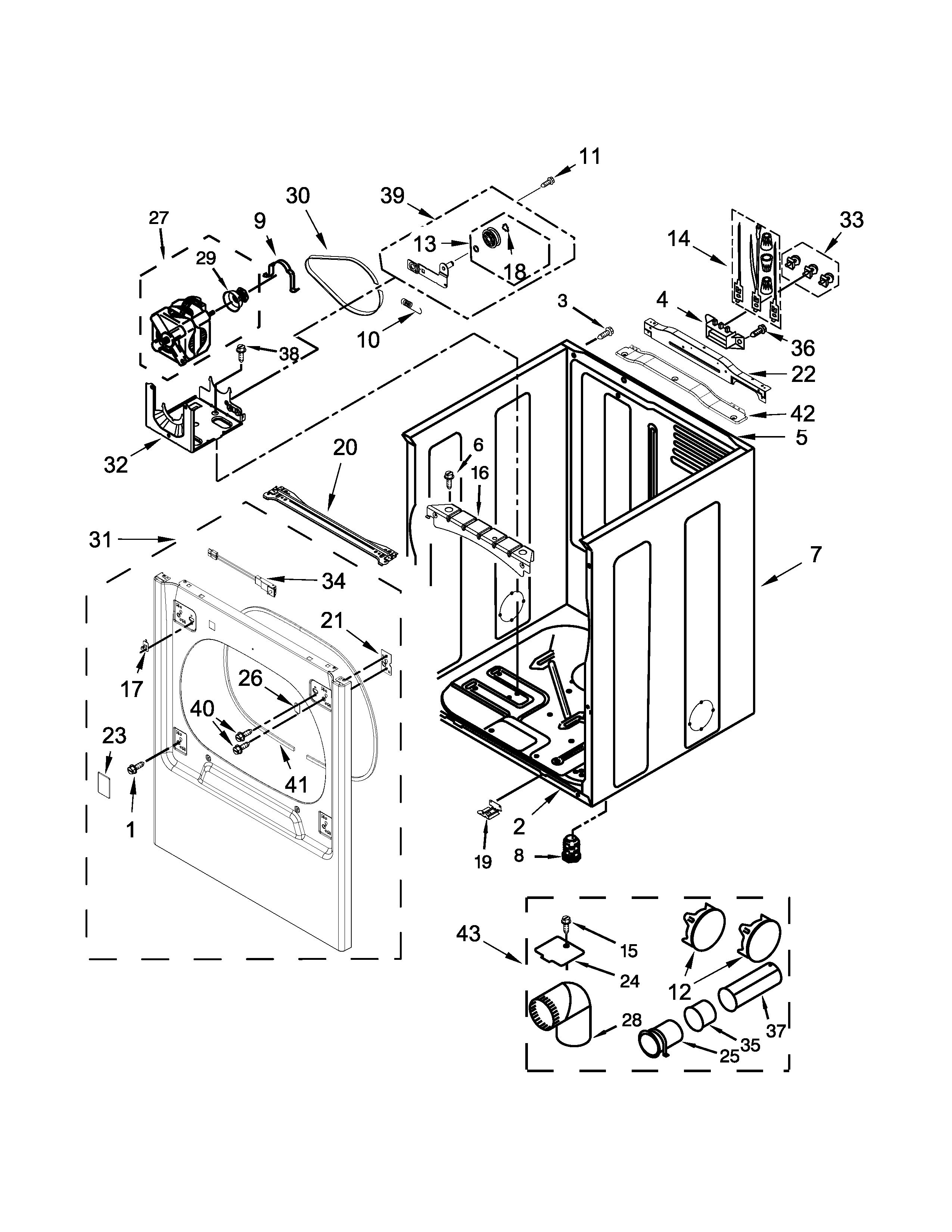

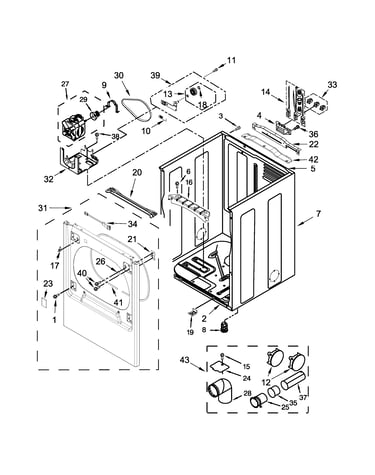

Cabinet parts Diagram

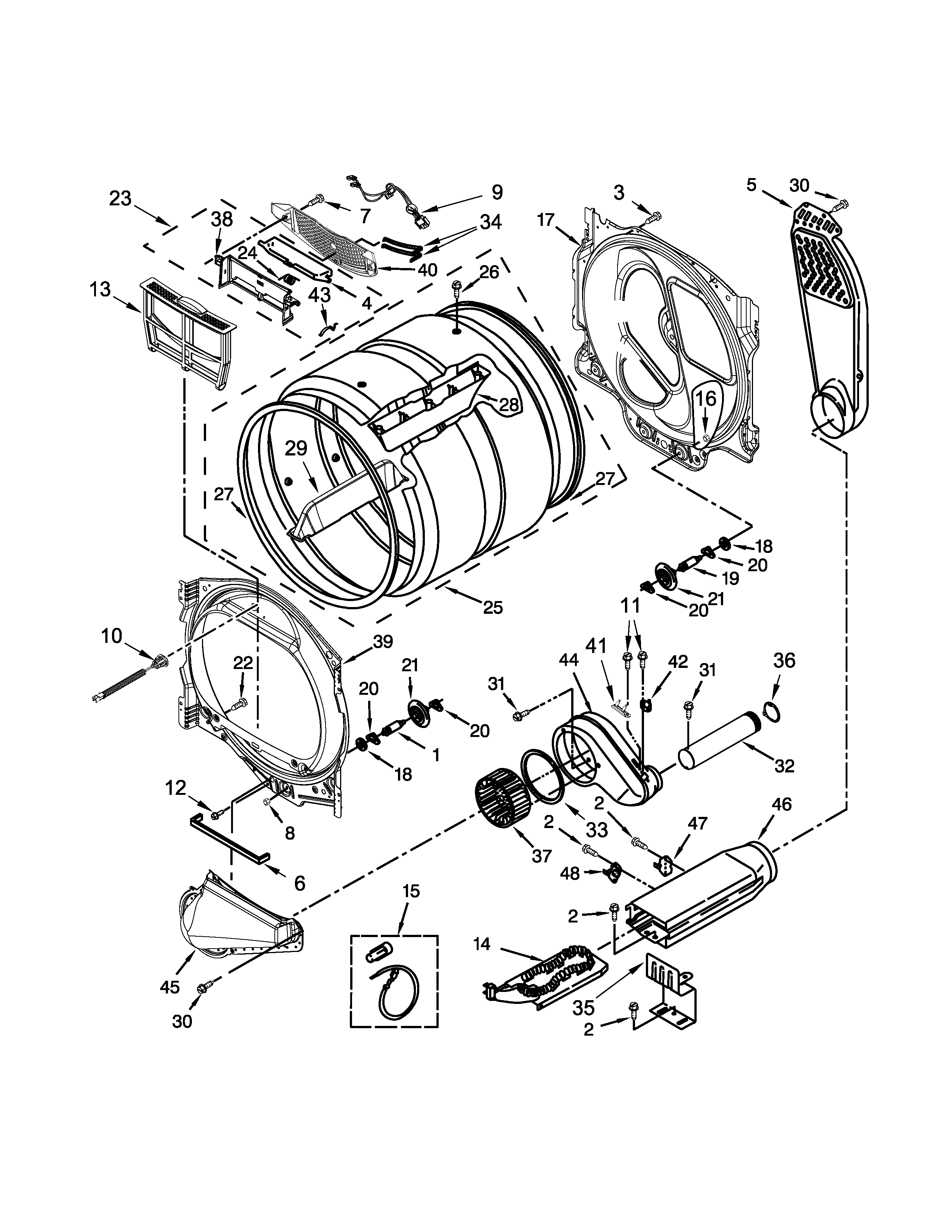

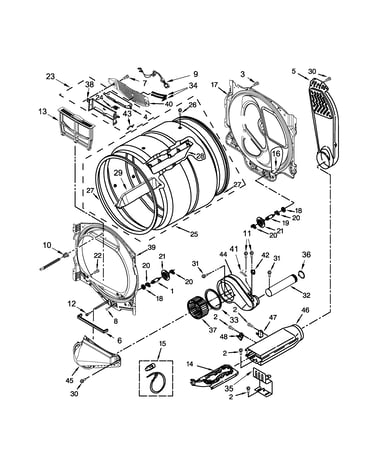

Dryer idler pulley
The manufacturer no longer makes this part, and there's no substitute part
Recommended maintenance parts and accessories
If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.
The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor could be the problem.
