Craftsman 917272069 lawn tractor Parts

For a Craftsman riding mower like model 917272069, we look up the model number by finding the model and serial tag on the tractor, then using that exact model number to match the correct parts list and 917272069 owner's manual. On most units, the tag is on the frame under the seat or on the underside of the seat.

Check these common locations first:

• On the frame directly under the seat (lift the seat to view)
• On the underside of the seat pan
• Near the rear fender area close to the seat mounting points
• On a frame rail near the battery tray (less common)

Use the model number exactly as printed (including dots or dashes) to ensure you get the right diagrams and parts.

• Write down the model number and serial number
• Match the model number to the correct parts breakdown for your mower deck, drive, steering, and engine area
• Use the serial number to confirm production range when a part has multiple versions
• Keep the numbers with your maintenance records for belts, blades, and tune-up parts

Craftsman lawn tractors often share similar looks across years, but parts like a ground drive belt, mandrel assembly, or ignition key can vary by model and serial range. Using the correct model number prevents ordering the wrong part and saves time during repair.

Last updated: February 2026

The Craftsman lawn tractor model 917272069 uses a 16.0 HP gas engine (low-emission design) as shown in the 917272069 owner's manual. This model-specific rating is the most accurate way to identify the engine type for your tractor.

Even with the horsepower listed, the fastest way to confirm the exact engine family (and get the right tune-up parts) is to read the engine ID label.

• Lift the hood and look for the engine data tag on the blower housing or valve cover area
• Write down the model, type, and code (or serial) from the tag
• Match those numbers when ordering parts like a spark plug, air filter, or fuel filter
• Use the engine tag info when checking oil type, oil capacity, and spark plug gap
• Keep the numbers with your maintenance records for future service

The owner documentation for Craftsman 917272069 identifies the tractor as a 16.0 HP, 42-inch mower configuration.

Engine identification prevents wrong-part returns and saves time during troubleshooting. For example, starting issues often trace back to battery cables, the ignition switch, the solenoid, or the starter circuit; having the correct engine and tractor identifiers helps you follow the right diagnostic steps in the manual.

Last updated: February 2026

Craftsman lawn tractor model 917272069 does not have a single built-in “model year”; the year is determined by the date code on the product ID/serial label, not by the model number itself. We use the date code format shown in the 917272069 owner's manual to locate the correct label and confirm the exact build date.

Look for the product ID/serial label on the tractor (common locations are under the seat, on the frame near the rear wheels, or under the hood area). Then read the date code on that label.

Typical Craftsman date-code format you may see:

• MMDDYY (month, day, year)
• Example: 072811 = July 28, 2011
• Some labels include additional characters; focus on the 6-digit date portion

• Clean the label area so all digits are readable
• Write down the full model number (917272069) and the serial/product number
• Take a clear photo for reference before ordering parts
• Match parts by model number plus the correct diagram section (electrical, chassis, steering, lift)

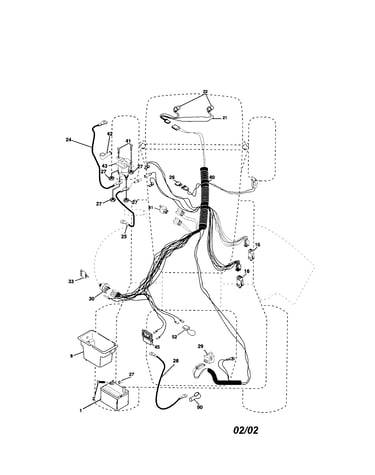

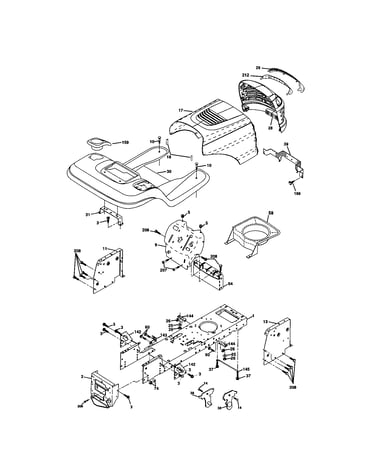

The build date helps confirm which version of a component your tractor uses when there were mid-production changes (common on items like wiring, switches, and deck hardware). The manual for model 917272069 also shows model-specific parts breakdowns such as electrical and chassis listings.

If you are refreshing a tractor that has been stored or used heavily, these are common wear items to inspect:

• Mower deck blades (for cut quality)

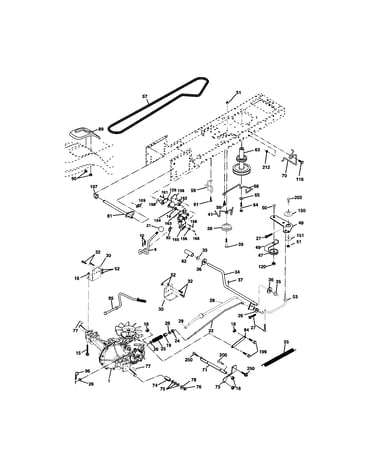

• Ground drive belt (for slipping or no-drive symptoms)
• Ignition key (for worn or broken keys)

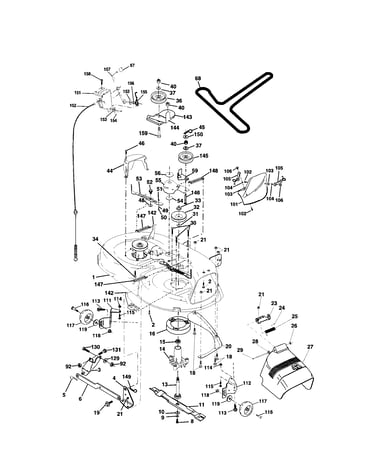

For example, if you are servicing the deck, the husqvarna lawn tractor mulching blade, 21-in 532134149 is one blade option listed for this model.

Last updated: February 2026
