Craftsman 917271640 lawn tractor Parts

Yes, it’s worth replacing the engine on your Craftsman lawn tractor model 917271640 when the tractor is otherwise in solid shape (good deck, transmission, and frame) and you want to extend its service life; it’s usually not worth it when multiple major systems are worn out or the repair total approaches the cost of a comparable replacement tractor.

Quick decision checklist

• Replace the engine if the mower deck cuts well, the transmission drives smoothly, and steering is tight.
• Replace the engine if you’ve kept up with maintenance and the tractor has no major rust or frame damage.
• Skip the engine swap if the transmission is slipping, the deck housing is cracked, or the wiring is badly deteriorated.
• Skip it if you also need several big-ticket repairs (deck rebuild, tires, steering gear, battery, belts) at the same time.
• If the engine issue is actually a no-start or no-crank problem, troubleshoot first; it’s often battery, wiring, or safety interlocks.

Cost and value: a simple way to compare

Use this rule of thumb: if the total repair cost is over 50% of the tractor’s current value, replacement is the better buy.

Scenario	What it usually means	Best move
Engine failed but tractor is mechanically solid	You’re buying years of extra use	Replace engine
Engine plus drive/deck problems	Costs stack quickly	Replace tractor
“Engine won’t start” but it cranks	Often fuel/ignition/air	Diagnose before replacing
“Clicks but won’t turn over”	Often battery/cables/solenoid/interlock	Diagnose before replacing

Before you decide: confirm it’s truly an engine failure

The 917271640 uses operator presence and interlock systems that can prevent starting or shut the engine off if conditions are unsafe. We use the 917271640 owner’s manual to verify the correct start conditions and interlock behavior.

Common checks that save money:

• Battery voltage and cable connections (clean and tight)
• Starter solenoid and starter operation
• Safety switches (seat switch, clutch/brake switch, PTO/attachment clutch switch)
• Fuel quality (drain old fuel, refill fresh gasoline)
• Spark plug wire connection and basic ignition checks

Why it matters

An engine replacement is a big investment, but it can be the most cost-effective path when the rest of the tractor is dependable. On the other hand, if the deck, drive system, and steering all need work, you can end up paying for a full rebuild.

Last updated: February 2026

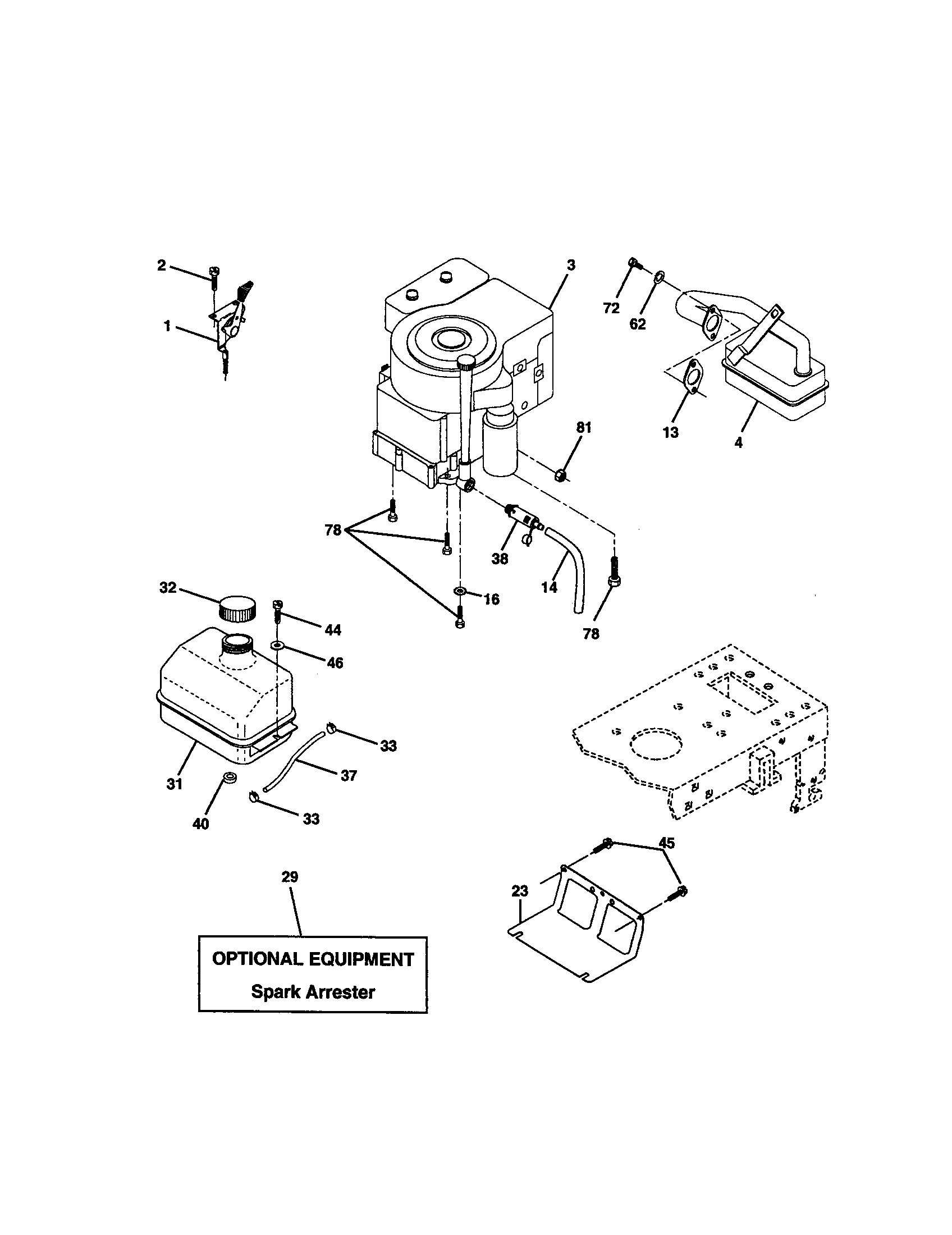

Craftsman lawn tractor model 917271640 uses a 16.5 HP, electric-start engine (as shown on the manual cover). To identify the exact engine manufacturer and engine model, use the engine ID tag on the engine and cross-check it with the specifications section in the 917271640 owner's manual.

How to identify the exact engine on model 917271640

Look for the engine identification label; it’s the fastest way to match tune-up and repair parts.

• Lift the hood and locate the engine ID tag (often on the blower housing, valve cover, or near the starter)
• Write down the engine model, type, and code (or spec number)
• Match those numbers to the engine information in the 917271640 owner's manual
• Use the engine ID numbers when buying maintenance items like spark plugs, air filters, and fuel filters
• If the label is dirty, wipe it clean so the numbers stay readable

What the manual confirms for this Craftsman riding mower

Here’s what we can state directly for 917271640 from the manual cover page.

Spec item	917271640 information
Engine output	16.5 HP
Starting system	Electric start
Mower deck	42-inch mower

Why it matters

Craftsman tractors can share the same tractor model number while using different engine variants. Using the engine model, type, and code from the ID tag prevents wrong-part orders and helps with accurate troubleshooting.

Related tip for performance

For best mowing performance and battery charging, operate the engine at full throttle during cutting (as described in the operating guidance).

Last updated: February 2026

For the Craftsman 42-inch riding mower shown on this page, the model number is 917.271640 (often written without the dot as 917271640). You can confirm it on the identification label and in the 917271640 owner's manual.

Where to find the model number on the mower

We recommend checking these common locations on Craftsman front-engine lawn tractors:

• Under the seat on the frame or fender pan
• On the left or right side of the frame near the engine
• Near the rear hitch plate or drawbar area
• On a sticker or metal tag with “Model No.” and “Serial No.”

Why the exact model number matters

Craftsman uses many 42-inch deck tractors, and parts can vary by model. Using 917271640 helps ensure you get the correct items for your mower deck, engine, and chassis.

Examples of model-specific parts that can differ

Part type	What can vary	Example for this model
Mower blade	Length, center hole pattern, lift	Husqvarna lawn tractor mulching blade, 21-in 532134149

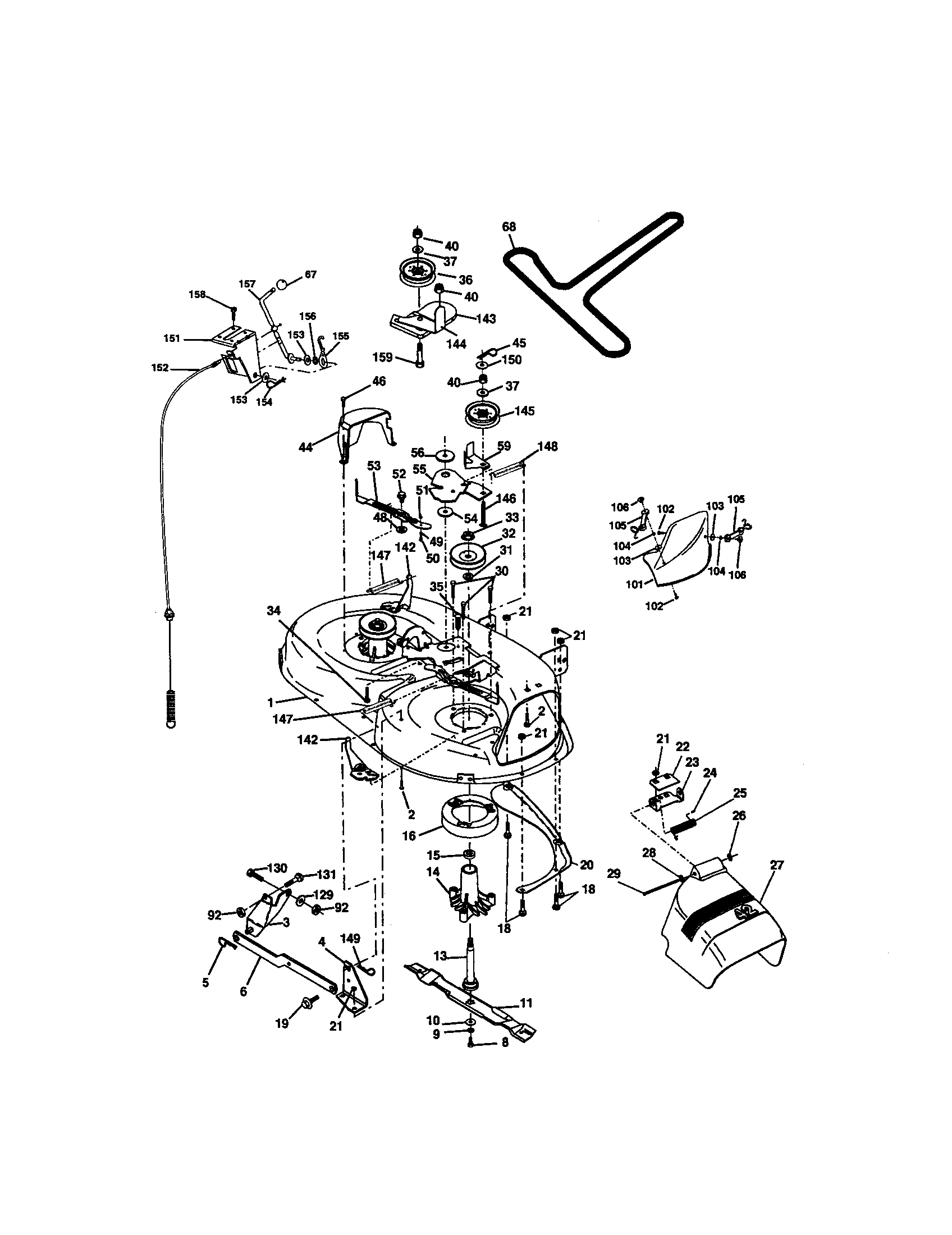

Mower deck components	Mandrel style, pulley size	Mandrel and housing listed in the manual parts breakdown

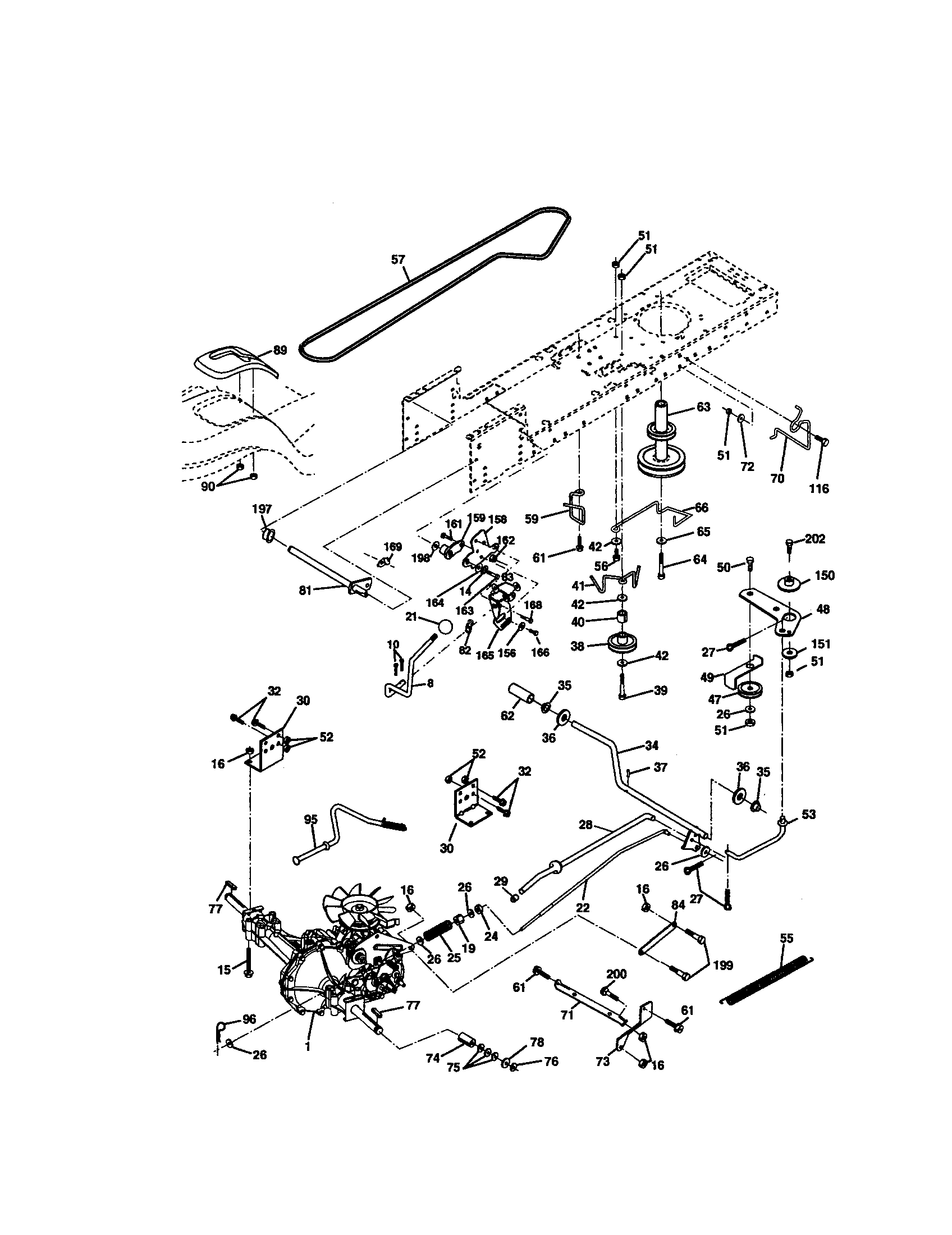

Drive system	Belt length and width	Ground drive belt sizing is model-dependent

Quick tip if you are seeing a different number online

If you see a different “42-inch Craftsman” model number (for example, a retail listing number), use the mower’s ID tag and match it to the manual. For this unit, the manual cover lists Model No. 917.271640.

Last updated: February 2026

Craftsman model 917271640 was produced during the LT1000-era of front-engine lawn tractors (commonly late 1990s through mid-2000s). The exact build year is identified by the tractor’s product/serial number label and the date information referenced in the 917271640 owner's manual.

How to find the exact year on your tractor

We use the ID label on the tractor (not the deck or engine tag) to pin down the manufacturing date.

• Look under the seat and around the seat pan/fender area for the product label
• Check the frame rail near the rear wheels if you do not see it under the seat
• Write down the model number (917271640) and the serial/product number exactly
• Compare the numbers to the identification section in the 917271640 owner's manual
• If the label is damaged, check for a second label near the engine compartment or dash

What the manual tells us about this model

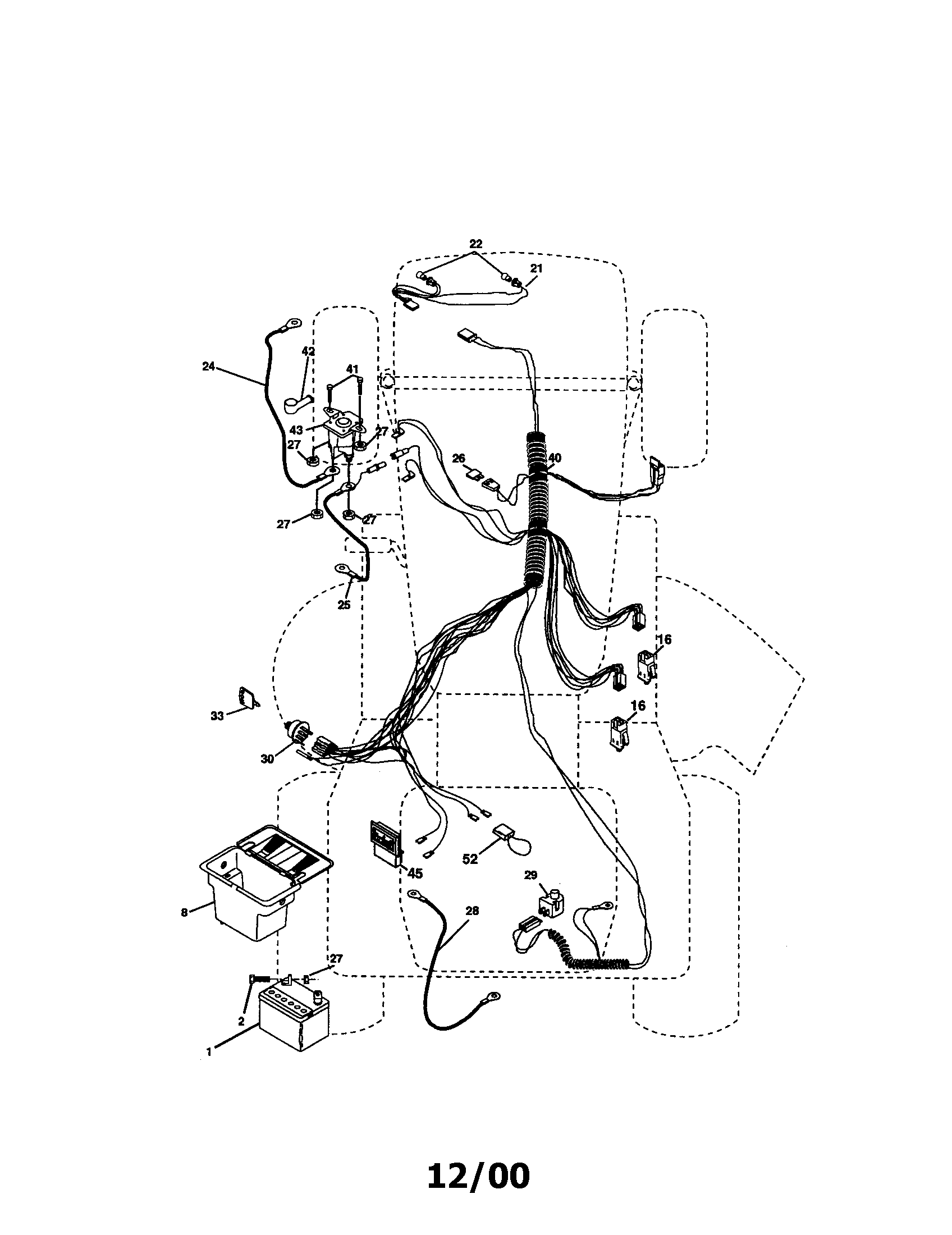

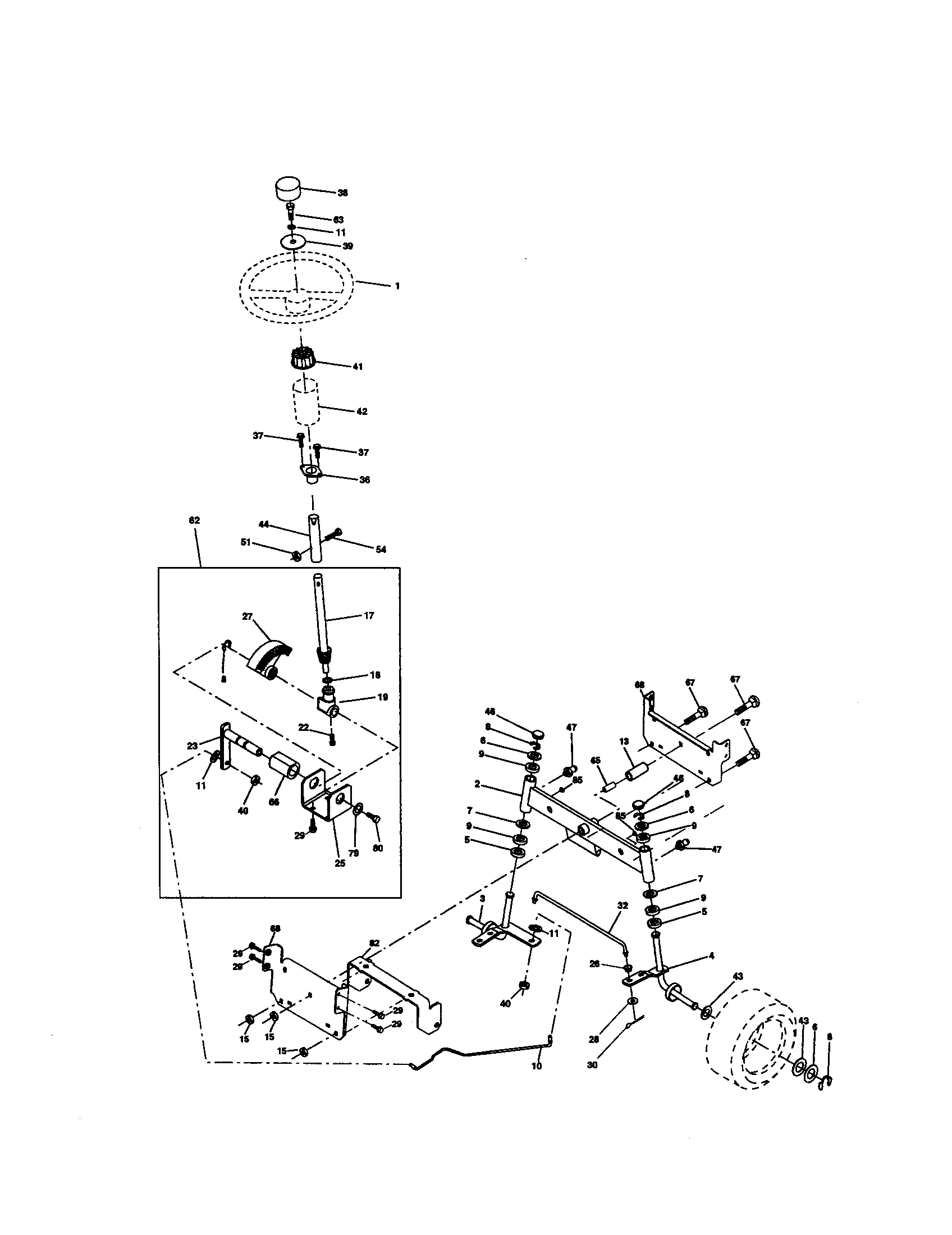

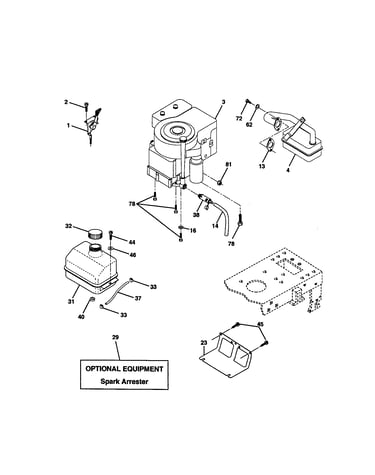

The documentation confirms the tractor is identified as MODEL NUMBER 917.271640 and includes component breakdowns (electrical, steering, engine, mower deck). That supports that you have the correct model family, but the year is tied to the serial/product number, not the parts list pages.

Common model identifiers you may see

Item	What it helps with	Where to look
Model number: 917271640	Confirms the correct parts and diagrams	Product label
Serial/product number	Identifies build date and production run	Product label
Engine model (example shown in manual)	Helps match engine parts, not tractor year	Engine shroud/tag

Why it matters

The build year affects small but important fit details like wiring harness routing, safety interlock switches, belt guides, and deck linkage revisions. Using the serial/product number prevents ordering the wrong Craftsman lawn tractor parts.

Last updated: February 2026

On Craftsman equipment, the model number is typically printed on a product label; on riding lawn tractors like model 917271640, it’s commonly found under the seat area or on the frame near the rear wheels. Use the model number to match the correct parts list and manual.

Where to look on a riding lawn tractor (like 917271640)

Check these common label locations first:

• Under the seat pan or on the seat support bracket
• On the frame rail near the rear wheels
• Near the engine compartment on the chassis
• Under the hood area (if equipped)
• Near the footrest or running board area

If you have the correct model, confirm it against the 917271640 owner's manual.

What the model number looks like (and why it matters)

For this Craftsman tractor, the manual identifies the model as 917.271640 (often shown without the dot as 917271640). That exact number is what we use to ensure you get the right diagrams and parts.

Why it matters

Using the wrong model number can lead to ordering parts that do not fit, especially for deck and drive components like blades, belts, and mandrel parts.

Quick examples: model number vs. part identifiers

Item type	Example	What it’s used for
Model number	917271640	Identifies the exact tractor version
Part ID	532140294	Identifies a specific replacement part listing
Part number	140294	Manufacturer number printed in diagrams/manuals

Tip: confirm by matching a known part

If your label is worn, you can sometimes confirm you’re on the right model by comparing a known component to the parts list. For example, this model’s 42-inch deck uses a mulching blade listed as husqvarna lawn tractor mulching blade, 21-in 532134149 in the parts catalog.

Last updated: February 2026
