Kenmore Elite 79572093311 refrigerator

Kenmore Elite 79572093311 refrigerator Parts

Here are the diagrams and repair parts for Kenmore Elite 79572093311 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79572093311 Refrigerators

Kenmore Elite Refrigerator 79572093311 FAQs

For a Kenmore Elite refrigerator, the model number is printed on the rating label inside the fresh food compartment or freezer area. On model 79572093311, the label is typically on an inside wall, inside the door area, or near the lower crisper drawer.

Where to look first (fastest checks)
  • Inside the fresh food compartment on a side wall (upper area)
  • Inside the refrigerator door frame (open the door and check the vertical frame)
  • Behind or just above the lower crisper drawers (you may need to slide drawers out)
  • Inside the freezer compartment on a side wall
  • Near the front base area behind the kick plate or lower grille
What the label looks like

Most Kenmore Elite rating labels include:

  • Model number (for example, 79572093311)
  • Serial number
  • Electrical ratings (volts/amps)
  • Sometimes a barcode
What you need Example format Why it matters
Model number 795.72093311 or 79572093311 Ensures parts fit your exact refrigerator
Serial number Letters and numbers Helps match production version and revisions
Tips to avoid ordering the wrong part
  • Write the model number exactly as shown on the label (include all digits)
  • Take a clear photo of the label before shopping for parts
  • If the label is hard to read, try a flashlight and wipe dust off gently
  • Use the model number when checking common maintenance items like the owner's manual
Why it matters

Kenmore Elite refrigerators can look similar across multiple model series, but parts like a refrigerator water filter, door gasket, or electronic control board can vary by model. Using the exact model number helps us match the correct replacement part the first time.

Last updated: January 2026

Most Kenmore Elite refrigerators, including model 79572093311, typically last 10 to 15 years with normal household use. Regular maintenance (cleaning condenser coils, keeping door gaskets sealing, and changing filters on schedule) helps you reach the high end of that range.

Typical lifespan and what affects it

A refrigerator’s life is usually determined by how hard the sealed system works and how well airflow and door sealing are maintained.

  • 10 to 15 years is the normal expectation for a modern bottom-mount refrigerator
  • Dirty condenser coils can shorten compressor life by increasing run time
  • Worn door gaskets can cause warm air leaks, frost, and longer run times
  • Clogged water filters can reduce dispenser flow and strain the water system
  • Poor ventilation around the cabinet can trap heat and reduce efficiency
Maintenance that helps you get the full lifespan

We recommend these habits for Kenmore Elite bottom-mount models like 79572093311:

  • Vacuum or brush the condenser area regularly (more often with pets)
  • Keep doors closing easily; avoid overloading door bins and shelves
  • Clean and inspect gaskets; replace if torn, hardened, or not sealing
  • Replace the water filter on schedule (or sooner if flow drops)
  • Replace the air filter if your model uses one and odors linger
Maintenance item What it protects Common symptom when overdue
Condenser coil cleaning Compressor and cooling performance Warm temps, long run times
Door gasket condition Temperature stability, frost control Frost buildup, sweating, gaps
Water filter replacement Dispenser flow, ice quality Slow water, small/odd ice
Air filter replacement Odor control Food smells linger
Why it matters

A refrigerator that runs longer and hotter than it should often fails earlier and costs more to operate. Simple upkeep can prevent “slow decline” problems that look like weak cooling but start with airflow, sealing, or filtration.

Model-specific references

For maintenance intervals and the exact locations of filters and service access points on 79572093311, use the 79572093311 owner's manual. For step-by-step filter guidance, follow how to replace the water filter in a Kenmore refrigerator.

Last updated: January 2026

Kenmore Elite launched as a premium Kenmore line in 1999. For your specific Kenmore Elite refrigerator model 79572093311, the exact build year depends on the unit’s serial number; we use the serial tag to pinpoint the manufacturing date.

How to find the year your 79572093311 was made

Check the serial and model tag first; on bottom-mount refrigerators it’s commonly:

  • Inside the fresh food compartment on a side wall
  • On the ceiling of the fresh food compartment near the controls
  • Along the door frame (hinge side)
  • On the back exterior panel (less common)

Once you find it, use the date-code guidance in the 79572093311 owner's manual.

Quick serial-number dating tips (what to look for)

Kenmore Elite refrigerators were built by different manufacturers over the years, so the date code format varies. These checks usually narrow it down fast:

  • Look for a month + year code (letters or numbers) near the start of the serial
  • Check for a week + year pattern (often two digits for week, two digits for year)
  • Compare the serial tag format to the examples shown in the manual
  • If the tag is worn, take a clear photo and write down every character
Why the “release year” and “manufacture year” are different

Kenmore Elite is a product line (introduced in 1999), but each refrigerator model has its own production run. Two Elite refrigerators can be many years apart even if they look similar.

What you’re trying to date What it tells you Best way to confirm
Kenmore Elite line When the Elite brand tier started Historical launch (1999)
Model 79572093311 When this model series was produced Model and serial tag
Your exact refrigerator Your unit’s build date Serial number date code
Related maintenance that helps once you know the age

If you’re dating the unit because of performance or water quality, these age-related items are worth checking:

Why it matters

Knowing the build year helps us match the right parts (like a water filter, door gasket, or control board) and choose the most effective troubleshooting steps for cooling, ice maker, and dispenser issues.

Last updated: January 2026

For Kenmore Elite refrigerator model 79572093311, the most common problems we see are poor cooling, ice maker or water dispenser issues, frost buildup in the freezer, and unusual noises. Many fixes start with airflow and filtration basics, then move to defrost, fan, and control components; see the 79572093311 owner's manual for model-specific checks.

Most common symptoms and what usually causes them
  • Not cooling or warm temperatures: dirty condenser area, restricted airflow, evaporator fan issue, or sealed-system/compressor problem
  • Ice maker not making ice: low water supply, clogged filter, frozen fill tube, or ice maker failure
  • Water dispenser slow or not dispensing: clogged filter, kinked water line, or dispenser mechanism issue
  • Frost or ice buildup: door not sealing, frequent door openings, or defrost system/sensor problem
  • Buzzing, clicking, or rattling: fan blade hitting ice, loose panels, or compressor start components
Quick checks we recommend first (before replacing parts)
  1. Confirm controls are set correctly and doors close fully.
  2. Make sure vents inside the fresh food section and freezer are not blocked by food packages.
  3. Clean dust from the condenser area (unplug first).
  4. If you have a dispenser, replace the water filter on schedule and flush several gallons.
  5. Listen for the evaporator fan; it should run when the compressor is running (door switch held closed).
Parts that commonly solve these issues on 79572093311
Symptom Common part to inspect/replace Example from this model’s parts
Slow water, bad taste/odor Water filter Genuine Kenmore refrigerator water filter 9690 AGF80300801
Odors in fresh food section Air filter Lg refrigerator air filter ADQ73214408
Frost/temperature swings Defrost sensing Refrigerator defrost sensor assembly 6615JB2005R

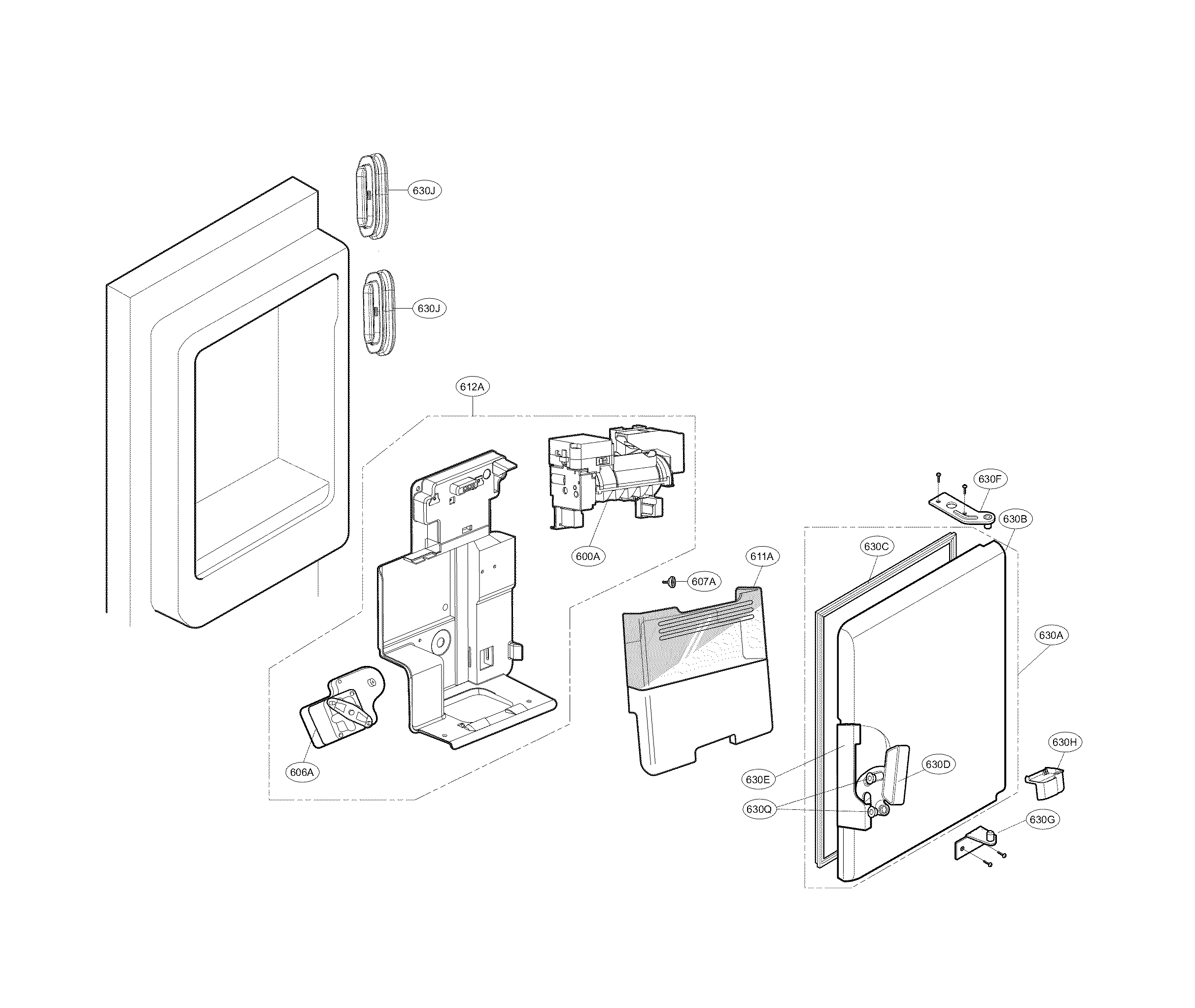

No ice Ice maker Ice maker assembly (AEQ73110203) - refrigerator ice making component by lg AEQ73110203
Why it matters

Cooling and ice maker complaints often start with restricted airflow or water flow. Fixing those early helps prevent food spoilage, reduces frost buildup, and can keep the compressor from running longer than necessary.

Related DIY help

Last updated: January 2026
