Universal/Multiflex (Frigidaire)
Laundry Center

Model # MLXG42REW2 Official Universal/Multiflex (Frigidaire) laundry center - 5995299673

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MLXG42REW2 laundry center - 5995299673, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

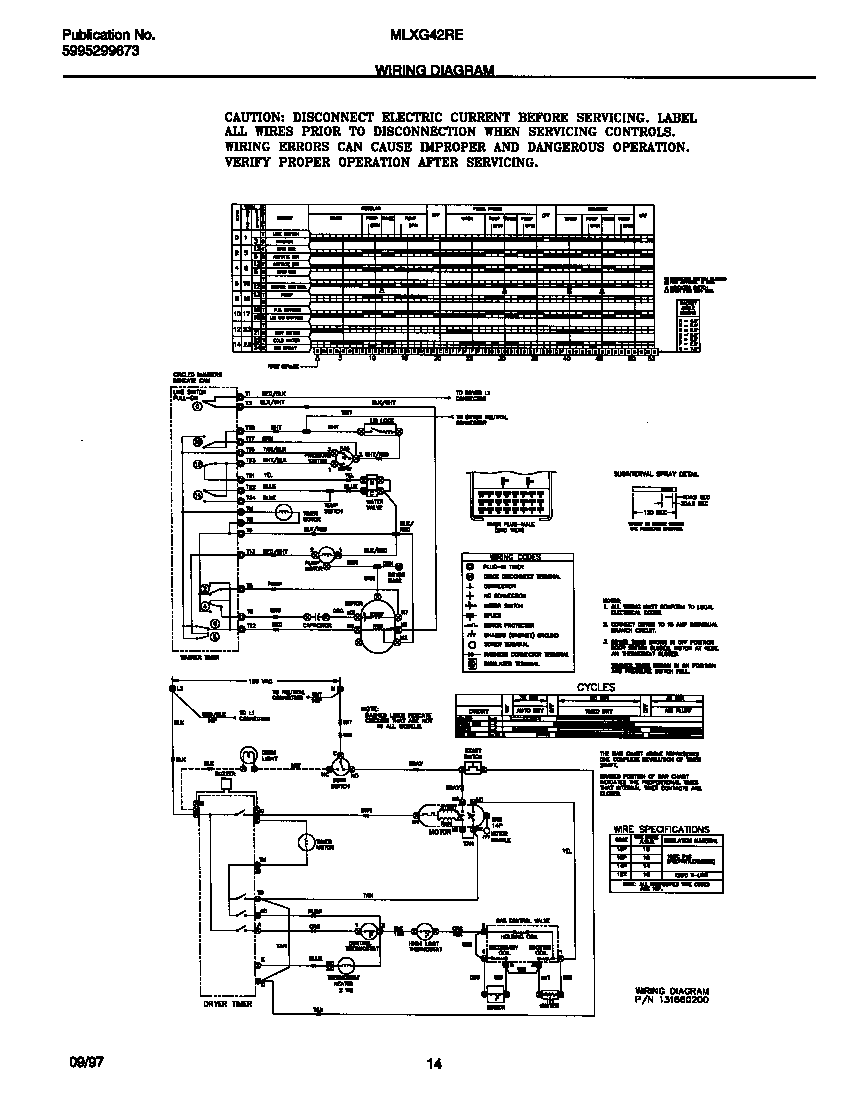

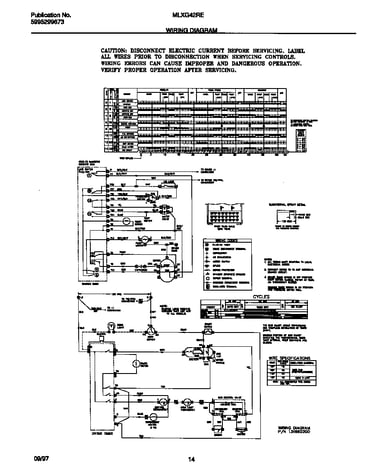

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |

Belt 5303283287
#25

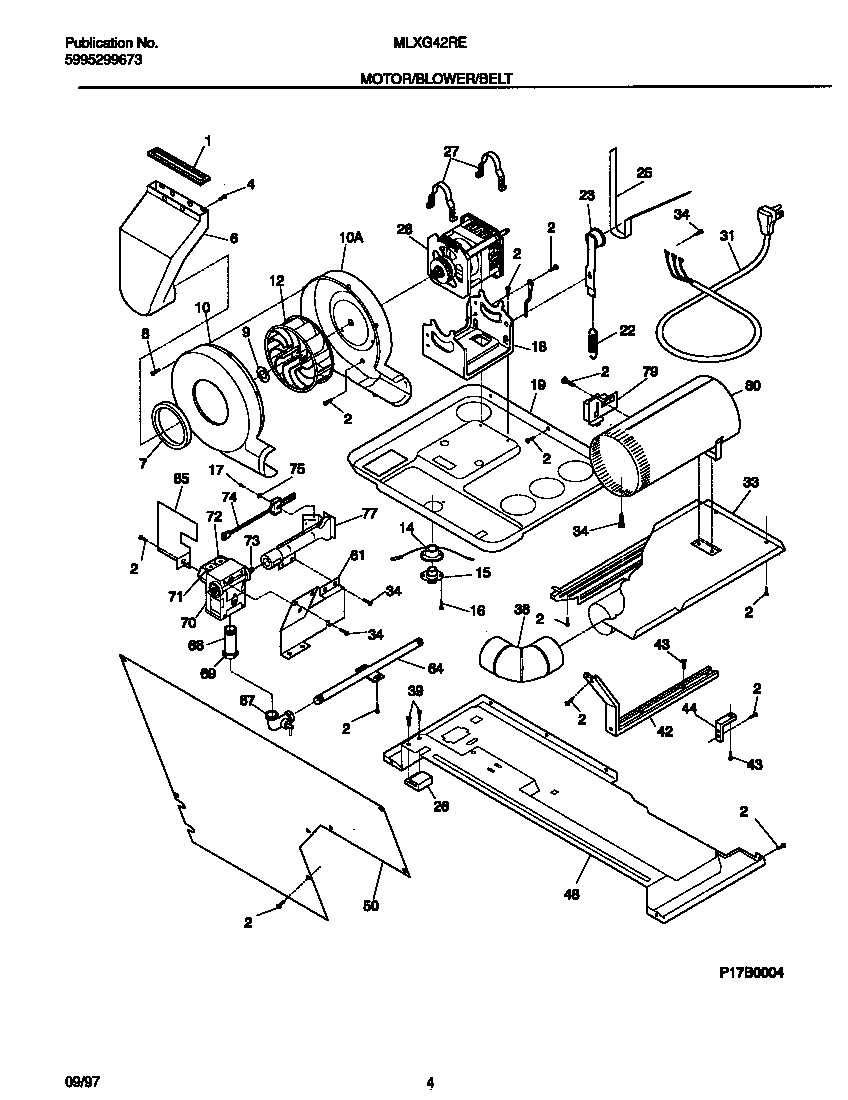

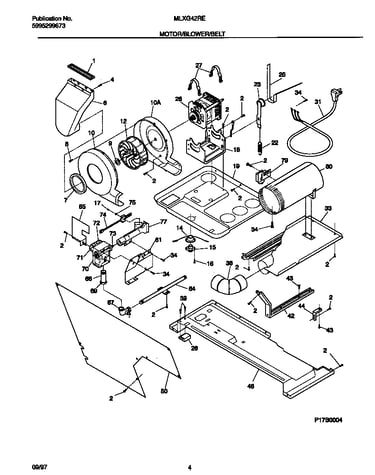

Motor/blower/belt diagram

Belt

Part #5303283287

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283287. Substitute parts can look different from the original.
BEST SELLER
$14.76
26% OFF MSRP : $20.00
In Stock
Lint Trap 131152700
#27

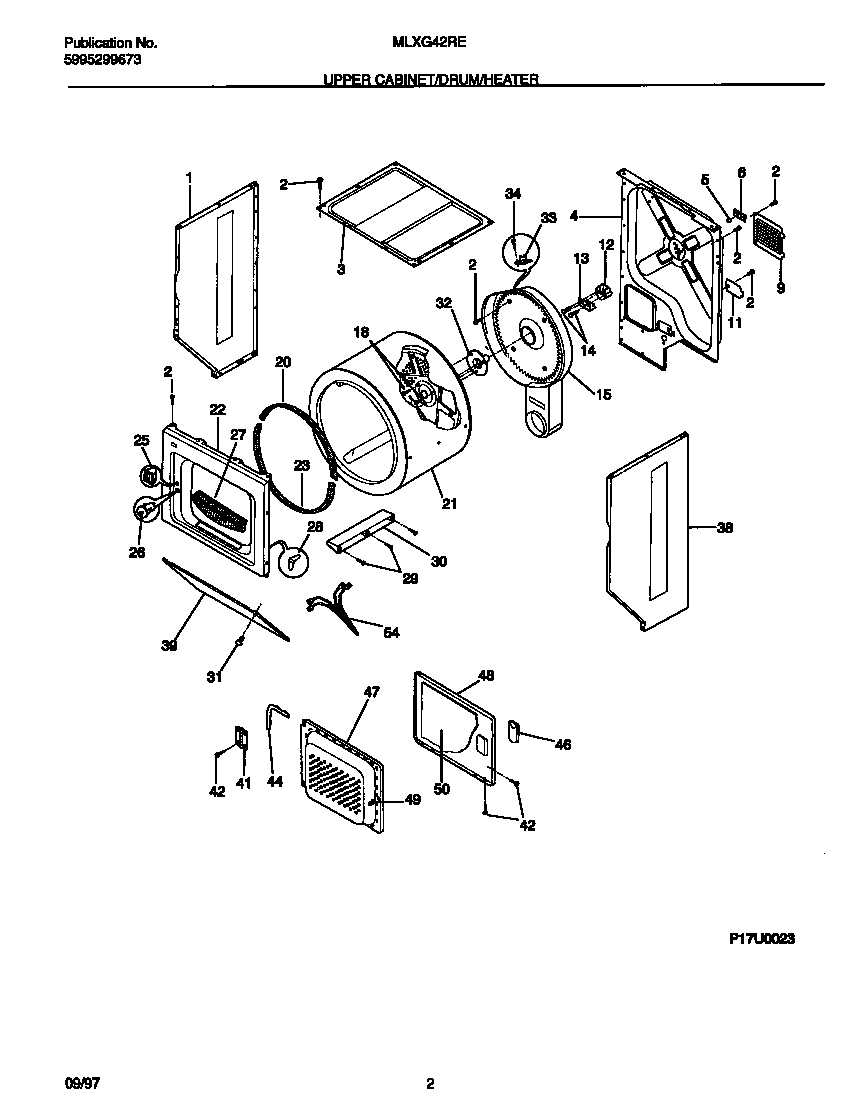

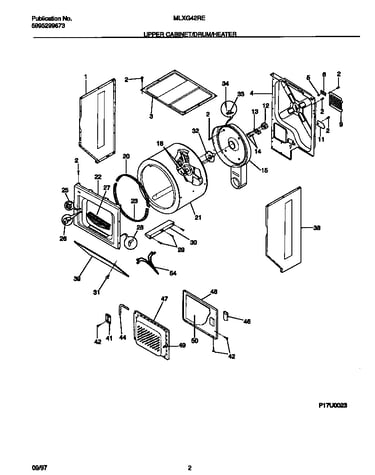

Upper cabinet/drum/heater diagram

Lint trap

Part #131152700

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131152700. Substitute parts can look different from the original.
BEST SELLER
$39.93
11% OFF Phone Price : $44.93
In Stock
Shaft Drum 131378400
#32

Upper cabinet/drum/heater diagram

Shaft drum

Part #131378400

Replaced by #131777700

?
Manufacturer substitution
This part replaces 131378400. Substitute parts can look different from the original.
BEST SELLER
$58.75
8% OFF Phone Price : $63.75
In Stock
Dryer Drum Felt Seal, Lower 5303283286
#23

Upper cabinet/drum/heater diagram

Dryer drum felt seal, lower

Part #5303283286

BEST SELLER
$30.64
14% OFF Phone Price : $35.64
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$9.78
42% OFF MSRP : $17.00
In Stock
Dryer Screw 131477000
#18

Upper cabinet/drum/heater diagram

Dryer screw

Part #131477000

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131477000. Substitute parts can look different from the original.
BEST SELLER
$9.78
42% OFF MSRP : $17.00
In Stock
Bracket 5303281023
#13

Upper cabinet/drum/heater diagram

Bracket

Part #5303281023

Replaced by #131724301

?
Manufacturer substitution
This part replaces 5303281023. Substitute parts can look different from the original.
BEST SELLER
$13.29
13% OFF Phone Price : $15.29
In Stock
Dryer Grounding Ball (replaces 000022224, 08015113, 22224, 3281019, Q000022224, Wq22224) 5303281019
#5

Upper cabinet/drum/heater diagram

Dryer grounding ball (replaces 000022224, 08015113, 22224, 3281019, q000022224, wq22224)

Part #5303281019

BEST SELLER
$19.49
9% OFF Phone Price : $21.49
In Stock
Washer Tub Seal Assembly 5303279394
#26

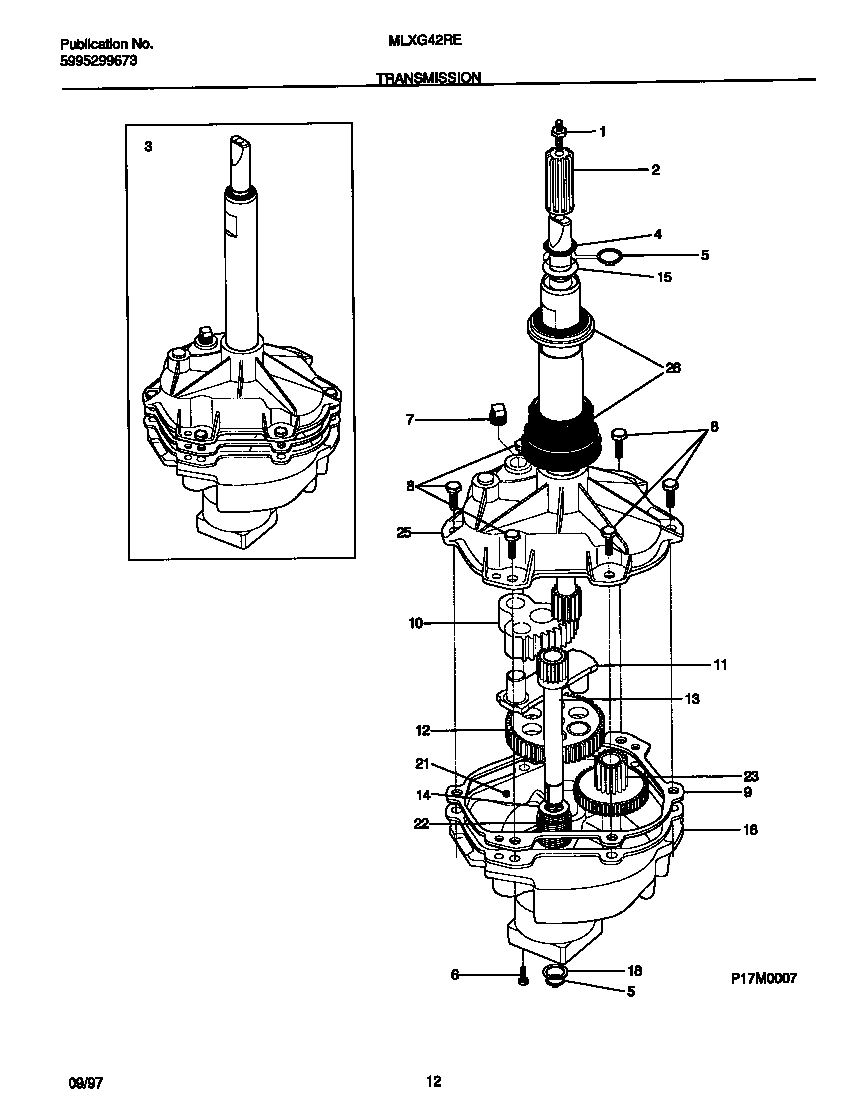

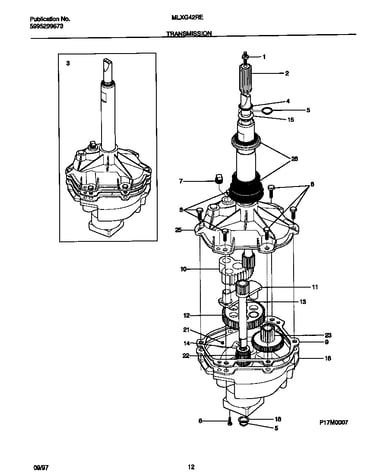

Transmission diagram

Washer tub seal assembly

Part #5303279394

The manufacturer no longer makes this part, and there's no substitute part

Water Valve 131389300
#33

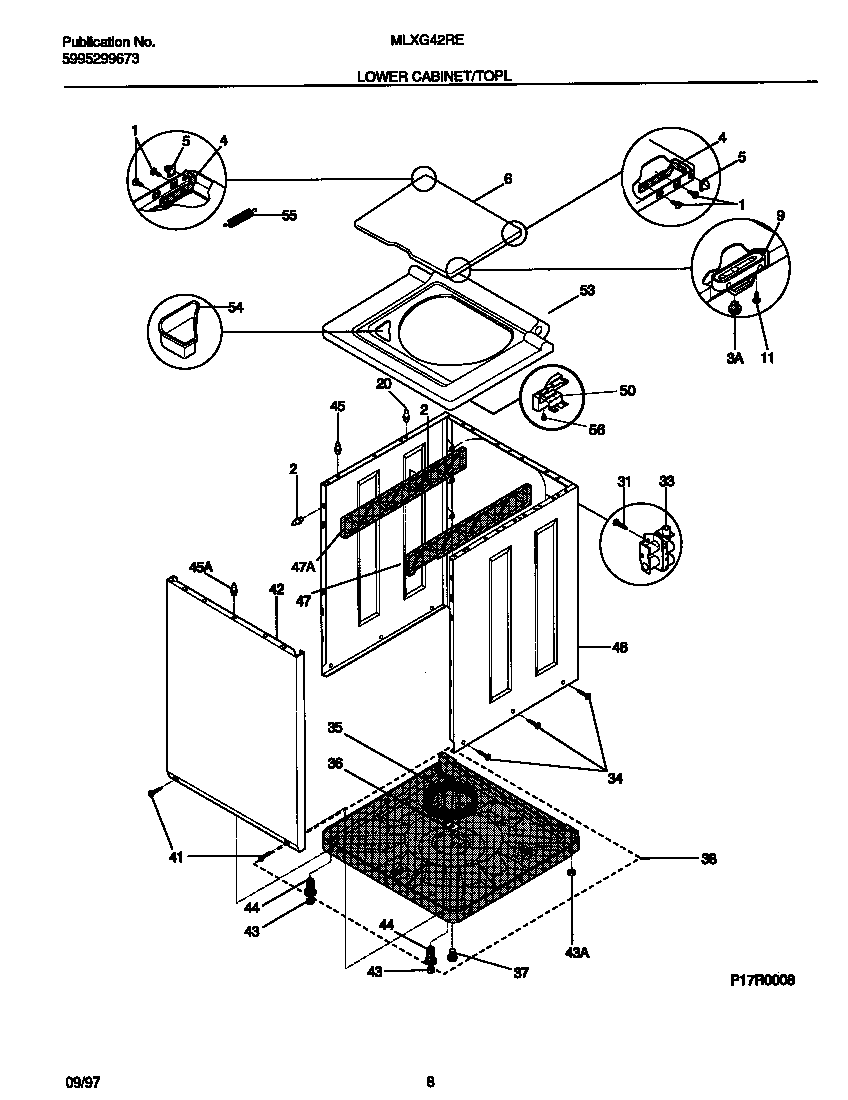

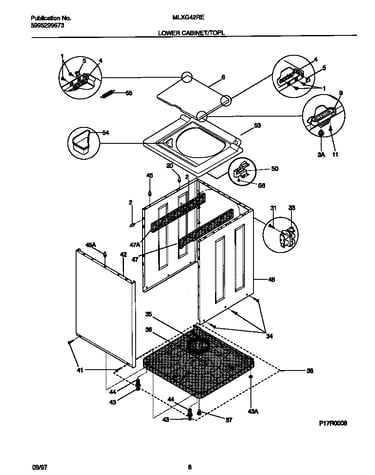

Lower cabinet/top diagram

Water valve

Part #131389300

Replaced by #134190200

?
Manufacturer substitution
This part replaces 131389300. Substitute parts can look different from the original.
BEST SELLER
$125.33
7% OFF Phone Price : $135.33
In Stock
