GE
Electric Cooktop

Model # JP328SK2SS Official GE cooktop

Here are the diagrams and repair parts for Official GE JP328SK2SS cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Range Drip Pan (replaces Wb32x10014) WB31T10011
#2

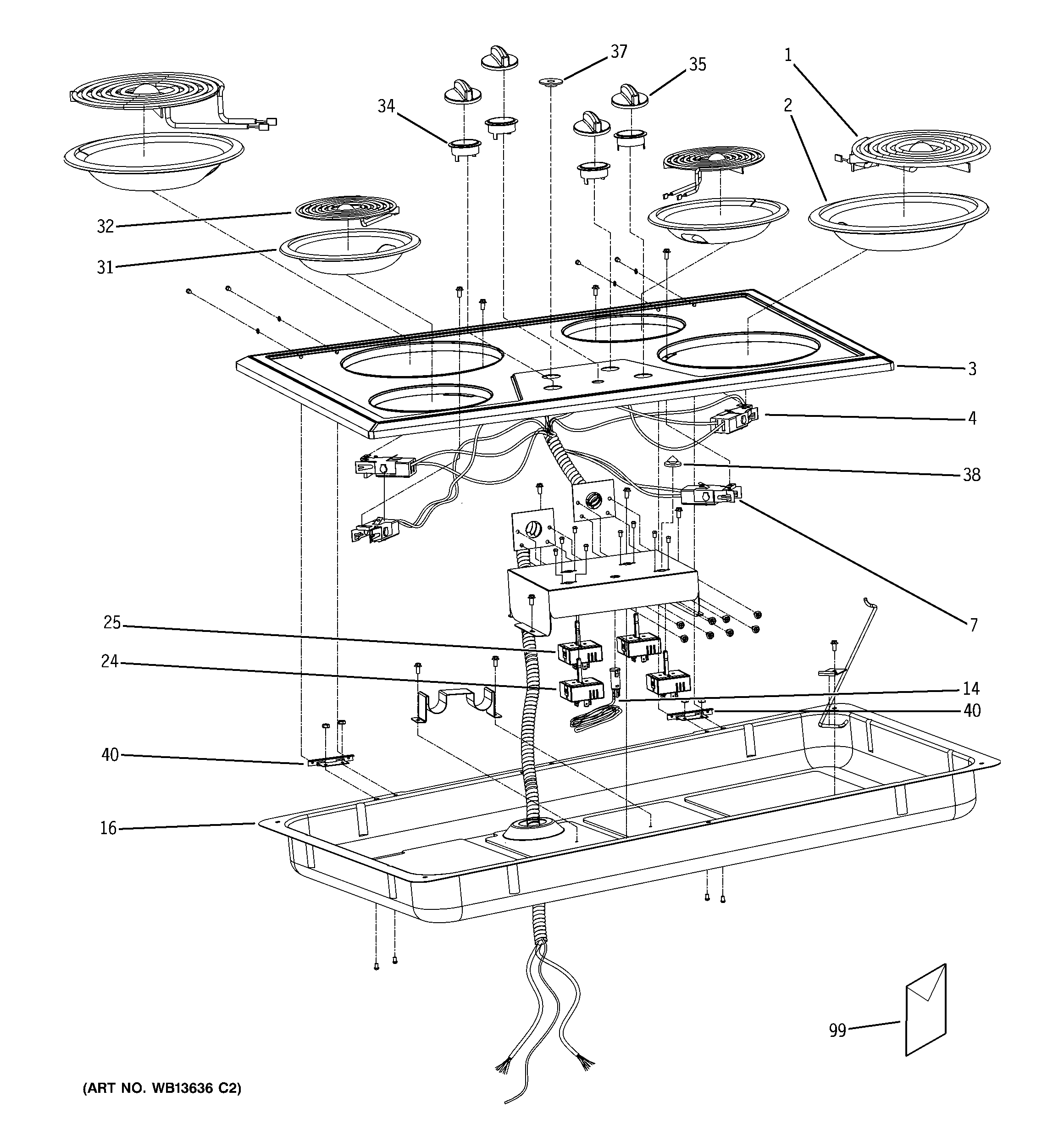

Control panel & cooktop diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011

BEST SELLER
$15.47
11% OFF Phone Price : $17.47
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#31

Control panel & cooktop diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

BEST SELLER
$18.75
10% OFF Phone Price : $20.75
In Stock
8" Surf Elem WB30M0002
#1

Control panel & cooktop diagram

8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
$46.48
10% OFF Phone Price : $51.48
In Stock
6" Surf Elem WB30M0001
#32

Control panel & cooktop diagram

6" surf elem

Part #WB30M0001

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30M0001. Substitute parts can look different from the original.
$38.22
12% OFF Phone Price : $43.22
In Stock
Cooktop Element Control Switch WB23K10004
#25

Control panel & cooktop diagram

Cooktop element control switch

Part #WB23K10004

Replaced by #WB23K34830

?
Manufacturer substitution
This part replaces WB23K10004. Substitute parts can look different from the original.
$49.46
9% OFF Phone Price : $54.46
In Stock
Cooktop Indicator Light Lens WB25X10016
#37

Control panel & cooktop diagram

Cooktop indicator light lens

Part #WB25X10016

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Indicator Light WB25K5018
#14

Control panel & cooktop diagram

Indicator light

Part #WB25K5018

Replaced by #WB25X10024

?
Manufacturer substitution
This part replaces WB25K5018. Substitute parts can look different from the original.
$26.64
16% OFF Phone Price : $31.64
In Stock
Main Top 30" WB62X10046
#3

Control panel & cooktop diagram

Main top 30"

Part #WB62X10046

In Stock
Cooktop Assembly WB62X10047
#3

Control panel & cooktop diagram

Cooktop assembly

Part #WB62X10047

$112.39
8% OFF Phone Price : $122.39
In Stock
Cooktop Main Top (bisque) WB62X10048
#3

Control panel & cooktop diagram

Cooktop main top (bisque)

Part #WB62X10048

$115.95
8% OFF Phone Price : $125.95
In Stock
