Samsung
Bottom-Mount Refrigerator

Model # RF220NCTASG/AA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF220NCTASG-AA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

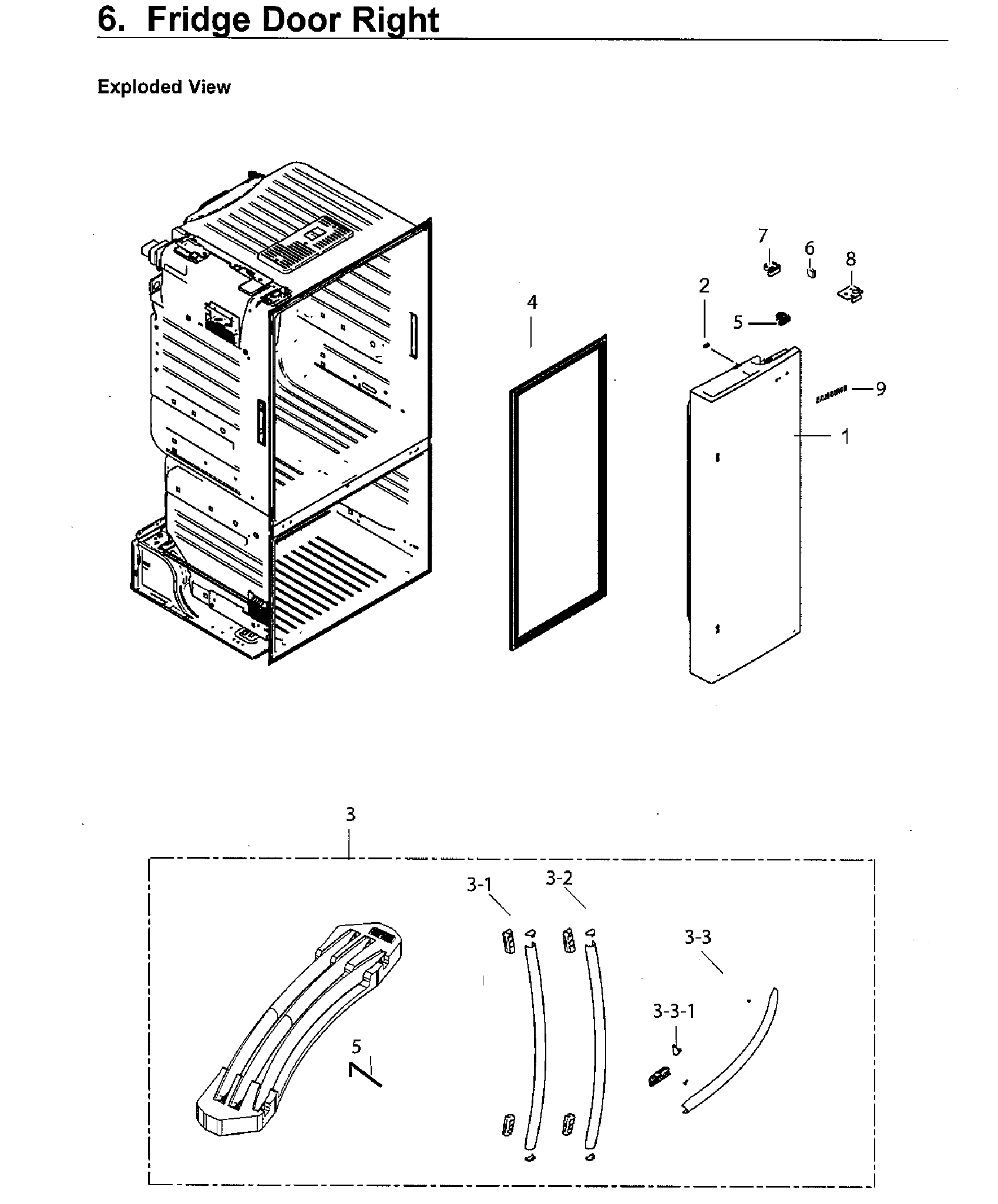

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Refrigerator Temperature Sensor DA32-10104N
#1-1

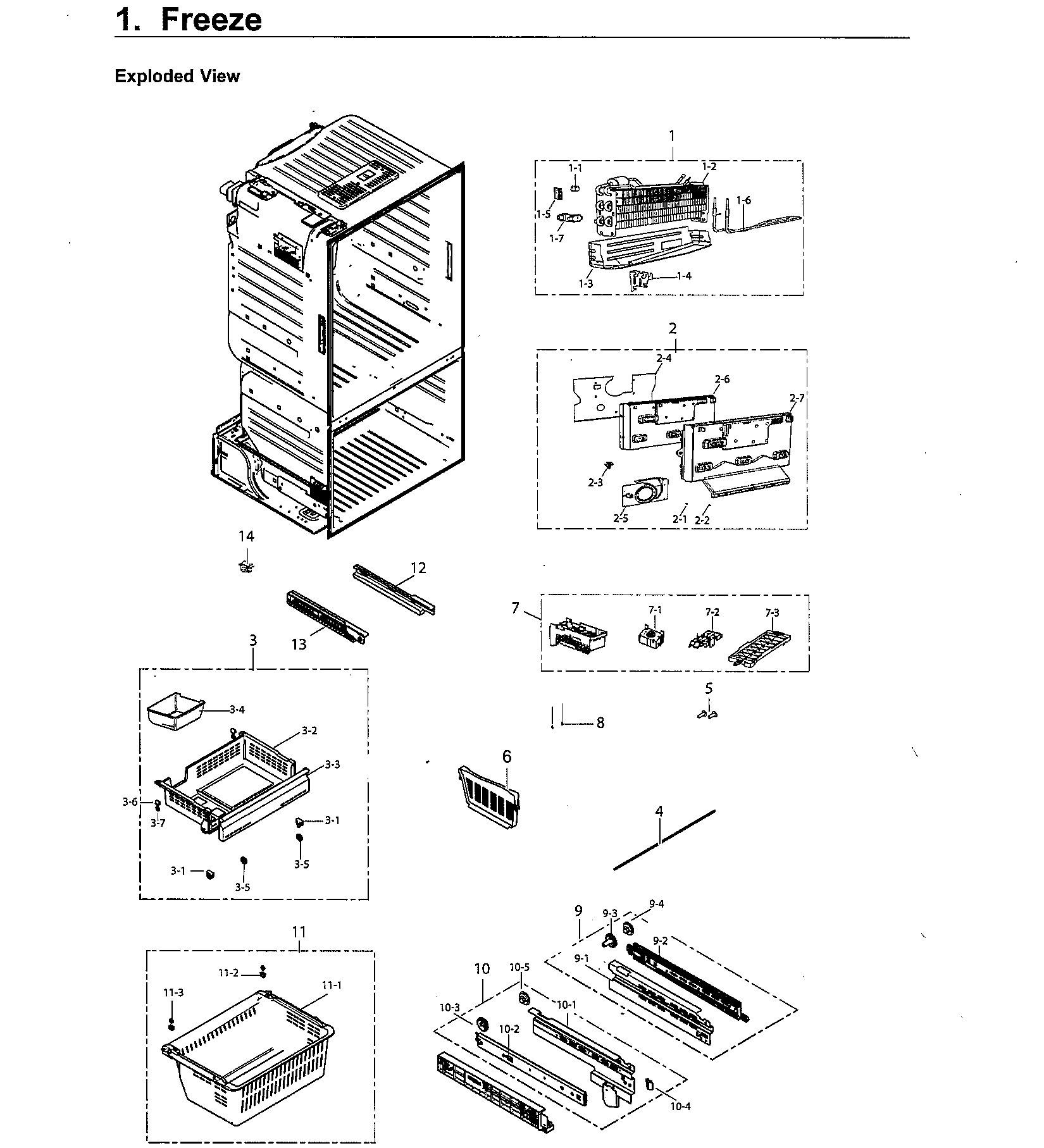

Freezer diagram

Refrigerator temperature sensor

Part #DA32-10104N

BEST SELLER
$25.98 |
19% OFF Phone Price : $31.98
In Stock
Refrigerator Ice Maker Assembly (replaces Da61-05227a, Da97-07603a) DA97-07603B
#7

Freezer diagram

Refrigerator ice maker assembly (replaces da61-05227a, da97-07603a)

Part #DA97-07603B

BEST SELLER
$174.42 |
6% OFF Phone Price : $186.42
In Stock
Filtr Dryr DA62-04309B
#24

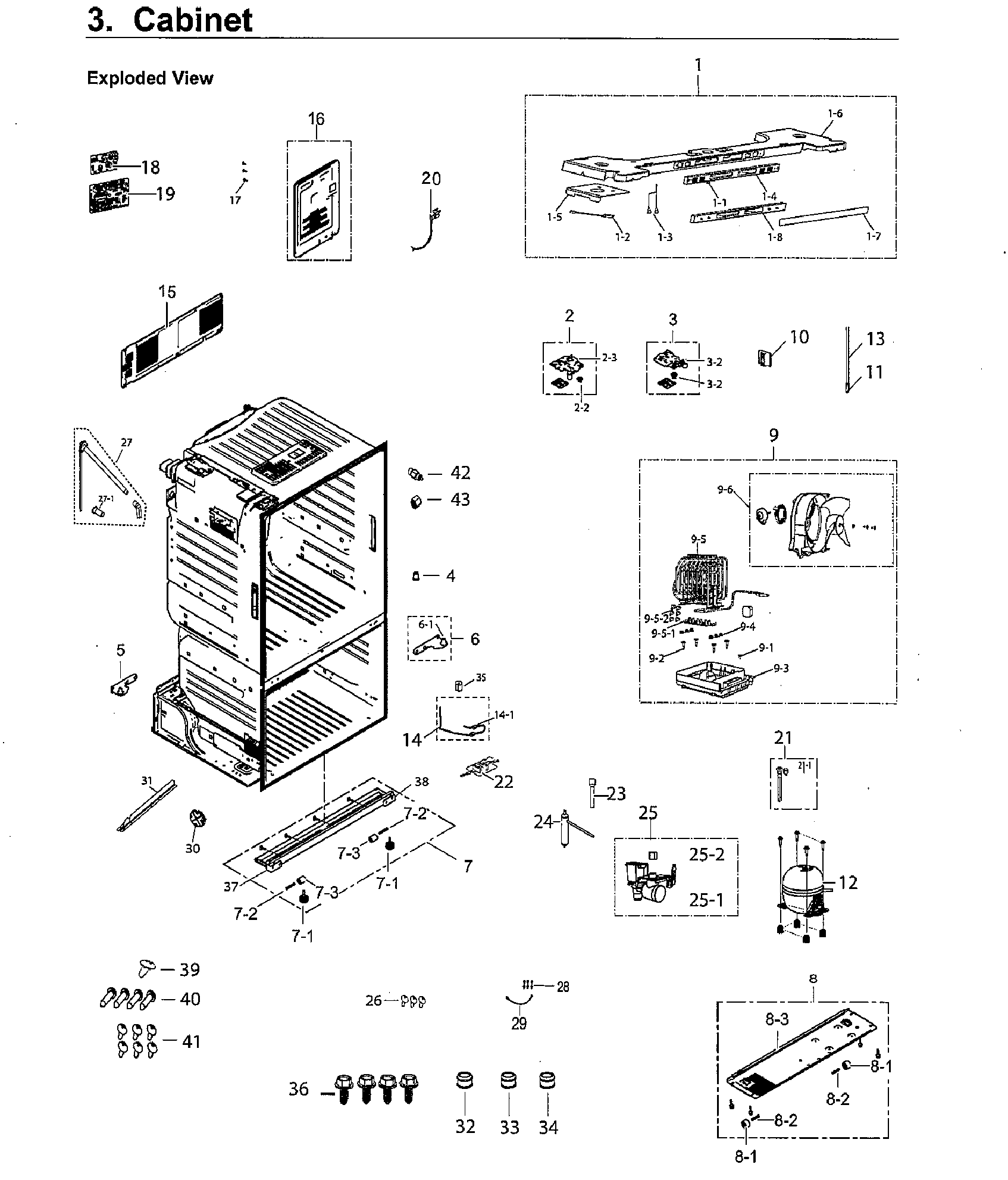

Cabinet diagram

Filtr dryr

Part #DA62-04309B

Replaced by #DA81-06006B

?
Manufacturer substitution
This part replaces DA62-04309B. Substitute parts can look different from the original.
BEST SELLER
$90.27 |
6% OFF Phone Price : $96.27
In Stock
Samsung Refrigerator Door Hinge, Left DA61-08309A
#2-1

Cabinet diagram

Samsung refrigerator door hinge, left

Part #DA61-08309A

BEST SELLER
$42.82 |
12% OFF Phone Price : $48.82
In Stock
Refrigerator Door Handle Mounting Screw DA61-11161A
#13-1

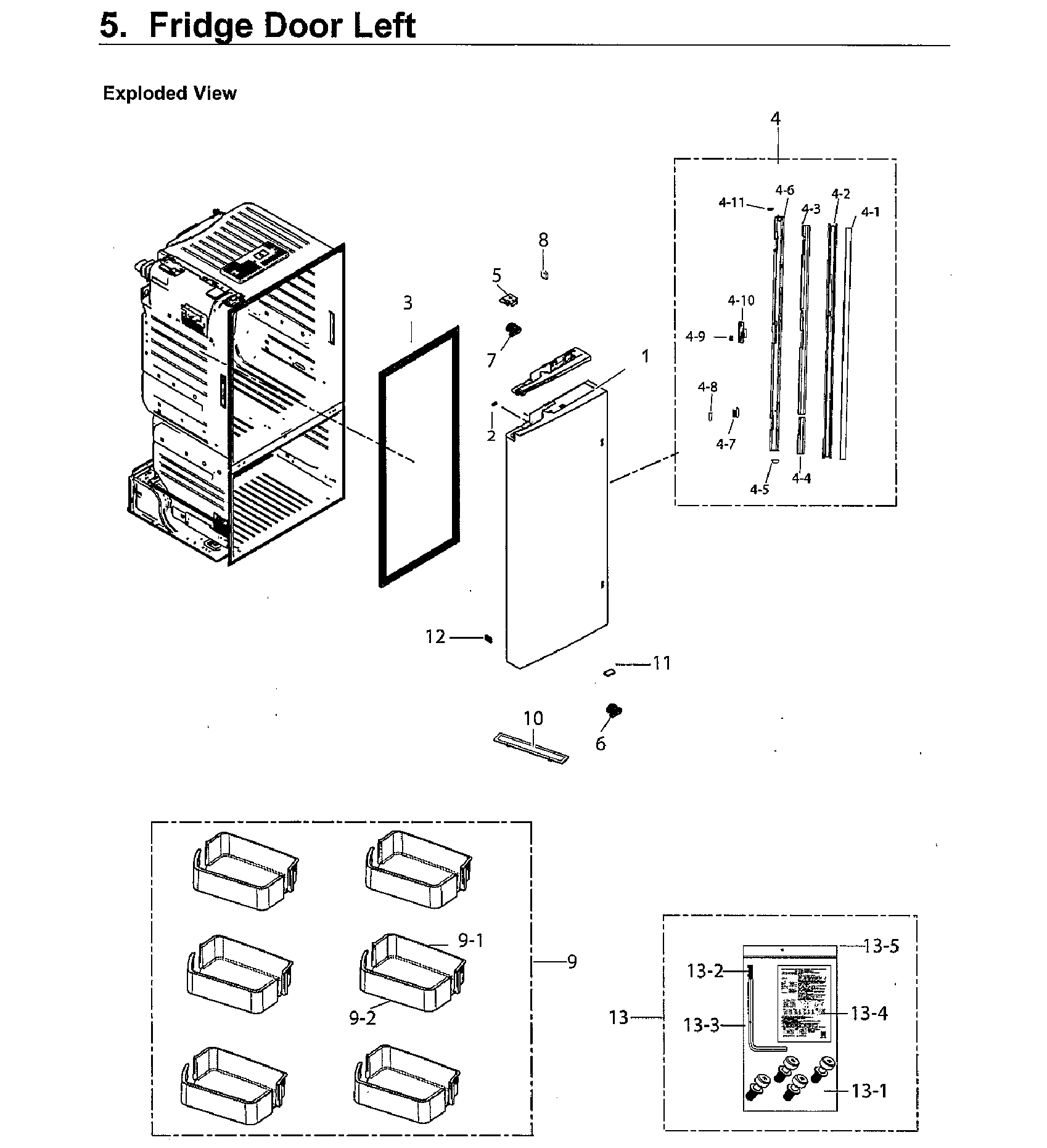

Left door diagram

Refrigerator door handle mounting screw

Part #DA61-11161A

BEST SELLER
This item is not returnable
$4.71 |
18% OFF Phone Price : $5.71
In Stock
Refrigerator Shelf Support, Right DA61-08786A
#10

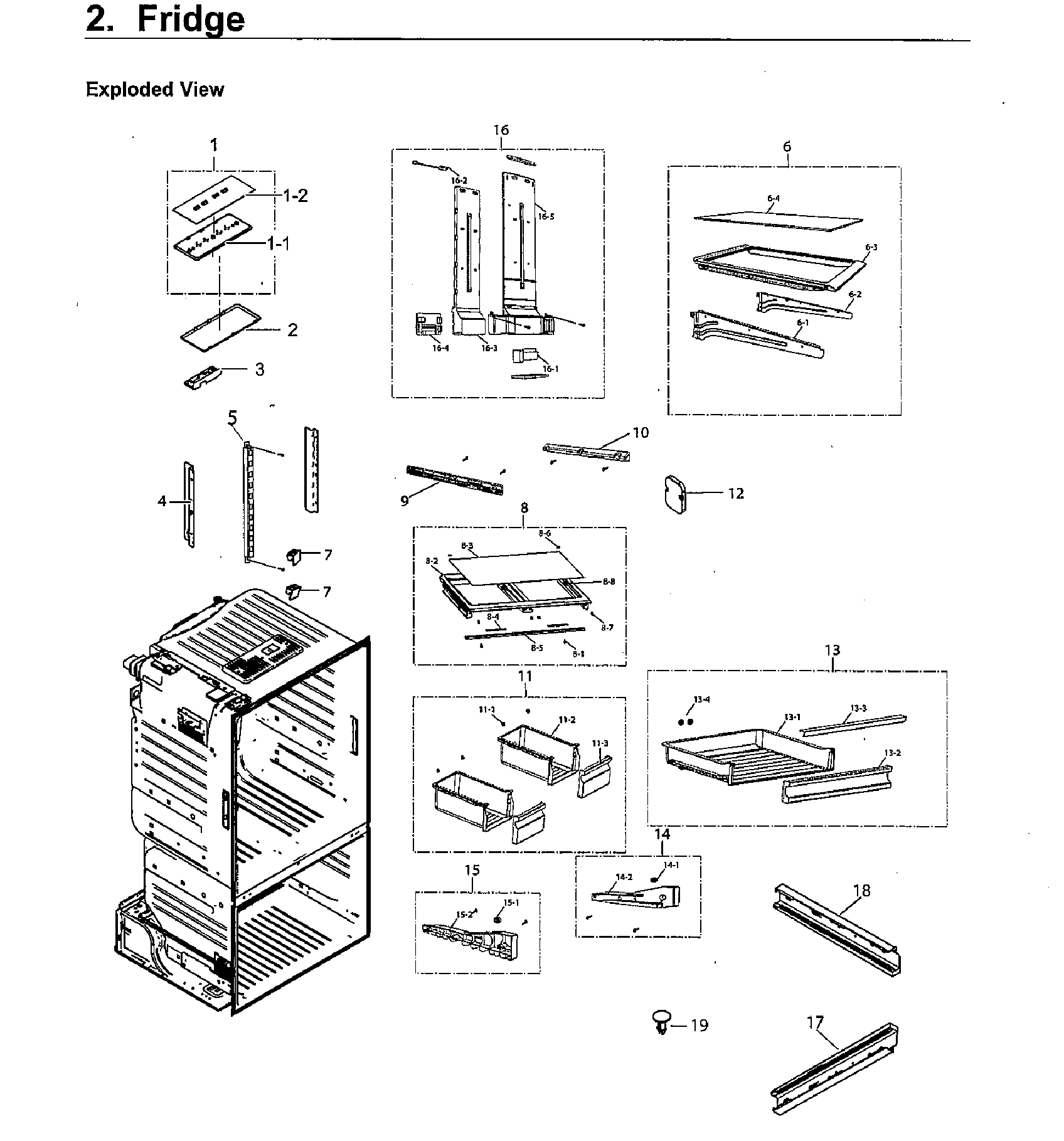

Fridge diagram

Refrigerator shelf support, right

Part #DA61-08786A

This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
Refrigerator Crisper Drawer Shelf Support, Left DA61-08785A
#9

Fridge diagram

Refrigerator crisper drawer shelf support, left

Part #DA61-08785A

This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
Back Order
Refrigerator Door Handle Mounting Stud DA61-03734A
#4

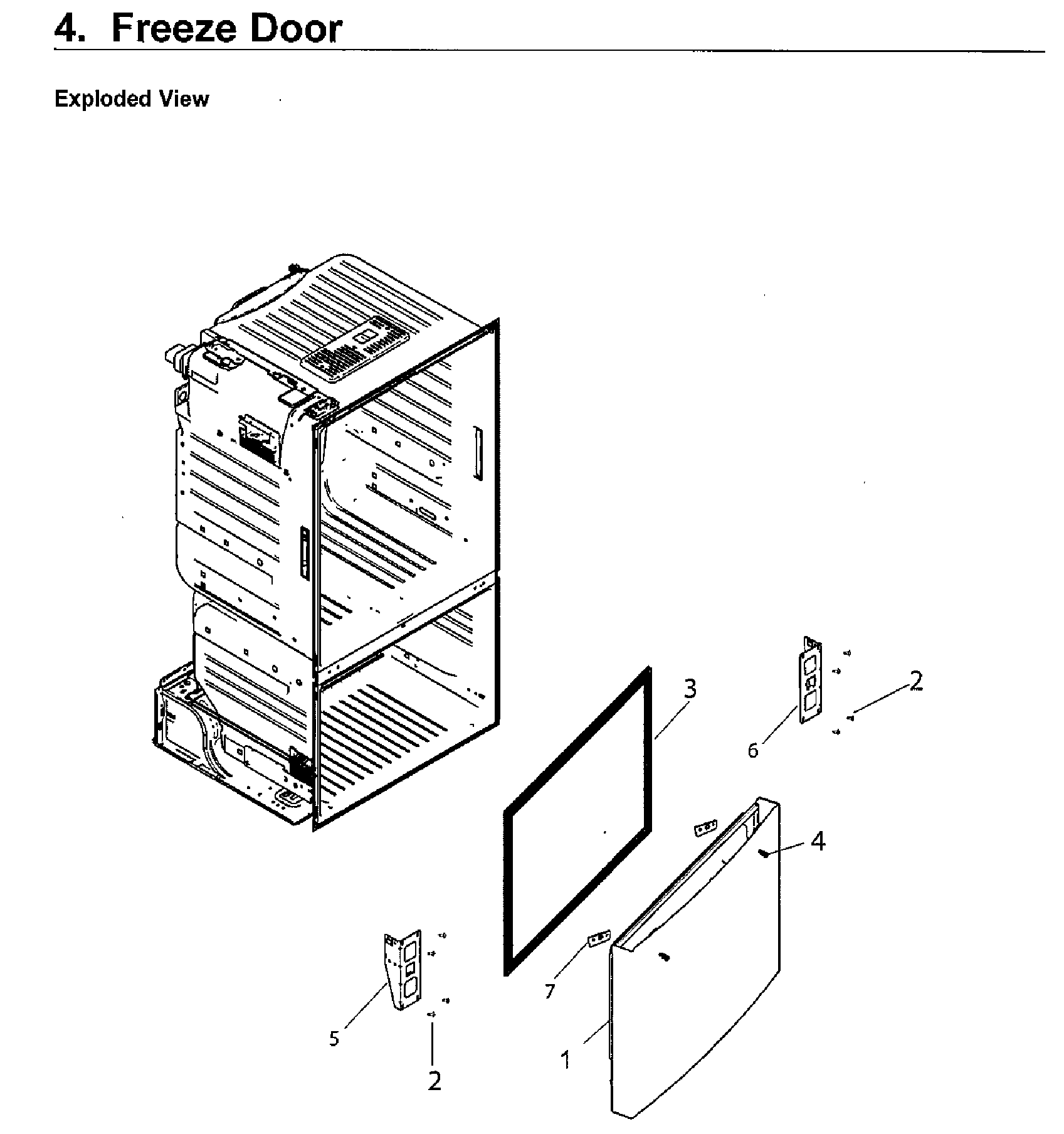

Freezer door diagram

Refrigerator door handle mounting stud

Part #DA61-03734A

This item is not returnable
$6.20 |
14% OFF Phone Price : $7.20
Back Order
Refrigerator Freezer Drawer Slide Rail, Right DA97-10595B
#9

Freezer diagram

Refrigerator freezer drawer slide rail, right

Part #DA97-10595B

Replaced by #DA97-10595E

?
Manufacturer substitution
This part replaces DA97-10595B. Substitute parts can look different from the original.
$140.97 |
8% OFF Was : $153.23
In Stock
Refrigerator Led Light DA41-00676J
#11

Left door diagram

Refrigerator led light

Part #DA41-00676J

$20.06 |
23% OFF Phone Price : $26.06
In Stock
