Kenmore 79690311900 dryer Parts

On the Kenmore dryer model 79690311900, the model number is printed on the identification plate inside the dryer door opening. Open the door and look along the door frame area on the cabinet for the label that lists both the model and serial number.

• Open the dryer door and inspect the cabinet frame around the opening
• Check the identification plate or rating label (it lists model and serial)
• Wipe dust off the label so the numbers are readable
• Take a photo of the label for ordering parts and service
• Record the model and serial in your 79690311900 owner's manual

The model number narrows your dryer to the exact Kenmore design so we can match the correct parts (like a drum belt, idler pulley, or thermostat) and the correct troubleshooting steps.

• Look for a sticker or metal plate just inside the door opening, not on the door itself
• Use a flashlight and check the upper and side edges of the opening
• If the label is damaged, use the information in the 79690311900 owner's manual to confirm where the identification plate is located

Kenmore dryers often share similar styling across series, but parts like the drive belt, moisture sensor, and thermostats can vary by model. Using the exact model number prevents ordering the wrong replacement.

Last updated: February 2026

A “Kenmore 80 Series” dryer size depends on the exact model number. For Kenmore model 79690311900, the drying capacity is IEC 7.3 cu. ft., and the cabinet measures 27 in. wide x 28 11/16 in. deep x 38 in. high (about 49 5/6 in. deep with the door open); see the 79690311900 owner’s manual.

Kenmore used “80 Series” across multiple manufacturers and years, so capacity and dimensions vary by model.

• Open the dryer door and look for the model/serial label inside the door opening
• Match the full model number (for example, 79690311900) to the correct manual
• Use the manual’s “Key dimensions and specifications” section for the official numbers
• If you are stacking or adding a pedestal, verify the required installed height and clearances
• Measure your laundry space and compare to the dryer dimensions plus venting clearance

These are common ranges across many Kenmore “80 Series” dryers; your exact specs come from the model’s manual.

Capacity affects how quickly loads dry and how much you can dry at once. Dimensions and clearances matter for safe installation, proper airflow, and avoiding vibration or noise issues.

For 79690311900, most installations need extra space for venting and door swing.

• Plan for about 5 1/2 in. behind the dryer for exhaust ducting
• Allow at least 1 in. on the sides and back to reduce vibration and noise
• Leave at least 21 in. in front so the door can open fully

Last updated: February 2026

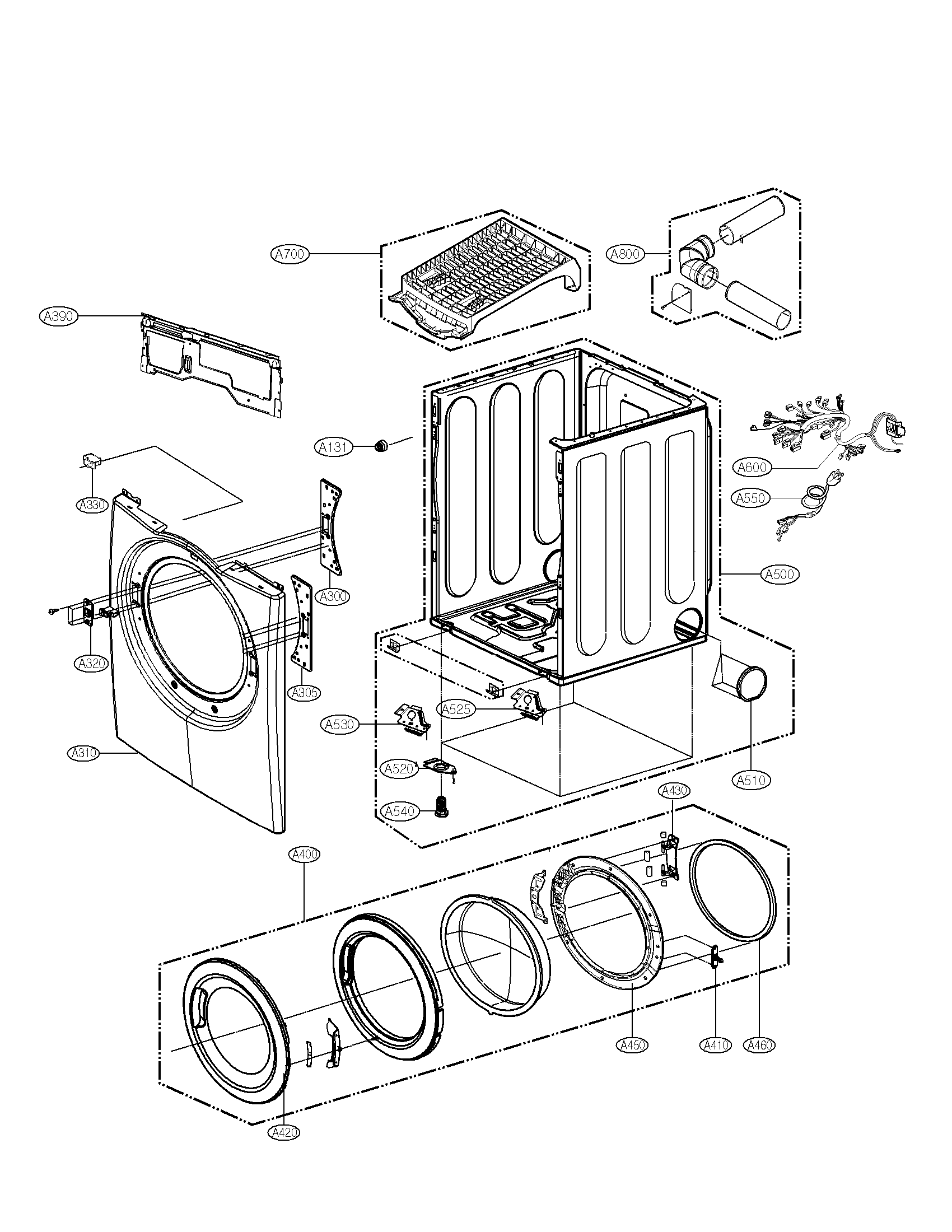

On Kenmore model 79690311900, removing the front panel typically means disconnecting power, lifting the top, removing the front mounting screws (often inside the door opening and along the top edge), then lifting the panel up and off while unplugging any door-switch wiring.

• Unplug the dryer from the wall outlet.
• If it is a gas dryer, turn off the gas supply valve.
• Pull the dryer forward enough to work comfortably.
• Protect the floor and the front edge with a towel or cardboard.
• Keep a small container for screws so nothing gets lost.

1. Remove the lint screen (if it sits in the top panel) and take out any screws near the lint screen opening.
2. Release the top panel: insert a putty knife a few inches in from each front corner to release the spring clips, then lift the top.
3. Disconnect the door switch harness (if the connector is on the front panel side).
4. Remove front panel screws:

• Open the door and remove screws around the door opening that secure the front panel.
• Remove any screws along the top edge of the front panel (under the lifted top).

5. Lift and remove the front panel: tilt the panel forward slightly, lift it up off the lower retaining tabs, and set it aside.

Removing the front panel the right way prevents bent panels, broken plastic clips, and pinched wiring. It also makes belt, idler pulley, and drum support repairs much easier and more reliable.

For model-specific fastener locations and any wiring connector details, follow the 79690311900 manual.

Last updated: February 2026

On Kenmore model 79690311900, the E1 error points to an exhaust temperature problem (the dryer is sensing exhaust air that is too cold or too hot). The most common causes are restricted airflow in the venting system or a failing temperature sensor circuit.

• Clean the lint screen and confirm it seats correctly; a damaged screen can reduce airflow (see lint filter 5231EL1003B).
• Inspect the exhaust duct for kinks, crushed flex duct, heavy lint buildup, or a blocked exterior hood.
• Run a timed dry cycle and watch for the Check Vent indicator; this model uses a duct blockage sensing system.
• Make sure the dryer is not pushed too close to the wall, pinching the vent.
• If airflow is weak at the outside hood, clean the full vent run before replacing parts.

If the venting is clear and E1 returns, focus on the temperature-sensing and overheat protection components.

Model-matched parts that relate to exhaust temperature control include the dryer blower thermostat 6931EL3002M and dryer high-limit thermostat AGM30045804.

E1 is often an airflow warning in disguise. A restricted exhaust system makes drying slow, raises operating temperatures, and can cause repeated shutdowns and thermostat trips. Keeping the vent path clear improves efficiency and reduces service calls.

Last updated: February 2026
