Maytag DE882 washer/dryer Parts

On a Maytag dryer like model DE882, the model number is printed on the appliance’s rating label. We most often see that label on the door opening (door jamb) or on the back of the cabinet near the top.

• Open the dryer door and look around the door opening on the cabinet frame
• Check the inside edge of the door itself

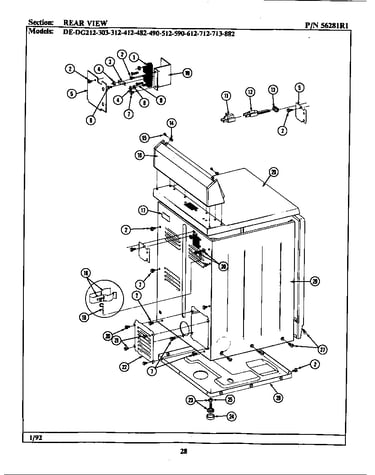

• Look on the back panel near the top (upper left or upper right)
• Check the lower front area behind the toe panel (if your dryer has one)
• For stacked or tight installs, use a flashlight and mirror to read the label

The rating label typically includes:

• Model number (for example, DE882)
• Serial number
• Electrical information (volts/amps)
• Sometimes a manufacturing code

Write the model number exactly as shown; that is what we use to match Maytag dryer parts like a heater element, lint screen, drum support roller, or thermostat.

Using the exact model number helps us avoid mismatched parts and repeat repairs, especially on fit-sensitive items like the dryer drum felt seal WP314820 and drum support components.

Last updated: February 2026

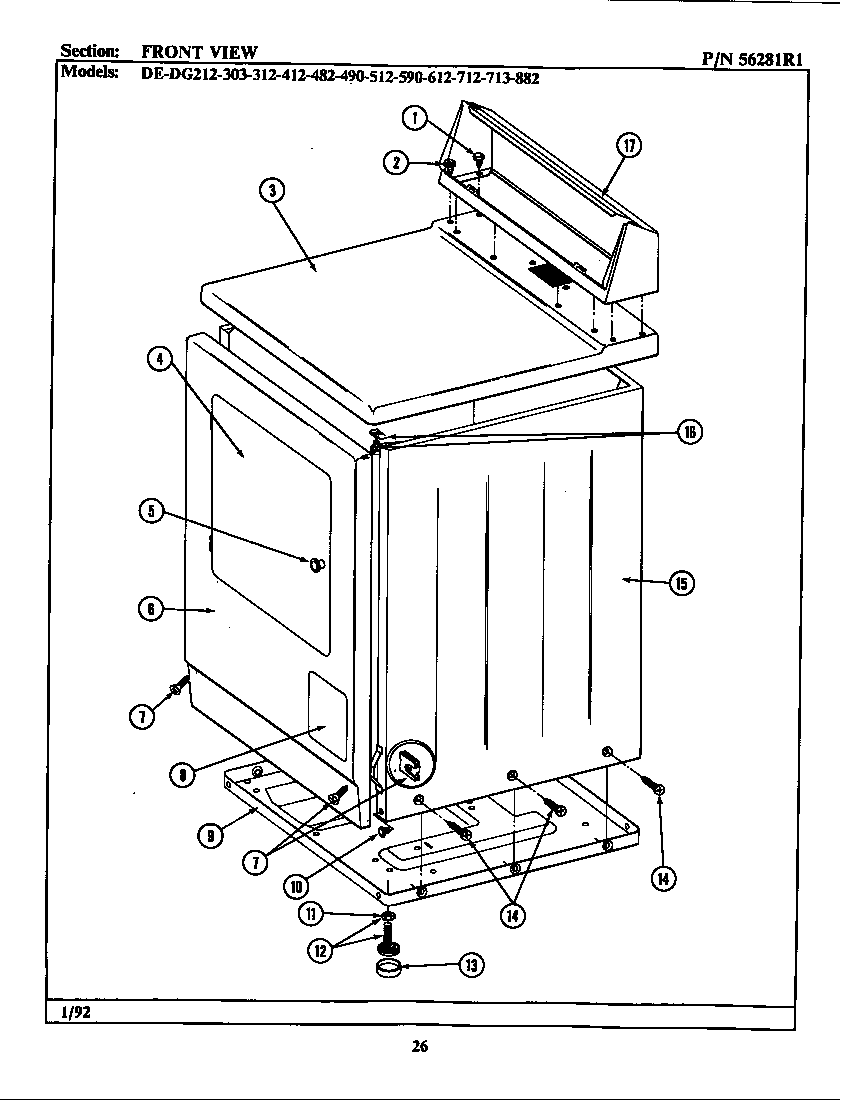

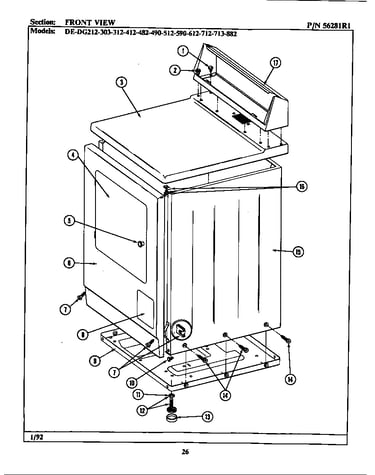

To remove the front panel on a Maytag DE882 front-load dryer, we unplug the dryer first, then remove the top and front fasteners so the front panel can lift off its lower retaining clips and disconnect any door-switch wiring.

• Unplug the dryer (or switch off the breaker for a hardwired unit).
• If it is gas, shut off the gas supply valve.
• Pull the dryer forward so you can work from the front and sides.
• Protect the floor and the front edge with cardboard or a towel.
• Keep a small cup for screws so nothing gets lost.

1. Remove the lint screen (if it pulls out from the top) and any screws that may be under that opening.
2. Take off the top panel: remove screws at the back edge, then slide the top back and lift it off.

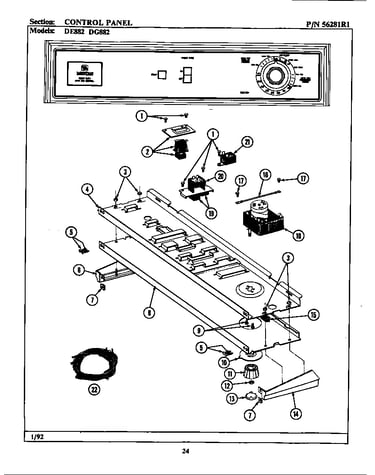

3. Remove the control console screws (if the console overlaps the front panel) and tilt the console back enough to access the top-front screws.
4. Remove the front panel mounting screws along the top inside edge.
5. Lift the front panel up and out to release it from the bottom retaining clips.

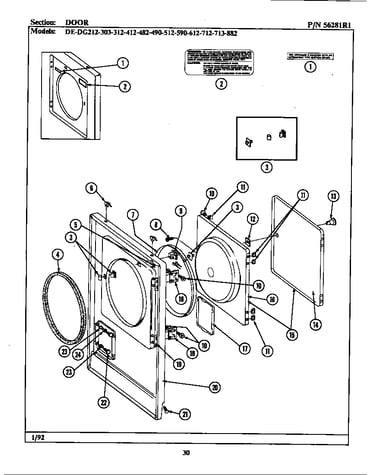

6. Disconnect wiring as you pull the panel away (commonly the door switch harness).

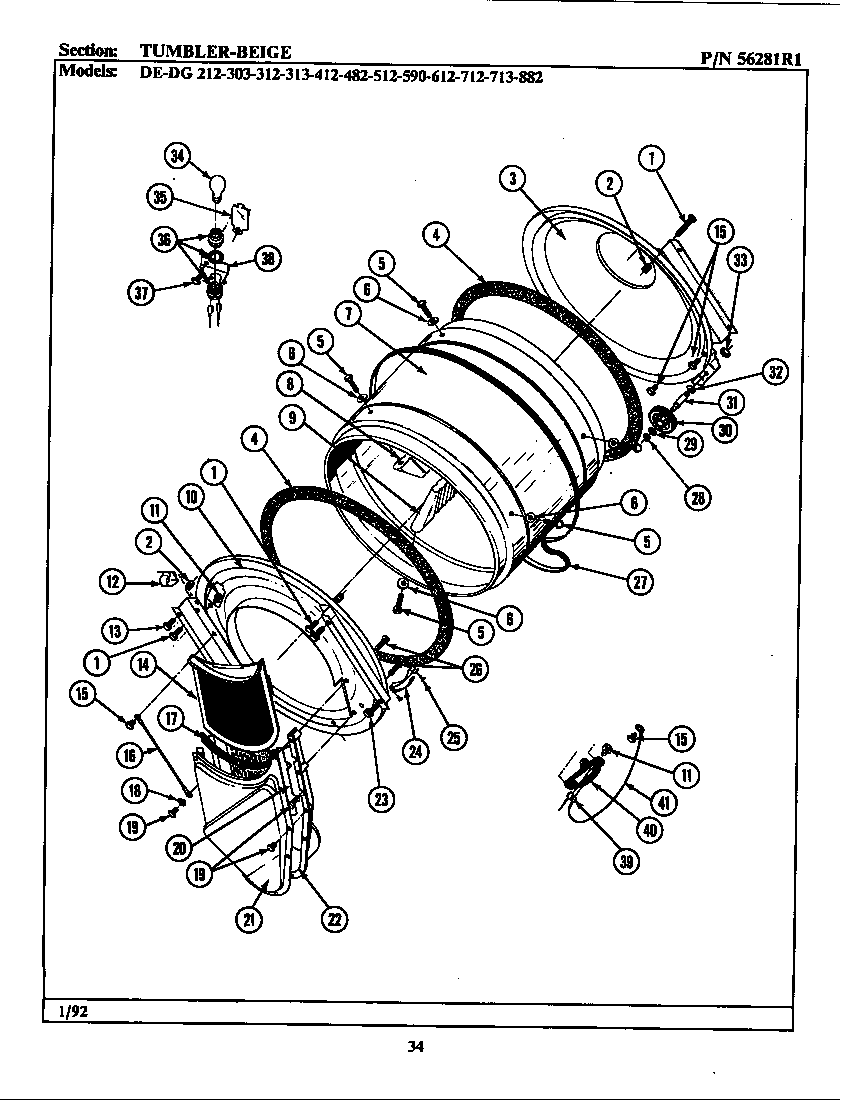

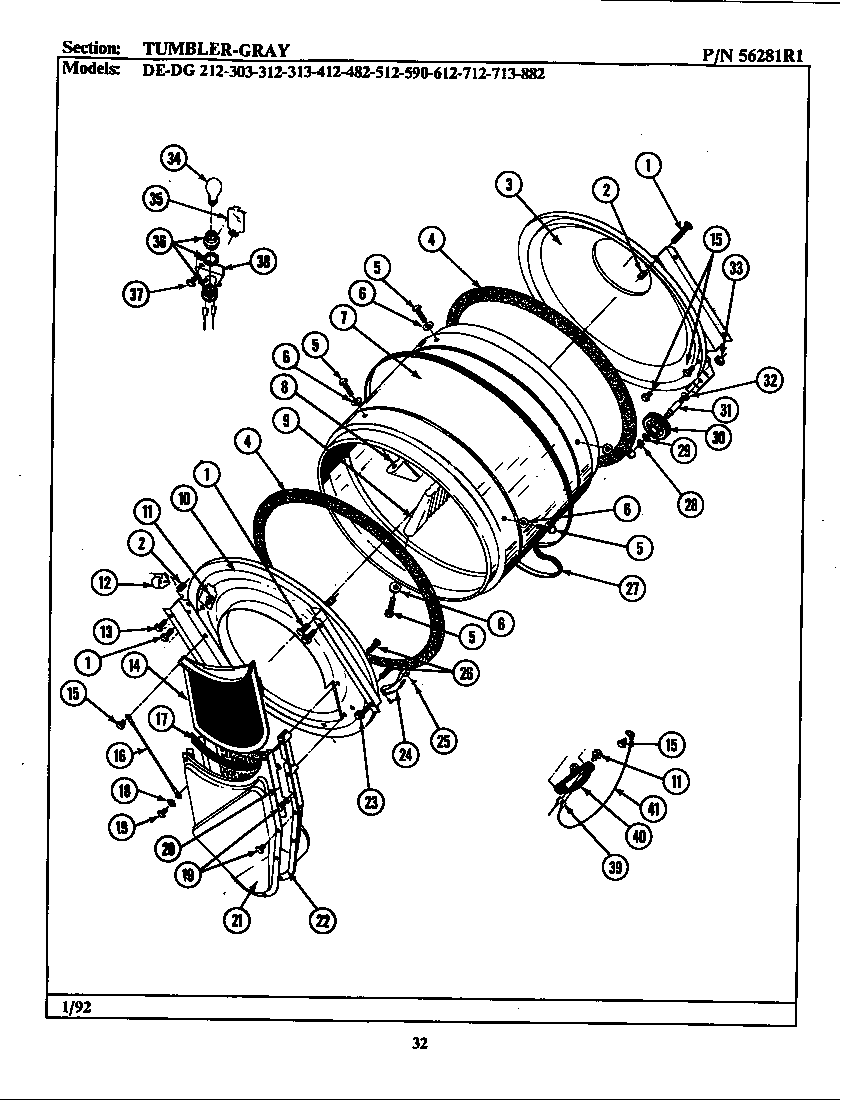

If you are opening the dryer because of noise, rubbing, or poor tumbling, we check these common wear items:

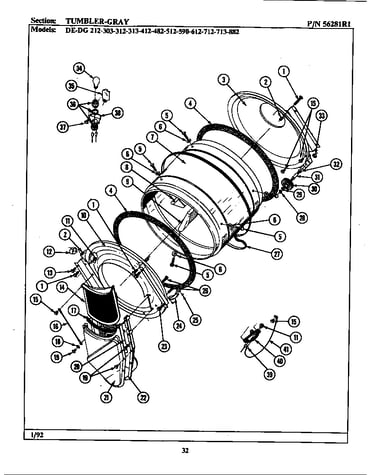

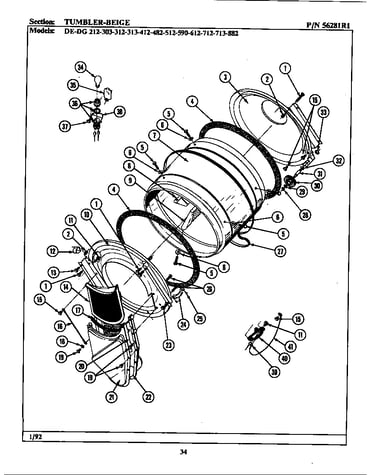

• Drum support rollers for flat spots or wobble
• Drum felt seals for tearing or missing sections
• Blower wheel for cracks or lint-packed fins
• Heater area for lint buildup (electric models)

Removing the front panel correctly prevents broken plastic tabs, stripped screw holes, and damaged door-switch wiring; it also gives you safe access to the drum, blower housing, and heater components for cleaning and repair.

Last updated: February 2026

A Maytag dryer like model DE882 typically lasts 13 years with normal household use. With consistent airflow maintenance and timely replacement of wear parts, it commonly reaches 15 to 20 years, especially on older, simpler designs.

These are the most common life-shorteners we see on Maytag dryers:

• Restricted venting (long runs, crushed flex duct, clogged hood)
• Skipping lint screen cleaning
• Overloading the drum (extra strain on rollers and bearings)
• Running with squealing or thumping (support parts wearing through)
• Heat problems that go unfixed (overheating stresses wiring and thermostats)

If the dryer still heats and tumbles, replacing a few wear items can extend service life significantly:

• Roller w/bea 12001541 (drum support roller; common source of thumping)
• Dryer drum bearing kit 306508 (supports drum rotation; wear can cause rumbling)
• Dryer drum felt seal WP314820 (helps seal airflow; wear can reduce drying performance)
• Impeller Y303836 (blower wheel; damage can reduce airflow and increase dry times)

Most “old dryer” complaints are really airflow or drum-support issues. Keeping lint and venting under control reduces drying time, lowers operating temperature, and prevents premature wear on the heater circuit and moving parts.

Last updated: February 2026

On a Maytag dryer, an F22 error points to a problem in the exhaust temperature sensing circuit (commonly the outlet or exhaust thermistor) and it often shows up when airflow is restricted. On model DE882, start by fixing venting and lint buildup, then test the heating control parts.

• Unplug the dryer; let it cool for 10 minutes.
• Clean the lint screen and the lint screen housing; replace a damaged screen such as the lint screen WP33001003.
• Inspect the vent hose for kinks, crushing, or long runs; shorten and straighten where possible.
• Clean the outside vent hood; confirm the damper opens freely.
• Run a timed heat cycle with the vent disconnected briefly (only long enough to test airflow); strong airflow suggests the house vent is restricted.

F22 is usually about temperature sensing, but overheating from poor airflow can also stress heating controls.

If airflow is good and F22 returns, check these common DE882-RELATED items:

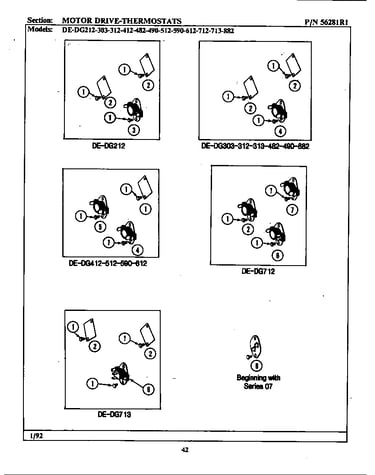

• Cycling thermostat WPY304475 (can open/close incorrectly)

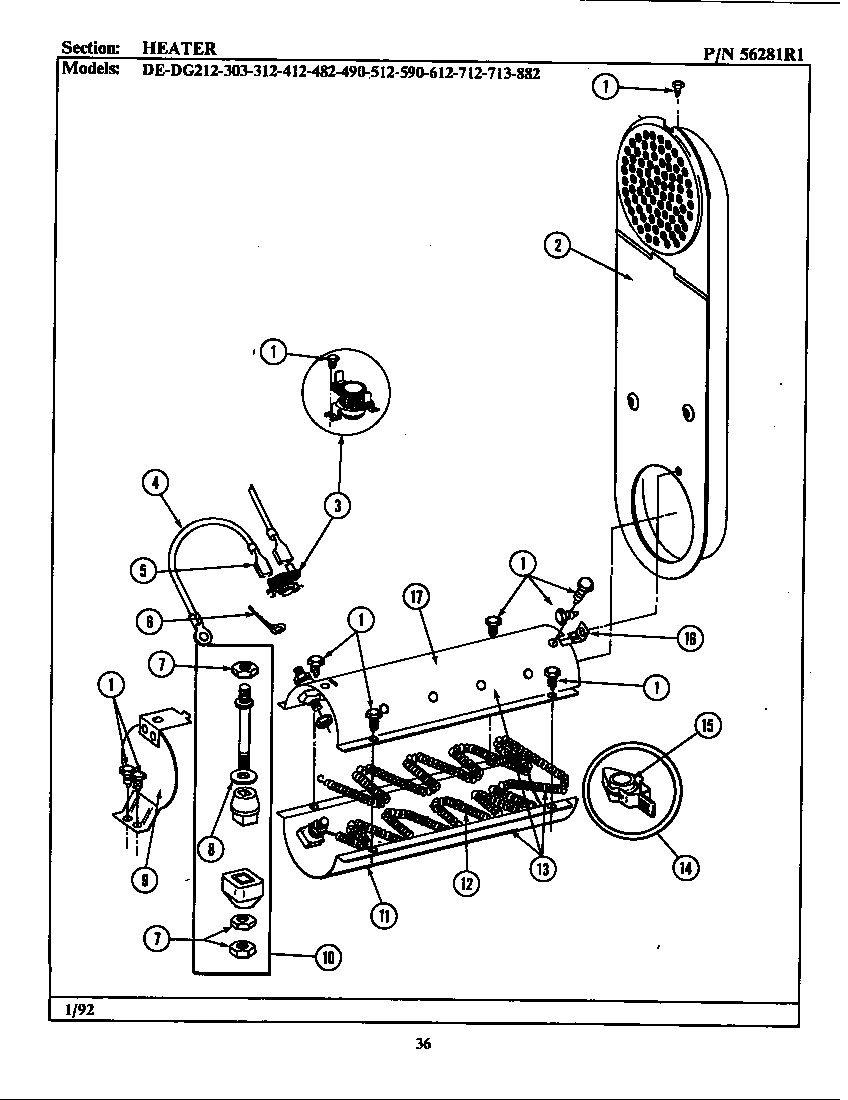

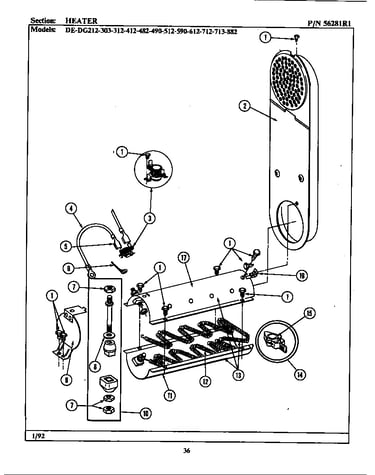

• Heater element WPY313538 (can short to the heater housing)

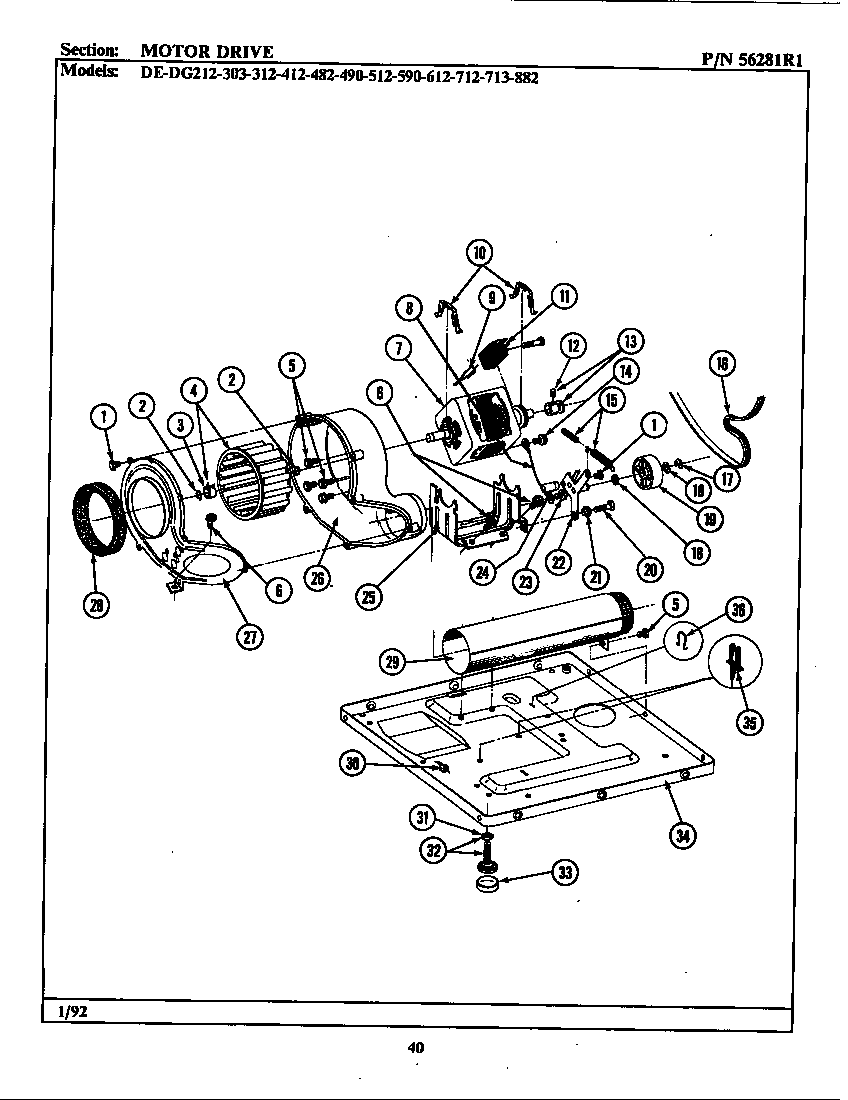

• Blower wheel and sealing (a loose wheel can reduce airflow)

The dryer relies on steady airflow to keep exhaust temperatures in range. When airflow drops, temperatures rise quickly, the control senses abnormal readings, and the dryer may stop to protect the heater and wiring.

Use a meter to check components safely and consistently; our how to use a multimeter to test electrical parts video walks through the basics you will use on thermostats and heater circuits.
