Kenmore Pro 66513173K702 dishwasher Parts

For Kenmore dishwasher model 66513173K702, the installation opening is 23 7/8 inches wide, 24 inches deep, and 33 7/8 inches high (floor to top of the unit). These are the key fit dimensions to confirm before sliding the dishwasher into the cabinet cutout; see the installation guide.

What to measure before you install

We recommend measuring the cabinet opening and the path to the opening (not just the dishwasher itself):

• Opening width: 23 7/8 in.
• Opening depth: 24 in.
• Opening height: 33 7/8 in.
• Flooring clearance: keep the motor and legs from contacting the floor surface
• Routing space: keep drain line, water line, and wiring away from the motor and legs

Quick reference table

Measurement	What it means	Target for 66513173K702
Width	Inside cabinet opening side-to-side	23 7/8 in.
Depth	Front of opening to back wall	24 in.
Height	Floor to underside of countertop	33 7/8 in.

Why it matters

If the opening is too tight, the dishwasher can bind during installation, rub the cabinet, or sit out of level. If the height is short, the unit may not fit under the countertop; if it is tall, you may need to adjust the leveling legs to prevent vibration and door alignment issues.

Installation tips that prevent fit problems

• Measure in multiple spots (front and back of the opening) to catch out-of-square cabinets.
• Confirm the dishwasher will not be installed over carpet.
• Protect the unit and supply lines from freezing conditions.
• Use shims if you have a built-up floor so the dishwasher sits level.

Last updated: February 2026

Your Kenmore dishwasher model number is printed on the rating label inside the door. On Kenmore Pro dishwashers like model 66513173K702, you will typically find that label on the inner door edge or along the tub frame when you open the door.

Where to look for the model number

Check these common label locations first (with the door open):

• Along the left or right inner door edge
• On the tub frame just inside the door opening
• Near the top or side of the door liner
• Occasionally on the side wall of the tub opening

What to write down (and why)

Record the information exactly as shown on the label:

• Model number (this is what we use to match parts diagrams)
• Serial number (helps identify production run details)
• Brand line (Kenmore, Kenmore Pro)

Why it matters

Kenmore dishwashers can look similar across multiple series, but parts like a drain pump, water inlet valve, or electronic control board can vary by model. Using the exact model number helps ensure the replacement part fits and the repair instructions match your unit.

Quick checklist: confirm you have the right model

Use this checklist before ordering parts:

• The model number on the label matches character for character
• You include any suffix letters or extra digits (for example, K702)
• You use the full model number when checking diagrams and parts lists

Model number examples (what “complete” looks like)

Example	Complete?	Why
66513173K702	Yes	Full model number including suffix
66513173	No	Missing the suffix that can change parts
13173K702	No	Missing the leading series digits

Helpful next step

Once you have the model number, use the owner's manual to confirm feature set and operating details, then match parts by model to avoid returns.

Last updated: February 2026

Water standing in the bottom of your Kenmore 66513173K702 dishwasher usually means the unit is not draining fully because of a blockage (filter, drain hose, disposer connection) or a drain component problem (pump). Start with the filter and drain path checks in the owner's manual.

What to check first (fast, no parts)

• Confirm the cycle finished; if Start/Resume is blinking, press Start/Resume and close the door within 3 seconds.
• Look for food debris in the filter area and sump; clean out any buildup.
• If connected to a food waste disposer, make sure the disposer inlet knockout plug was removed.
• Inspect the drain hose routing for kinks, crushing, or a high loop problem.
• Check for suds or foam (wrong detergent can prevent proper draining and filling).

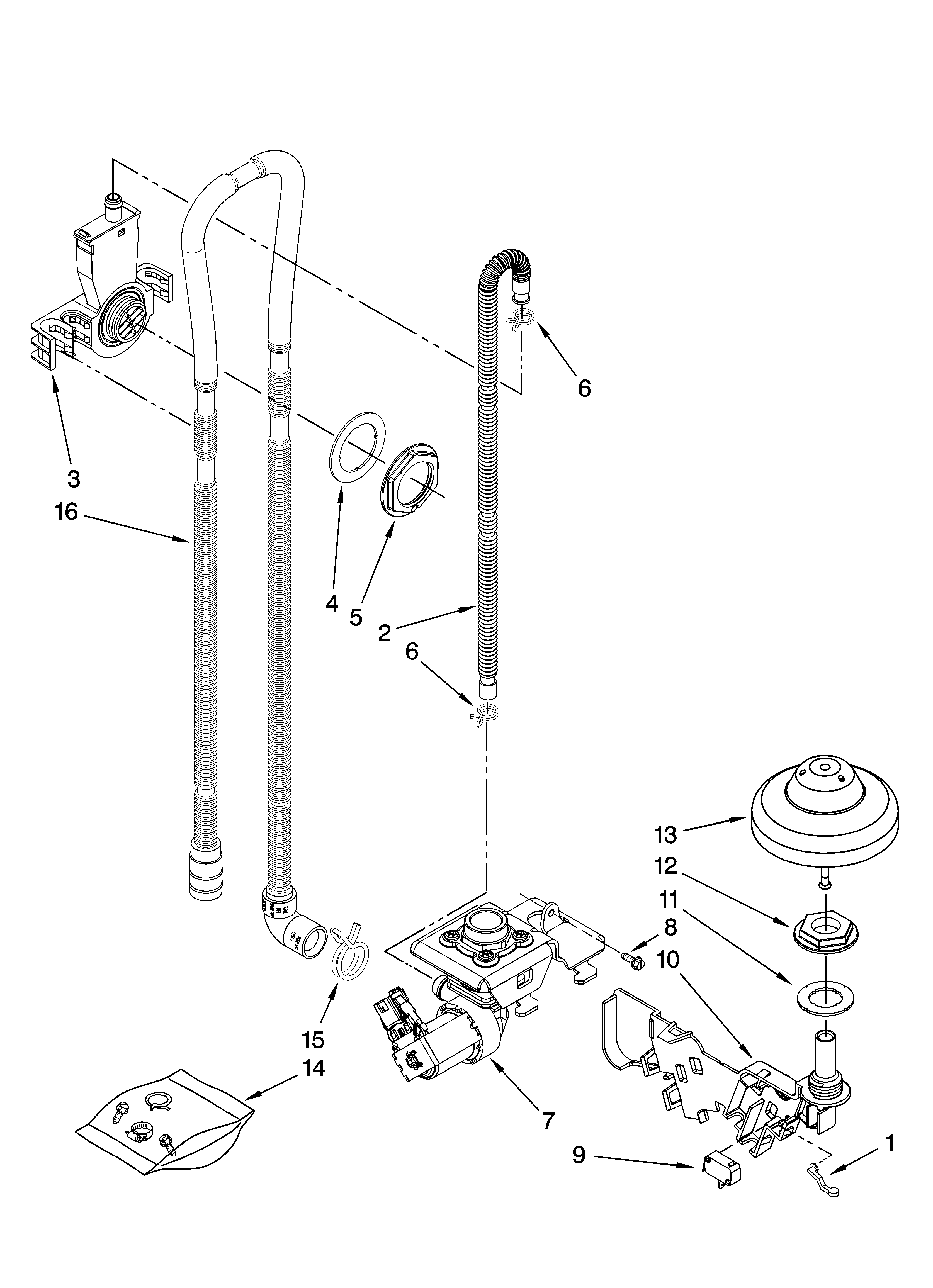

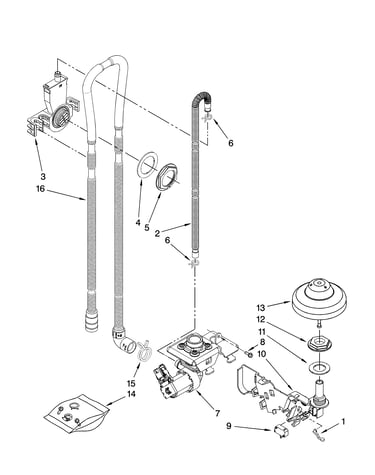

Drain system checks that fix most “standing water” complaints

1. Filter and sump: Remove and clean the filter; rinse under hot water and scrub off grease.
2. Drain hose: Disconnect power, then check the hose for clogs and verify it is not pinched.

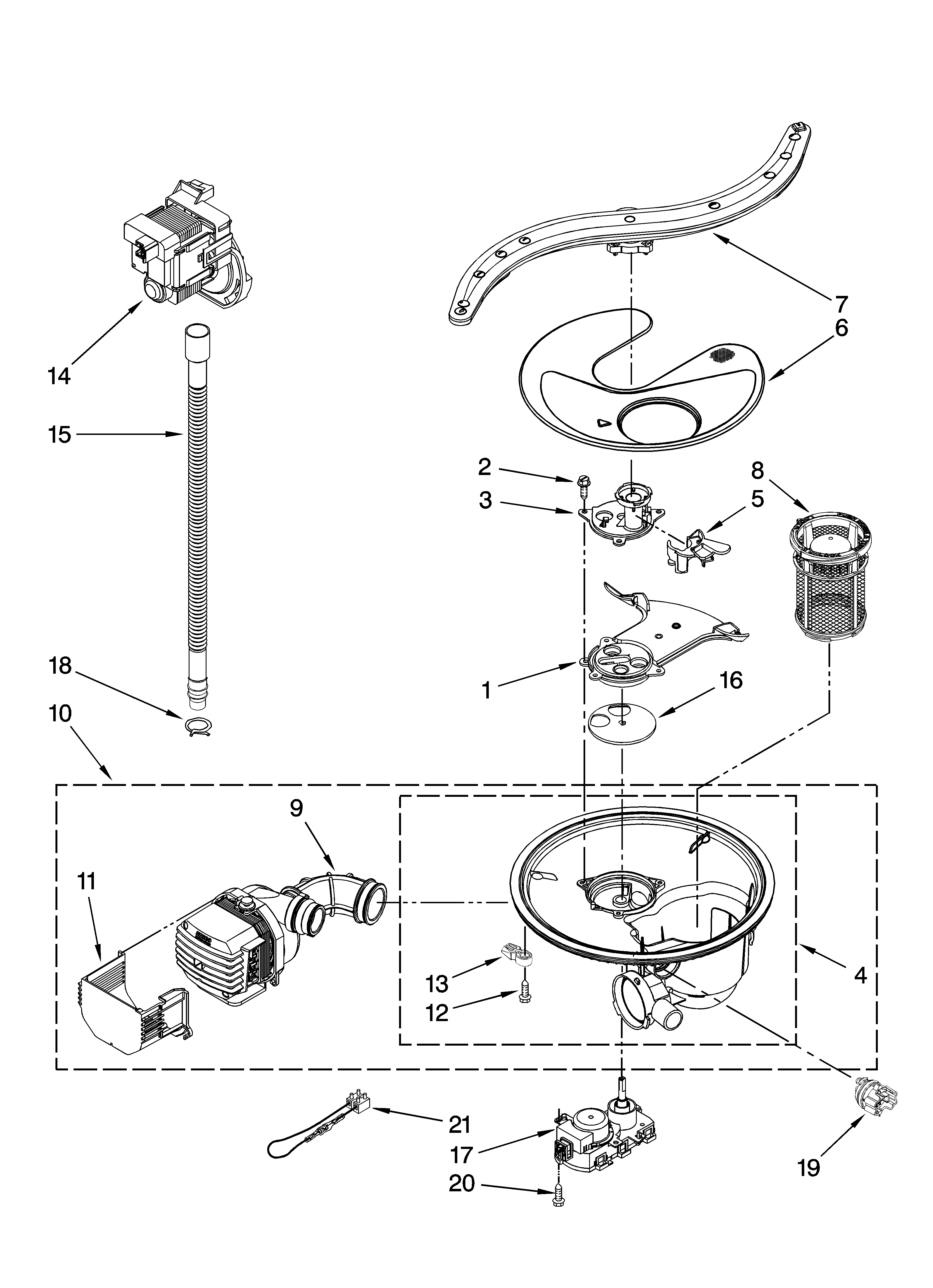

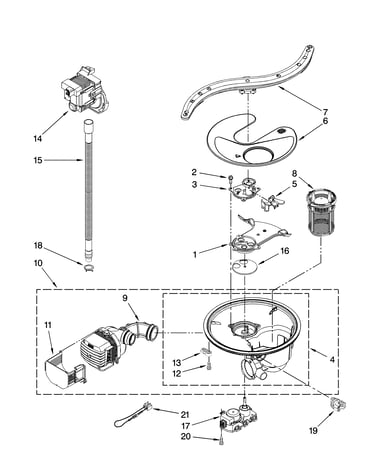

3. Pump area: If you hear a hum but little or no draining, the pump may be jammed or failing.

If you need a replacement, the model uses a dedicated drain pump; see the dishwasher drain pump WPW10348269.

Quick symptom guide

What you notice	Most likely cause	What we do next
Water remains after every cycle	Clogged filter or drain path	Clean filter, check disposer knockout, check hose
Humming but no drain	Pump jam or failed pump	Clear obstruction; replace drain pump if needed
Drains sometimes, not always	Partial clog or kinked hose	Inspect hose routing; clear restriction
Suds/foam in tub	Wrong detergent or rinse aid issue	Remove suds, switch to dishwasher detergent

Why it matters

Standing water can redeposit soil on dishes, cause odors, and strain the drain pump and motor over time. Clearing the drain path early prevents repeat clogs and helps the dishwasher complete cycles normally.

Last updated: February 2026

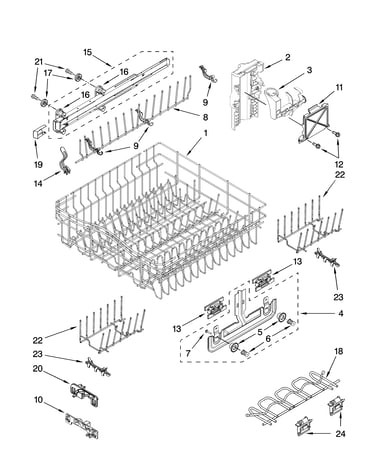

Yes, some Kenmore dishwasher racks and rack components can interchange, but only when the rack style, wheel/track design, and mounting points match your dishwasher. For Kenmore Pro model 66513173K702, we recommend matching by the exact rack assembly and adjuster hardware shown in the 66513173K702 owner's manual.

What “interchangeable” means for racks

Racks are only truly interchangeable when these features line up:

• Track stop and wheel style (upper rack must fit the rails and stops)
• Rack width and depth (must clear the tub walls and spray arm)
• Adjuster and clip locations (height adjusters, tine pivot clips, inserts)
• Spray coverage compatibility (rack height affects wash performance)
• Accessory fit (silverware basket, inserts, fold-down shelves)

The manual for this model describes a removable top rack and how the track stops open/close, which is a key compatibility checkpoint when swapping an upper rack.

Quick compatibility checklist (upper vs. lower)

Use this as a fast way to avoid ordering the wrong rack.

Item to match	Upper rack	Lower rack
Track and wheel interface	Must match exactly	Not applicable
Height/adjuster hardware	Often model-specific	Sometimes model-specific
Spray arm clearance	Critical	Critical
Basket/insert fit	Common issue	Common issue

Parts that often need replacement with a rack

If the rack itself is fine but it will not roll, sit level, or hold items, these parts are common fixes:

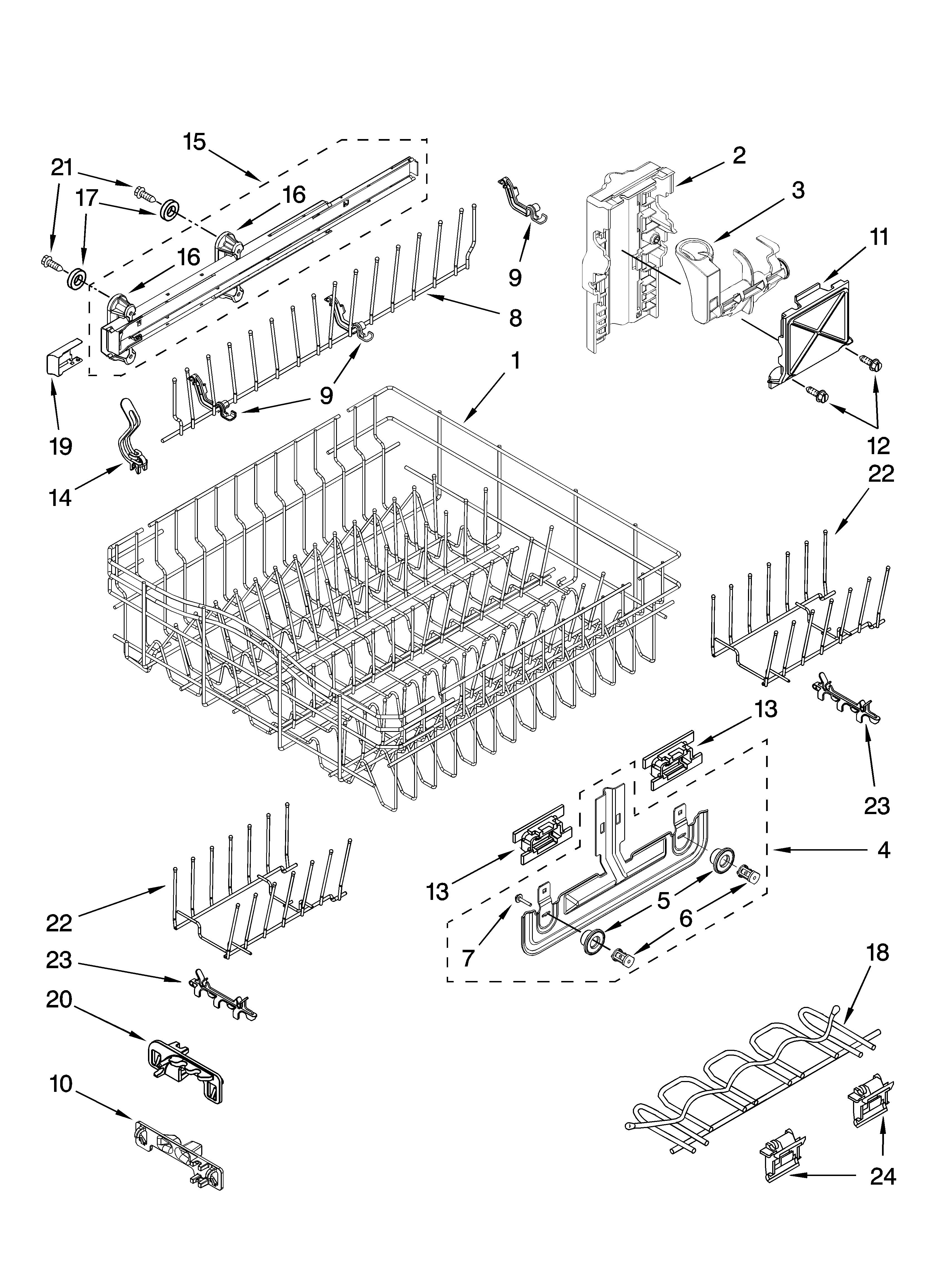

• Dishwasher dishrack, upper W10728863 (if the rack frame is bent or rusted)

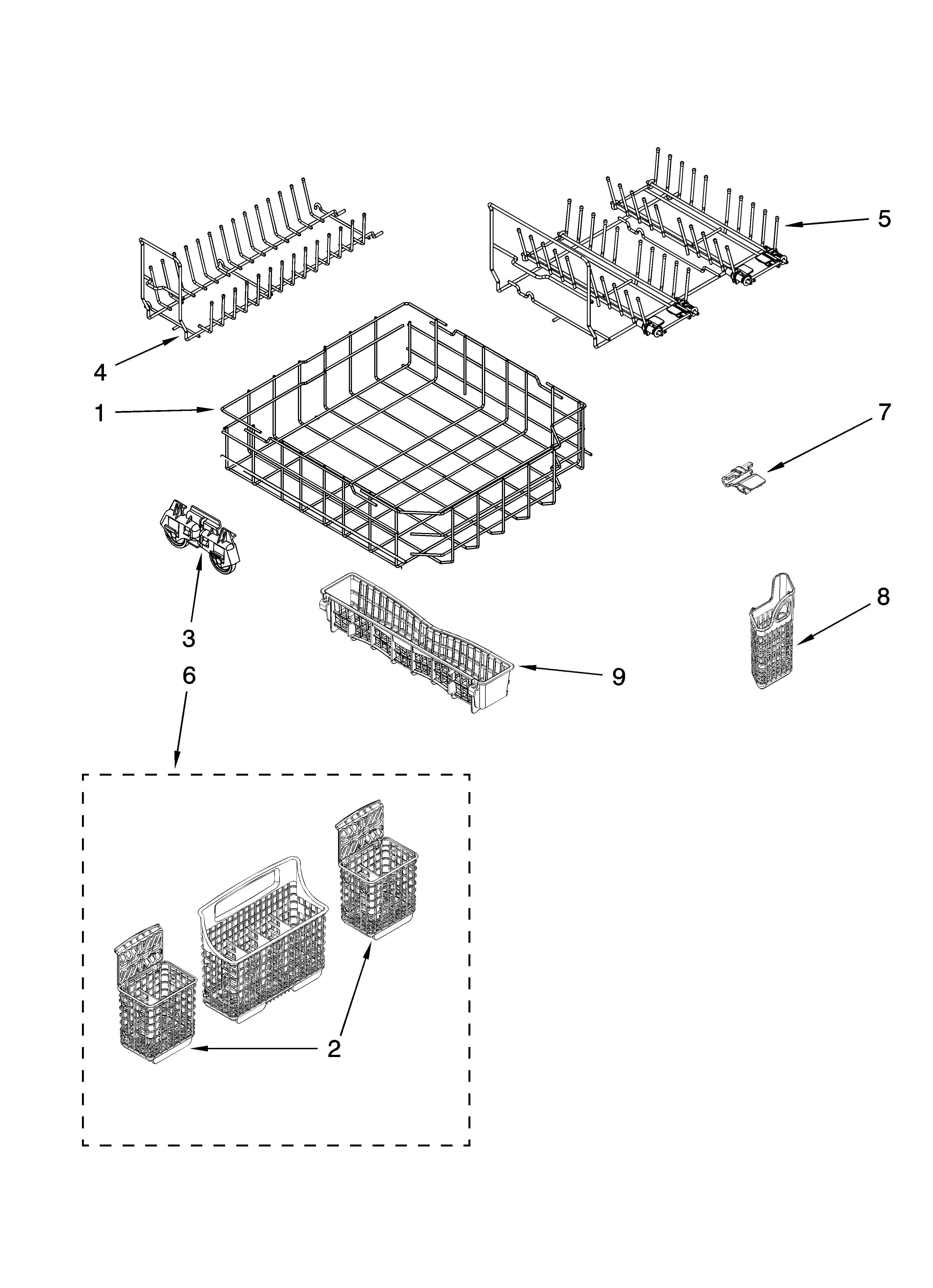

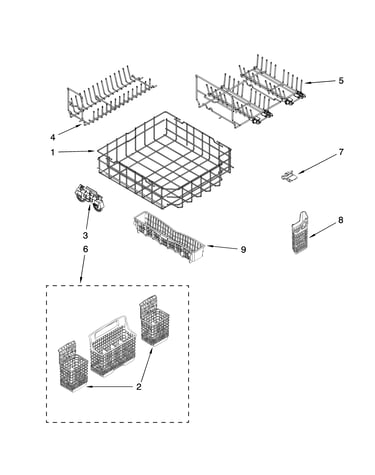

• Dishwasher dishrack, lower W11498446 (if tines are broken or the rack is warped)
• Dishwasher tine pivot clip WPW10082853 (if fold-down tines will not stay in place)

Why it matters

A rack that “almost fits” can bind on the tracks, hit the spray arm, or sit too high or low. That leads to poor cleaning, broken dishes, and premature wear on rack wheels, track stops, and rack adjusters.

Last updated: February 2026

Yes, repairing a Kenmore Pro dishwasher like model 66513173K702 is worth it when the problem is limited to a common service part (pump, drain, seal, heater) and the tub is sound; you typically spend far less than replacement and avoid a full reinstall. It is usually time to replace when you have repeated major failures or multiple high-cost parts failing at once.

Quick way to decide (our rule of thumb)

Use these checks to make a clear repair vs. replace call:

• Repair when the issue is isolated (won’t drain, won’t fill, poor wash, door won’t stay up) and the dishwasher is otherwise reliable.
• Repair when you can point to a likely part such as a clogged or failed drain pump, worn door seal, or failed inlet valve.
• Replace when you have multiple major symptoms (leaks plus no heat plus control issues) or recurring breakdowns.
• Replace when the stainless tub or inner door panel is damaged beyond a simple seal fix.
• Repair when you can confirm the failure with basic testing and inspection steps in the owner's manual.

Cost and complexity: common repairs on 66513173K702

Many “worth it” repairs are straightforward and parts-based. Here are examples from the parts available for this model:

Symptom	Common cause	Example part for this model	DIY difficulty
Won’t drain / standing water	Drain pump or drain path issue	Dishwasher drain pump WPW10348269	Medium
Leaks at the door	Worn or deformed door seal	Dishwasher door seal W11196317	Easy to medium

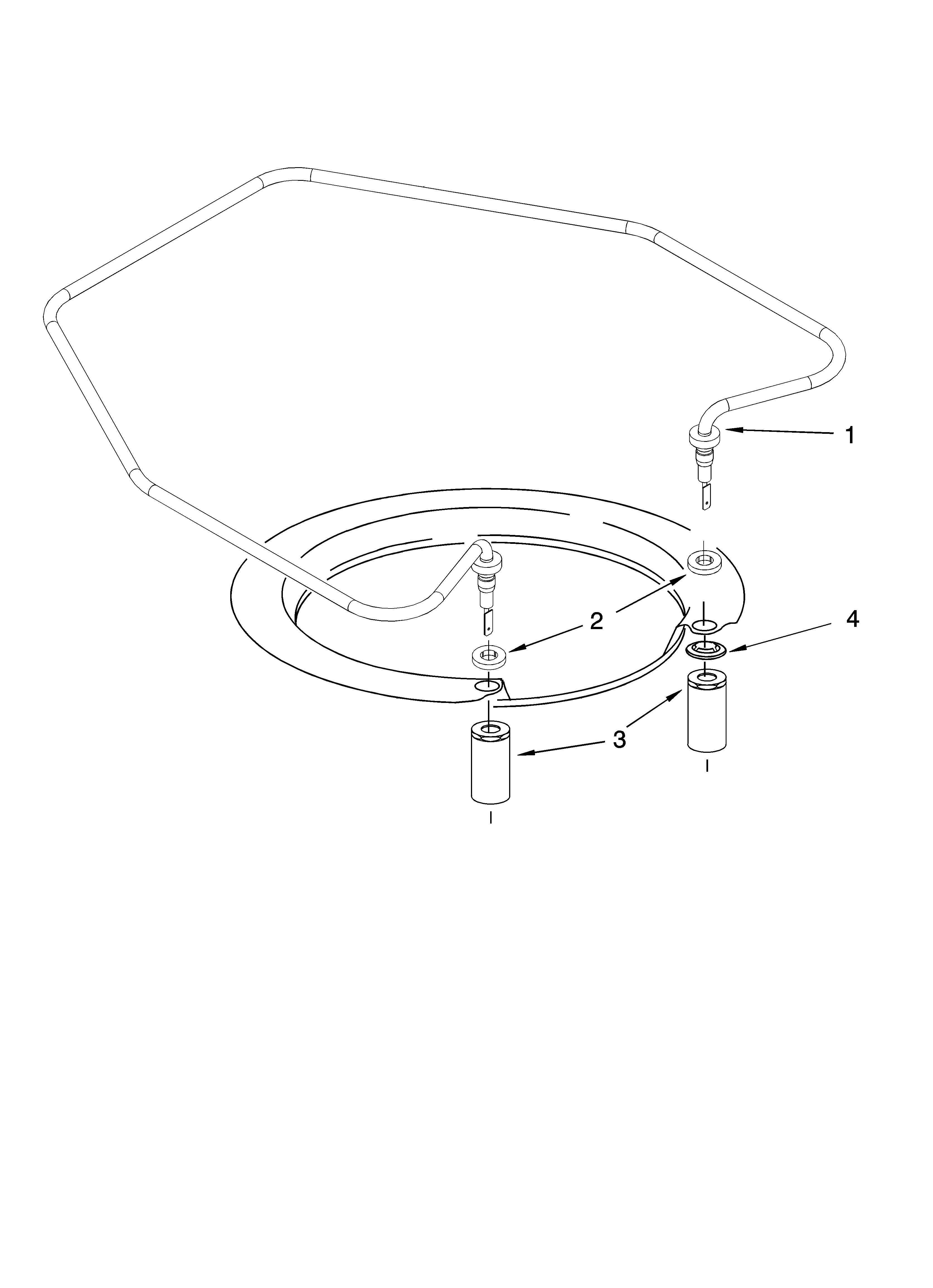

Dishes not drying / no heat	Failed heater circuit	Heater element WPW10082892	Medium
Dead or intermittent power	Blown fuse or control issue	Fuse W10258275	Medium

Why it matters

A targeted repair keeps your Kenmore dishwasher running with less cost and disruption than replacement. It also helps you avoid installation variables (drain hose routing, water line connection, and clearances) that can create new problems if they are not set up correctly; those requirements are detailed in the installation guide.

When replacement makes more sense

We recommend leaning toward replacement if you see any of the following patterns:

• You have two or more expensive failures close together (for example, control board plus motor).
• You have recurring leaks that are not resolved by replacing seals and tightening connections.
• The racks, pump system, and electronics are all showing age-related issues at the same time.
• You are paying for repeated service calls rather than fixing a single root cause.

Last updated: February 2026
