Kenmore 66513273K110 undercounter dishwasher Parts

To reset your Kenmore dishwasher model 66513273K110, we recommend doing a simple control reset first (power cycle), then trying the keypad reset sequence listed in your 66513273K110 owner's manual. This clears many “buttons not responding” and stuck-cycle issues.

• Cancel/Drain reset: Press Cancel/Drain once; wait about 2 minutes for the drain to finish.
• Power reset: Turn OFF the dishwasher breaker for 1 minute, then turn it back ON.
• Keypad sequence reset (common on many Kenmore units): Press 3 keys in a row (not Start) in this pattern: 1-2-3, 1-2-3, 1-2-3 (three times total), with less than 1 second between presses.
• Start a test cycle: Close the door and run a Quick/1-Hour type cycle to confirm the control responds.

These checks target the most common causes of a “dead” or partially working console.

• Make sure the door is fully latched; many models disable keypad input if the latch is not engaged.
• Check for stuck keys (soap residue or moisture under the overlay).
• Restore power and listen for a drain pump run at startup; no response can point to a control or power issue.
• If the unit fills but will not run correctly, inspect for wash system issues like a clogged filter or spray arm.

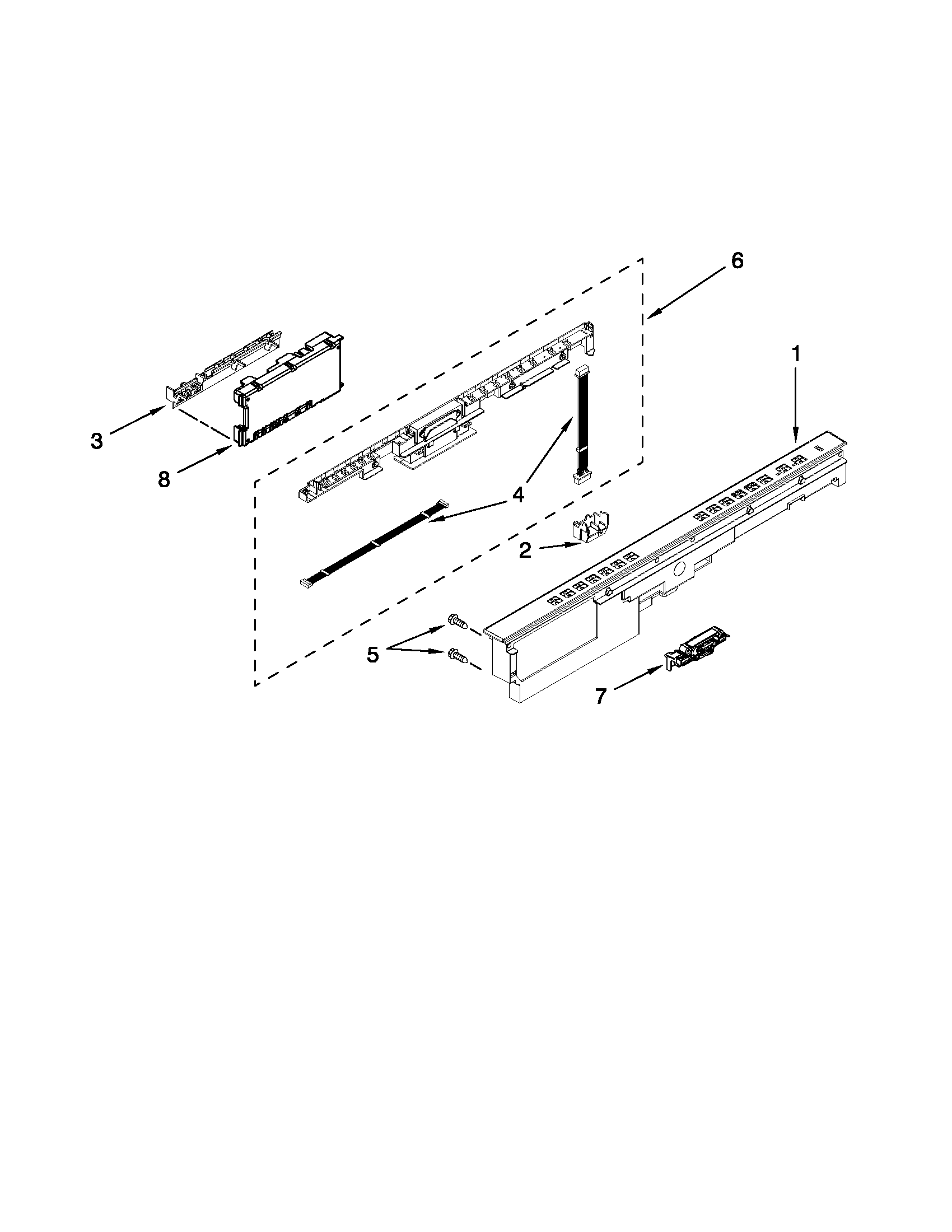

• If you suspect a control problem, the electronic control is a common fix point: dishwasher electronic control W10482988.

A proper reset clears a stuck cycle and reboots the control logic, which often restores normal keypad operation without replacing parts.

Last updated: January 2026

A bad drain pump on your Kenmore 66513273K110 dishwasher usually shows up as standing water after a cycle, slow draining, or a loud grinding or humming sound during the drain portion of the cycle. Confirm it by checking for clogs first, then testing the pump electrically.

• Water remains in the bottom of the tub after the cycle ends
• Draining is very slow, or it drains only sometimes
• Unusual noises during drain (grinding, rattling, loud hum)
• The dishwasher stops mid-cycle because it cannot evacuate water
• You find debris that repeatedly re-clogs the drain path

1. Reset and re-test: Run the shortest cycle and listen for the drain step (a working pump changes tone as water leaves).
2. Check the drain path: Inspect the sink/disposer connection and the hose routing.

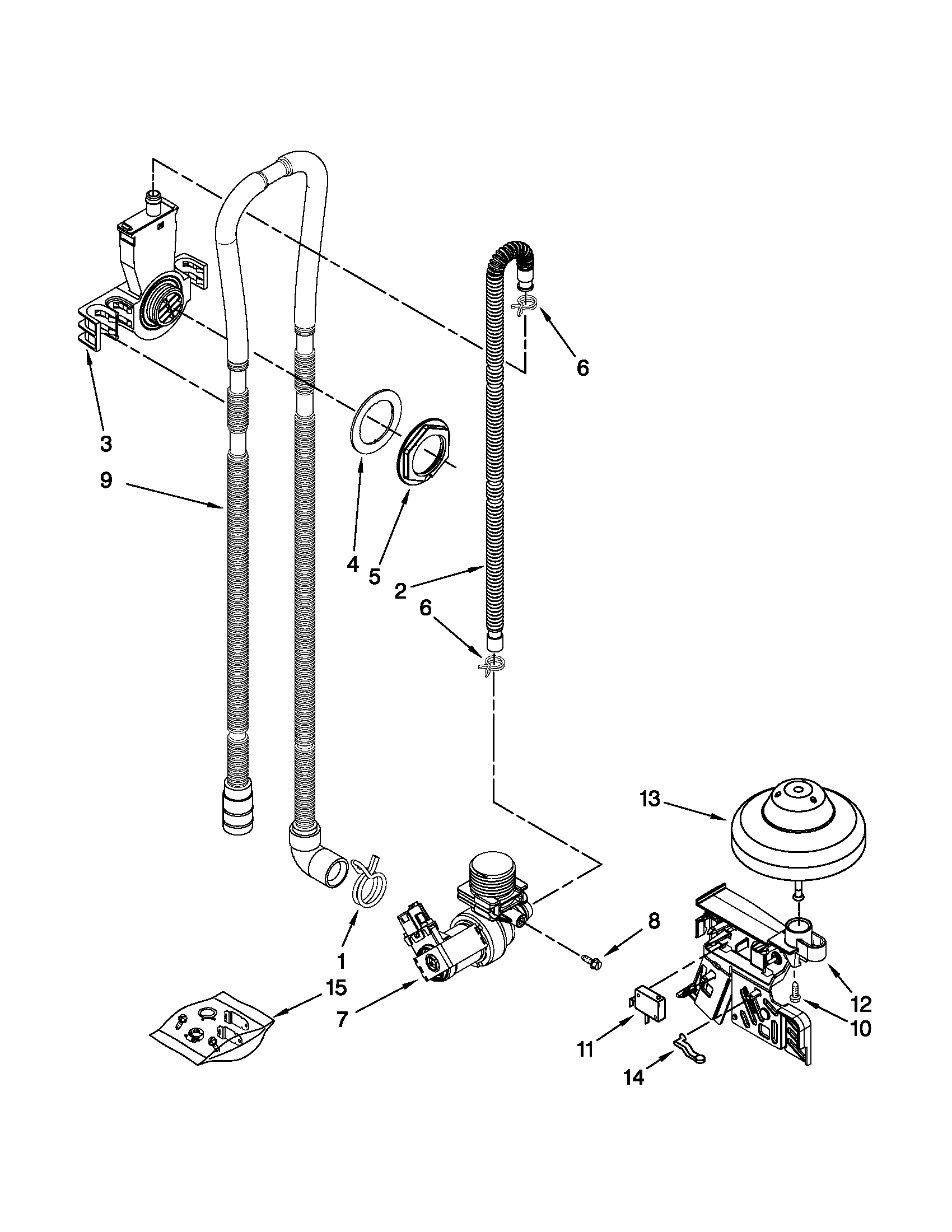

3. Verify proper drain hose setup: The installation instructions call for connecting the drain hose above the drain trap and at least 20 inches above the floor; the hose should be looped up under the counter or connected to an air gap. See the installation guide.

• Impeller check (power off): If the impeller is jammed by glass or food, the pump may hum but not move water.
• Electrical test (power off): Use a multimeter to check continuity through the pump motor windings.
• Live symptom check: If the dishwasher is full of water and you hear only a hum with no water movement, the pump is typically seized or obstructed.

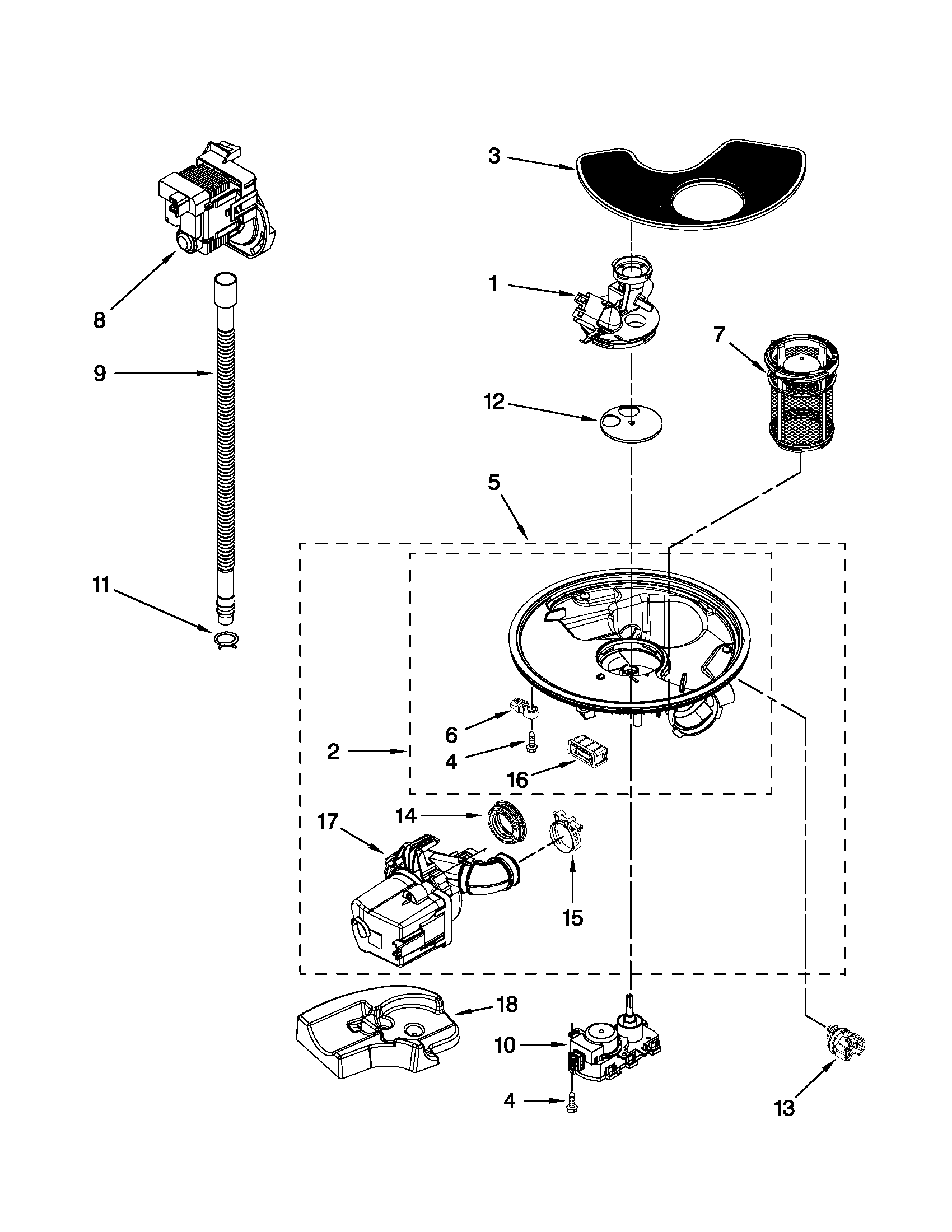

If your tests point to a failed pump, the correct replacement for this model is the dishwasher drain pump WPW10348269.

A weak or failed drain pump leaves dirty water in the tub, which leads to poor cleaning, odors, and repeated cycle interruptions. Fixing the drain path early also helps protect the motor and sump from debris damage.

Last updated: January 2026

Yes, replacing the pump on a Kenmore dishwasher model 66513273K110 is usually worth it when the dishwasher is otherwise in good shape and the problem is clearly tied to draining or circulation; a pump repair typically costs far less than replacing the entire dishwasher.

We usually recommend replacing the pump when the dishwasher has one main symptom and the rest of the machine (door seal, racks, controls, tub) is performing normally.

Common “pump is likely” signs:

• Water remains in the bottom after the cycle ends (drain problem)
• You hear the motor/pump hum but little or no water moves
• Intermittent draining that is not fixed by clearing the hose and air gap
• Burning smell or repeated shutdown during drain
• Visible leak at the pump area (often also involves a seal or grommet)

Before replacing parts, we follow the same basic “avoid a service call” checks used during setup and operation.

Do these first:

• Confirm the door closes tightly and latches
• Verify the water supply is turned on
• Check the house breaker or fuse
• Inspect the drain hose routing: it should connect above the drain trap and be looped high under the counter or connected to an air gap
• Run a short cycle and confirm there is water in the tub after the first couple of minutes

For model-specific guidance and safety steps, use the 66513273K110 installation guide.

If the diagnosis points to a failed drain pump on this model, the correct match from our parts list is the dishwasher drain pump WPW10348269. If you see seepage at the pump connection, the dishwasher pump grommet WPW10538166 is also a common companion fix.

A weak or failed pump can leave dirty water in the tub, reduce wash performance, and strain the motor and control system. Fixing the root cause restores normal draining and helps prevent repeat clogs and odors.

Last updated: January 2026
