Samsung
Dryer

Model #DVG45M5500W/A3-00 Samsung dryer

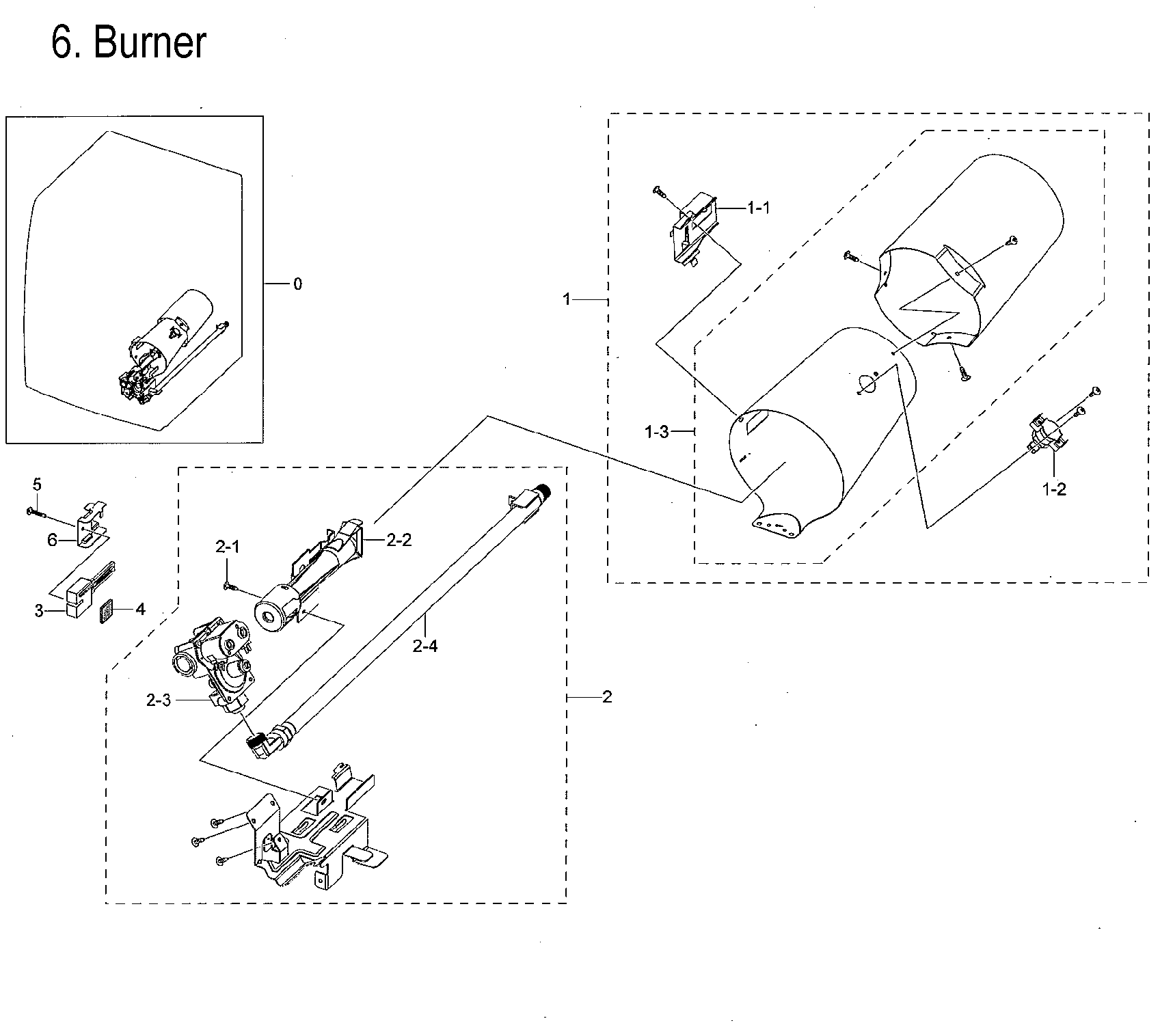

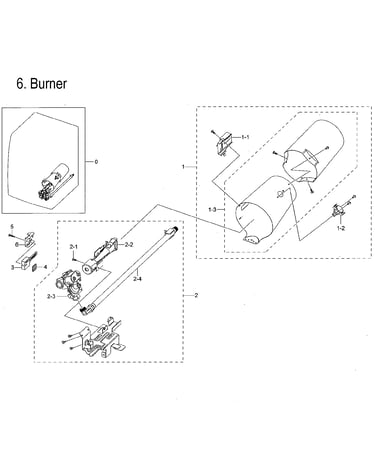

Here are the diagrams and repair parts for Samsung DVG45M5500W-A3-00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 126 parts

    Dryer Drum Belt#1

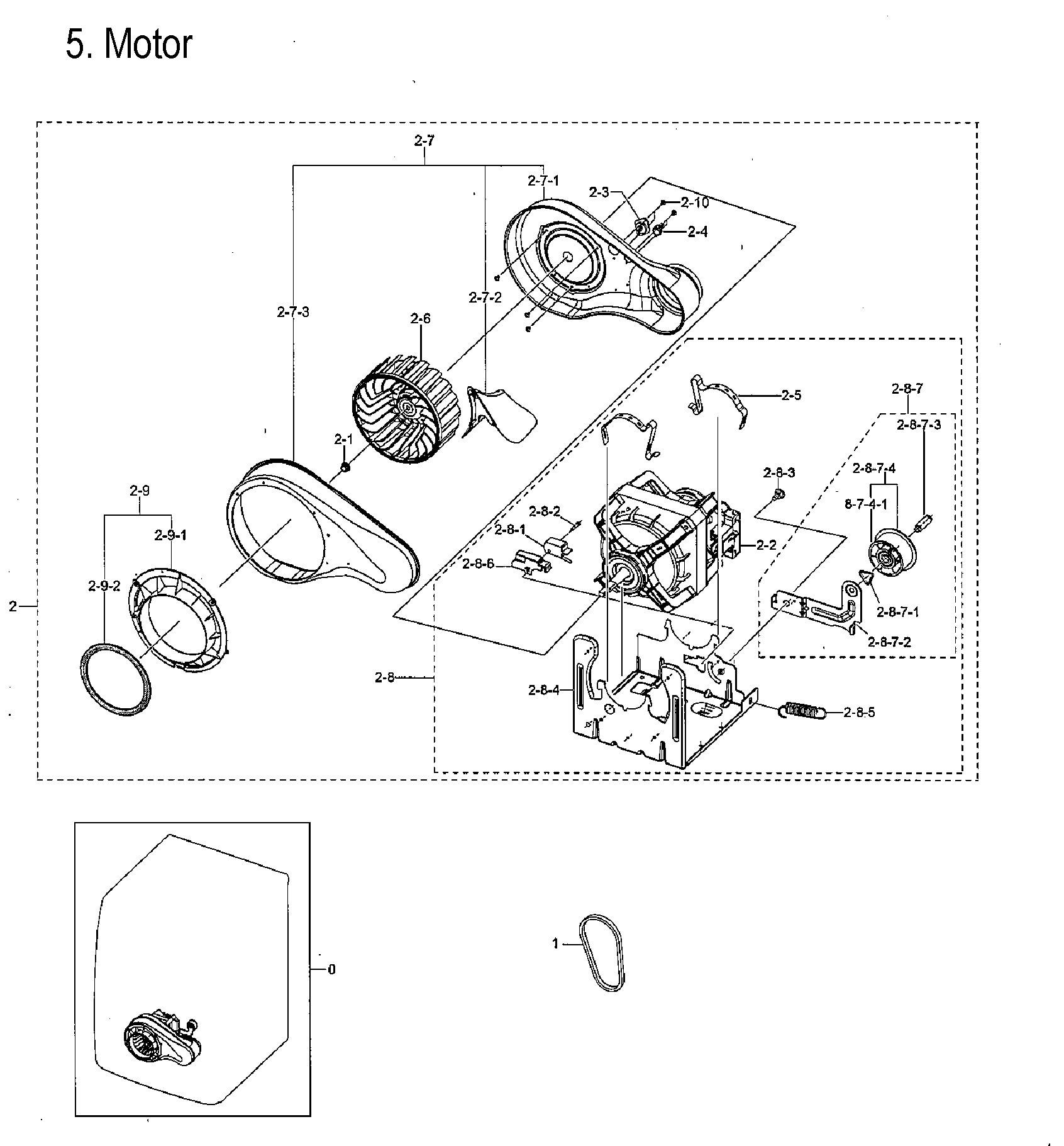

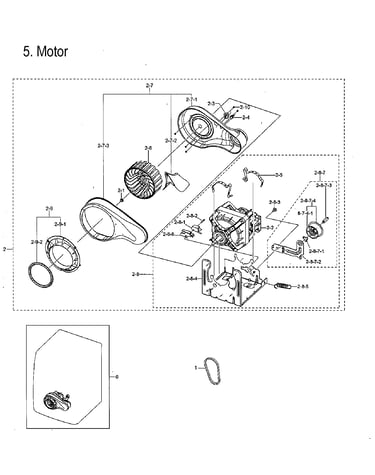

    Motor Diagram

    Dryer drum belt

    Part #6602-001655
    BEST SELLER
    In Stock
    $44.19 |
    10% OFF
    Phone Price: $49.19
    Dryer Drum Assembly#2

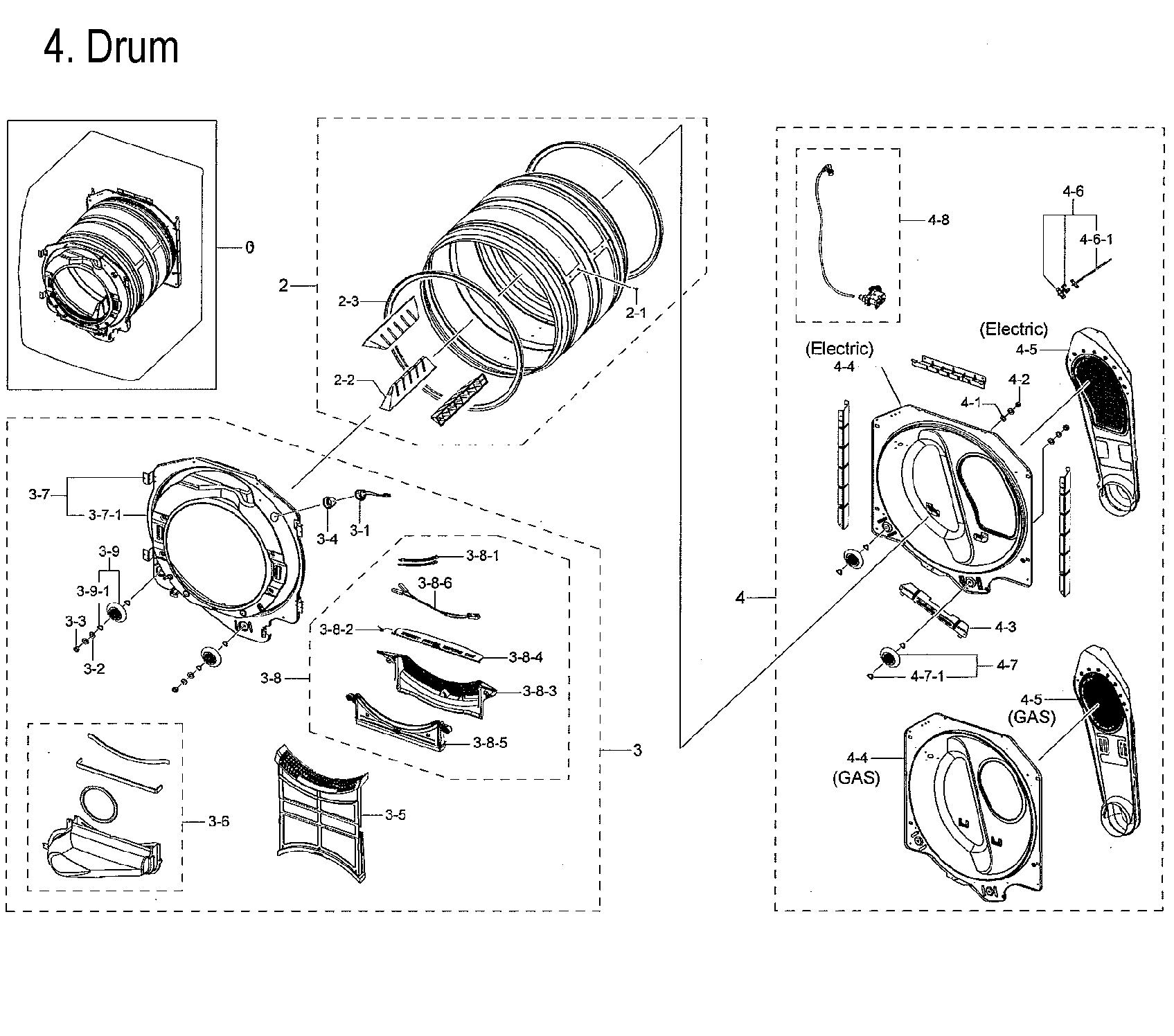

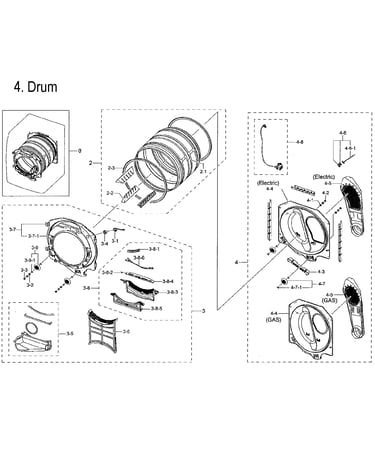

    Drum Diagram

    Dryer drum assembly

    Part #DC97-14849G
    Replaced by #DC97-14849P
    ?
    Manufacturer substitution
    This part replaces DC97-14849G. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $148.73
    Dryer Thermistor#2-3

    Motor Diagram

    Dryer thermistor

    Part #DC32-00007A
    BEST SELLER
    In Stock
    $18.09 |
    10% OFF
    Was: $20.09
    Dryer Filter Cover#3-84

    Drum Diagram

    Dryer filter cover

    Part #DC63-01140A
    BEST SELLER
    This item is not returnable
    In Stock
    $13.19 |
    13% OFF
    Phone Price: $15.19
    Laundry Appliance Control Knob#2

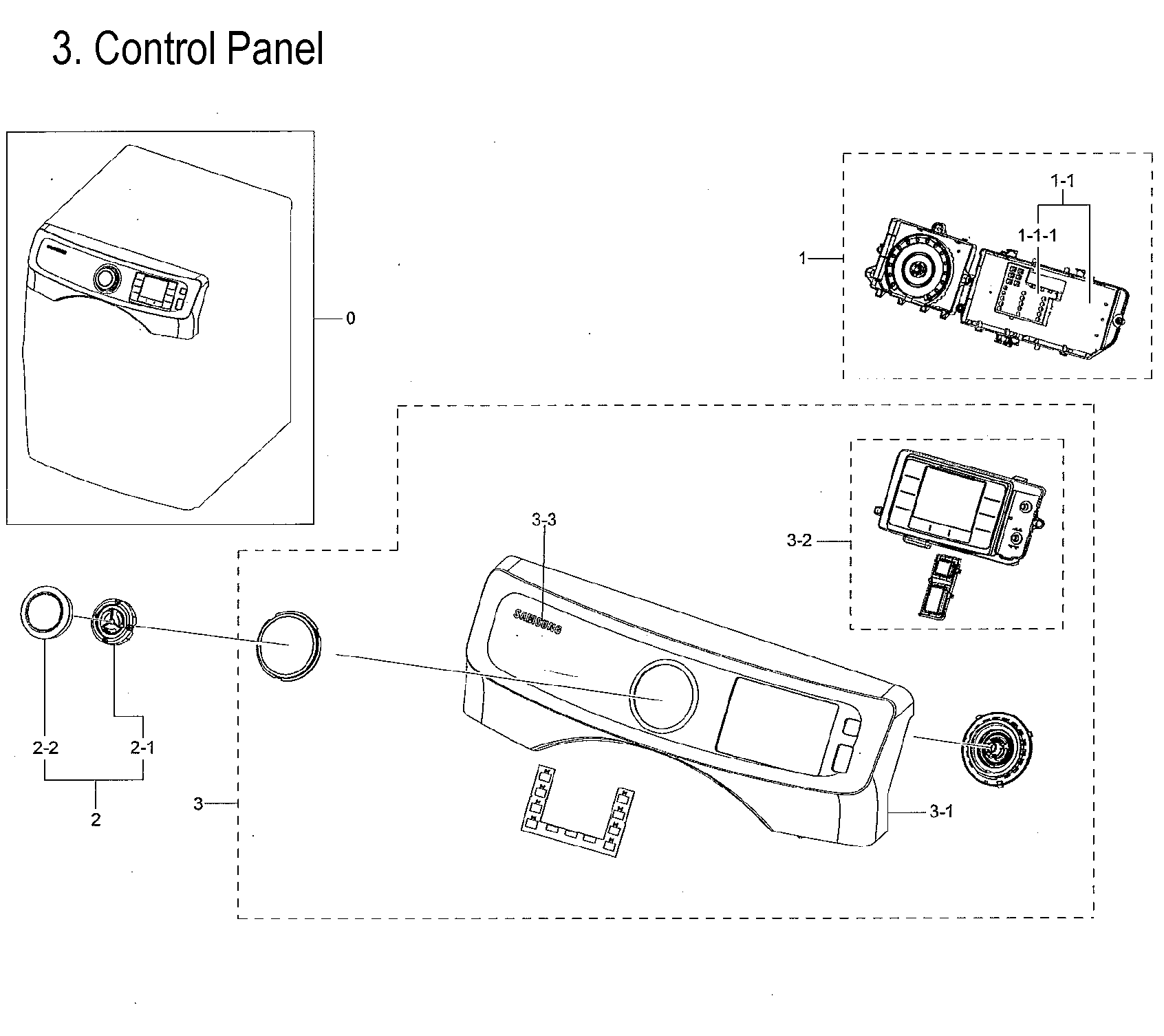

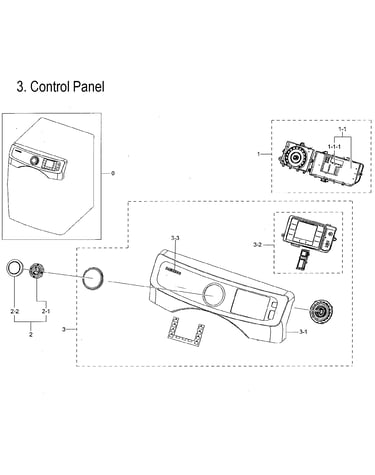

    Control panel Diagram

    Laundry appliance control knob

    Part #DC97-18058C
    BEST SELLER
    In Stock
    $67.69 |
    7% OFF
    Phone Price: $72.69
    Dryer Lint Screen Cover Spring#3-82

    Drum Diagram

    Dryer lint screen cover spring

    Part #DC61-02740A
    BEST SELLER
    This item is not returnable
    In Stock
    $2.49 |
    29% OFF
    Phone Price: $3.49
    Dryer Leveling Leg#1-1

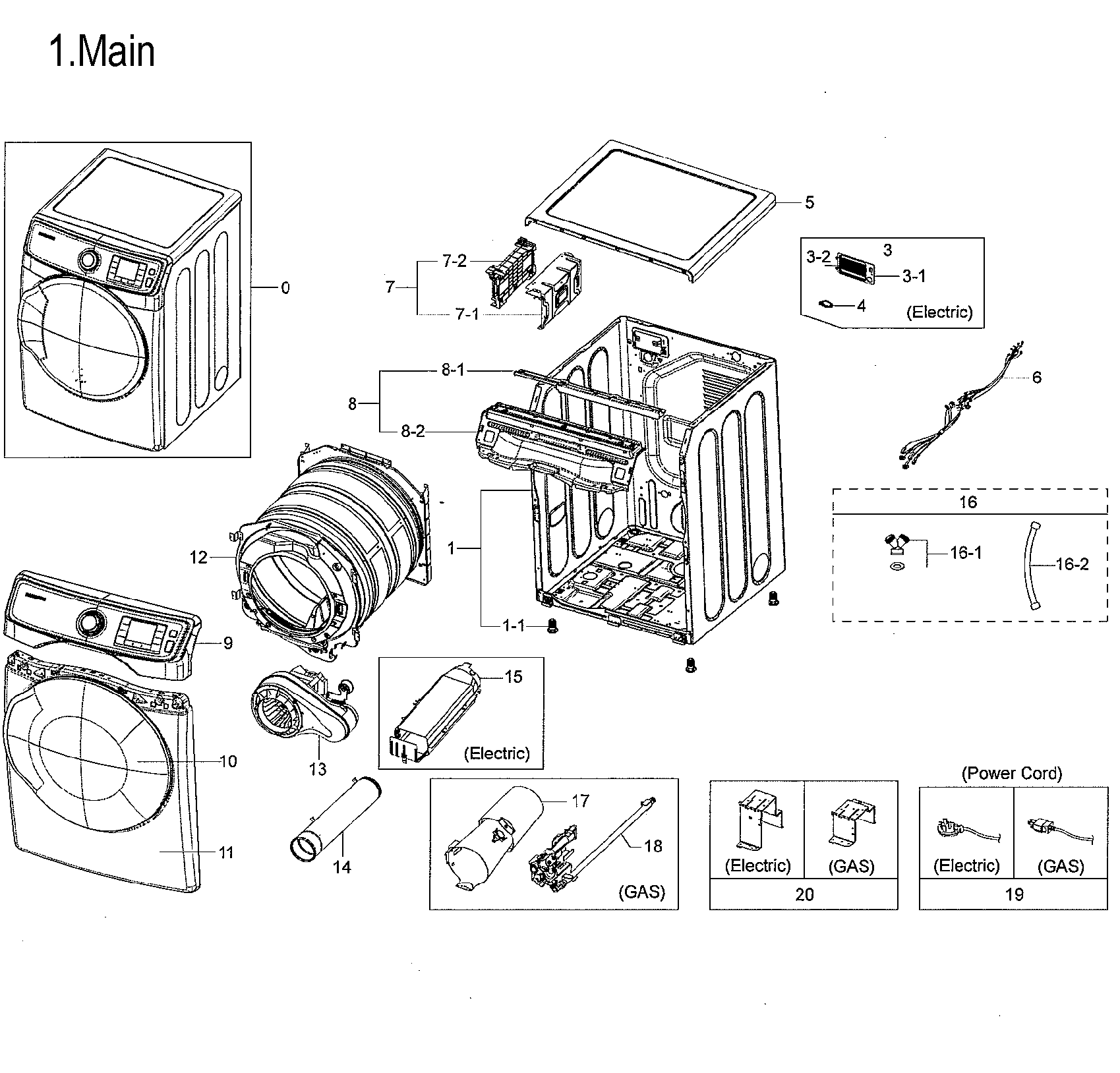

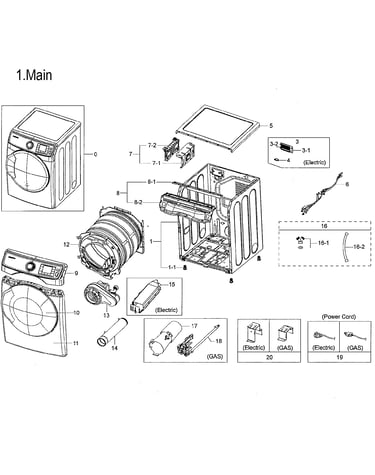

    Main parts Diagram

    Dryer leveling leg

    Part #DC61-03128A
    BEST SELLER
    In Stock
    $9.59 |
    9% OFF
    Phone Price: $10.59
    Dryer Door Switch#2-6

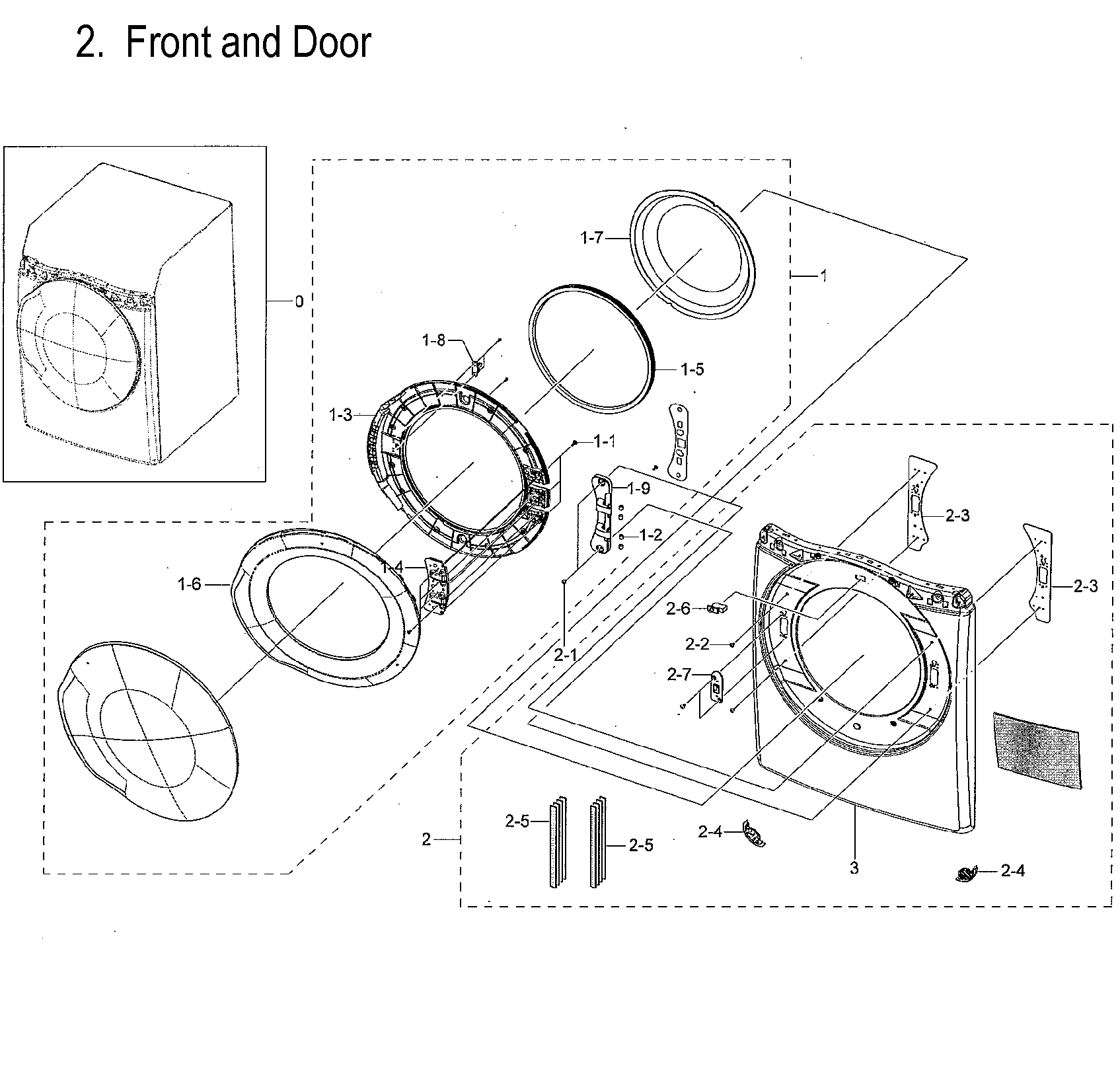

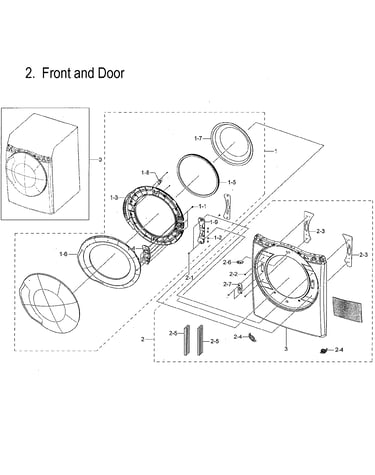

    Front and door Diagram

    Dryer door switch

    Part #DC64-00828B
    BEST SELLER
    In Stock
    $32.29 |
    13% OFF
    Phone Price: $37.29
    Dryer Motor Control Board Assembly

    Dryer motor control board assembly

    Part #DC92-01896D
    BEST SELLER
    In Stock
    $155.51 |
    6% OFF
    Phone Price: $165.51
    Dryer Motor Control Board Assembly#7-2

    Main parts Diagram

    Main pcb

    Part #DC92-01729R
    Replaced by #DC92-01896D
    ?
    Manufacturer substitution
    This part replaces DC92-01729R. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $155.51 |
    6% OFF
    Phone Price: $165.51

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
