Kenmore Elite 79579049310 refrigerator

Kenmore Elite 79579049310 refrigerator Parts

Here are the diagrams and repair parts for Kenmore Elite 79579049310 refrigerator, as well as links to manuals and error code tables, if available.

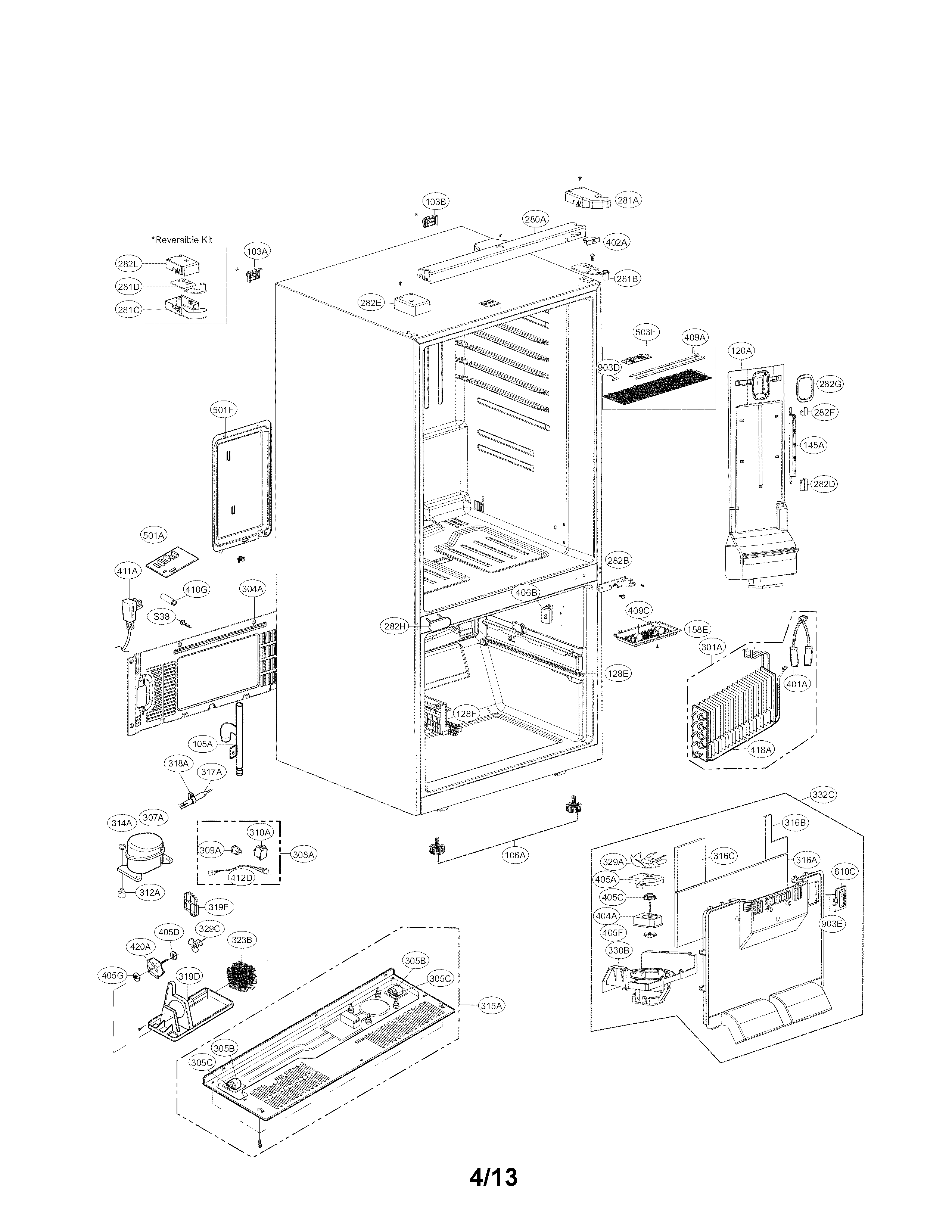

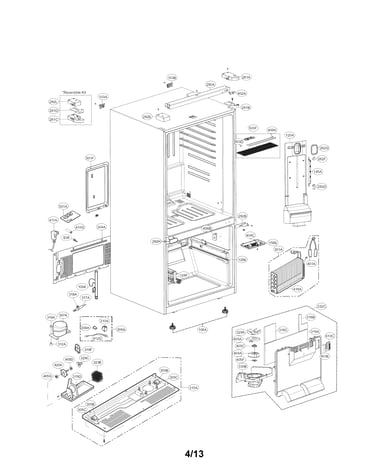

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79579049310 Refrigerators

Kenmore Elite Refrigerator 79579049310 FAQs

If your Kenmore Elite refrigerator model 79579049310 is warm at the bottom, the most common causes are restricted airflow (blocked vents or overpacked shelves), doors not sealing or closing fully, or the temperature control needing adjustment. Use the troubleshooting steps in the 79579049310 owner's manual to confirm settings and airflow checks.

Quick checks that fix most “warm bottom” complaints
  • Make sure food packages are not blocking air vents; move items a few inches away from vents.
  • Reduce door opening time; frequent or long openings let warm, humid air in and raise compartment temperature.
  • Confirm both doors close completely and stay closed (check for bins or drawers preventing closure).
  • Adjust the temperature control one increment at a time, then wait for temperatures to stabilize.
  • Allow hot food to cool to room temperature before loading; adding warm food forces longer run times.
Airflow and fan issues to consider

Bottom sections often warm up first when cold air is not circulating well.

What you notice Likely issue What to do next
Top is colder than bottom Airflow blocked Reorganize contents; keep vents clear
Warm bottom plus unusual fan noise or no airflow Evaporator fan problem Inspect/replace the lg refrigerator evaporator fan motor 4681JB1027C
Temps swing after a period of normal cooling Defrost cycle just ended Wait about 30 minutes and recheck
Why it matters

In a bottom-mount refrigerator, steady airflow is what keeps temperatures even from top to bottom. When vents are blocked, doors are opened often, or controls are set incorrectly, the bottom area can run warm and food safety can be affected.

Helpful DIY guidance

Last updated: January 2026

For Kenmore Elite refrigerator model 79579049310, the most common problems are not cooling well, ice maker or water dispensing issues, excess frost/ice buildup, and unusual noises. Many fixes start with basic maintenance and checks; use the 79579049310 owner's manual troubleshooting guide for model-specific steps.

Most common symptoms and what usually causes them
  • Not cooling or warm temperatures: dirty condenser coil, failed evaporator fan, sealed-system issue, or a temperature sensor problem
  • Freezer frosting up: door not sealing, defrost system problem (sensor/heater/control), or blocked airflow
  • Buzzing/clicking/humming: compressor start components, compressor overload, or an evaporator fan hitting ice
  • Ice maker not making ice: water supply restriction, inlet valve issue, ice maker assembly fault, or freezer temp too warm
  • Water leaks/puddles: clogged defrost drain, loose water line connection, or dispenser/ice maker fill leak
Quick checks we recommend before replacing parts
  1. Confirm settings: refrigerator about 37°F and freezer about 0°F.
  2. Clean the condenser area and make sure airflow around the cabinet is not blocked.
  3. Check door closing and gasket contact; look for gaps, rips, or food packages preventing closure.
  4. If ice maker or dispenser is weak, verify household water supply is on and the line is not kinked.
  5. If you hear fan noise changes when opening the door, suspect a fan or ice buildup near the evaporator.
Parts that commonly relate to these problems (for this model)
Symptom Common suspect part Example part for 79579049310
Warm fridge/freezer, poor airflow Evaporator fan motor Lg refrigerator evaporator fan motor 4681JB1027C
No water to ice maker/dispenser Water inlet valve Lg refrigerator water inlet valve AJU73753101
Clicking, compressor won’t stay running Compressor overload protector Refrigerator compressor overload protector 6750CL0001D
Ice maker not producing Ice maker assembly Lg refrigerator ice maker assembly model AEQ72909603 AEQ72909603
Why it matters

Catching cooling, frost, and water-supply problems early helps protect food, reduces energy use, and prevents secondary damage (like ice buildup blocking airflow or leaks causing floor damage). The manual also notes the refrigerator can transmit diagnostic data using Kenmore Connect when instructed by support.

Last updated: January 2026

Kenmore Elite refrigerator model 79579049310 is a bottom-mount (bottom freezer) refrigerator; the exact exterior dimensions and capacity are listed in the 79579049310 owner's manual. For planning purposes, most Kenmore 795-series bottom-mount units are about 36 inches wide and about 70 inches tall; depth varies depending on handles and door swing.

How to confirm the exact size for your kitchen

Use the dimension diagram and installation section in the 79579049310 owner's manual, then measure your space to match the manual’s reference points.

  • Measure width at the widest point (typically door edges)
  • Measure height from floor to the top hinge cover (leveling legs can change this)
  • Measure depth two ways: cabinet only, and with handles
  • Check door swing and freezer drawer pull-out clearance
  • Measure the cabinet opening at top, middle, and bottom to catch out-of-square cutouts
Clearances that affect the “real” installed size

The manual’s installation guidance includes clearances that can matter as much as the cabinet dimensions.

Clearance item What to allow Why it matters
Space behind refrigerator At least 2 inches Airflow and room for the water line
Space in front to open doors At least 33 3/4 inches Door opening and drawer access
Room temperature range 55°F to 110°F Helps maintain proper cooling
Why it matters

“Size” is not just width and height; correct depth and clearances prevent doors from hitting walls, ensure airflow at the condenser area, and make it easier to connect the ice maker water line.

Last updated: January 2026
