Model #GHW9460PW1 Whirlpool washer

Here are the diagrams and repair parts for Whirlpool GHW9460PW1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 178 parts

    Washer Drain Pump Assembly#10

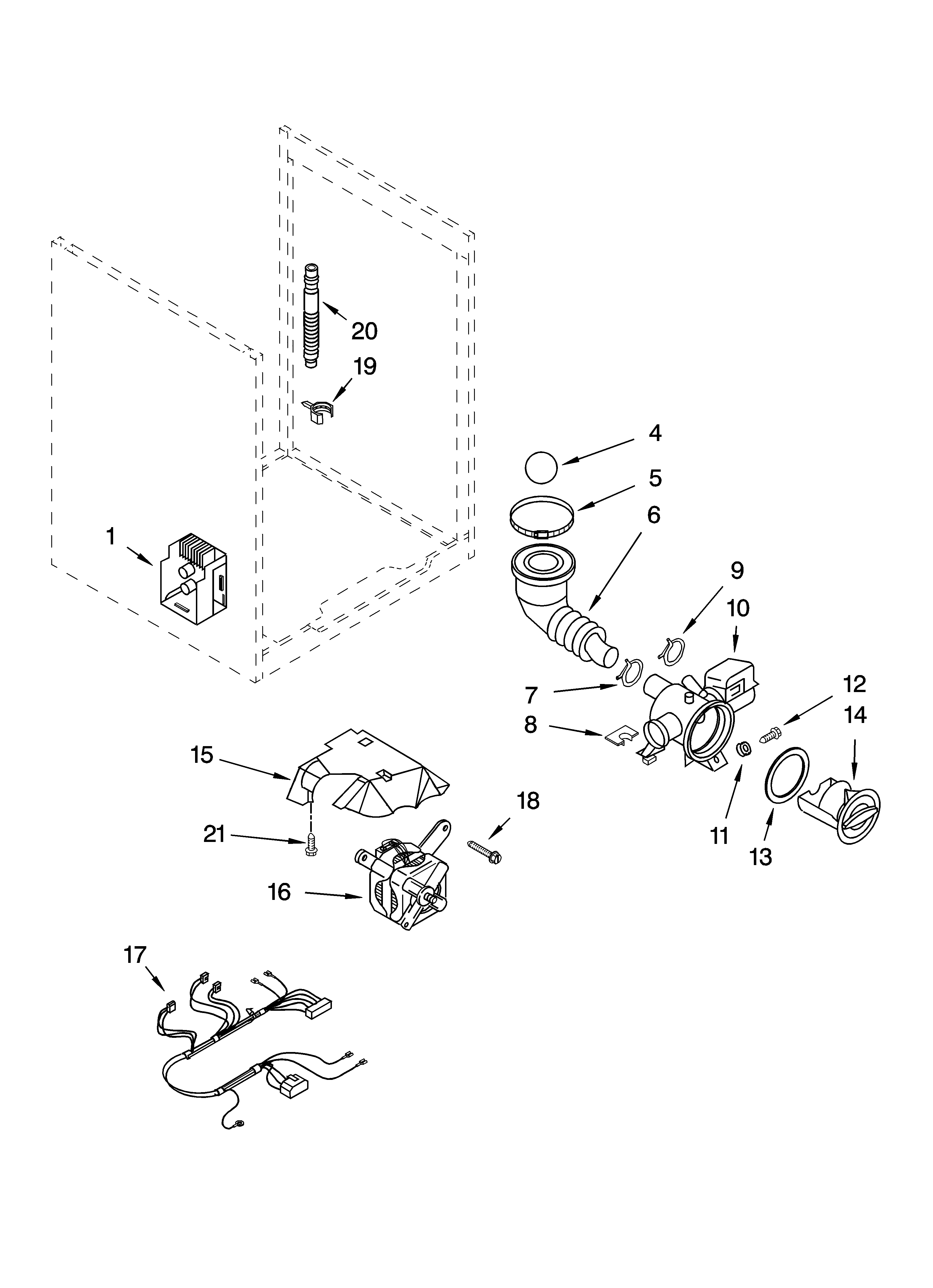

    Pump and motor parts, optional parts (not included) Diagram

    Water pump

    Part #8181684
    Replaced by #280187
    ?
    Manufacturer substitution
    This part replaces 8181684. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $169.19 |
    6% OFF
    MSRP: $180.00
    Washer Inlet Flow Meter#4

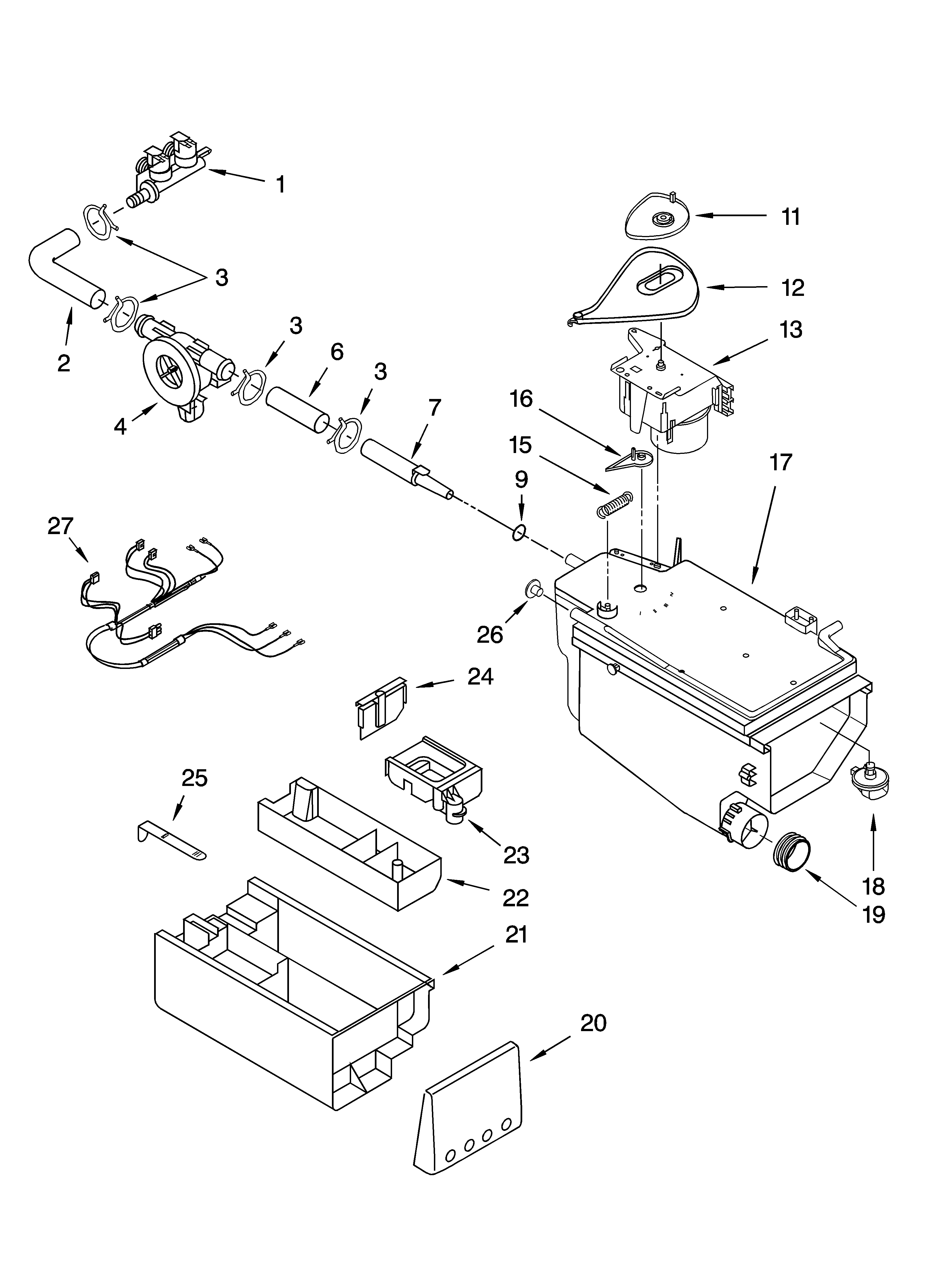

    Dispenser parts Diagram

    Flow meter

    Part #8181696
    Replaced by #WPW10110225
    ?
    Manufacturer substitution
    This part replaces 8181696. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $89.39
    Washer Drive Belt#3

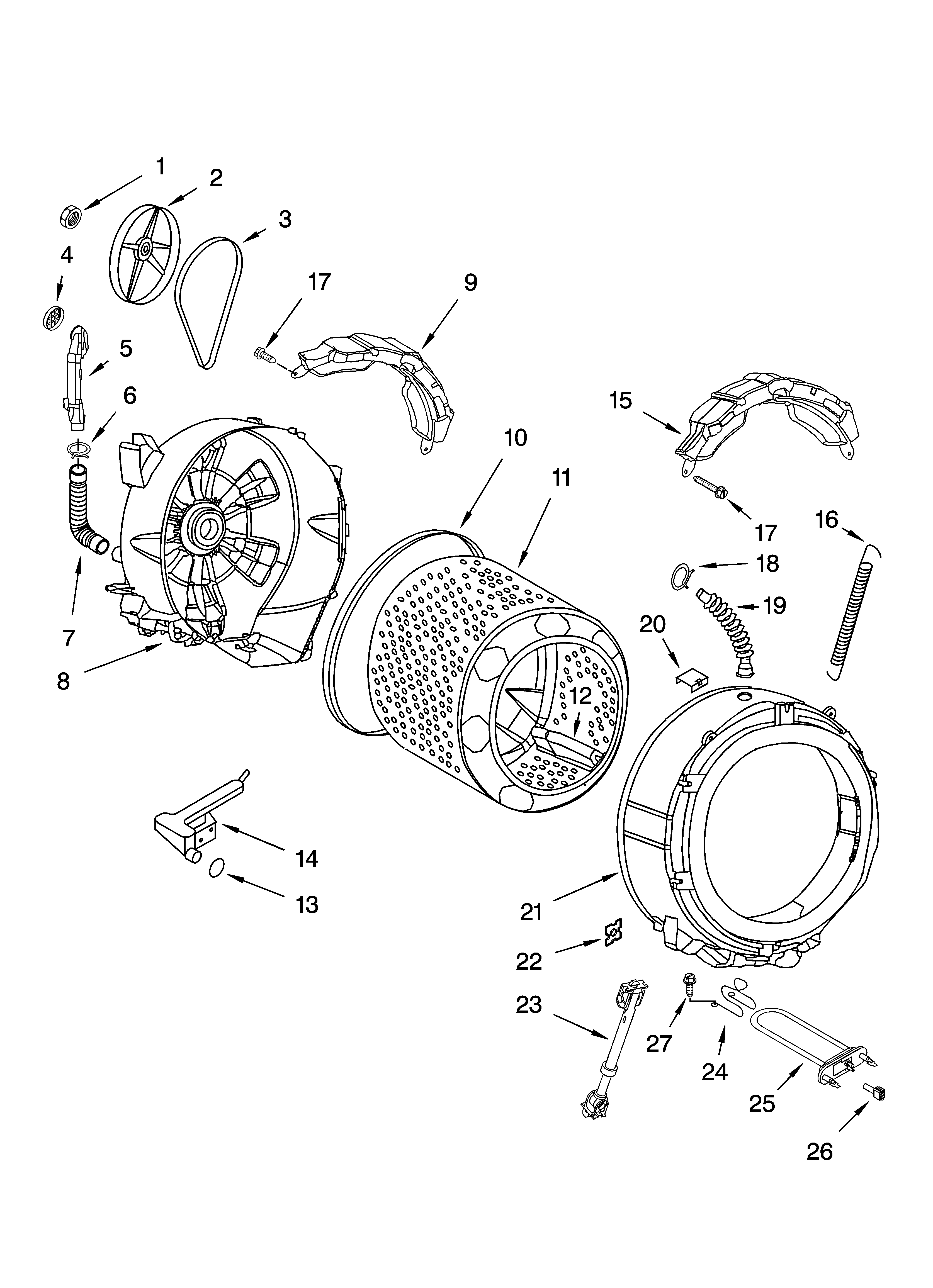

    Tub and basket parts Diagram

    Washer drive belt

    Part #8182633
    Replaced by #WPW10388414
    ?
    Manufacturer substitution
    This part replaces 8182633. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $49.49
    Appliance Touch-Up Paint, 0.6-oz (White)#NI

    Pump and motor parts, optional parts (not included) Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    BEST SELLER
    This item is not returnable
    Back Order
    $8.29
    Washer Door Boot Spring Clamp#6

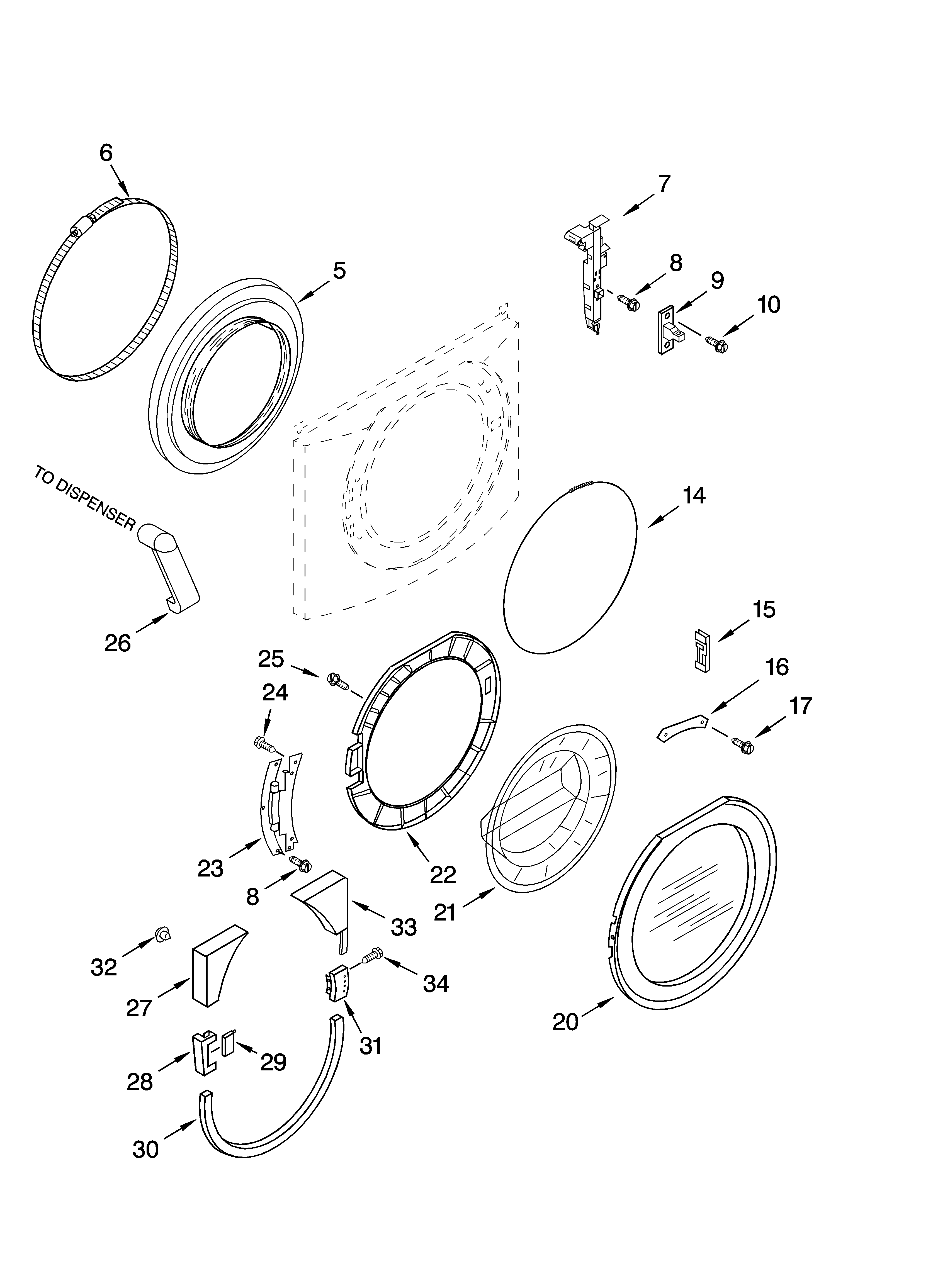

    Door and latch parts Diagram

    Washer door boot spring clamp

    Part #8182210
    Replaced by #WP8182210
    ?
    Manufacturer substitution
    This part replaces 8182210. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $28.79
    Washer Door Boot Spring Clamp#14

    Door and latch parts Diagram

    Washer door boot spring clamp

    Part #8182211
    Replaced by #W10902779
    ?
    Manufacturer substitution
    This part replaces 8182211. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $34.09
    Washer Start Button#4

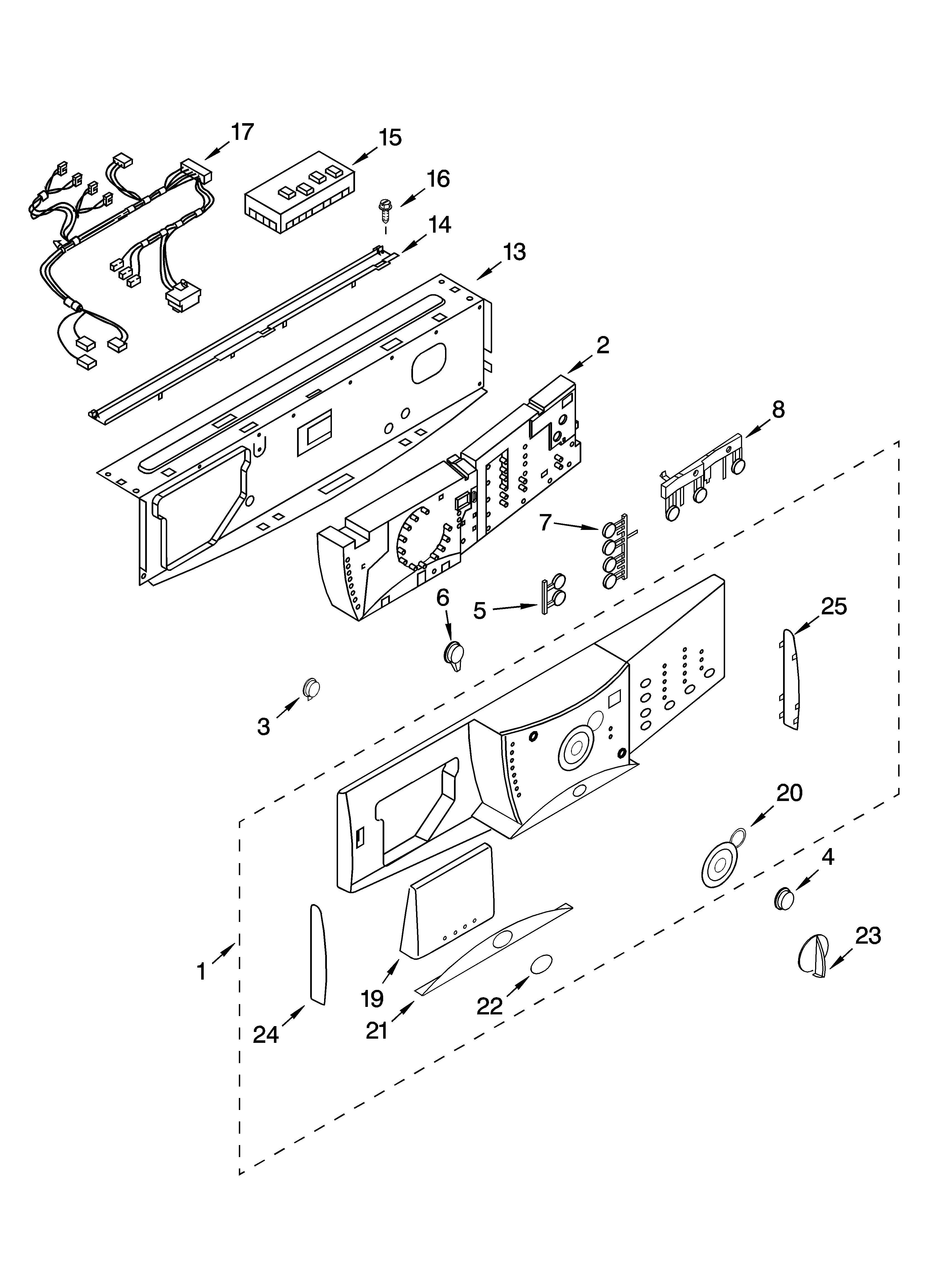

    Control panel parts Diagram

    Washer start button

    Part #8181861
    Replaced by #WP8181861
    ?
    Manufacturer substitution
    This part replaces 8181861. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $45.09
    Washer Outer Front Tub#21

    Tub and basket parts Diagram

    Outer tub

    Part #8181665
    Replaced by #W10772607
    ?
    Manufacturer substitution
    This part replaces 8181665. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $301.29
    Washer Water-Level Pressure Switch Hose#24

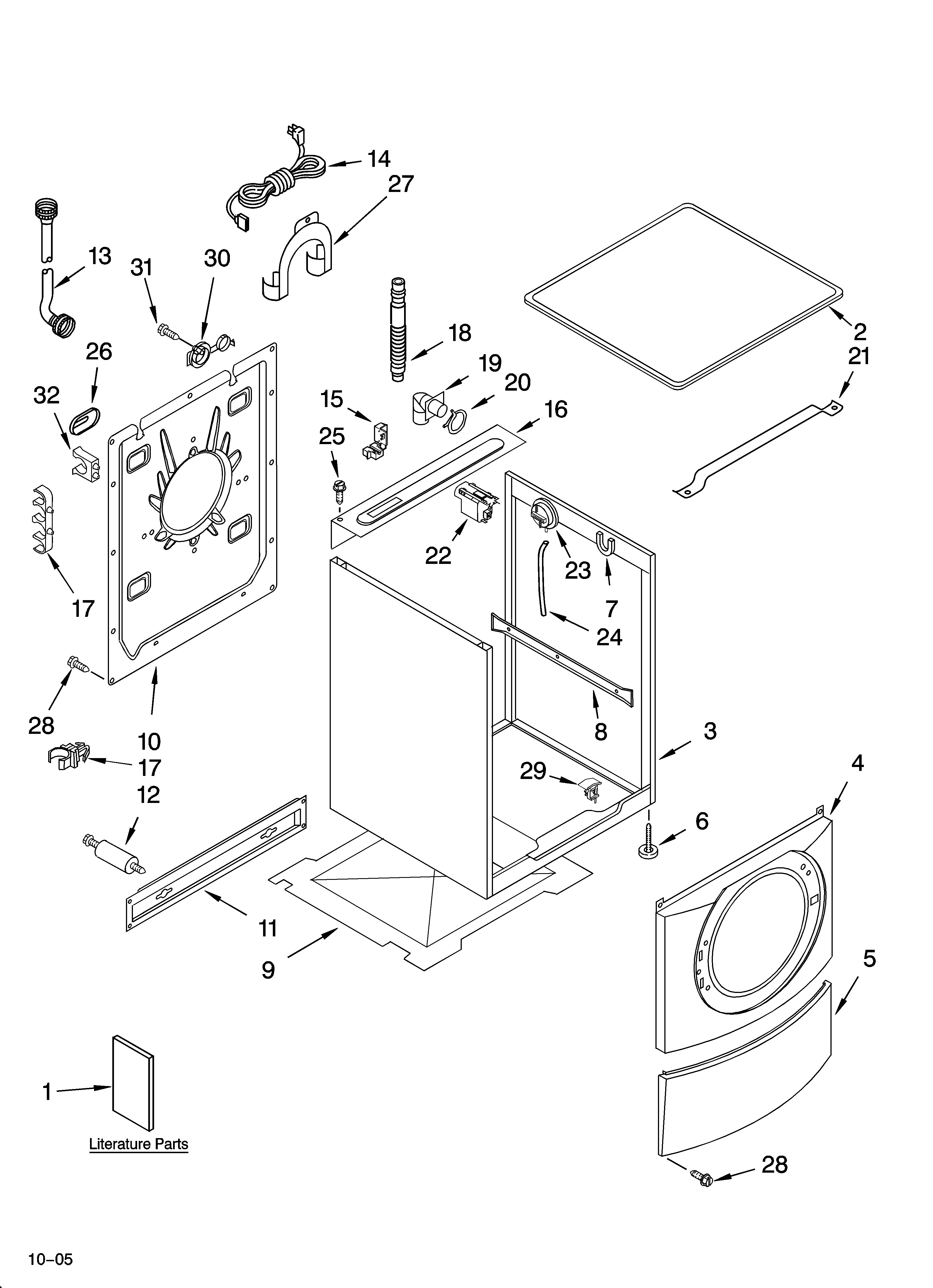

    Top and cabinet parts Diagram

    Hose

    Part #8181739
    Replaced by #WPW10004260
    ?
    Manufacturer substitution
    This part replaces 8181739. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $7.59
    Washer Suspension Spring Set, 2-pack#16

    Tub and basket parts Diagram

    Suspension spring

    Part #8181762
    Replaced by #W10135004
    ?
    Manufacturer substitution
    This part replaces 8181762. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $46.49
