Model # 40752701210 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 40752701210 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 46 parts |

#27

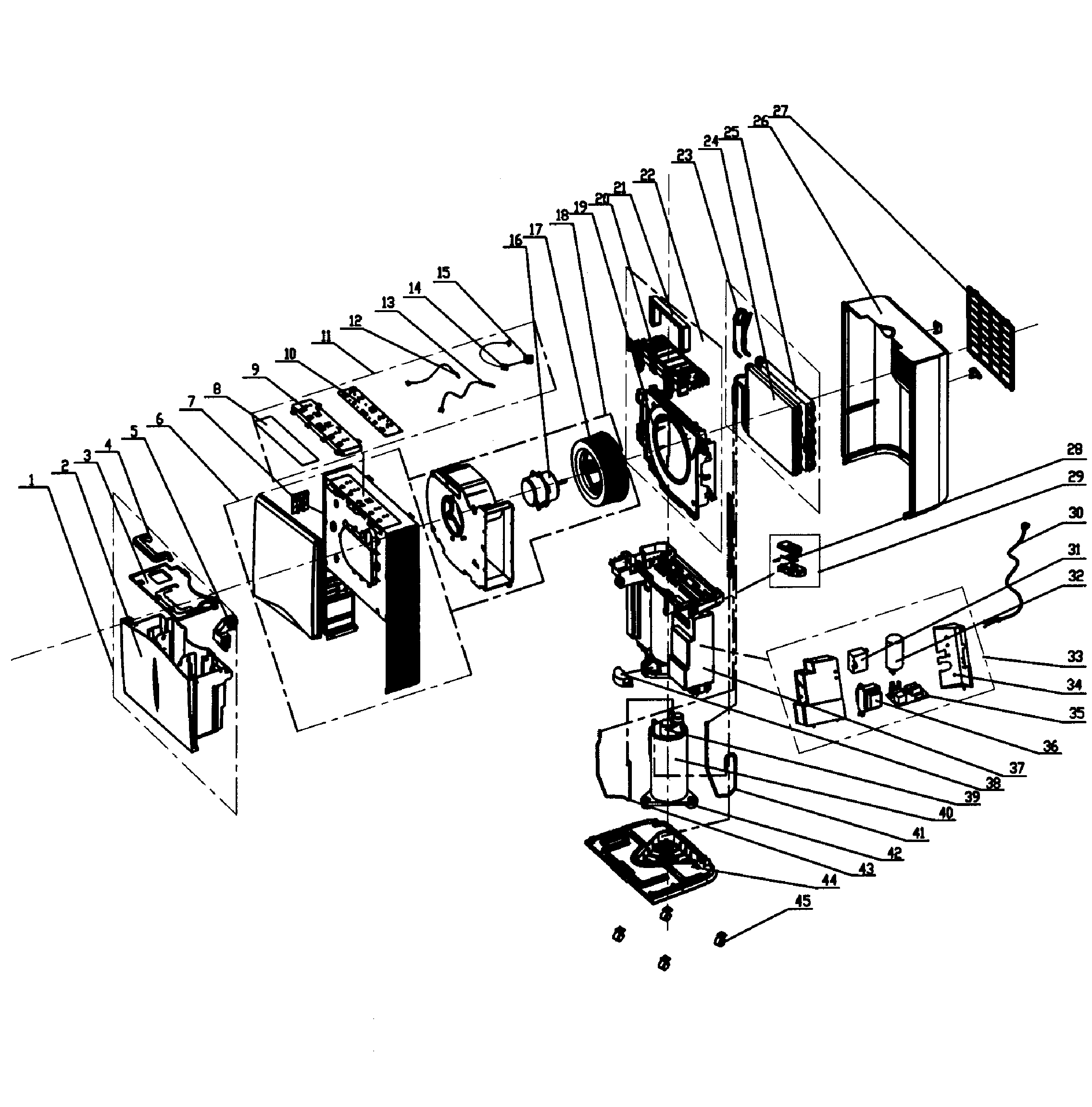

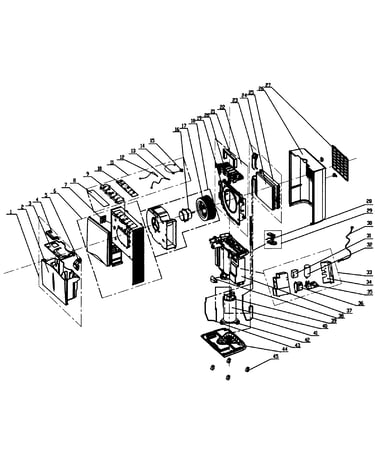

Dehumidifier diagram

Filter sub

Part #52701-27

The manufacturer no longer makes this part, and there's no substitute part

#16

Dehumidifier diagram

Fan motor

Part #52701-16

The manufacturer no longer makes this part, and there's no substitute part

#10

Dehumidifier diagram

Dehumidifier display board

Part #52701-10

The manufacturer no longer makes this part, and there's no substitute part

#28

Dehumidifier diagram

Lever switch

Part #52701-28

The manufacturer no longer makes this part, and there's no substitute part

#29

Dehumidifier diagram

Switch sub assembly

Part #52701-29

The manufacturer no longer makes this part, and there's no substitute part

#45

Dehumidifier diagram

Castor

Part #52701-45

The manufacturer no longer makes this part, and there's no substitute part

#21

Dehumidifier diagram

Handle

Part #52701-21

The manufacturer no longer makes this part, and there's no substitute part

#35

Dehumidifier diagram

Main pcb

Part #52701-35

The manufacturer no longer makes this part, and there's no substitute part

#13

Dehumidifier diagram

Temperature sensor

Part #52701-13

The manufacturer no longer makes this part, and there's no substitute part

#30

Dehumidifier diagram

Power cord

Part #52701-30

The manufacturer no longer makes this part, and there's no substitute part
