To drain standing water in your Bosch SHX4ATF5UC dishwasher, we recommend shutting off power, removing the lower rack, cleaning the filter area, and then forcing a drain by canceling the cycle. If it still will not drain, the drain hose or drain pump is typically the next place to check.

Quick steps to drain the water safely

• Turn off power at the breaker (and close the water supply valve if you will pull the unit out).
• Remove the lower rack and scoop out as much water as possible with a cup, sponge, or towels.

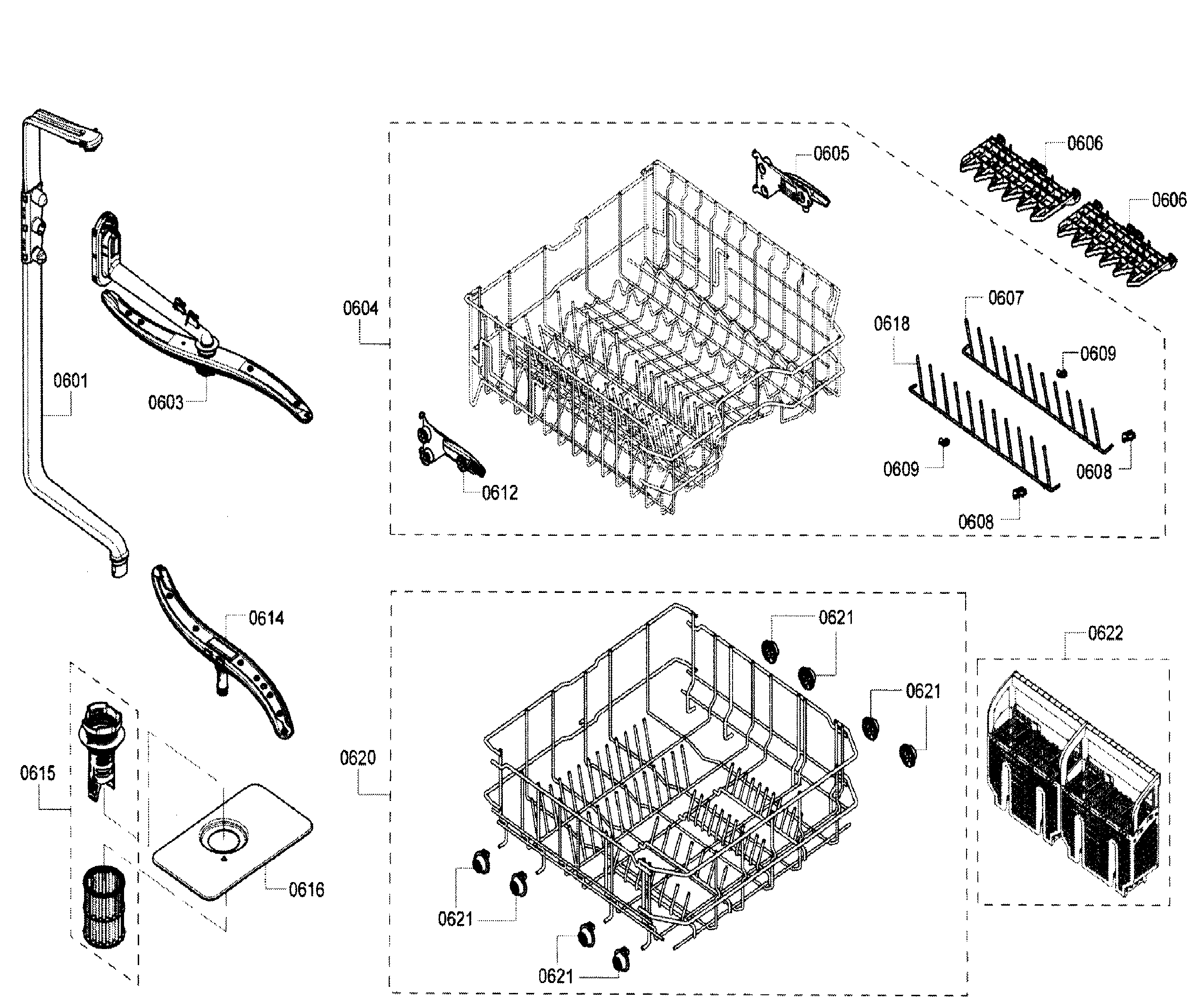

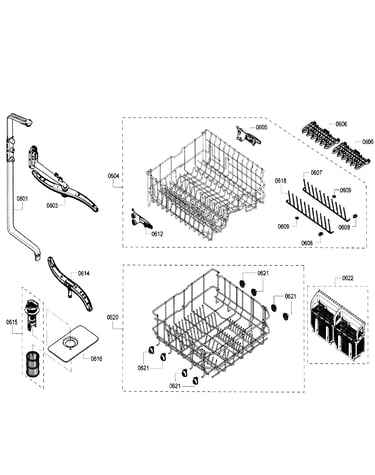

• Lift out and clean the filter area in the sump; remove food, glass, labels, and debris.

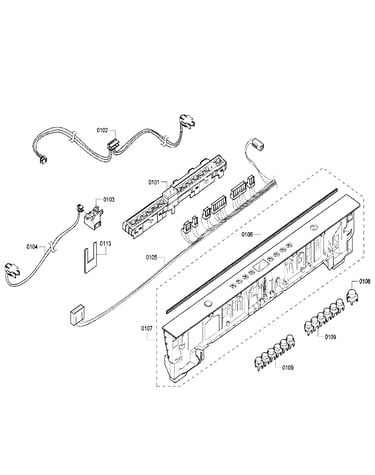

• Reinstall the filters, close the door, then press Cancel or Reset to start a drain (common on Bosch models).

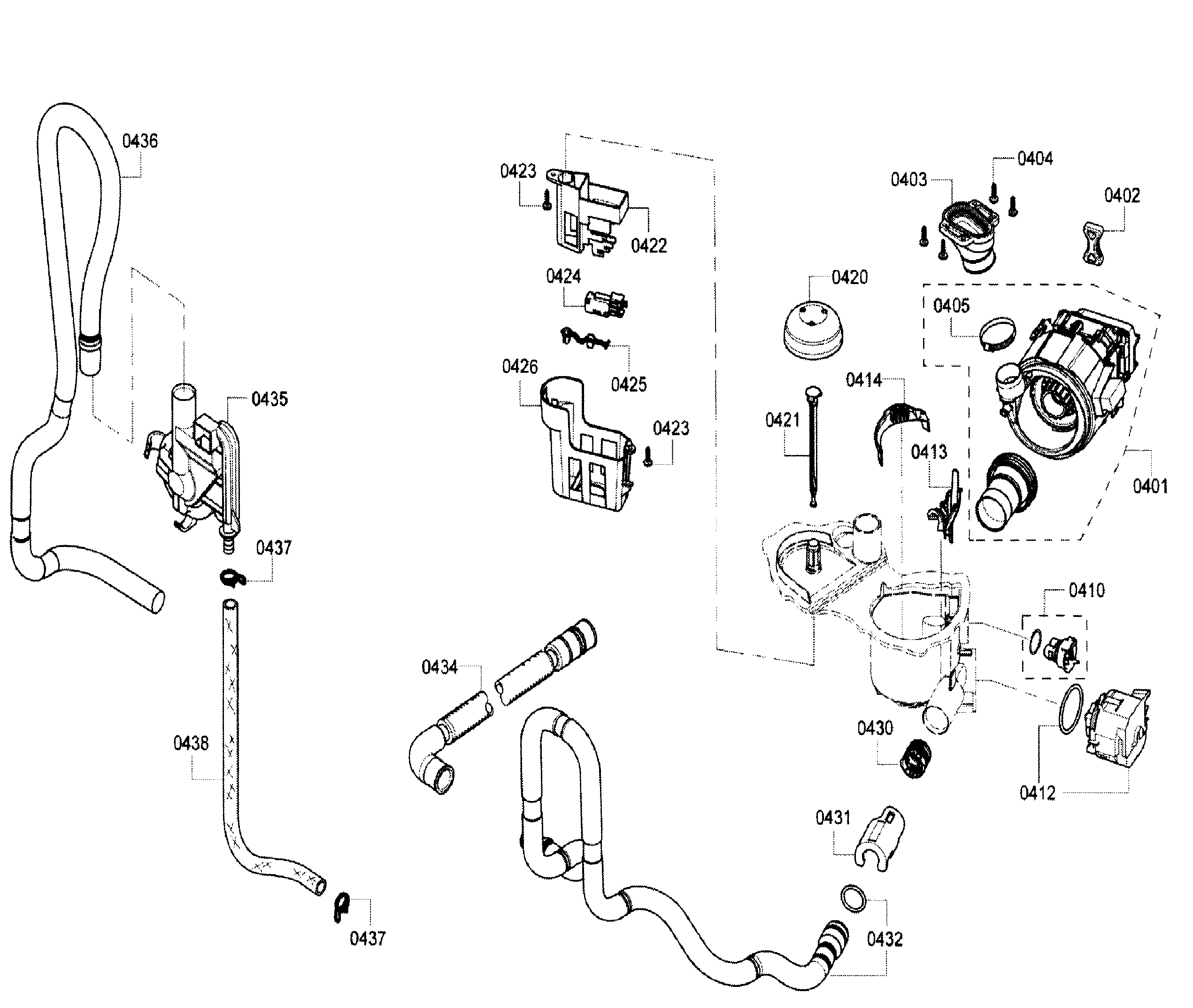

• If the dishwasher hums but does not drain, check for a kinked or clogged dishwasher drain hose 00668108.
• If the hose is clear and the unit still will not drain, inspect the dishwasher drain pump 00611332 for blockage or failure.

What to check first (most common causes)

Standing water is usually caused by a restriction, not “extra water” being added. Focus on these items in order:

Check	What you are looking for	Typical fix
Filter and sump area	Food, broken glass, labels	Clean and reassemble filters
Drain hose routing	Kinks, low loops, clogs	Correct routing, clear blockage
Garbage disposal or sink drain (if connected)	Knockout plug still in place, clog	Remove plug, clear drain path
Drain pump	Jammed impeller, failed motor	Clear jam or replace pump

Why it matters

Leaving standing water can cause odors, poor cleaning, and can lead to repeated drain errors. Draining it and clearing the restriction protects the circulation system and helps the next cycle start and finish normally.

Helpful references for this model

• Use the SHX4ATF5UC manual for the exact Cancel/Reset sequence and filter removal steps.
• If you see an error code related to draining, use Bosch dishwasher error codes to match the code to the most likely drain-related cause.

Last updated: January 2026

The most common Bosch dishwasher issue is a drain problem: water left in the bottom or a unit that will not drain. On the Bosch SHX4ATF5UC, this is usually caused by a clogged filter area, a kinked/blocked drain hose, or a drain pump problem; drying complaints are also common due to condensation drying. See the SHX4ATF5UC manual for model-specific cleaning and operating steps.

Most common symptoms and what they usually mean

• Standing water after the cycle: filter or drain path restriction, drain pump not moving water
• Slow drain or gurgling: partial blockage in the drain hose or sink/disposer connection
• Dishes still wet: normal condensation drying behavior, rinse aid low, plastics retain water

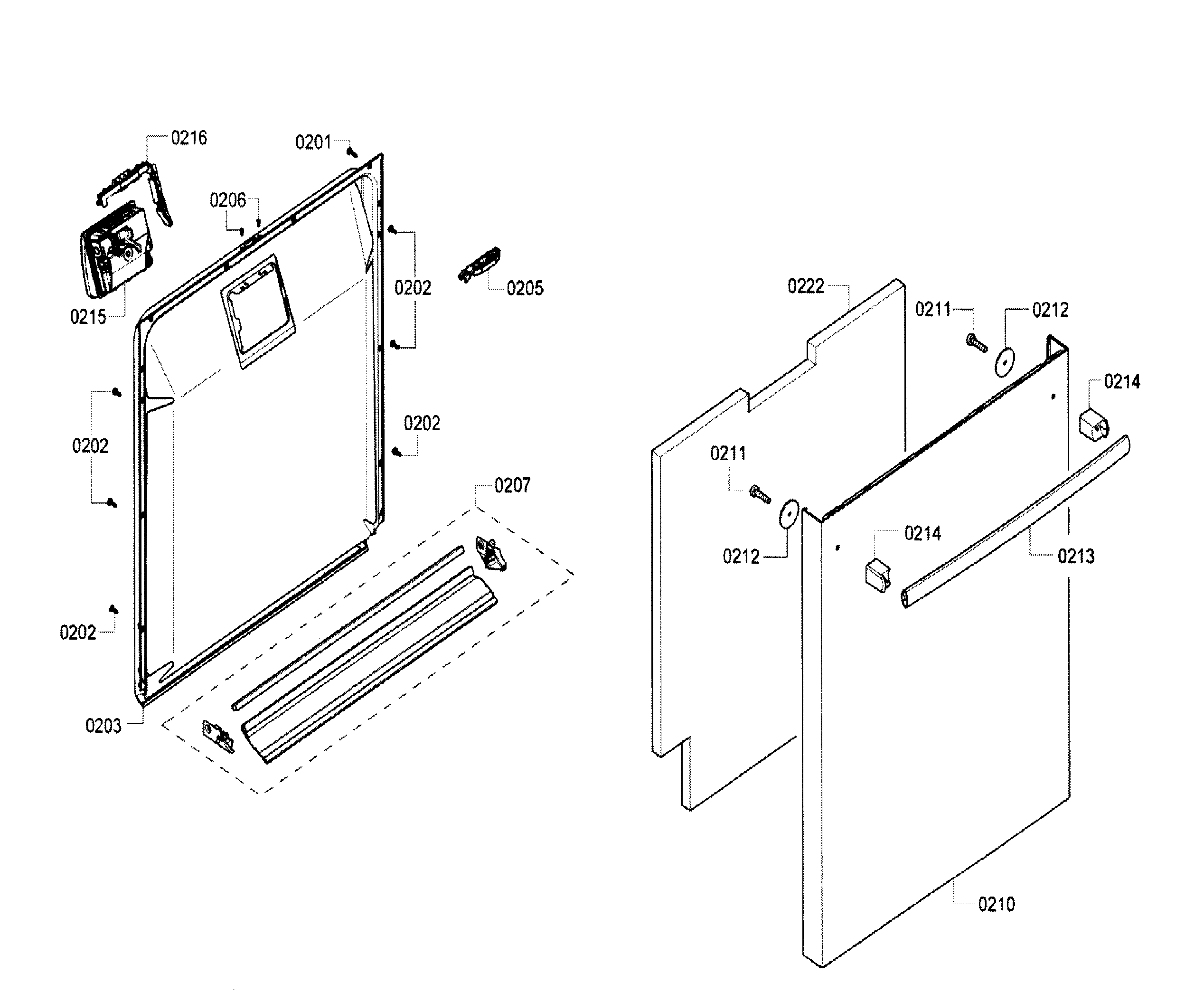

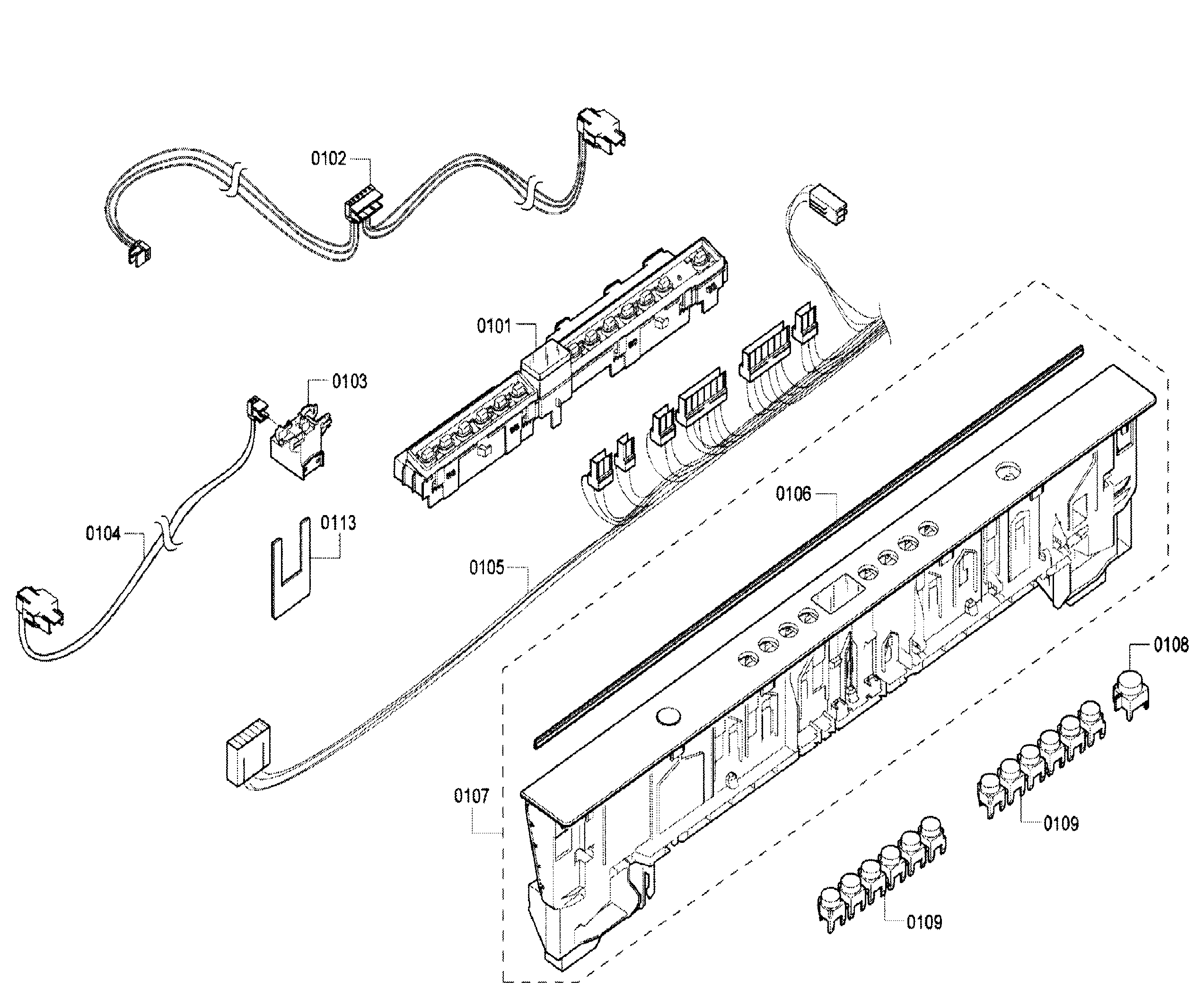

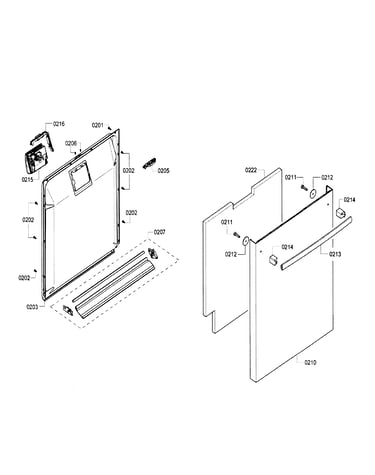

• Stops mid-cycle: door not fully latched, control sensing a drain/fill issue
• Random filling when off: water inlet valve not sealing fully

Quick checks we recommend first (before replacing parts)

1. Turn off power at the breaker.
2. Remove and clean the filter area in the tub bottom (food debris and labels are common culprits).
3. Check the drain hose routing under the sink for kinks, pinches, or a low loop problem.
4. Inspect the sink drain/disposer inlet where the dishwasher hose connects; clear buildup.
5. Run a rinse cycle and listen for the drain portion; a loud hum with little/no water movement points to a pump or blockage.

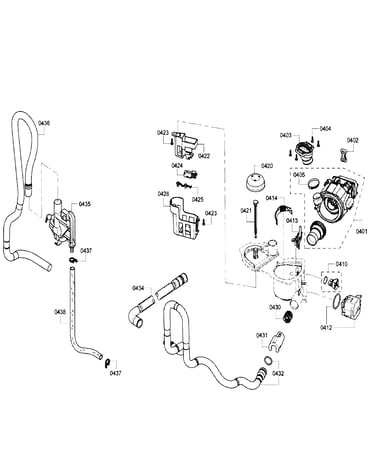

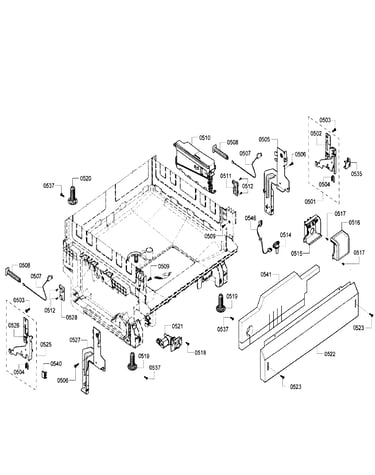

Parts that commonly solve the “won’t drain” complaint

If cleaning and hose checks do not fix it, these are the most common drain-related parts for SHX4ATF5UC:

Symptom	Most likely area	Example part for this model
Hums but won’t drain	Drain pump jammed/failed	Dishwasher drain pump 00611332
Leaks or poor drain flow at hose	Drain hose restricted/damaged	Dishwasher drain hose 00668108
Intermittent drain issues	Pump cover/lid not sealing or debris intrusion	Dishwasher drain pump lid 00611322

Why it matters

Drain restrictions can trigger longer cycle times, poor cleaning, odors, and repeat stoppages. Fixing the drain path first also prevents replacing good parts unnecessarily.

For error-based troubleshooting, use Bosch dishwasher error codes.

Last updated: January 2026

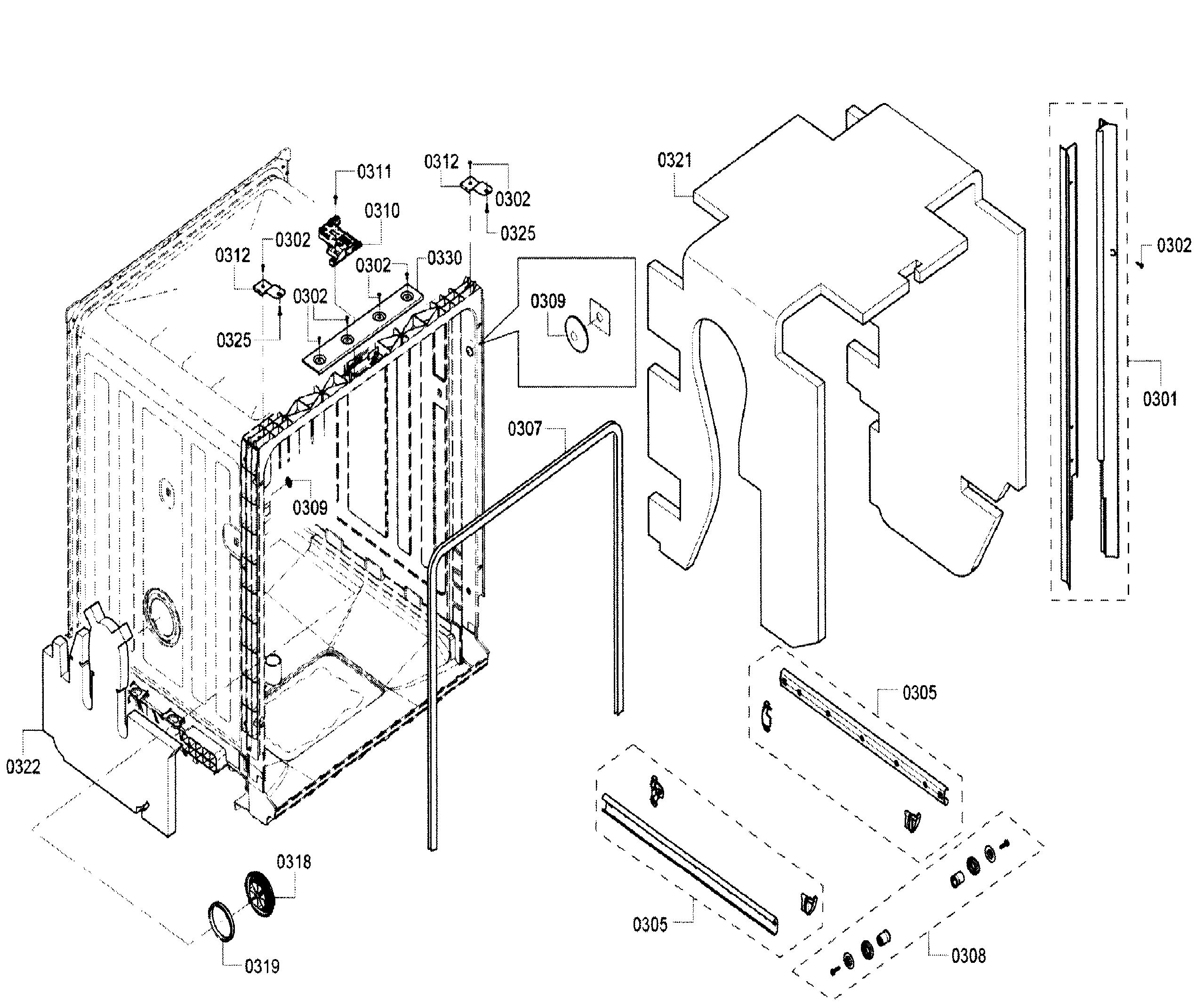

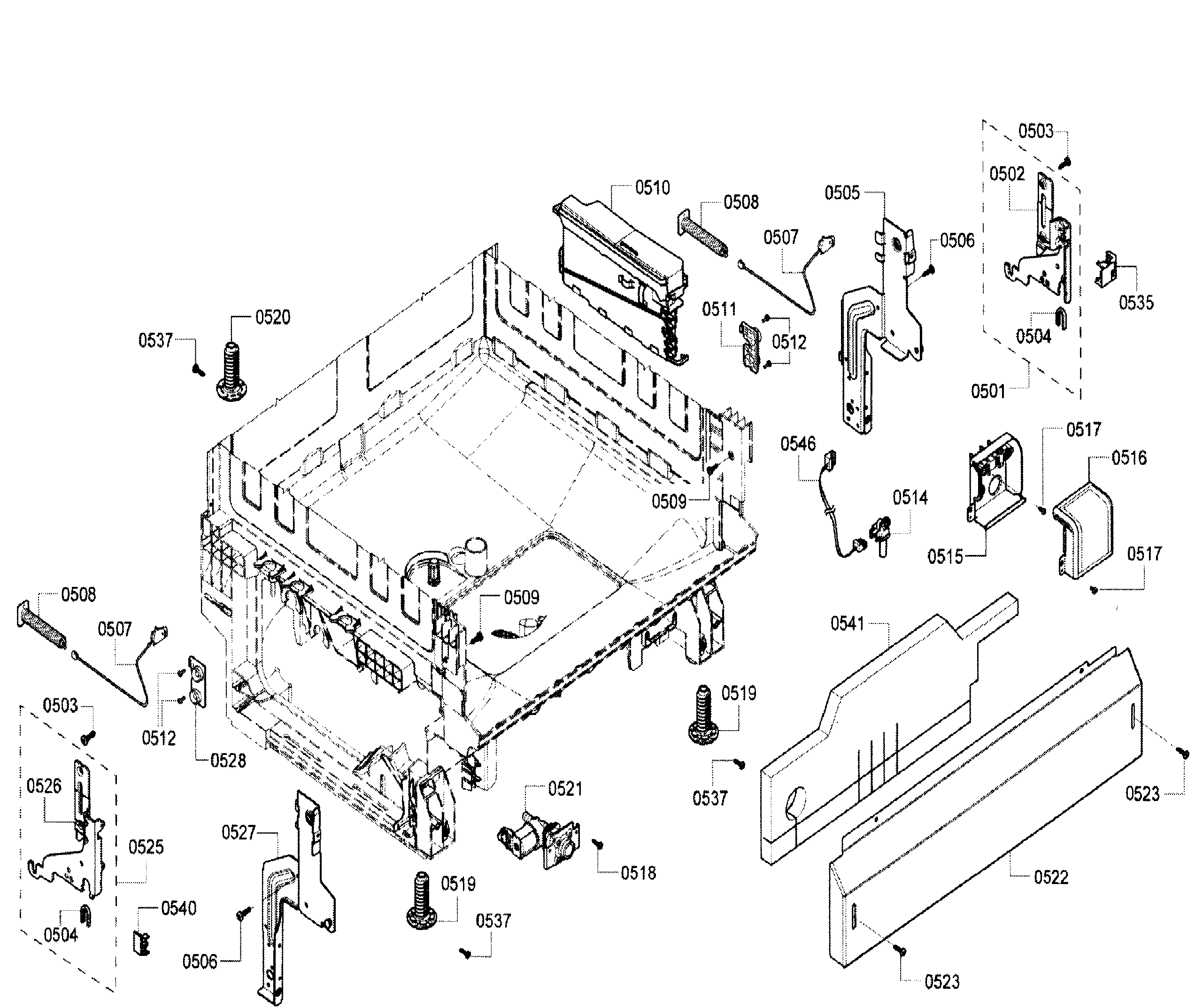

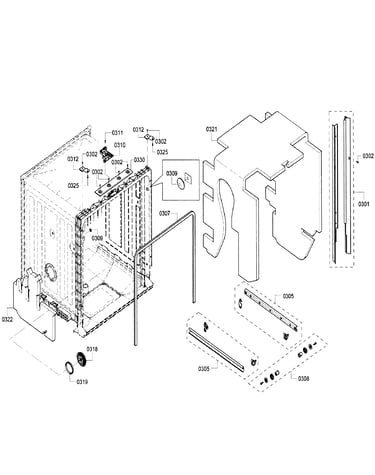

Yes, most Bosch built-in dishwashers (including the Bosch SHX4ATF5UC) are designed to fit a standard 24-inch-wide opening, but Bosch also makes compact 18-inch models. For an exact fit, we use the cutout and clearance specs in the SHX4ATF5UC manual.

What “standard size” usually means

Most U.S. built-in dishwashers are made to match common cabinet openings. “Standard” is mainly about the cabinet cutout and how the unit mounts, not just the door width.

Typical built-in dishwasher sizing:

• Width: 24 inches (most common) or 18 inches (compact)
• Height: adjustable to fit under standard countertops
• Depth: designed to align with standard cabinet depth (varies by handle and panel style)

How to confirm your opening before you buy parts or install

Use a tape measure and compare to the installation requirements.

Measure these three areas:

• Opening width between cabinets
• Opening height from floor to underside of countertop
• Opening depth from back wall to cabinet face

Also check:

• Door swing clearance (will the door hit a toe-kick or nearby handle?)
• Water line and drain hose routing space
• Electrical connection location

Quick reference: common dishwasher widths

Dishwasher type	Common width	Where you’ll see it
Full-size built-in	24 in.	Most kitchens
Compact built-in	18 in.	Small kitchens, apartments

Why it matters

Correct sizing prevents installation problems like a dishwasher that will not slide in fully, a door that rubs the cabinet, or a toe panel that will not align. It also helps avoid strain on the drain hose and water inlet line.

If you are troubleshooting fit issues after installation (for example, the unit will not sit flush), the SHX4ATF5UC installation guide is the best place to confirm mounting and clearance requirements.

Last updated: January 2026

On a Bosch dishwasher, code 21 (often shown as E:21) points to a wash motor or circulation problem, usually caused by restricted water flow or a pump area blockage. On model SHX4ATF5UC, start by checking for drain and sump obstructions before replacing parts.

What to check first (fast, no-parts steps)

• Turn off power at the breaker before servicing.
• Cancel the cycle and remove standing water from the tub if needed.
• Remove and clean the filter area in the bottom of the tub.
• Check the sump for debris (glass, labels, food) that can jam the impeller.
• Inspect the drain path for kinks or clogs, including the air gap (if installed).
• Verify the drain hose routing has a high loop under the counter.

Likely causes and the parts that match them

If cleaning does not clear the code, these are the most common part-related causes on this style of Bosch dishwasher:

Symptom you notice	Most likely issue	Part to consider
Hums but weak wash action	Circulation system restriction or failing heat pump	Dishwasher heat pump 00705174
Won’t drain properly, water remains	Drain pump jammed or failing	Dishwasher drain pump 00611332
Intermittent fill or low water level	Water supply restriction or inlet valve issue	Dishwasher water inlet valve 00633970

Why it matters

When the wash motor cannot move water at the right rate, cleaning performance drops and the dishwasher may stop to protect the motor. Clearing restrictions early helps prevent repeat errors and avoids unnecessary part replacement.

Helpful references for this model

• Use the troubleshooting and reset steps in the SHX4ATF5UC manual.
• If the display shows an E-code, match it to symptoms using Bosch dishwasher error codes.
