Husqvarna YTH22V46-96043027100 lawn tractor Parts

Your Husqvarna lawn tractor’s build year is encoded in the serial number on the product ID tag. On many Husqvarna tractors, the serial number uses a date-style format where the last two digits represent the year (for example, “14” indicates 2014). For exact tag location and identification details, use the owner's manual.

1. Locate the product ID tag (often under the seat, on the frame near the rear wheels, or in the engine compartment area).
2. Write down the serial number exactly as shown.
3. Look for a date-coded sequence within the serial number.

Common Husqvarna-style date coding you may see:

• MMDDYY: first two digits = month, next two = day, last two = year
• YYWW: year and production week (less common on consumer tractors)
• A longer serial where a 6-digit date block appears within it

• Serial contains …041514…: this typically reads as 04/15/14, so the year is 2014
• Serial ends in …23: the year portion is often 2023 (when the format uses a 2-digit year)

Knowing the build year helps us match the correct parts and diagrams for your exact configuration (deck, belts, electrical, and safety interlocks). When you’re ready to order, we list model-matched parts for YTH22V46-96043027100 on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

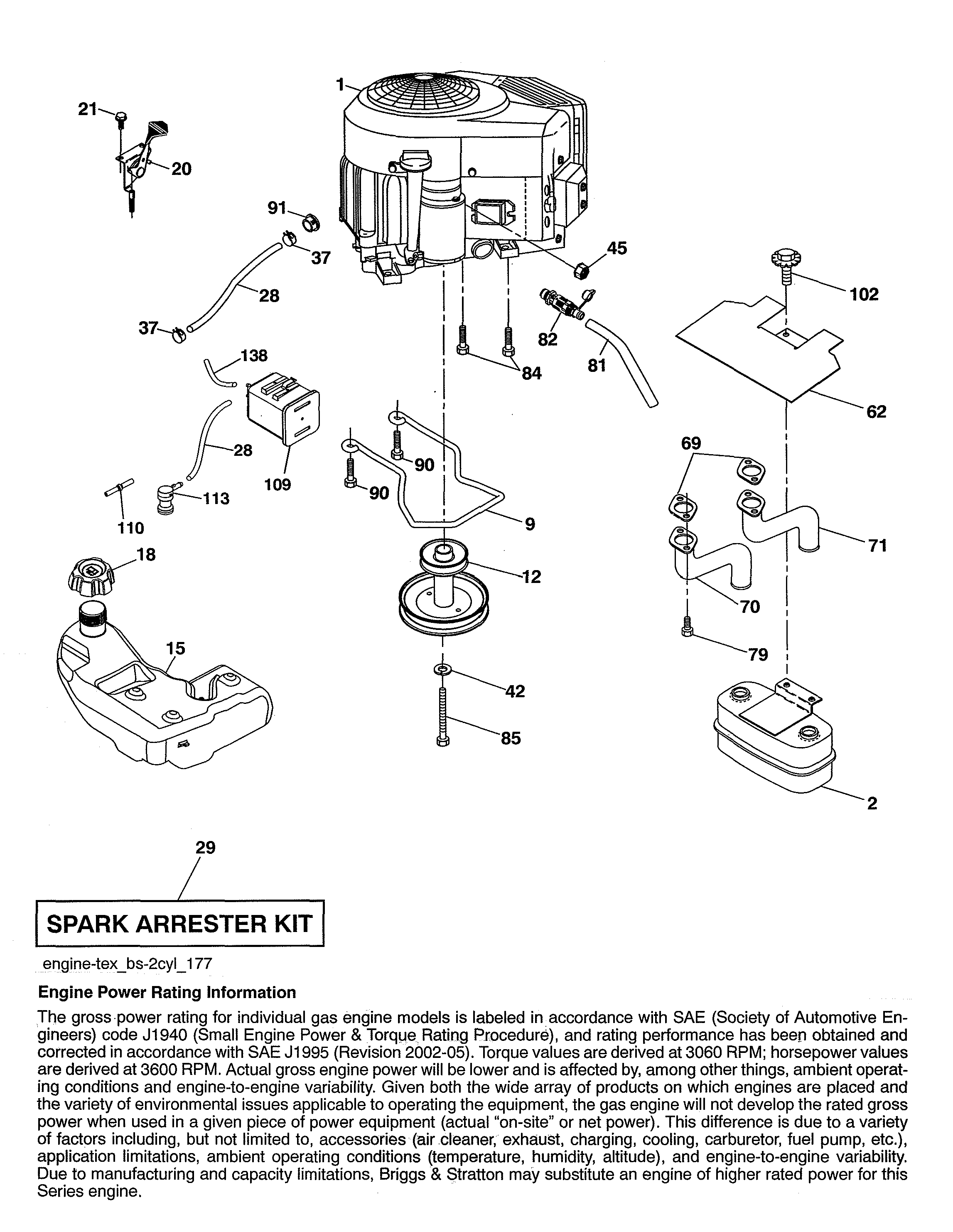

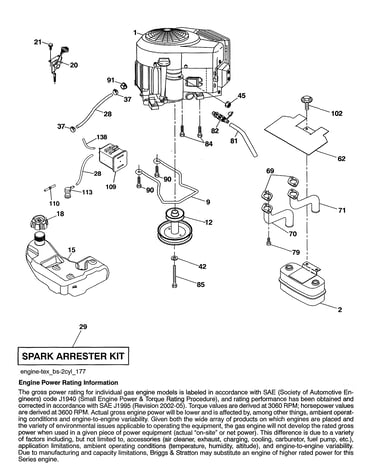

The Husqvarna YTH22V46-96043027100 is a 22 HP class riding lawn tractor that commonly comes equipped with a Briggs & Stratton Intek V-twin engine. For the exact engine identification (model, type, and code) used on your tractor, we recommend matching the numbers on the engine label to the details in the owner's manual.

Use the engine’s ID label, not the hood decal. On most Briggs & Stratton V-twins, the label is on the blower housing or valve cover area.

• Park on a flat surface, set the parking brake, and remove the key
• Lift the hood and locate the engine ID label
• Write down the model, type, and code from the label
• Compare those numbers to the engine information and service sections in the owner's manual
• Use the engine ID when ordering tune-up parts (spark plug, air filter, oil filter)

From the operator’s manual for the YTH22V46 series, these specs align with the typical 22 HP V-twin setup:

The exact engine model determines the correct maintenance parts and settings (spark plug, oil capacity with or without filter, and charging system output). Using the engine ID prevents ordering the wrong parts and helps troubleshooting starting or charging problems.

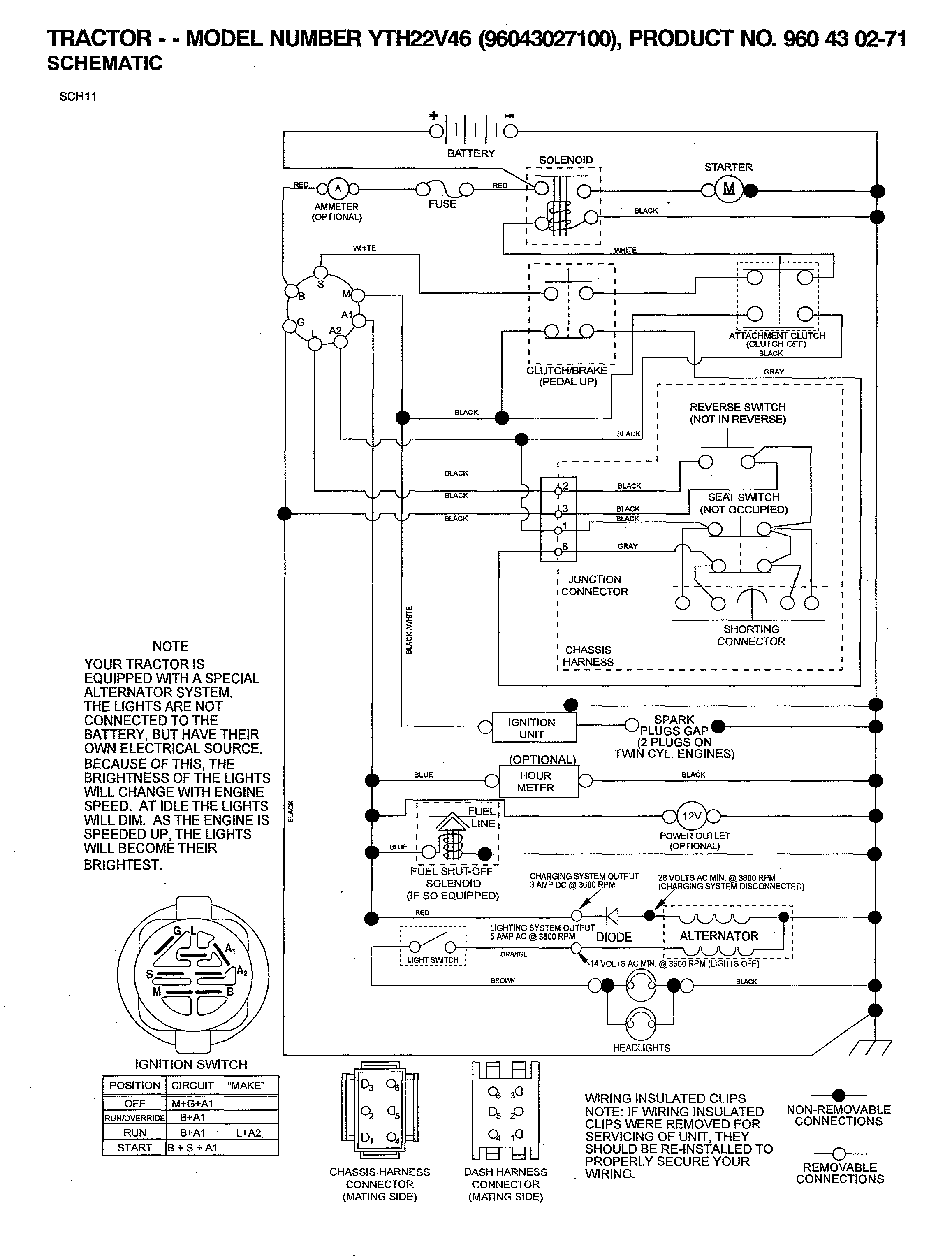

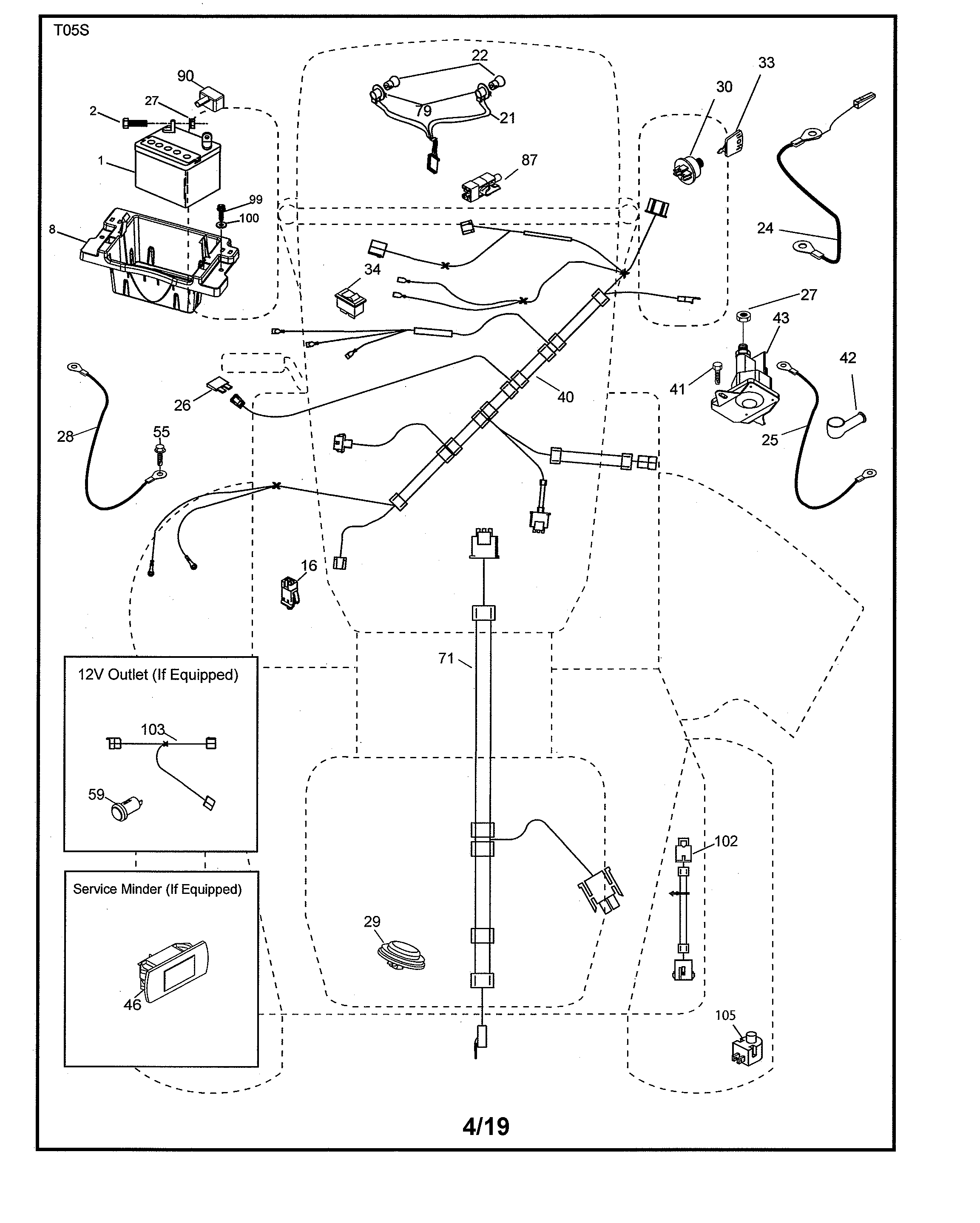

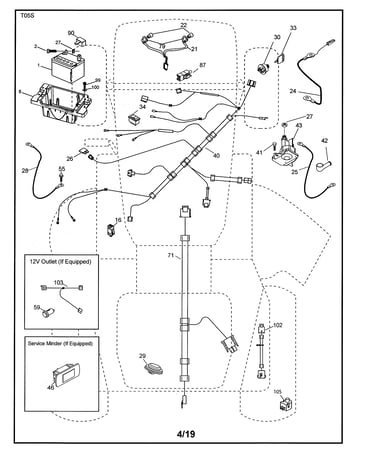

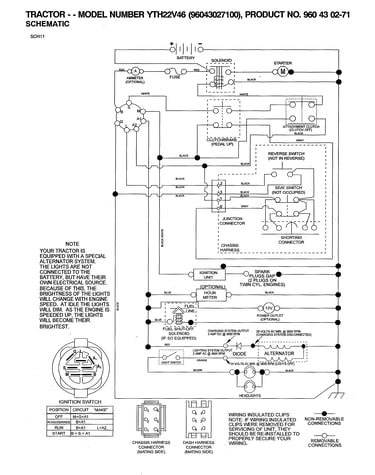

If the tractor clicks, cranks slowly, or will not crank, the problem is often in the starting or electrical system rather than the engine itself. These model-matched parts are commonly involved:

• Battery 532123899 (weak battery, poor cranking)
• Lawn tractor starter solenoid 582042802 (single click, no crank)
• Husqvarna lawn tractor ignition switch 532193350 (no crank in START position)

For ordering, we list model-specific parts for YTH22V46-96043027100 on this page; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

The Husqvarna YTH22V46-96043027100 is a 46-inch riding lawn tractor that fits best for typical homeowner properties; we recommend it for yards around 1 to 2 acres when the terrain is mostly open and you can mow regularly. For exact operating guidance and mowing tips, use the YTH22V46-96043027100 operator's manual.

Acreage is only part of the decision. These factors usually matter more than the number on paper:

• Obstacles: lots of trees, beds, and tight gates reduce productivity
• Slope and rough ground: hills and bumps slow mowing and can affect traction
• Grass type and growth rate: fast-growing grass needs more frequent mowing
• Mowing frequency: weekly mowing is easier on the deck and belts than letting grass get tall
• Cut height needs: this model’s cutting height range is approximately 1 to 4 inches

If your property is maintained and relatively open, a 46-inch deck is commonly used for:

• About 1 acre: comfortable, efficient mowing
• About 2 acres: still a good fit if you mow consistently and the layout is not overly tight
• Over 2 acres: workable, but mowing time increases quickly, especially with obstacles or hills

Matching tractor size to yard size helps you get a cleaner cut with less strain on wear items like the deck drive system. When mowing gets pushed too hard (tall grass, high speed, uneven ground), cut quality drops and deck components can wear faster.

If mowing performance starts to slip (poor cut, blades not engaging, uneven discharge), these are common wear points to inspect and replace as needed:

• Drive v-belt 584453101 (deck/blade drive belt)
• Lawn tractor idler pulley 532194327 (belt tension and tracking)
• Lawn tractor mandrel housing 587819701 (spindle/mandrel support)

You can order replacement parts for your YTH22V46-96043027100 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

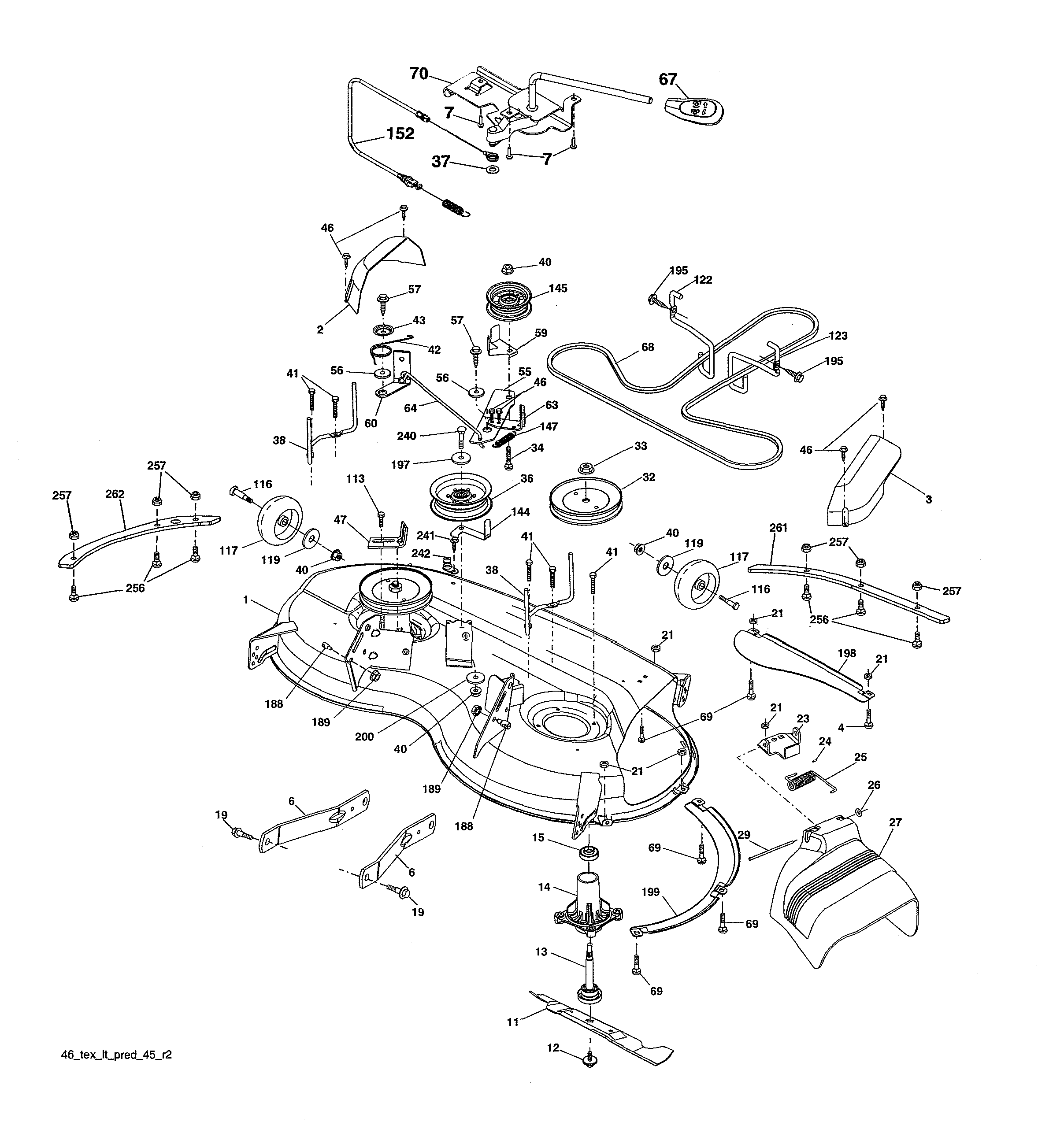

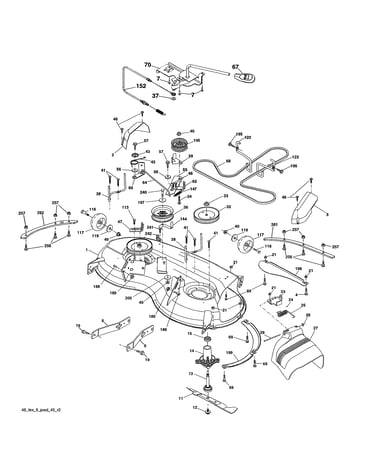

For the Husqvarna YTH22V46-96043027100 lawn tractor, the blade part number is determined by the exact 46-inch deck configuration and the approved blade type for that deck. We match the correct blade by using the blade listing in the YTH22V46-96043027100 owner's manual and the deck parts diagram for your tractor.

Use these checks to identify the correct OEM blade number before ordering:

• Confirm the full model number is YTH22V46-96043027100 (not just YTH22V46)
• Verify you have the 46-inch deck (this model commonly uses a 46-in deck)
• Check the old blade for stamped numbers near the center hole
• Match the blade mount to the star pattern on the mandrel (the manual calls this out)
• Use the deck diagram to confirm whether your deck uses one blade style or multiple blade options

The operator’s manual gives these key requirements for safe, correct blade fit:

• Install the blade with the stamped “GRASS SIDE” facing the ground
• Align the blade center hole with the star on the mandrel assembly
• Tighten the special blade bolt to 45 to 55 ft-lbs (62 to 75 Nm)

If you are changing blades because of poor cut quality, vibration, or belt issues, these related deck parts on this model page often matter too:

• Drive v-belt 584453101 (blade drive belt)
• Lawn tractor mandrel housing 587819701 (mandrel assembly/housing)
• Husqvarna lawn tractor idler pulley 532194327 (belt tension and tracking)

Using the approved blade for your exact deck prevents vibration, protects the mandrel assembly, and keeps the blade bolt torque and mounting fit correct. The manual also warns against using non-approved blades.

If you are ordering, use the parts list for YTH22V46-96043027100 on this model page; for broader model searches, use Sears PartsDirect.
