Kenmore 79092203017 electric range Parts

Your Kenmore stove’s model number is printed on the appliance’s serial plate. On Kenmore model 79092203017 electric ranges, the serial plate is typically on the lower right front frame (visible when you open the oven door); an alternate location is under the cooktop. See the installation guide for the exact serial plate location notes.

Check these common spots in this order:

• Open the oven door and look along the front frame, especially the lower right area
• Pull out the bottom storage drawer and look around the frame opening
• Look under the cooktop (some models have the plate there)
• Check the back panel near the power cord entry area
• Look for a label that includes both Model and Serial information

Most Kenmore labels include a “Model” field and a “Serial” field. The model number is usually a mix of numbers and sometimes letters.

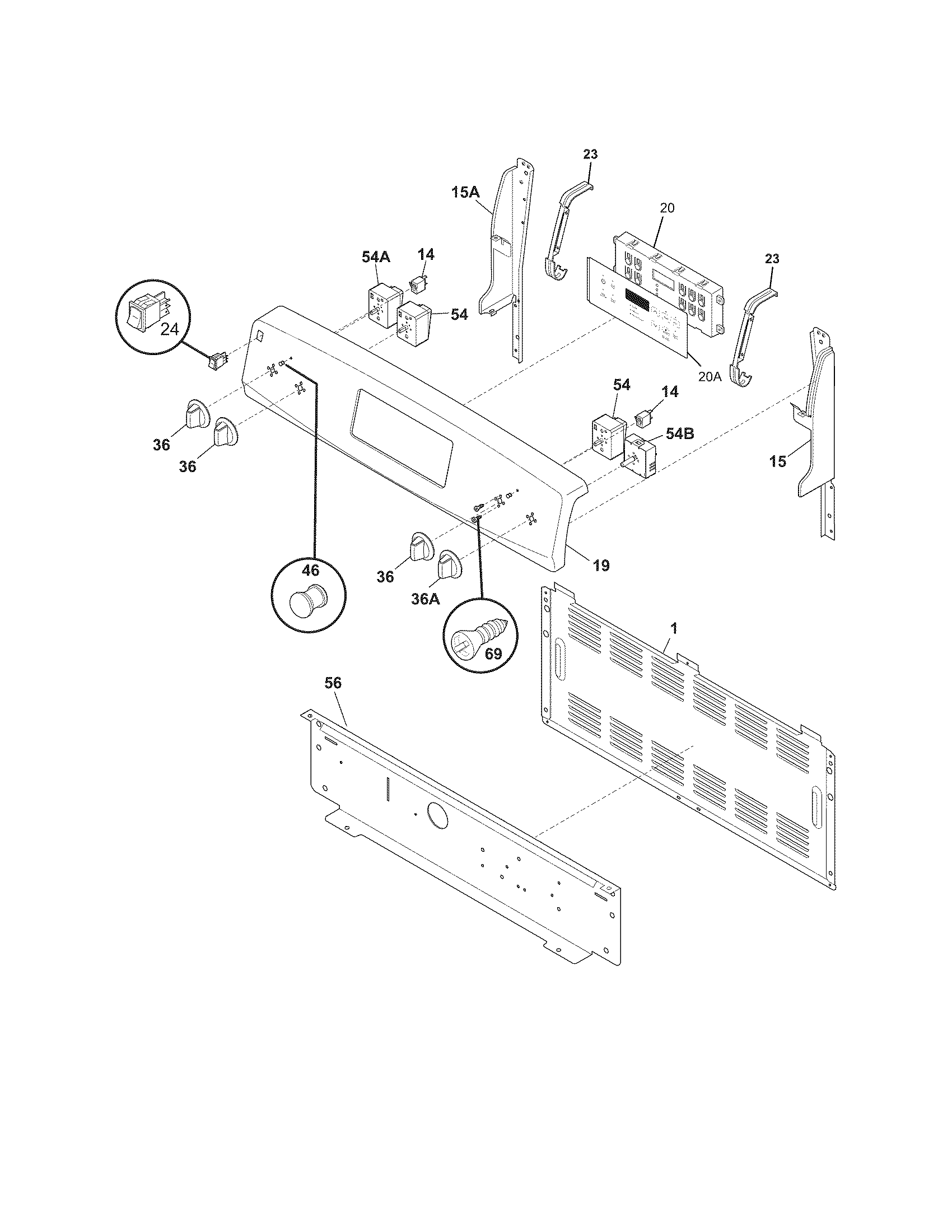

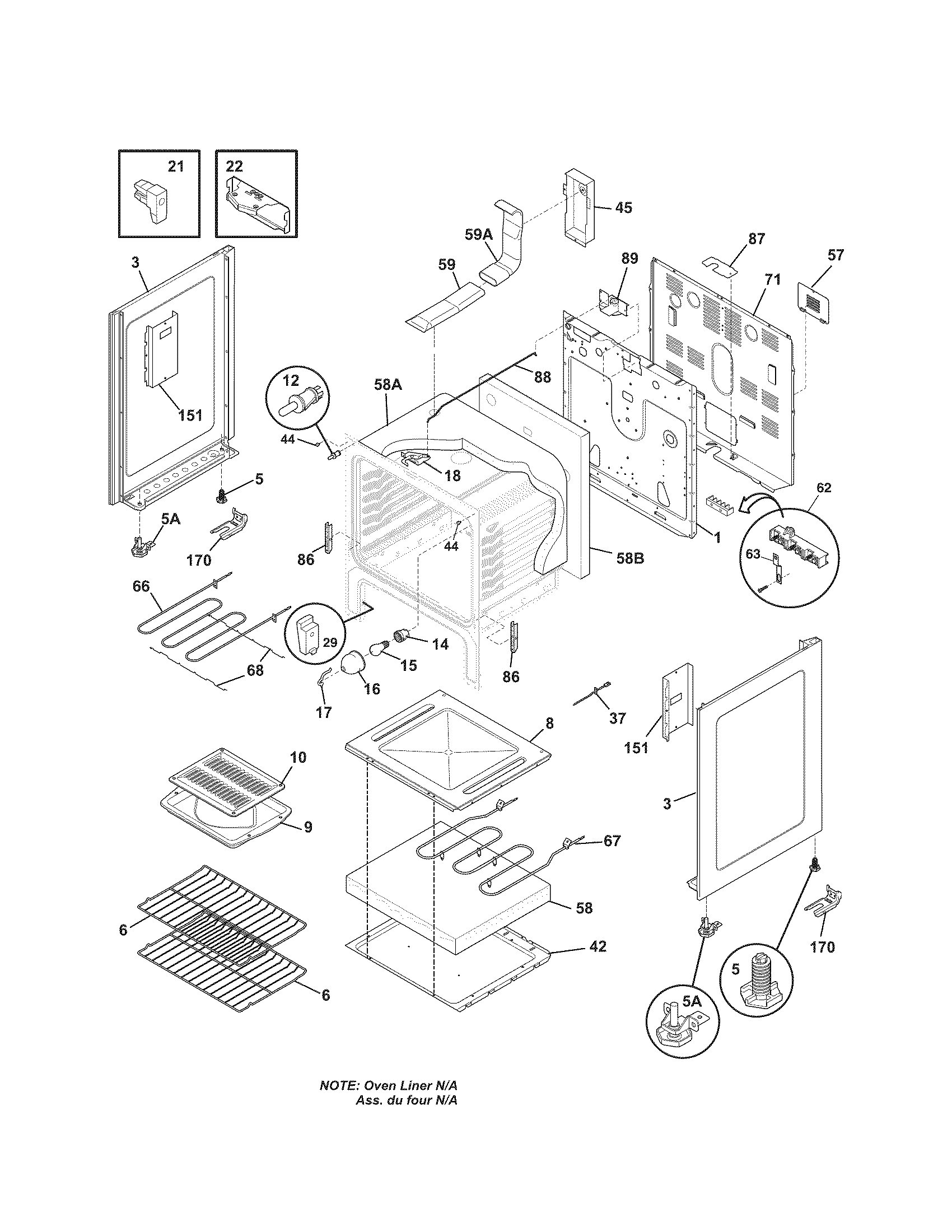

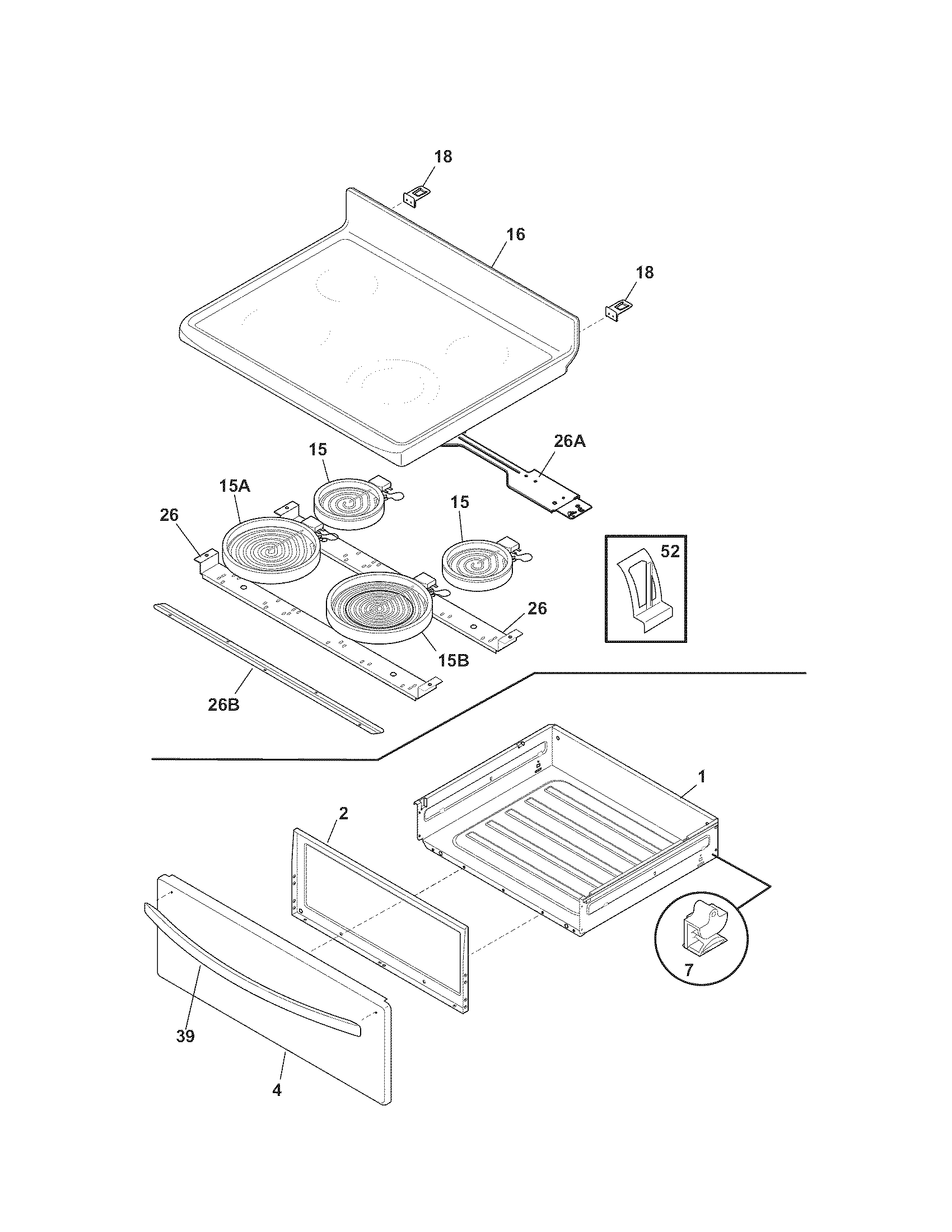

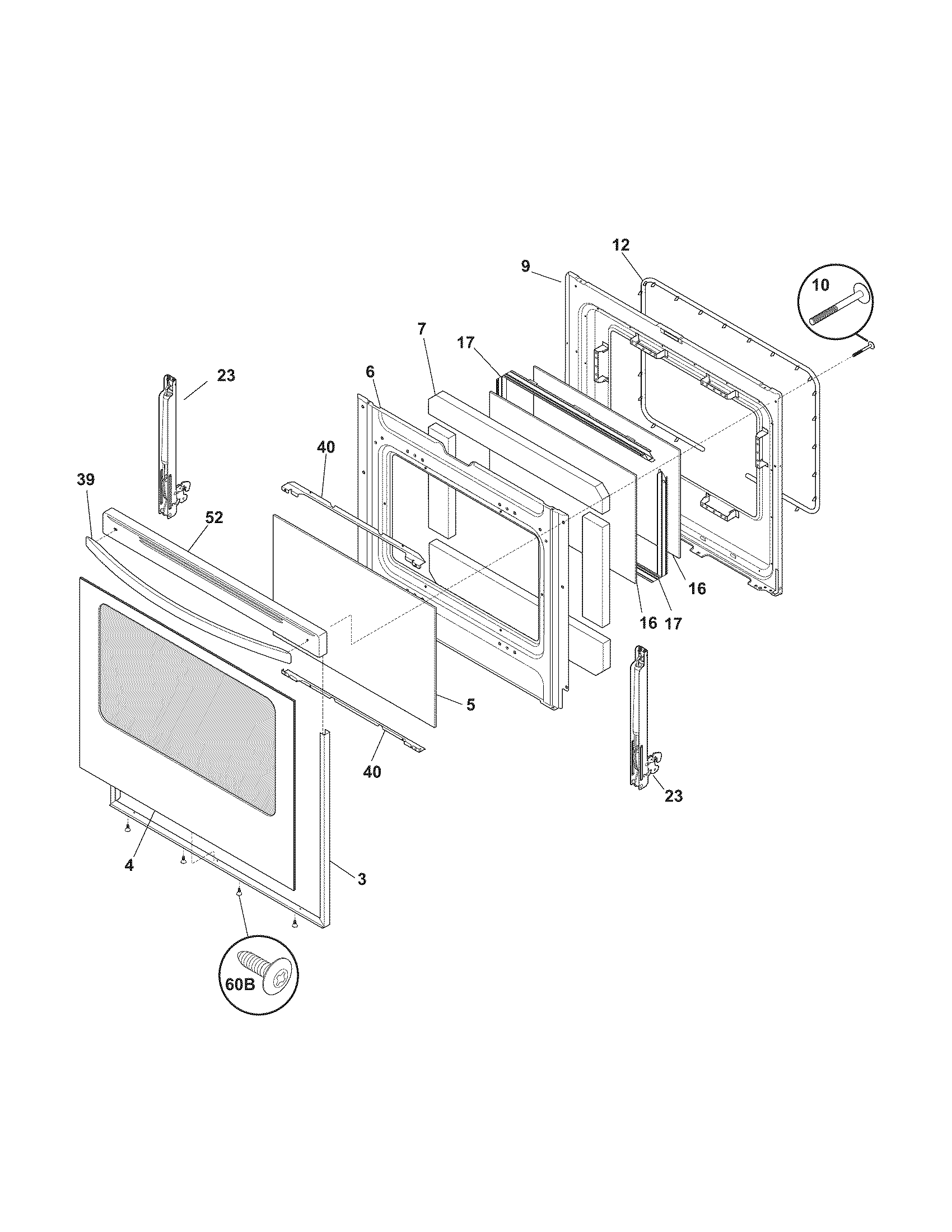

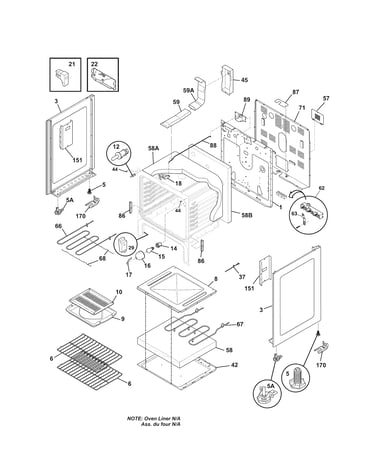

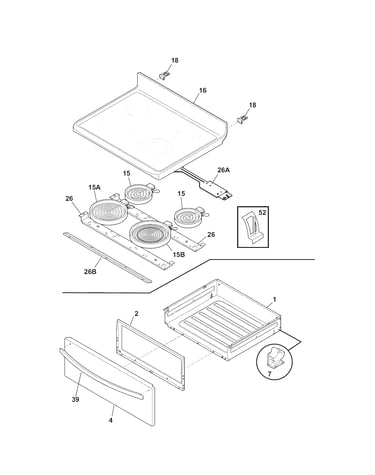

Kenmore ranges can look nearly identical across multiple model numbers, but parts like a bake element, surface element control switch, or oven temperature sensor can differ by revision. Using the exact model number helps us match the correct Kenmore electric range parts list and diagrams the first time.

• Copy the model number exactly as shown (include all digits and any letters)
• Take a clear photo of the label for reference
• If the label is worn, try a flashlight at an angle to make the print easier to read

Last updated: February 2026

To reset an F1 code on your Kenmore electric range model 79092203017, we start with a hard power reset: turn the range off by unplugging it or switching off the range breaker for 3 to 5 minutes, then restore power. If F1 returns quickly, the problem is usually in the oven control circuit.

• Turn all surface burners and the oven off.
• Unplug the range, or switch OFF the dedicated range circuit breaker.
• Wait 3 to 5 minutes (this lets the control fully discharge).
• Restore power.
• If the display is normal, set the clock and test Bake for a few minutes.

For control and feature details specific to your range, follow the keypad sequence in the owner's manual.

On Kenmore ranges, F1 commonly points to a control problem such as a stuck keypad input, a failing electronic oven control, or a temperature sensing issue that makes the control think something is wrong.

• Stuck key: Press each keypad once; if one feels stuck or beeps repeatedly, the overlay/keypad area is the likely cause.
• Oven temperature sensor circuit: A sensor that is out of range can trigger control faults; inspect the sensor connector and wiring at the back of the range.
• Heat-related recurrence: If F1 appears only after the oven heats up, suspect a sensor or control that fails when hot.
• Power supply issues: Loose or overheated terminal connections can cause erratic control behavior.

If you’re inspecting the power connection area, follow the grounding and terminal block cautions in the installation guide (for example, keeping connections tight and avoiding loosening factory-secured terminal nuts).

An F1 code can disable baking or cause the oven to shut down unexpectedly. Resetting gets you back up quickly, but repeated F1 errors usually mean a component or connection needs attention to prevent overheating, poor temperature control, or nuisance shutdowns.

Last updated: February 2026

For the Kenmore 79092203017 electric range, the installation instructions focus on required clearances and cutout planning, not the oven cavity capacity. For fit and placement, treat it as a standard 30-inch class range and use the exact dimension diagram in the installation guide for your cabinet and countertop layout.

Different shoppers mean different things by “oven size.” Here is how we recommend confirming the exact measurement you need:

• Overall range width/depth/height: used for fitting between cabinets
• Oven capacity (cubic feet): used for cooking space comparisons
• Interior oven dimensions: used for fitting large pans or a pizza stone
• Required clearances: used for safety and code-compliant installation

The installation guide for Kenmore 79092203017 provides the dimension requirements and minimum clearances you must follow for safe installation.

Key clearance rules called out in the guide include:

• 30 in. minimum from cooktop to an unprotected wood/metal cabinet bottom
• 24 in. minimum if the cabinet bottom is properly protected
• 0 in. minimum clearance at the rear (when all other dimension requirements are met)

Using dimensions from a different Kenmore 790-series model can lead to incorrect cabinet cuts, poor ventilation, or unsafe clearances. For 79092203017, the installation diagram is the right reference for the exact “size” that matters for your kitchen.

Last updated: February 2026
