How wide is a Kenmore side-by-side refrigerator?
For Kenmore side-by-side refrigerator model 10650049710, the installation opening (cabinet cutout) is typically 36 inches wide. That 36-inch figure is the standard width you plan around for fit and door swing clearance; confirm your exact clearances in the owner's manual.
What “width” means for fit
When customers ask about width, it usually refers to one of these:
- Cabinet cutout width: the opening the refrigerator fits into (often 36 inches for this style)
- Refrigerator case width: the actual cabinet width (can be slightly under the cutout)
- Door swing clearance: extra space needed so doors open fully near a wall
- Ventilation clearance: space around the unit for airflow
Model 10650049710 spacing and clearance basics
Based on the installation guidance for this Kenmore 106.5004* family:
- Plan for a 36-inch minimum cabinet cutout width
- Allow about 1/2 inch clearance on each side and at the top for ventilation
- Allow about 2 inches behind the refrigerator for airflow and water line routing (if equipped)
- If installed next to a fixed wall, keep about 2 inches minimum on the wall side (varies by setup) so doors can swing open
Quick planning table
| Measurement you’re planning | Typical value for this model family | What it affects |
|---|---|---|
| Cabinet cutout width | 36 in | Whether it fits between cabinets |
| Side/top ventilation | 1/2 in | Cooling performance, noise, energy use |
| Rear clearance | 2 in | Airflow, water line connection |
| Wall-side door swing space | 2 in minimum | Door opening, bin and crisper access |
Why it matters
A side-by-side that is “36-inch class” can still bind on cabinets or a wall if you do not plan for door swing and ventilation. Those clearances help prevent warm temperatures, frosting issues, and hard-to-open doors.
Last updated: February 2026
Where is the model number on a Kenmore side by side refrigerator?
On Kenmore side-by-side refrigerator model 10650049710, the model number is printed on the appliance identification label inside the fresh food (refrigerator) compartment. We use that exact model number to match the correct parts list, diagrams, and the right replacement parts for your unit; see the owner's manual.
Common places to check first
Look in these spots with the doors open and a flashlight:
- Inside the refrigerator compartment on a side wall near the top front
- On the ceiling of the fresh food compartment near the light housing
- On the frame around the fresh food door opening (hinge side)
- Behind the crisper drawers on the side wall (if the label is lower)
- On the back exterior panel (less common, but worth a quick check)
What to write down (and why)
For parts lookup, we recommend recording:
- Model number (example: 10650049710)
- Serial number (unique to your refrigerator)
- Any color code or suffix shown after the model series (some labels show a color indicator)
Why it matters
Kenmore model numbers can look similar across different 106-series refrigerators. Using the exact model number from the label helps ensure you get the correct items like a water filter, ice maker, door gasket, or user interface.
Quick reference: model vs. serial
| Item | What it identifies | Used for |
|---|---|---|
| Model number | The design/version of the refrigerator | Matching parts diagrams and compatible parts |
| Serial number | Your specific unit | Service history and production details |
If the label is hard to read
- Wipe the label gently with a damp cloth and dry it
- Take a close-up photo and zoom in
- Copy the characters exactly (including dots or dashes)
If you are ordering parts, we list model-matched options on this page, and you can also search by model number on Sears PartsDirect.
Last updated: February 2026
What is the code Sy Ef on a Kenmore refrigerator?

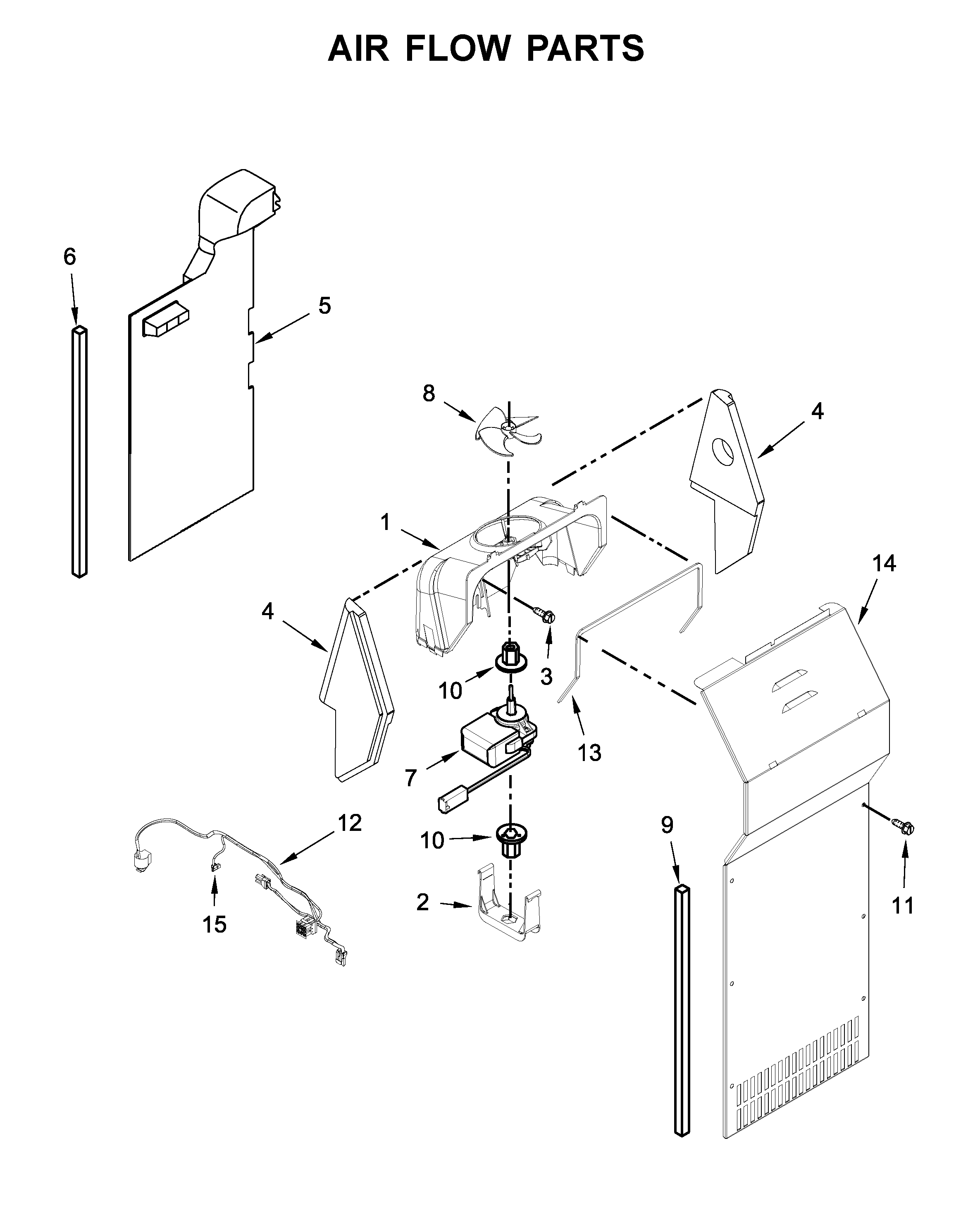

On Kenmore model 10650049710, the SY EF code points to a freezer evaporator fan system problem (the fan is not running correctly or the control is not sensing proper fan feedback). This can cause warm freezer temperatures, poor refrigerator cooling, and unusual noise; use the owner's manual for model-specific checks.
What to check first (quick troubleshooting)
- Power reset: Unplug the refrigerator for 2 minutes, then plug it back in.
- Airflow blockage: Make sure packages are not blocking the freezer air vents.
- Frost buildup: Heavy frost on the rear freezer panel often indicates a defrost or airflow issue.
- Door seal: A leaking gasket can drive frost and fan problems; inspect for gaps and tears.
- Fan noise or no airflow: Listen for the evaporator fan when the freezer door switch is held closed.
Parts commonly involved
If the SY EF code returns after a reset, these are the most common parts we see tied to evaporator fan errors on this Kenmore side-by-side:
| Symptom | Most likely area | Example part for model 10650049710 |
|---|---|---|
| No airflow from freezer vents | Evaporator fan motor or blade | Refrigerator evaporator fan motor WP2315549 |
| Rattling or ticking behind rear freezer panel | Fan blade hitting ice or warped blade | Refrigerator evaporator fan blade WP2169142 |
| Heavy frost, fan slows or stops | Defrost system or air restriction | Refrigerator heater WP2323198 |
Why it matters
The evaporator fan moves cold air across the evaporator and circulates it through both compartments. When the fan cannot run normally, temperatures drift, ice production drops, and the compressor may run longer than it should.
When to replace parts vs. defrost and monitor
- Defrost and monitor if you see heavy frost and the fan starts working again after a full manual defrost.
- Replace the fan motor/blade if the fan is noisy, intermittent, or not spinning freely.
- Check the door gaskets if you repeatedly get frost buildup (warm, moist air leaking in).
For step-by-step access, wiring checks, and control settings for model 10650049710, follow the procedures in the owner's manual. For replacement parts and diagrams for this model, use the parts list on this page or search by model at Sears PartsDirect.
Last updated: February 2026
How to change the water filter in a Kenmore side-by-side refrigerator?
On Kenmore side-by-side refrigerator model 10650049710, the water filter is accessed through the base grille. We open the filter cover door, remove the old filter (eject or 90° twist-unlock), install the new filter, then flush the water system and reset the filter light if equipped. See the 10650049710 owner's manual.
Step-by-step: replace the filter
- Put a towel under the base grille; a small amount of water can drip.
- Open the water filter cover door in the base grille.
- Remove the old filter:
- Eject style: the filter releases as the door opens; pull it straight out.
- Twist style: turn 90° counterclockwise to unlock; pull it out.
- If your filter uses a cap, move the cap to the new filter and align the arrows/grooves.
- Install the new filter:
- Push in fully; for twist style, turn 90° clockwise until it locks and arrows align.
- Close the cover door completely; press firmly so it snaps in.
Flush the water system (required after a filter change)
Flushing clears air that can cause sputtering or dripping.
- Hold the dispenser lever 5 seconds on, then 5 seconds off
- Repeat until water flows steadily
- Continue until you dispense 3 gal. (12 L) total
| After replacement | What to do | Result |
|---|---|---|
| Water dispenser | Flush 3 gal. (12 L) | Clears air from lines and filter |
| Ice maker | Discard first 3 batches | Clears air and initial debris |
Reset the filter status light (if your model has it)
- Press REFRIGERATOR TEMPERATURE within 3 seconds; the status light changes from red to off.
Replacement filter for this model
A commonly used replacement for this refrigerator is the refrigerator cartridge EDR1RXD1 (part number W10743248).
Why it matters
A fresh filter keeps water flow strong for the dispenser and ice maker, and it helps prevent slow fill and small or hollow ice.
You can order the filter from the parts list for model 10650049710, or search by model number on Sears PartsDirect.
Last updated: February 2026
How many cubic feet is the Kenmore refrigerator model 10650049710?
The Kenmore side-by-side refrigerator model 10650049710 has a total capacity that’s listed in the specifications for this model in the 10650049710 owner’s manual. Use the “Capacity” or “Product data” section to get the exact cubic-foot rating for your unit.
Where the cubic feet is listed
In the manual for Kenmore 106.5004* models (which includes 10650049710), capacity is shown in the specifications area.
- Open the 10650049710 owner’s manual
- Look for Specifications, Product data, or Capacity
- Use the total capacity value (refrigerator plus freezer)
- If multiple sub-models are shown, match the full model on your rating label
Quick check: rating label location
The rating label is the fastest way to confirm you’re reading the correct spec line.
- Inside the fresh food compartment on a side wall
- Sometimes behind a crisper drawer or near the top liner
- Shows model number, serial number, and electrical ratings
Related parts (if you’re trying to improve usable space)
Capacity is a fixed spec, but worn or missing storage parts can reduce usable room.
- Refrigerator door bin W11174793
- Refrigerator ice container WPW10670845
- Refrigerator cartridge EDR1RXD1
| What you’re measuring | What it tells you | Where to find it |
|---|---|---|
| Total capacity (cu. ft.) | Official interior volume rating | Manual specifications |
| Usable space | How much you can actually store | Shelves, bins, ice container condition |
Why it matters
Knowing the exact cubic feet helps you compare replacement refrigerators accurately and set expectations for storage layout, especially with a side-by-side design and an in-door ice and water system.
For parts and accessories for model 10650049710, order from the parts list for this model or search by model number on Sears PartsDirect.
Last updated: February 2026
