GE GDF520PGJ2WW dishwasher Parts

A GE dishwasher typically lasts 10 to 12 years. For your specific GE GDF520PGJ2WW, that same 10 to 12-year average is the best expectation to plan around; consistent cleaning, correct detergent use, and avoiding chronic clogs can help it reach the upper end.

A dishwasher’s service life is usually determined by how hard the wash system works and how clean the water path stays. For GDF520PGJ2WW, we focus on these practical factors (see the maintenance steps in the GDF520PGJ2WW owner’s manual).

• Cleaning the filters regularly (grit and food soil shorten pump life)
• Using proper automatic dishwasher detergent (hand soap causes oversudsing)
• Keeping inlet water hot enough for good cleaning (about 120°F is a common target)
• Avoiding overloading that blocks spray arms and detergent dispenser
• Fixing small leaks early so moisture does not damage electrical parts

Here’s a realistic way to think about lifespan for most residential GE dishwashers, including GDF520PGJ2WW.

Knowing the expected lifespan helps you decide whether to repair or replace. If your GDF520PGJ2WW is near the 10 to 12-year mark and you’re seeing poor cleaning or draining, it’s smart to inspect common wear items first.

If performance drops, these model-compatible parts are often involved:

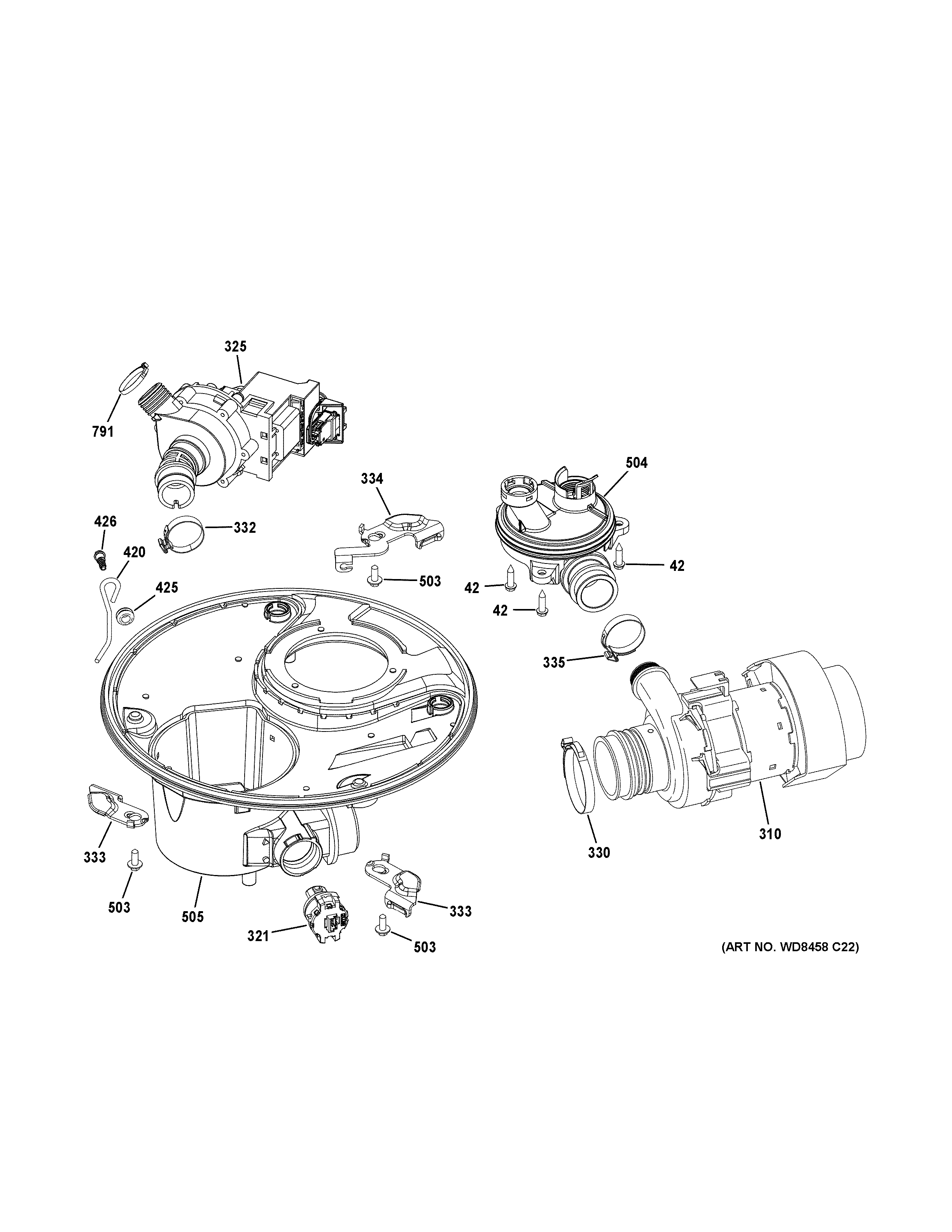

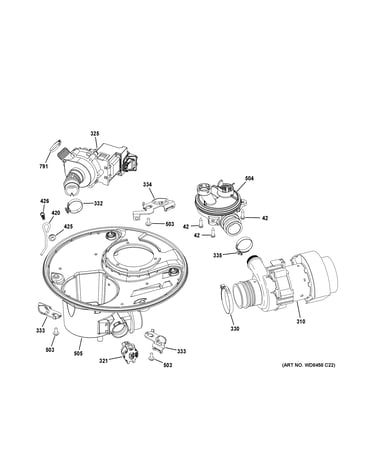

• Dishwasher circulation pump WD26X23258 (weak wash pressure, poor cleaning)
• Dishwasher drain pump kit WD19X25187 (won’t drain, water left in tub)

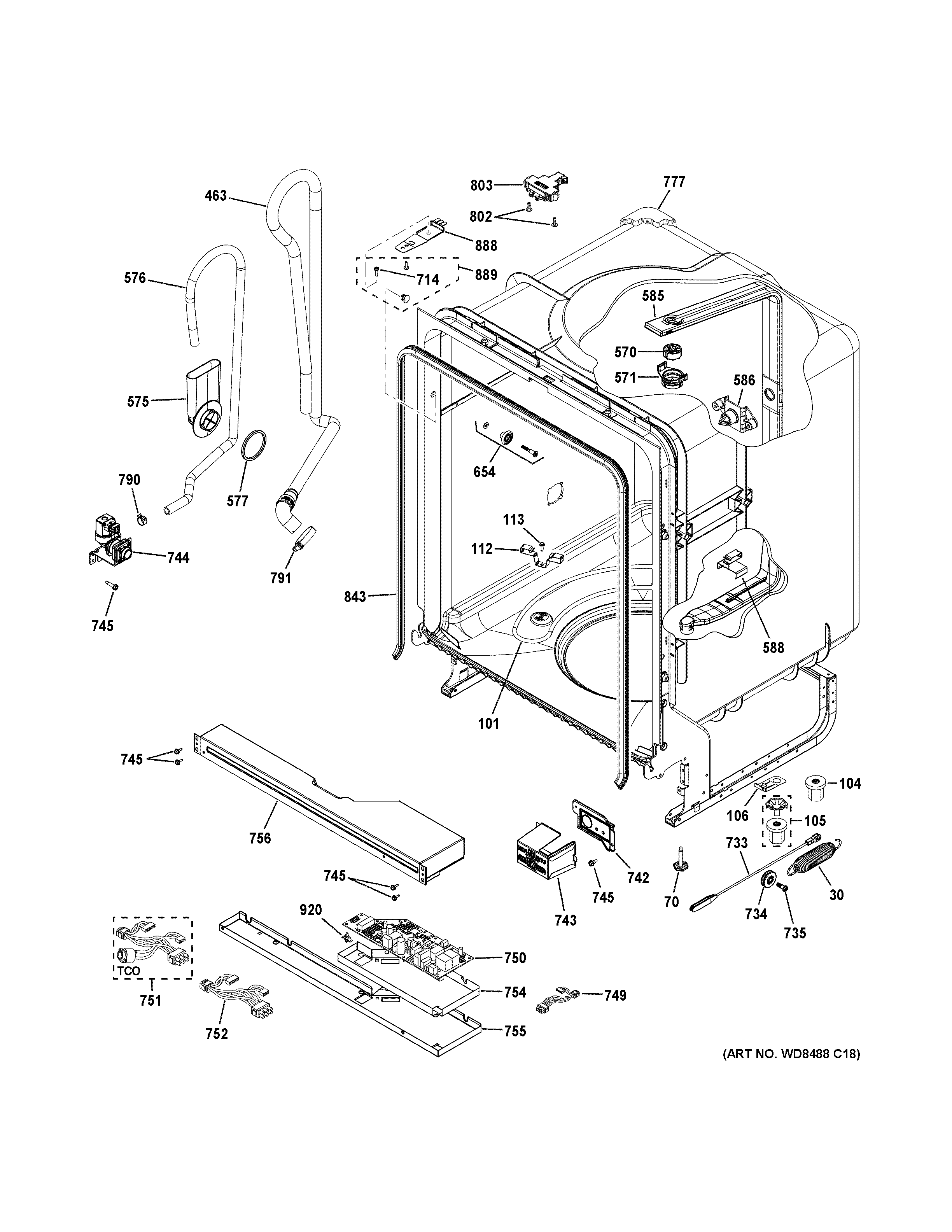

• Dishwasher tub gasket WD08X23476 (leaks around the tub/door area)

Last updated: January 2026

For the GE GDF520PGJ2WW dishwasher, the most common issue we see is a drain-related problem: water left in the tub because the filter area, drain path, or drain pump system is restricted. Start with the cleaning and troubleshooting steps in the GDF520PGJ2WW owner’s manual.

• Water standing in the bottom: clogged air gap, disposer connection, or drain path
• Won’t start or stops quickly: door not latching, control lock enabled, or power issue
• Dishes not clean or feel gritty: filters clogged, spray arm holes blocked, low water temperature
• No fill or weak wash: water supply valve off, low water pressure, inlet valve issue
• Leaks at the door: worn door seal or door not closing squarely

1. Cancel the cycle and let it drain; then check for standing water.

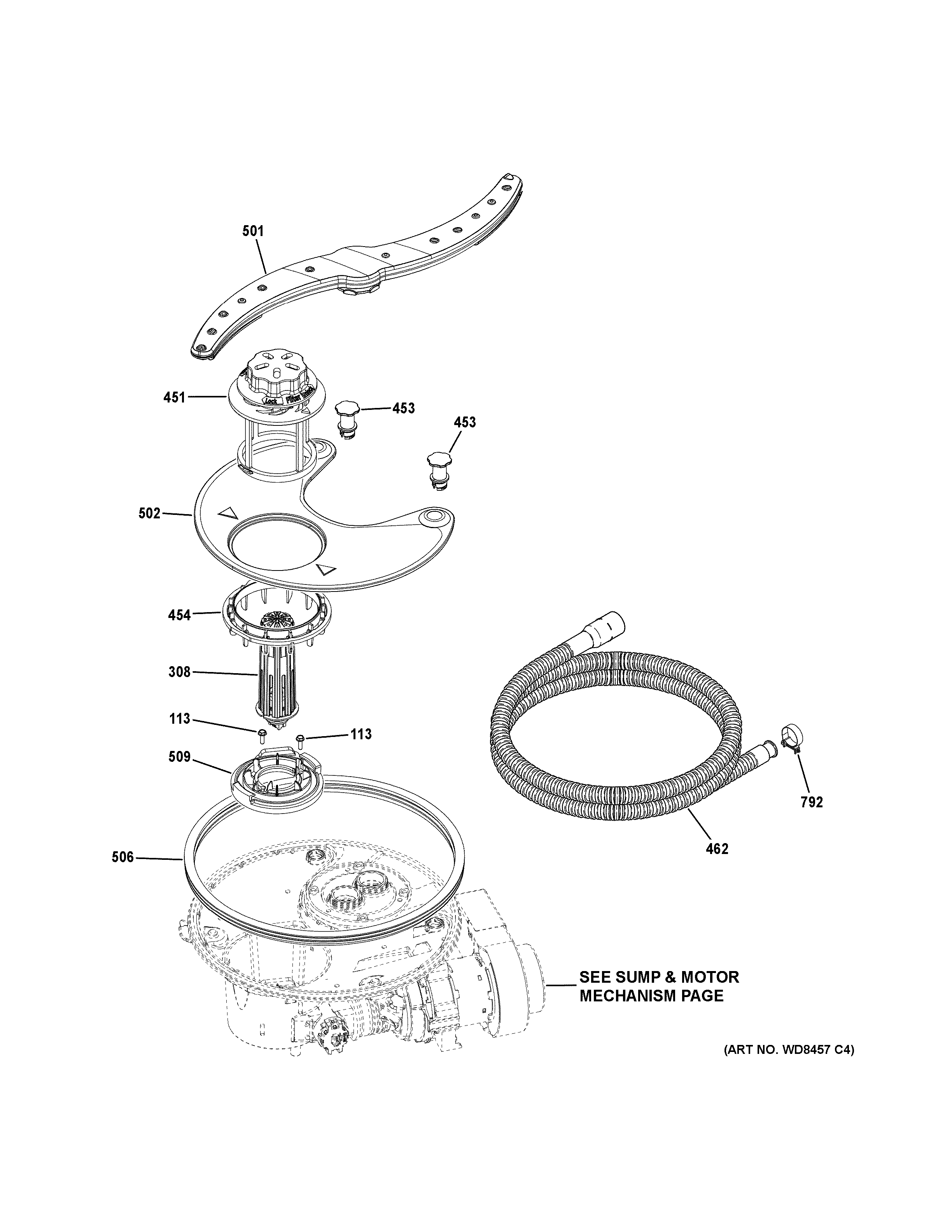

2. Clean the filter area and remove debris from the sump.
3. Check the sink drain/disposer and any air gap for blockage.
4. Confirm hot water is at least 120°F at the sink before starting a cycle.
5. Make sure the door closes firmly and the controls are not locked.

If cleaning and drain-path checks do not help, these model-compatible parts are common suspects:

Drain and wash-performance problems often look like “the dishwasher is broken,” but they are frequently caused by a simple restriction (filters, drain hose routing, disposer plug, or air gap). Fixing the root cause prevents repeat clogs, odors, and poor cleaning.

Last updated: January 2026

If your GE dishwasher model GDF520PGJ2WW isn’t drying well or the water never seems to heat, the heating element may be failing. The most reliable check is a multimeter continuity test at the element terminals; an open (no continuity) reading usually means the element is bad.

• Dishes stay wet even with Heated Dry On selected
• Water does not feel hot near the end of the cycle
• Sanitizing option does not achieve expected results (when used)
• Cycle completes but drying performance is consistently poor
• You see visible damage on the element (pitting, cracks, burn marks)

1. Turn off power to the dishwasher at the breaker.
2. Let the unit cool; the manual warns not to touch the heating element during or immediately after use.
3. Access the heating element terminals (commonly from below the tub).
4. Set your multimeter to resistance (ohms, Ω).
5. Touch one probe to each terminal.

For model-specific safety and operating guidance, follow the cautions in the GDF520PGJ2WW owner’s manual.

• Incoming water temperature: GE guidance is at least 120°F for effective cleaning and drying
• Wiring connections at the element and control
• Cycle and options: confirm Heated Dry On and appropriate wash temperature options
• Door latch operation (a door not fully latched can interrupt operation)

A compatible heating element is listed for GDF520PGJ2WW as dishwasher heating element WD05X30818.

The heating element supports proper wash temperature and drying. When it fails, you can get poor cleaning, wet dishes, and misleading symptoms that look like detergent or loading problems.

Last updated: January 2026

On the GE GDF520PGJ2WW dishwasher, the most reliable “hard reset” is to remove power long enough for the control to fully reboot, then restore power and start a new cycle. You can also cancel a running cycle by holding Start for 3 seconds, which forces a drain and clears the current cycle.

• Power reset (hard reset): Turn the dishwasher’s breaker OFF, wait about 2 to 5 minutes, then turn it ON.
• Cancel/Drain reset (during a cycle): Press and hold Start for 3 seconds, then close the door; the unit drains and the cycle light turns off.
• Resume after an interruption: If the door was opened mid-cycle, press Start once and close the door within a few seconds to continue.

For control behavior, cycle canceling, and indicator lights, follow the steps in the GDF520PGJ2WW owner’s manual.

1. Make sure the dishwasher is idle (not actively washing).
2. Turn the circuit breaker OFF (or switch OFF the dishwasher wall switch if your installation uses one).
3. Wait 2 to 5 minutes.
4. Restore power.
5. Select a cycle and press Start, then close the door promptly so the cycle begins.

These checks solve most “glitch” symptoms after resetting:

• Confirm the door is fully latched (a weak latch can prevent starting).
• Make sure Control Lock is not enabled.
• Verify the water supply valve under the sink is open.
• If the unit beeps and stops, close the door and press Start to resume.

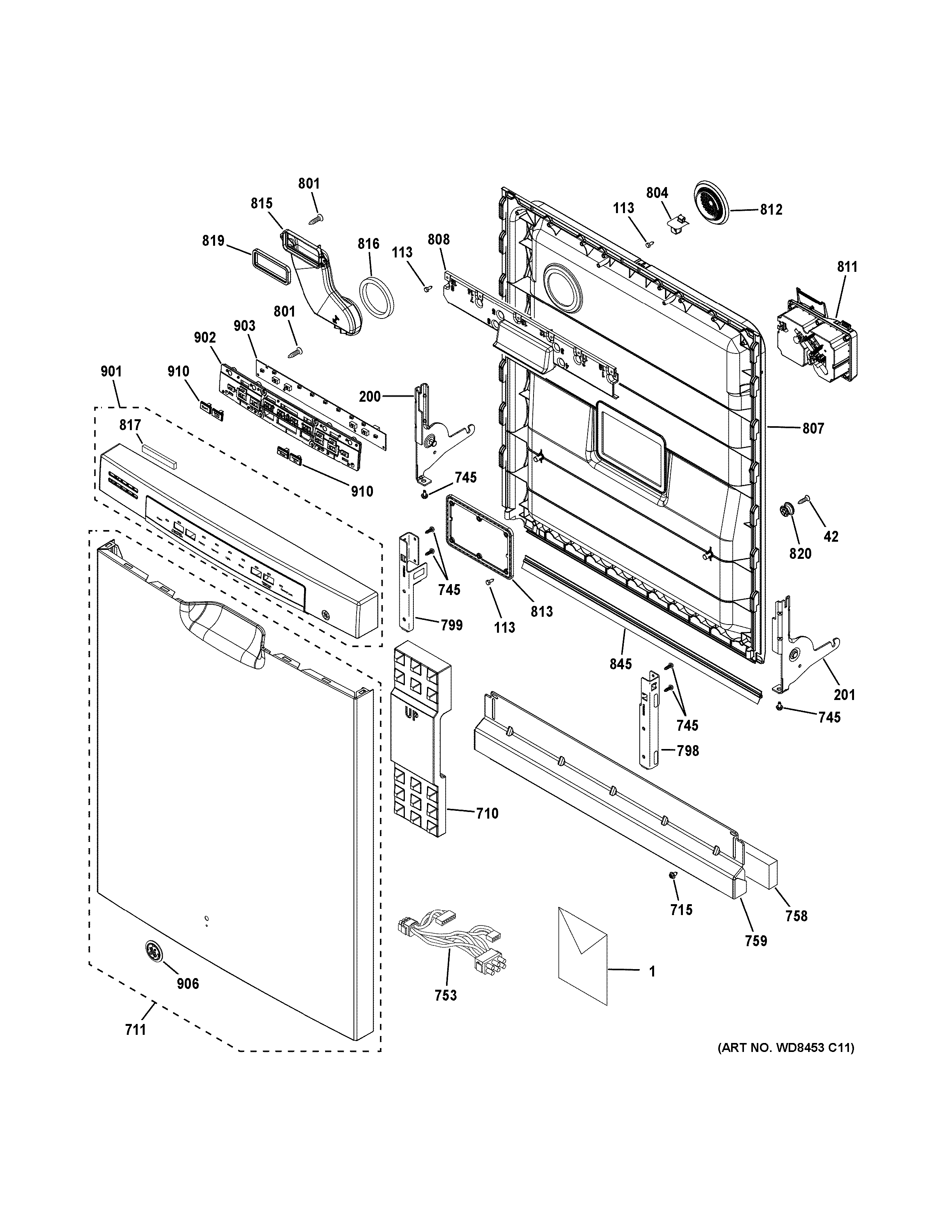

• If the door won’t latch consistently, inspect the latch and strike area; replacement parts may be needed (example: GE dishwasher door latch lock WD21X10490).

A true power reset clears the control’s temporary state, while a Start-hold cancel only clears the current cycle. Using the right reset saves time and helps you avoid unnecessary part replacement.

Last updated: January 2026
