Model #1106808820 Kenmore electric dryer

Here are the diagrams and repair parts for Kenmore 1106808820 electric dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 179 parts

Dryer Drum Belt

#32

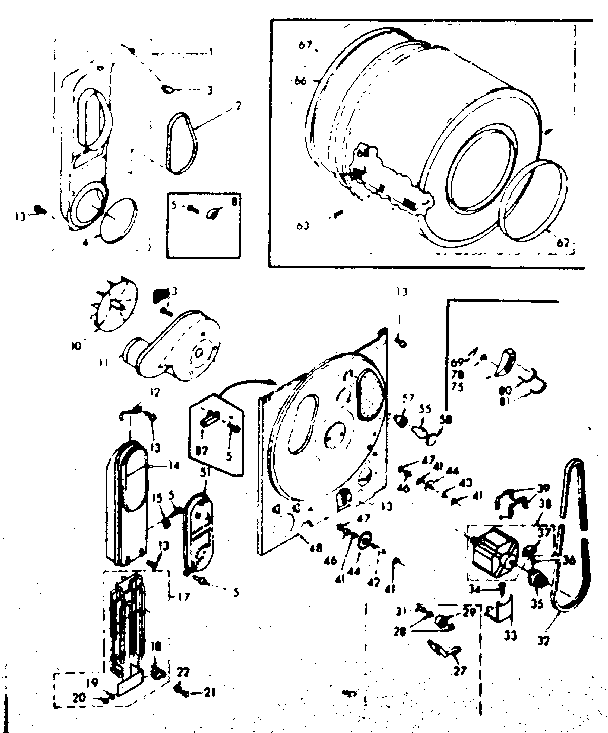

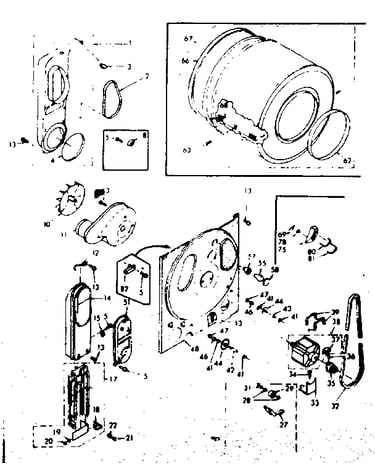

Bulkhead assembly Diagram

Dryer drum belt

Part #341241
$20.87

In Stock

Washer Lid Bumper

#98

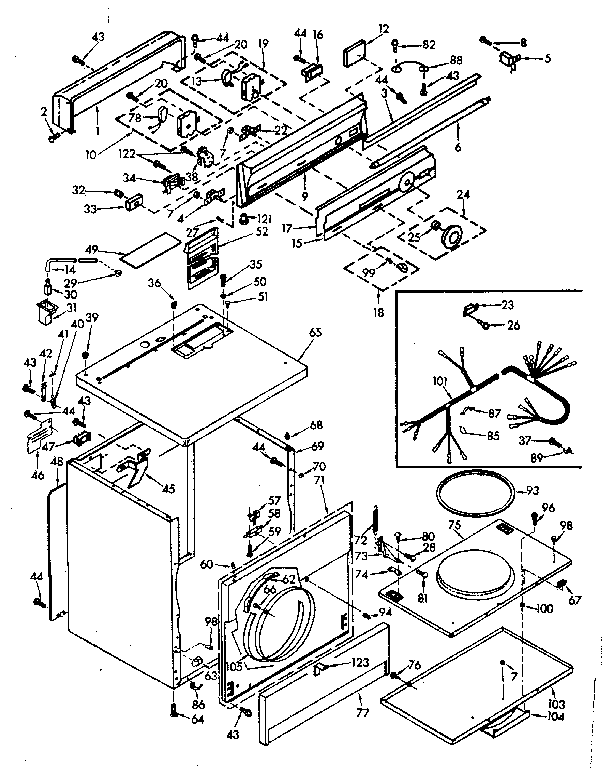

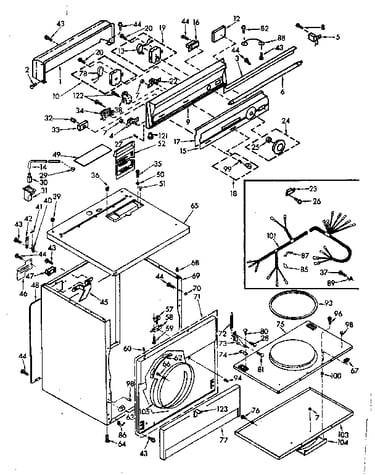

Machine sub-assembly Diagram

Washer lid bumper

Part #238614
$29.06 |
43% OFF MSRP:$51.00

In Stock

Hinge Pad

#41

Machine sub-assembly Diagram

Hinge pad

Part #18849
$12.49

In Stock

Clip

#69

Bulkhead assembly Diagram

Clip

Part #WP342267
?
Manufacturer substitution
This part replaces 342267. Substitute parts can look different from the original.
This part replaces 342267
This item is not returnable
$6.11

In Stock

Dryer Motor Bracket Bolt

#34

Bulkhead assembly Diagram

Dryer motor bracket bolt

Part #3400500
?
Manufacturer substitution
This part replaces 172455. Substitute parts can look different from the original.
This part replaces 172455
$10.57 |
15% OFF MSRP:$12.49

In Stock

Dryer Door Seal

#93

Machine sub-assembly Diagram

Dryer door seal

Part #WP3390733
?
Manufacturer substitution
This part replaces 337965. Substitute parts can look different from the original.
This part replaces 337965
$40.98 |
9% OFF MSRP:$45.00

In Stock

Screw

#43

Machine sub-assembly Diagram

Screw

Part #98242

The manufacturer no longer makes this part, and there's no substitute part

Screw

#8

Machine sub-assembly Diagram

Screw

Part #98209

The manufacturer no longer makes this part, and there's no substitute part

Dryer Felt Seal Clip Kit

#66

Machine sub-assembly Diagram

Dryer felt seal clip kit

Part #279220
?
Manufacturer substitution
This part replaces 341474. Substitute parts can look different from the original.
This part replaces 341474
$10.51 |
12% OFF MSRP:$11.99

In Stock

Washer Screw

#5

Bulkhead assembly Diagram

Washer screw

Part #WP90767
?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
This part replaces 90767
This item is not returnable
$3.21

In Stock
