To hard reset your Kenmore Elite dryer model 41781102003, unplug the dryer (or switch the breaker off) for 2 to 5 minutes, then restore power and wake the control by pressing POWER. This clears most temporary control glitches and lets you restart a cycle normally (see the installation guide).

Hard reset steps (safe, reliable)

• Press POWER to turn the dryer off.
• Unplug the power cord, or turn the circuit breaker off.
• Wait 2 to 5 minutes (this lets the control fully discharge).
• Restore power.
• Press POWER to wake the dryer.
• Select a cycle and press START.

If the dryer is new or acting “stuck” after first plug-in

This model’s installation instructions describe an Installation Cycle that runs diagnostics after the dryer is plugged in the first time. If the display is showing prompts or the dryer is not behaving normally right after installation, run that cycle and then put the unit to sleep and re-wake it.

• Empty the drum and close the door.
• Wake the dryer with POWER.
• Start the Installation Cycle using the console button sequence shown in the installation guide.
• If the dryer stays awake after the cycle, press POWER to put it to sleep, then press POWER again to return to normal operation.

What a reset fixes (and what it does not)

Situation	Hard reset helps?	What to do next
Control panel frozen, cycle won’t start	Yes	Hard reset, then reselect cycle
Random beeping or odd display behavior	Yes	Hard reset, then run a test cycle
No heat, long dry times	Sometimes	Check airflow and heating circuit parts
Drum not turning, squealing	No	Inspect belt and idler system

Why it matters

A hard reset is the fastest way to clear a temporary electronic “lock-up” without replacing parts. If symptoms come back quickly, the issue is usually power supply, airflow restriction, or a failing component.

Parts to consider if symptoms continue

If the dryer runs but has mechanical noise, won’t tumble, or shuts down repeatedly, these model-matched parts are common fixes:

• White-westinghouse dryer drum belt 134719300 (broken or slipping belt)
• Dryer idler assembly 134793511 (idler pulley wear, belt tension issues)
• Dryer inlet thermal limiter 137032600 or kelvinator dryer high-limit thermostat 3204267 (overheat protection opening due to restricted venting)

For replacement parts for model 41781102003, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

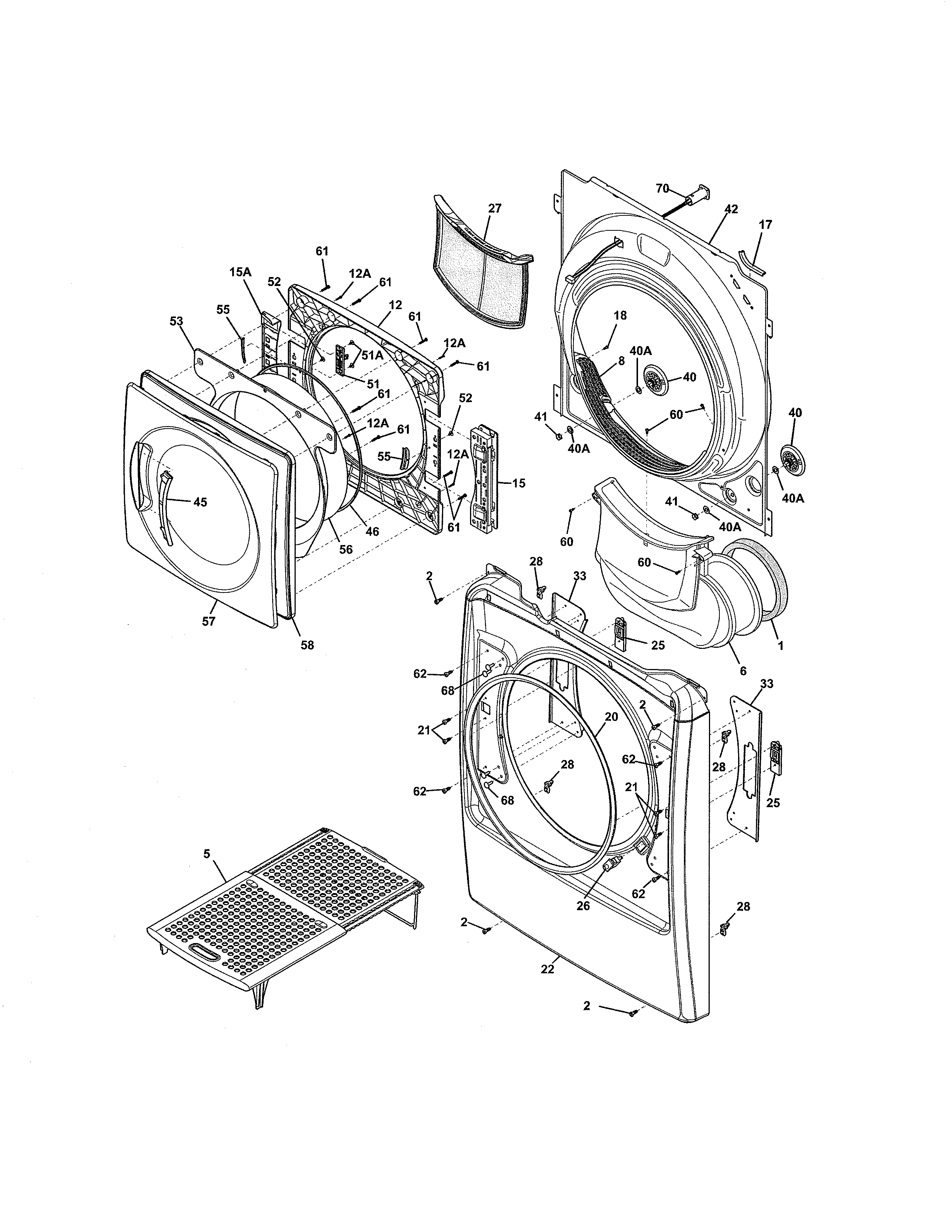

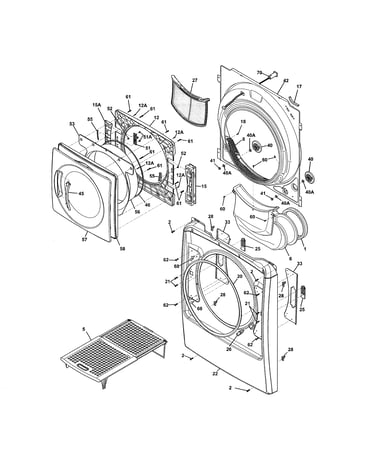

A Kenmore Elite dryer like model 41781102003 uses a drive system to tumble the drum, an airflow system to move heated air through clothes, and safety and control parts to regulate temperature and operation. For your exact component locations, use the exploded views in the owner's manual.

Main dryer parts and what they do

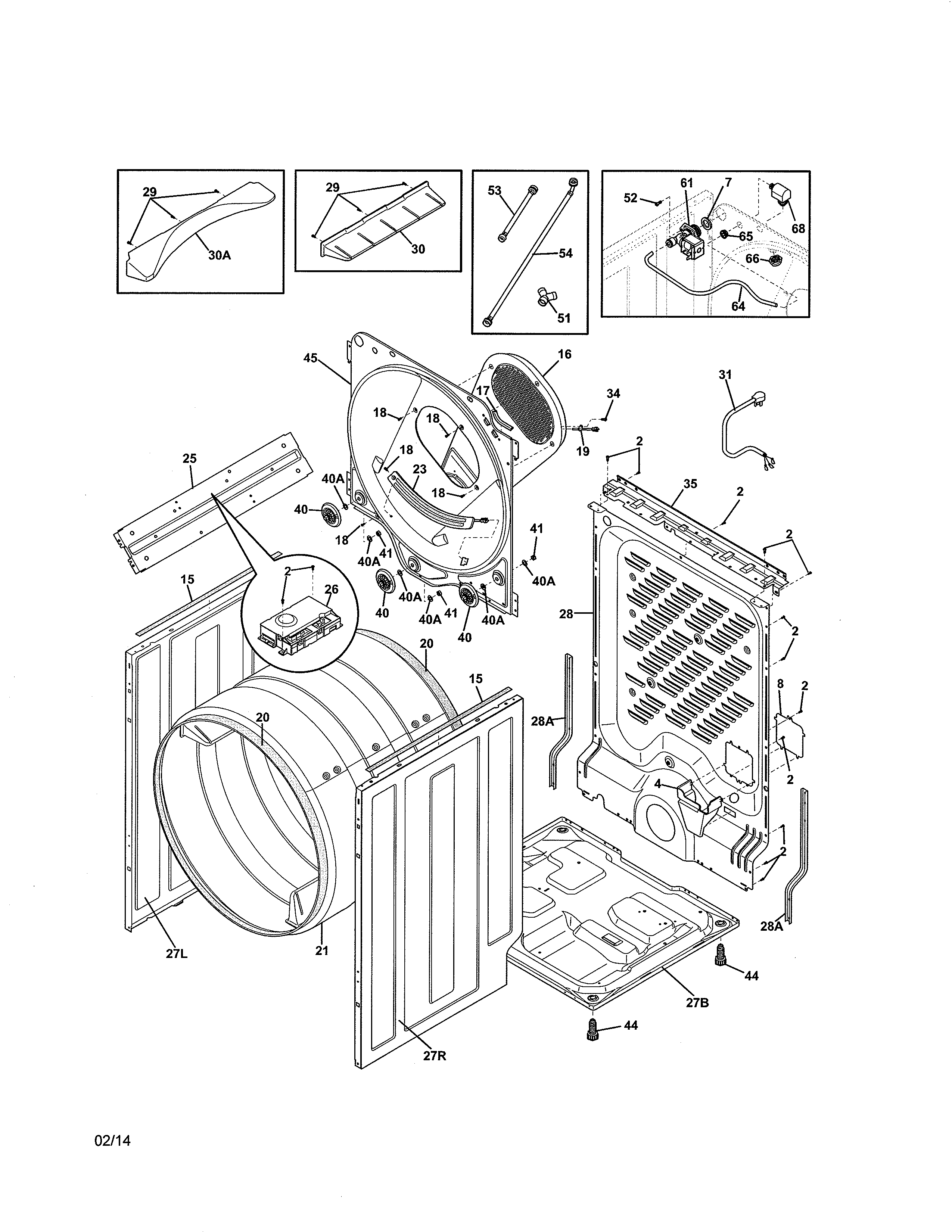

• Drum: holds and tumbles the load (your model uses a drum like dryer drum 137610710).
• Drive belt: wraps around the drum to turn it (common replacement: white-westinghouse dryer drum belt 134719300).
• Idler system: keeps belt tension correct (often includes dryer idler assembly 134793511 and dryer idler spring 131601000).

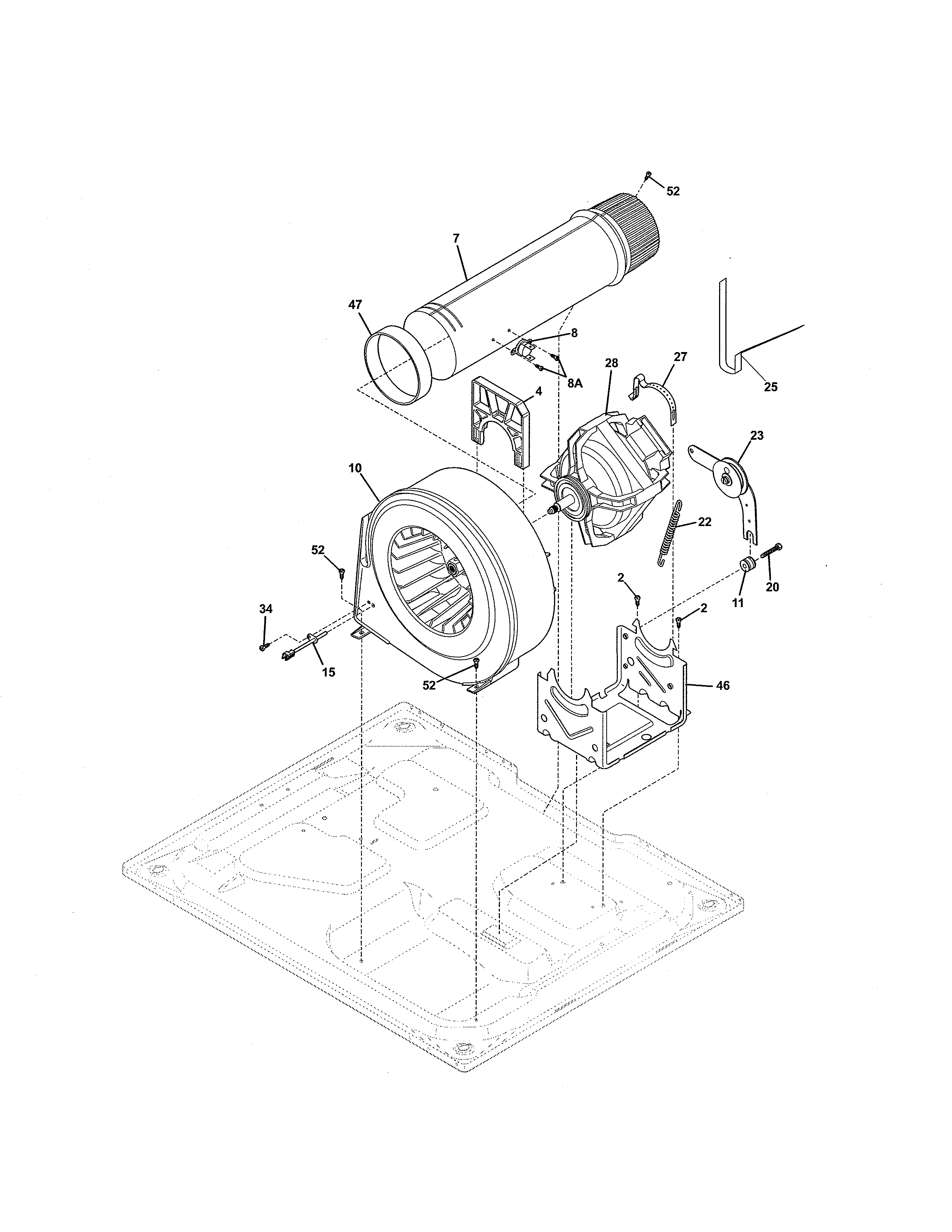

• Motor and pulley: powers drum rotation and blower (see motor 5304529782 and dryer motor pulley 134693800).
• Blower and housing: moves air through the drum and out the vent (example: dryer blower wheel and housing assembly 137552300).

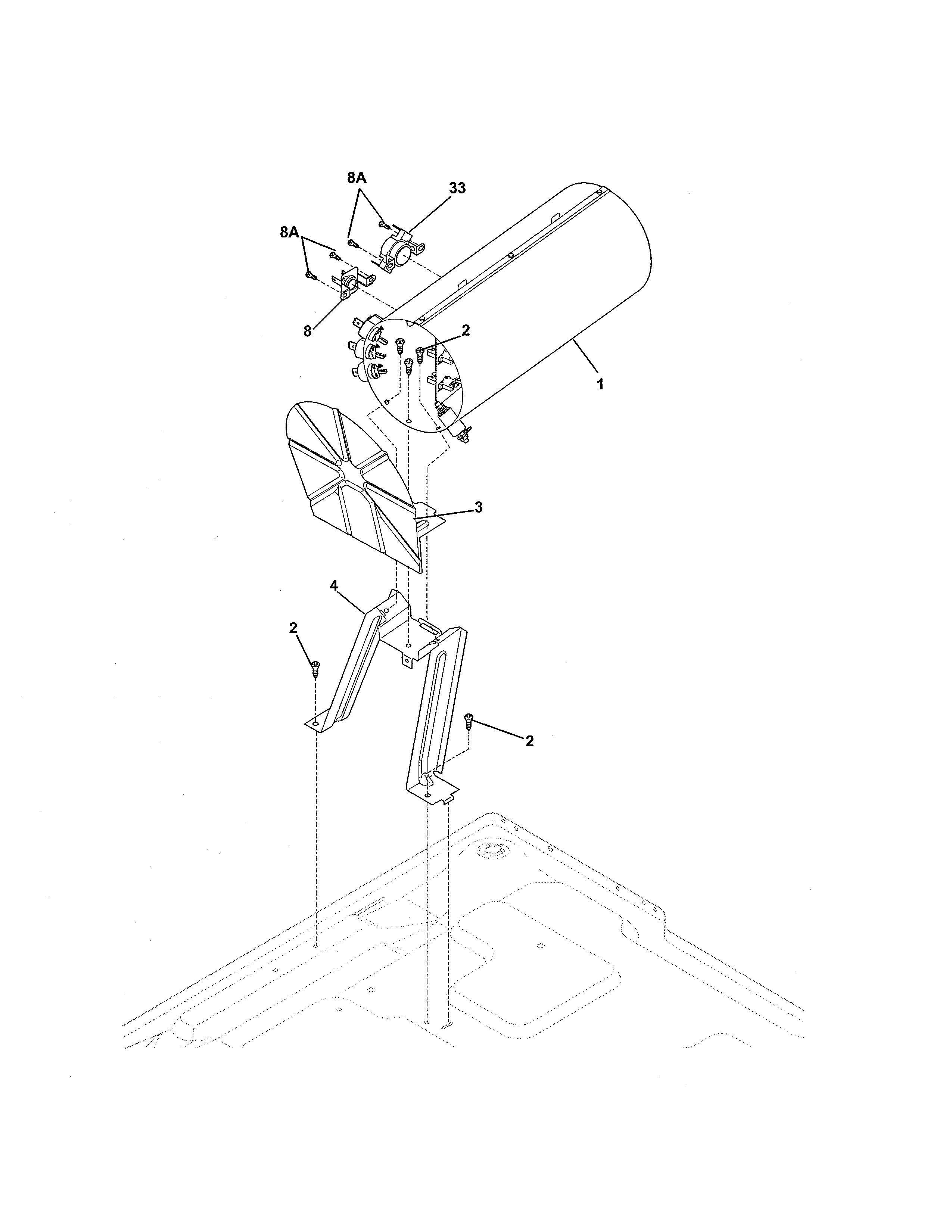

• Heat and temperature safety parts: control heat and prevent overheating (examples: frigidaire dryer heating element 134792700, kelvinator dryer high-limit thermostat 3204267, dryer inlet thermal limiter 137032600, and the thermistor).

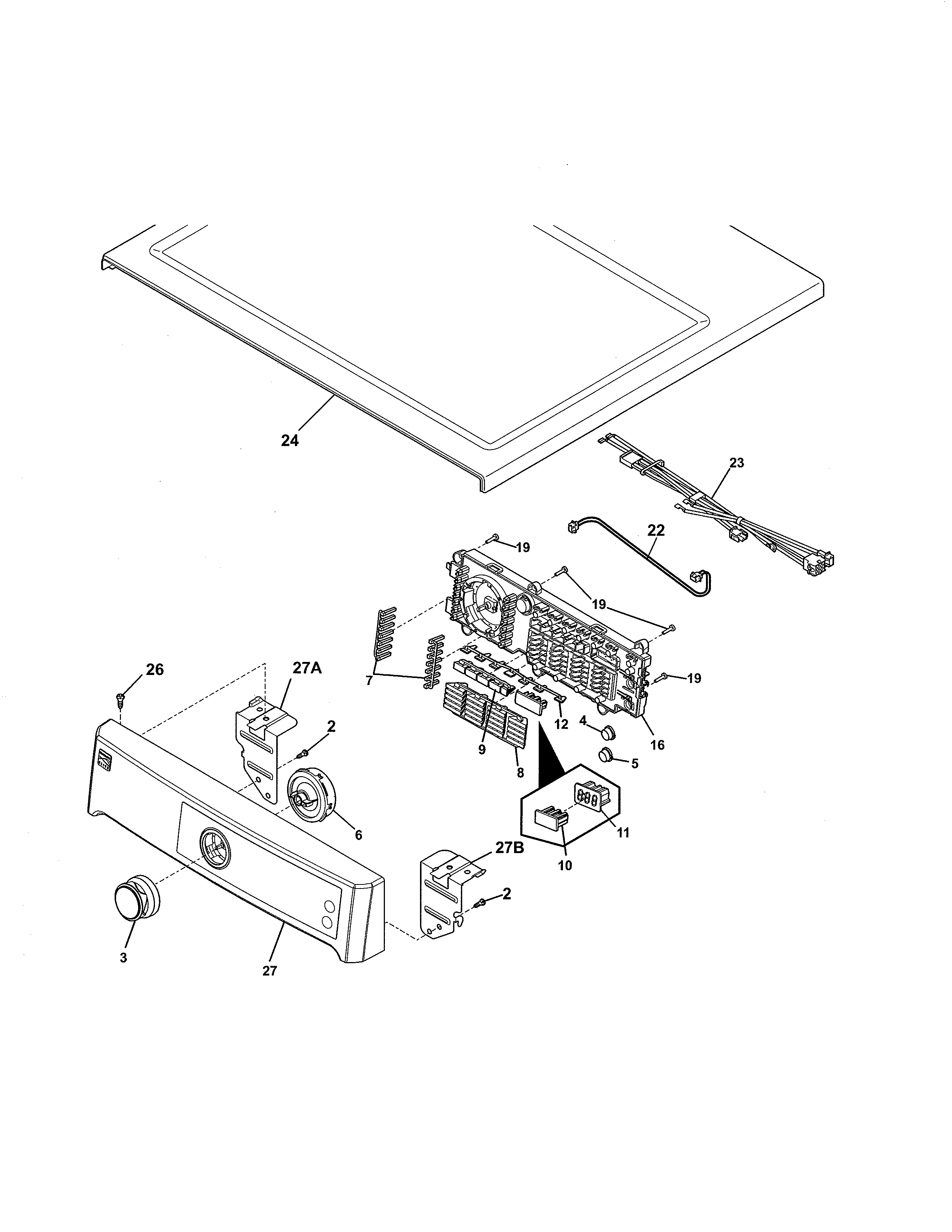

• Controls and user interface: lets you select cycles and monitors operation (example: frigidaire dryer user interface 137237100).

How the systems work together (quick map)

Dryer system	What you notice when it fails	Common parts involved
Tumble (drive)	Drum will not turn, squealing, thumping	Belt, idler, rollers, drum
Airflow (venting)	Long dry times, hot cabinet, burning smell	Blower, lint screen, ducting
Heat and temperature control	No heat, overheating, shuts off	Heating element, thermostat, thermal limiter, thermistor
Controls and power	Will not start, dead display, odd behavior	User interface, wiring harness

Why it matters

Knowing the major parts helps you troubleshoot faster. For example, a “no tumble” symptom usually points to the belt or idler, while “long dry times” often points to airflow restrictions and lint buildup.

Safety notes we follow when servicing

• Exhaust the dryer outdoors; never vent into walls, attics, or other concealed spaces.
• Avoid screws or screens inside the vent that can trap lint.
• Turn power off at the breaker before accessing internal parts.
• Use the correct 3-wire or 4-wire cord setup for your outlet type.

If you need to order replacement parts for 41781102003, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

The PF code on your Kenmore Elite dryer model 41781102003 means the dryer detected a power failure or power interruption during operation. Clear it by pressing Pause/Cancel/Stop twice, then restart the cycle; if PF returns, focus on the home power supply and cord connection.

How to clear PF and get the dryer running again

• Press Pause/Cancel/Stop two times to clear the display.
• Select a cycle and press Start.
• If the dryer stops again, check for a loose plug or a tripped breaker.
• If you recently installed or moved the dryer, confirm the outlet type and cord match the dryer’s requirements.

What usually causes a PF code

A PF code is almost always caused by the dryer losing voltage briefly. Common causes include:

• A tripped breaker or blown fuse (especially on electric dryers using a 240V circuit)
• A loose power cord at the wall outlet or terminal block
• A momentary outage or power flicker in the home
• Using certain non-utility power sources (generator, solar, wind) that can have inconsistent voltage
• A failing outlet, cord, or house wiring connection that drops voltage under load

Quick electrical checks (safe, no disassembly)

• Make sure the plug is fully seated and the outlet feels firm (not loose).
• Reset the breaker fully: switch OFF, then ON.
• Avoid running the dryer on a circuit shared with other heavy loads.
• If PF happens only when heat turns on, the circuit is often dropping voltage under load.

What you notice	Most likely issue	What to do next
PF appears once after a storm/outage	Temporary power interruption	Clear PF and resume
PF repeats randomly	Loose plug/outlet or unstable supply	Check outlet fit, reset breaker
PF happens when cycle starts or heat engages	Circuit/cord connection problem	Verify correct circuit and cord setup

Why it matters

When the dryer loses power mid-cycle, it can stop tumbling and heating, leaving clothes damp and extending dry times. Repeated PF events also point to an electrical issue worth correcting so the dryer runs safely and consistently.

Helpful references for this model

• Use the installation guide to confirm the correct electrical requirements and power cord setup for the 41781102003.
• If you need replacement parts for related symptoms (no tumble, squealing, or belt issues), you can shop by model on this page or search by model number at Sears PartsDirect.

Last updated: February 2026

On the Kenmore Elite dryer model 41781102003, the model number is typically printed on a rating label inside the dryer door opening. Open the door and check the cabinet frame around the opening first; that is the most common location. See the installation guide for label and safety details, and use Sears PartsDirect if you need to look up parts by model.

Most common places to check

• Inside the door opening on the front cabinet frame (top, side, or near the latch area)
• On the inner edge of the door itself (around the perimeter)
• Just behind the door opening on the front panel lip
• On the back panel of the dryer cabinet (less common, but possible)

What the label looks like (and what to write down)

The label is usually a small sticker or metal plate. We recommend writing down:

• Model number (for this page: 41781102003)
• Serial number (helps match production variations)
• Type (gas or electric, if shown)

Quick tips to find it faster

• Use a flashlight and look for a white or silver label with dense text
• Wipe dust off the door opening and frame; labels can blend in
• Take a photo so you can zoom in and avoid transcription errors

Why it matters

The model number is what we use to match the correct Kenmore Elite dryer parts and diagrams. Even small model-number differences can change which items fit, such as a drum belt, idler assembly, or heating components.

Common part lookups once you have the model number

What you’re fixing	Commonly involved parts for this model
Drum not turning	Belt, idler, drum support rollers
No heat or overheating	Heating element, high-limit thermostat, thermal limiter
Long dry times	Lint screen, blower housing, venting checks

Last updated: February 2026
